- Six wash programs to suit any load, from Delicate to Heavy
- American Disabilities Act (ADA) compliant, this Double DishDrawer™ sits at an accessible height

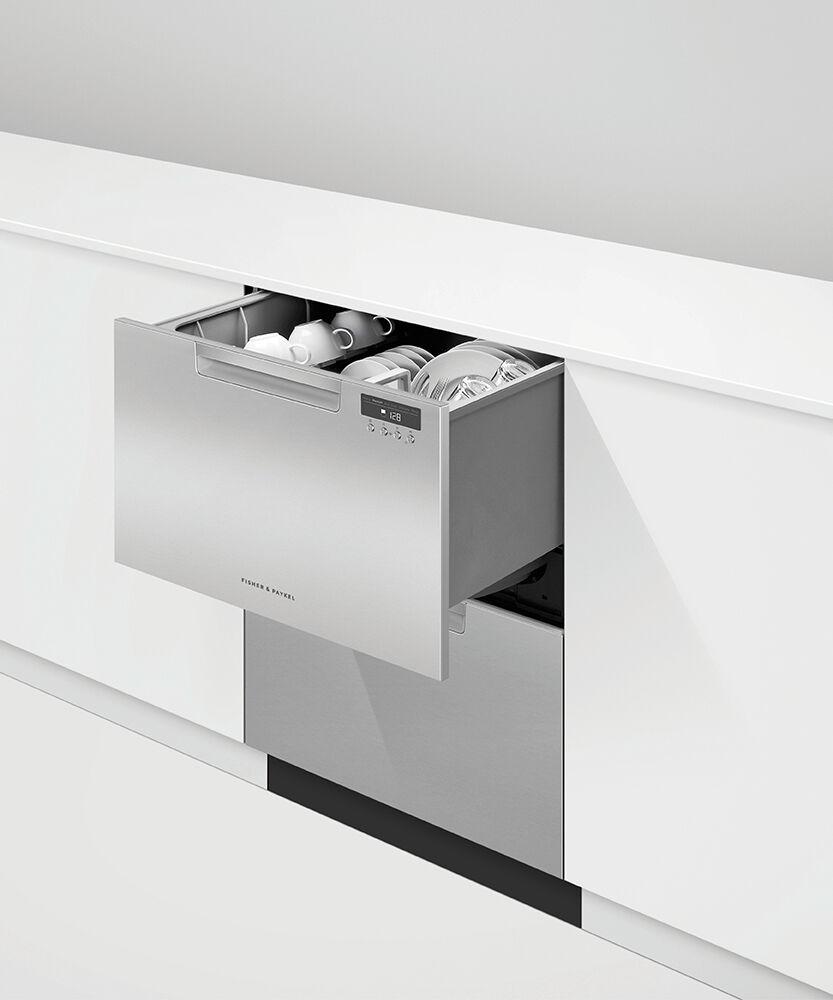

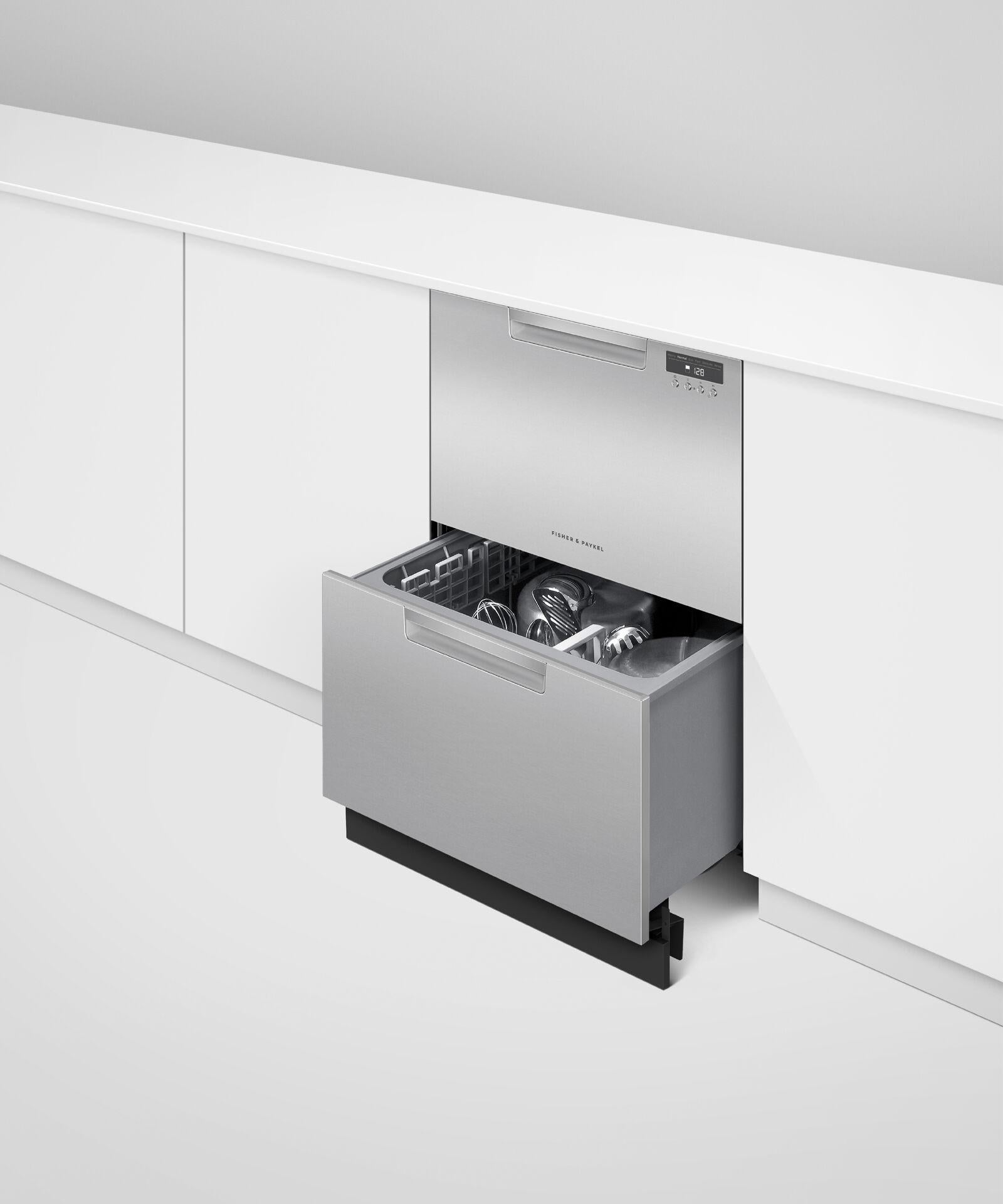

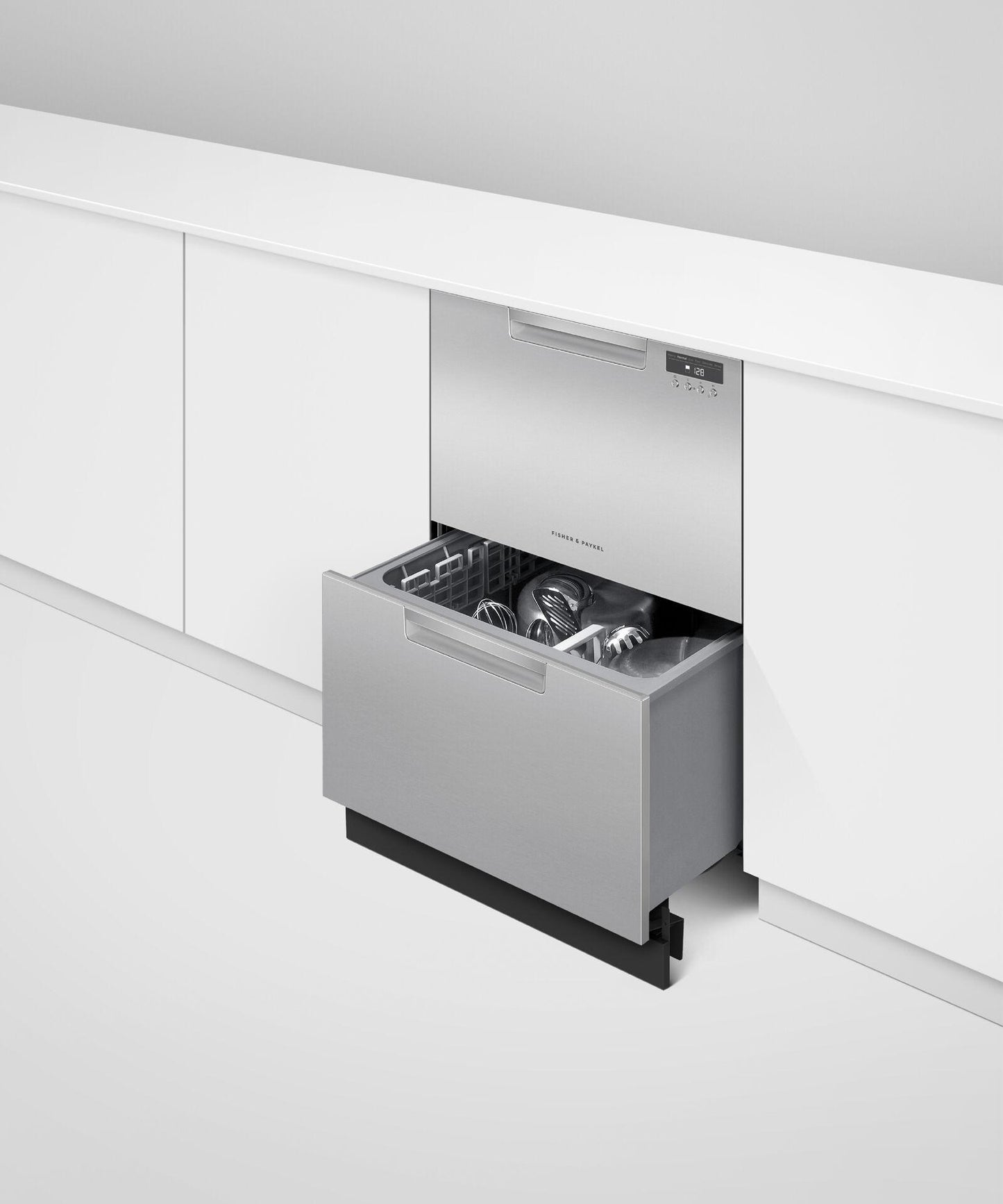

With a contemporary stainless steel finish, each drawer washes independently and fits a half load, so you can run one while you load the other.
Finish Stainless Steel
Finish Stainless Steel
| Accessories | |
| Kickstrip | included |
| Capacity and loading | |
| Accommodates round plates up to | 11 " (top drawer) 11" (bottom drawer) |
| Place settings | 14 |
| Place settings per drawer | 7 |
| Consumption | |
| Energy usage | 265kWh/year |
| Water usage (per wash cycle) | 3.44 gal running both tubs |
| Controls | |
| Features | |
| Motor type | BLDC |
| Performance | |
| Noise on standard cycle top drawer | 43dBA |
| Power requirements | |
| Amperage | 10A |
| Electric circuit | 3 wire |
| Rated current | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 100 - 120V |
| Product dimensions | |
| Depth | 22 9 / 16 " |
| Height | 32 5 / 16 - 34 5 / 8 " |
| Width | 23 9 / 16 " |
| Safety and compliance | |
| Warranty | |
| Parts and labor | Limited 2 years |
| Wash Programs | |
| Wash programs | 6 |
| Water connection | |
| Water pressure | 30kPa - 1000 kPa |
| Water supply | 3 / 8 " to suit Male Compression Fitting |
