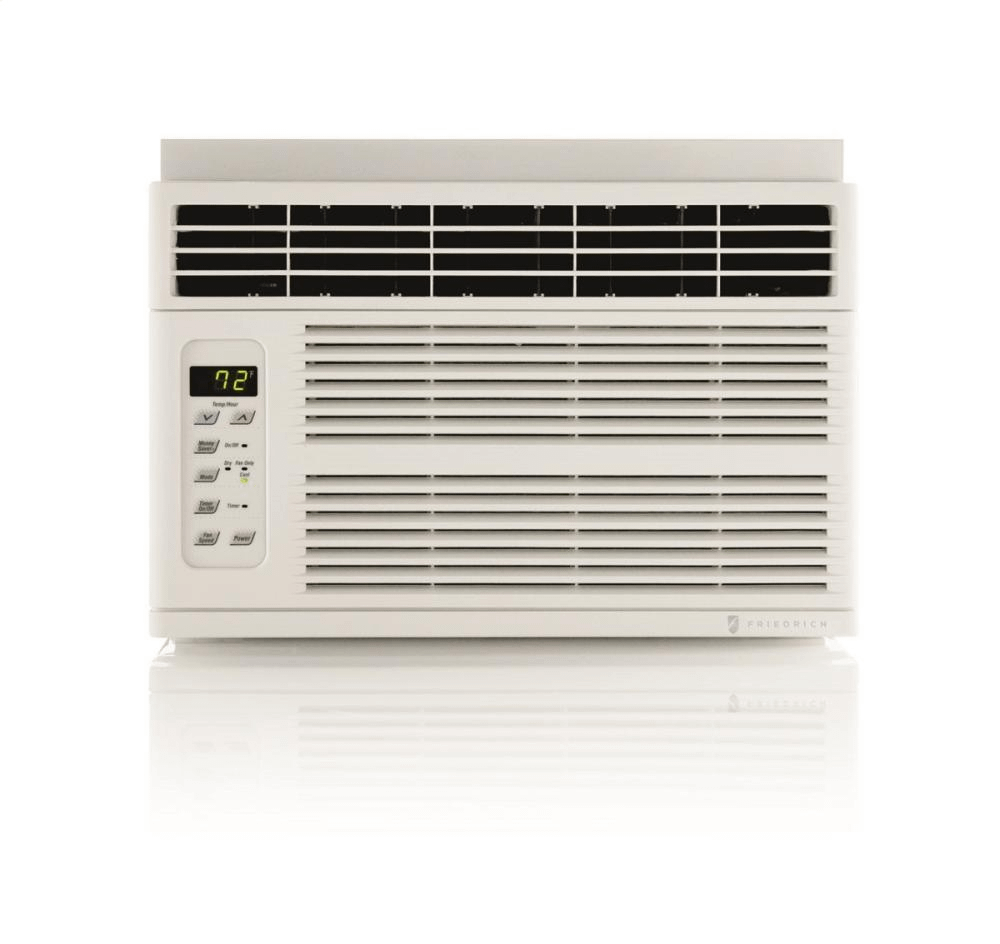

Friedrich CP12G10 Commercial Chill CP12G10 CP12G10
Chill is energy efficient and easy-to-handle. Almost every model is ENERGY STAR® qualified, and the programmable timer plus the MoneySaver® setting help manage energy use and reduce costs.
With capacities from 5450 to 23500 Btu/h and the Auto Air Sweep feature, Chill can evenly cool a single room or a large open space. All models include a remote control. To determine the appropriate cooling capacity, see our sizing guide and model specifications .
Easy installation and maintenance
Chill is flexible: Install models CP06-CP24 thru-the-wall* or in a window using the included hardware. Up to 29% lighter than Kuhl models of comparable capacity, Chill units are easy to maneuver. Plus, the slide-out chassis , which greatly simplifies installation and maintenance, is available starting with the 6000 Btu/h CP06.
Auto Air Sweep FeatureThe Auto Air Sweep* swing louvers provide consistent air distribution, for even cooling throughout the room or in large, open spaces.
* CP05 must be installed in a window.
Available in cooling-only models- Cooling from: 5450 - 23500 Btu/h
- Comfort and Durability
- 24-hour timer lets you program on/off times
- Auto Air Sweep swing louvers* provide more even air distribution
- Side Air Discharge*
- 3 cooling and fan speeds**
- Ultra-quiet operation
- 4-way air-flow control
- Auto restart saves settings if power is interrupted

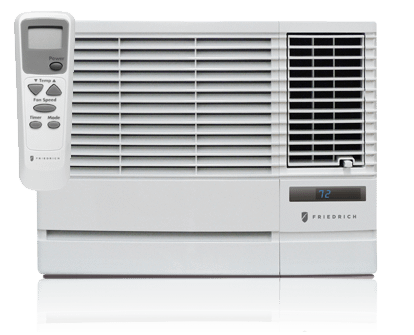

- Digital remote control that adjusts mode, fan speed, temperature and sets the timer***.
- Energy Management and Compliance
- ENERGY STAR® qualified models
- MoneySaver®* setting saves money by conserving energy
- Health and IAQ
- Washable, antimicrobial air filter
- Stale air exhaust*
- Maintenance and Installation
- Slide-out chassis*
- Install in window or thru-the-wall*
- Standard installation hardware
- Expandable side curtains
- Power cord can run either left or right out of the unit front
- Safety and Security
- EntryGard anti-intrusion protection
** models with heat have 2 speeds
*** CP15-CP24 remotes do not have digital readout. Chill +
Available in cooling plus electric heat models
- Cooling from: 8000 to 23500 Btu/h
- Heating: 3850 to 12000 Btu/h
For spaces needing heat in addition to cooling, we've added models with electric heat. Chill+ will heat and cool spaces from 300-1500 sq ft, depending on unit capacity. 2-speed settings each for fan, cooling and heating modes.
Model | CP12G10 |
Cooling Capacity (Btu/hr) | 12000 |
Heating Capacity (Btu/hr) | n/a |
EER | 10.8 |
Energy Star Qualified | |
Min. Extension Outside | 12" |
Unit Dimensions | |
Height | 15" |
Width | 23 5/8" |
Depth | 21 3/4" |
Window Dimensions | |
Min. height | |
Min. width | 25 1/4" |
Max. width | 39" |
In-Wall Installation | |
Opening height | 15 1/4" |
Opening width | 23 7/8" |
Max. wall depth | 8" |
Additional Measurement Information | |
Min. Extension Into Room | 4 1/2" |
Shell Depth to Louvers | 8 3/4" |
Sleeve | P7 |
Detailed Electrical Information | |
Voltage | 125V-15A |
Circuit Rating Breaker or T-D Fuse | 5-15P |
Plug Face (NEMA #) | 5-15P |
Power Cord Length | 6 ft. |
Cooling Amps | 10.2 |
Heating Amps | |
Air Circulation | 330 cubic feet per minute |
Est. Yearly Operating Costs | $89 |
Moisture Removal | 3.3 pints/24 hours |
Net Weight | 87 lbs |
Shipping Weight | 93 lbs |
