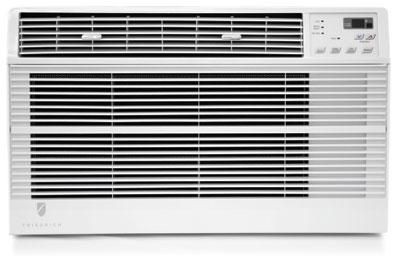

Uni-Fit US10D30C US10D30C

Universal fit for existing thru-the-wall sleeves
Uni-Fit makes it easy to replace air conditioners for existing 24.5", 26" or 27 1/2" sleeves without complicated, time-consuming retrofits. This small unit is specifically designed to replace virtually any thru-the-wall air conditioner quickly and cost-effectively.
Depending on the existing sleeve's size, Uni-Fit's smaller dimensions may require the use of the included trim ring to bridge a small gap between the unit and the existing sleeve. The trim ring will fit gaps up to 1" on the sides and 1/2" on the top of the unit for a neat, finished appearance. All models include a remote control.
Energy-efficient operation
Many Uni-Fit cooling-only models are ENERGY STAR qualified.
Solid-side sleeves for installations in thicker walls
Covering an air conditioner's side vents can restrict air flow, diminish performance and potentially void the warranty. Our solid-side sleeve has no side vents and can be installed through walls up to 16 1/4" without compromising performance.
A flush mount provides a clean exterior appearance; for a slimmer interior profile, adjust the positioning of the unit accordingly during installation.
Available in cooling-only, cooling plus electric heat and heat pump models

• Cooling: 8000 to 13000 Btu/h
• Heating: 3850 to 11200 Btu/h

Comfort and Durability

• Six-way air-flow control
• Stale-air exhaust
• Remote control
• 24-hour programmable timer
• Three-speed fan on cool only models
• Two-speed fan on heat/cool models
• Auto restart
• Washable antimicrobial filter
• Defrost control

Energy Management

• MoneySaver setting saves money by conserving energy
• ENERGY STAR qualified models

Safety and Security

• Rotary compressors provide quiet, dependable performance
• Seacoast protection for corrosion resistance in harsh environments
• AHAM-certified performance
• UL and C-UL-US listed

Maintenance and Installation

• Uni-Fit chassis is 24" wide for installations from 24.5" to 27"
• Universal fit trim ring for a neat, installed appearance with larger sleeves
• USC sleeve designed to fit a standard 26" opening. Sleeve is required for new installations. USC sleeve is sold separately.
• Optional replacement exterior grille available for use with existing sleeve

Note: New installations require a USC sleeve, which is sold and shipped separately (see Accessories for details)
Accessories

Model	US10D30C
Cooling Btu	9800/ 9500
Heating Btu	n/a
EER	10.7/ 10.7
CEER	10.6/ 10.6
Volts Rated	230/ 208v
ENERGY STAR® Qualified	Yes
Chassis Height	14 1/2"
Chassis Width	24 3/16"
Chassis Depth	20 5/16"
Unit Dimensions
Height	14 1/2"
Width	24 3/16"
Depth	20 5/16"
Window Dimensions
Height	14 1/2"
Width	n/a
Depth	n/a
Additional Measurement Information
Depth to Louvers	16 1/4"
Sleeve Size	USC
Detailed Electrical Information
Voltage	230/208
Cooling Amps	4.2/4.5
Heating Amps	n/a
Air Circulation	285 cubic feet per minute
Moisture Removal	3.2 pints per hour
Net Weight	78 lbs
Shipping Weight	86 lbs
