Friedrich WHT12A33A WallMaster WHT12A33A WHT12A33A
WallMaster ® is your ONLY perfect fit for existing 27" sleeves, including Fedders A and B (requires a baffle kit). Our new 2021 smart models have integrated Wi-Fi control through FriedrichConnect ® , and are also voice compatible. From the durable commercial-grade construction to our QuietMaster ® technology, WallMaster ® is feature-packed. Available in 8,000 - 14,500 Btu/h. Cooling only, heat pumps and cooling + electric heat models.
Quietmaster ® Technology
Engineered for quiet performance with superior components. As much as 45% quieter than competitor's products.
- Steel inner wall and extra dense insulation blocks outdoor noise
- Vibration isolating design and components reduce operating noise
- Precision engineering delivers maximum air flow and air dispersion at low sound levels
Smart Wi-Fi Control with Voice Command
Home or away, you're in control with the FriedrichConnect ® App. Integrated Wi-Fi control from your smartphone and voice command compatible. New intuitive platform. Simplified 7-day programmability. With our advanced grouping program, you can control multiple units to work independently or as a single system. You can even invite other users to manage one or more of your units
Commercial Grade Quality & Durability

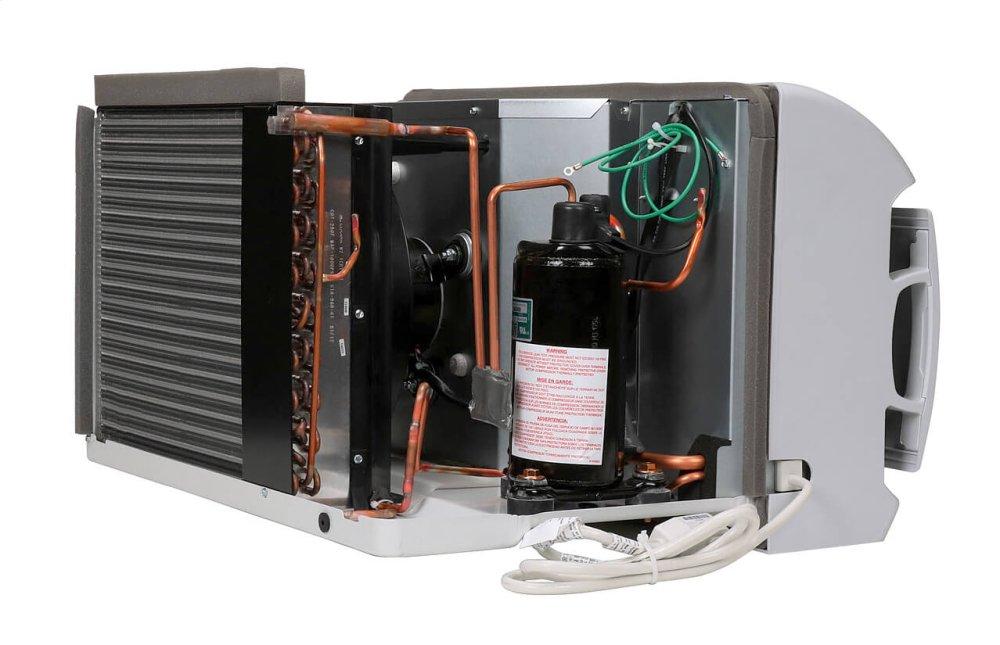

Each WallMaster ® unit is designed with a rotary compressor to provide quiet, dependable performance. Dense blower insulation blocks outside noise. A premium aluminum exterior grille and impact resistant front cover come standard with each model.
Comfort & Convenience
Units are equipped with a three-speed fan, 24-hour timer, and electronic defrost control. Individually adjustable louvers direct airflow to where it's needed most. The unit's Money Saver ® setting cycles the fan with the compressor.
Earth Friendly
Friedrich's commitment to environment-friendly cooling is shown in the WallMaster ® . The unit has eco-friendly R-410A and R-32 refrigerant and arrives in recyclable packaging.
Installation

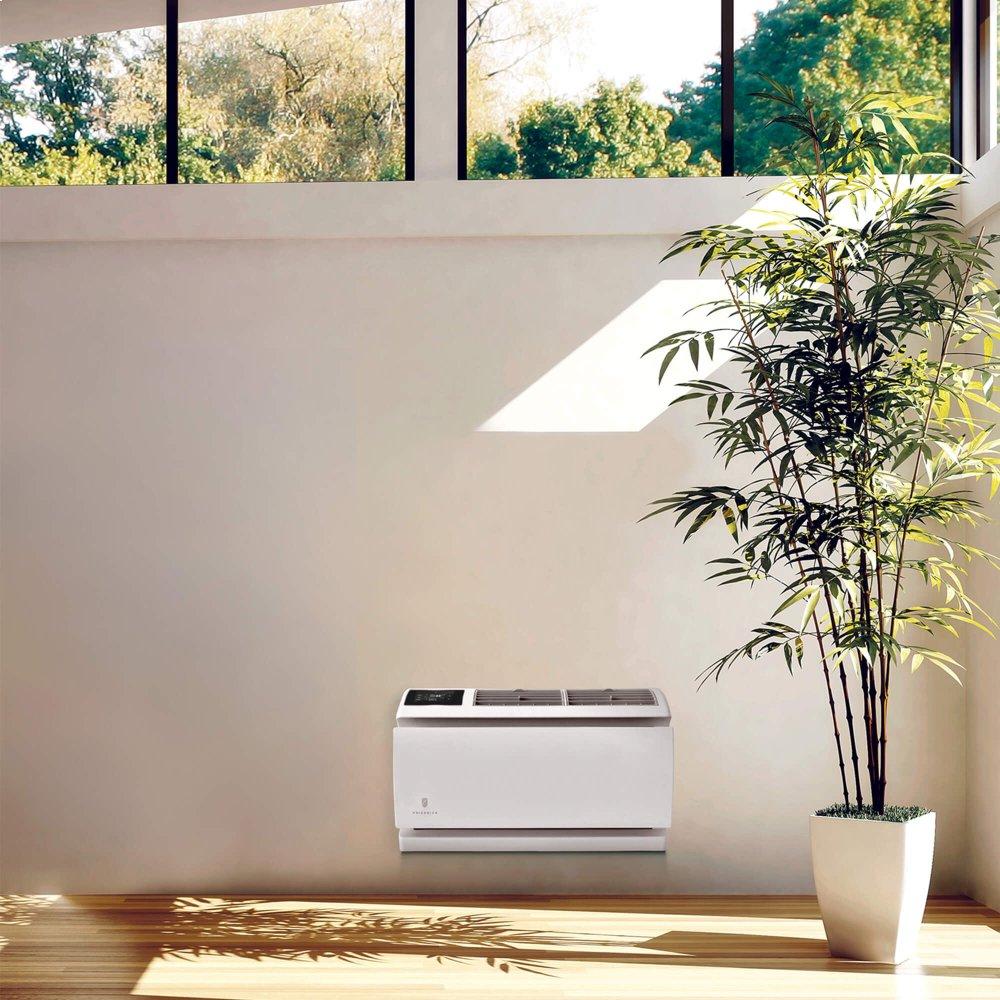

WallMaster ® units mount flush with the exterior wall. Firm grip handles on the chassis allow for easy installation and removal from wall sleeve.
Model | WHT12A33A |
Energy Star Qualified | N |
Operation | Cool/Heat Pump/Electric Heat |
Cooling BTU | 11,100 |
Heating BTU | 8,900 |
Voltage | 230 |
EER | 9.4 |
CEER | 9.3 |
Cooling Area (Sq Ft.) | 450-550 |
Dimensions H" x W" x D" | 17 1/4 x 27 1/2 x 23 1/4 |
REFRIGERANT | R410A |
