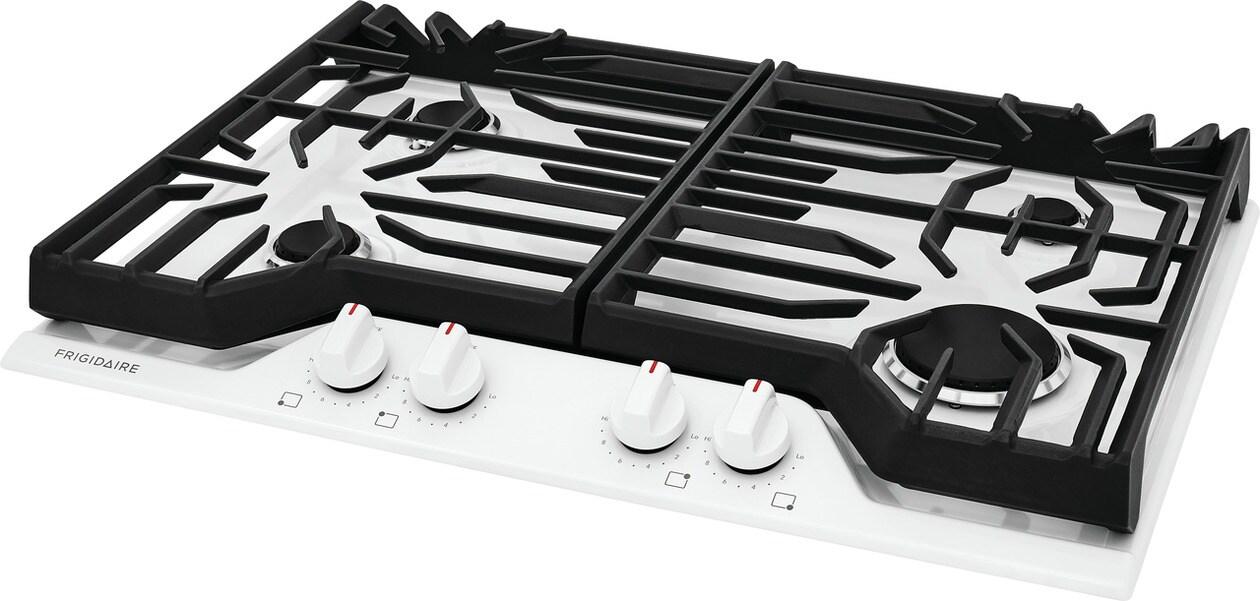

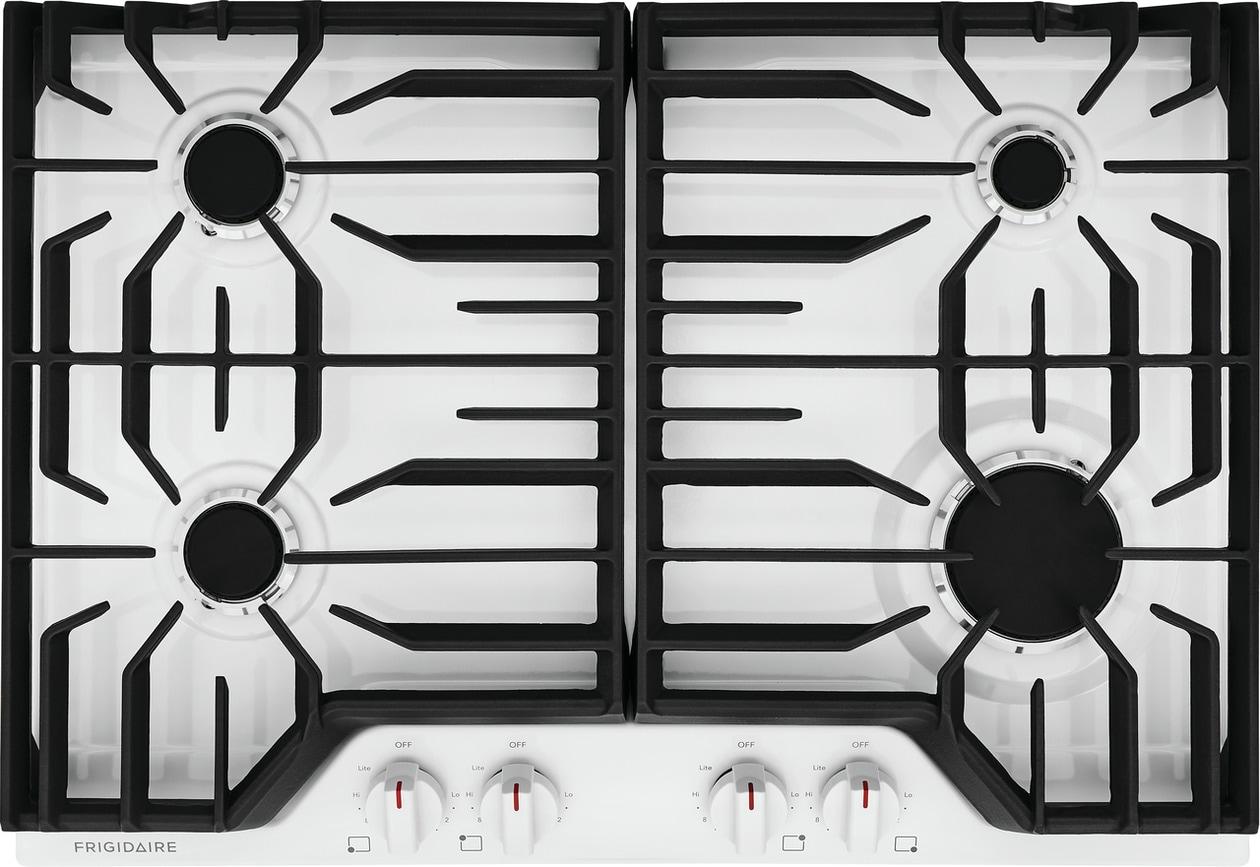

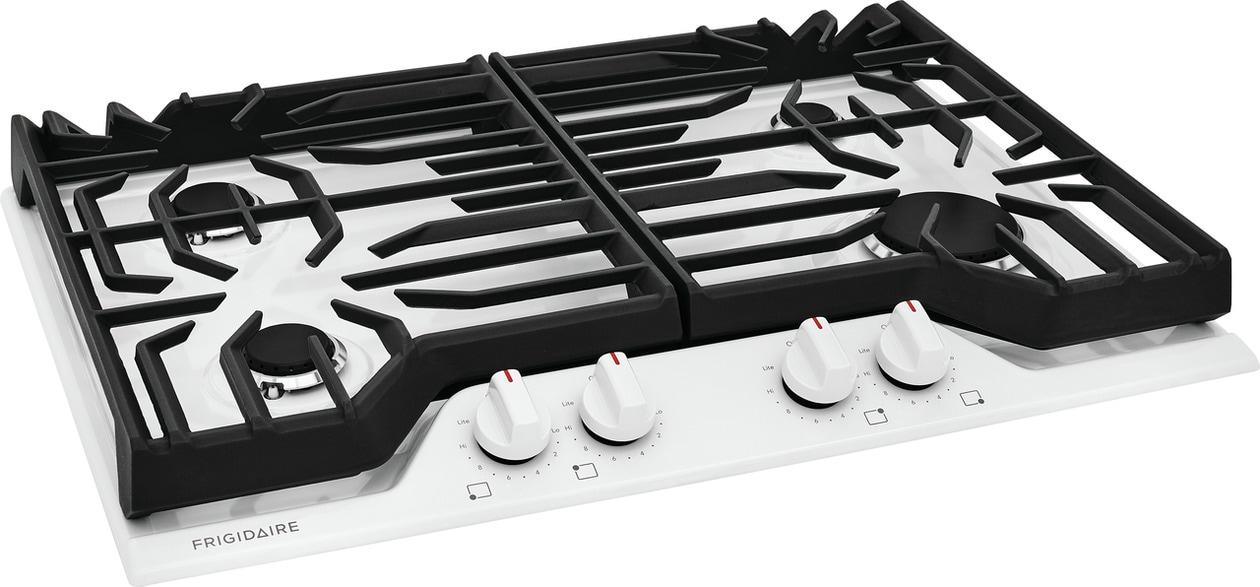

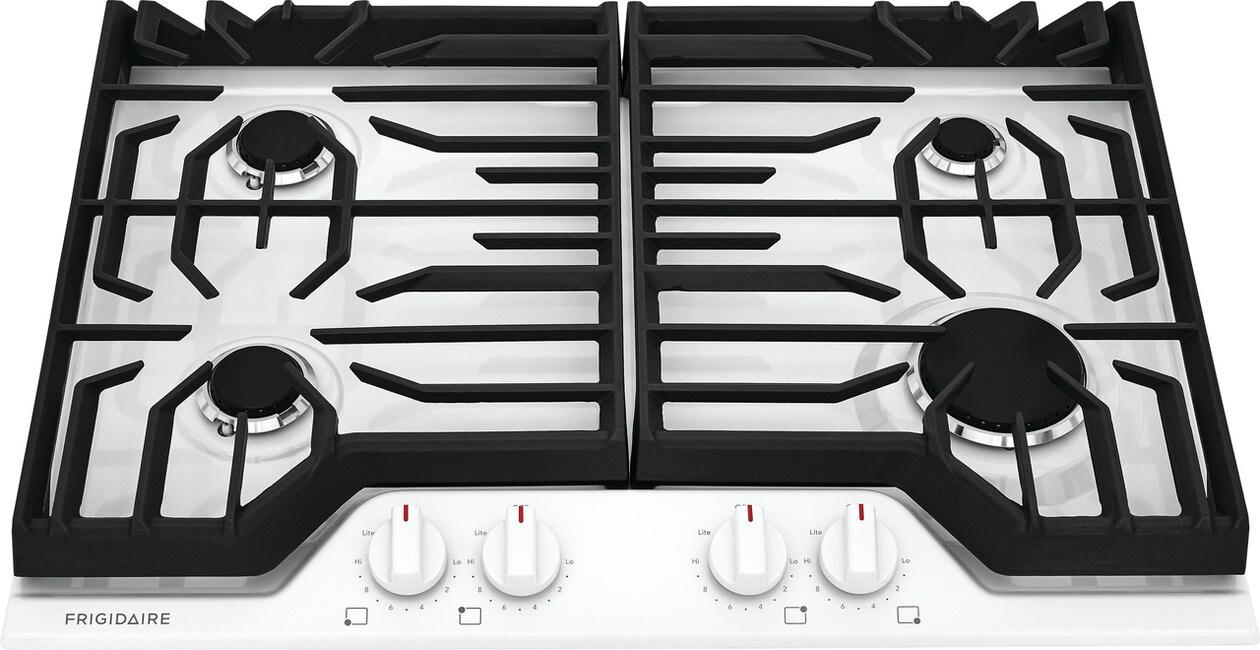

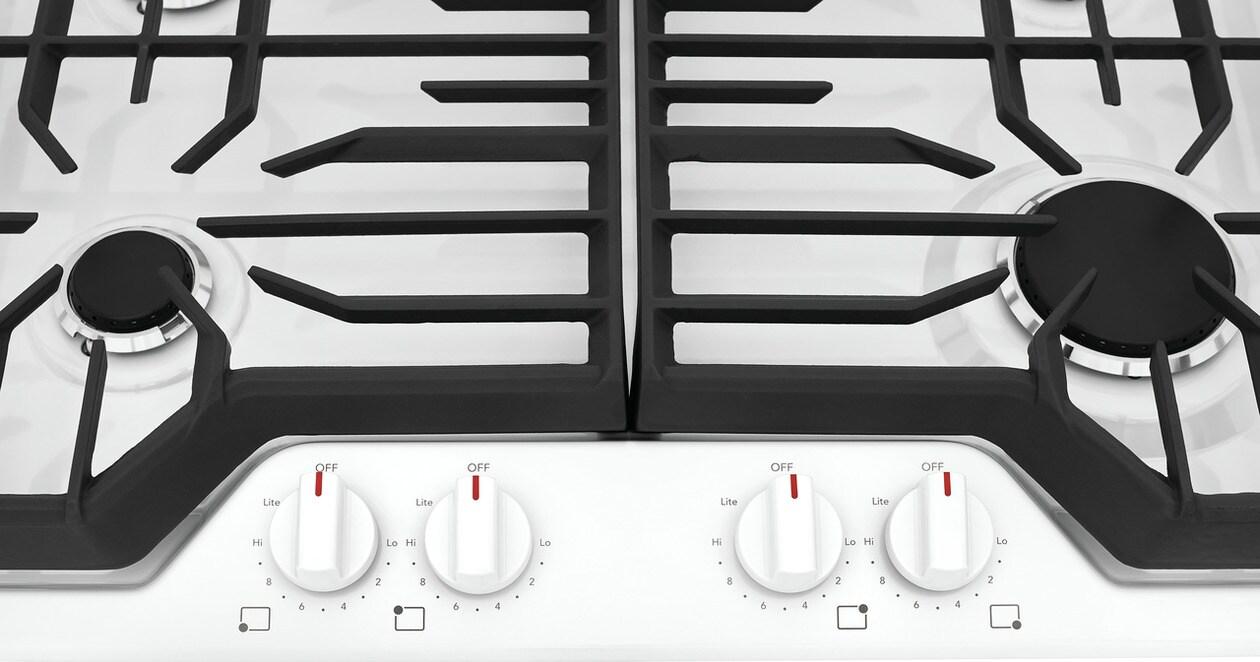

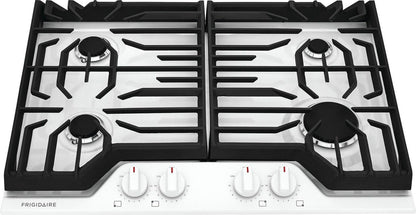

FCCG3027AW Frigidaire 30" Gas Cooktop FCCG3027AW

The Frigidaire 30" Gas Cooktop offers powerful, flexible burners that get meals on the table faster and meet all your cooking needs. Edge-to-edge continuous grates make it easy to move pots and pans without lifting, providing an effortless cooking experience. These cooktops are part of our Frigidaire Fit Promise program that allow you to purchase with peace of mind that your new cooktop will fit your existing cut out.

Product Line	Gas Cooktop
Power Type	NG
Size	30"
Installation Type	Built-In
Factory	Rayong
Color	White
Cooktop
Cooking Surface Type	Gas
Grate Material	Cast Iron
Grate Quantity	2
Grate Style	Continuous
Sealed Burners	Yes
Cooktop Performance
Right Front Element Burner	16000 BTU
Right Rear Element Burner	5000 BTU
Left Front Element Burner	9500 BTU
Left Rear Element Burner	9500 BTU
Display
Control Location	Front
Display Type	Mechanical
Dimensions and Volume
Height	2 7/16"
Width	30"
Depth	21"
Cutout Height	7 1/2"
Minimum Cutout Width	27 1/4"
Minimum Cutout Depth	19"
Maximum Cutout Width	29 5/16"
Maximum Cutout Depth	20"
Electrical Specifications
Amps @ 120 Volts	5 Amps
Voltage Rating	120 V
Installation
Gas Supply Connection Location	Top Right
Installed Over a Wall Oven	Yes
LP Conversion Kit Included	Yes
Power Cord Included	Yes
Power Supply Connection Location	Top Right
General Specifications
Frigidaire Fit Promise	Yes
Product Weight	37 lbs
Prop 65 Label	Yes
Warranty - Labor	1 Year
Warranty - Parts	1 Year
Certifications and Approvals
ADA Compliant	Yes
CSA Listed	Yes
UL Listed	Yes
