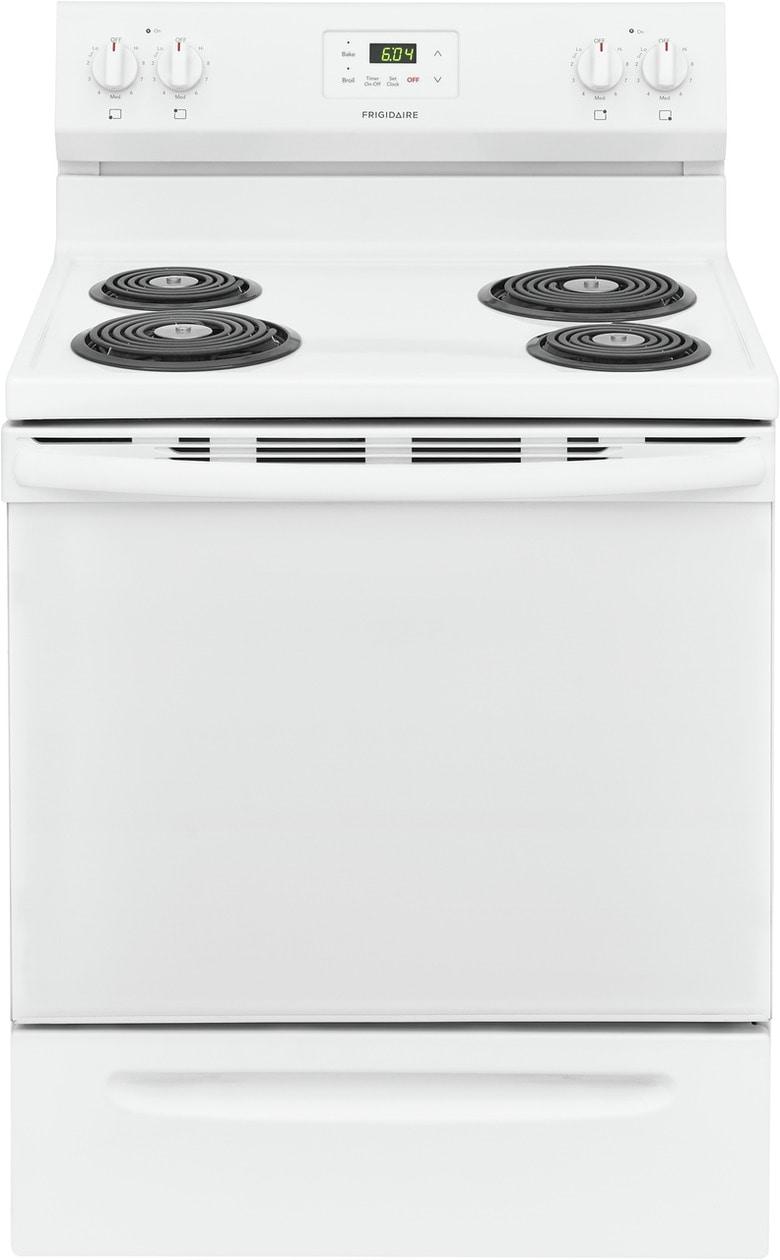

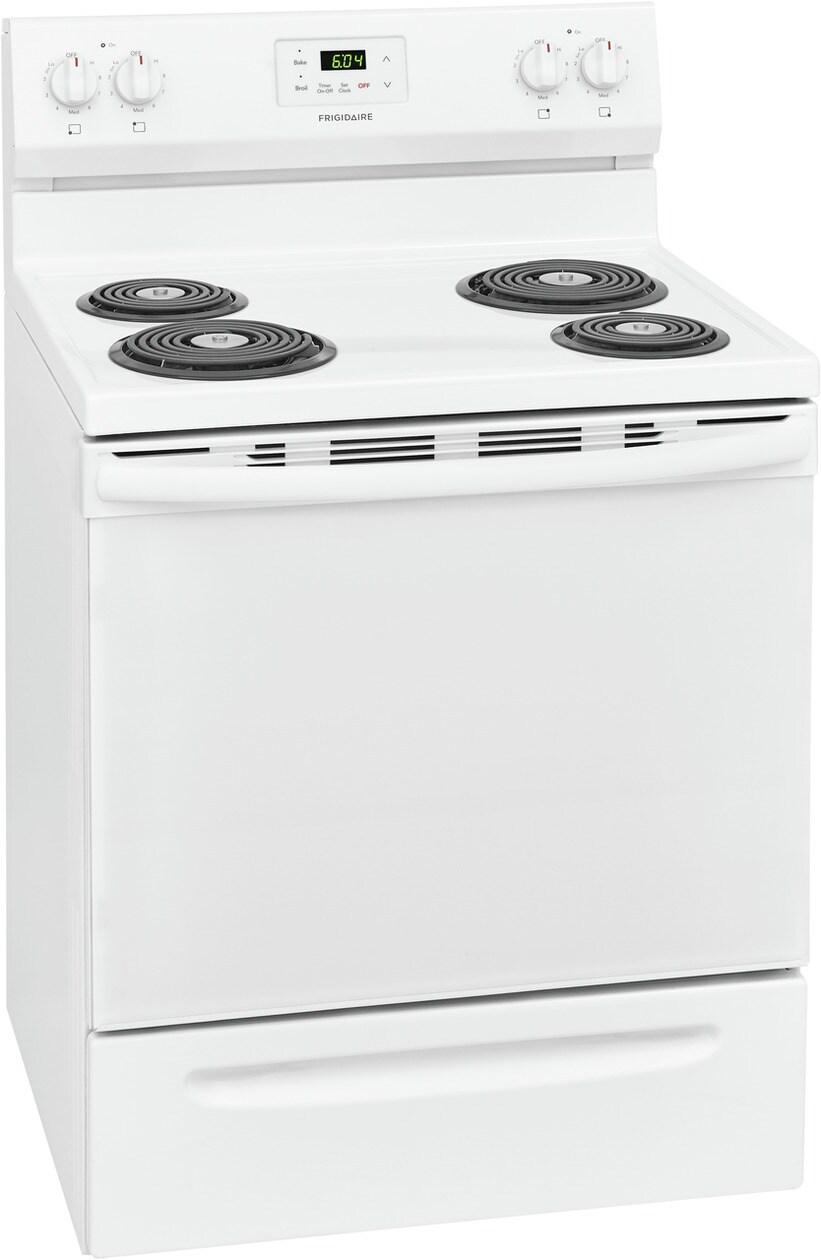

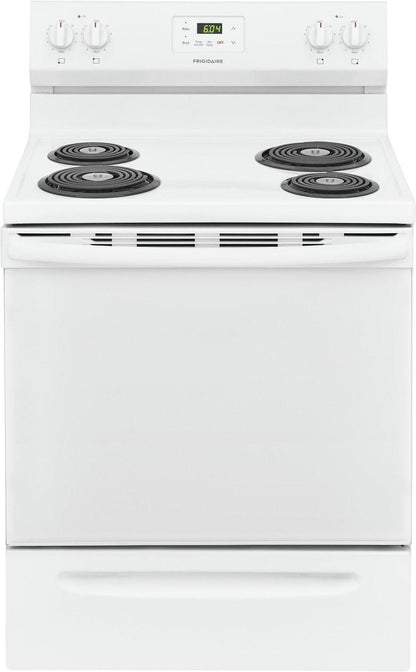

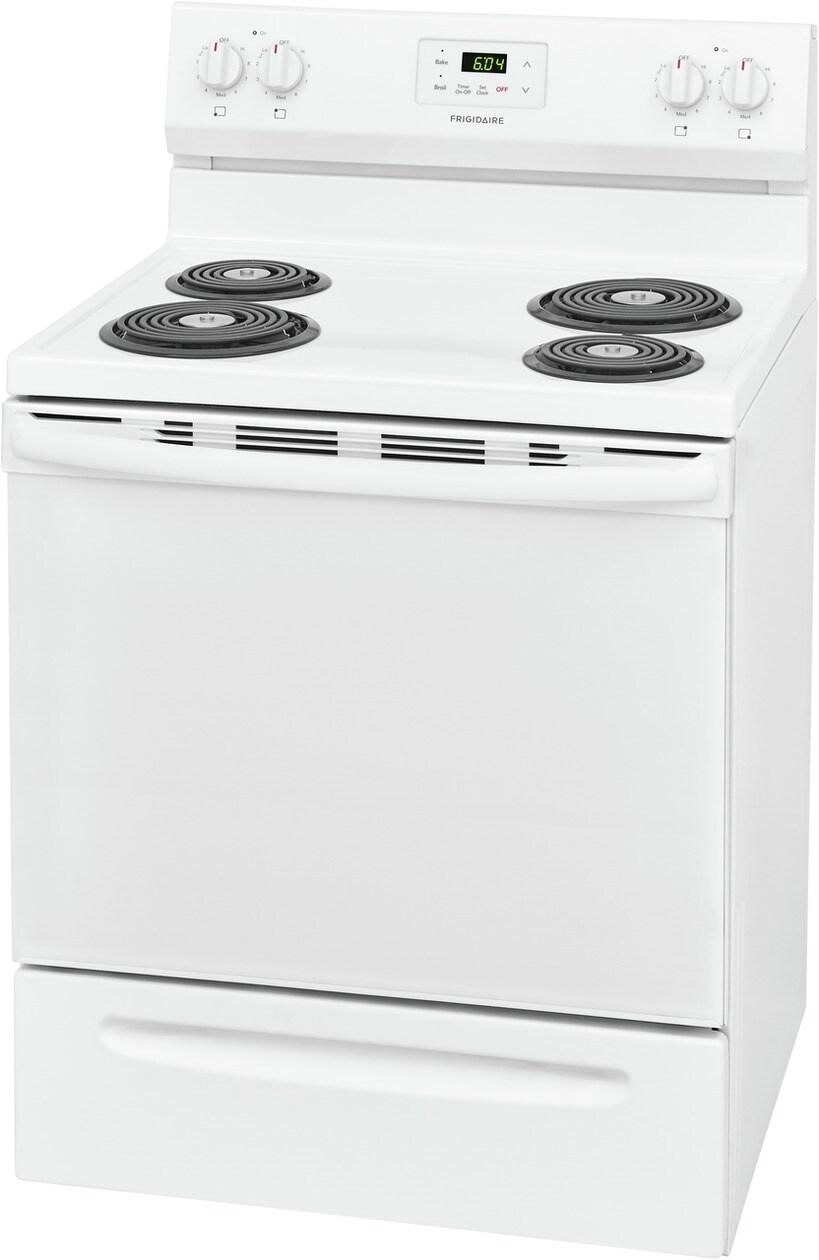

Frigidaire 30" Electric Range FCRC3005AW

The Frigidaire 30 in. Freestanding Electric Range offers a 5.3 cu. ft. capacity oven and a 4-element electric cooktop featuring two 8 in. and two 6 in. coil elements, so you can cook more at once.

Product Line	Coil Range
Power Type	Electric 240v
Size	30"
Installation Type	Free-Standing
Factory	Springfield
Color	White

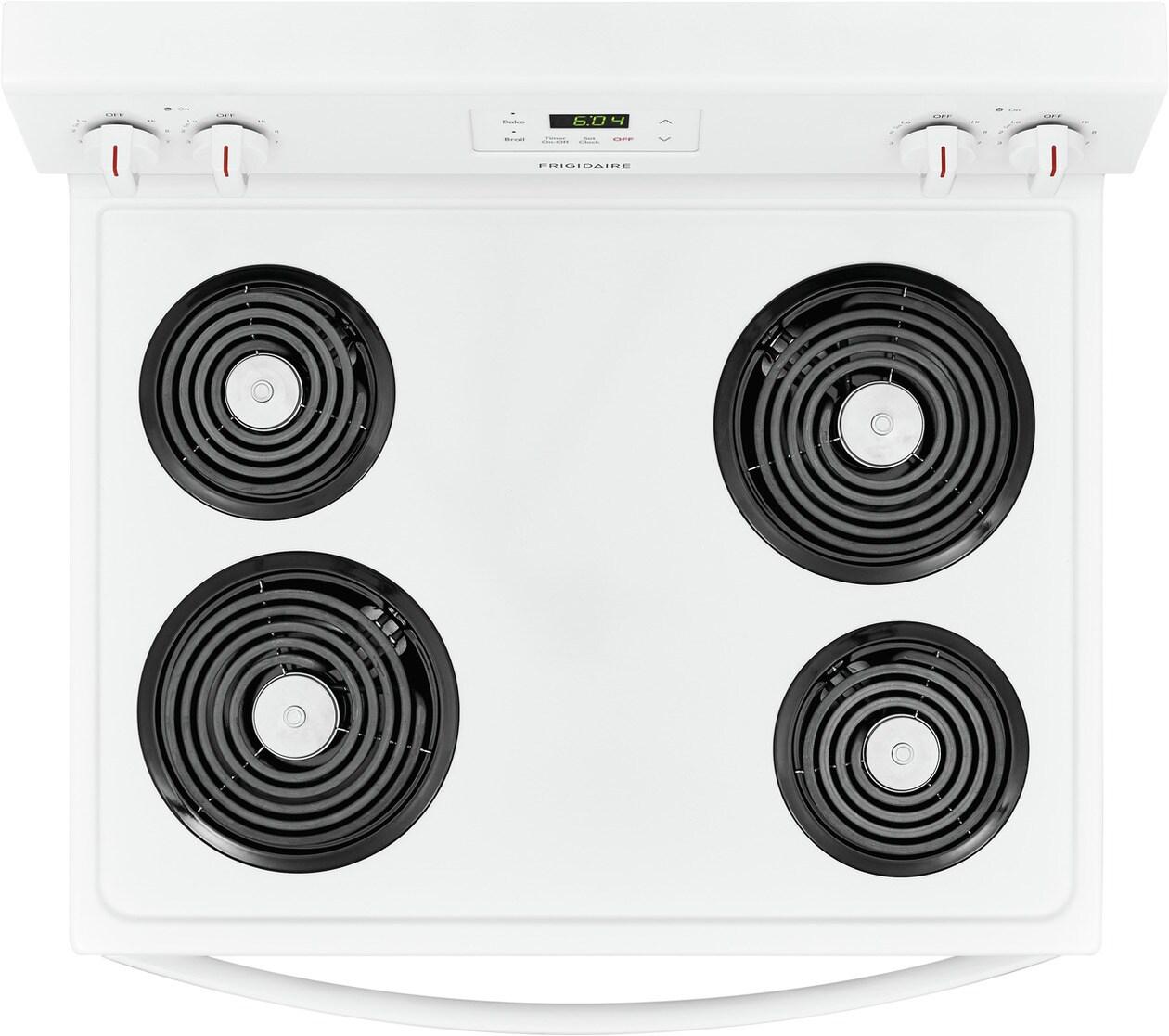

Cooktop
Cooking Surface Type	Coil
Drip Bowl Type	Porcelain
Cooktop Performance
Right Front Element Burner Size	6"
Right Rear Element Burner Size	8"
Left Front Element Burner Size	8"
Left Rear Element Burner Size	6"
Right Front Element Burner	1500 Watts
Right Rear Element Burner	2400 Watts
Left Front Element Burner	2400 Watts
Left Rear Element Burner	1500 Watts
Cooking Controls
Bake	Yes
Broil	Yes
Cancel	No
Kitchen Timer	No
Lockout	No
Off	Yes
Oven Light	No
Preheat	Yes
Probe	No
Self Clean	No
Temperature Display	No
Timed Bake	No

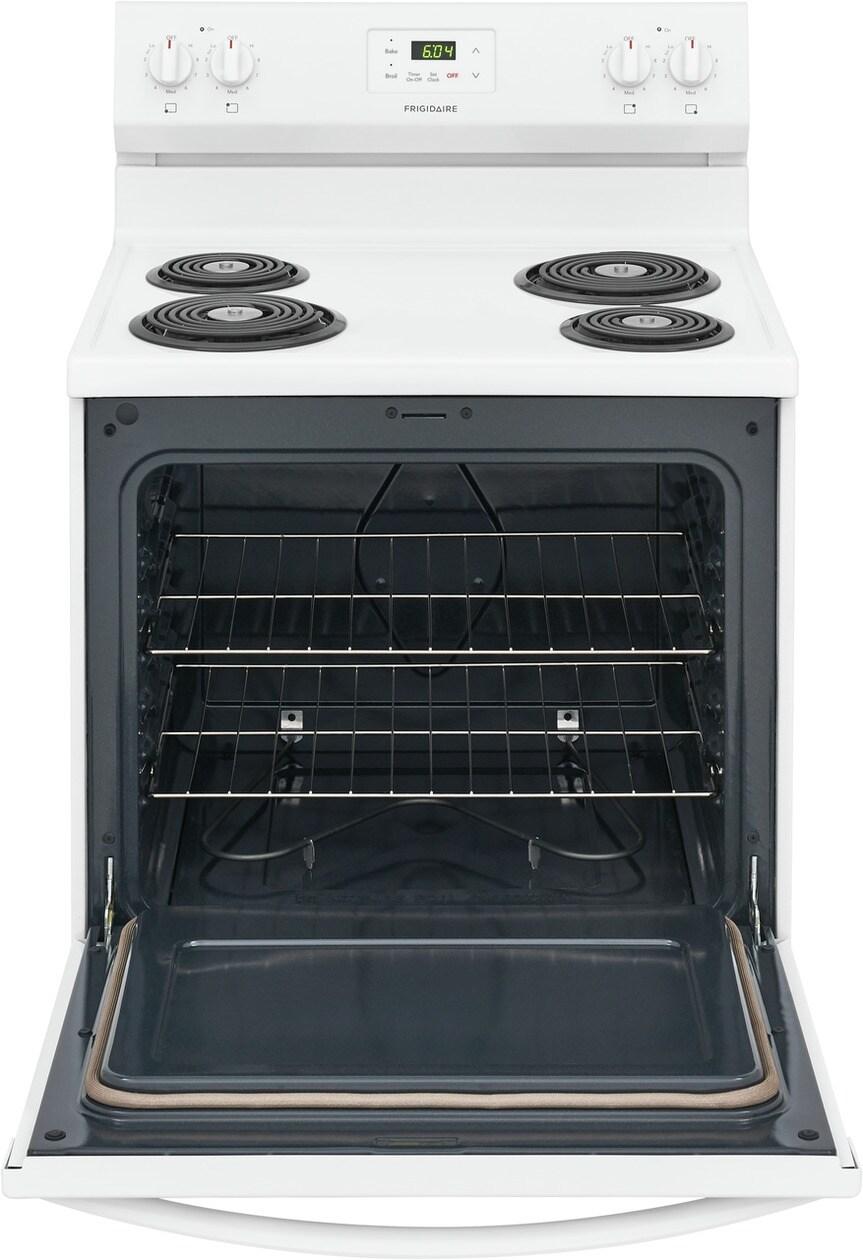

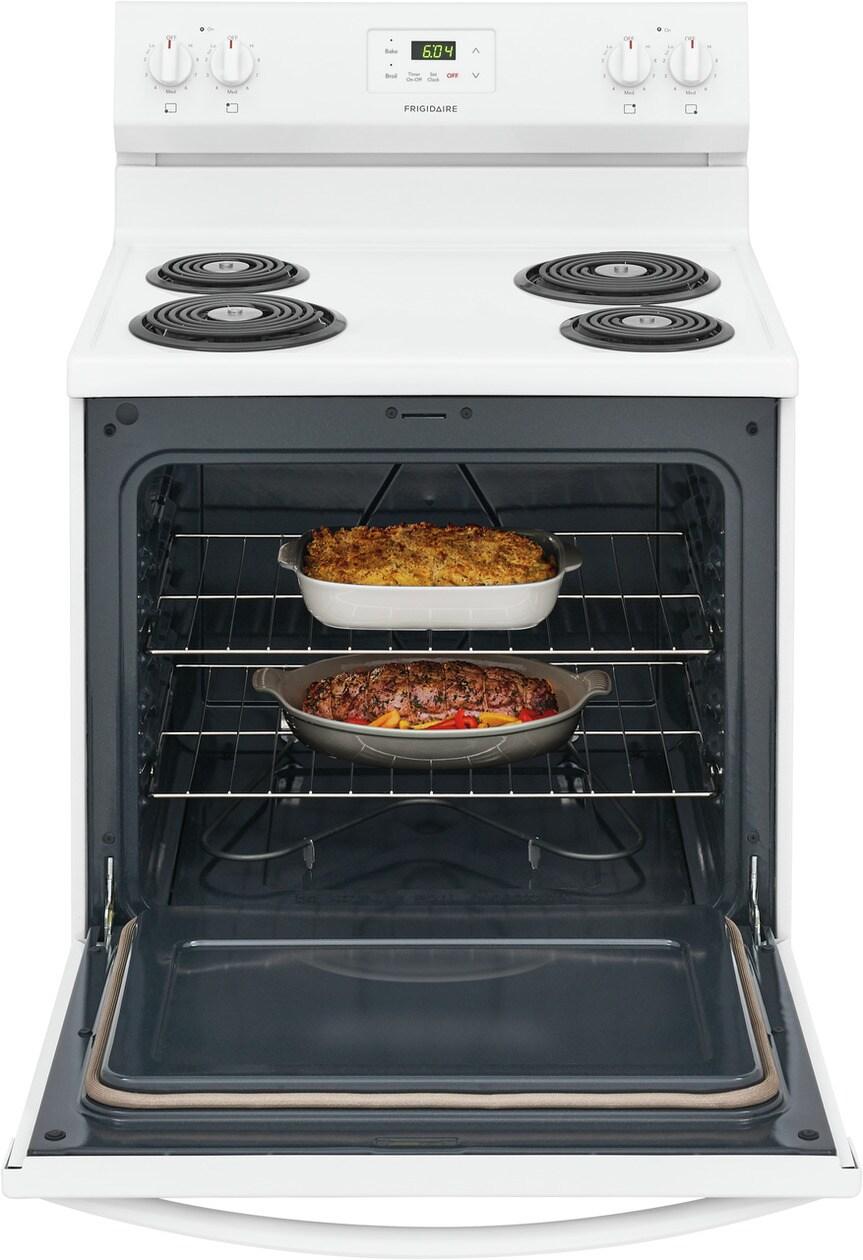

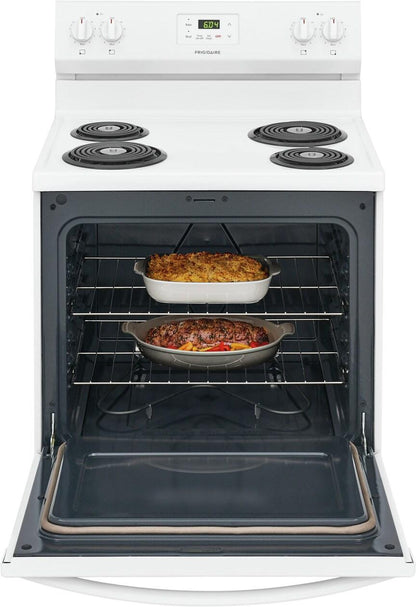

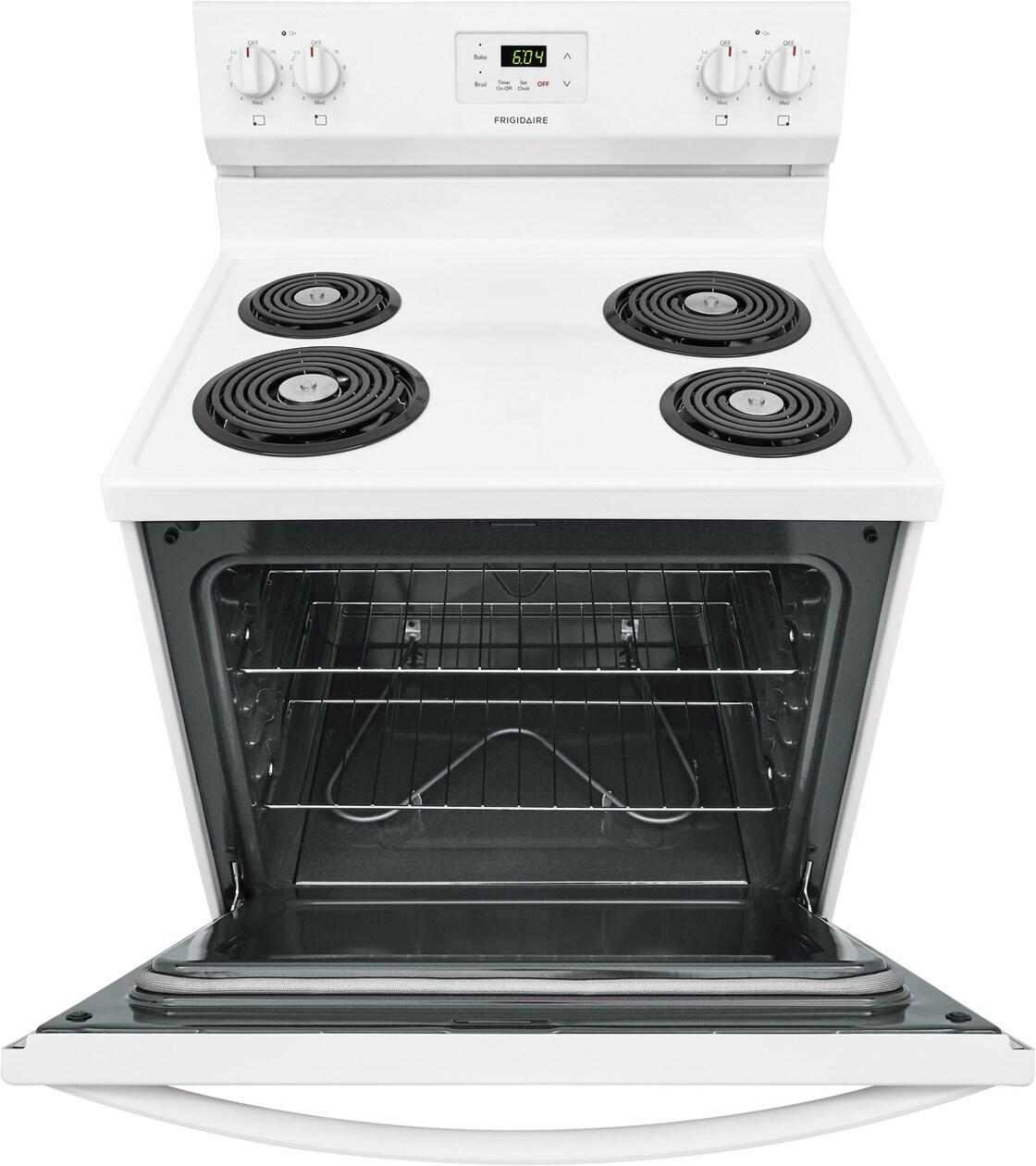

Oven
Bake Element	2600 Watts
Bake Element Type	Hidden
Bake System	Yes
Broil Element	3000 Watts
Broil System	Yes
Number of Rack Positions	6
Oven Interior Color	Slate Blue
Rack Position Type	Nickel Ladder
Rack Type 1	Flat
Rack Type 1 Quantity	2
Drawer
Drawer Handle Style	Integrated
Drawer Type	Storage

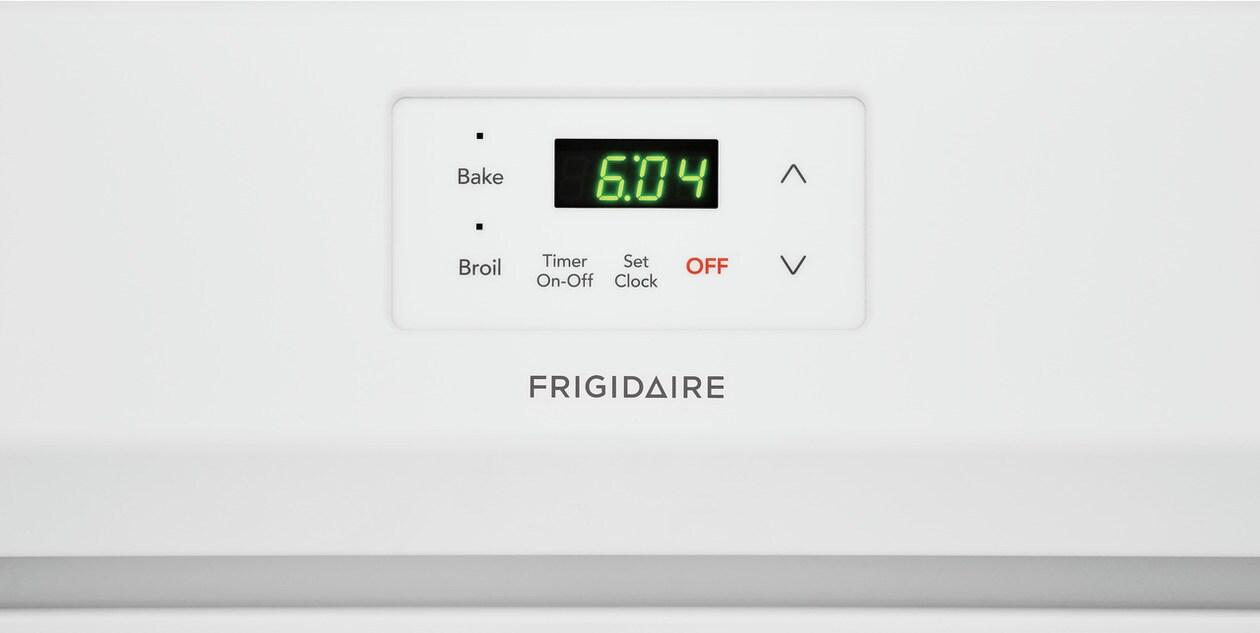

Controls
Control Lock	No
Sabbath Mode	No
Display
Control Location	Rear
Display Type	Membrane
Exterior
Cooktop Finish	Color Coordinated
Drawer Finish	Color Coordinated
Handle Color	White
Knob Color	Color Coordinated
Knob Material	Plastic
Dimensions and Volume
Height	46 9/16"
Width	29 7/8"
Depth	25 3/4"
Depth With Door 90° Open	48 5/8"
Oven Interior Height	19 3/4"
Oven Interior Width	24 3/8"
Oven Interior Depth	19 1/8"
Oven Capacity	5.3 Cu. Ft.
Electrical Specifications
Minimum Circuit Required	40 Amps
Voltage Rating	240 V
Installation
Adjustable Leveling Legs	Yes
Power Cord Included	No
Power Supply Connection Location	Bottom Right
General Specifications
Product Weight	114 lbs
Prop 65 Label	Yes
Warranty - Labor	1 Year
Warranty - Parts	1 Year
Certifications and Approvals
ADA Compliant	No
UL Listed	Yes
ETL Listed	No
