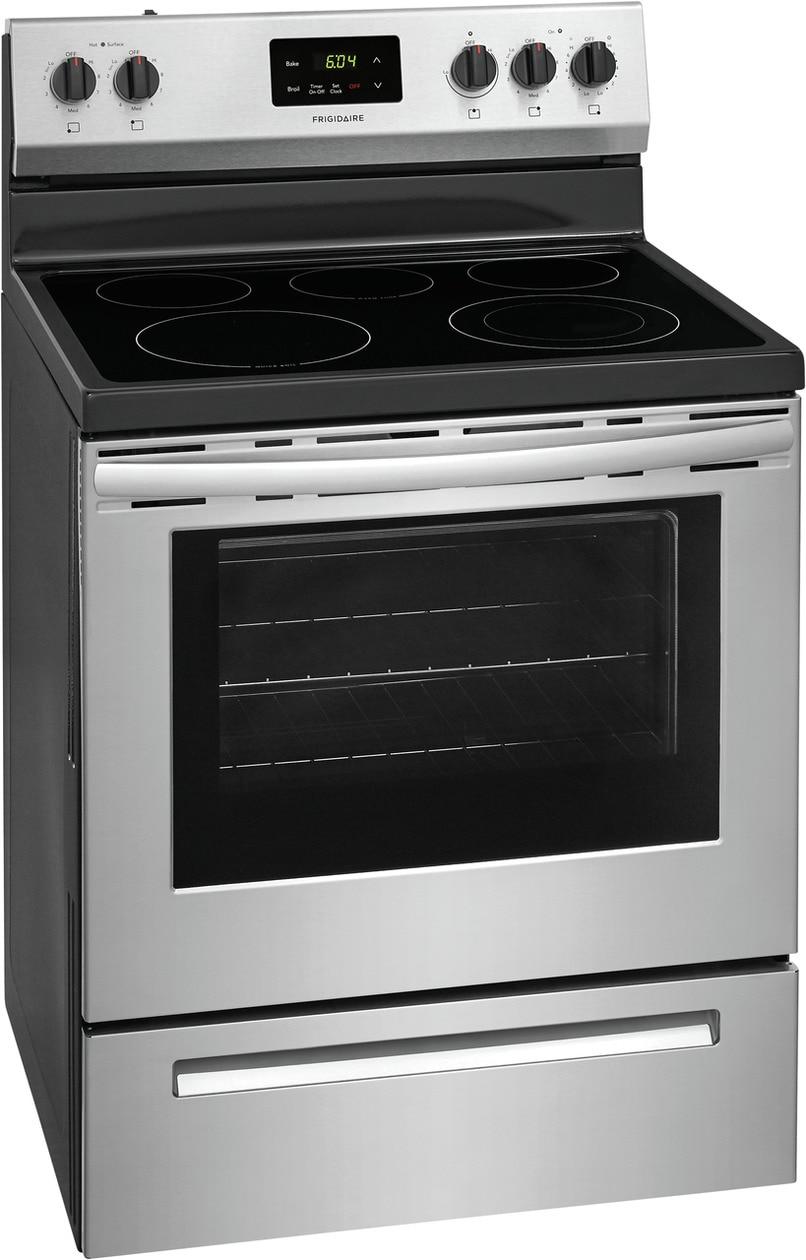

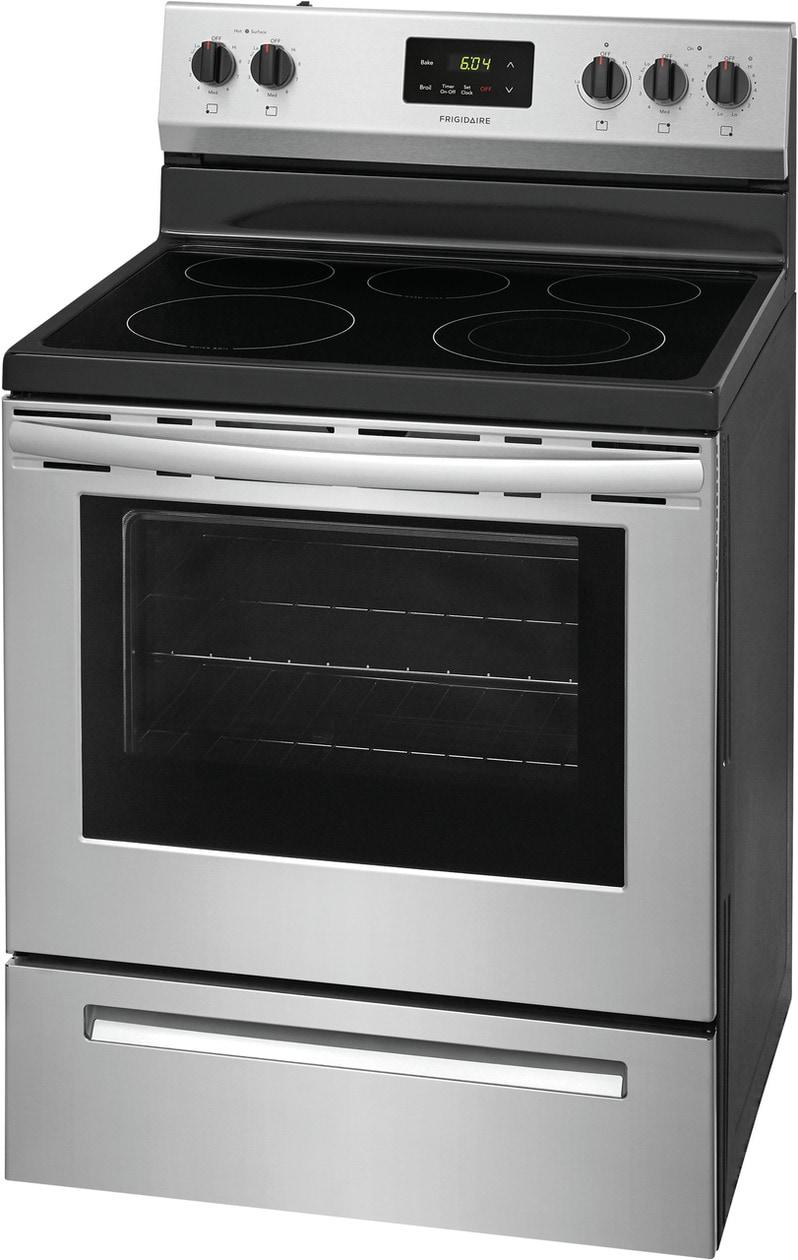

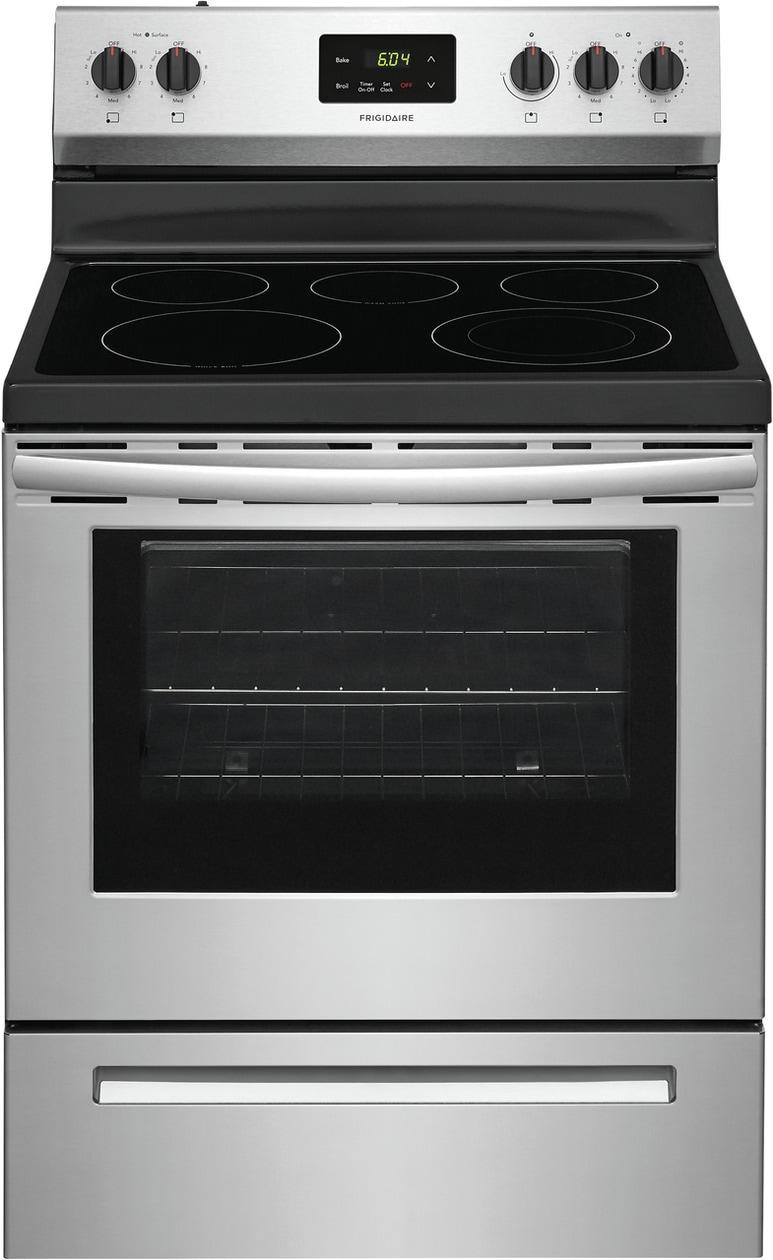

Frigidaire 30" Electric Range FCRE3052AS

The Frigidaire 30 in. Electric Range lets you cook more at once with 5 electric elements and 5.3 cu. ft. capacity oven. Get meals on the table faster with a 3,000-Watt element that boils water faster than the traditional setting. Keep food warm until everything and everyone is ready with the Keep Warm Zone, while flexible elements expand to meet your cooking needs - big or small.

Product Line	Electric Range
Power Type	Electric 240v
Size	30"
Installation Type	Free-Standing
Factory	Springfield
Color	Stainless Steel

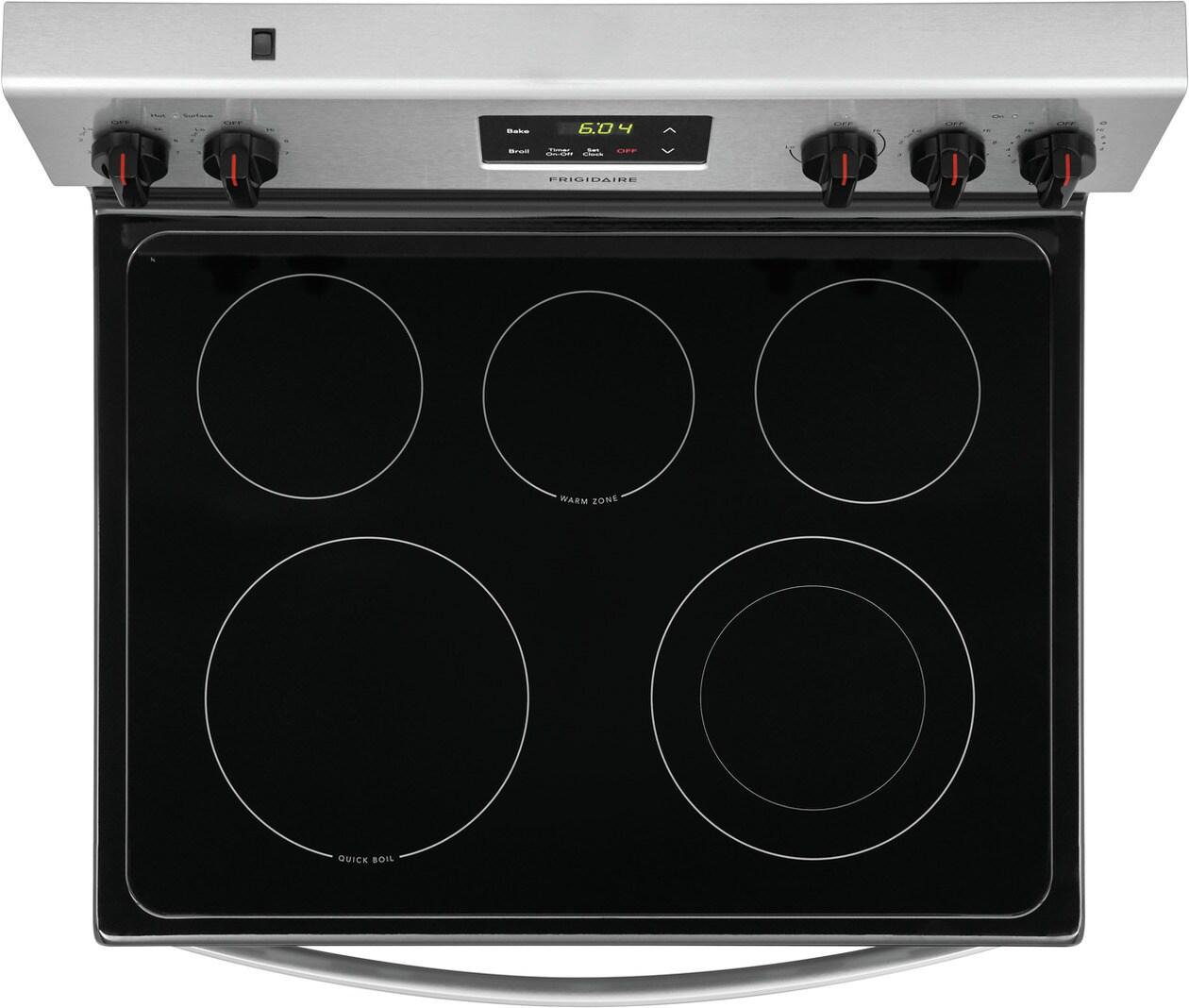

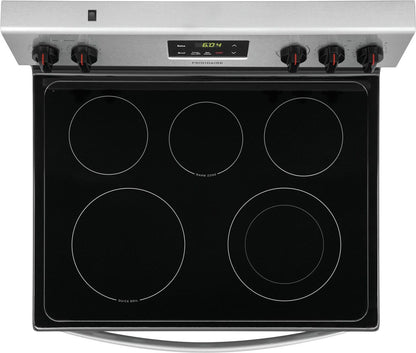

Cooktop
Cooking Surface Type	Smooth
Element On Indicator Light	Yes
Hot-Surface Indicator Light	Yes
Keep Warm Zone Light	Yes
Cooktop Performance
Right Front Element Burner Size (Small)	6"
Right Front Element Burner Size (Large)	9"
Right Rear Element Burner Size	6"
Left Front Element Burner Size	9"
Left Rear Element Burner Size	6"
Right Front Element Burner (Small)	1400 Watts
Right Front Element Burner (Large)	3000 Watts
Right Rear Element Burner	1200 Watts
Left Front Element Burner	3000 Watts
Left Rear Element Burner	1200 Watts
Keep Warm Burner Location	Center Rear
Cooking Controls
Bake	Yes
Broil	Yes
Cancel	Yes
Delay Clean	No
Keep Warm	Yes
Kitchen Timer	Yes
Lockout	No
Off	No
Oven Light	Yes
Preheat	Yes
Probe	No
Self Clean	No
Temperature Display	Yes
Timed Bake	No
Warmer Drawer	No

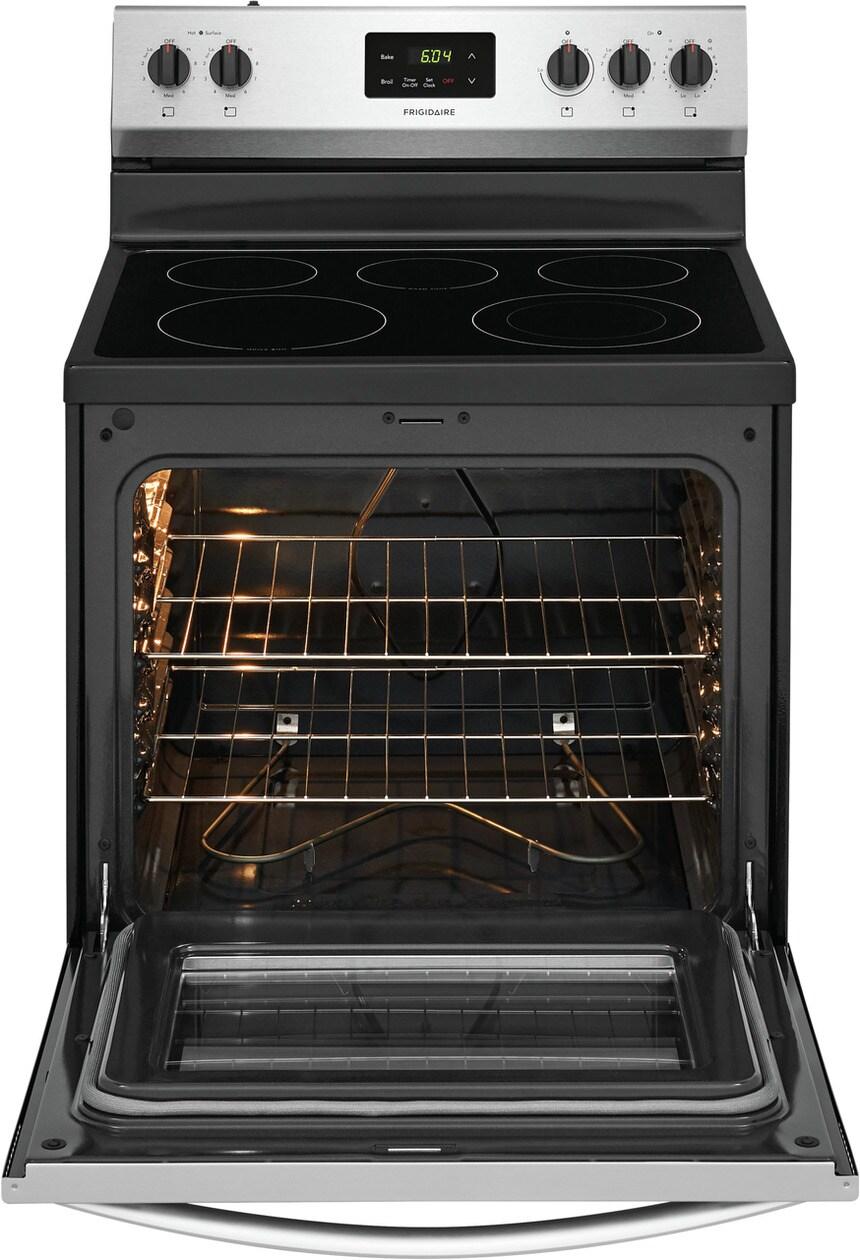

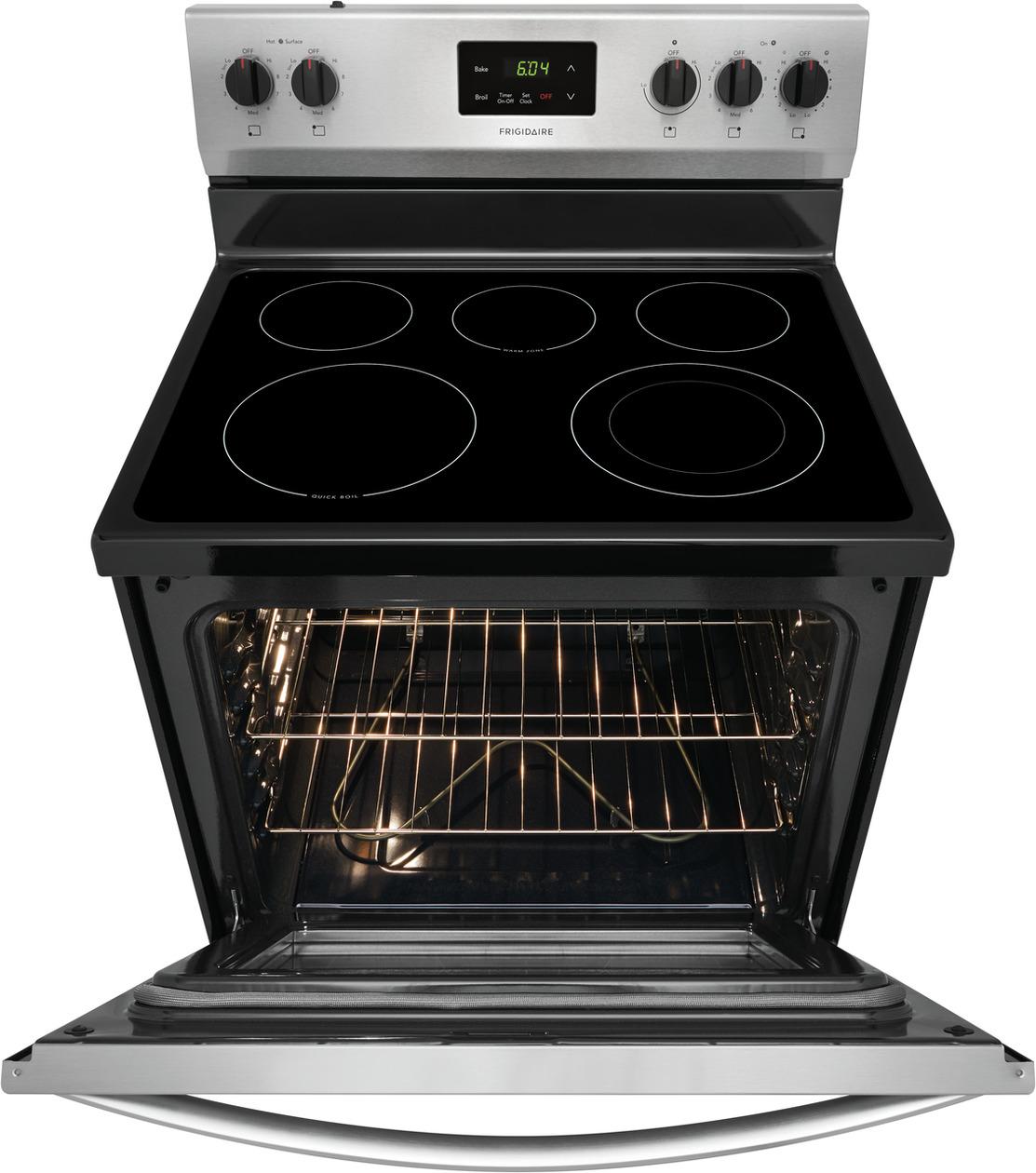

Oven
Bake Element	2600 Watts
Bake System	Yes
Broil Element	3000 Watts
Broil System	Yes
Number of Rack Positions	6
Rack Position Type	Nickel Ladder
Rack Type 1	Flat
Rack Type 1 Quantity	2
Drawer
Drawer Type	Storage

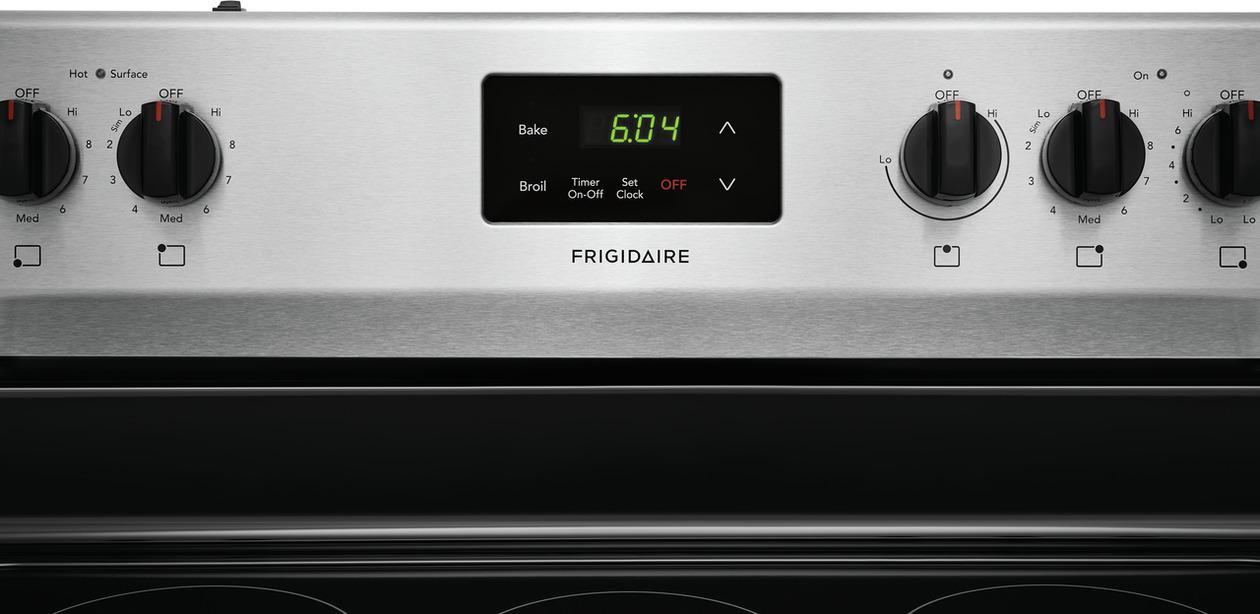

Controls
Control Lock	No
Sabbath Mode	No
Display
Control Location	Rear
Display Type	Membrane
Exterior
Cooktop Finish	Black
Knob Color	Black
Knob Material	Plastic
Dimensions and Volume
Height	46 9/16"
Width	29 7/8"
Depth	25 3/4"
Depth With Door 90° Open	48 5/8"
Depth With Handle	29 1/4"
Oven Interior Height	19 3/4"
Oven Interior Width	24 3/8"
Oven Interior Depth	19 1/8"
Oven Capacity	5.3 Cu. Ft.
Electrical Specifications
Minimum Circuit Required	40 Amps
Voltage Rating	240 V
Installation
Adjustable Leveling Legs	Yes
Power Supply Connection Location	Bottom Center
General Specifications
Product Weight	147.25 lbs
Prop 65 Label	Yes
Warranty - Labor	1 Year
Warranty - Parts	1 Year
Certifications and Approvals
ADA Compliant	No
UL Listed	Yes
ETL Listed	No
