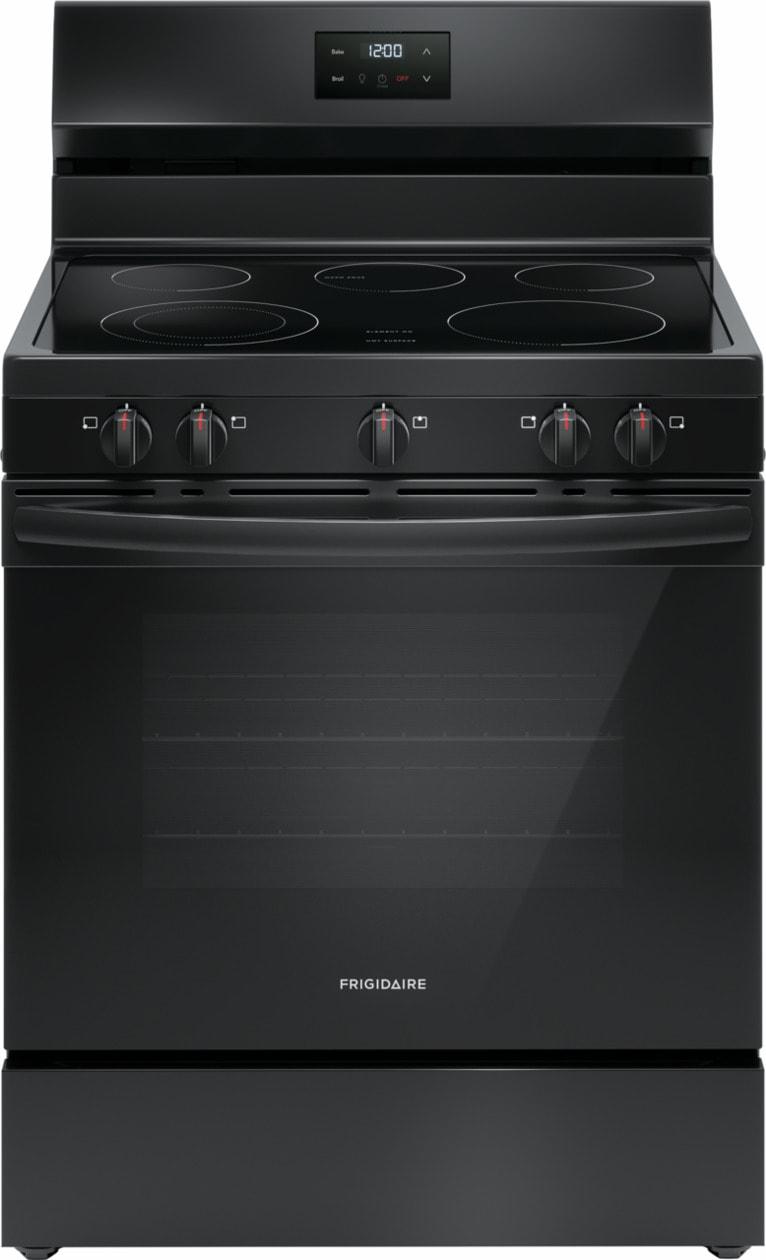

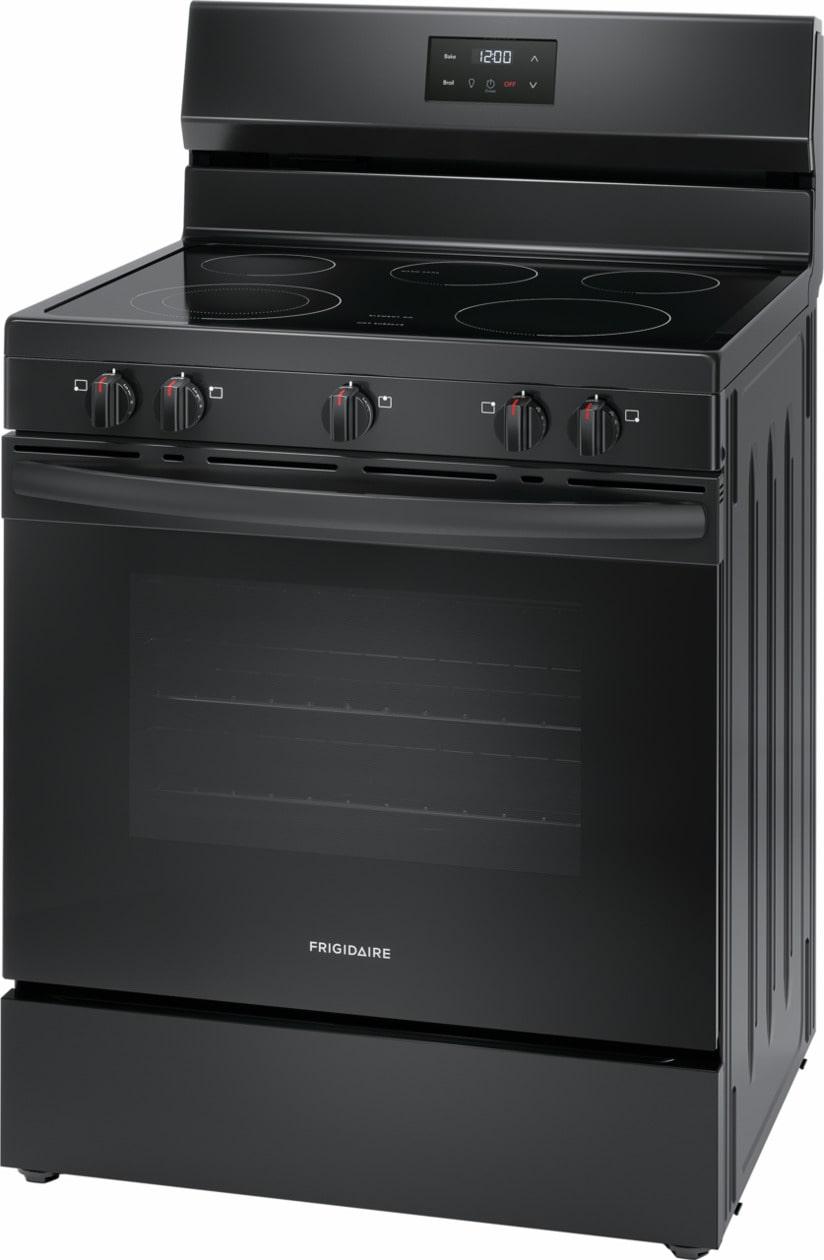

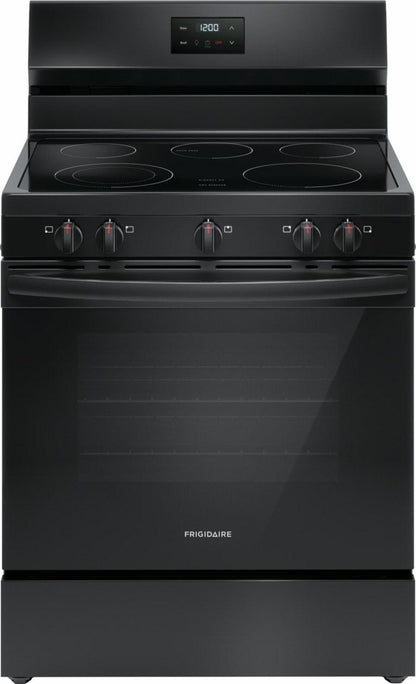

FCRE3052BB Frigidaire 30" Electric Range FCRE3052BB

The Frigidaire 30" Electric Range allows you to get meals on the table faster with our 3,000W Quick Boil Element. Enjoy more cooktop flexibility with five cooktop elements designed to handle all of your cooking needs, including the 2-in-1 Dual Expandable Element. Plus, enjoy our redesigned Extra Wide Store-More™ Storage Drawer, now with more space to store your unused oven racks and cookware.

Product Line	Electric Range
Power Type	Electric 240v
Size	30"
Installation Type	Free-Standing
Factory	Springfield
Color	Black

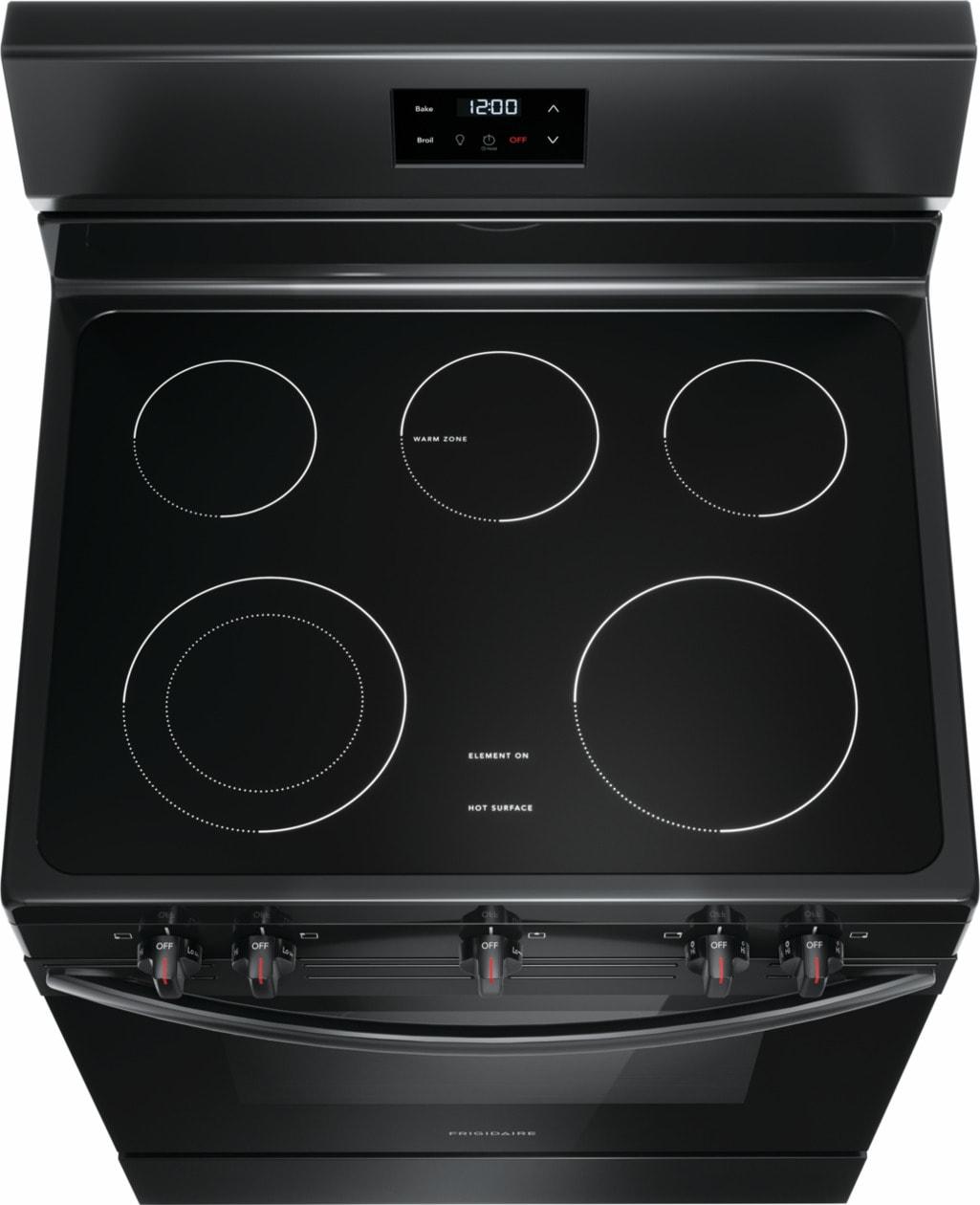

Cooktop
Cooking Surface Type	Smooth
Element On Indicator Light	Yes
Hot-Surface Indicator Light	Yes
Cooktop Performance
Right Front Element Burner Size	9"
Right Rear Element Burner Size	6"
Left Front Element Burner Size (Small)	6"
Left Front Element Burner Size (Large)	9"
Left Rear Element Burner Size	6"
Right Front Element Burner	3000 Watts
Right Rear Element Burner	1200 Watts
Left Front Element Burner (Small)	1400 Watts
Left Front Element Burner (Large)	3000 Watts
Left Rear Element Burner	1200 Watts
Center Rear Element Burner	100 Watts
Keep Warm Burner Location	Center Rear

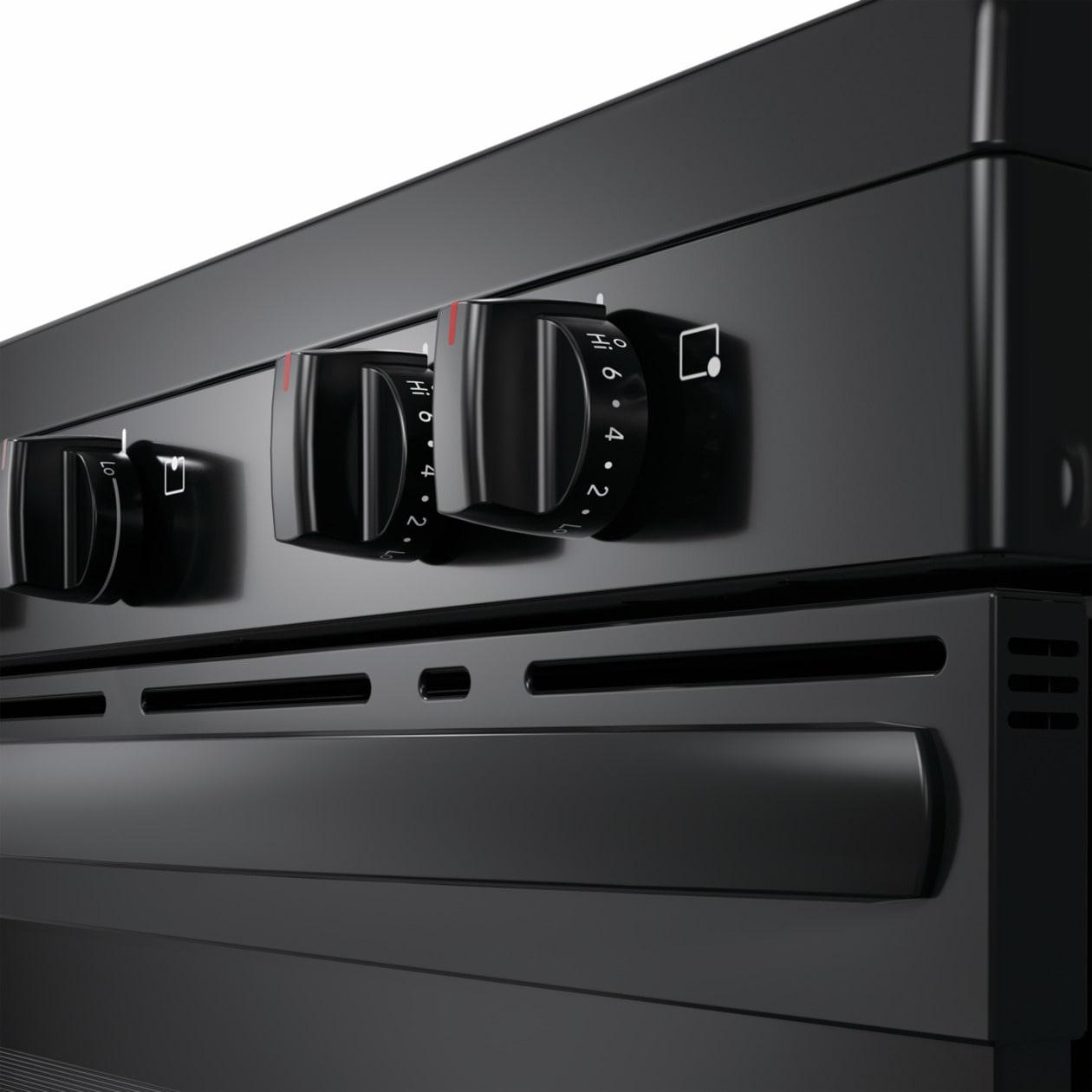

Cooking Controls
Bake	Yes
Broil	Yes
Kitchen Timer	Yes
Off	Yes
Oven Light	Yes
Preheat	Yes
Up / Down Arrow	Yes
Warm Zone	Yes
Cooking Controls Function
Program Fahrenheit or Celsius	Yes

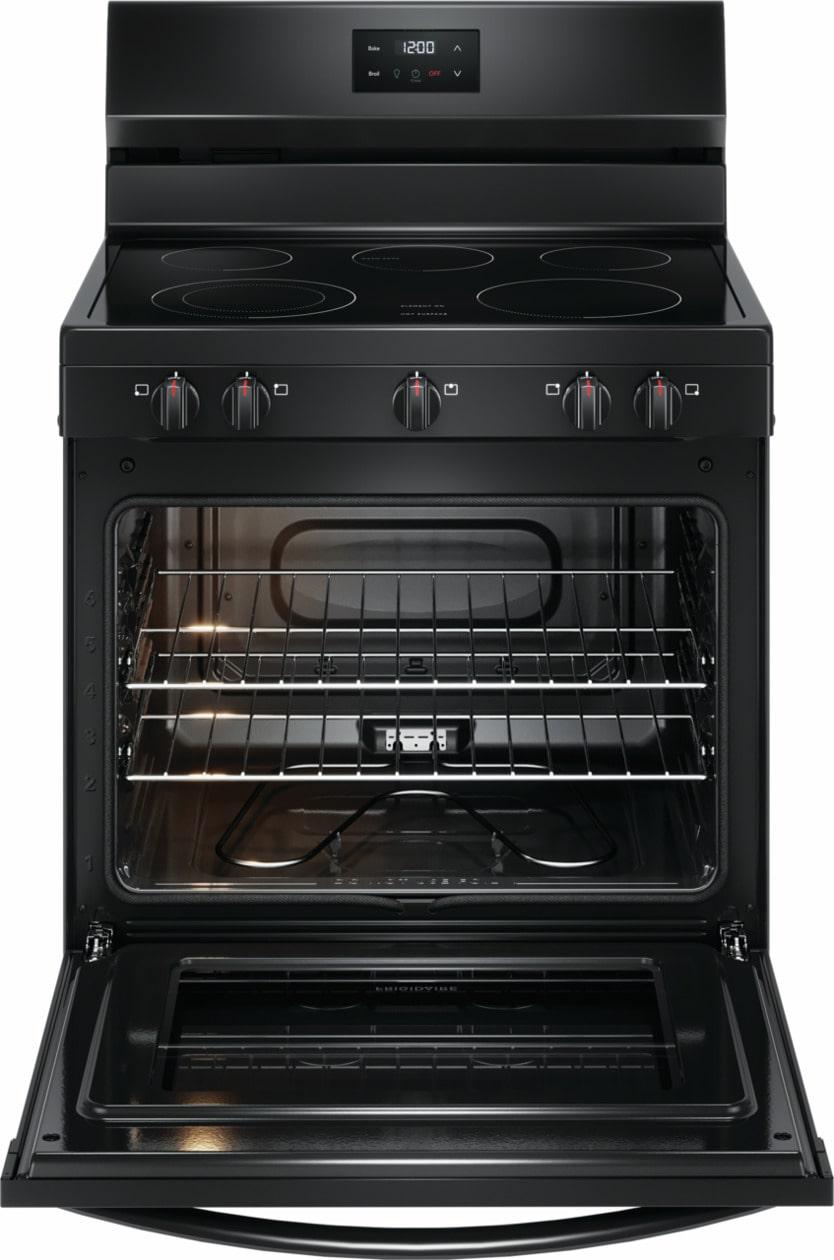

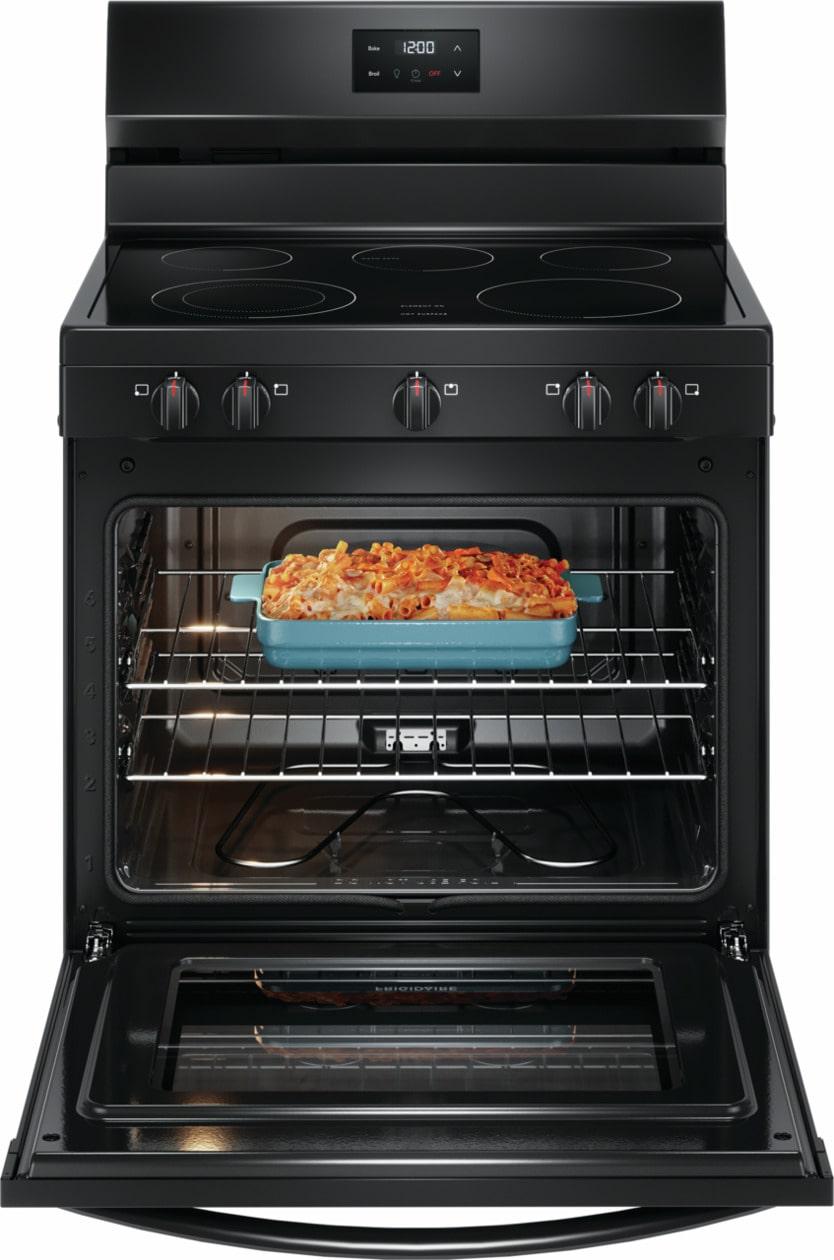

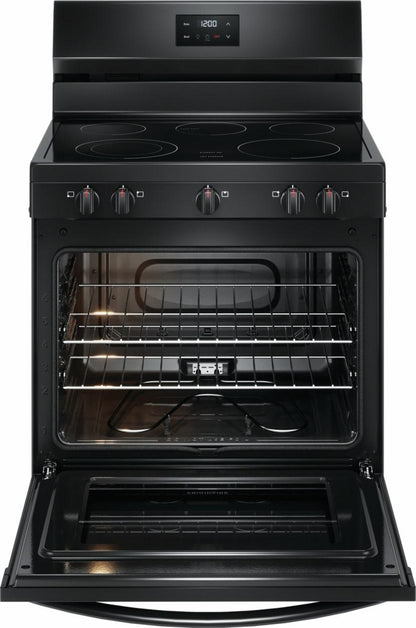

Oven
Bake Element	2600 Watts
Bake Element Pass	4
Bake Element Type	Raised
Broil Element	3000 Watts
Broil Element Pass	4
Number of Rack Positions	6
Oven Interior Color	Midnight Black
Oven Light Quantity	1
Oven Light Type	Halogen
Oven Light Watts	40 Watts
Rack Position Type	Embossed
Rack Type 1	Flat
Rack Type 1 Quantity	2
Drawer
Drawer Handle Style	Integrated
Drawer Type	Storage

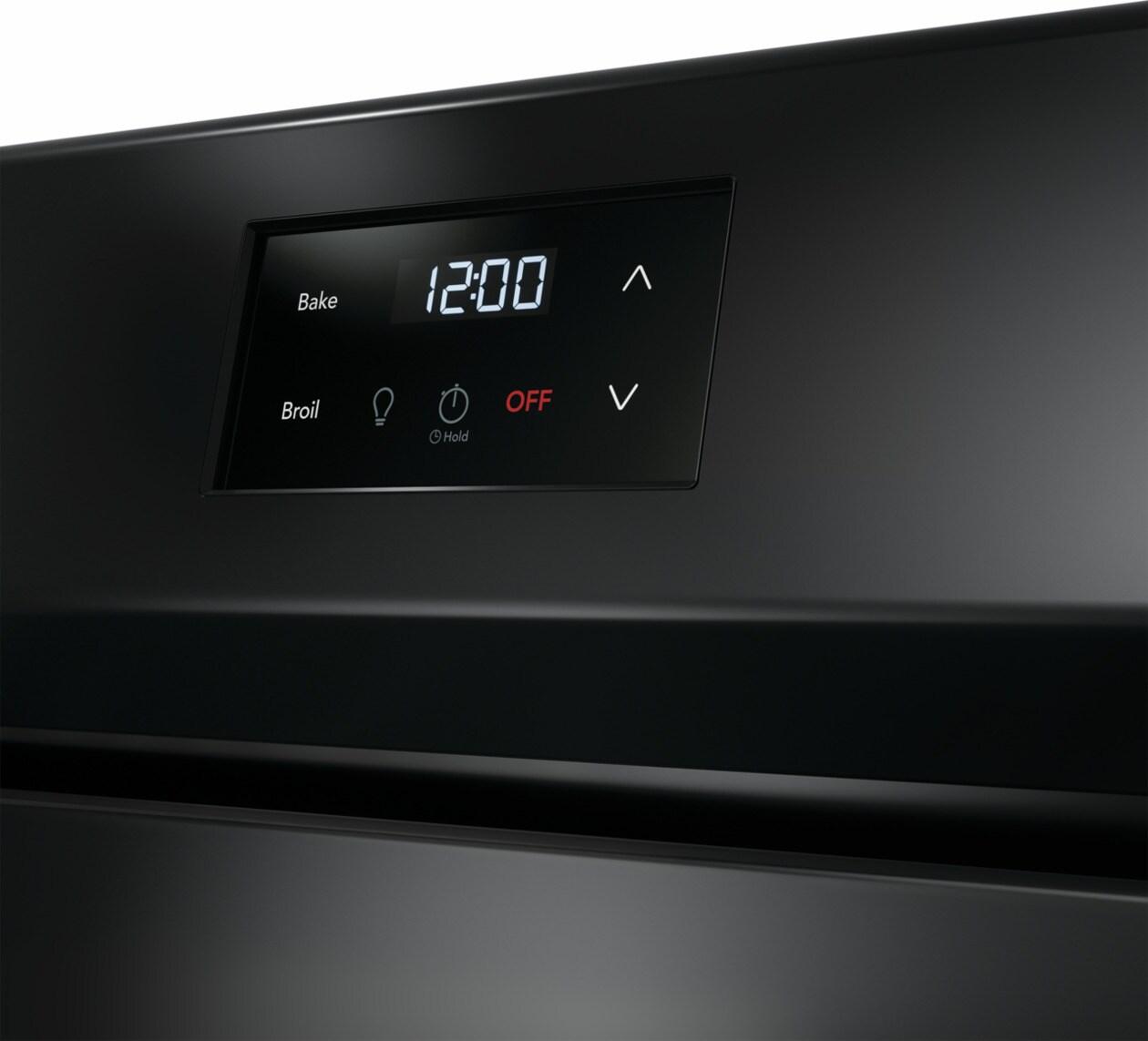

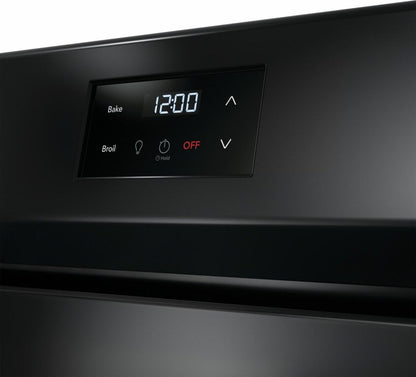

Display
Control Location	Rear
Display Interface Color	White
Display Type	LED
Dimensions and Volume
Minimum Height	46 3/4"
Maximum Height	47 3/4"
Width	30"
Depth	26"
Depth With Door 90° Open	47 5/16"
Depth With Handle	28 1/2"
Oven Interior Height	18 1/8"
Oven Interior Width	25 3/16"
Oven Interior Depth	19 7/8"
Oven Capacity	5.3 Cu. Ft.
Electrical Specifications
Connected Load @ 240V	12 kW
Minimum Circuit Required	40 Amps
Voltage Rating	240 V
Installation
Adjustable Leveling Legs	Yes
General Specifications
Frigidaire Fit Promise	Yes
Product Weight	160 lbs
Prop 65 Label	Yes
Warranty - Labor	1 Year
Warranty - Parts	1 Year
AB-1200	Information available at frigidaire.com/en/ab1200
Safety Certifications and Approvals
RoHS	Yes
UL Listed	Yes
