- EvenTemp® Element
- Five Element Cooktop
- Even Baking Technology
- 30-Minute Steam Clean
- SpaceWise® Dual Expandable Element
- Extra Wide Store-More™ Storage Drawer
- Extra-Large Oven Capacity
- Hidden Bake Element
- Cooktop Keep Warm Zone
- Proudly Assembled in the the USA

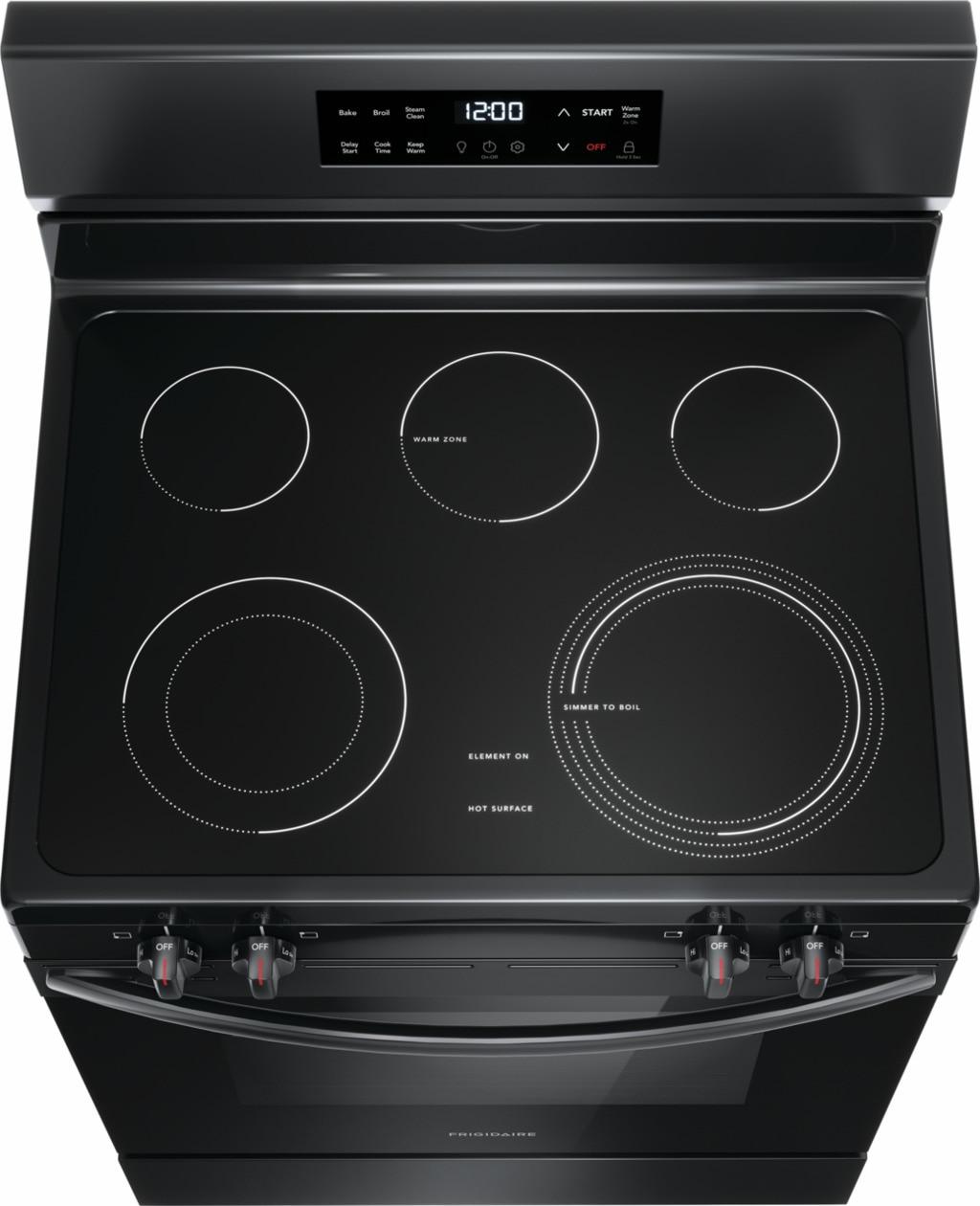

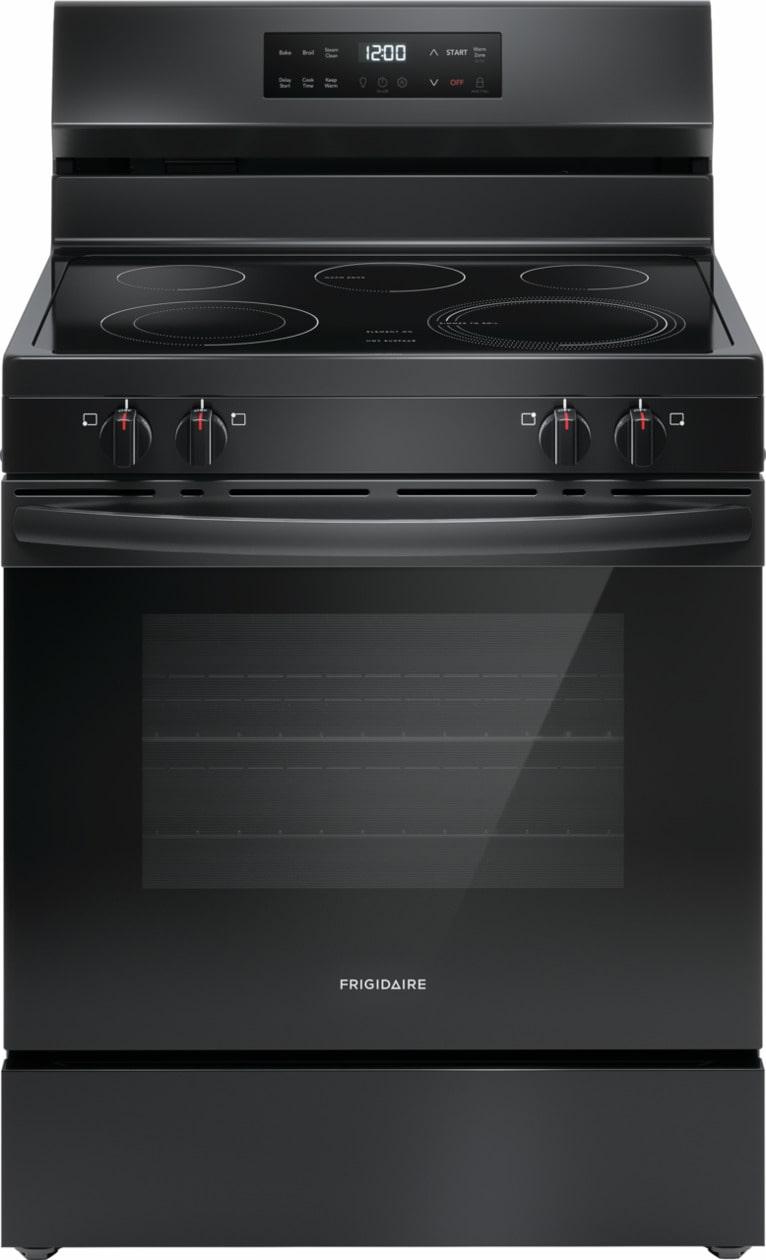

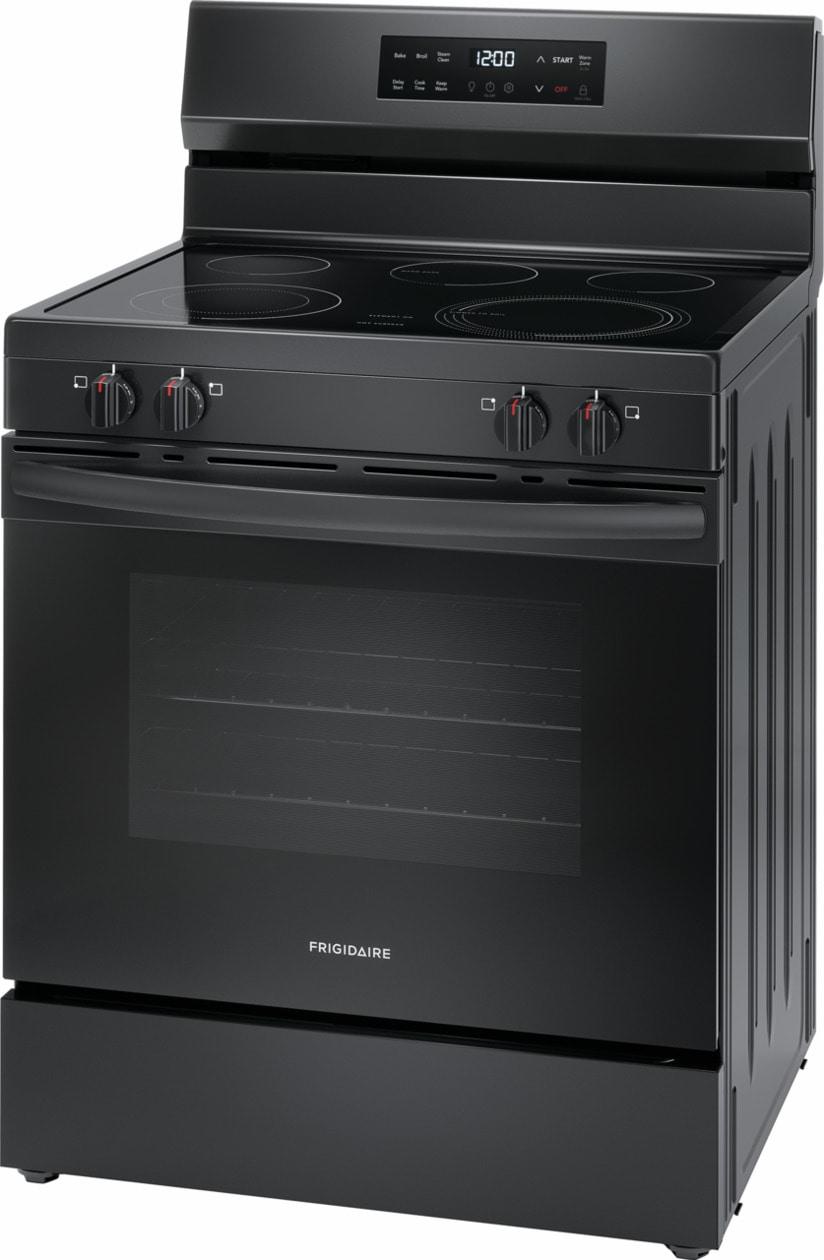

The Frigidaire 30" Electric Range with the EvenTemp® cooktop element delivers consistent results every time, because it reduces hot and cold spots in your pan. Plus, enjoy easier cleanup with our Steam Clean cycle that provides a quick 30-minute oven cleaning that's chemical-free, odor-free and fast.
| Product Line | Electric Range |
| Power Type | Electric 240v |
| Size | 30" |
| Installation Type | Free-Standing |
| Factory | Springfield |
| Color | Black |
| Cooktop | |
| Cooking Surface Type | Smooth |
| Element On Indicator Light | Yes |
| Hot-Surface Indicator Light | Yes |
| Keep Warm Zone Light | Yes |
| Cooktop Performance | |
| Right Front Element Burner Size | 9" |
| Right Rear Element Burner Size | 6" |
| Left Front Element Burner Size (Small) | 6" |
| Left Front Element Burner Size (Large) | 9" |
| Left Rear Element Burner Size | 6" |
| Right Front Element Burner | 3200 Watts |
| Right Rear Element Burner | 1200 Watts |
| Left Front Element Burner (Small) | 1400 Watts |
| Left Front Element Burner (Large) | 3000 Watts |
| Left Rear Element Burner | 1200 Watts |
| Center Rear Element Burner | 100 Watts |
| Keep Warm Burner Location | Center Rear |
| Cooking Controls | |
| Bake | Yes |
| Broil | Yes |
| Clock | Yes |
| Cook Time | Yes |
| Delay Clean | Yes |
| Delay Start | Yes |
| Keep Warm | Yes |
| Kitchen Timer | Yes |
| Light | Yes |
| Lockout | Yes |
| Off | Yes |
| Oven Light | Yes |
| Set Clock | Yes |
| Start | Yes |
| Steam Clean | Yes |
| Temperature Display | Yes |
| Timer On / Off | Yes |
| Up / Down Arrow | Yes |
| User Preferences | Yes |
| Warm Zone | Yes |
| Cooking Controls Function | |
| Adjustable Volume Feedback | Yes |
| Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
| Delayed Bake | Yes |
| Program Fahrenheit or Celsius | Yes |
| Oven | |
| Bake Element | 2500 Watts |
| Bake Element Pass | 8 |
| Bake Element Type | Hidden |
| Broil Element | 3000 Watts |
| Broil Element Pass | 4 |
| Number of Rack Positions | 6 |
| Oven Interior Color | Midnight Black |
| Oven Light Quantity | 1 |
| Oven Light Type | Halogen |
| Oven Light Watts | 40 Watts |
| Rack Position Type | Embossed |
| Rack Type 1 | Flat |
| Rack Type 1 Quantity | 2 |
| Drawer | |
| Drawer Handle Style | Integrated |
| Drawer Type | Storage |

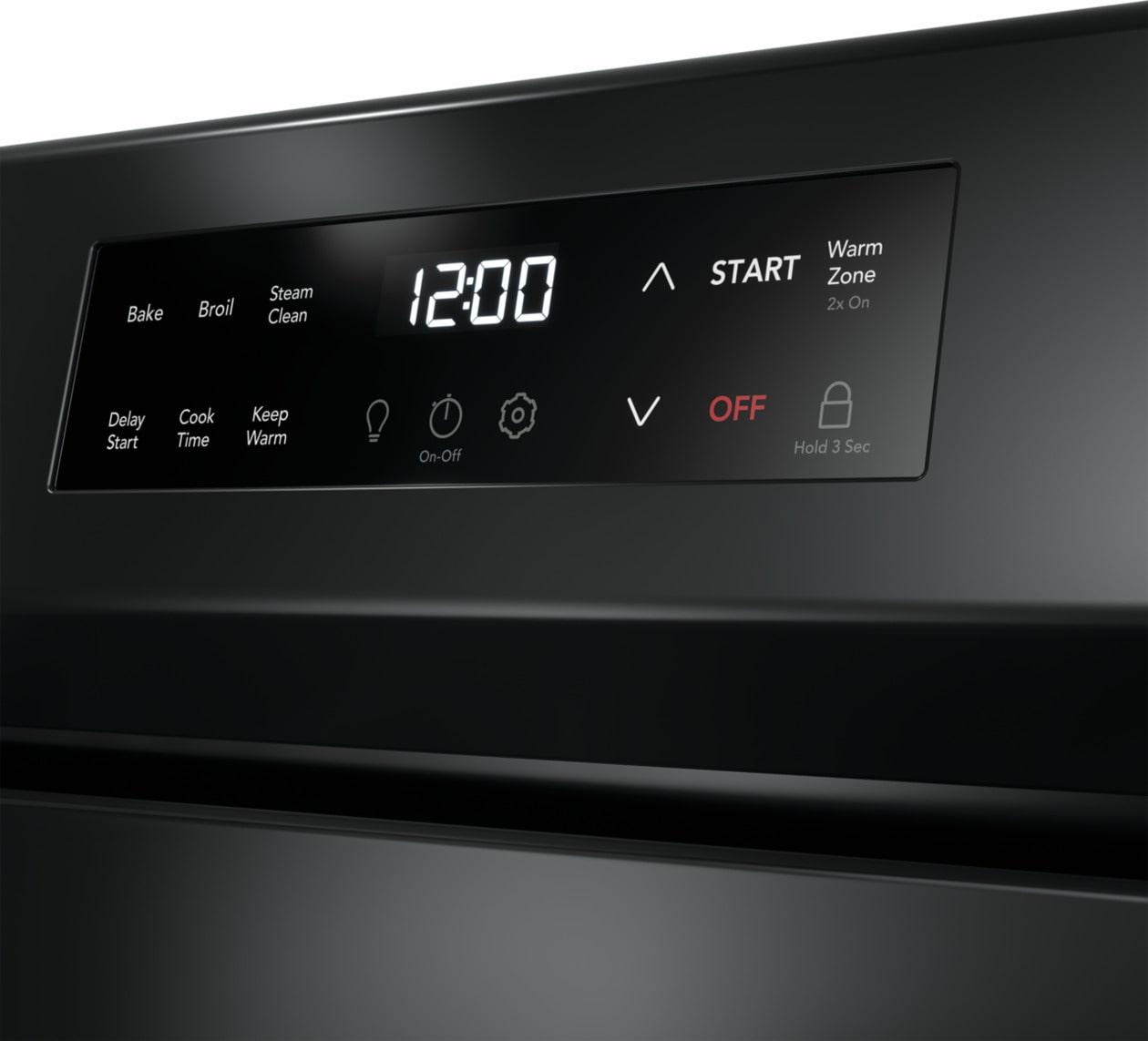

| Controls | |
| Control Lock | Yes |
| Display | |
| Control Location | Rear |
| Display Interface Color | White |
| Display Type | Membrane |
| Dimensions and Volume | |
| Minimum Height | 46 3/4" |
| Maximum Height | 47 3/4" |
| Width | 30" |
| Depth | 26" |
| Depth With Door 90° Open | 47 5/16" |
| Depth With Handle | 28 1/2" |
| Oven Interior Height | 18 1/8" |
| Oven Interior Width | 25 3/16" |
| Oven Interior Depth | 19 7/8" |
| Oven Capacity | 5.3 Cu. Ft. |
| Electrical Specifications | |
| Connected Load @ 240V | 12 kW |
| Minimum Circuit Required | 40 Amps |
| Voltage Rating | 240 V |
| Installation | |
| Adjustable Leveling Legs | Yes |
| General Specifications | |
| Product Weight | 145 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| AB-1200 | Information available at frigidaire.com/en/ab1200 |
| Safety Certifications and Approvals | |
| RoHS | Yes |
| UL Listed | Yes |
