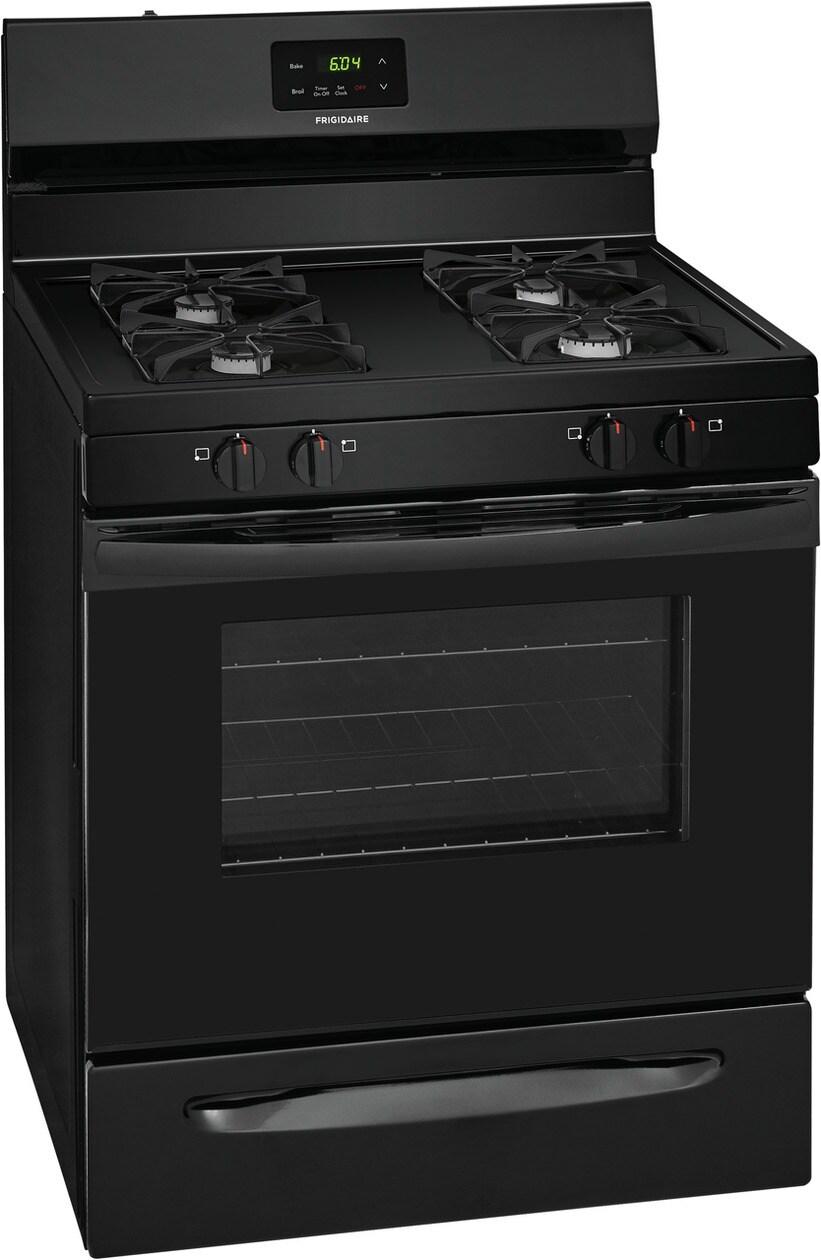

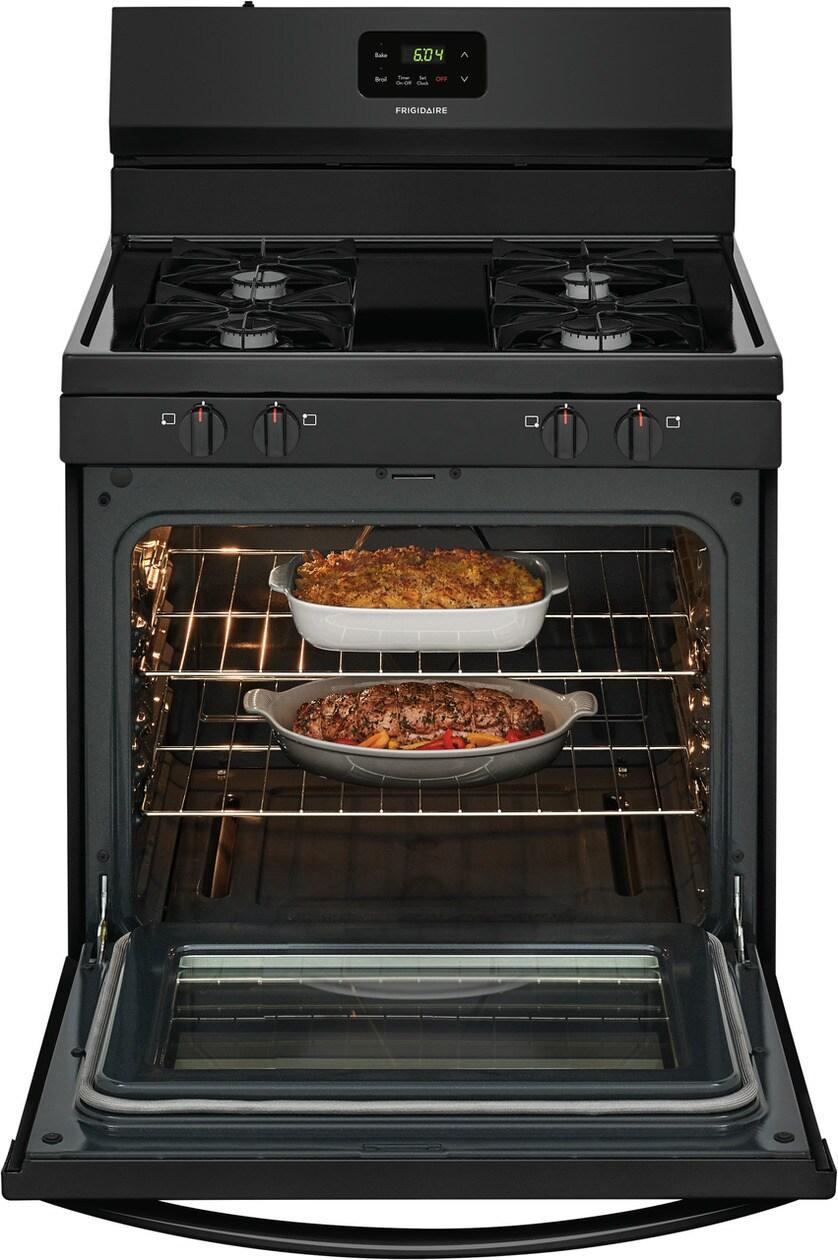

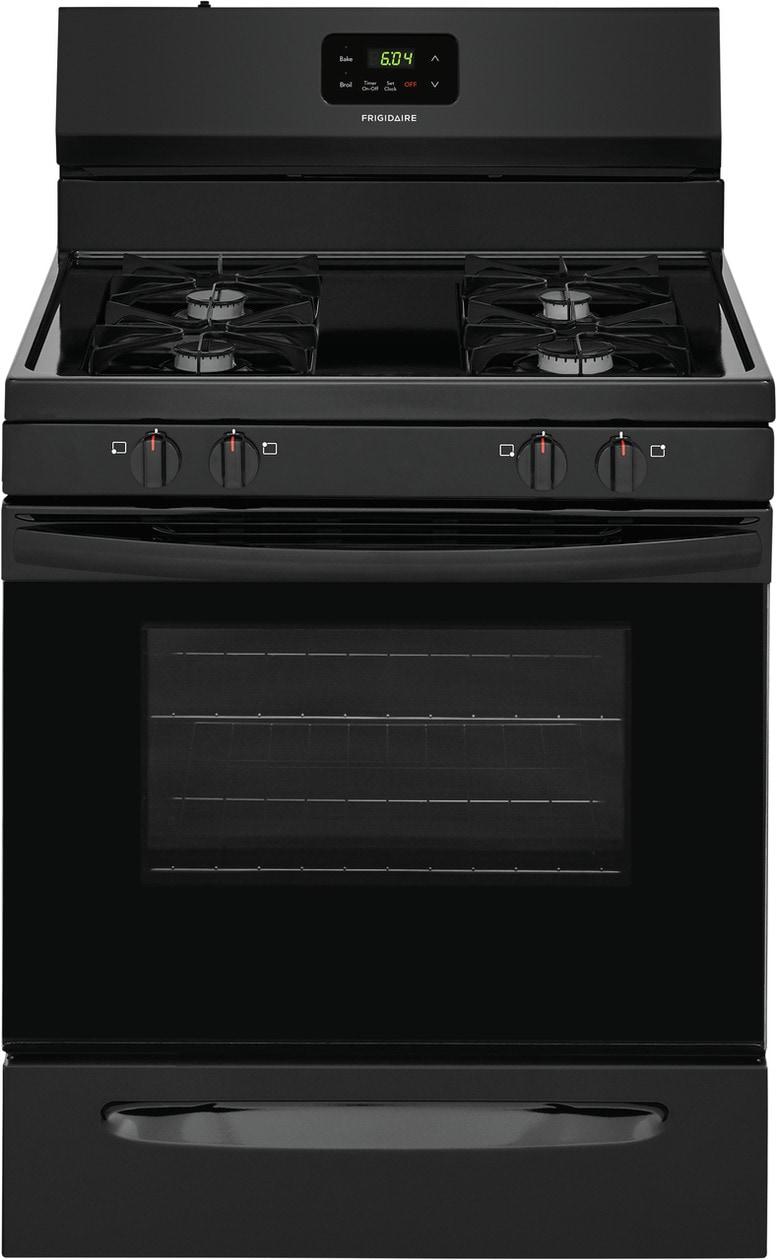

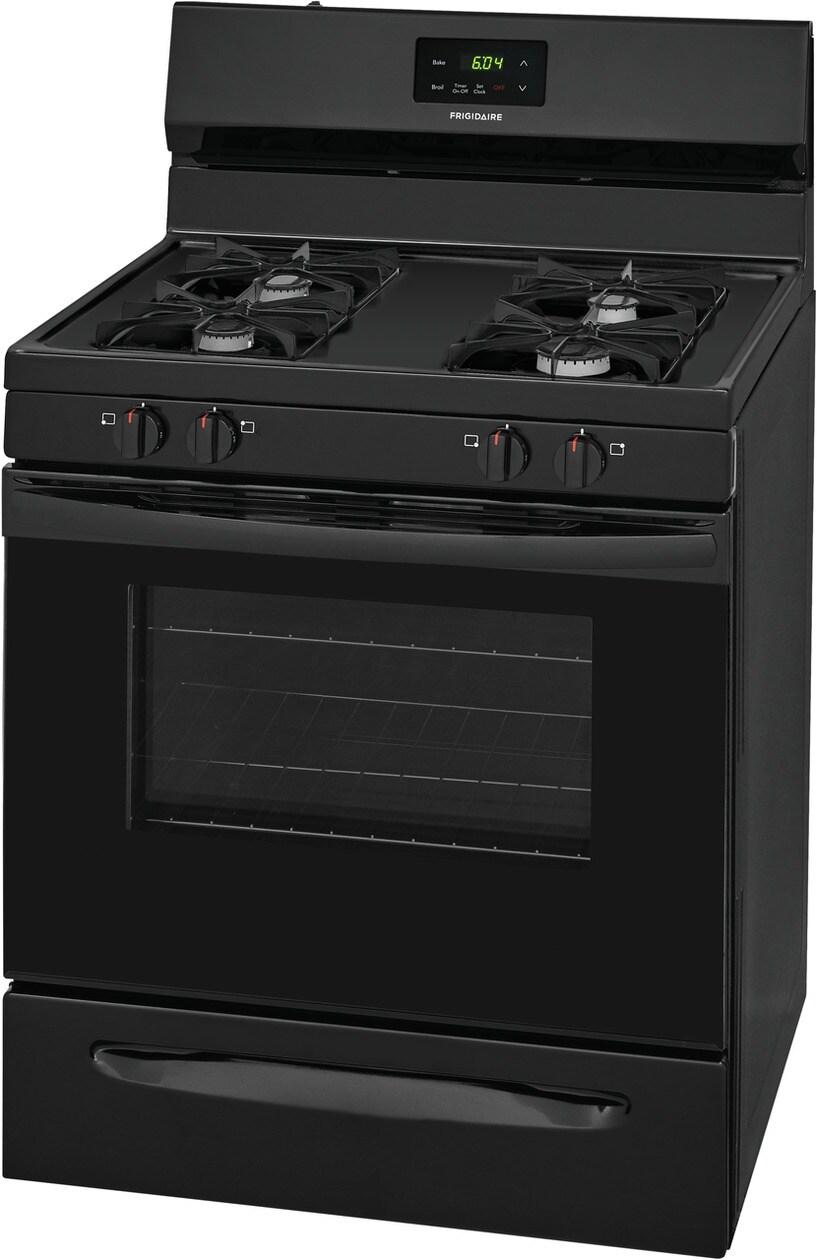

FCRG3015AB Frigidaire 30" Gas Range FCRG3015AB

The Frigidaire 30" Gas Range gives you more cooking flexibility with a 5.0 cu. ft. capacity oven and storage drawer. The cooktop features 4 Sealed Gas Burners including a 14,000 BTU Burner and a Low-Simmer Burner, so you can have precise temperature control with high and low heat. The extra-large oven window allows you to easily see what's cooking inside.

Product Line	Gas Range
Power Type	NG
Size	30"
Installation Type	Free-Standing
Factory	Springfield
Color	Black

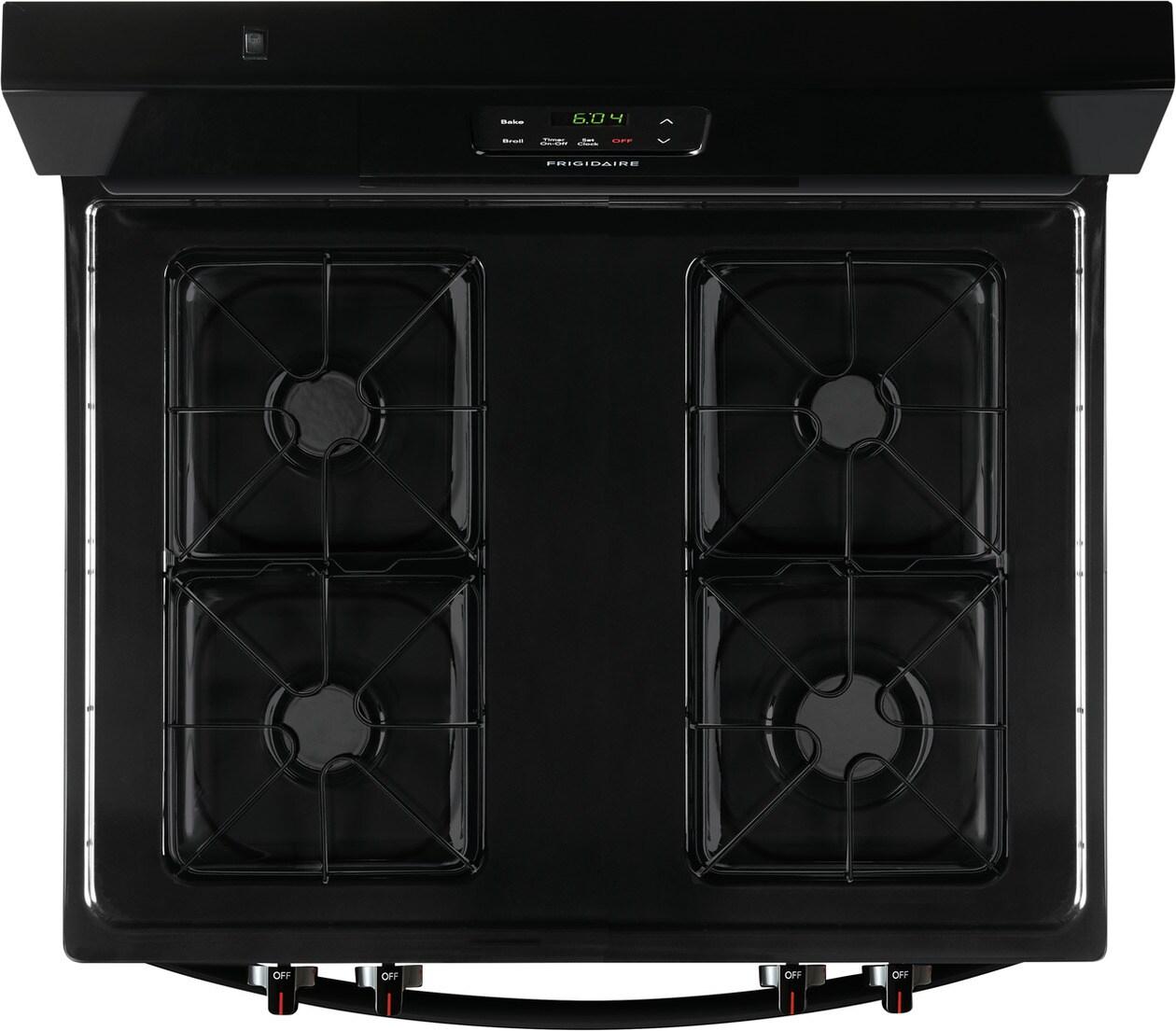

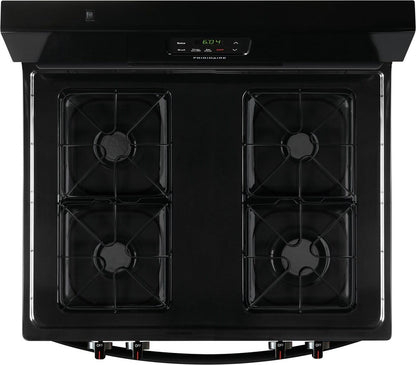

Cooktop
Cooking Surface Type	Gas
Grate Material	Steel Wire
Grate Quantity	4
Grate Style	Individual
Cooktop Performance
Right Front Element Burner	14000 BTU
Right Rear Element Burner	5000 BTU
Left Front Element Burner	9500 BTU
Left Rear Element Burner	9500 BTU
Cooking Controls
Bake	Yes
Broil	Yes
Clear Off	No
Clock	Yes
Kitchen Timer	Yes
Oven Light	Yes
Preheat	Yes
Probe	No
Self Clean	No
Temperature Display	Yes
Timed Bake	No
Up / Down Arrow	Yes

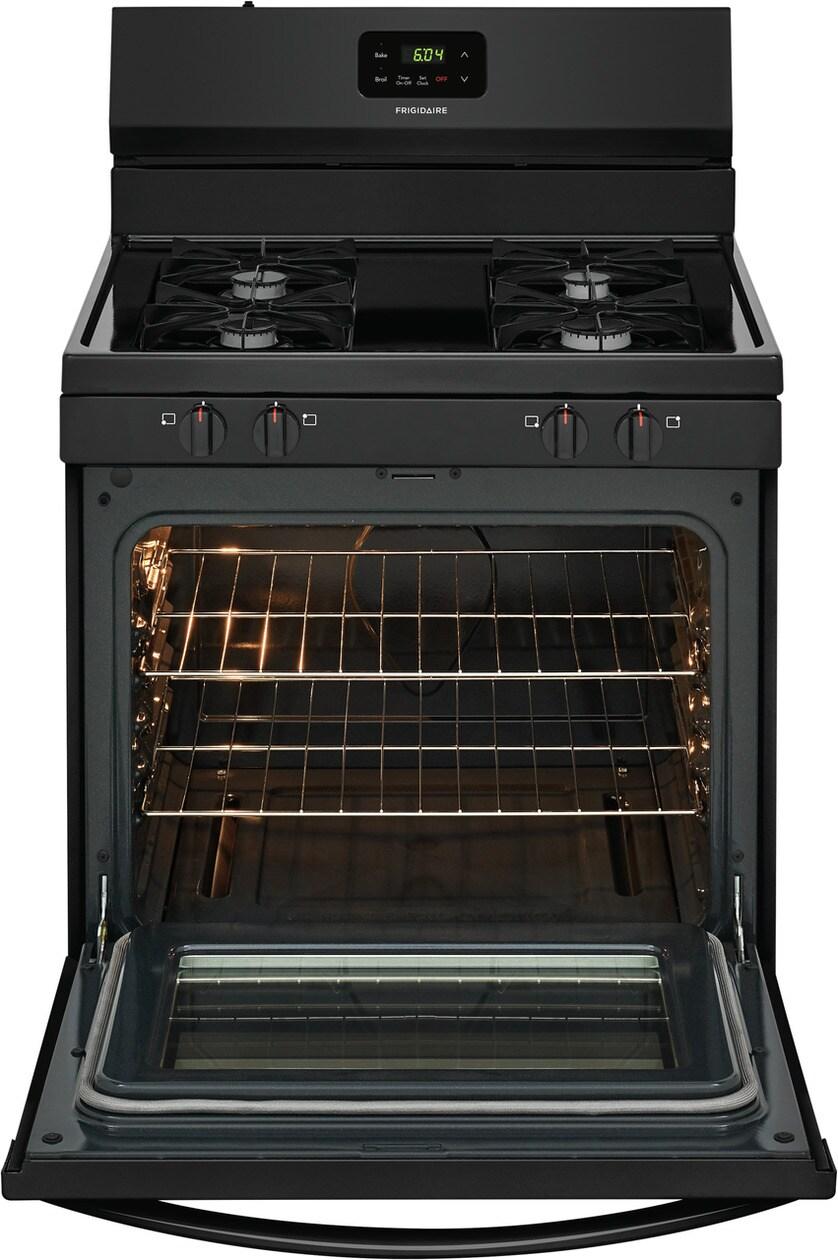

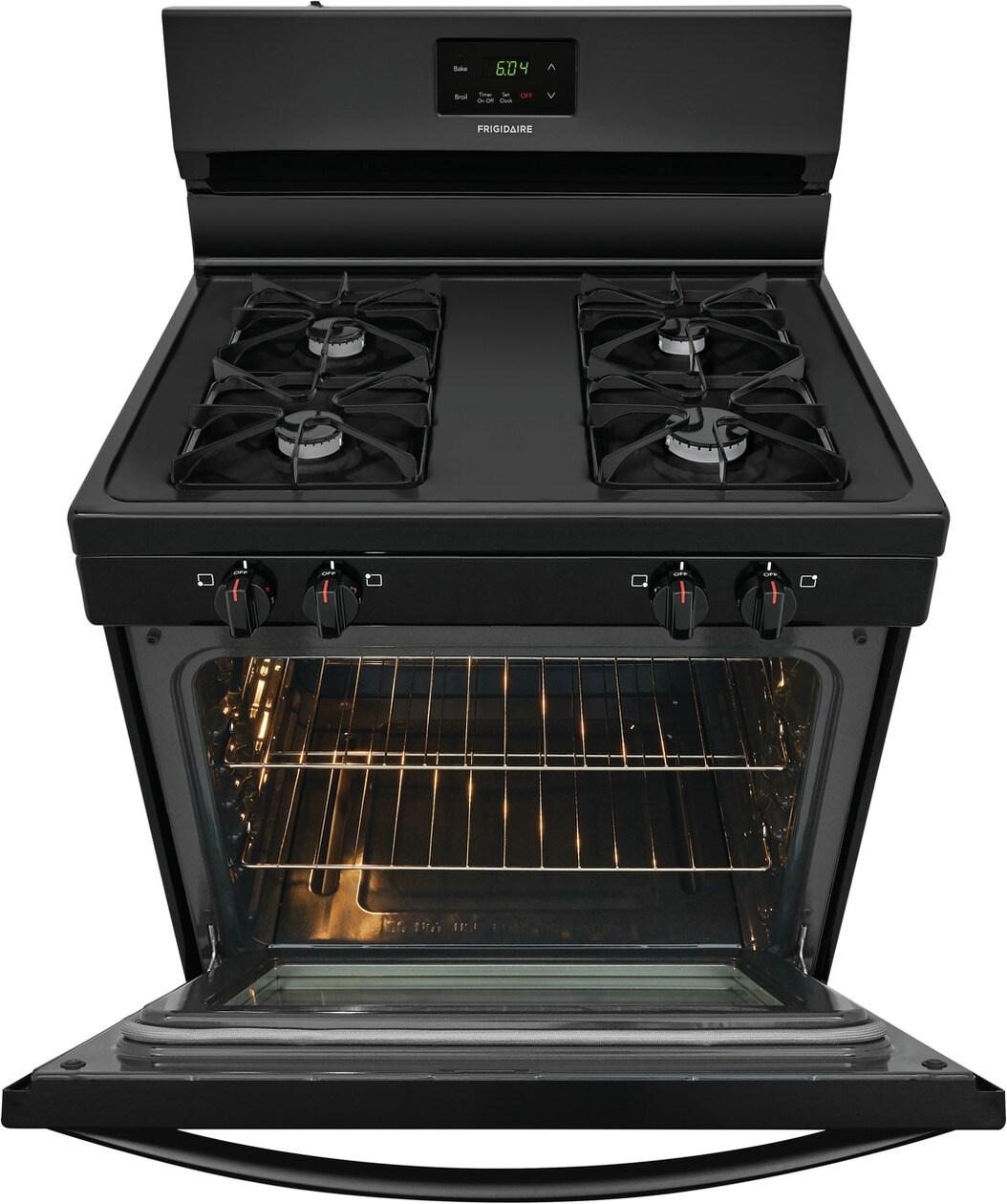

Oven
Bake Element	18000 BTU
Bake System	Yes
Broil Element	1400 Watts
Broil System	Yes
Number of Rack Positions	6
Rack Position Type	Nickel Ladder
Rack Type 1	Flat
Rack Type 1 Quantity	2
Drawer
Drawer Handle Style	Integrated
Drawer Type	Storage
Controls
Control Lock	No
Sabbath Mode	No
Display
Control Location	Rear
Display Type	Membrane
Dimensions and Volume
Height	46 9/16"
Width	29 7/8"
Depth	25 3/4"
Depth With Door 90° Open	49 9/16"
Oven Interior Height	18 5/8"
Oven Interior Width	24 3/8"
Oven Interior Depth	19 1/8"
Oven Capacity	5 Cu. Ft.
Electrical Specifications
Minimum Circuit Required	12 Amps
Voltage Rating	120 V
Installation
Adjustable Leveling Legs	Yes
Power Supply Connection Location	Bottom Center
General Specifications
Product Weight	149.15 lbs
Prop 65 Label	Yes
Warranty - Labor	1 Year
Warranty - Parts	1 Year
Certifications and Approvals
ADA Compliant	No
CSA Listed	Yes
