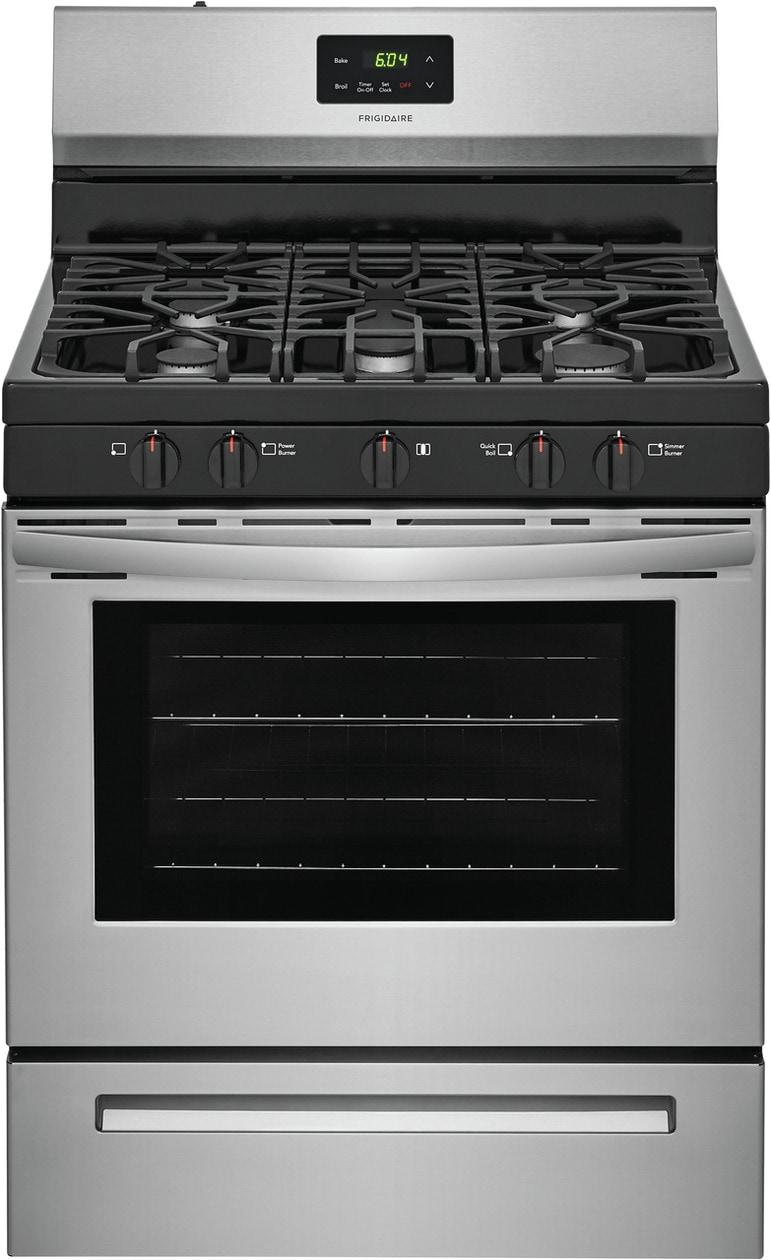

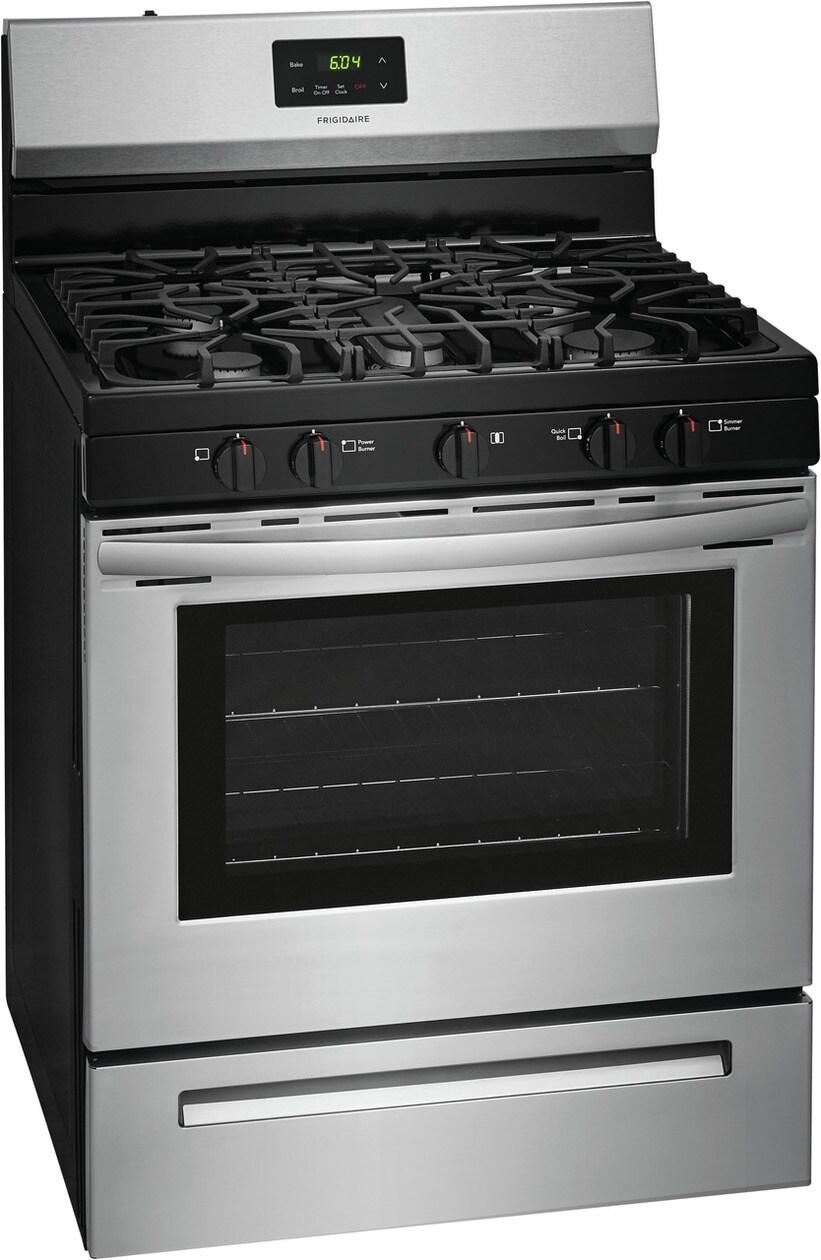

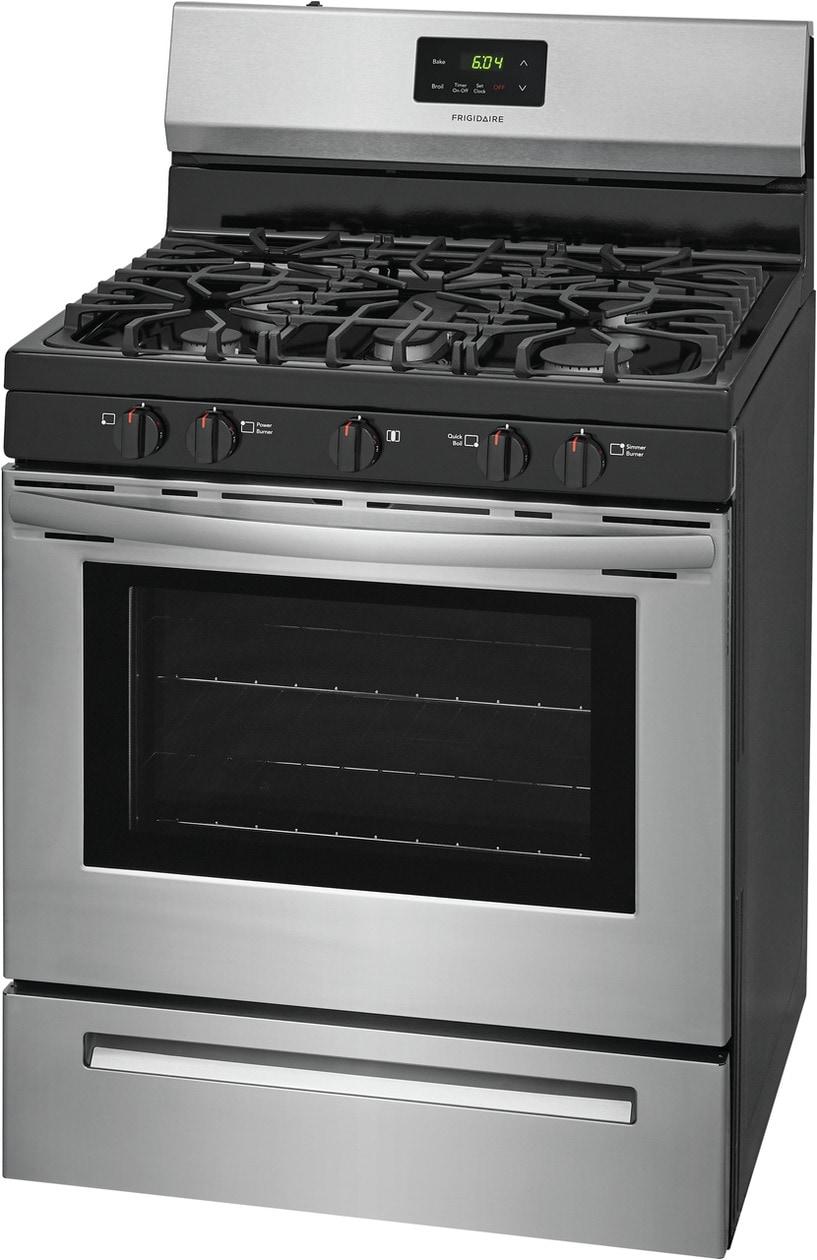

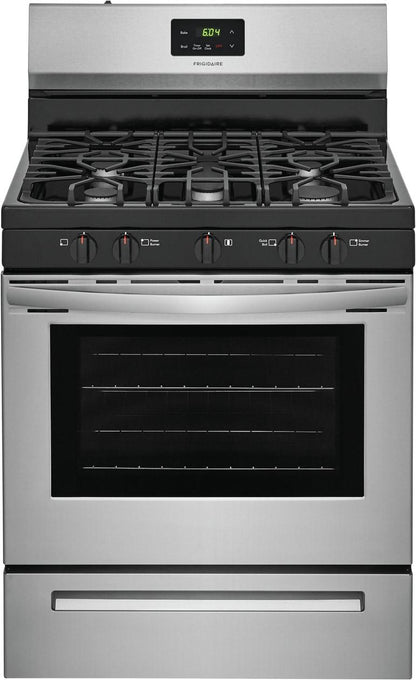

Frigidaire 30" Gas Range FCRG3052AS

The Frigidaire 30" Gas Range gives you more cooking flexibility with a 5.0 cu. ft. capacity oven and storage drawer. The cooktop features 5 Sealed Gas Burners, including a 16,000 BTU Quick Boil Burner, 10,000 BTU Oval Burner, and a Low-Simmer Burner, so you can have precise temperature control with high and low heat. Stainless Steel exterior is durable and creates a premium look in your kitchen.

Product Line	Gas Range
Power Type	NG
Size	30"
Installation Type	Free-Standing
Factory	Springfield
Color	Stainless Steel

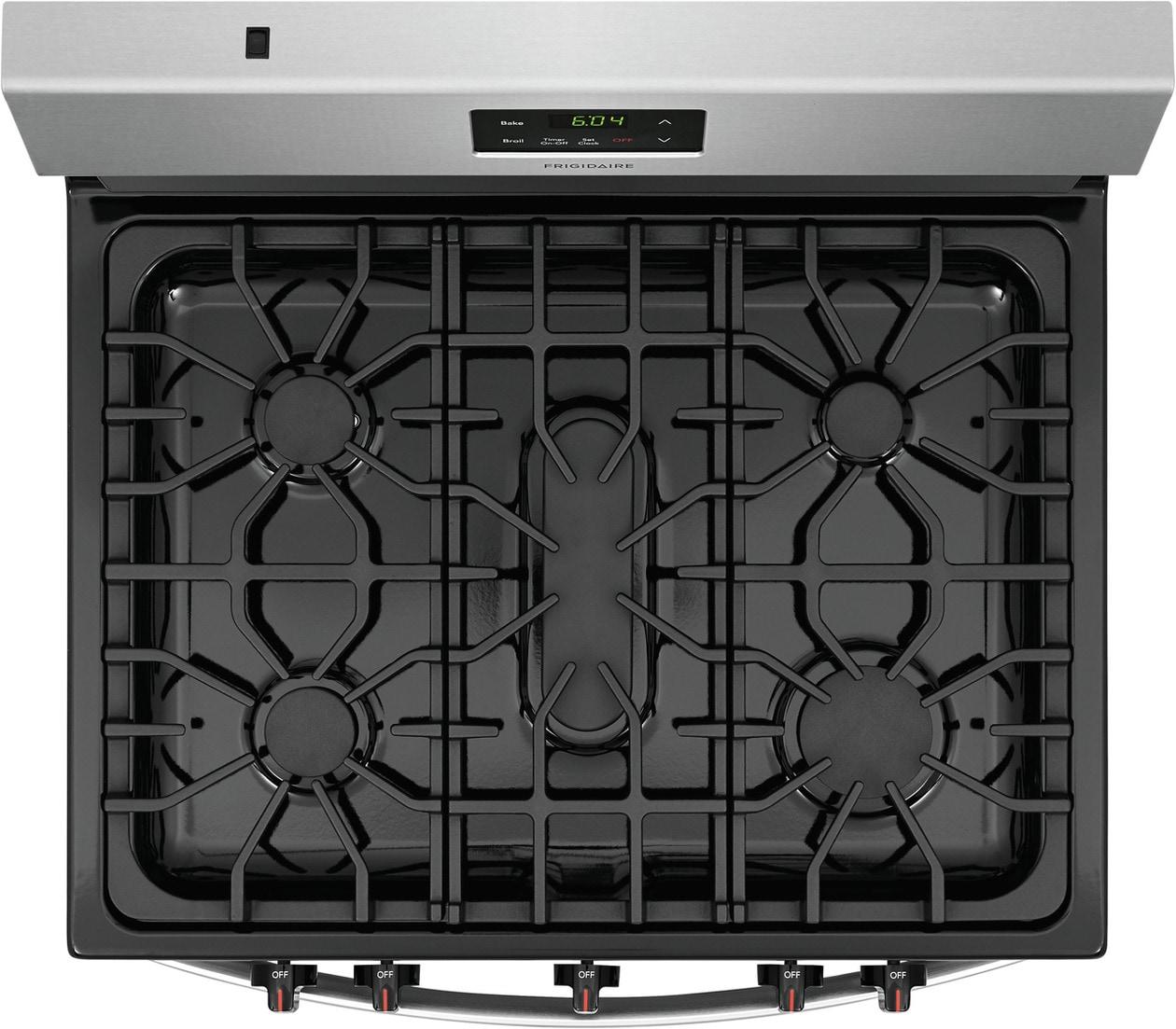

Cooktop
Cooking Surface Type	Gas
Grate Material	Cast Iron
Grate Quantity	3
Grate Style	Continuous
Cooktop Performance
Right Front Element Burner	16000 BTU
Right Rear Element Burner	5000 BTU
Left Front Element Burner	9500 BTU
Left Rear Element Burner	12000 BTU
Center Element Burner	10000 BTU
Cooking Controls
Bake	Yes
Broil	Yes
Clear Off	Yes
Kitchen Timer	Yes
Lockout	No
Oven Light	Yes
Preheat	Yes
Probe	No
Self Clean	No
Temperature Display	Yes
Timed Bake	No
Warmer Drawer	No

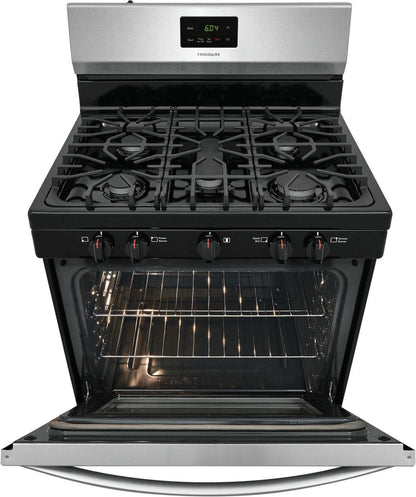

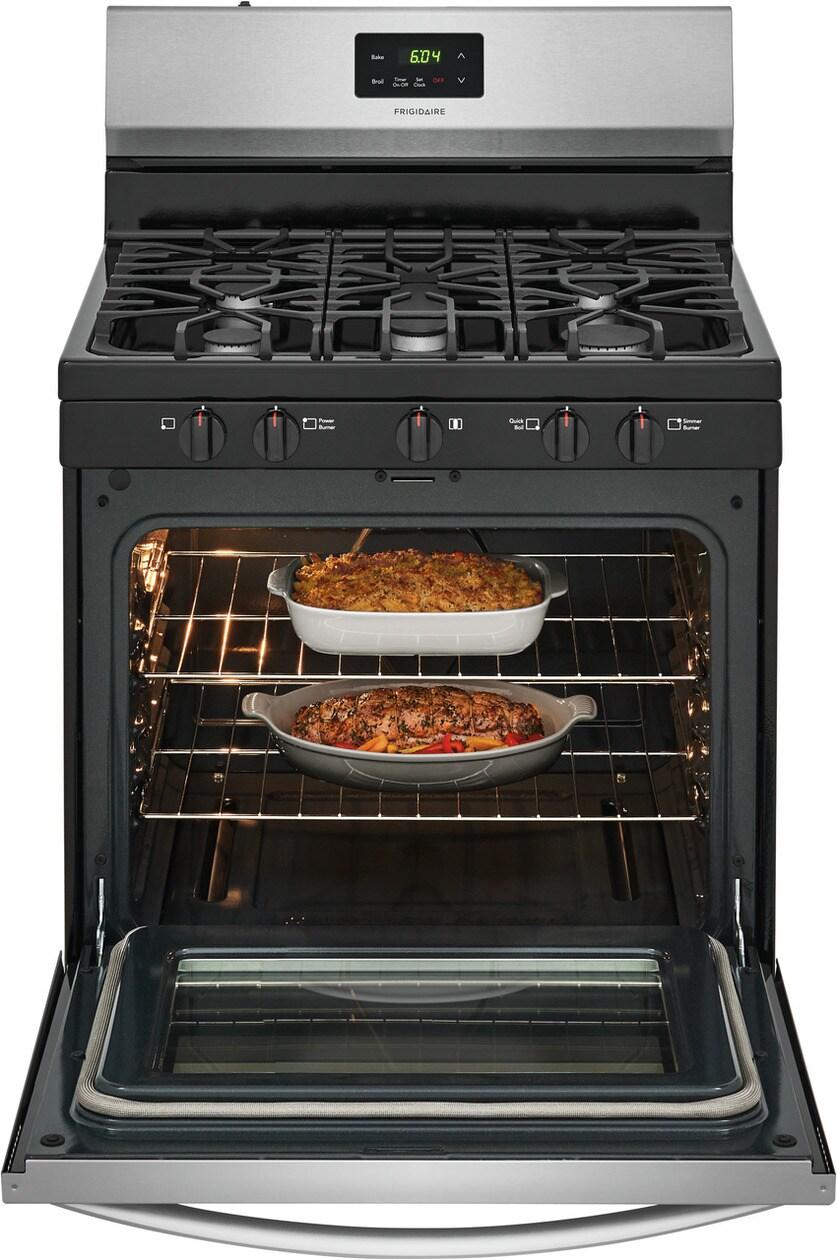

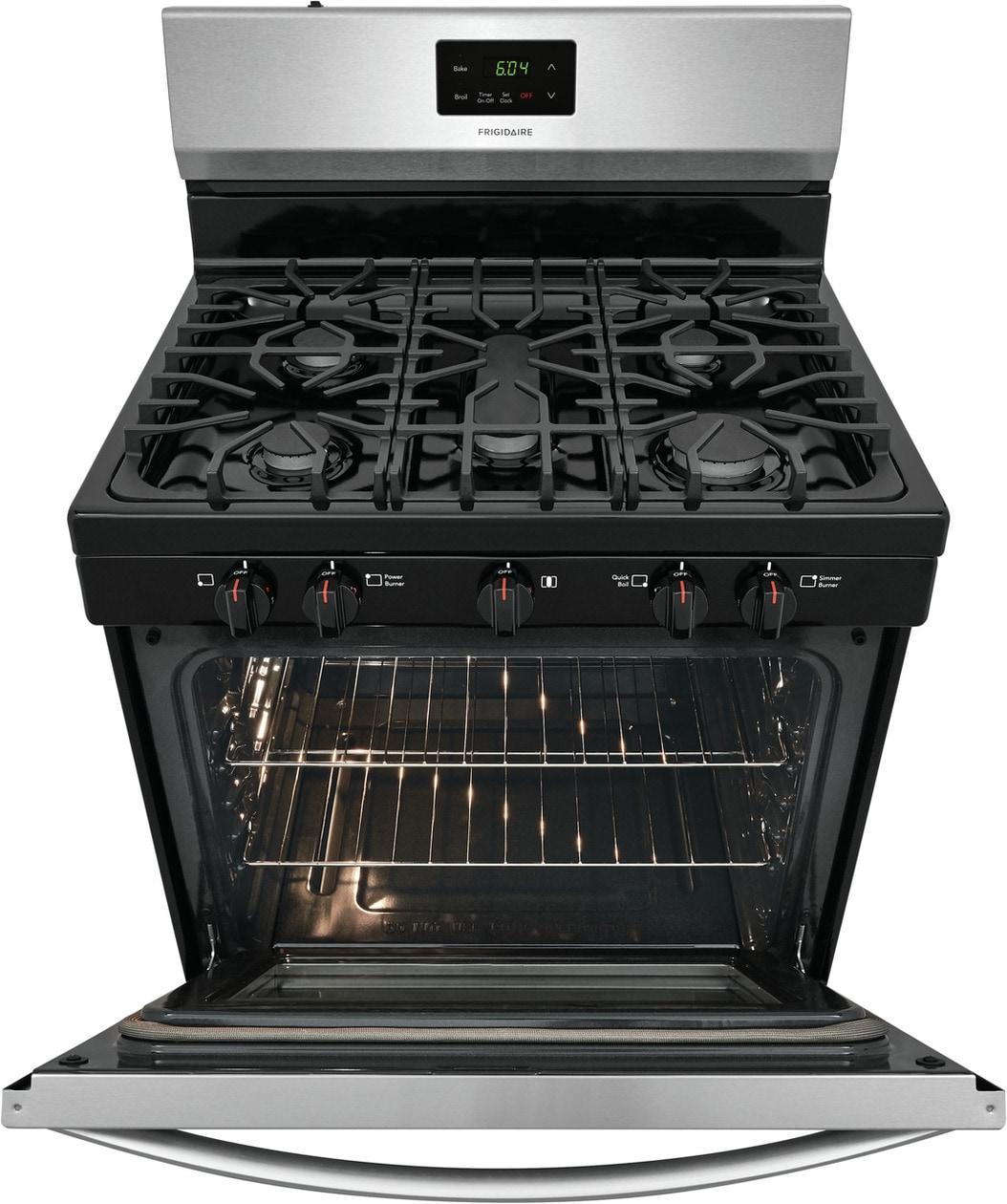

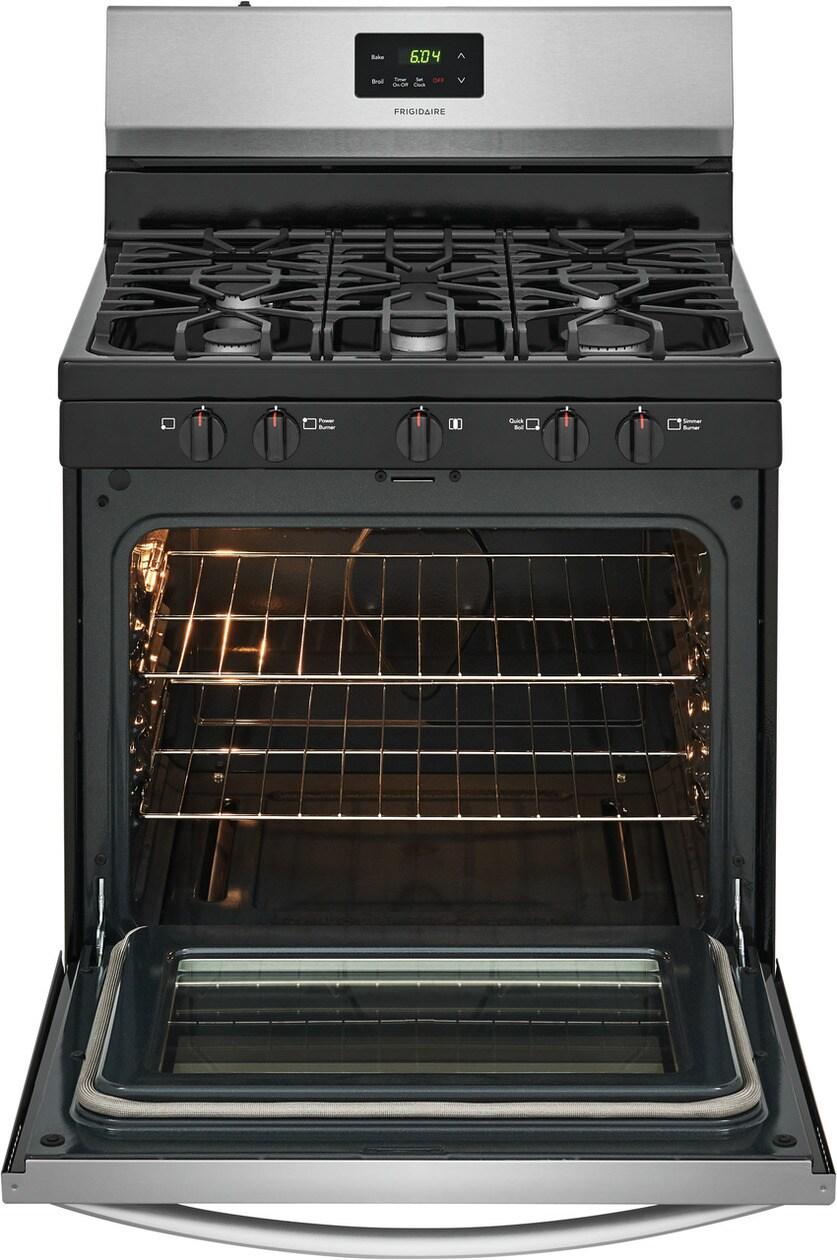

Oven
Bake Element	18000 BTU
Bake System	Yes
Broil Element	1400 Watts
Broil System	Yes
Number of Rack Positions	6
Rack Position Type	Nickel Ladder
Rack Type 1	Flat
Rack Type 1 Quantity	2
Window Type	Extra Large Visual
Drawer
Drawer Type	Storage
Controls
Control Lock	No
Sabbath Mode	No

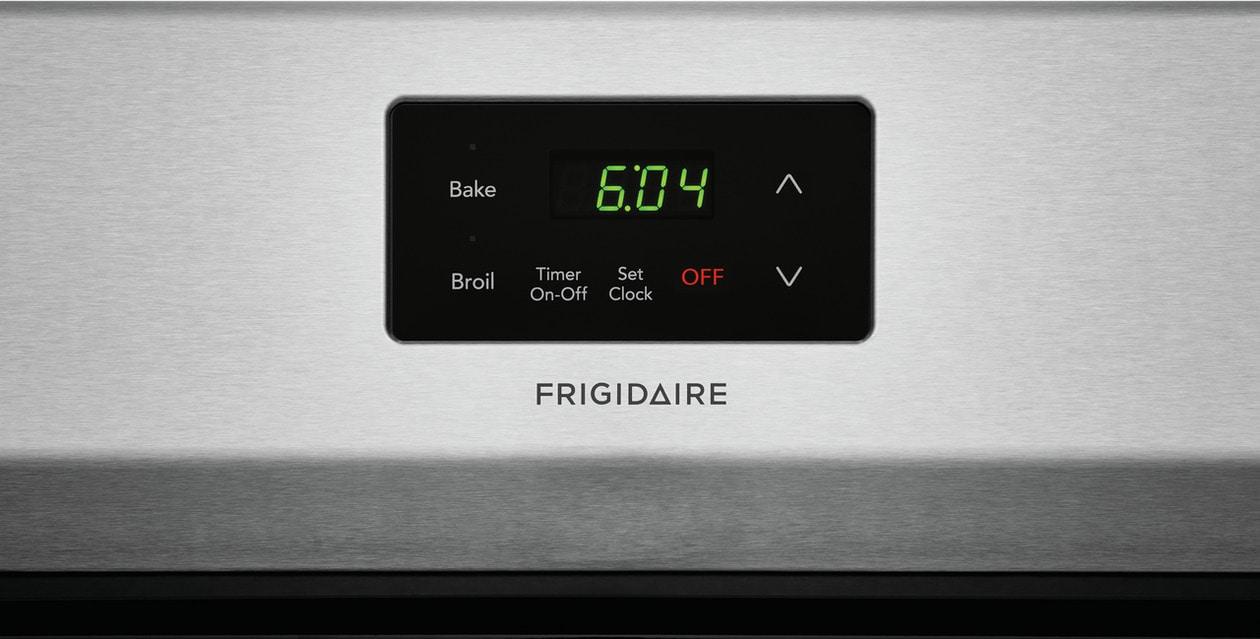

Display
Control Location	Rear
Display Type	Membrane
Exterior
Cooktop Finish	Color Coordinated
Drawer Finish	Color Coordinated
Knob Material	Plastic
Dimensions and Volume
Height	46 9/16"
Width	29 7/8"
Depth	25 3/4"
Depth With Door 90° Open	46 9/16"
Oven Interior Height	18 5/8"
Oven Interior Width	24 3/8"
Oven Interior Depth	19 1/8"
Oven Capacity	5 Cu. Ft.
Electrical Specifications
Minimum Circuit Required	12 Amps
Voltage Rating	120 V
Installation
Adjustable Leveling Legs	Yes
Power Supply Connection Location	Bottom Center
General Specifications
Product Weight	133 lbs
Prop 65 Label	Yes
Warranty - Labor	1 Year
Warranty - Parts	1 Year
Certifications and Approvals
ADA Compliant	No
CSA Listed	Yes
