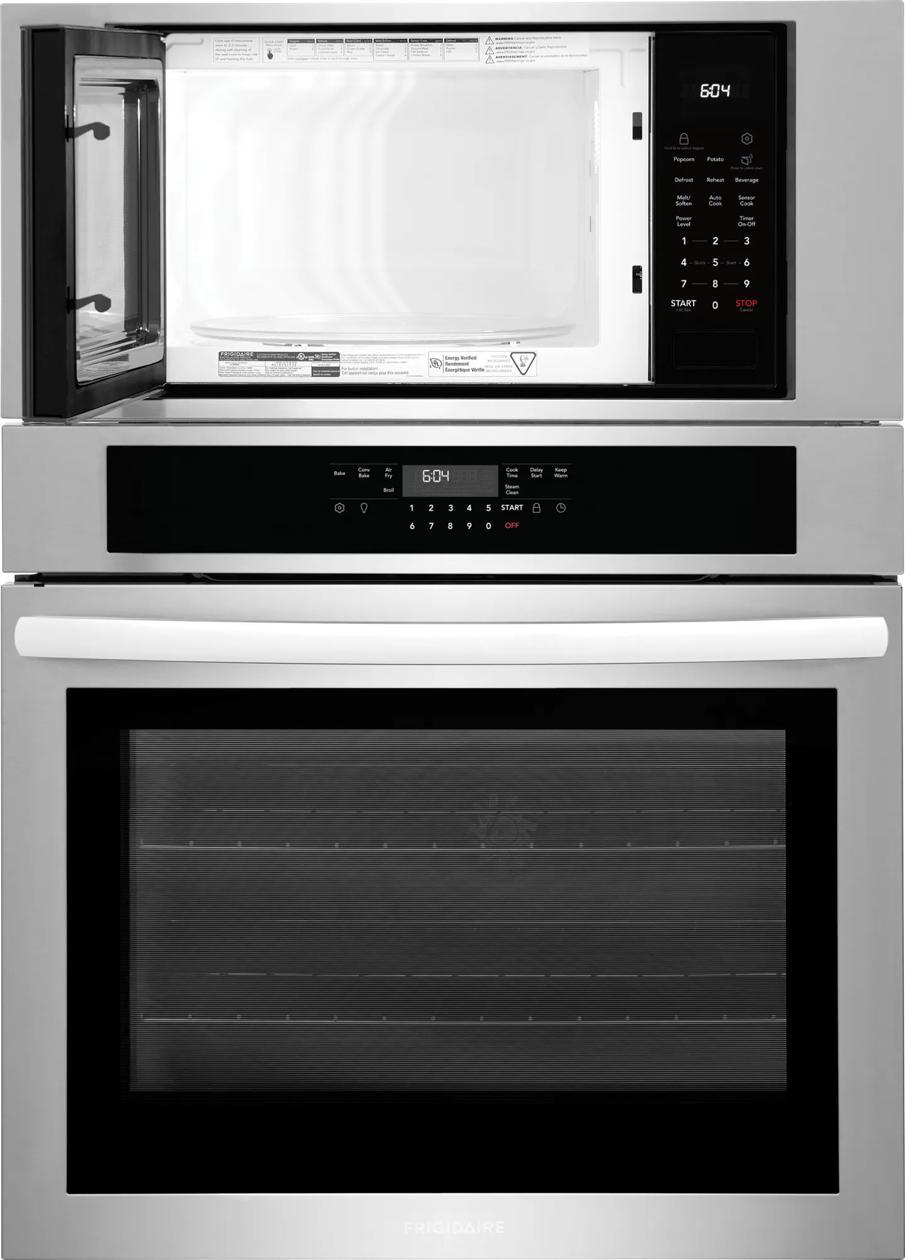

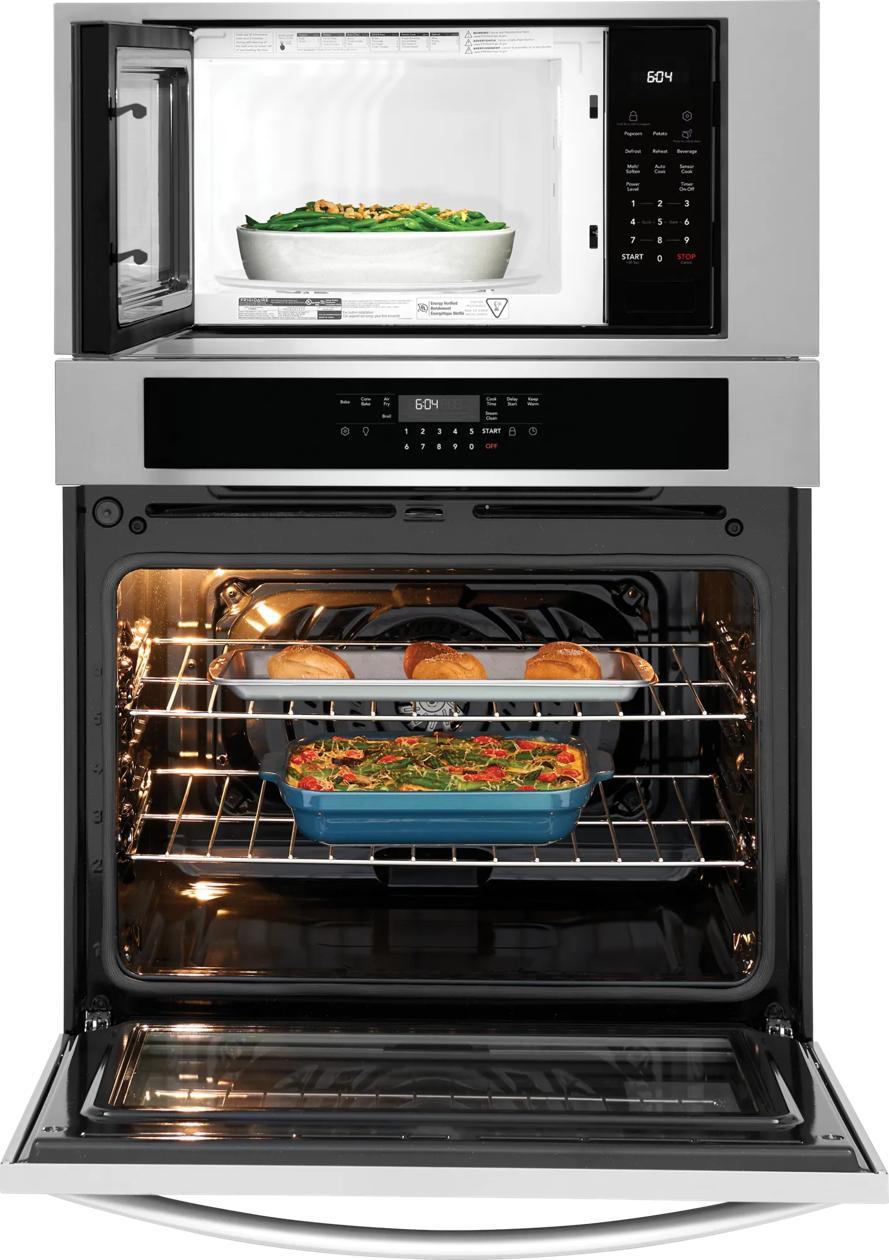

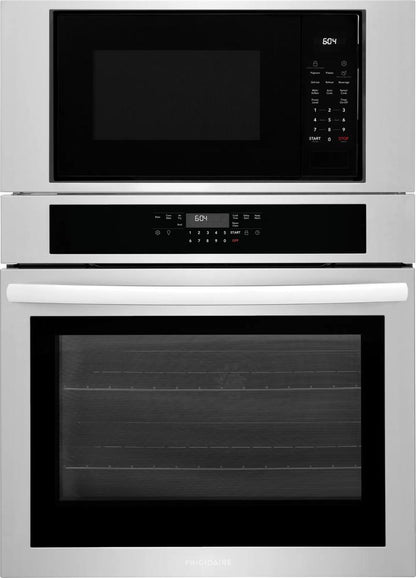

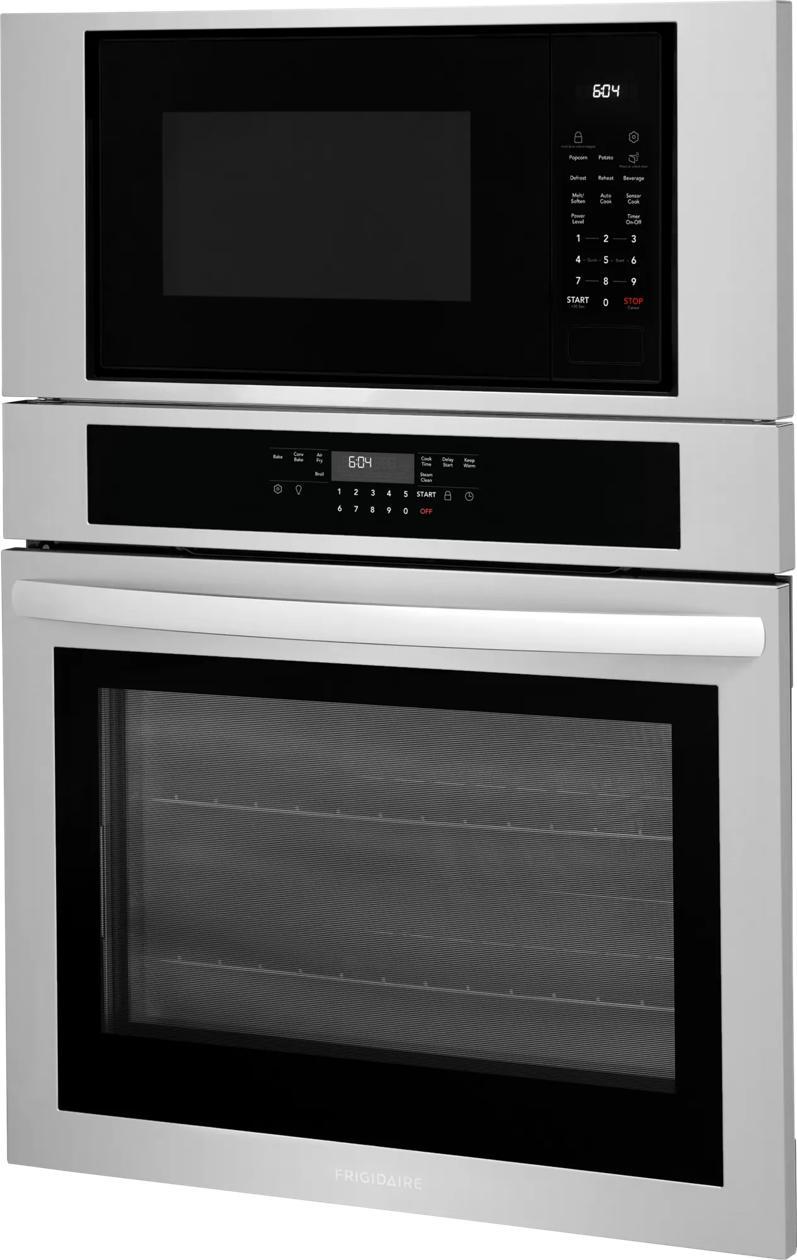

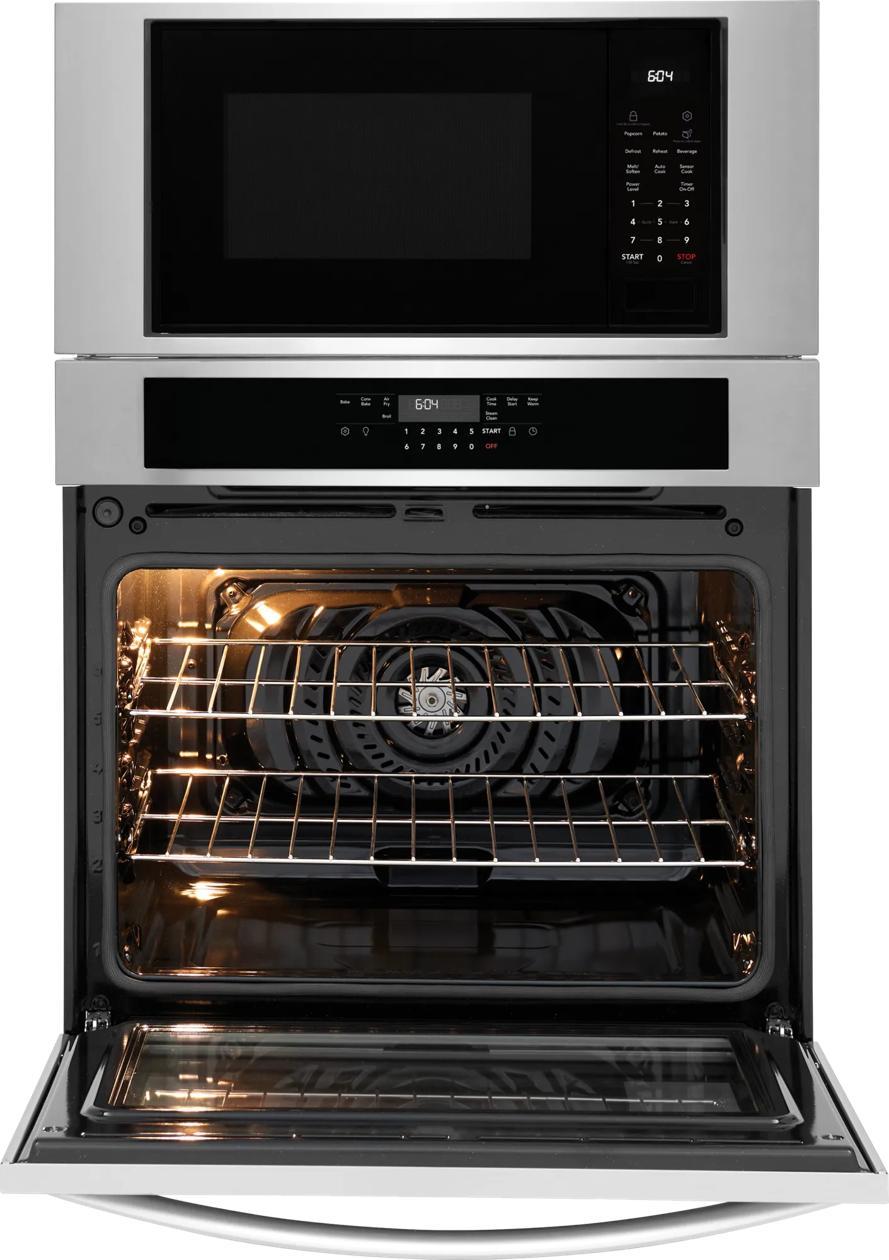

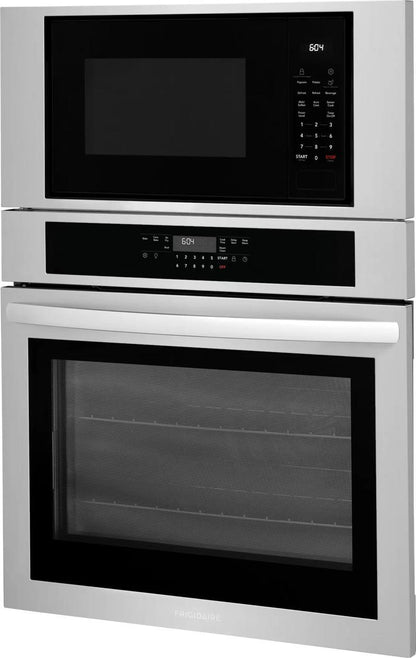

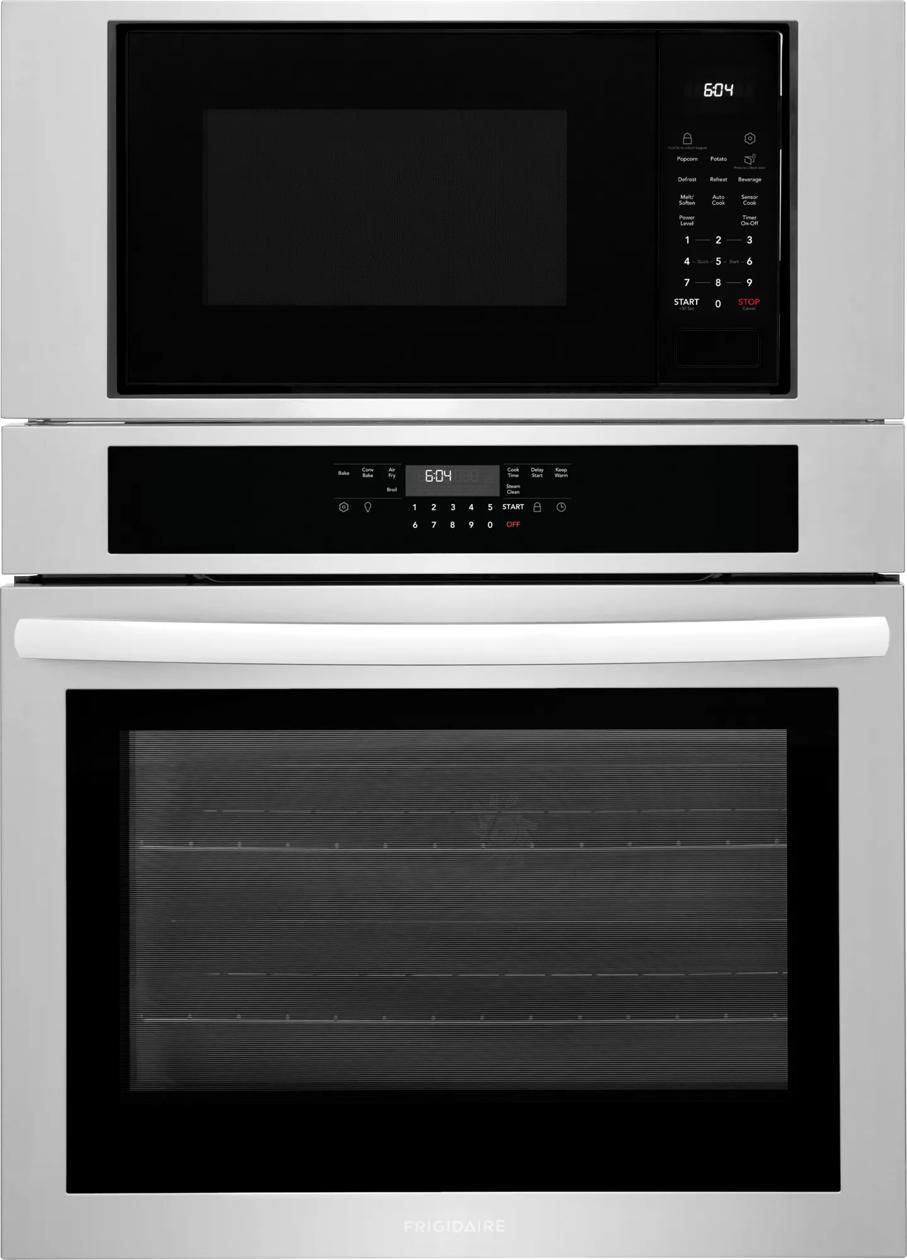

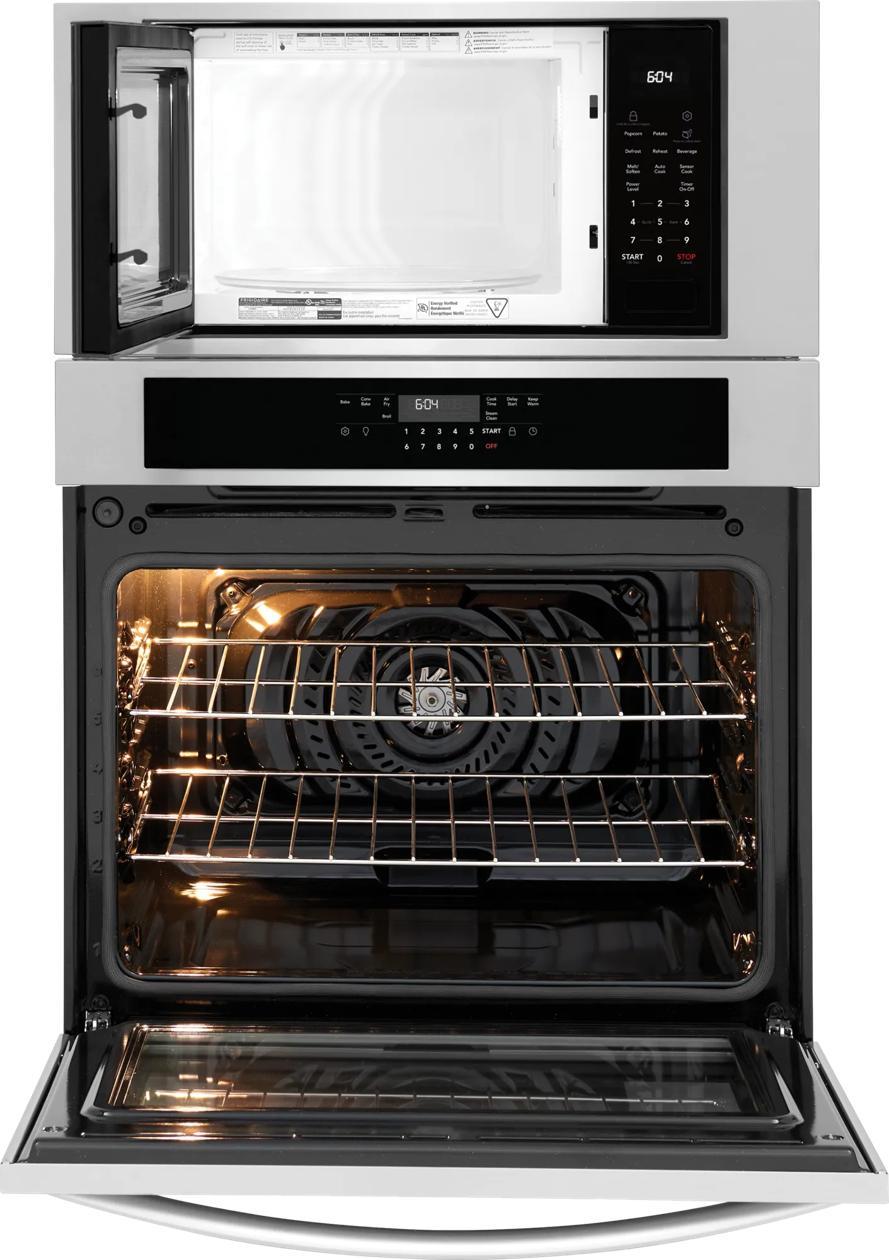

Frigidaire FCWM3030AS 30" Microwave Combination Oven

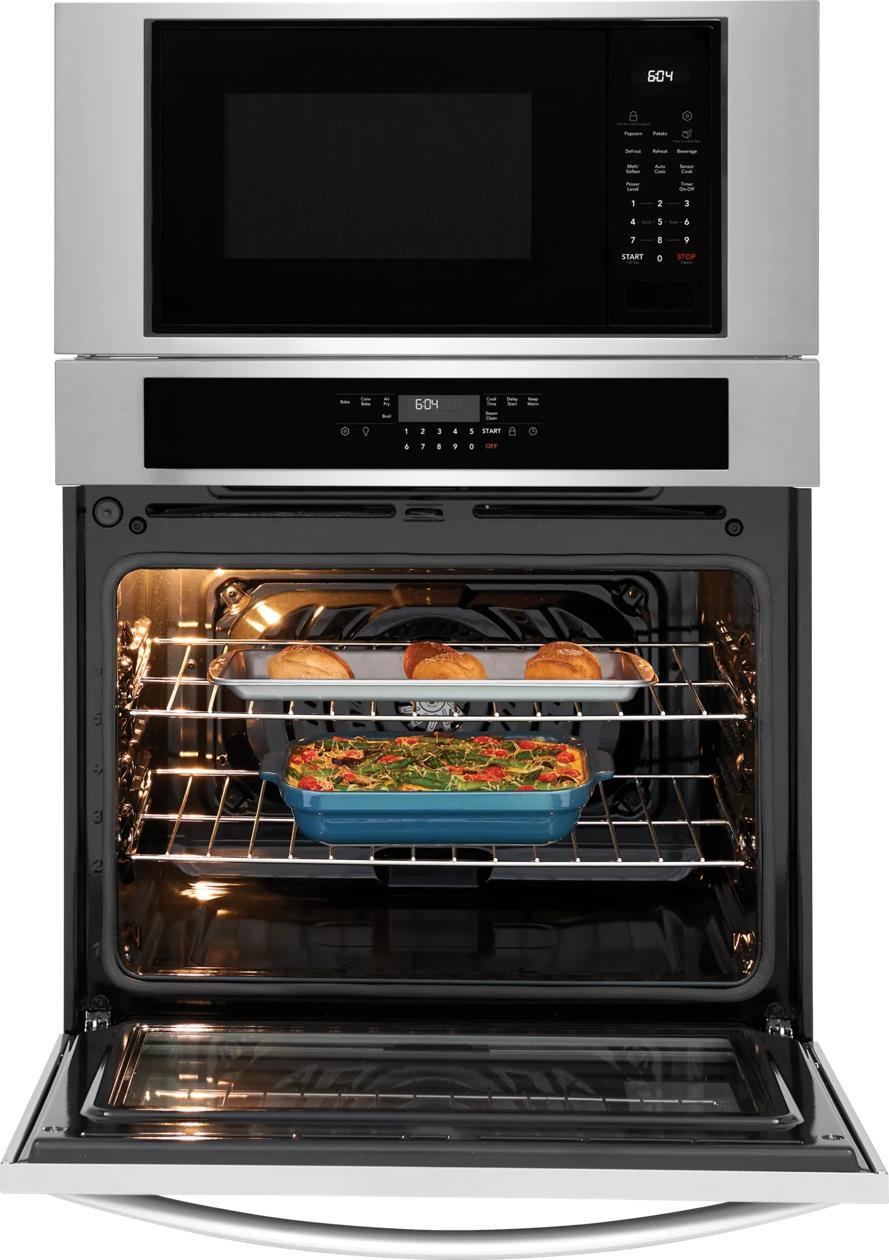

The Frigidaire 30" Microwave Combination Oven with Air Fry allows you to make family-sized air fry meals, right in your oven. Plus, keeping your oven clean has never been easier with our convenient 30-minute oven Steam Clean cycle. The microwave features convenient sensor cook and reheat settings Also, enjoy the peace of mind that this will fit your existing cutout cabinet cutout with our Frigidaire Fit Promise.

Product Line	Microwave Combination Wall Oven
Power Type	Electric 240v
Size	30"
Installation Type	Built-In
Factory	Springfield
Color	Stainless Steel

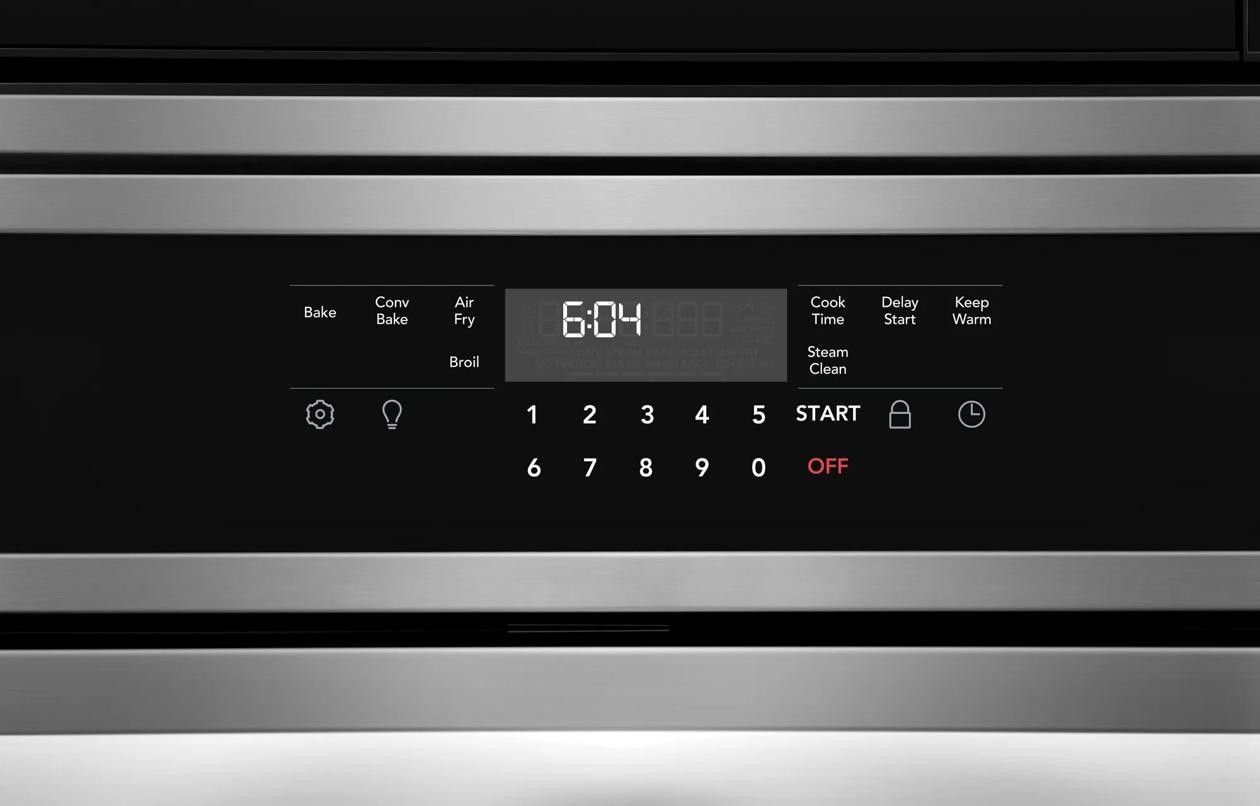

Cooking Controls
Air Fry	Yes
Bake	Yes
Bake Time	Yes
Broil	Yes
Cancel	Yes
Clock	Yes
Convection Bake	Yes
Cook Time	Yes
Delay Start	Yes
Kitchen Timer	Yes
Light	Yes
Off	Yes
Oven Light	Yes
Preheat	Yes
Start	Yes
Steam Clean	Yes
Temperature Display	Yes
Timer On / Off	Yes
Cooking Controls Function
Change between Continuous Bake Setting or 12-Hour Energy Saving Feature	Yes
Program Fahrenheit or Celsius	Yes
Silent Control Panel	Yes
Oven
Bake Element	2600 Watts
Bake Element Pass	4
Bake Element Type	Hidden
Broil Element	4000 Watts
Broil Element Pass	6
Cleaning System	Yes
Convection	Yes
Convection Type	Fan
Number of Convection Fans	1
Number of Rack Positions	6
Oven Interior Color	Midnight Black
Oven Light Quantity	1
Oven Light Type	Halogen
Oven Light Watts	40 Watts
Rack Position Type	Embossed
Rack Type 1	Flat
Rack Type 1 Quantity	2
Microwave Cooking
Microwave Cooking Power	1100 Watts
Auto Cook	Yes
Beverage	Yes
Defrost	Yes
Melt / Soften	Yes
Popcorn	Yes
Potato	Yes
Reheat	Yes
Sensor Cooking	Yes
Veggies	Yes
Controls
Control Lock	Yes
Sabbath Mode	Yes

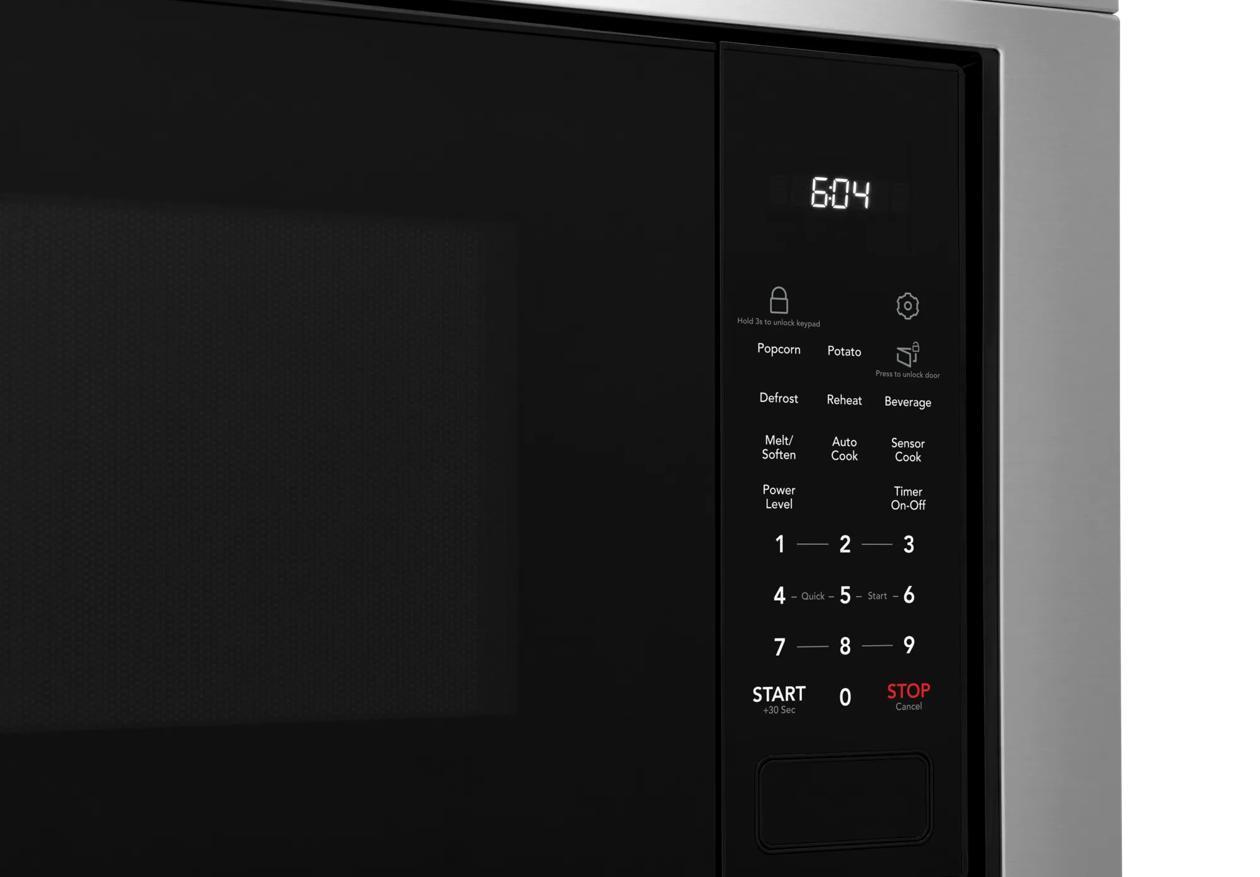

Microwave Control Features
+ 30 Seconds	Yes
Display
Control Location	Front
Display Interface Color	White
Display Light Color	White
Display Type	Membrane
Internal Specifications
Interior Color	White
Interior Light Quantity	1
Interior Light Type	Halogen
Interior Light Wattage	25 Watts
Rack	Yes
Turntable Diameter	13 1/2"
Turntable Material	Glass

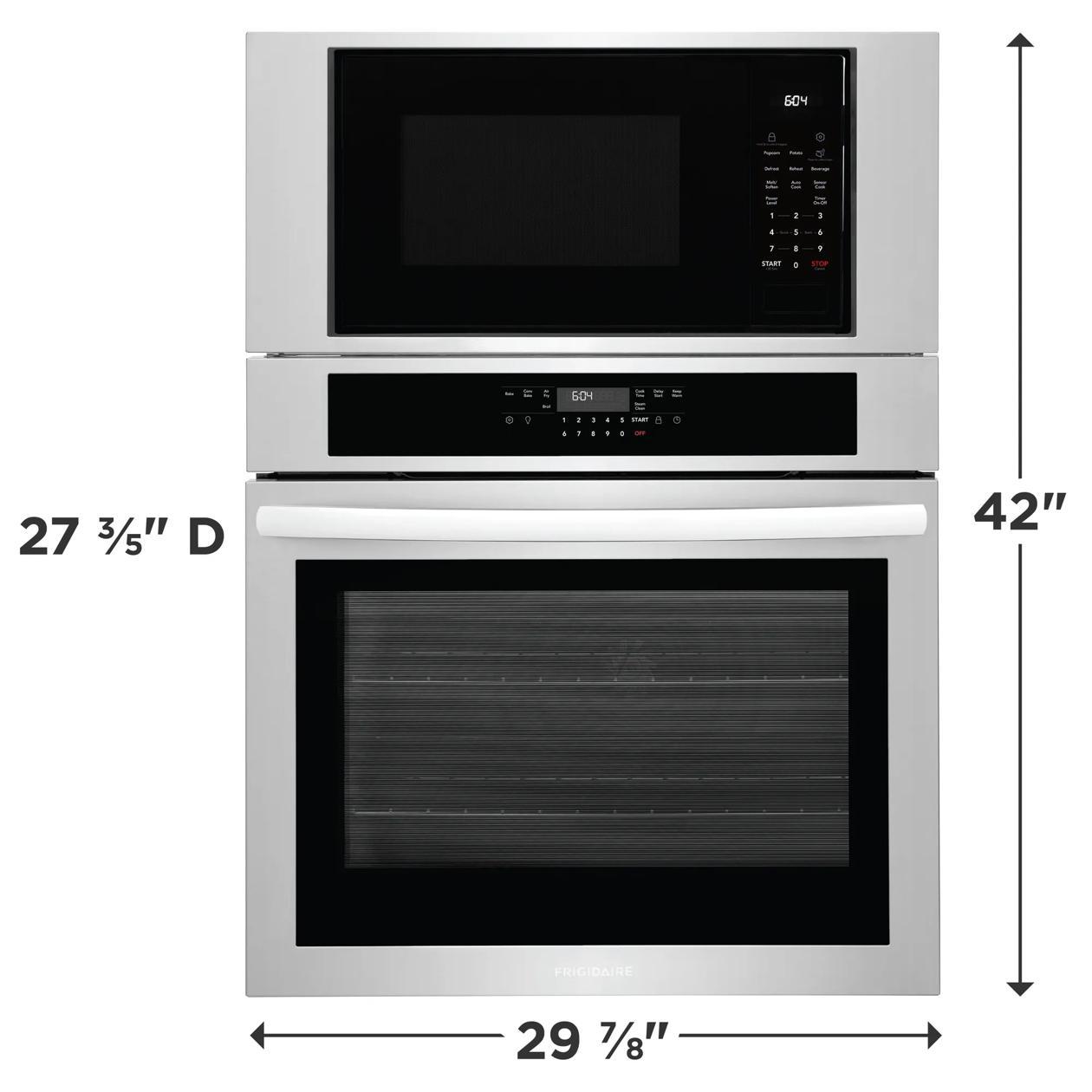

Dimensions and Volume
Height	42"
Width	29 7/8"
Depth	25 3/16"
Depth With Door 90° Open	48 3/16"
Depth With Handle	27 3/5"
Oven Interior Height	18 1/8"
Oven Interior Width	25 1/5"
Oven Interior Depth	19 7/8"
Microwave Interior Height	10 1/2"
Microwave Interior Width	17 3/8"
Microwave Interior Depth	18 5/8"
Minimum Cutout Height	41 1/4"
Minimum Cutout Width	28 1/2"
Maximum Cutout Height	42 1/8"
Maximum Cutout Width	28 3/4"
Microwave Capacity	1.6 Cu. Ft.
Oven Capacity	5.3 Cu. Ft.
Electrical Specifications
Amps @ 240 Volts	40 Amps
Minimum Circuit Required	40 Amps
Voltage Rating	240 V
General Specifications
Frigidaire Fit Promise	Yes
Annual Energy	255 kWh
Product Weight	168 lbs
Prop 65 Label	Yes
Warranty - Labor	1 Year
Warranty - Parts	1 Year
AB-1200	Information available at frigidaire.com/en/ab1200
Installation
Power Supply Connection Location	Top Left
Safety Certifications and Approvals
CSA Listed	Yes
RoHS	Yes
UL Listed	Yes
Accessories
Optional Trim Kit Part Number	WOMC3TRIMSS, WOMC3TRIMDSS, WOMC3TRIMBLK
