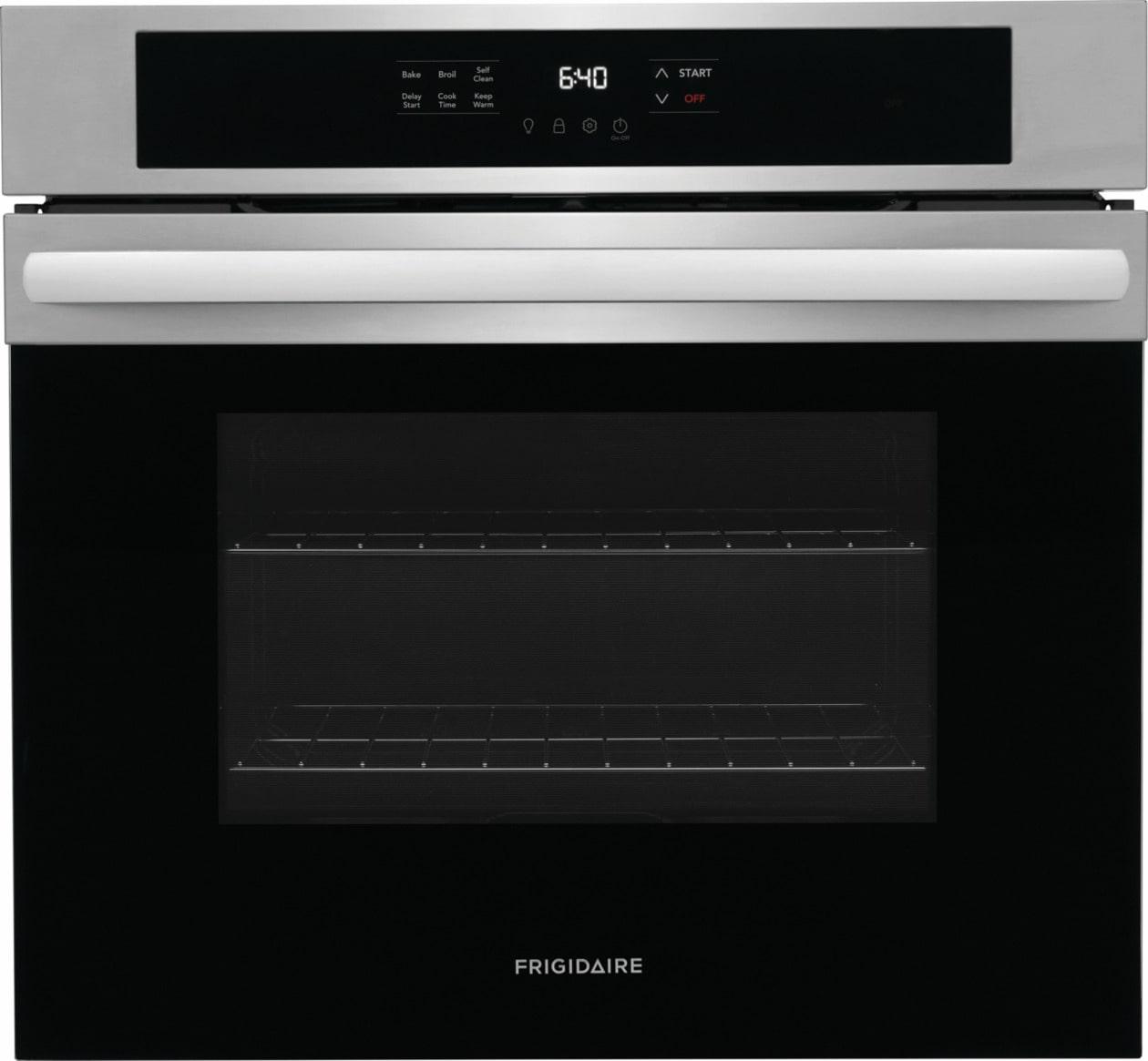

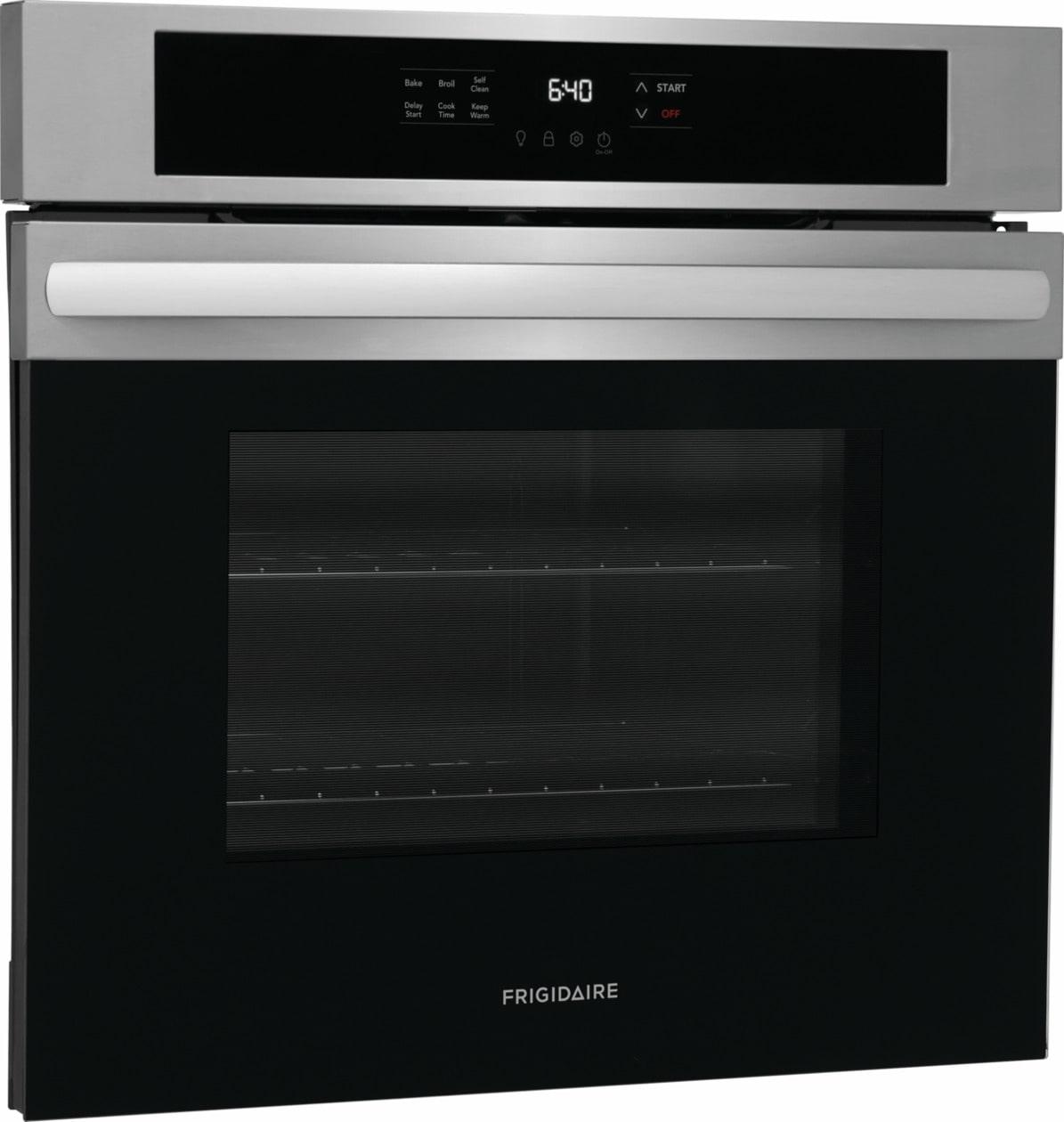

Frigidaire FCWS3025AS 30" Single Electric Wall Oven FCWS3025AS

The Frigidaire 30" Single Wall Oven includes our Even Baking Technology, which is designed to deliver consistent baking results, every time. Plus, cleanup is easier with convenient 2, 3 and 4-hour Self Clean cycles. Plus, with our Frigidaire Fit Promise, have peace of mind that this oven will fit your existing cutout, or we will reimburse you up to $300 for cabinet modification costs.

Product Line	Single Wall Oven
Size	30"
Installation Type	Built-In
Factory	Springfield
Color	Stainless Steel
Cooking Controls
Bake	Yes
Broil	Yes
Cancel	Yes
Clock	Yes
Keep Warm	Yes
Kitchen Timer	Yes
Light	Yes
Oven Light	Yes
Preheat	Yes
Self Clean	Yes
Cooking Controls Function
Change between Continuous Bake Setting or 12-Hour Energy Saving Feature	Yes
Program Fahrenheit or Celsius	Yes
Silent Control Panel	Yes
Oven
Bake Element	2500 Watts
Bake Element Pass	8
Bake Element Type	Hidden
Broil Element	4000 Watts
Broil Element Pass	6
Broil System	Yes
Oven Interior Color	Midnight Black
Oven Light Quantity	1
Oven Light Type	Halogen
Oven Light Watts	40 Watts
Rack Position Type	Embossed
Rack Type 1	Flat
Rack Type 1 Quantity	2
Controls
Control Lock	Yes
Sabbath Mode	Yes
Display
Display Interface Color	White
Display Light Color	White
Display Type	Capacitive Touch
Dimensions and Volume
Height	28"
Width	29 7/8"
Depth	25 3/16"
Depth With Door 90° Open	48 3/16"
Depth With Handle	27 3/5"
Oven Interior Height	18 1/8"
Oven Interior Width	25 1/5"
Oven Interior Depth	19 7/8"
Minimum Cutout Height	26 3/4"
Minimum Cutout Width	28 1/2"
Maximum Cutout Height	28"
Maximum Cutout Width	29"
Oven Capacity	5.3 Cu. Ft.
Electrical Specifications
Amps @ 240 Volts	20 Amps
Minimum Circuit Required	20 Amps
Voltage Rating	240 V
General Specifications
Frigidaire Fit Promise	Yes
Product Weight	130 lbs
Prop 65 Label	Yes
Warranty - Labor	1 Year
Warranty - Parts	1 Year
Installation
Power Supply Connection Location	Top Left
Certifications and Approvals
ADA Compliant	Yes
CSA Listed	Yes
RoHS	Yes
UL Listed	Yes
