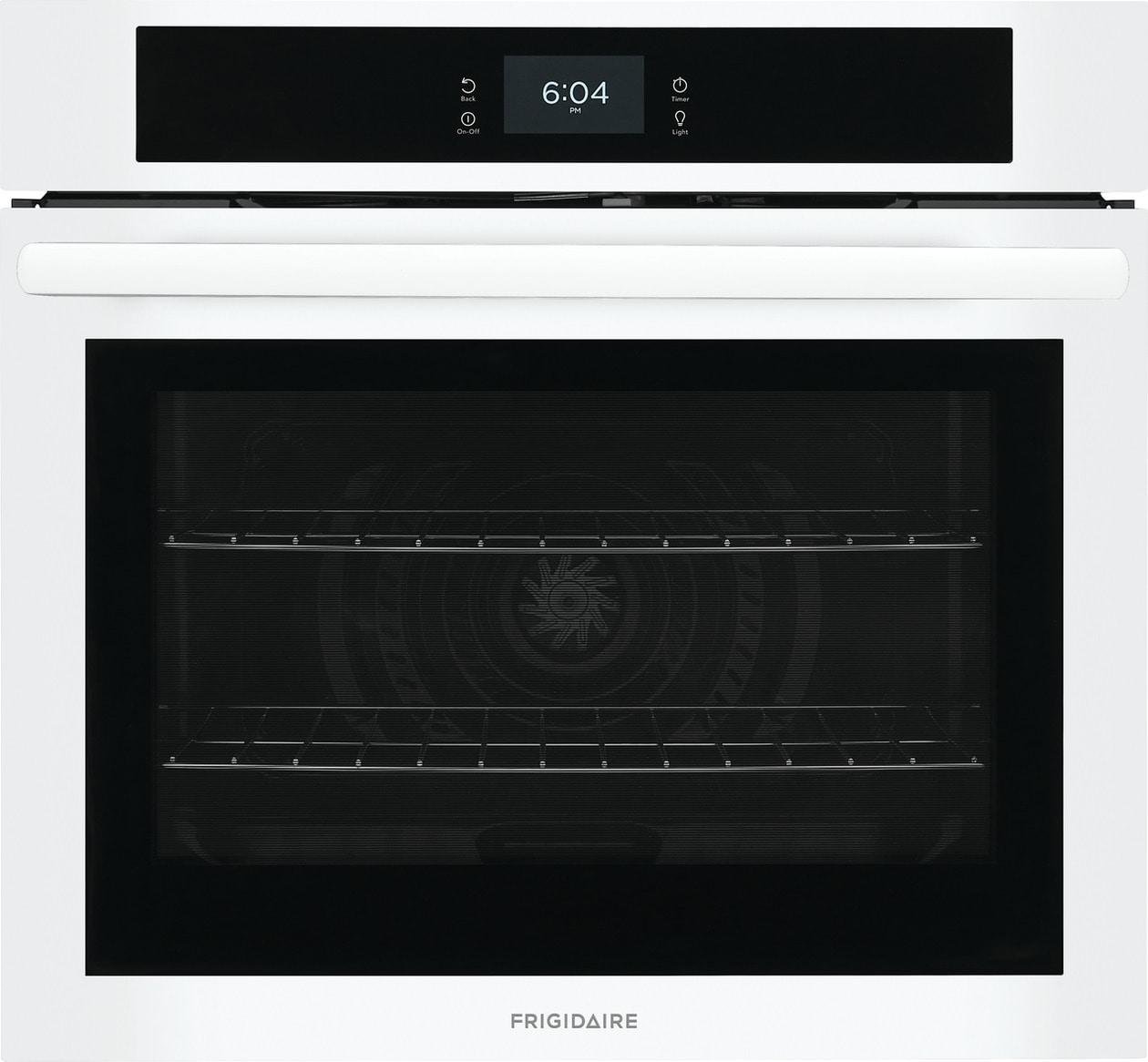

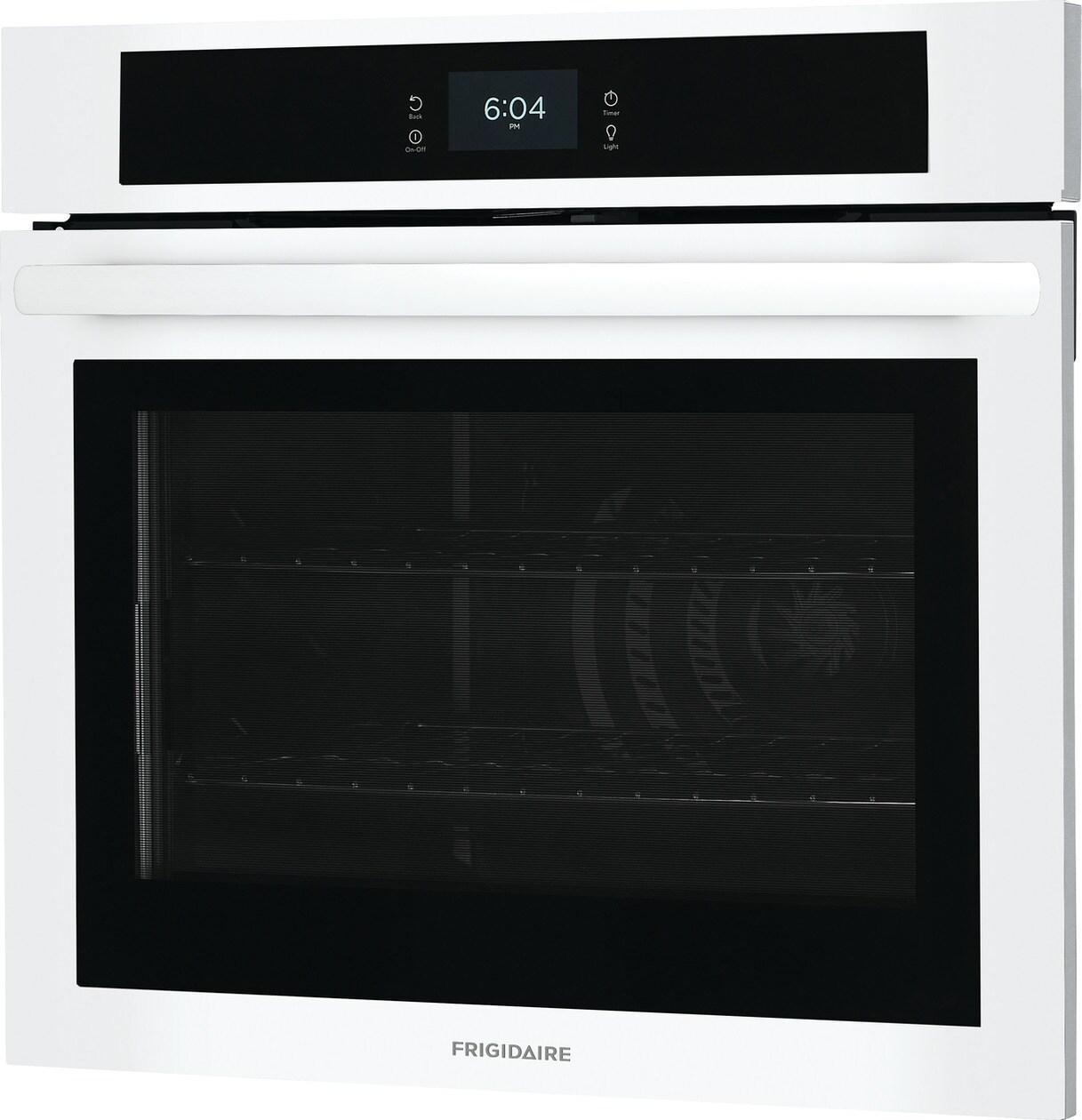

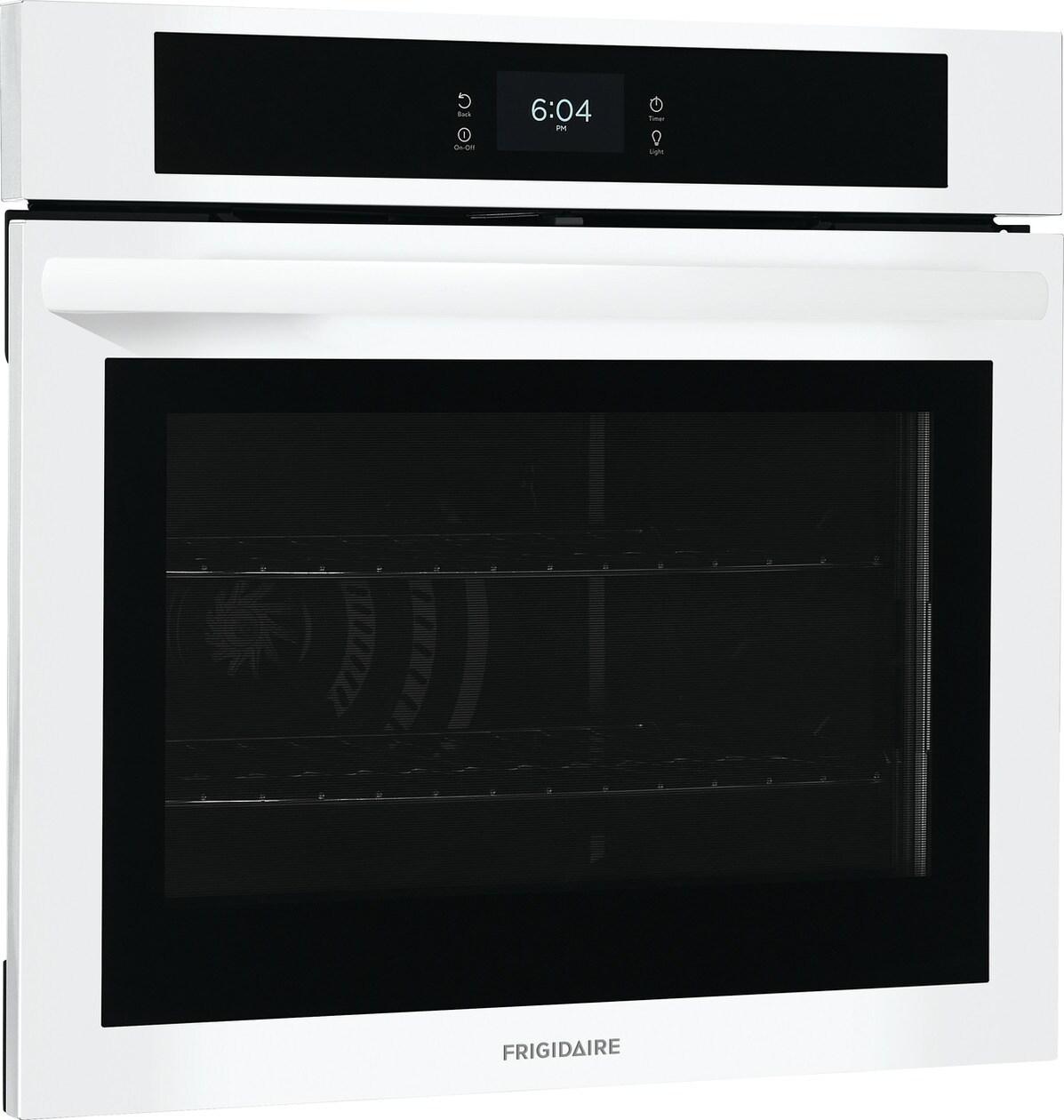

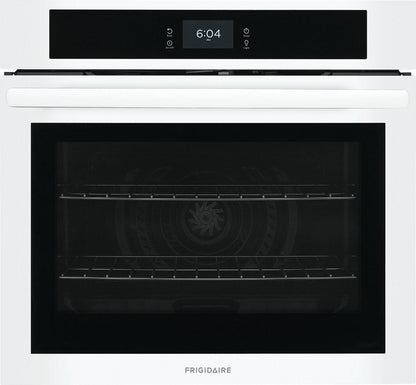

FCWS3027AW Frigidaire 30" Single Electric Wall Oven with Fan Convection FCWS3027AW

The Frigidaire 30" Single Wall Oven with Fan Convection allows you to achieve faster, more even multi-rack baking results, all in an extra large, 5.3 cu. ft. oven cavity! It also features a premium touch screen digital control panel and provides peace of mind that it will fit existing cutouts with our Frigidaire Fit Promise.

Product Line	Single Wall Oven
Power Type	Electric 240v
Size	30"
Installation Type	Built-In
Factory	Springfield
Color	White
Cooking Controls
Bake	Yes
Bake Time	Yes
Broil	Yes
Cancel	Yes
Clock	Yes
Convection Bake	Yes
Cook Time	Yes
Delay Start	Yes
Keep Warm	Yes
Kitchen Timer	Yes
Light	Yes
Off	Yes
Oven Light	Yes
Preheat	Yes
Self Clean	Yes
Start	Yes
Temperature Display	Yes
Timer On / Off	Yes
Cooking Controls Function
Change between Continuous Bake Setting or 12-Hour Energy Saving Feature	Yes
Program Fahrenheit or Celsius	Yes
Silent Control Panel	Yes
Oven
Bake Element	2500 Watts
Bake Element Pass	8
Bake Element Type	Hidden
Broil Element	4000 Watts
Broil Element Pass	6
Broil System	Yes
Cleaning System	Yes
Convection	Yes
Convection Type	Fan
Number of Convection Fans	1

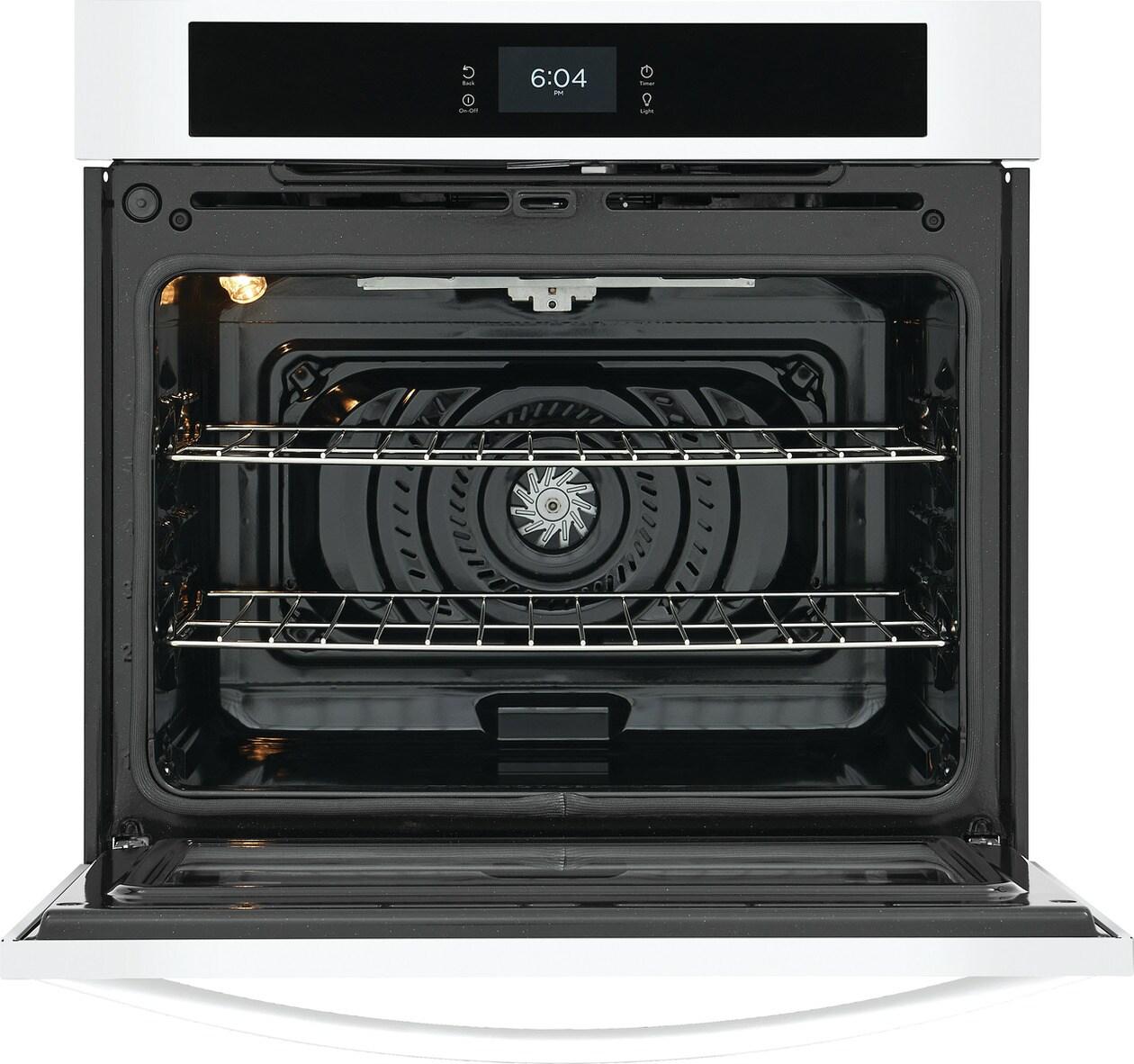

Number of Rack Positions	6
Oven Interior Color	Midnight Black
Oven Light Quantity	1
Oven Light Type	Halogen
Oven Light Watts	40 Watts
Rack Position Type	Embossed
Rack Type 1	Flat
Rack Type 1 Quantity	2
Controls
Control Lock	Yes
Sabbath Mode	Yes
Display
Display Interface Color	White
Display Light Color	White

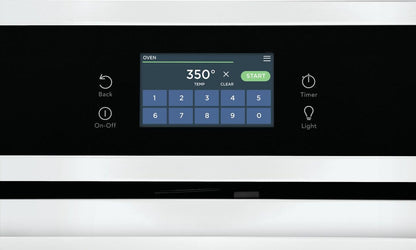

Display Type	Capacitive Touch
Exterior
Handle Color	White
Dimensions and Volume
Height	28"
Width	29 7/8"
Depth	25 3/16"
Depth With Door 90° Open	48 3/16"
Depth With Handle	27 3/5"
Oven Interior Height	18 1/8"
Oven Interior Width	25 1/5"
Oven Interior Depth	19 7/8"
Minimum Cutout Height	26 3/4"
Minimum Cutout Width	28 1/2"
Maximum Cutout Height	28"
Maximum Cutout Width	29"
Oven Capacity	5.3 Cu. Ft.
Electrical Specifications
Amps @ 240 Volts	20 Amps
Connected Load @ 240V	3.7 kW
Minimum Circuit Required	20 Amps
Voltage Rating	240 V
General Specifications
Frigidaire Fit Promise	Yes
Product Weight	130 lbs
Prop 65 Label	Yes
Warranty - Labor	1 Year
Warranty - Parts	1 Year
AB-1200	Information available at frigidaire.com/en/ab1200
Installation
Power Supply Connection Location	Top Left
Certifications and Approvals
ADA Compliant	Yes
CSA Listed	Yes
RoHS	Yes
UL Listed	Yes
Accessories
Optional Trim Kit Part Number	WOMC3TRIMSS, WOMC3TRIMDSS, WOMC3TRIMBLK, WOMC3TRIMWHT
