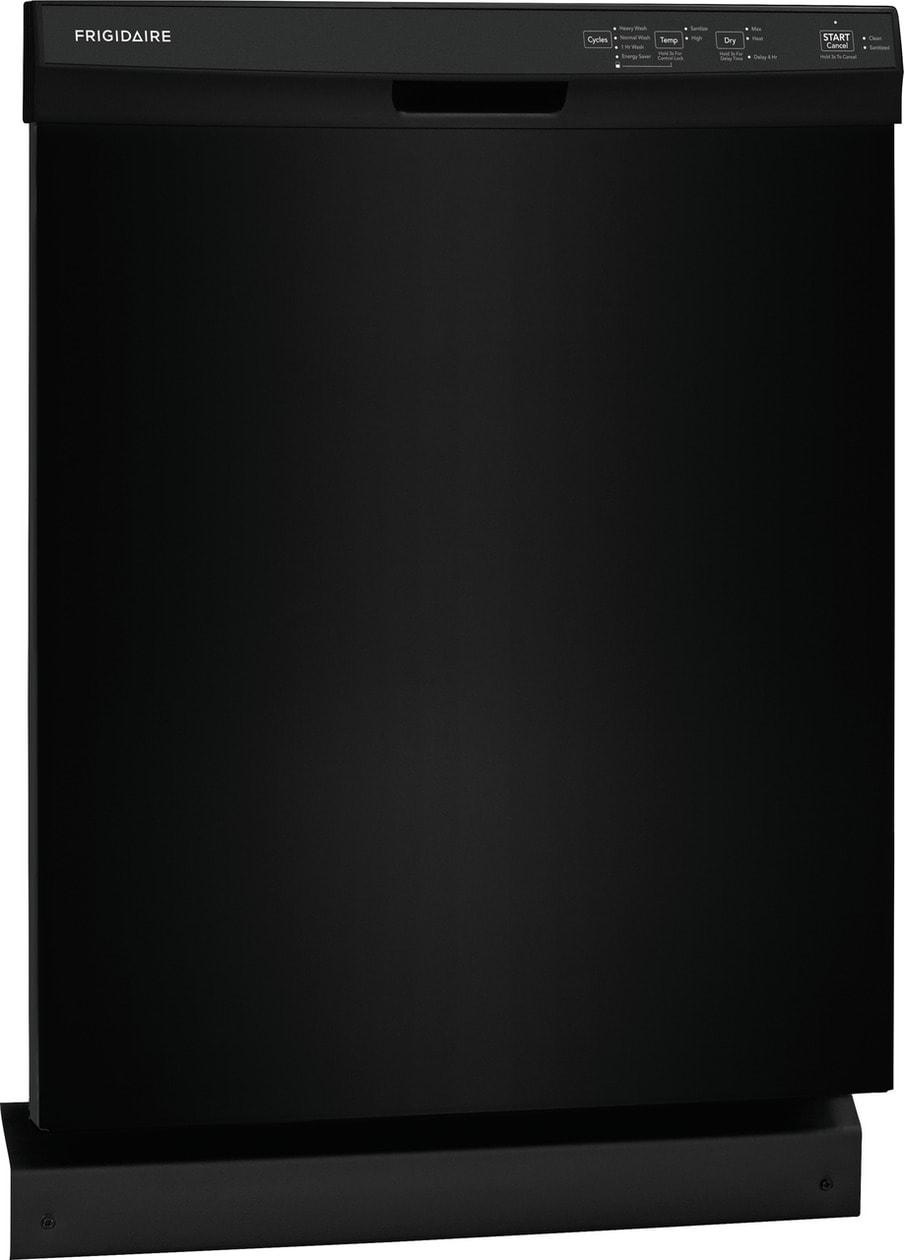

FDPC4314AB Frigidaire 24" Built-In Dishwasher FDPC4314AB

The Frigidaire 24" built-in dishwasher offers triple the cleaning power giving your dishes a more effective clean with our three spray arms that achieve better water coverage. Plus, enjoy an enhanced dry with MaxDry™, which delivers better results reducing the need for towel drying. This quiet dishwasher (54 dBA) also includes DishSense® Sensor Technology, a sanitize option and is Energy Star® certified.

Product Line	Dishwasher
Power Type	Electric 120v
Size	24"
Factory	Kinston
Color	Black
Dishwasher
Automatic Temperature Control	Yes
Detergent Dispenser	Yes
Filter Material	Plastic
Filter Trap	Removable
Filtered Water	100 %
Hard Food Disposer or Filtration	Yes
Motor Speeds	Single-Speed
Place Setting Capacity	14
Rinse Aid Dispenser	Yes
Smart Soil Sensor	Yes
Lower Spray Arm	Bi-Beam
Middle Spray Arm	Bi-Beam
Upper Spray Arm	Spray Arm
Tub Color	Midnight Ink
Tub Design	Tall Tub
Tub Material	Plastic
Wash Levels	5
Wash System	Direct Feed
Water Pressure	120 psi
Water Usage	3.2 Gallons
Dishwasher Cycles
Energy Saver	Yes
Heavy	Yes
Normal	Yes
Number of Cycles	4
Quick	Yes
Dishwasher Options
Air Dry	Yes
Dry - Heat	Yes
Dry - Max	Yes
Drying System	Static Vent
Heated Dry	Yes
High Temperature	Yes
Start/Cancel	Yes
Washing Temperature - High	Yes
Washing Temperature - Sanitize	Yes
Lower Rack
Maximum Height Clearance	13"
Minimum Height Clearance	11"
Number of Silverware Basket	1
Number of Silverware Basket Lids	2
Rack Coating	PVC
Rack Type	Standard
Upper Rack
Minimum Height Clearance	8"
Rack Coating	PVC
Rack Spacer	Yes
Rack Type	Standard
General Specifications
Sound Level	54 dBA
Annual Energy	240 kWh
Product Weight	56 lbs
Prop 65 Label	Yes
Warranty - Labor	1 Year
Warranty - Parts	1 Year

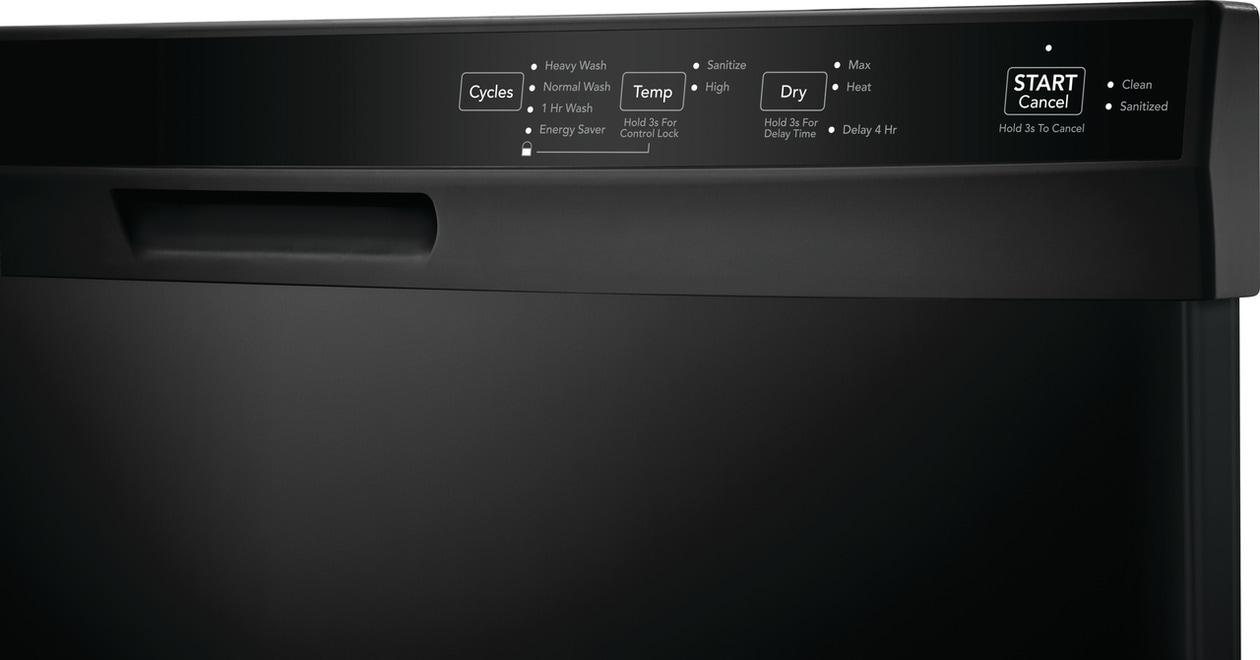

Controls
Control Location	Front
Control Lock	Yes
Delay Start Hours	4 Hours
Rinse Aid Indicator	Yes
Exterior
Door and Handle Design	Pocket
Door Latch	Pull
Door Type	Standard
Dimensions and Volume
Minimum Height	33 1/2"
Maximum Height	35"
Width	24"
Depth	25"
Depth With Door Open	49 1/4"
Electrical Specifications
Amps @ 120 Volts	10 Amps
Connected Load @ 120V	1.2 kW
Voltage Rating	120 V
Installation
Connection Location	Right Bottom
Number of Leveling Legs	4
Water Inlet Location	Left Bottom Front
Performance Certifications and Approvals
CEE Tier	Tier 1
cUL Listed	Yes
ENERGY STAR Certified	Yes
Meets ASSE 1006 Requirements	Yes
NSF Certified	Yes
UL Listed	Yes
