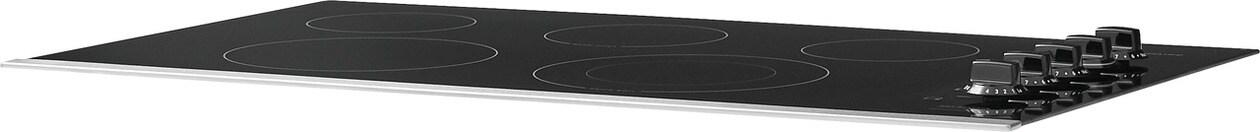

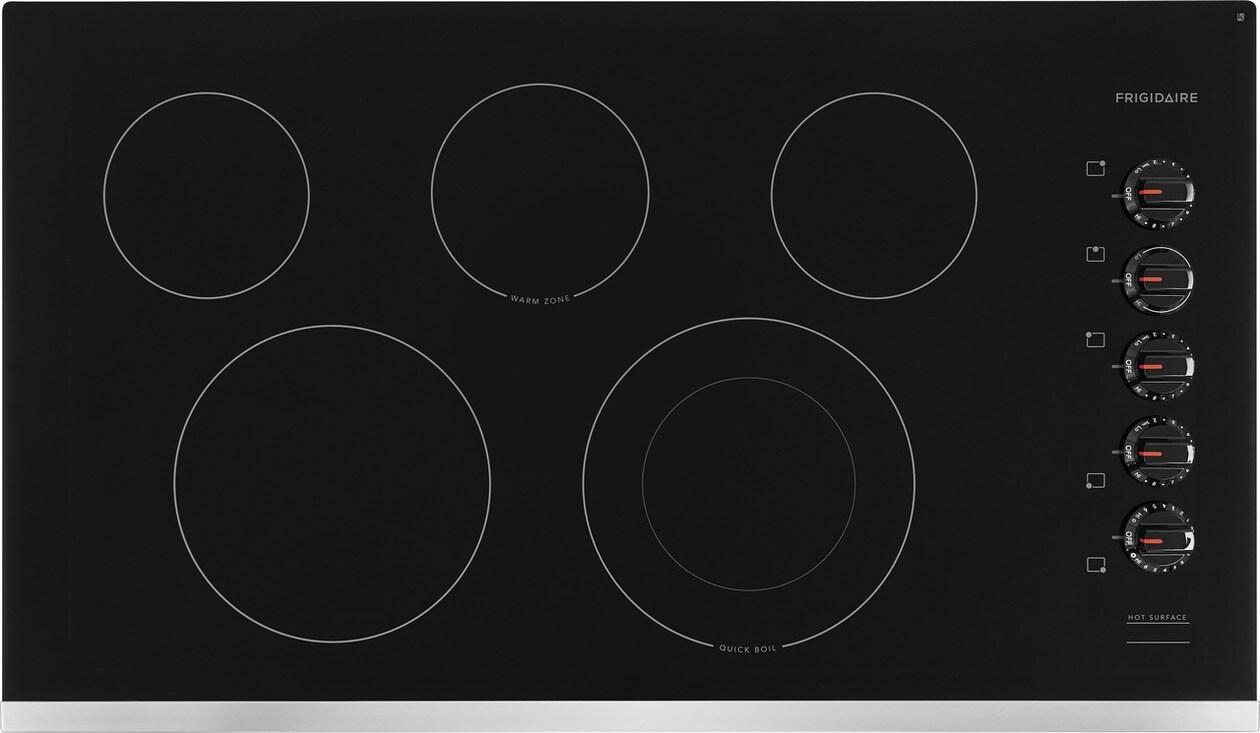

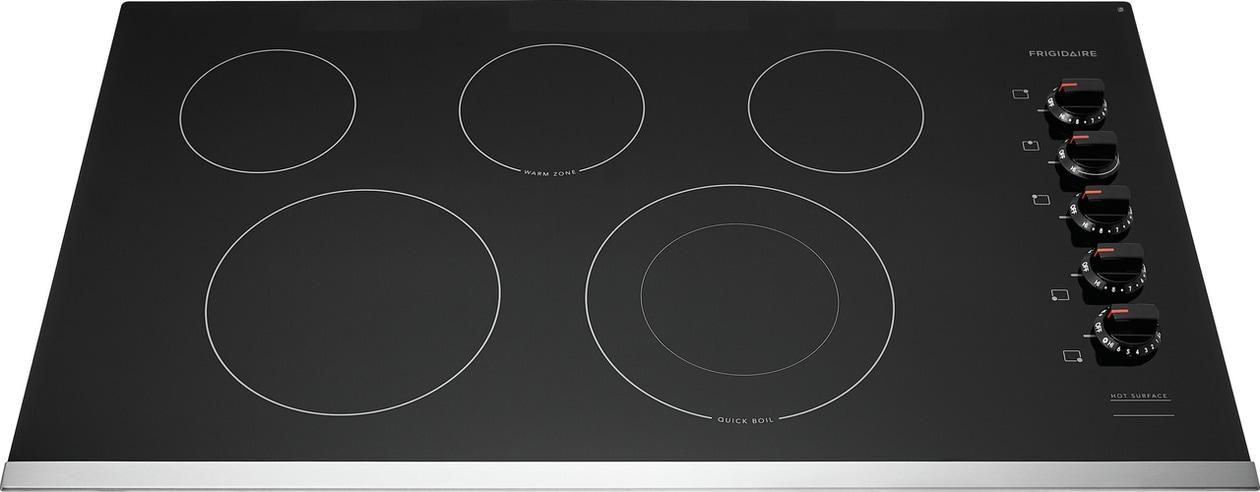

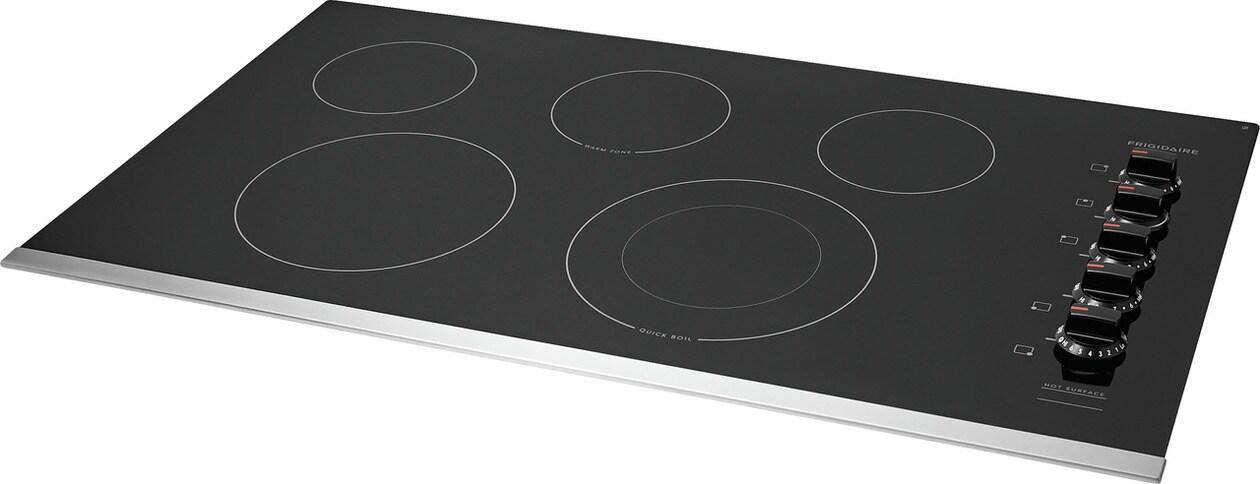

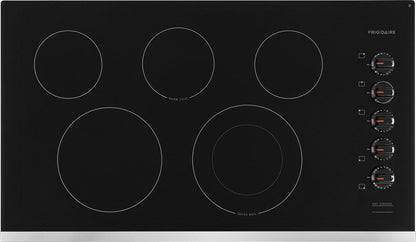

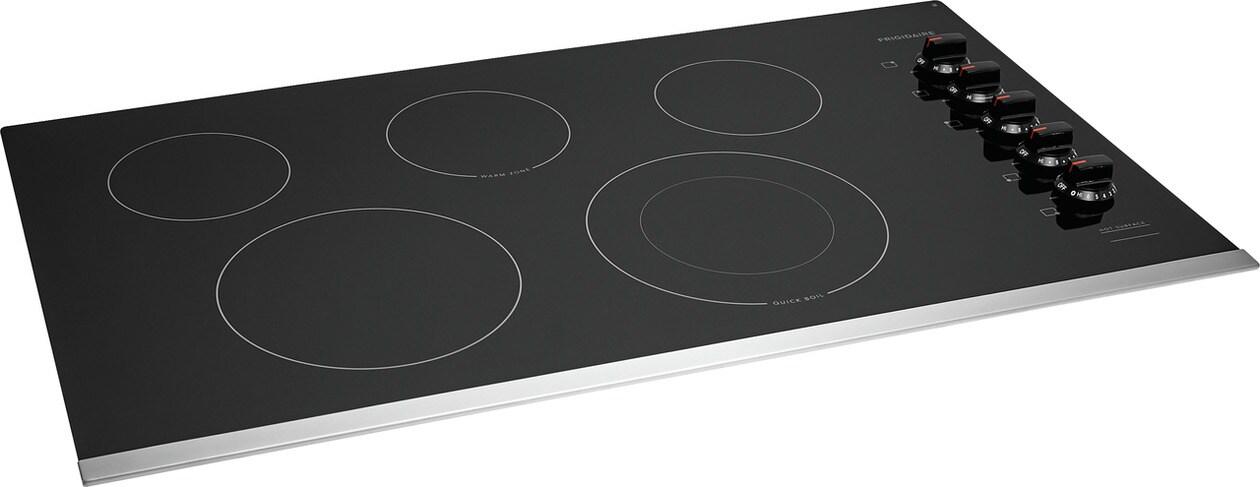

FFEC3625US Frigidaire 36" Electric Cooktop FFEC3625US
FFEC3625US Frigidaire 36" Electric Cooktop
- Quick Boil Element
- Keep Warm Zone
- SpaceWise® Expandable Element
- Frigidaire Fit Promise
- Ceramic Glass Cooktop

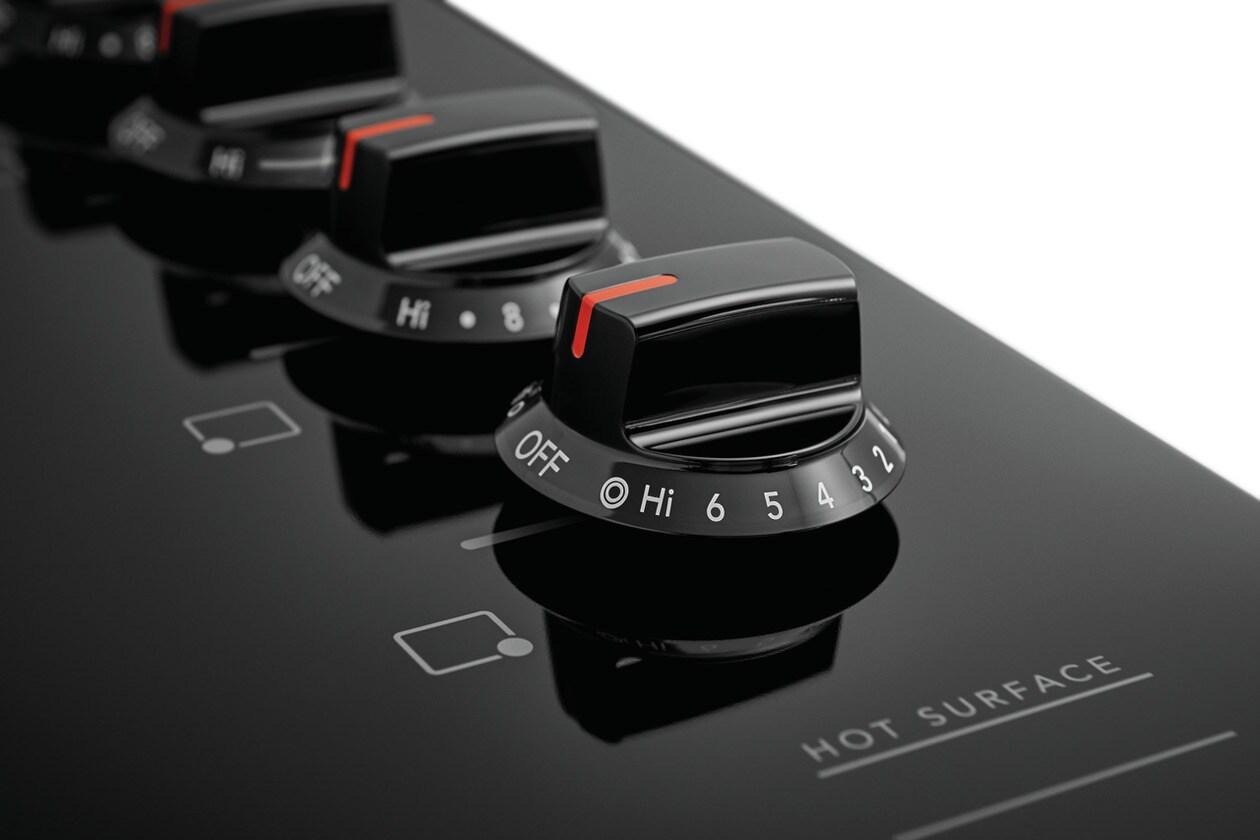

- Ready-Select® Controls
- Hot Surface Indicator
- Installation over Wall Oven Approved
The Frigidaire electric cooktop makes meals on the table faster with our powerful 3,000W Quick Boil element. A flexible element expands to accommodate various sizes of cookware.
| Product Line | Electric Cooktop |
| Power Type | Electric 240v |
| Size | 36" |
| Installation Type | Drop-In |
| Factory | Rayong |
| Color | Stainless Steel |
| Cooktop | |
| Cooking Surface Type | Smooth |
| Hot-Surface Indicator Light | Yes |
| Cooktop Performance | |
| Right Front Element Burner Size (Small) | 6" |
| Right Front Element Burner Size (Large) | 9" |
| Right Rear Element Burner Size | 6" |
| Left Front Element Burner Size | 9" |
| Left Rear Element Burner Size | 6" |
| Right Front Element Burner (Small) | 1600 Watts |
| Right Front Element Burner (Large) | 3000 Watts |
| Right Rear Element Burner | 1200 Watts |
| Left Front Element Burner | 2500 Watts |
| Left Rear Element Burner | 1200 Watts |
| Keep Warm Burner Location | Center Rear |
| Cooking Controls | |
| Keep Warm | Yes |
| Warm Zone | Yes |
| Controls | |
| Sabbath Mode | No |
| Display | |
| Control Location | Right |
| Display Type | Mechanical |
| Dimensions and Volume | |
| Height | 2 5/8" |
| Width | 36 3/4" |
| Depth | 21 3/8" |
| Electrical Specifications | |
| Amps @ 240 Volts | 33.3 Amps |
| Connected Load @ 240V | 8 kW |
| Minimum Circuit Required | 40 Amps |
| Voltage Rating | 240 V |
| General Specifications | |
| Frigidaire Fit Promise | Yes |
| Product Weight | 34.2 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| AB-1200 | Information available at frigidaire.com/en/ab1200 |
| Installation | |
| Installed Over a Wall Oven | Yes |
| Power Supply Connection Location | Right Center |
| Certifications and Approvals | |
| ADA Compliant | No |
| CSA Listed | Yes |
| ETL Listed | No |
| UL Listed | Yes |
