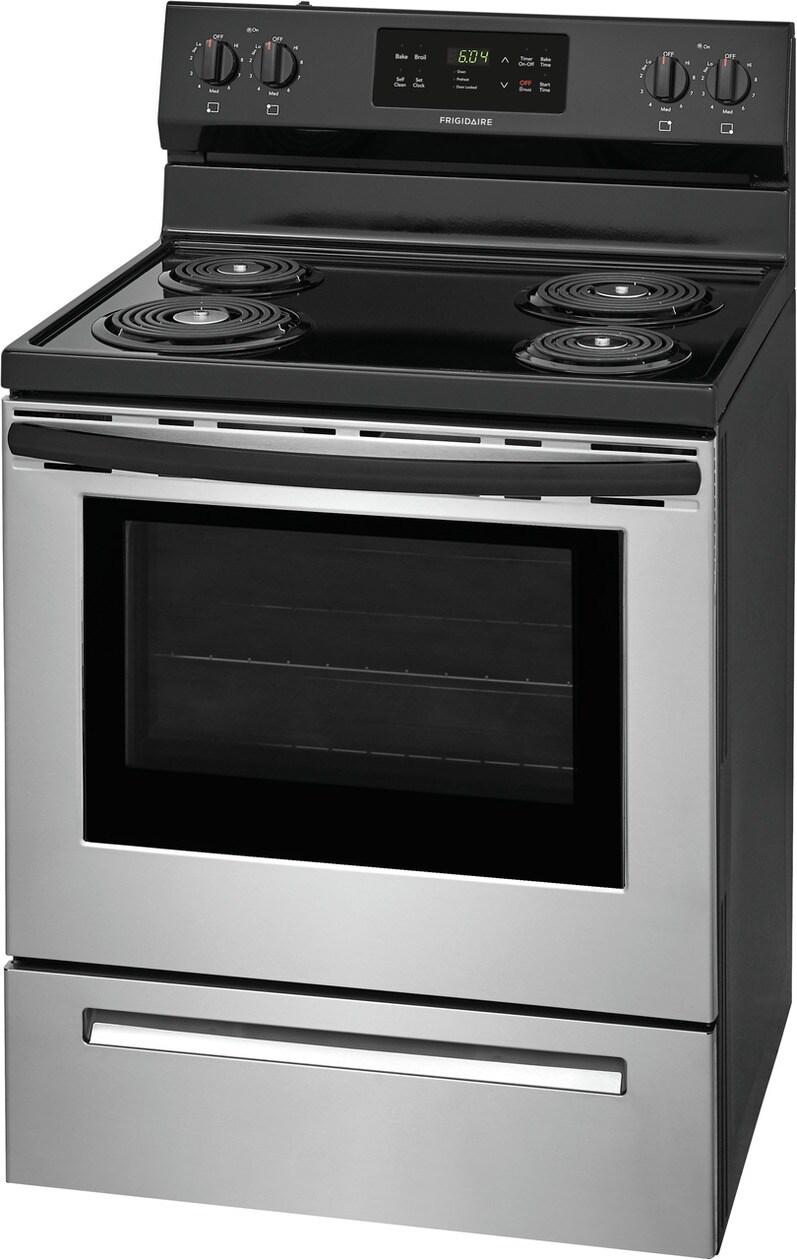

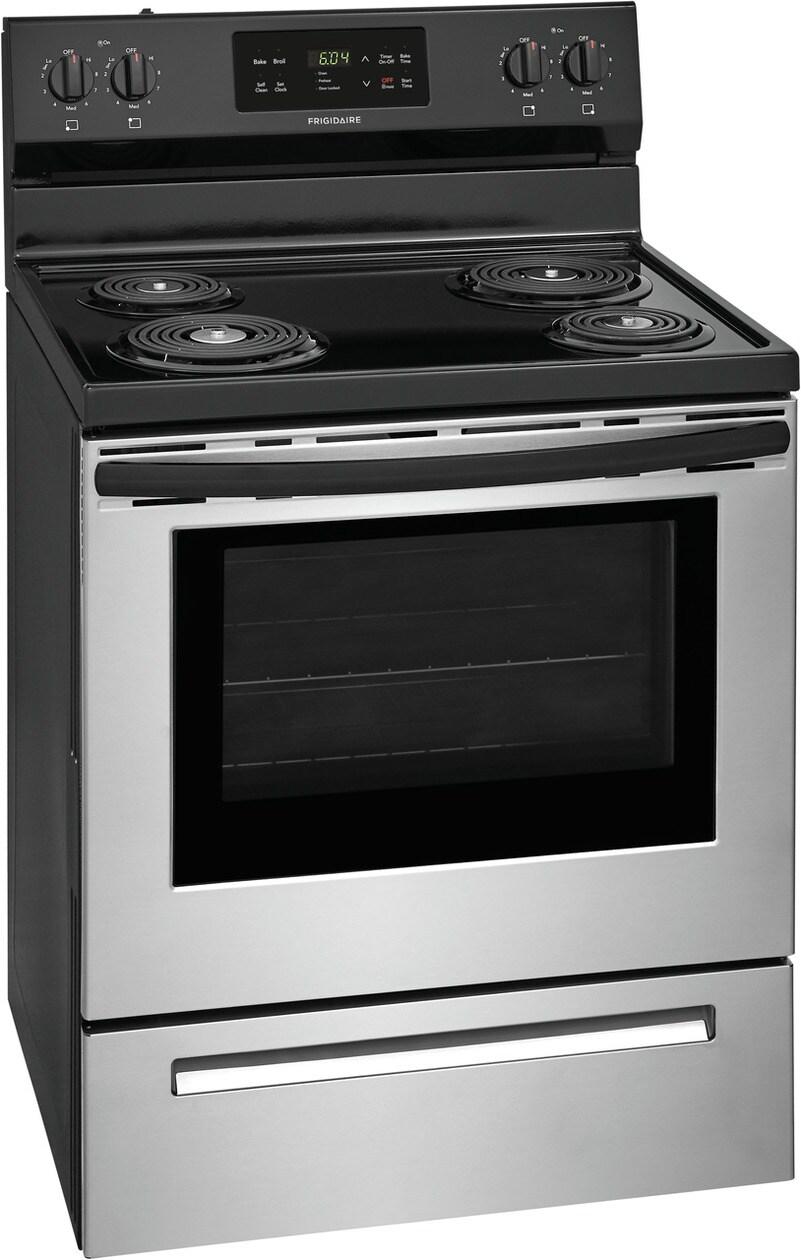

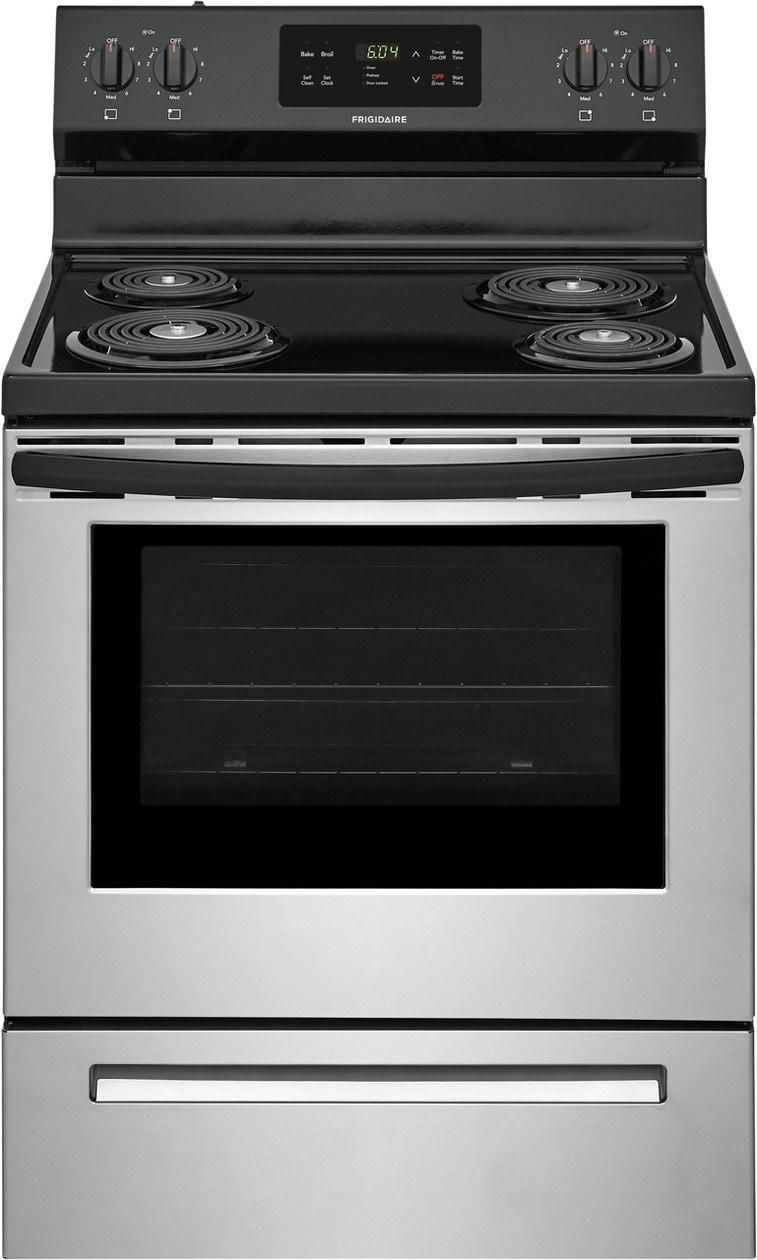

Frigidaire 30" Electric Range FFEF3016VS

The Frigidaire 30" Electric Range makes clean up easy with Delay Clean and One-Touch Self Clean options. Get meals to the table faster with a large capacity oven that is designed to cook more dishes at once. Plus, the Store-More® Storage Drawer offers extra space to store cookware.

Product Line	Coil Range
Power Type	Electric 240v
Size	30"
Installation Type	Free-Standing
Factory	Springfield
Color	Stainless Steel

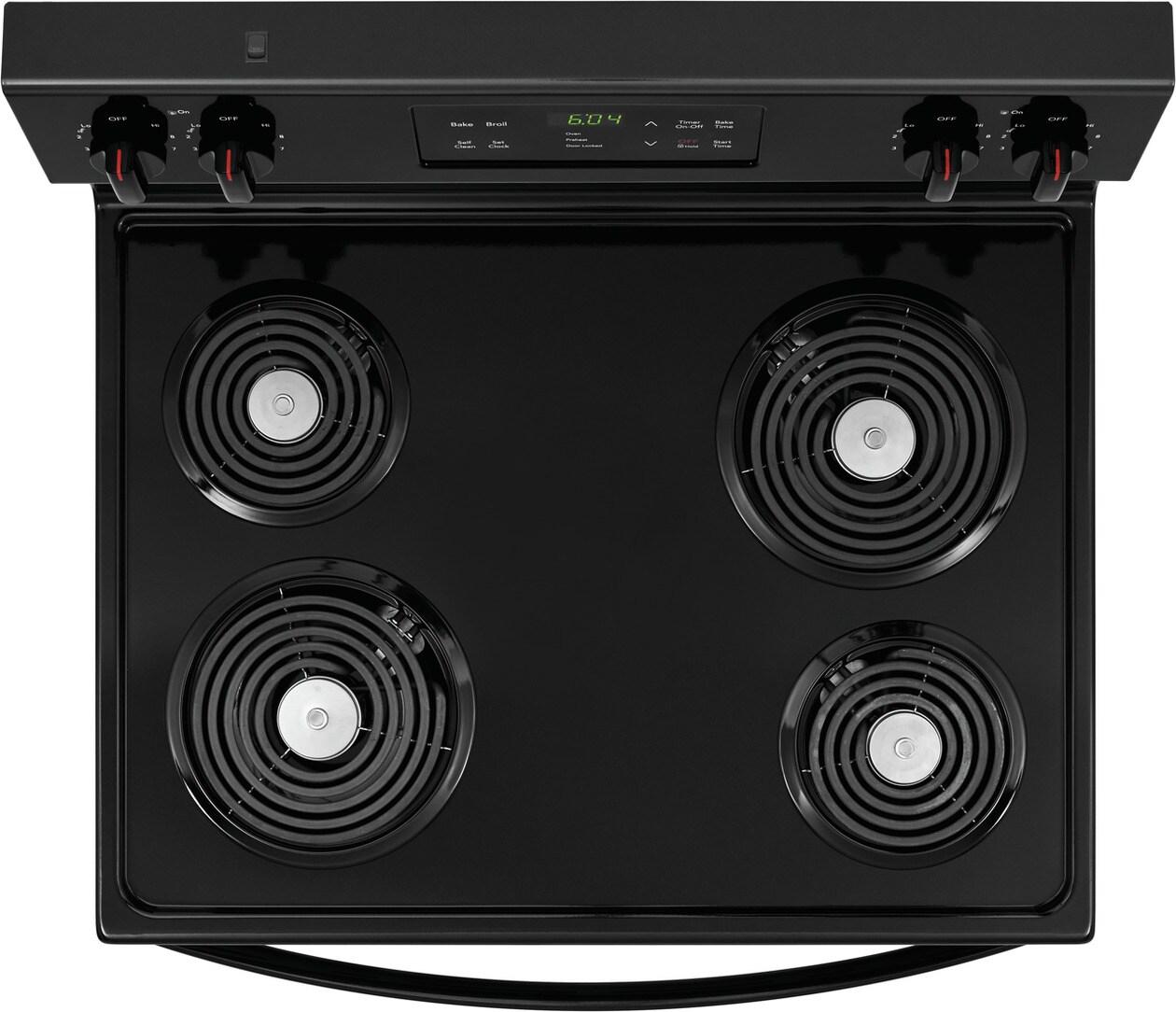

Cooktop
Cooking Surface Type	Coil
Drip Bowl Type	Porcelain
Cooktop Performance
Right Front Element Burner Size	6"
Right Rear Element Burner Size	8"
Left Front Element Burner Size	8"
Left Rear Element Burner Size	6"
Right Front Element Burner	1500 Watts
Right Rear Element Burner	2400 Watts
Left Front Element Burner	2400 Watts
Left Rear Element Burner	1500 Watts
Cooking Controls
Bake	Yes
Cancel	Yes
Kitchen Timer	Yes
Lockout	Yes
Off	Yes
Oven Light	Yes
Preheat	Yes
Probe	No
Self Clean	Yes
Temperature Display	Yes
Timed Bake	Yes
Oven
Bake Element	2600 Watts
Bake System	Yes
Broil Element	3000 Watts
Broil System	Yes
Number of Rack Positions	6
Rack Position Type	Nickel Ladder
Rack Type 1	Flat
Rack Type 1 Quantity	2
Window Type	Extra Large Visual
Drawer
Drawer Handle Style	Integrated
Drawer Type	Storage

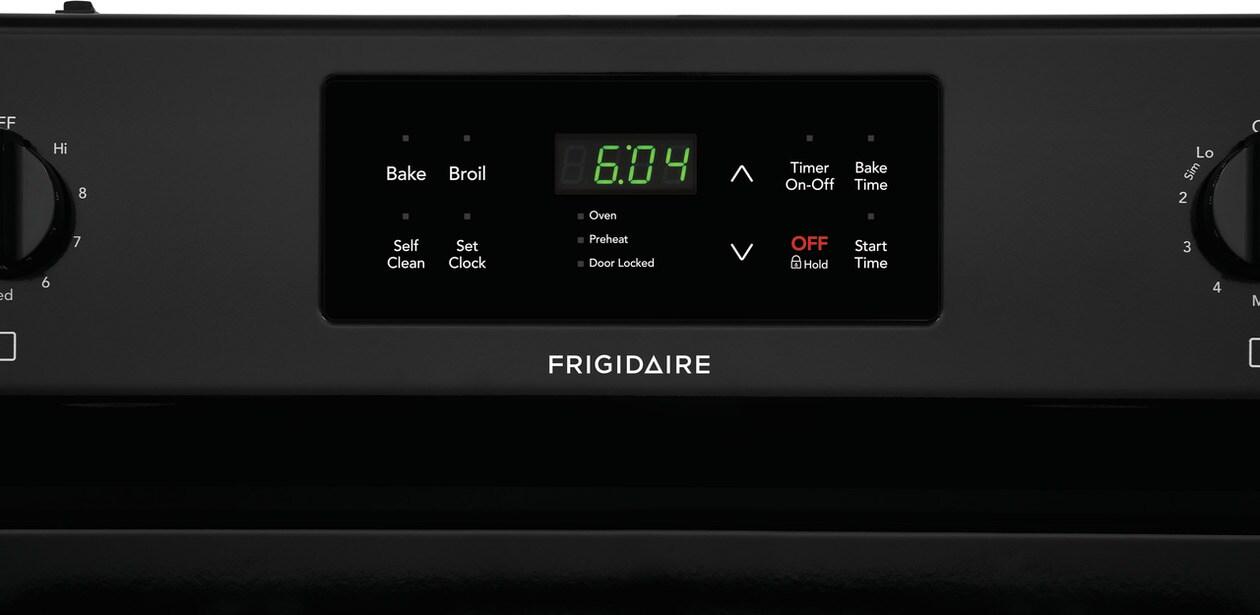

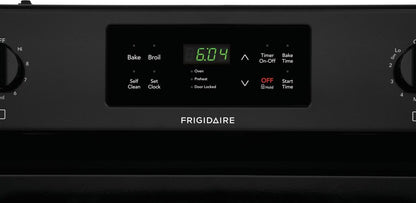

Controls
Control Lock	Yes
Sabbath Mode	No
Display
Control Location	Rear
Display Type	Membrane
Exterior
Handle Material	Plastic
Knob Color	Black
Knob Material	Plastic
Dimensions and Volume
Height	46 9/16"
Width	29 7/8"
Depth	25 3/4"
Depth With Door 90° Open	48 5/8"
Depth With Handle	29 1/4"
Oven Interior Height	19 3/4"
Oven Interior Width	24 3/8"
Oven Interior Depth	19 1/8"
Oven Capacity	5.3 Cu. Ft.
Electrical Specifications
Minimum Circuit Required	40 Amps
Voltage Rating	240 V
Installation
Adjustable Leveling Legs	Yes
Power Supply Connection Location	Bottom Center
General Specifications
Product Weight	152 lbs
Prop 65 Label	No
Warranty - Labor	1 Year
Warranty - Parts	1 Year
Certifications and Approvals
ADA Compliant	No
UL Listed	Yes
ETL Listed	No
