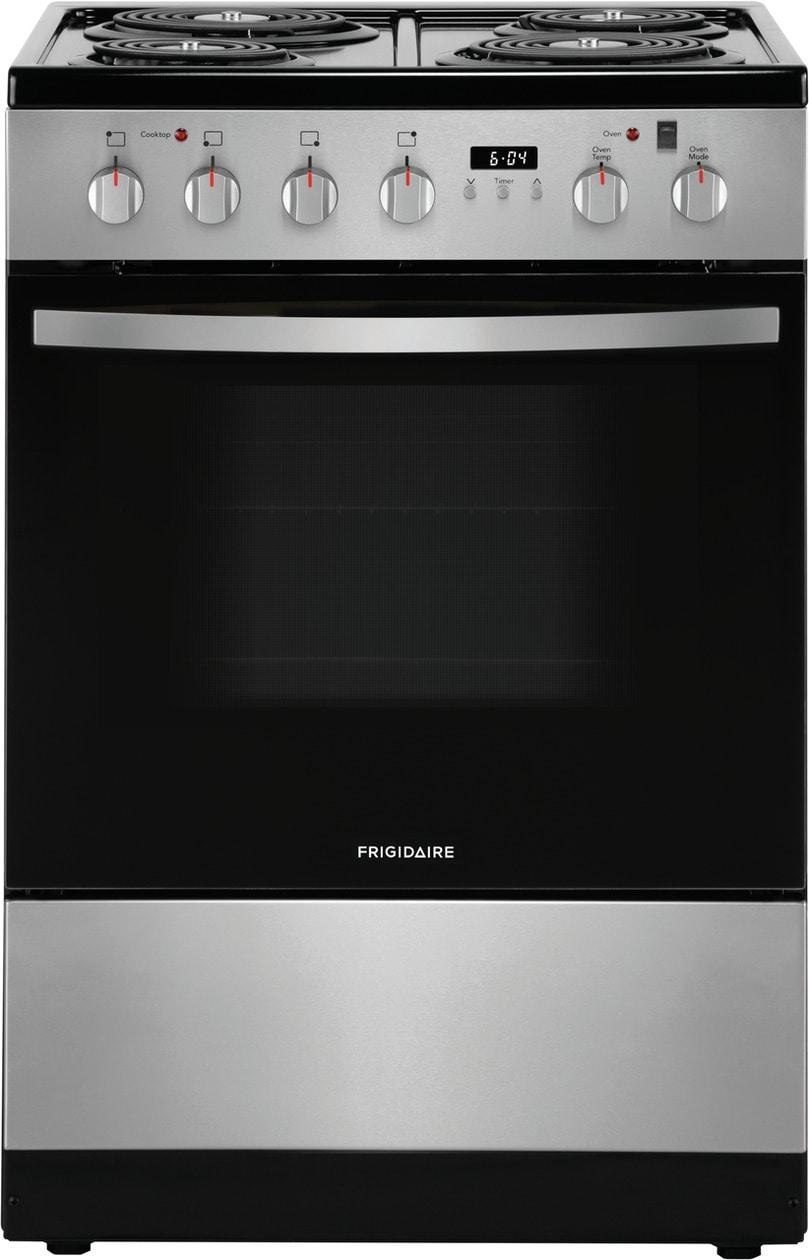

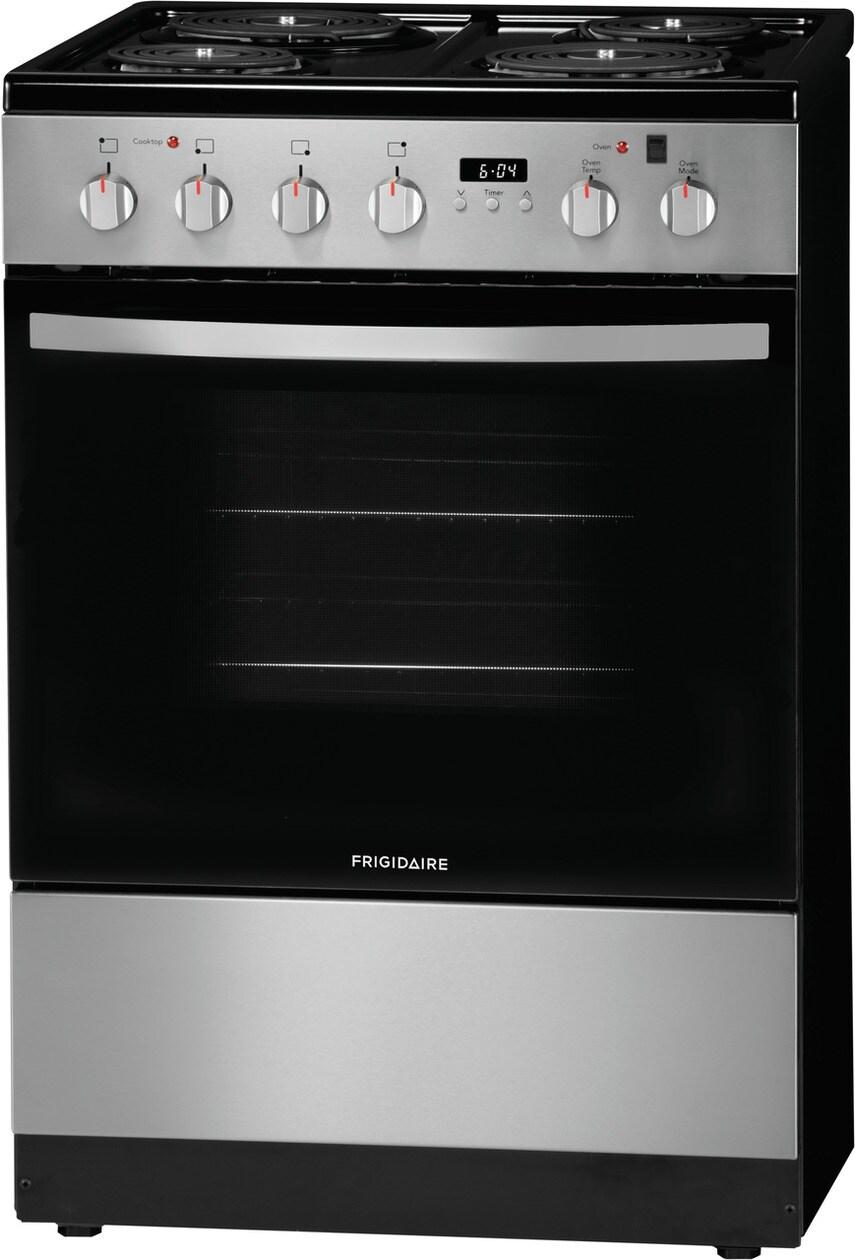

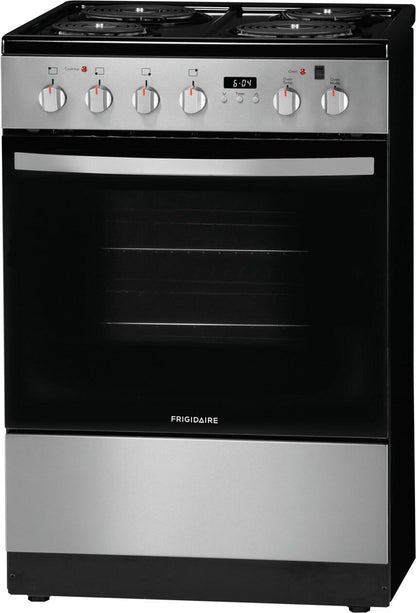

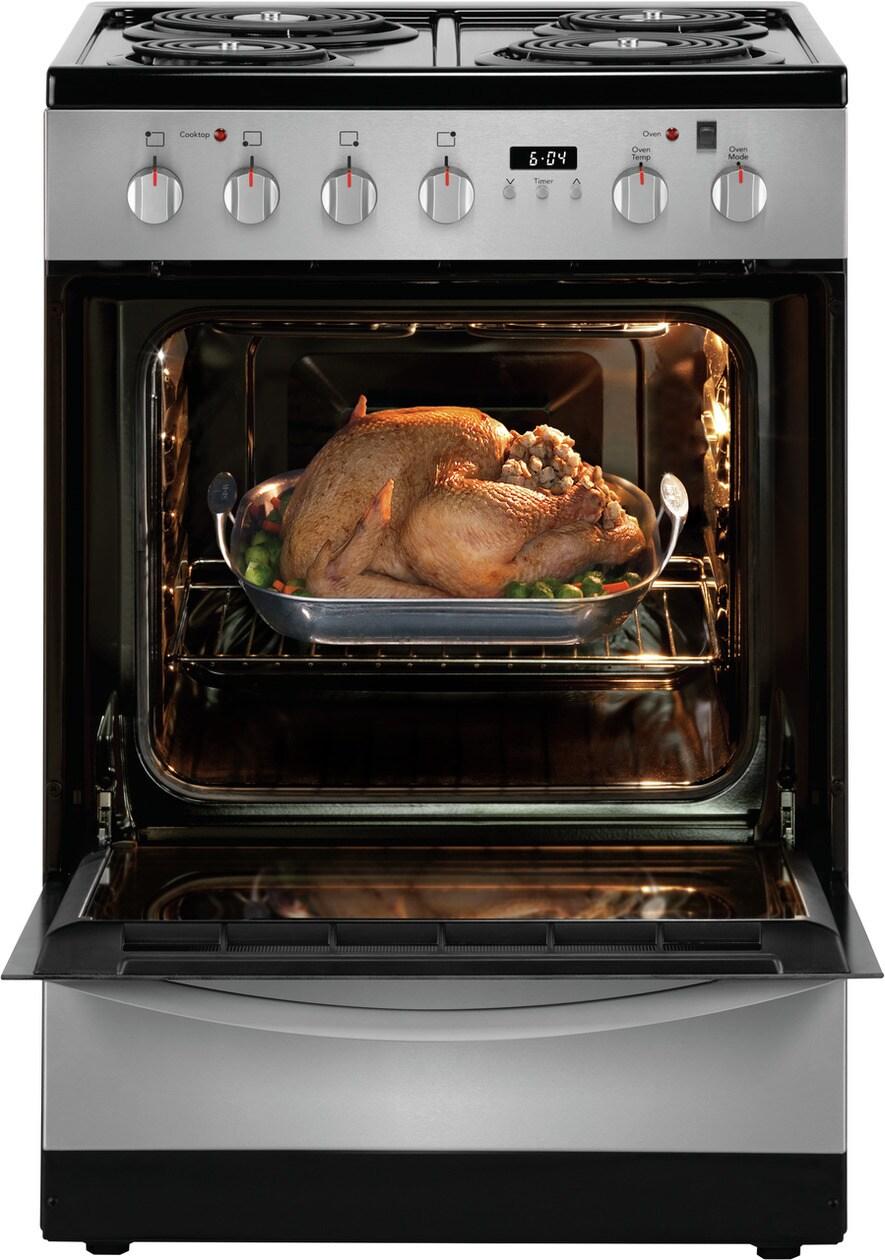

Frigidaire FFEH2422US 24" Freestanding Electric Range

The Frigidaire 24" freestanding electric range has a compact design for smaller kitchen spaces. Keeping the bottom of your oven clean is easier with a hidden heating element. Convenient storage drawer offers extra space to store your cookware.

Product Line	Coil Range
Power Type	Electric 240v
Size	24"
Installation Type	Free-Standing
Factory	Romania
Color	Stainless Steel

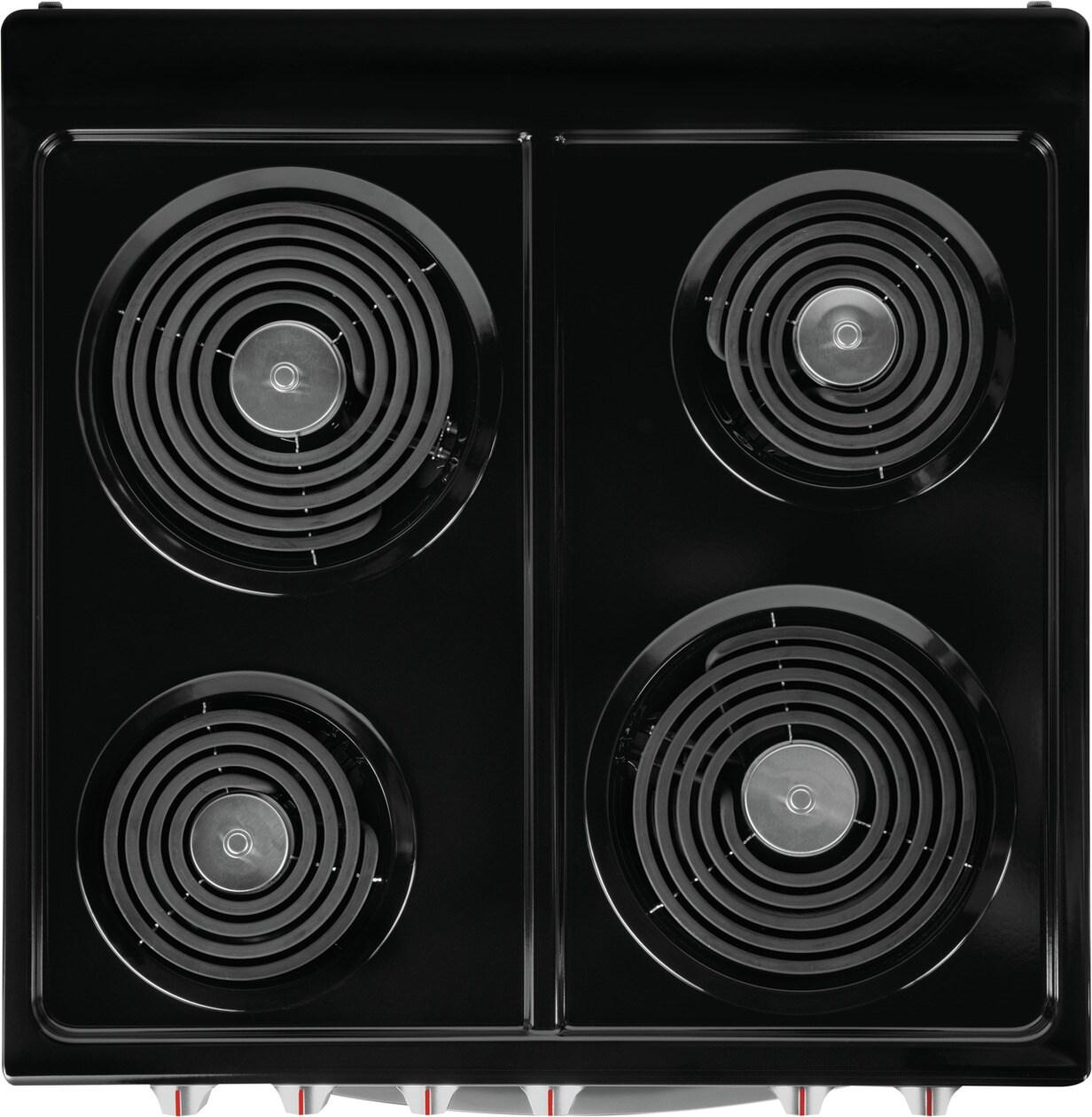

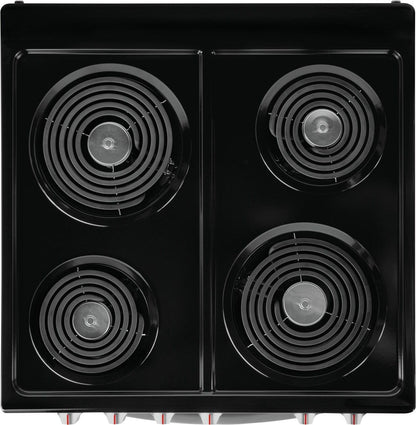

Cooktop
Cooking Surface Type	Coil
Drip Bowl Type	Porcelain
Cooktop Performance
Right Front Element Burner Size	8"
Right Rear Element Burner Size	6"
Left Front Element Burner Size	6"
Left Rear Element Burner Size	8"
Right Front Element Burner	2400 Watts
Right Rear Element Burner	1500 Watts
Left Front Element Burner	1500 Watts
Left Rear Element Burner	2400 Watts

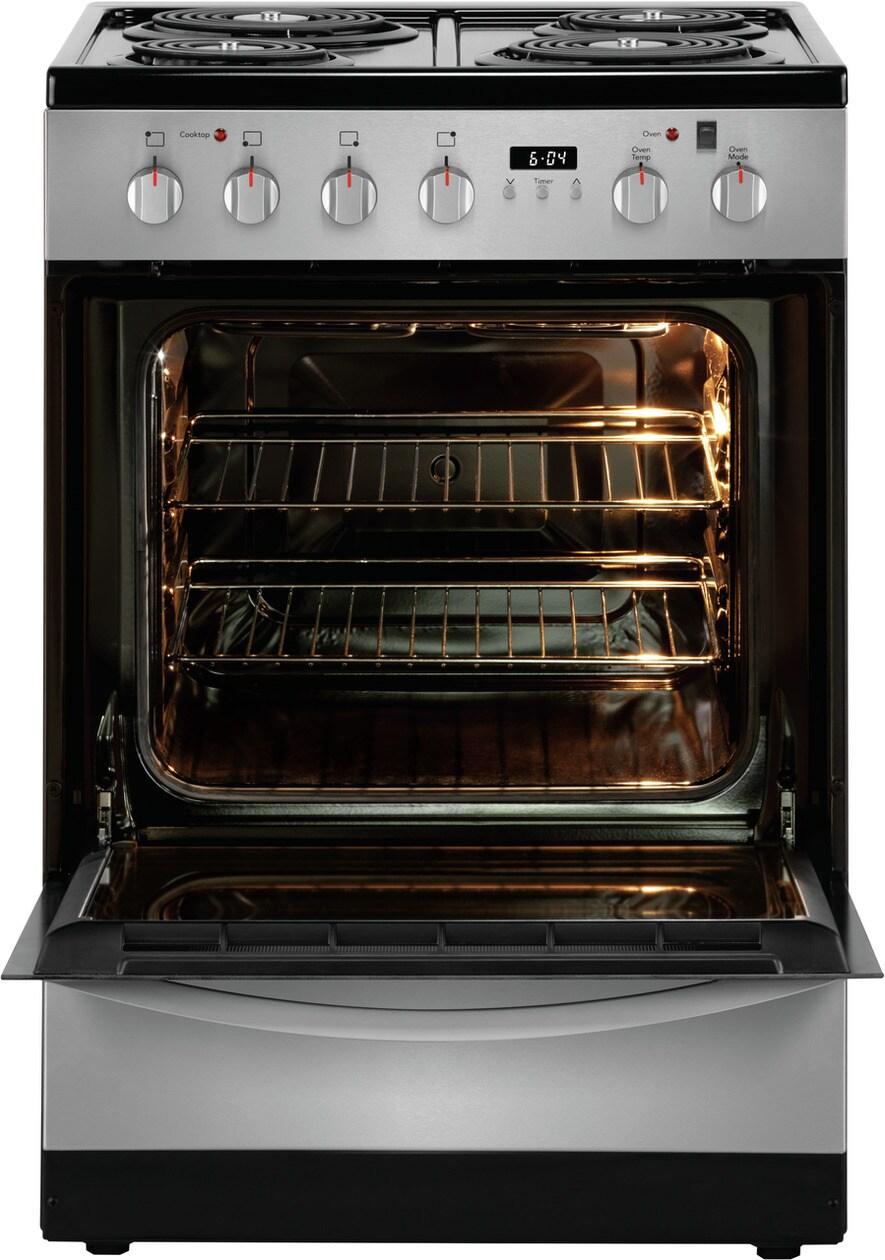

Oven
Bake Element	1000 Watts
Bake Element Pass	4
Bake Element Type	Hidden
Bake System	Yes
Broil Element	1650 Watts
Broil Element Pass	4
Broil System	Yes
Number of Rack Positions	3
Oven Interior Color	Midnight Black
Rack Position Type	Nickel Ladder
Rack Type 1	Flat
Rack Type 1 Quantity	2
Window Type	Extra Large Window
Drawer
Drawer Type	Storage

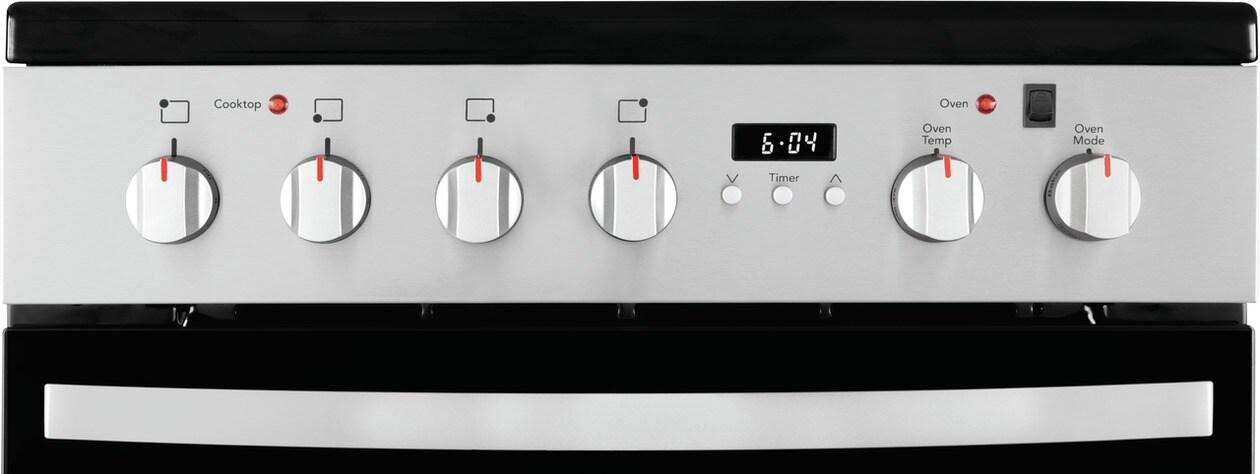

Controls
Sabbath Mode	No
Display
Control Location	Front
Exterior
Drawer Finish	Color Coordinated
Knob Color	Color Coordinated
Knob Material	Plastic
Dimensions and Volume
Minimum Height	35 7/8"
Maximum Height	36 7/8"
Width	23 1/2"
Depth	23 5/8"
Depth With Door 90° Open	41 1/2"
Oven Interior Height	12 7/8"
Oven Interior Width	16 3/8"
Oven Interior Depth	16 3/50"
Oven Capacity	1.9 Cu. Ft.
Electrical Specifications
Amps @ 240 Volts	31.3 Amps
Minimum Circuit Required	40 Amps
Voltage Rating	240 V
Installation
Power Supply Connection Location	Bottom Left
General Specifications
Product Weight	123.5 lbs
Prop 65 Label	No
Warranty - Labor	1 Year
Warranty - Parts	1 Year
AB-1200	Information available at frigidaire.com/en/ab1200
Certifications and Approvals
ADA Compliant	Yes
UL Listed	Yes
