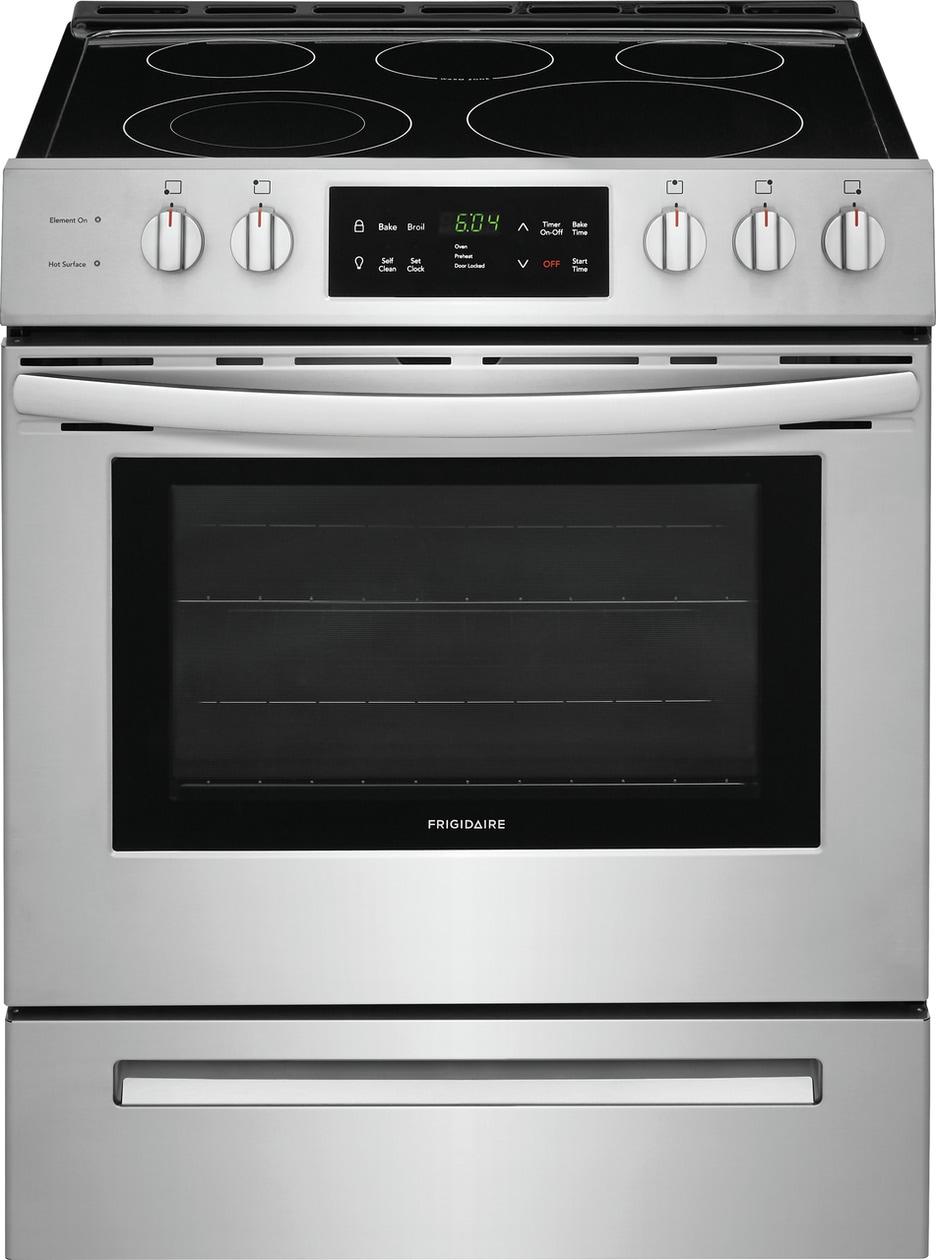

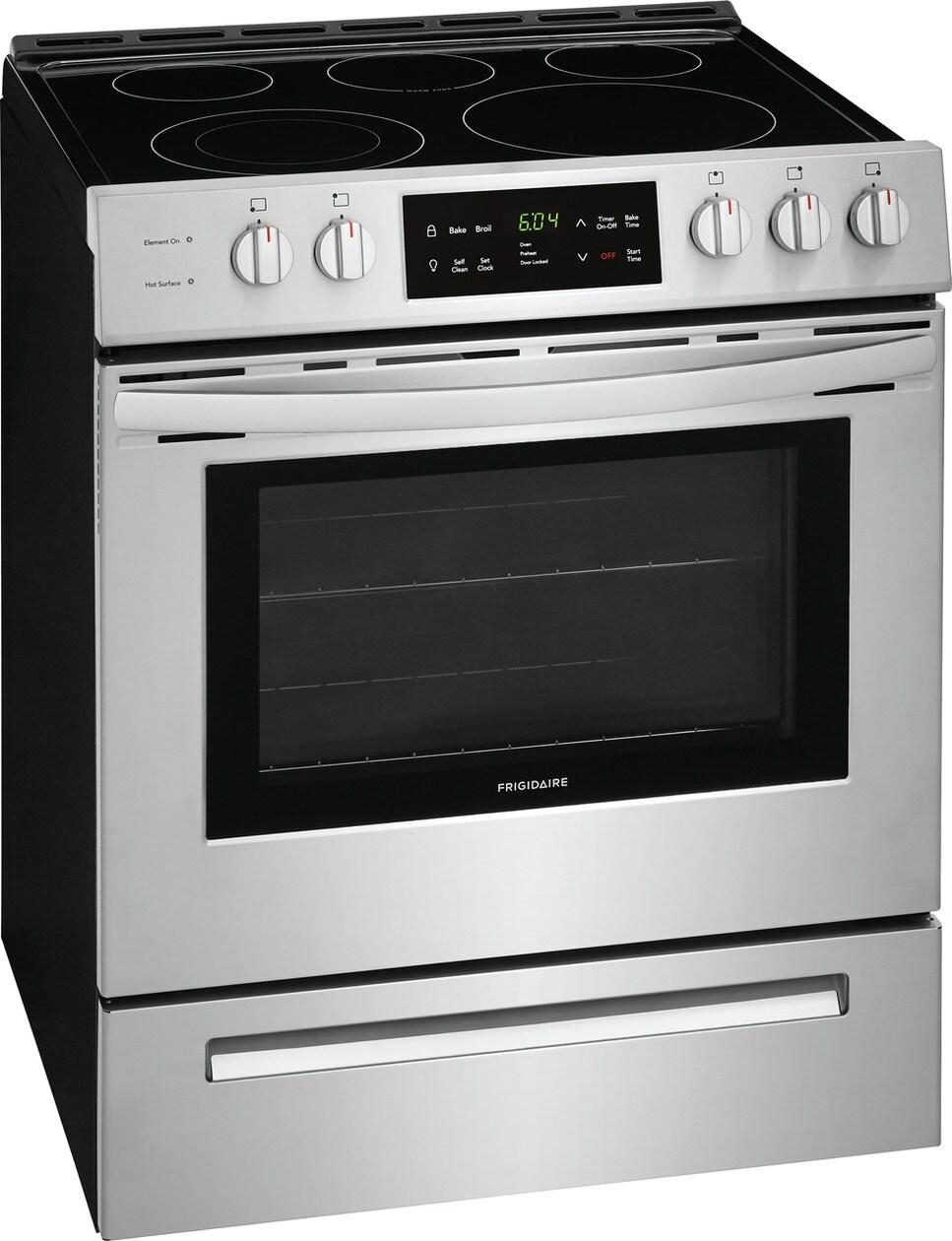

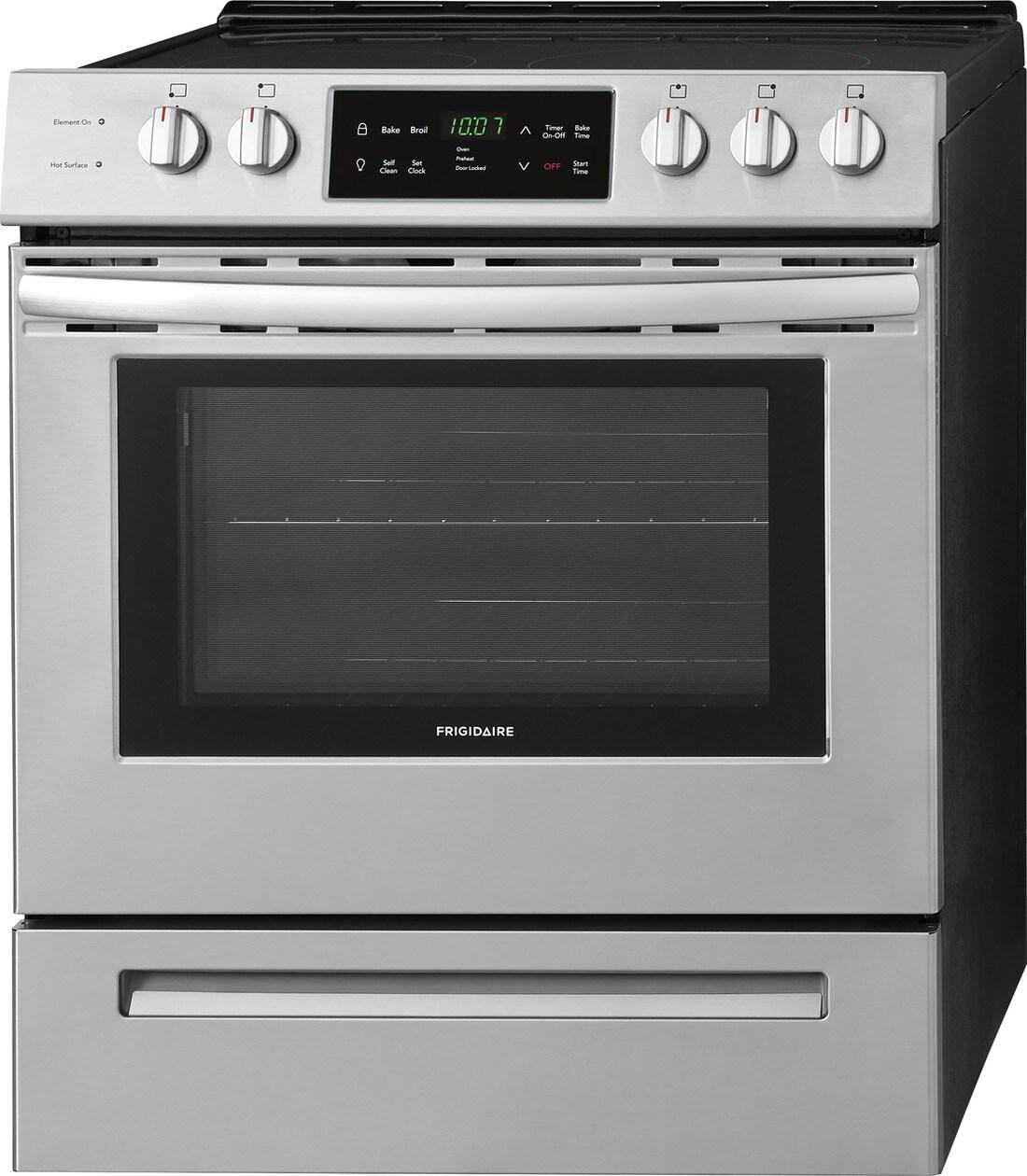

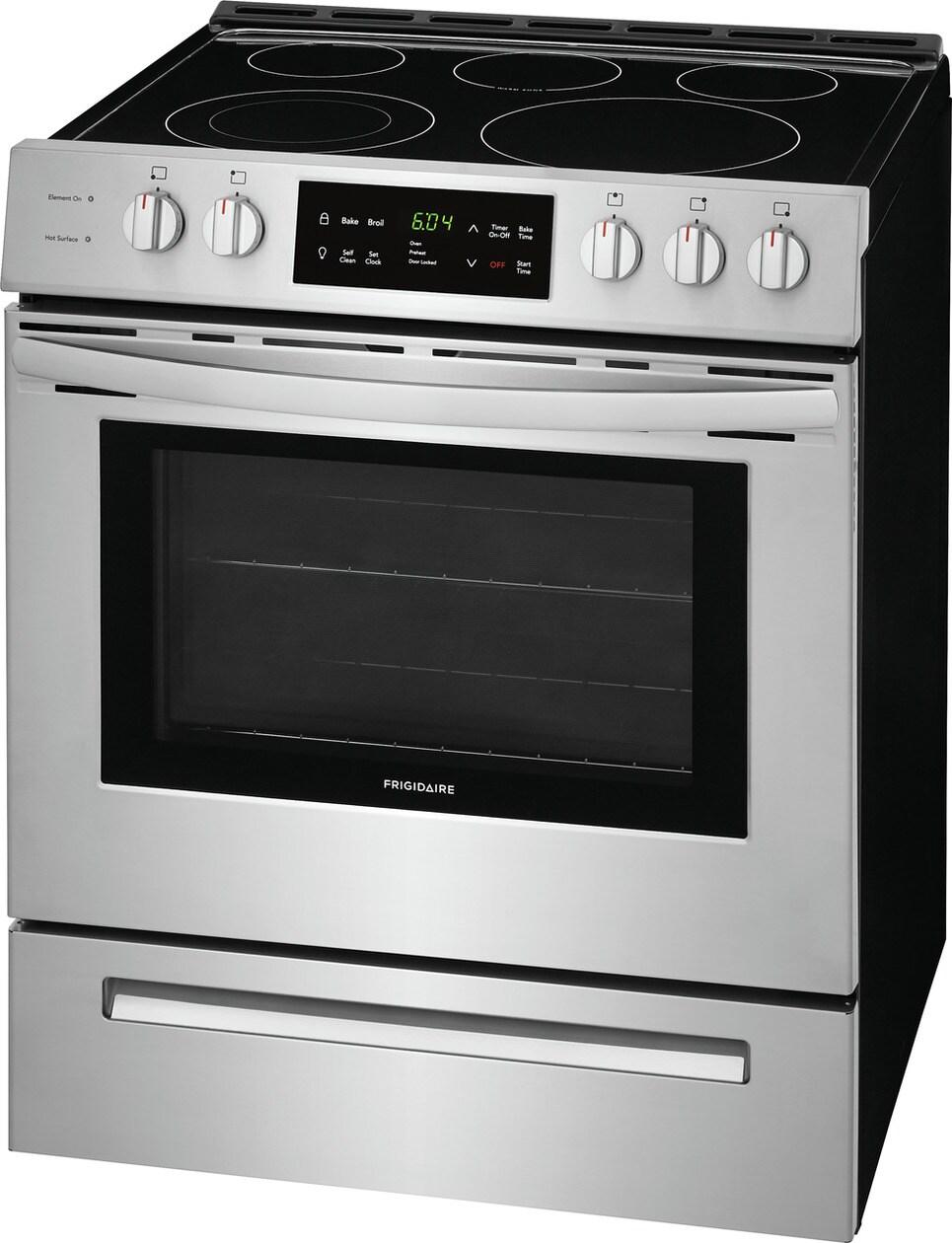

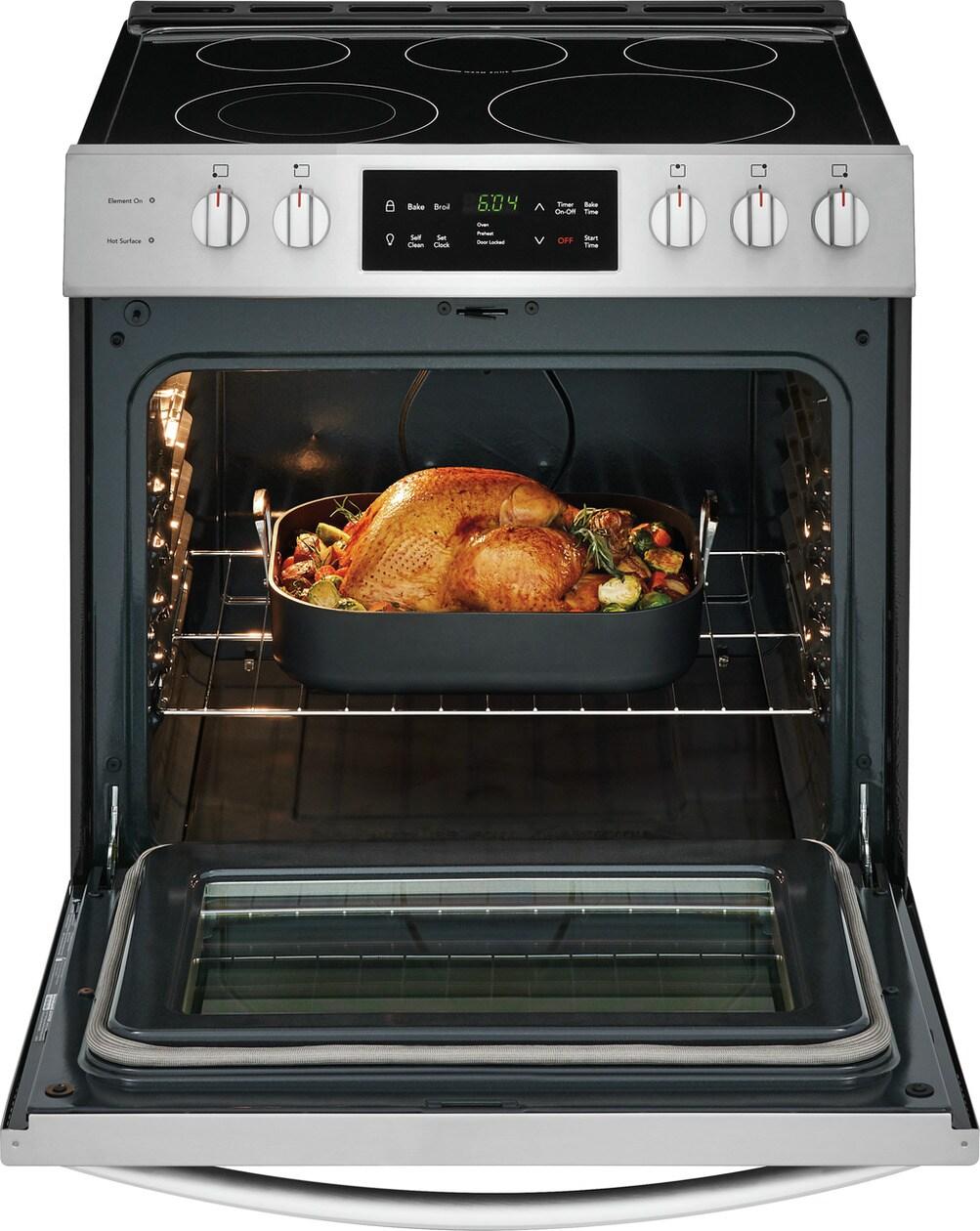

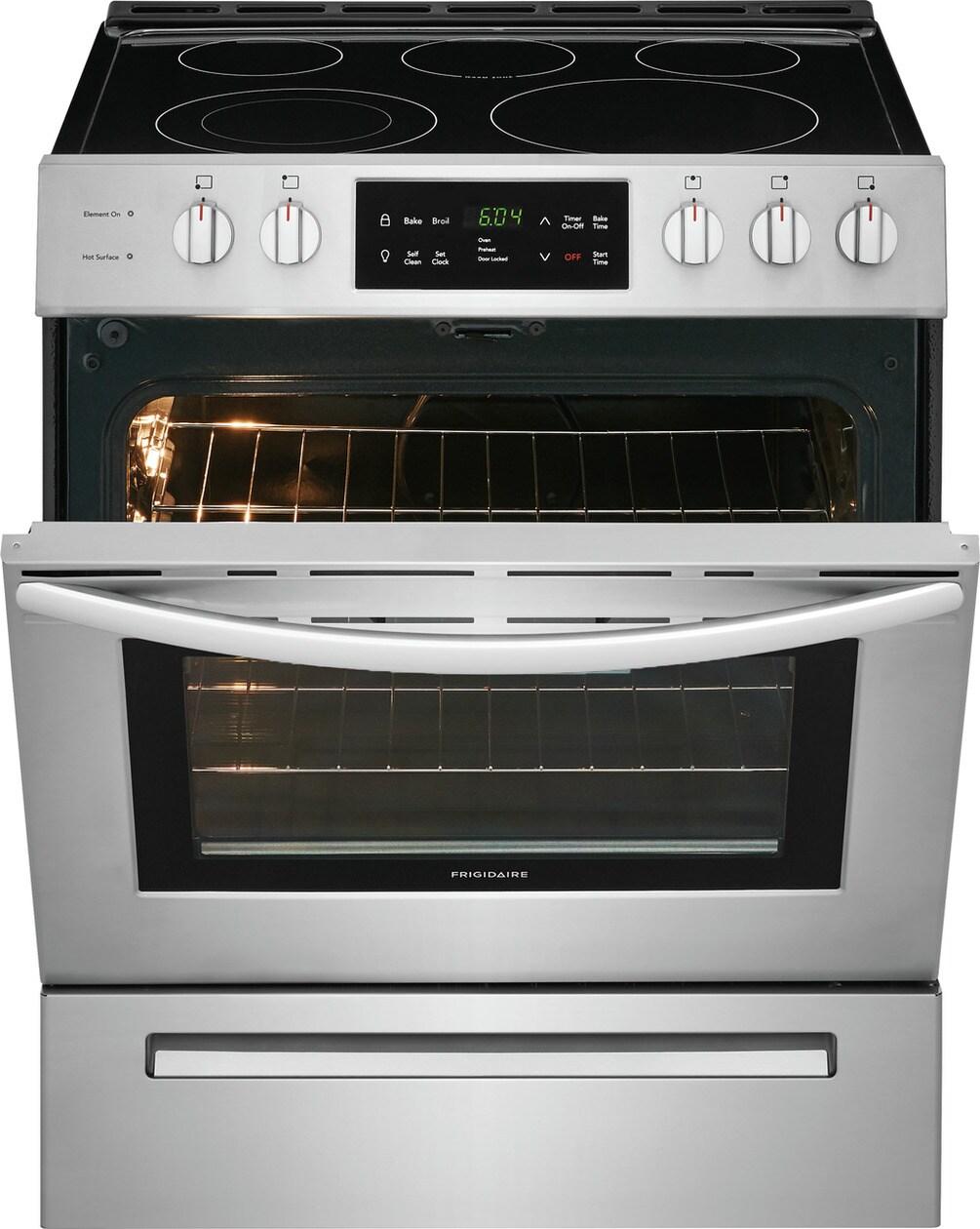

Frigidaire 30" Front Control Freestanding Electric Range FFEH3054US

The Frigidaire 30" Electric Range allows you to get meals on the table faster with our 3,000W element that boils faster than the traditional setting. SpaceWise® Expandable Elements expand to meet your cooking needs - big or small. With the Store-More™ Storage Drawer, you will have extra space to store your cookware.

Product Line	Electric Range
Power Type	Electric 240v
Size	30"
Installation Type	Free-Standing
Factory	Springfield
Color	Stainless Steel
Installation
Adjustable Leveling Legs	Yes
Power Supply Connection Location	Bottom Center
General Specifications
Frigidaire Fit Promise	Yes
Product Weight	161.5 lbs
Prop 65 Label	Yes
Warranty - Labor	1 Year
Warranty - Parts	1 Year
Drawer
Drawer Type	Storage
Exterior
Cooktop Finish	Black
Drawer Finish	Color Coordinated
Handle Color	Stainless Steel
Knob Color	Stainless Steel
Electrical Specifications
Minimum Circuit Required	40 Amps
Voltage Rating	240 V
Certifications and Approvals
ADA Compliant	Yes
Cooking Controls
Bake	Yes
Broil	Yes
Cancel	Yes
Delay Clean	Yes
Keep Warm	Yes
Kitchen Timer	Yes
Lockout	Yes
Off	Yes
Oven Light	Yes
Preheat	Yes
Probe	No
Self Clean	Yes
Steam Clean	Yes
Temperature Display	Yes
Timed Bake	Yes

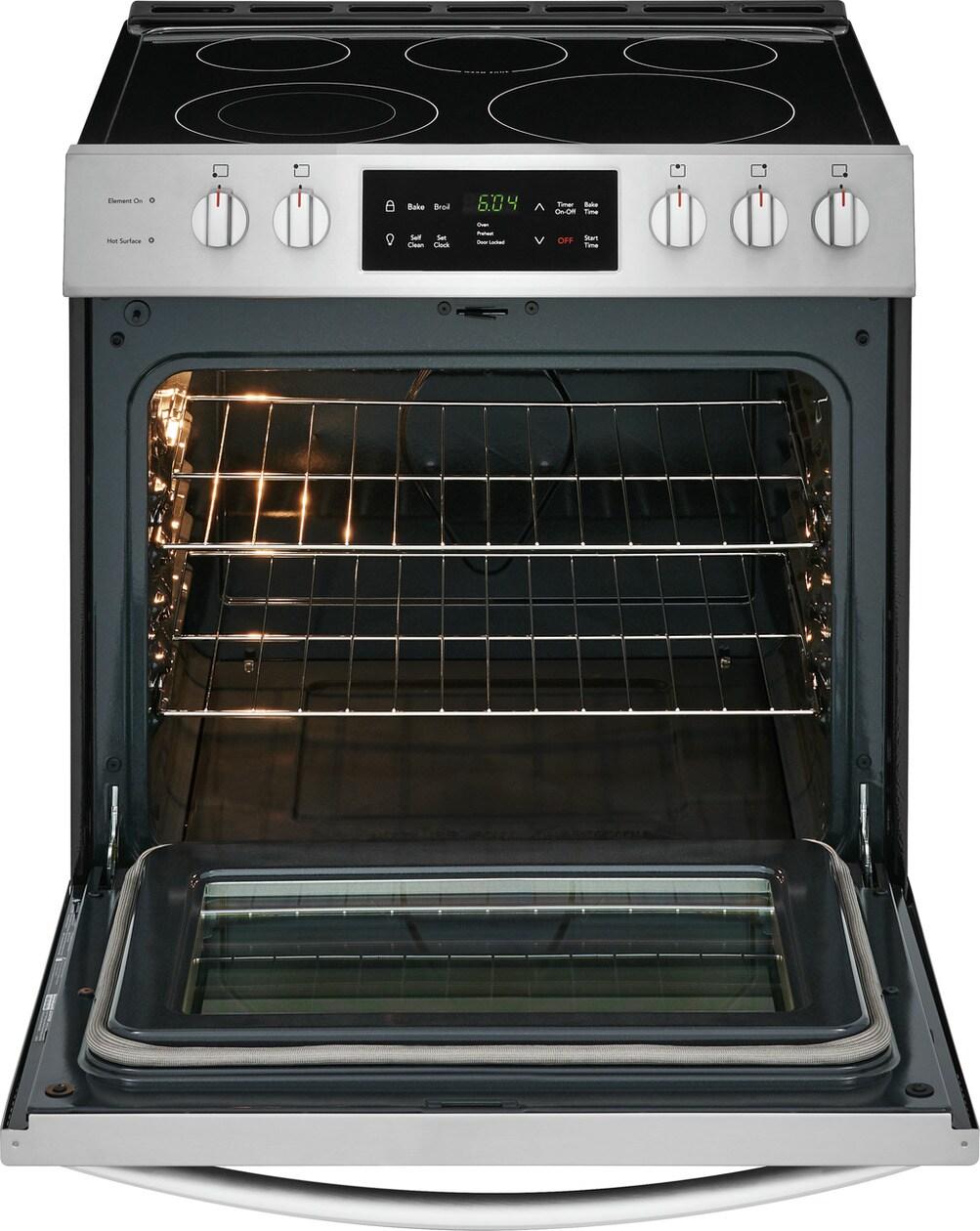

Oven
Bake Element	3,500 Watts
Bake Element Pass	8
Bake Element Type	Hidden
Bake System	Yes
Broil Element	3,900 Watts
Broil Element Pass	6
Broil System	Yes
Number of Rack Positions	6
Rack Position Type	Nickel Ladder
Rack Type 1	Flat
Rack Type 1 Quantity	2
Window Type	Extra Large Visual
Cooktop
Cooking Surface Type	Smooth
Element On Indicator Light	Yes
Hot-Surface Indicator Light	Yes
Keep Warm Zone Light	Yes
Dimensions and Volume
Height	36 5/8"
Width	29 7/8"
Depth	26 3/4"
Depth With Door 90° Open	47"
Depth With Handle	29 3/16"
Oven Interior Height	18 5/8"
Oven Interior Width	24 3/8"
Oven Interior Depth	19 1/8"
Oven Capacity	5 Cu. Ft.
Safety Certifications and Approvals
UL Listed	Yes
ETL Listed	No
Controls
Control Lock	Yes
Sabbath Mode	No

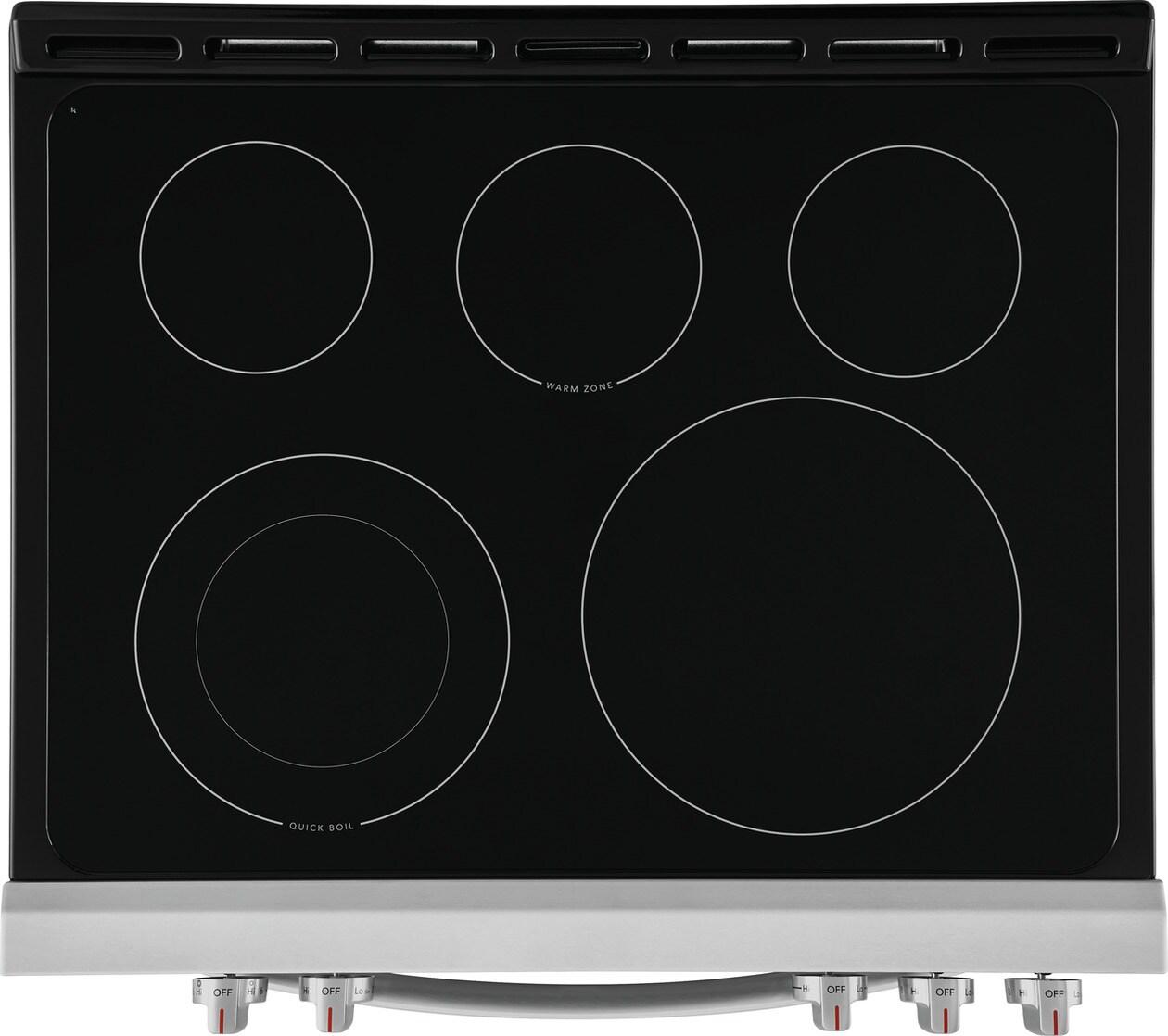

Cooktop Performance
Right Front Element Burner Size	12"
Right Rear Element Burner Size	6"
Left Front Element Burner Size (Small)	6"
Left Front Element Burner Size (Large)	9"
Left Rear Element Burner Size	6"
Right Front Element Burner	2,700 Watts
Right Rear Element Burner	1,200 Watts
Left Front Element Burner (Small)	1,400 Watts
Left Front Element Burner (Large)	3,000 Watts
Left Rear Element Burner	1,200 Watts
Keep Warm Burner Location	Center Rear

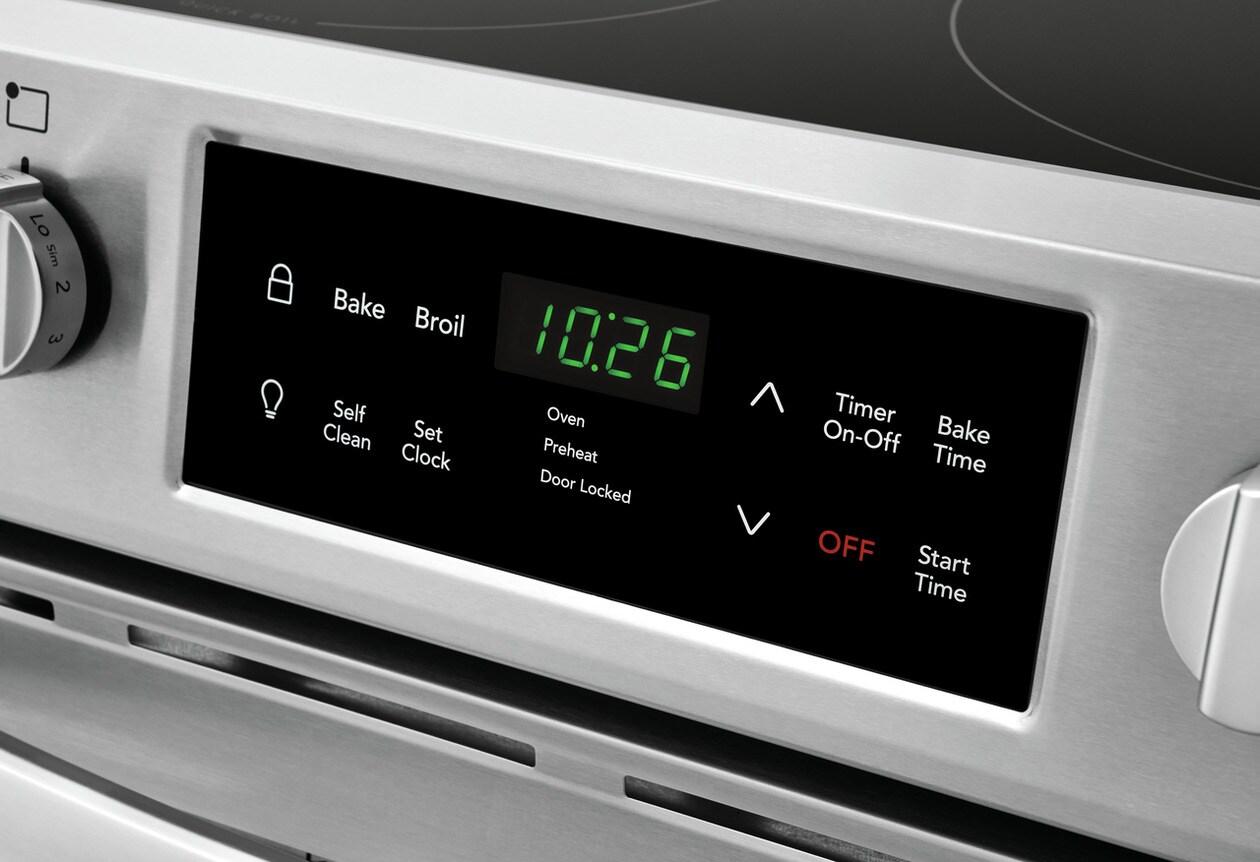

Display
Control Location	Front
Display Type	Membrane
