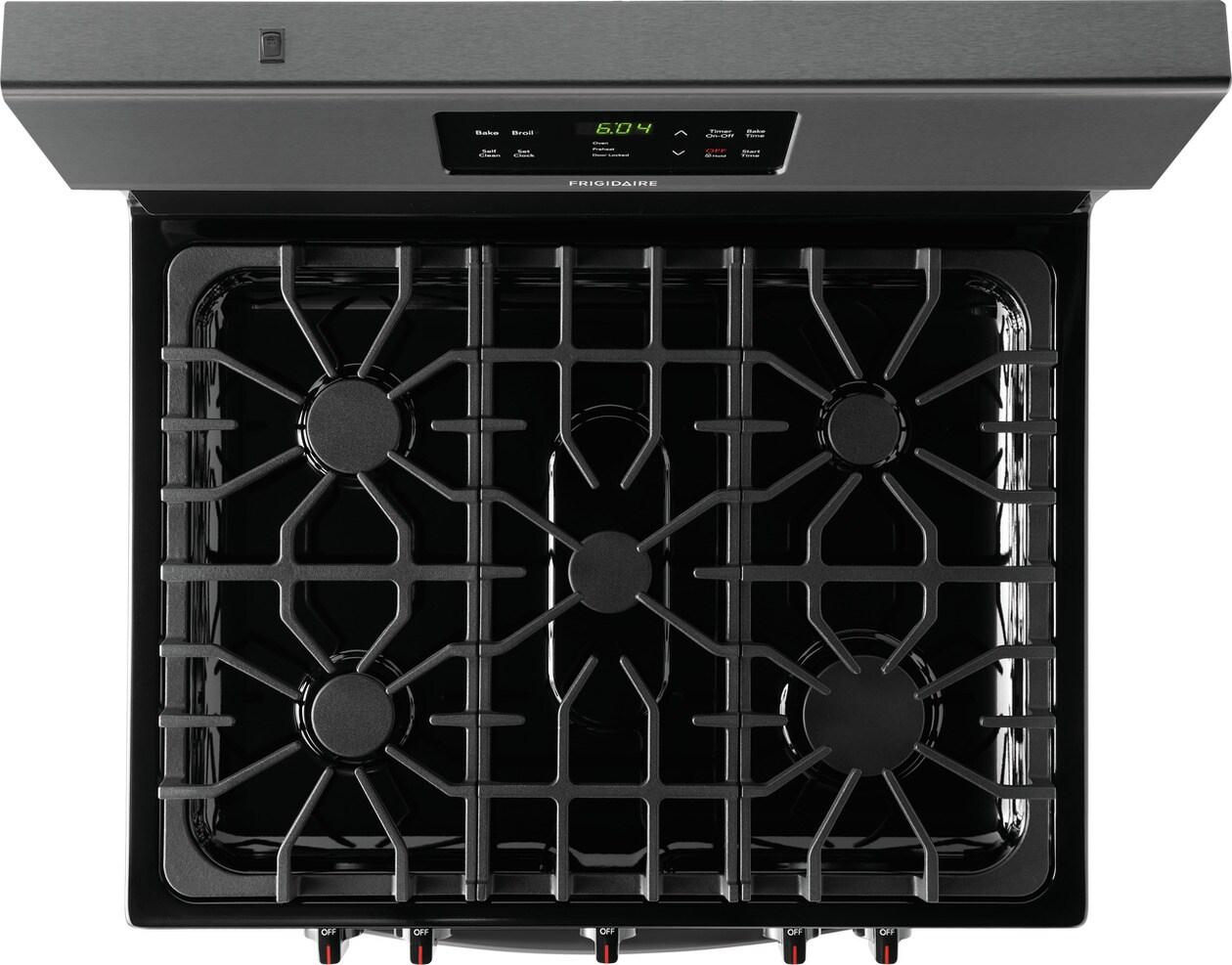

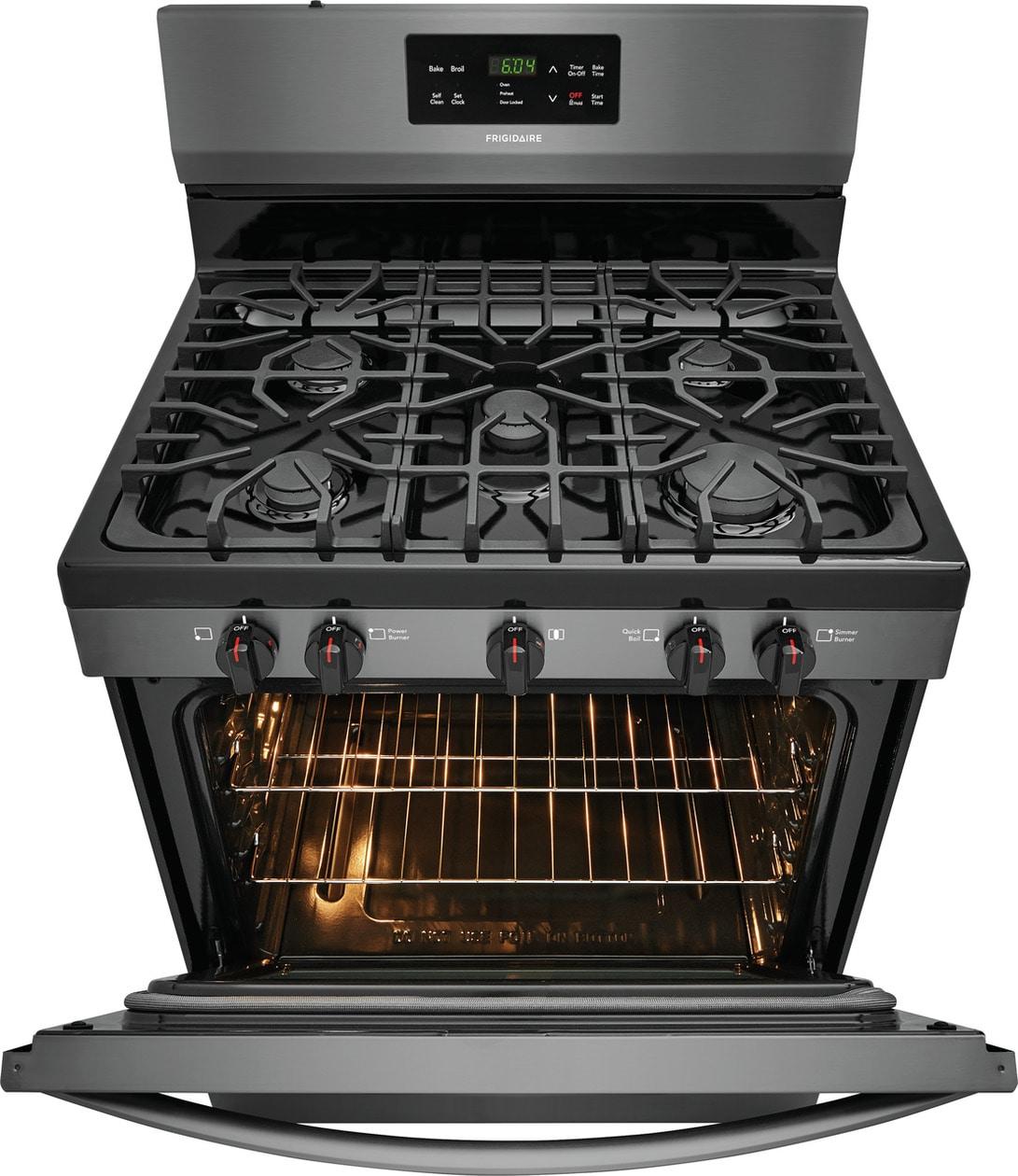

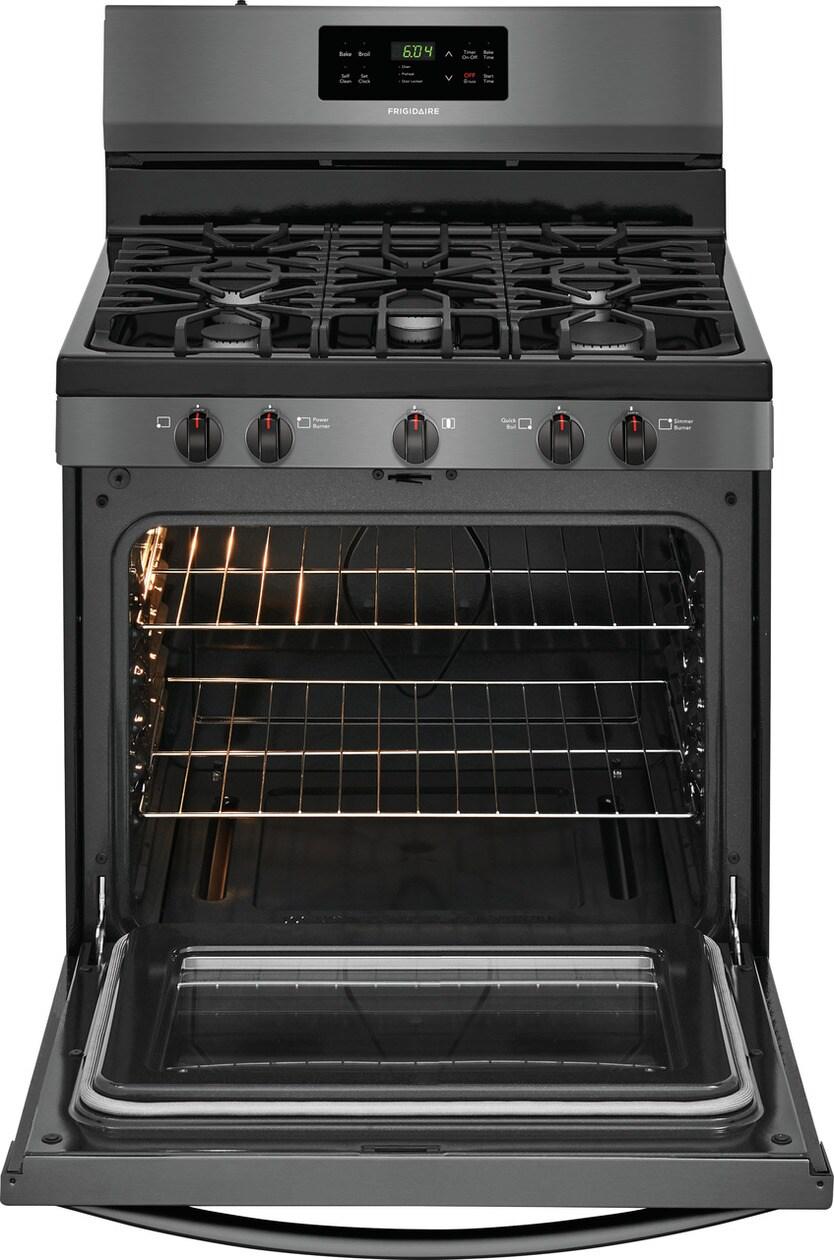

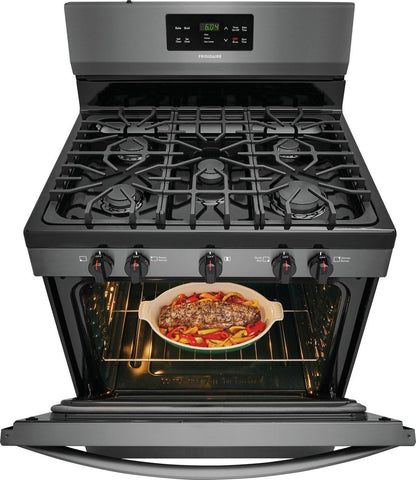

Frigidaire 30" Gas Range FFGF3054TD

The Frigidaire 30" Gas Range with Quick Boil allows you to experience faster boil times with the 17,000 BTU Quick Boil burner. Cleanup is made easy with Delay Clean and One-Touch Self Clean options. Plus, the Store-More® Storage Drawer offers extra space to store cookware.

Product Line	Gas Range
Power Type	NG
Size	30"
Installation Type	Free-Standing
Factory	Springfield
Color	Black Stainless Steel
Cooktop
Cooking Surface Type	Gas
Grate Material	Cast Iron
Grate Quantity	3
Grate Style	Continuous
Cooktop Performance
Right Front Element Burner	17000 BTU
Right Rear Element Burner	5000 BTU
Left Front Element Burner	9500 BTU
Left Rear Element Burner	12000 BTU
Center Element Burner	9500 BTU
Cooking Controls
Bake	Yes
Broil	Yes
Cancel	Yes
Kitchen Timer	Yes
Lockout	Yes
Oven Light	Yes
Preheat	Yes
Probe	No
Self Clean	Yes
Temperature Display	Yes
Timed Bake	Yes
Oven
Bake Element	18000 BTU
Bake System	Yes
Broil System	Yes
Number of Rack Positions	6
Rack Position Type	Nickel Ladder
Rack Type 1	Flat
Rack Type 1 Quantity	2
Window Type	Extra Large Visual
Drawer
Drawer Type	Storage
Controls
Control Lock	Yes
Sabbath Mode	No
Display
Control Location	Rear
Display Type	Membrane
Exterior
Cooktop Finish	Color Coordinated
Drawer Finish	Black Stainless Steel
Handle Color	Black Stainless Steel
Handle Material	Plastic
Knob Color	Black Stainless Steel
Knob Material	Plastic
Manifold Finish	Black Stainless Steel
Dimensions and Volume
Height	47"
Width	29 7/8"
Depth	25 3/4"
Depth With Door 90° Open	46 9/16"
Oven Interior Height	18 5/8"
Oven Interior Width	24 3/8"
Oven Interior Depth	19 1/8"
Oven Capacity	5 Cu. Ft.
Electrical Specifications
Minimum Circuit Required	5 Amps
Voltage Rating	120 V
Installation
Adjustable Leveling Legs	Yes
Power Supply Connection Location	Bottom Center
General Specifications
Product Weight	180.5 lbs
Prop 65 Label	Yes
Warranty - Labor	1 Year
Warranty - Parts	1 Year
Certifications and Approvals
ADA Compliant	No
CSA Listed	Yes
