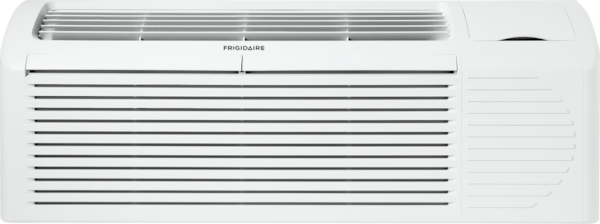

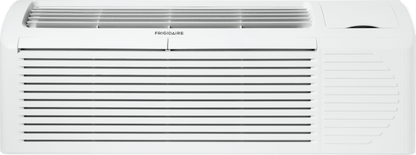

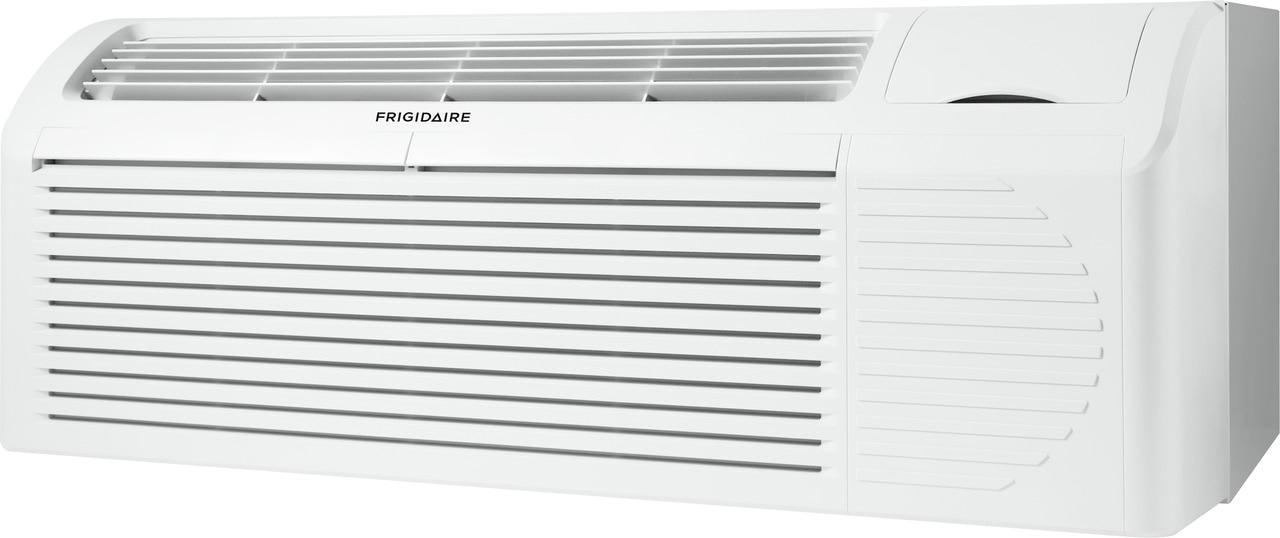

Frigidaire PTAC unit with Heat Pump and Electric Heat backup 7,200 BTU 208/230V with Corrosion Guard and Dry Mode

Item Not Available

Corrosion Guard
Dry Mode
Effortless™ Maintenance
SilentDesign™: Sound reduction package.
Comfort Control Design
Smart Self-Check: Provides nine diagnostic points for self-check and correction of fault conditions.
Effortless™ Operation
Effortless™ Restart

Dimensions and Volume
Max Wall Thickness	13 1/2"
Installation
Power Cord Included	Yes
Power Cord Length	66"
Functions
24-Hour On/Off Timer	Yes
Auto Fan	Yes
Dry Mode	Yes
Energy Saver	Yes
Front Desk Control Ready	Yes
Low Voltage Start-up	Yes
Quiet Start-Up	Yes
Random Restart Protection	Yes
Room Freeze Protection	Yes
Performance
Cool Area	300 sq.
BTU (Cool)	7,200 BTU
BTU (Heat Pump)	6,000 BTU
BTU (Electrical Heat)	11,700 BTU
COP (Heat Pump)	3.6
Combined Energy Efficiency Ratio	13
Dehumidification - Pints per Hour	1.7
Accessories
Accessories Sold Separately	Yes
General Specifications
Product Weight	119.7 lbs
Prop 65 Label	Yes
Refrigerant Type	R-410A
Warranty - Labor	2 Years
Warranty - Parts	2 Years
AC
Air CFM (Low)	282 CFM
Air CFM (High)	312 CFM
Air Direction Control	Auxiliary 2-Way
Air Intake	Fresh or Recycled
Fan Speeds - Cool	2
Fan Speeds - Fan	2
Fan Speeds - Heat	2
Filter Type	Easy-to-Clean Washable Filter
Motor RPM (Low)	880 RPM
Motor RPM (High)	990 RPM
Filter Access	Yes
Fin Coating	Corrosion Guard
Slide-Out Chassis	Yes
Controls

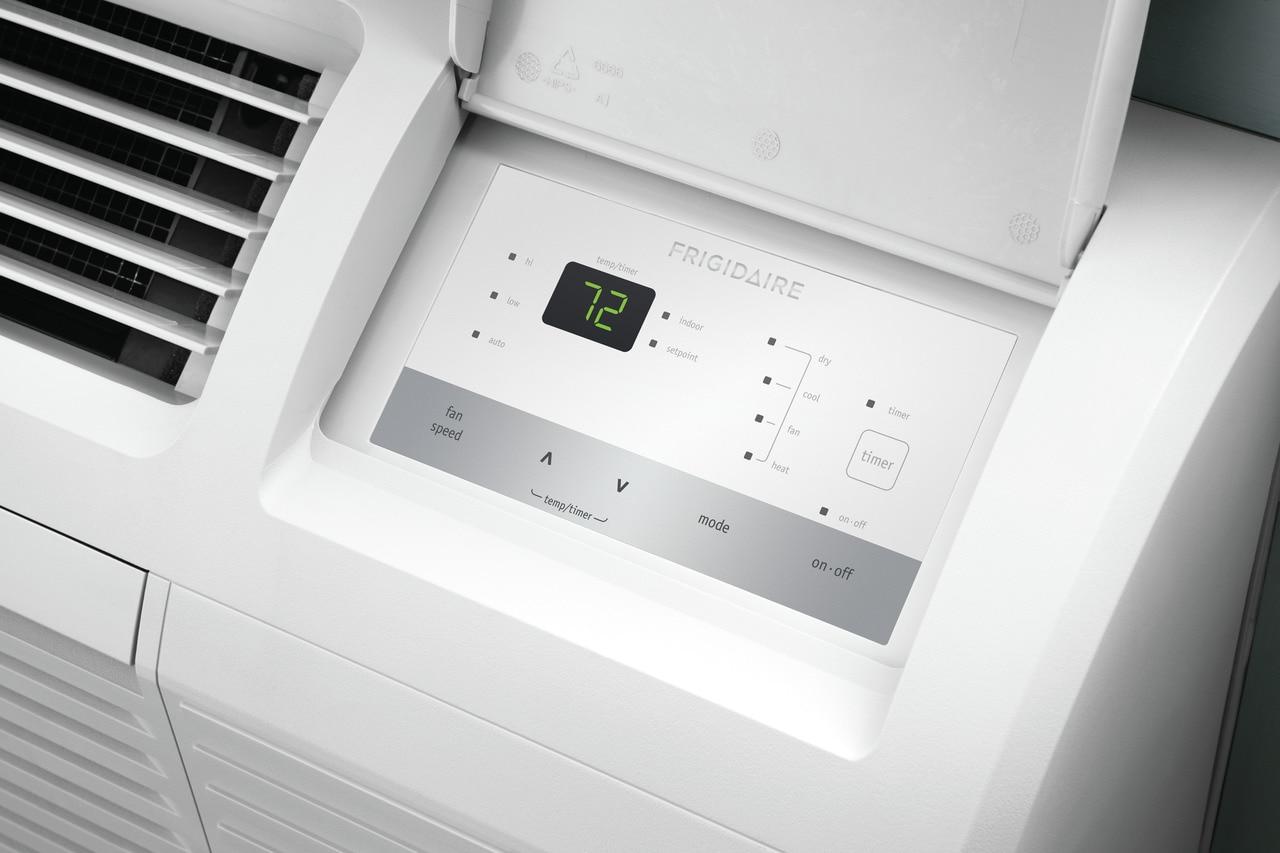

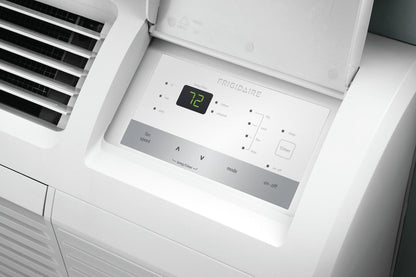

Control Type	Electronic
Electrical Specifications
Amps (Cool)	2.9 Amps
Amps (Electrical Heat)	15 Amps
Amps (Heat Pump)	2.6 Amps
Circuit Breaker	Yes
Plug Type	LCDI 620P
Voltage Rating	230 V
Watts (Cool)	550 Watts
Watts (Electrical Heat)	3,450 Watts
Watts (Heat Pump)	485 Watts
Safety Certifications & Approvals
UL Listed	Yes
cUL Listed	Yes
AHRI Certified	Yes
