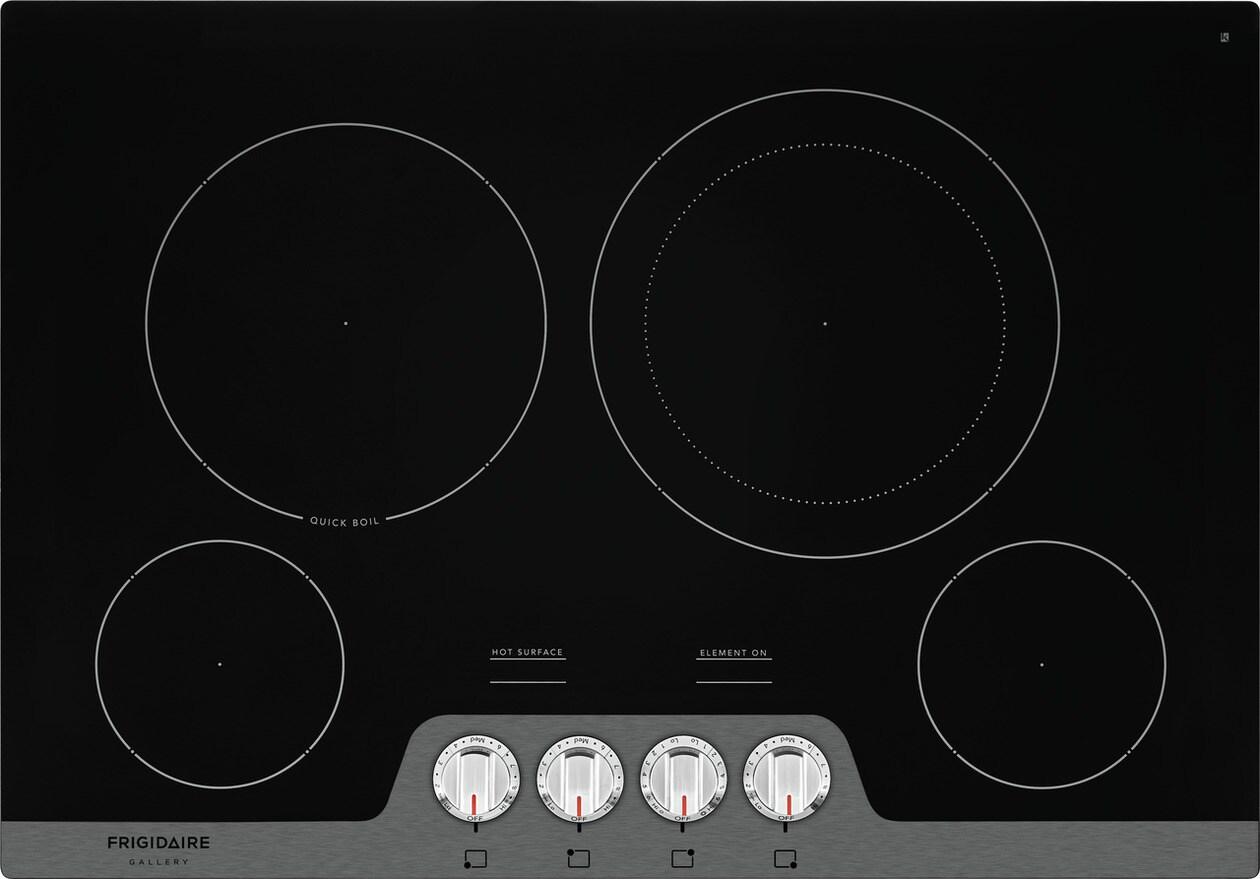

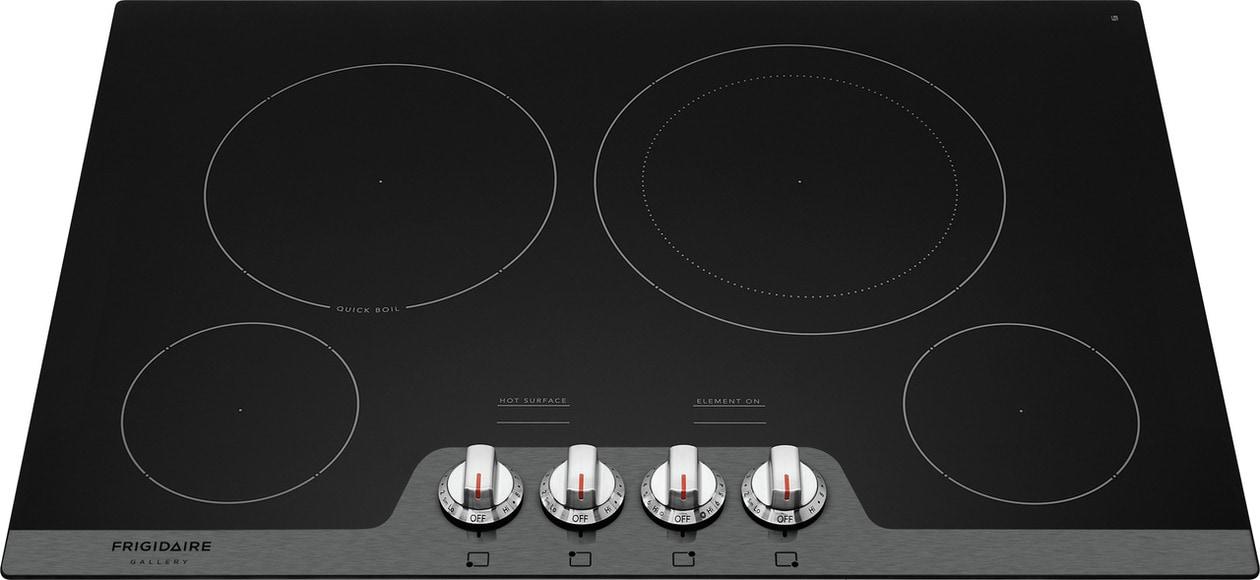

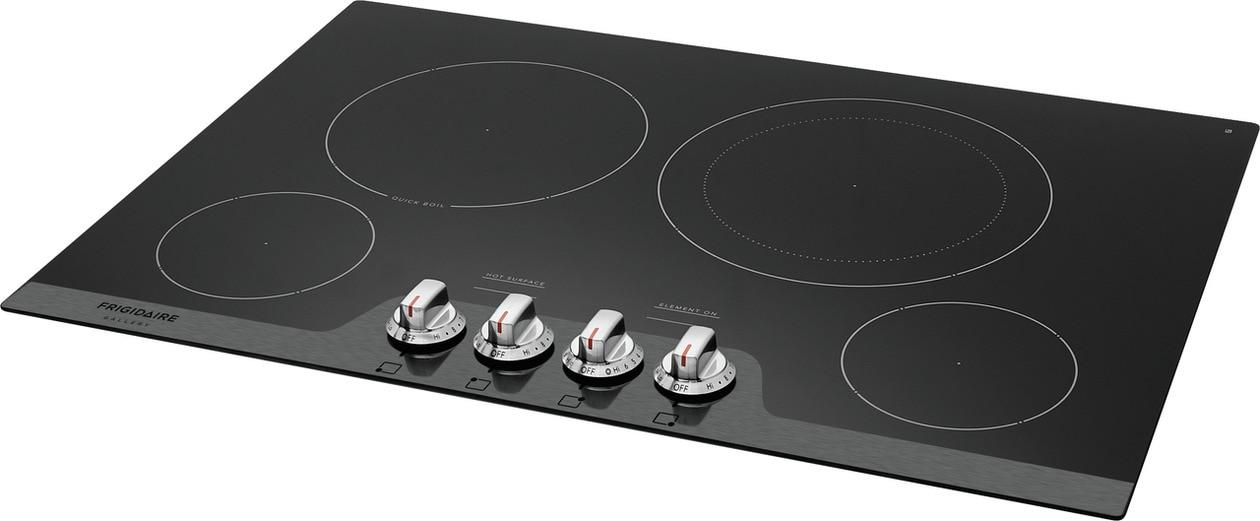

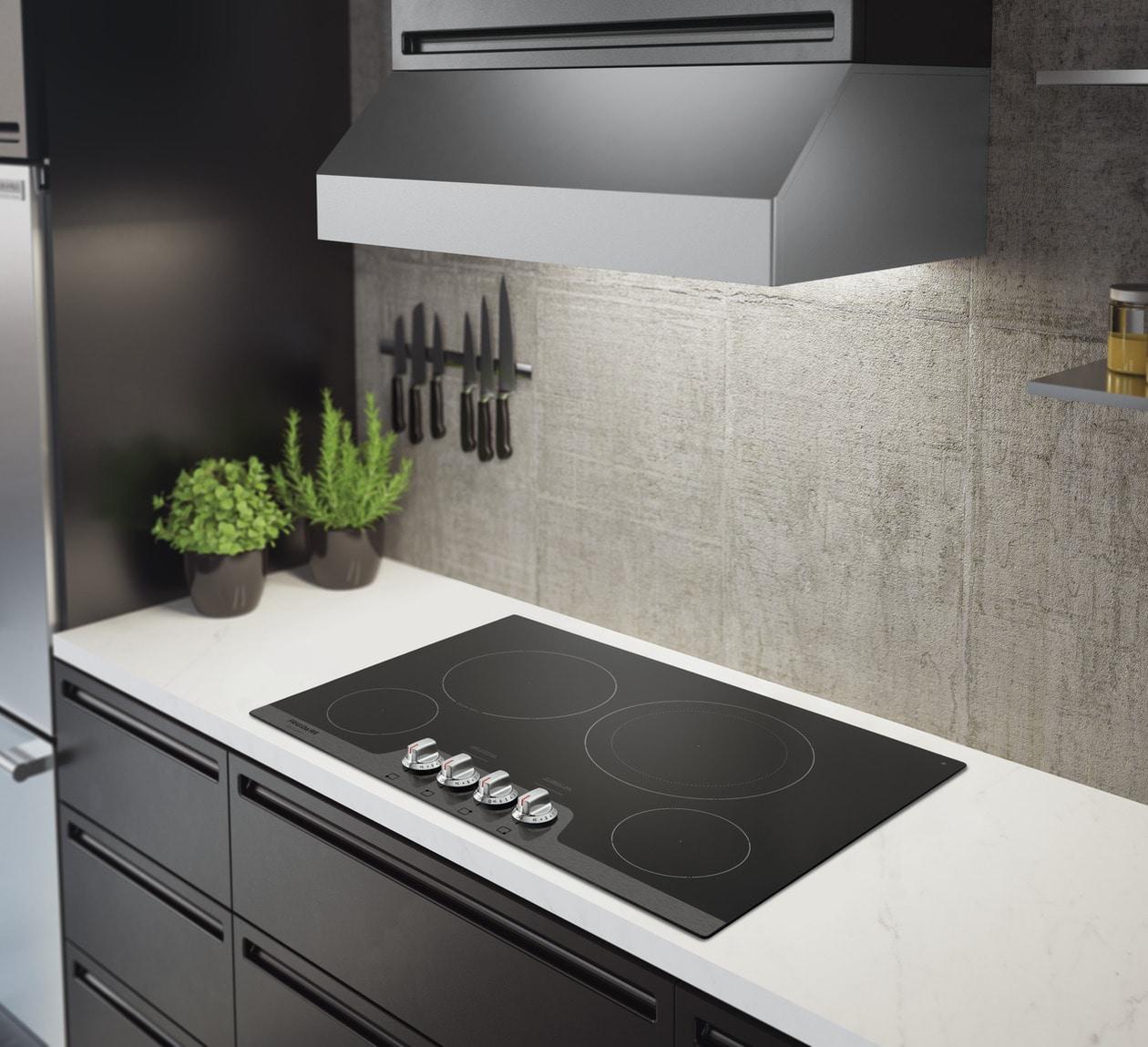

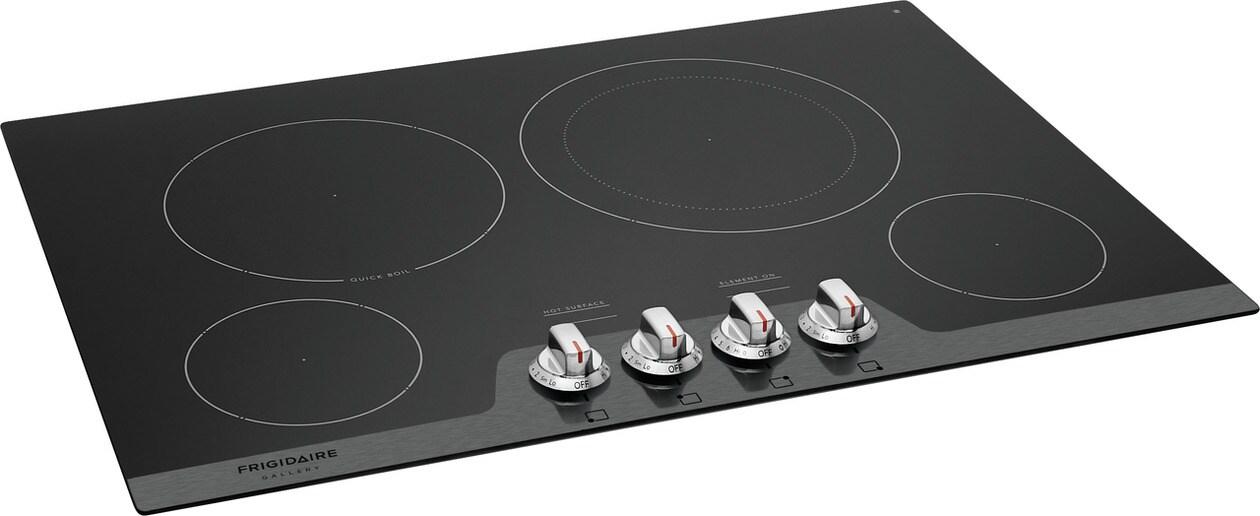

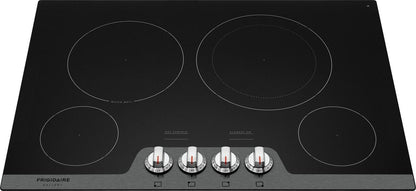

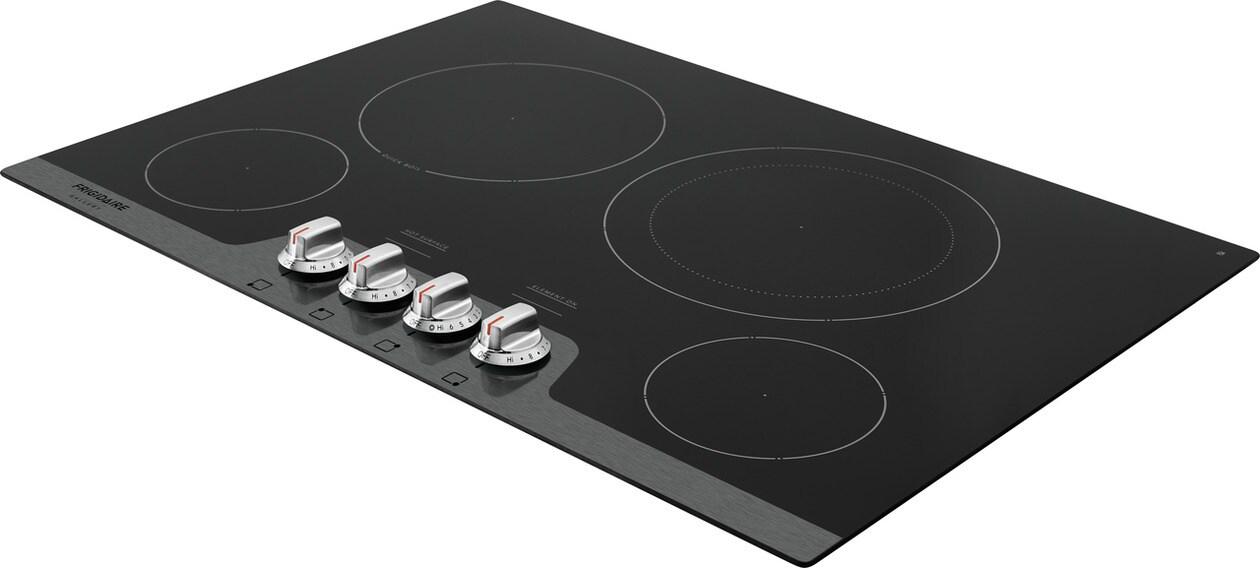

FGEC3048US Frigidaire Gallery 30" Electric Cooktop FGEC3048US
FGEC3048US Frigidaire Gallery 30" Electric Cooktop
- Quick Boil
- SpaceWise® Expandable Elements
- Frigidaire® Fit Promise

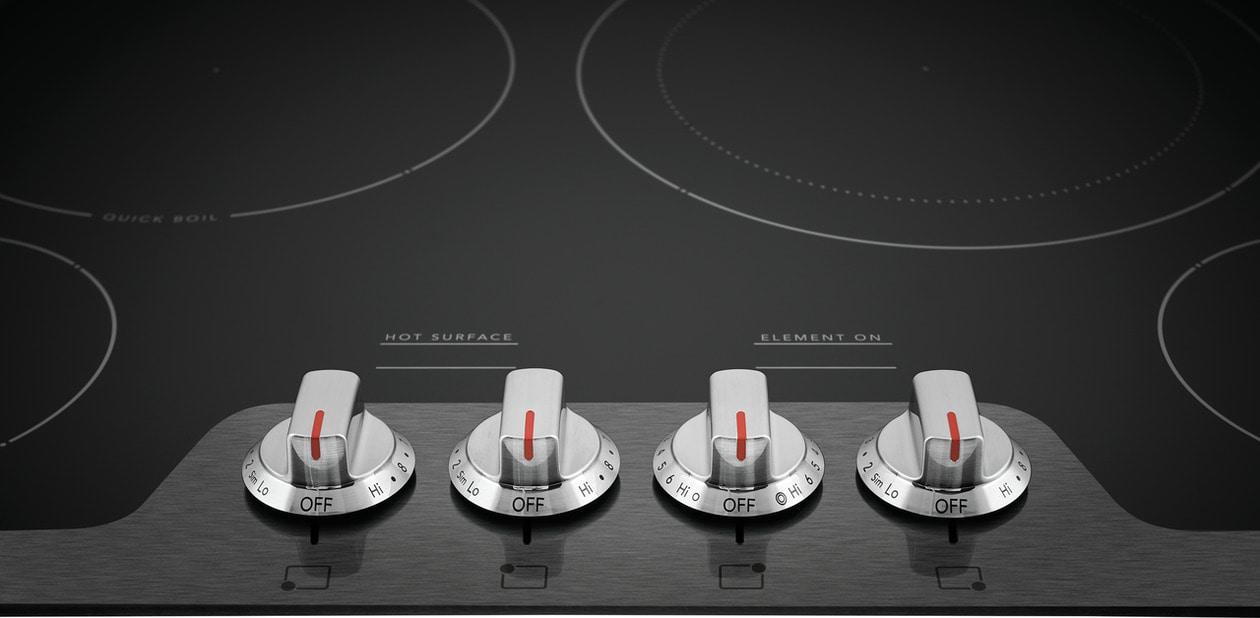

- Easy to Use Front Controls
- Express-Select® Controls
- Ceramic Glass Cooktop
- Hot Surface Indicators
- Installation over Wall Oven Approved
The Frigidaire Gallery 30" electric cooktop boils water in less than three minutes with our powerful 3,200 watt element.
| Product Line | Electric Cooktop |
| Power Type | Electric 240v |
| Size | 30" |
| Installation Type | Drop-In |
| Factory | Rayong |
| Color | Stainless Steel |
| Cooktop | |
| Cooking Surface Type | Smooth |
| Hot-Surface Indicator Light | Yes |
| Cooktop Performance | |
| Right Front Element Burner Size | 6" |
| Right Rear Element Burner Size (Small) | 9" |
| Right Rear Element Burner Size (Large) | 12" |
| Left Front Element Burner Size | 6" |
| Left Rear Element Burner Size | 9" |
| Right Front Element Burner | 1200 Watts |
| Right Rear Element Burner (Small) | 1800 Watts |
| Right Rear Element Burner (Large) | 3000 Watts |
| Left Front Element Burner | 1200 Watts |
| Left Rear Element Burner | 3200 Watts |
| Controls | |
| Sabbath Mode | No |
| Display | |
| Control Location | Front |
| Display Type | Mechanical |
| Dimensions and Volume | |
| Height | 2 5/8" |
| Width | 30 5/8" |
| Depth | 21 3/8" |
| Electrical Specifications | |
| Amps @ 240 Volts | 35.8 Amps |
| Connected Load @ 240V | 8.6 kW |
| Minimum Circuit Required | 40 Amps |
| Voltage Rating | 240 V |
| General Specifications | |
| Frigidaire Fit Promise | Yes |
| Product Weight | 38 lbs |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| Installation | |
| Installed Over a Wall Oven | Yes |
| Power Supply Connection Location | Right Center |
| Certifications and Approvals | |
| ADA Compliant | Yes |
| UL Listed | Yes |
