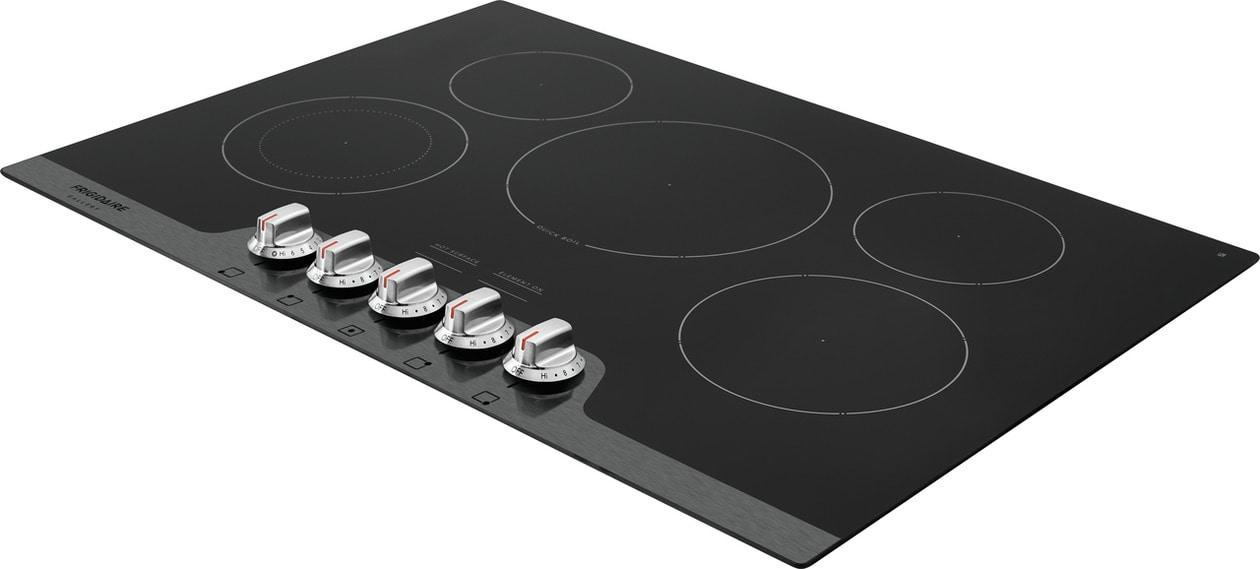

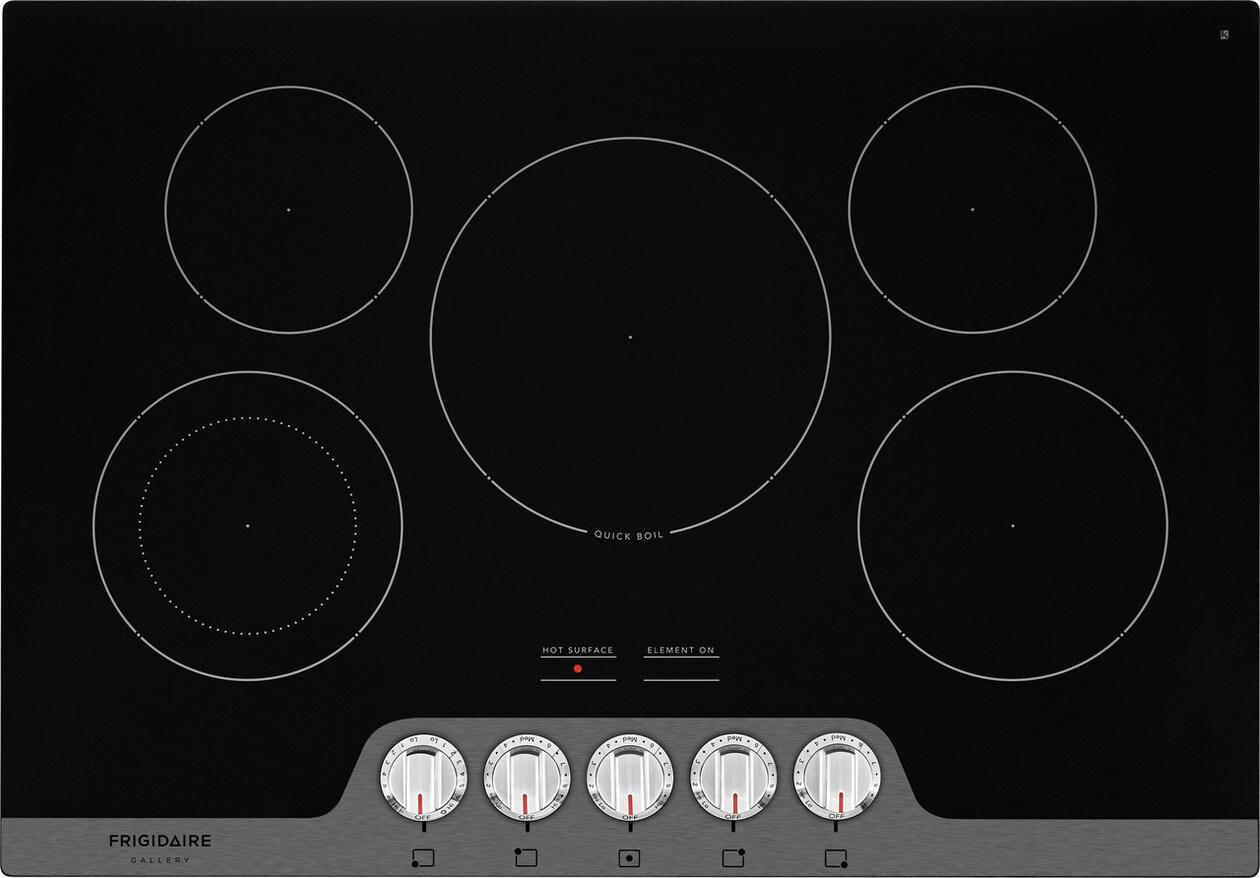

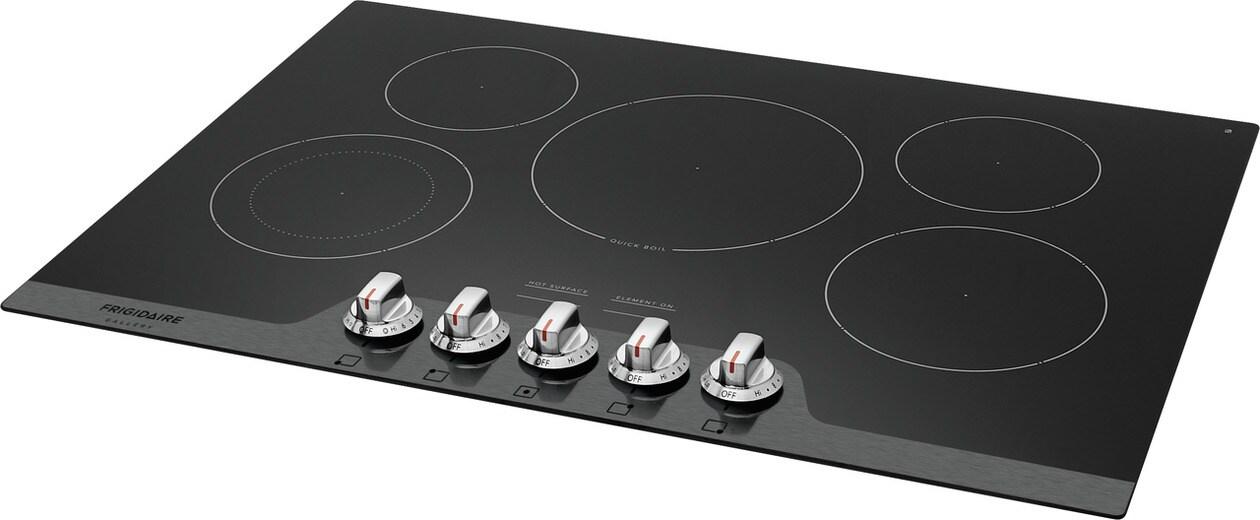

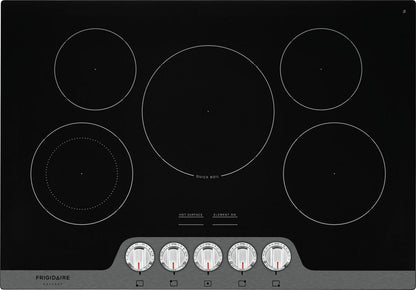

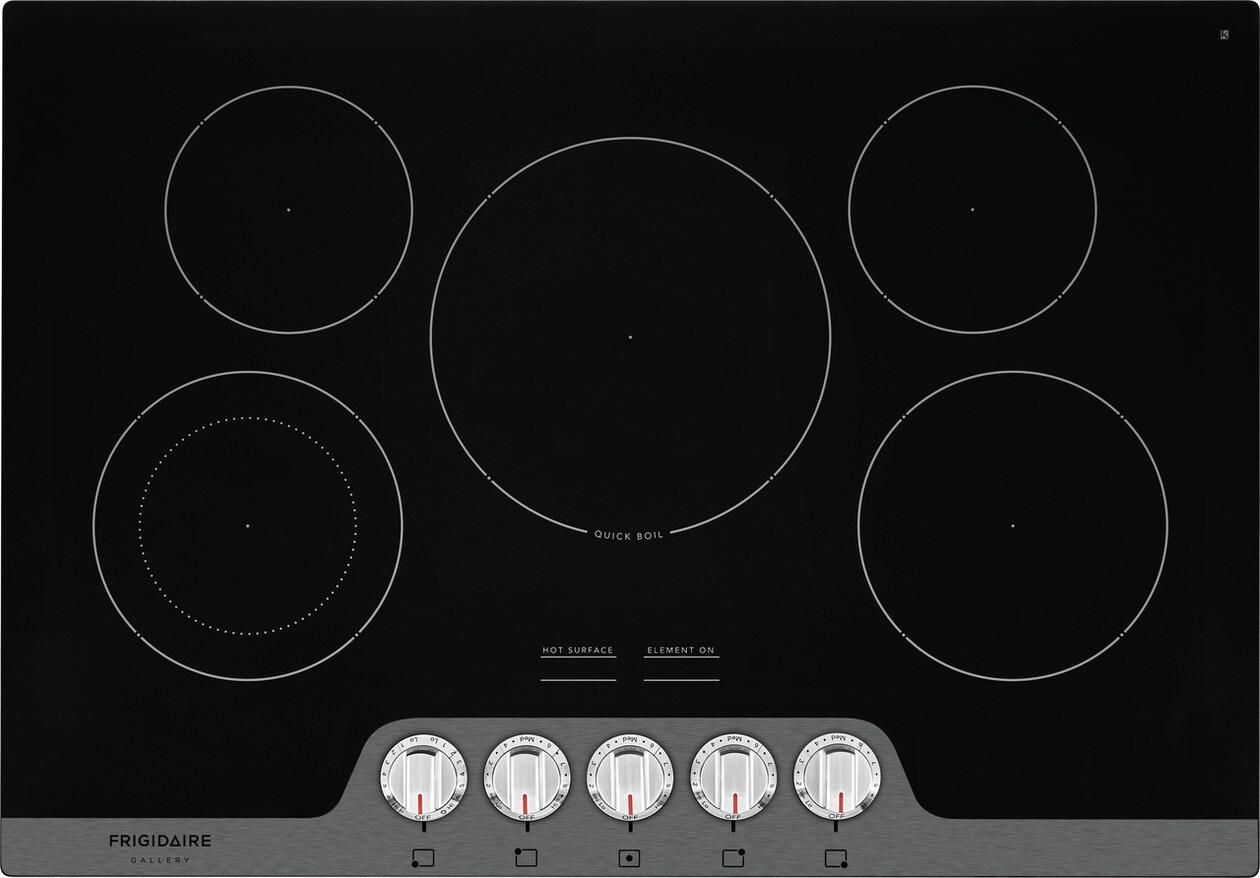

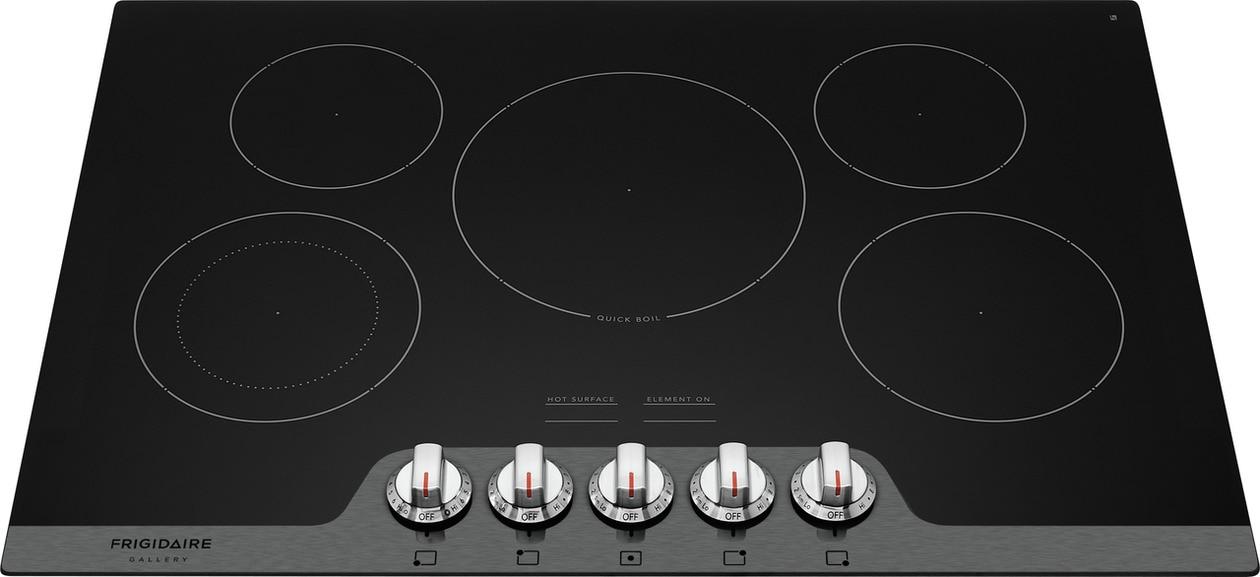

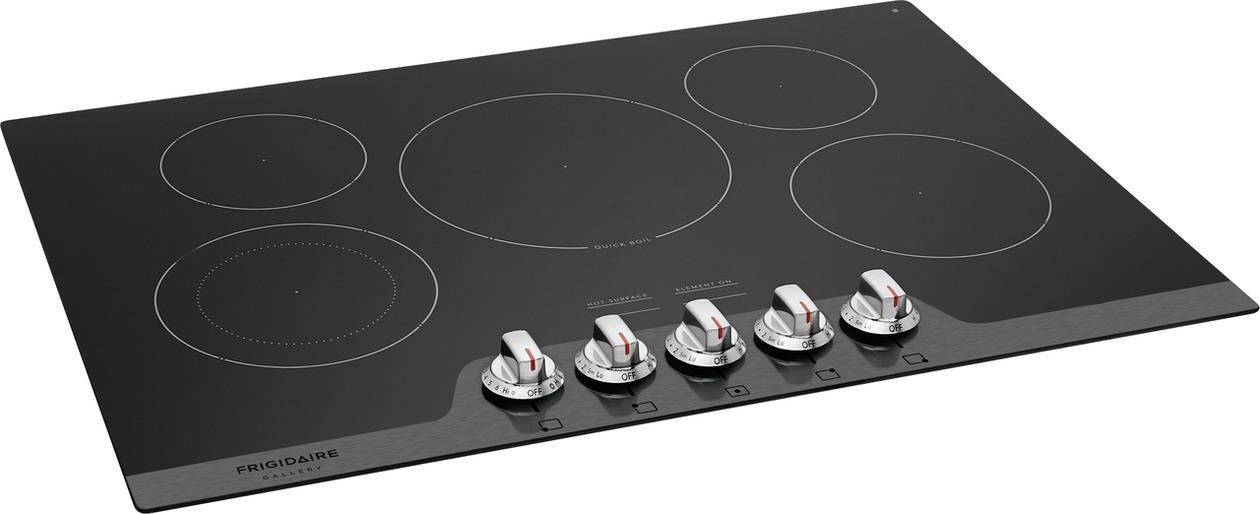

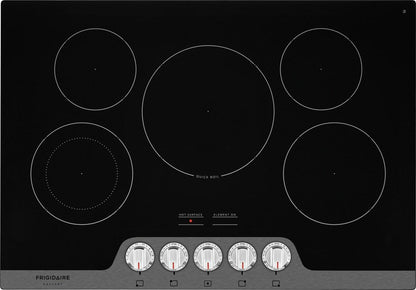

Frigidaire Gallery 30" Electric Cooktop FGEC3068US

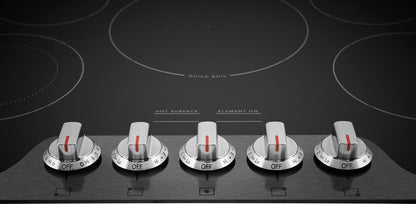

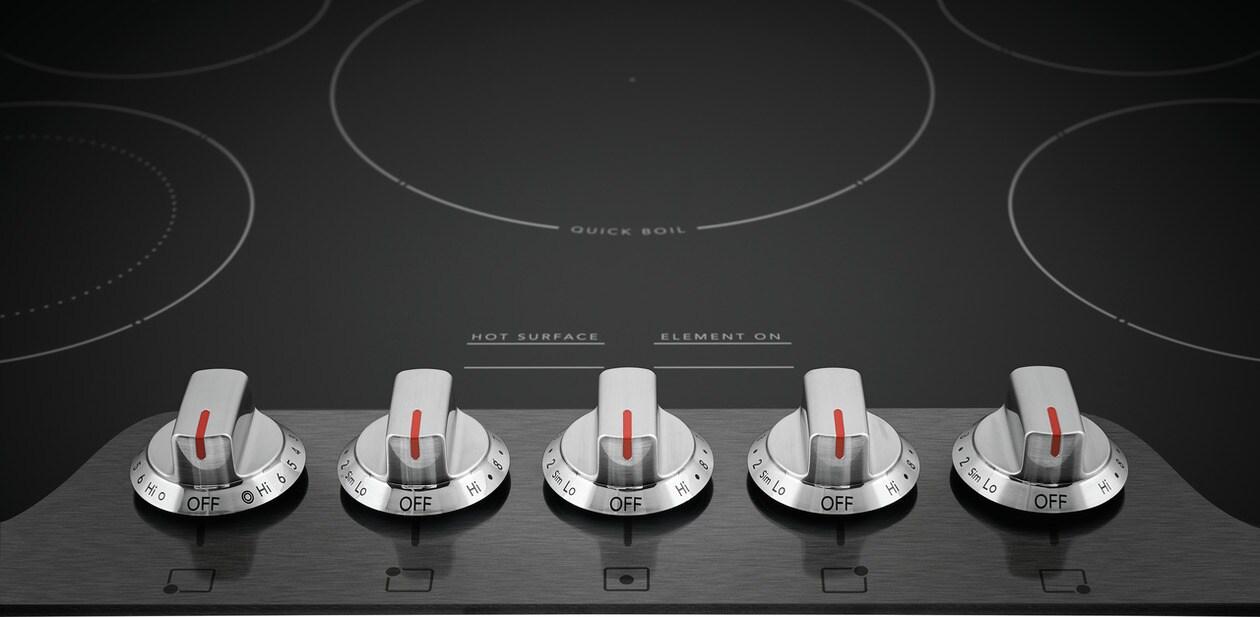

Expand your cooking possibilities with this sleek Electric Cooktop by Frigidaire Gallery. The five-element smooth surface cooktop features two Space Wise elements that adjust in size to fit the diameter of your cookware. A 7 in. burner and two 6 in. burners provide even more space to sate and sear your favorite foods, giving you flexibility when preparing a picture-perfect meal for family or guests. Express-Select control knobs easily go from warm to boil, so you can regulate your heat output with accuracy.

Product Line	Electric Cooktop
Power Type	Electric 240v
Size	30"
Installation Type	Drop-In
Factory	Rayong
Color	Stainless Steel
Installation
Installed Over a Wall Oven	Yes
Power Supply Connection Location	Right Center
Electrical Specifications
Amps @ 240 Volts	38.3 Amps
Connected Load @ 240V	9.2 kW
Minimum Circuit Required	40 Amps
Voltage Rating	240 V
Certifications and Approvals
ADA Compliant	Yes
Cooktop
Cooking Surface Type	Smooth
Hot-Surface Indicator Light	Yes
Dimensions and Volume
Height	2 5/8"
Width	30 5/8"
Depth	21 3/8"
Safety Certifications and Approvals
UL Listed	Yes
Controls
Sabbath Mode	No
General Specifications
Frigidaire Fit Promise	Yes
Product Weight	61.75 lbs
Prop 65 Label	No
Warranty - Labor	1 Year
Warranty - Parts	1 Year
Cooktop Performance
Right Front Element Burner Size	7"
Right Rear Element Burner Size	6"
Left Front Element Burner Size (Small)	5"
Left Front Element Burner Size (Large)	7"
Left Rear Element Burner Size	6"
Center Rear Element Burner Size	9"
Right Front Element Burner	1,800 Watts
Right Rear Element Burner	1,200 Watts
Left Front Element Burner (Small)	750 Watts
Left Front Element Burner (Large)	1,800 Watts
Left Rear Element Burner	1,200 Watts
Center Rear Element Burner	3,200 Watts
Display
Control Location	Front
Display Type	Mechanical
