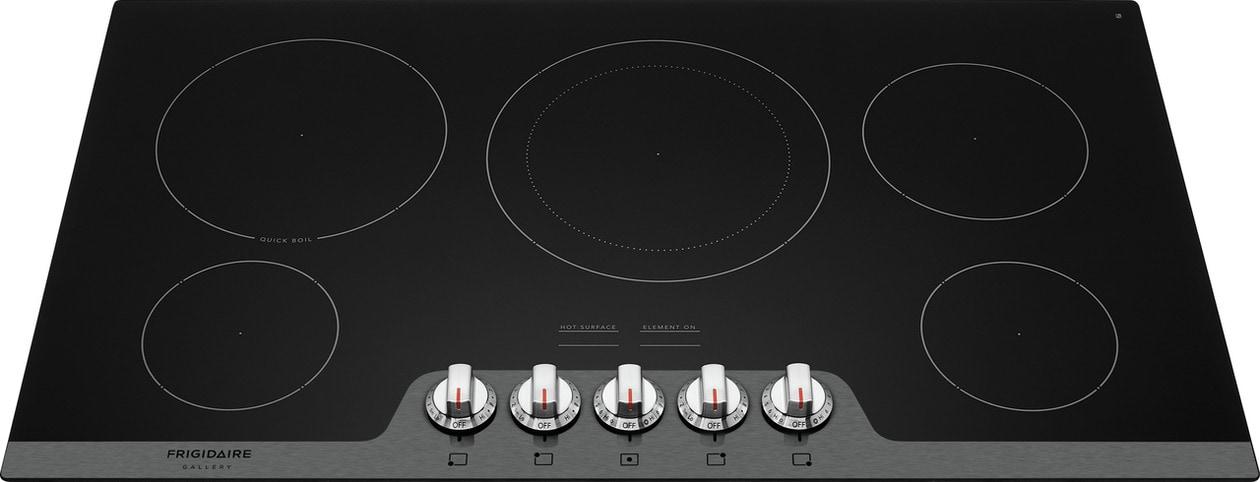

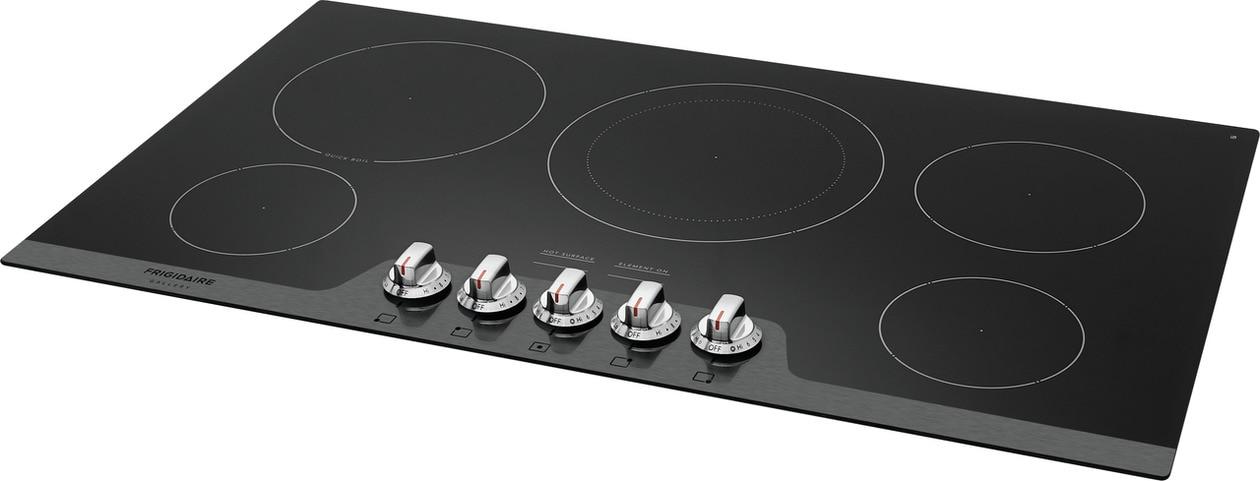

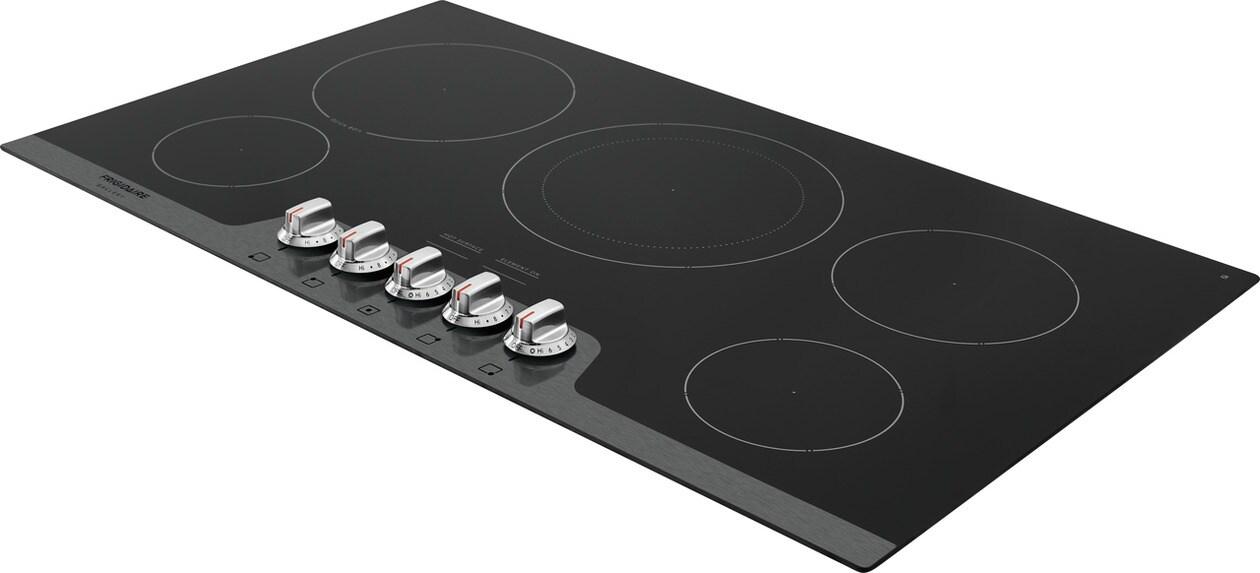

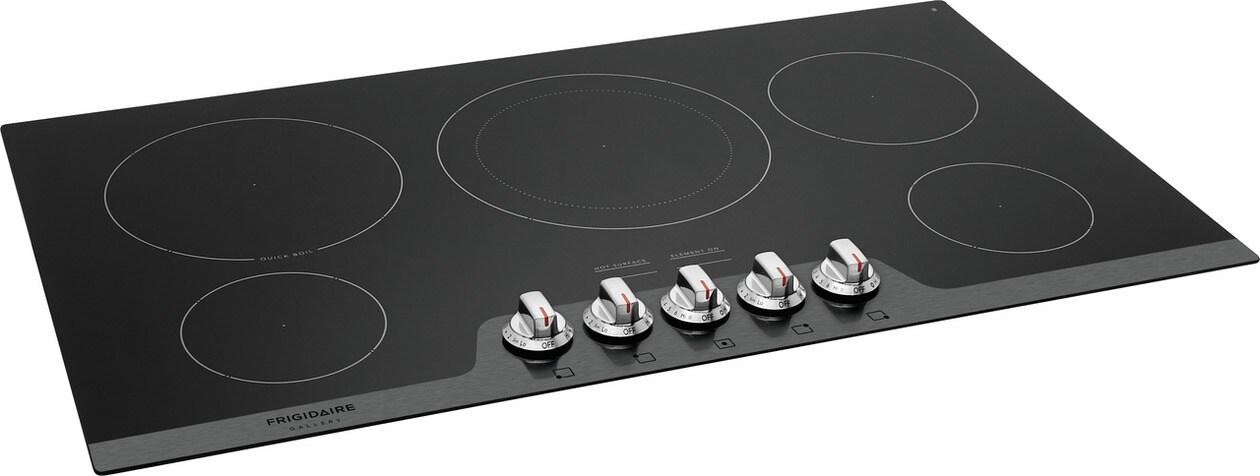

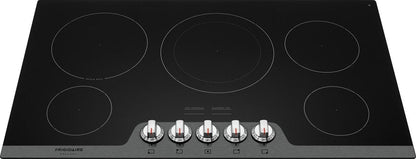

Frigidaire Gallery 36" Electric Cooktop FGEC3648US

An efficient and uncluttered cooking experience, starts with the Frigidaire Gallery Electric Cooktop. Designed to accommodate multiple pots at once so you ll be able to easily juggle tasks. And with the Express-Select controls, you ll be able to easily regulate the temperatures and heat levels. SpaceWise Expandable Elements adjust to the size pot your using on the Frigidaire Gallery Electric Cooktop. With multiple sized elements, you ll never be mismatching a big pot on a small element. And if you happen to spill, no worries - cleanup is a breeze with this do-it-all appliance!

Product Line	Electric Cooktop
Power Type	Electric 240v
Size	36"
Installation Type	Drop-In
Factory	Rayong
Color	Stainless Steel
Installation
Installed Over a Wall Oven	Yes
Power Supply Connection Location	Right Center
Electrical Specifications
Amps @ 240 Volts	43.3 Amps
Connected Load @ 240V	10.4 kW
Minimum Circuit Required	50 Amps
Voltage Rating	240 V
Certifications and Approvals
ADA Compliant	Yes
Cooktop
Cooking Surface Type	Smooth
Hot-Surface Indicator Light	Yes
Dimensions and Volume
Height	2 5/8"
Width	36 3/4"
Depth	21 3/8"
Safety Certifications and Approvals
UL Listed	Yes
Controls
Sabbath Mode	No
General Specifications
Frigidaire Fit Promise	Yes
Product Weight	33.25 lbs
Prop 65 Label	No
Warranty - Labor	1 Year
Warranty - Parts	1 Year
Cooktop Performance
Center Rear Element Burner Size (Large)	12"
Right Front Element Burner Size	6"
Right Rear Element Burner Size	7"
Left Front Element Burner Size	6"
Left Rear Element Burner Size	9"
Center Rear Element Burner Size (Small)	9"
Right Front Element Burner	1,200 Watts
Right Rear Element Burner	1,800 Watts
Left Front Element Burner	1,200 Watts
Left Rear Element Burner	3,200 Watts
Center Rear Element Burner (Small)	1,800 Watts
Center Rear Element Burner (Large)	3,000 Watts
Display
Control Location	Front
Display Type	Mechanical
