Frigidaire Gallery 30" Gas Cooktop FGGC3047QS

This Frigidaire Gallery 30 in. gas cooktop This versatile five burner cooktop delivers maximum cooking performance in a 30 in. space. Continuous corner-to-corner grates make it easy to move heavy pots and pans without lifting them, while the Spillsafe cooktop contains your spillovers for easier clean up. This cooktop features a powerful 18,000 BTU burner to boil water faster or handle high-heat cooking such as stir-fry. Other versatile burner options included a high output 12,000 BTU, a standard 9,500 BTU, and a 5,000 BTU burner that is excellent for simmering delicate foods or sauces.

Product Line	Gas Cooktop
Power Type	NG
Size	30"
Installation Type	Drop-In
Factory	Rayong
Color	Stainless Steel
Installation
Gas Supply Connection Location	Right Center

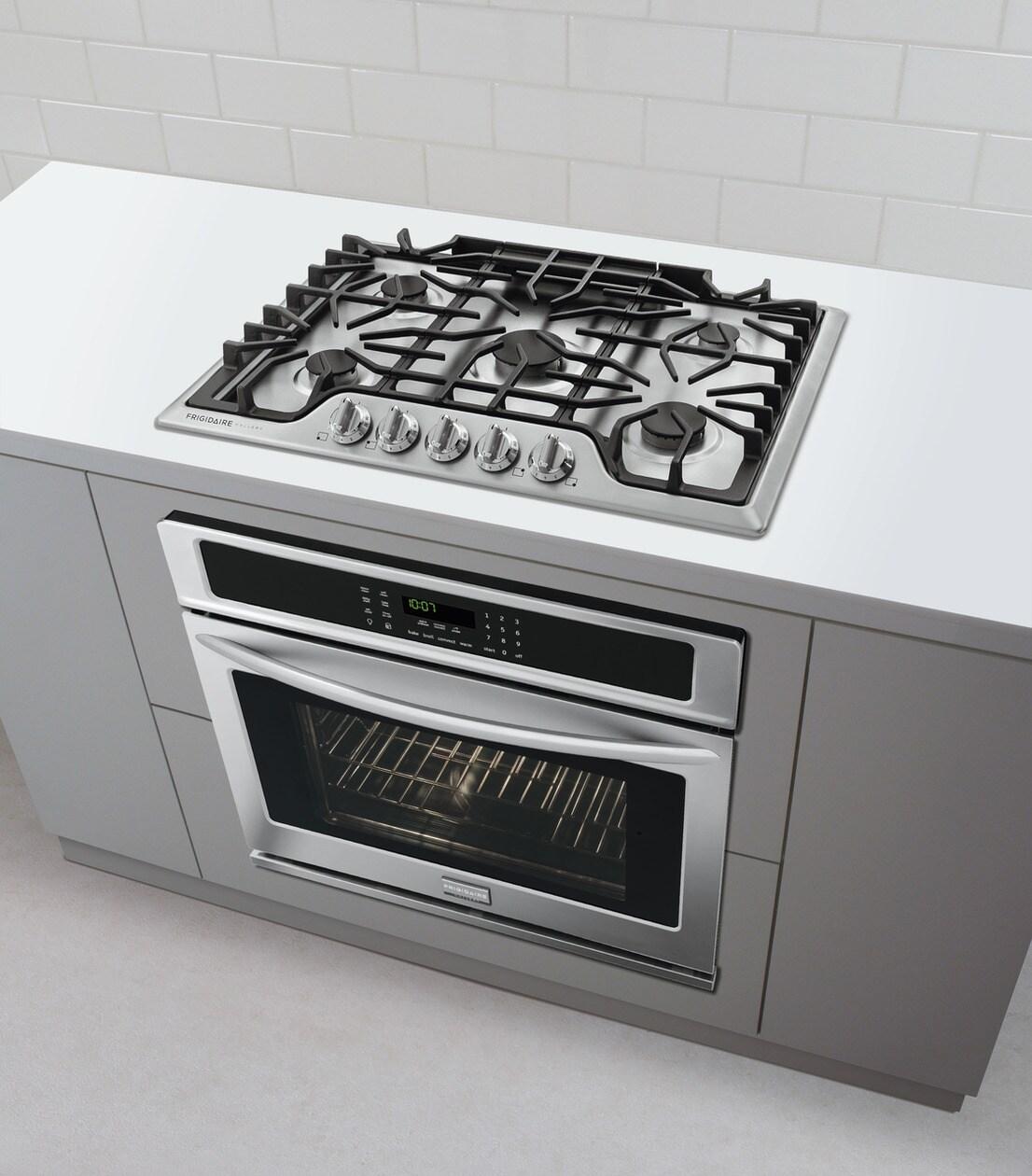

Installed Over a Wall Oven	Yes
LP Conversion Kit Included	Yes
Power Supply Connection Location	Right Center
Electrical Specifications
Minimum Circuit Required	5 Amps
Voltage Rating	120 V
Certifications and Approvals
ADA Compliant	Yes
Cooktop
Grate Finish	Matte Black
Grate Material	Cast Iron
Grate Quantity	3
Grate Style	Continuous
Dimensions and Volume
Height	4 1/4"
Width	30"
Depth	21 3/4"
Safety Certifications and Approvals
CSA Listed	Yes
Controls
Sabbath Mode	No
General Specifications
Product Weight	48.45 lbs
Prop 65 Label	Yes
Warranty - Labor	1 Year
Warranty - Parts	1 Year
Exterior
Knob Color	Stainless Steel
Cooktop Performance
Right Front Element Burner	12,000 BTU
Right Rear Element Burner	5,000 BTU
Left Front Element Burner	9,500 BTU
Left Rear Element Burner	7,500 BTU
Center Element Burner	18,000 BTU
Display
Control Location	Front
