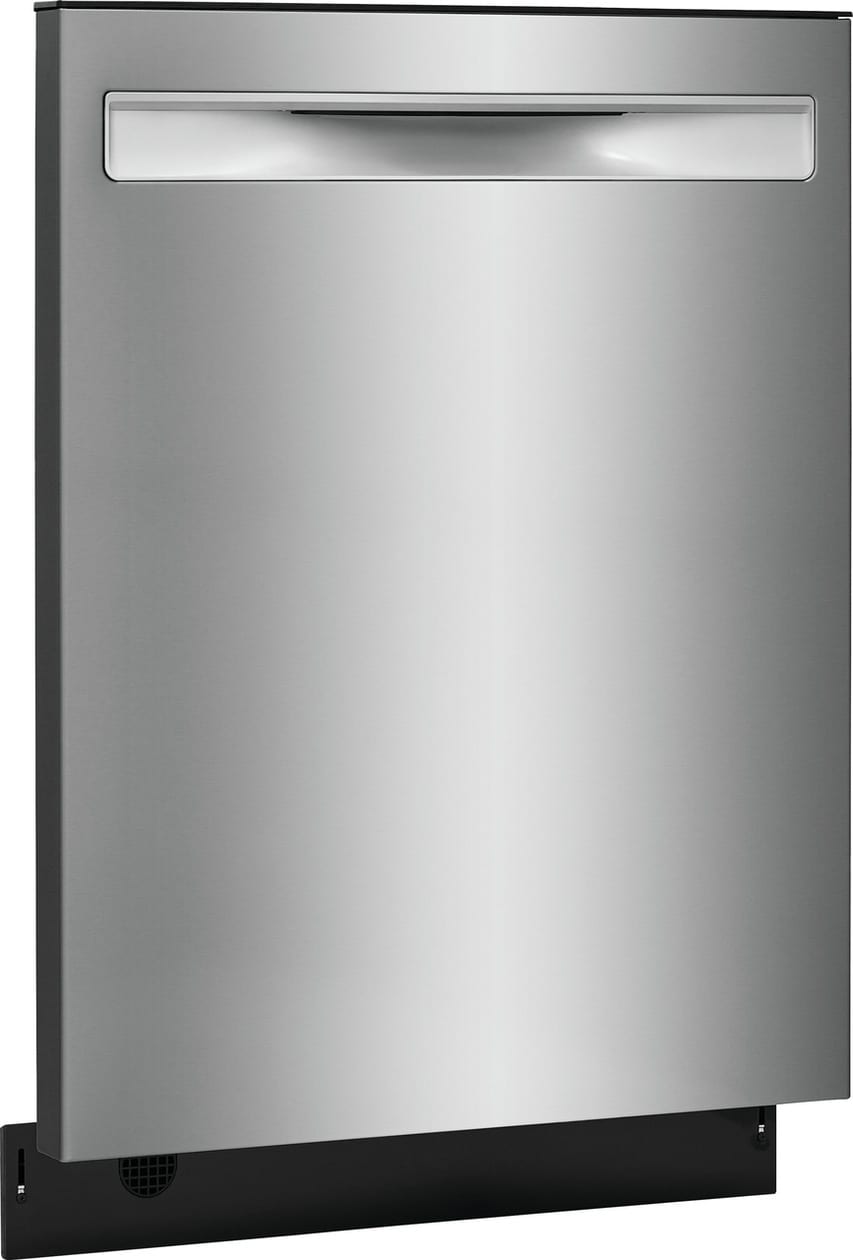

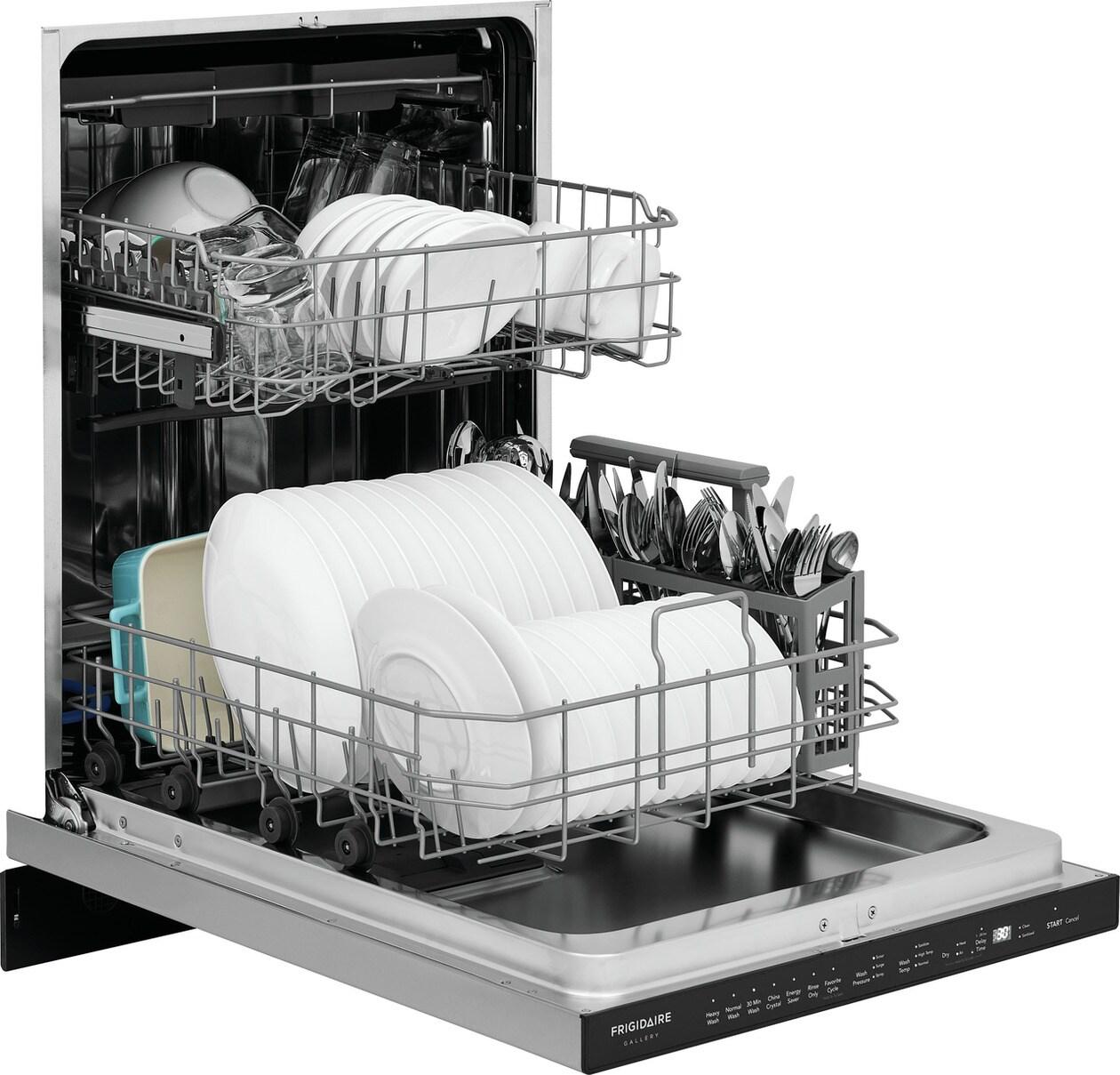

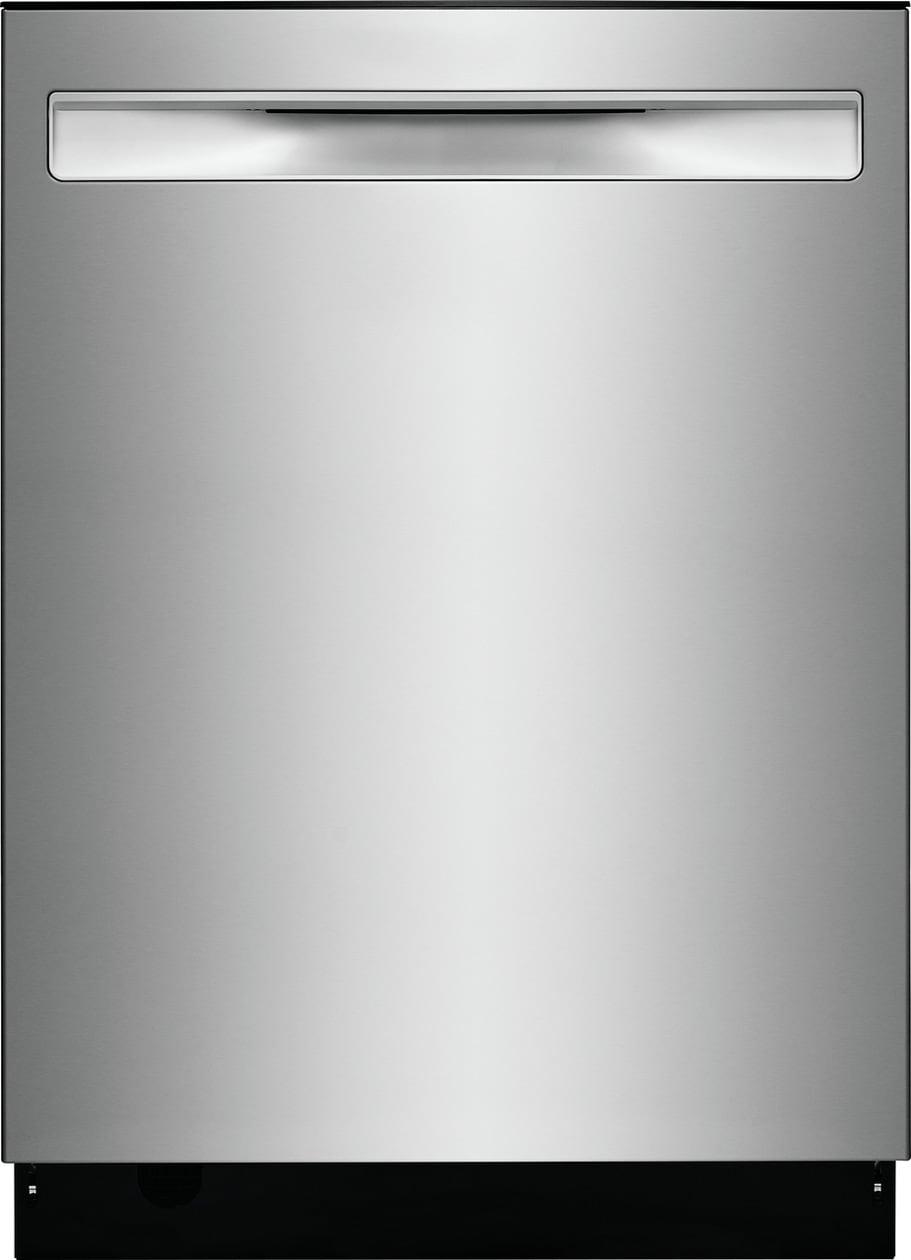

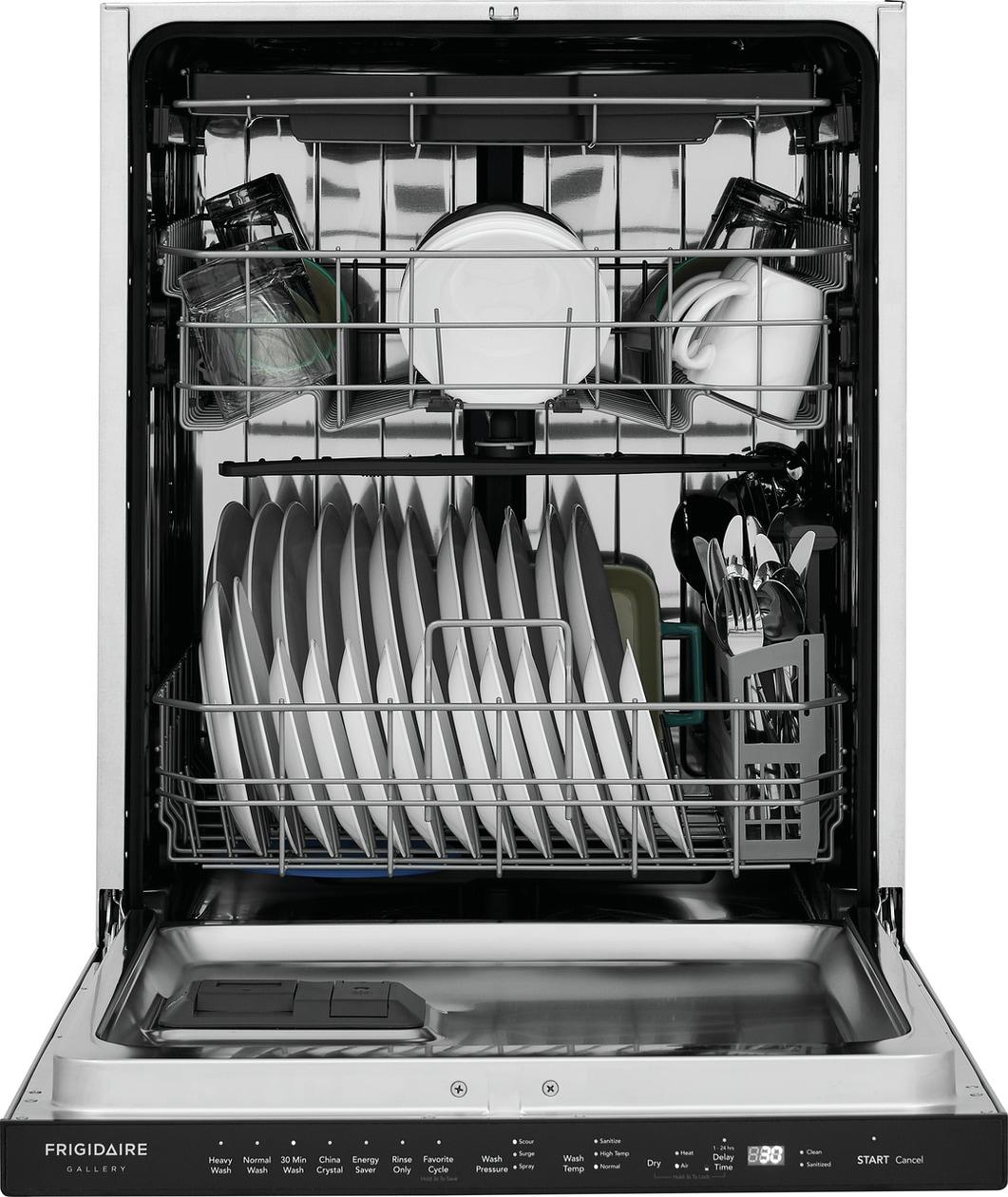

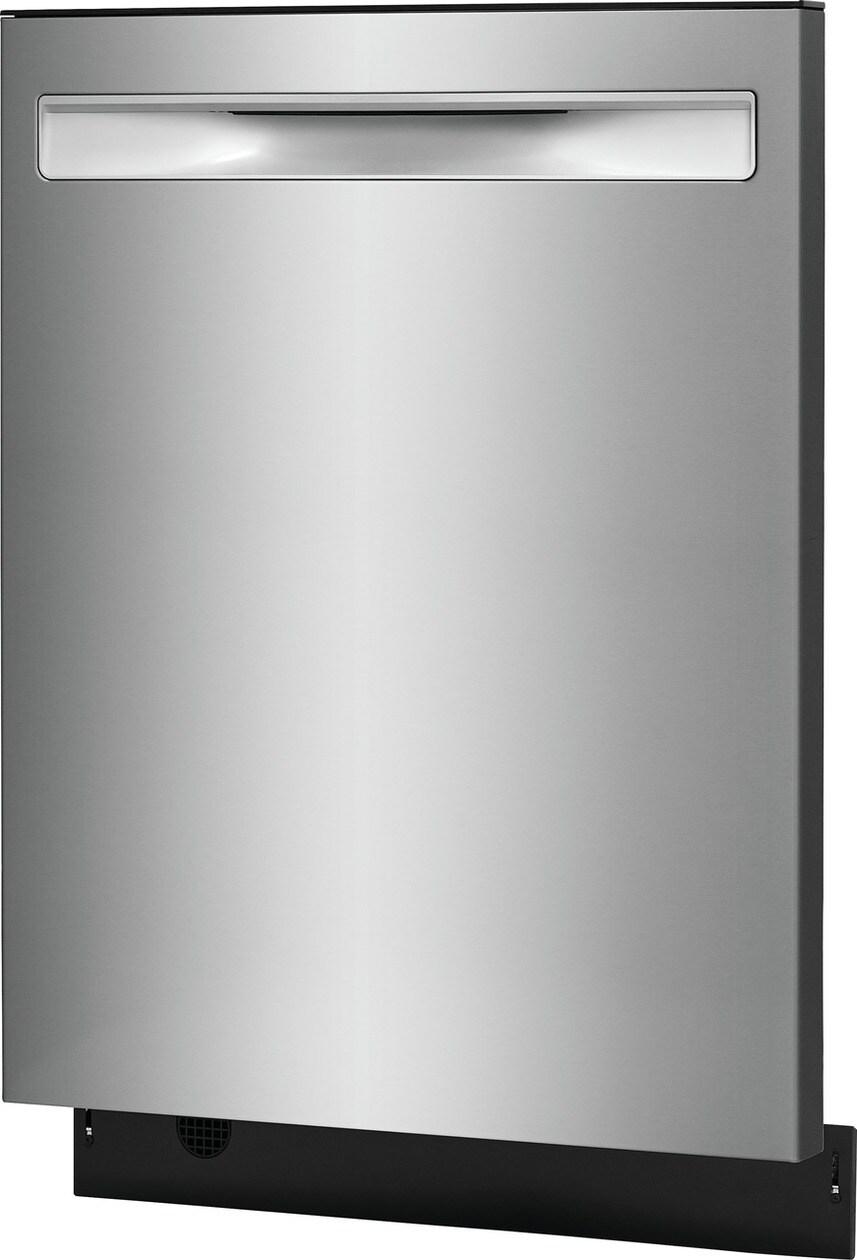

Frigidaire Gallery 24" Built-In Dishwasher

The Frigidaire Gallery stainless steel interior 24 in. built-in dishwasher provides a complete clean with the OrbitClean® Wash System, which gives you four times more water coverage, with the same amount of water. Dishes come out remarkably dry every time with EvenDry™. And don t wait when dishes can be cleaned with the best 30-minute Quick Clean.

Product Line	Dishwasher
Size	24"
Installation Type	Built-In
Factory	Solaro
Color	Stainless Steel
Dishwasher
Detergent Dispenser	Yes
Filter Material	Stainless Steel
Filter Trap	Removable
Filtered Water	100 %
Hard Food Disposer or Filtration	Yes
Interior Light	No
Leak Detection System	Yes
Motor Speeds	Multi-Speed
Place Setting Capacity	14
Rinse Aid Dispenser	Yes
Smart Soil Sensor	Yes
Lower Spray Arm	Orbit
Middle Spray Arm	Bi-Beam
Upper Spray Arm	Spray Arm
Status Indicator Floor Beam	Yes
Tub Design	Tall Tub
Tub Material	Stainless Steel
Wash Levels	5
Wash System	Direct Feed
Water Pressure	120 psi
Water Usage	8 Gallons
Dishwasher Cycles
China Crystal	Yes
Energy Saver	Yes
Favorite	Yes
Heavy	Yes
Normal	Yes
Number of Cycles	7
Quick	Yes
Rinse Only	Yes
Dishwasher Options
Drying System	Even Dry
Heated Dry	Yes
High Temperature	Yes
Lower Rack
Fold-Down	Yes
Maximum Height Clearance	13"
Minimum Height Clearance	11"
Number of Silverware Basket	1
Number of Silverware Basket Lids	2
Rack Type	Deluxe
Upper Rack
Cup Shelf	Yes
Fold-Down	Yes
Maximum Height Clearance	10 3/8"
Minimum Height Clearance	8 1/2"
Rack Handles	No
Rack Type	Adjustable
Stemware Holder	Yes
Third Level Rack
Third Level Rack	Yes
Rack Handles	No
General Specifications
Sound Level	49 dBA
Annual Energy	240 kWh
Product Weight	80.75 lbs
Prop 65 Label	No
Warranty - Labor	1 Year
Warranty - Parts	1 Year
Controls
Control Color	Black
Control Location	Top
Delay Start Hours	1-24 Hours
Digital Display	Yes
Control Lock	Yes
Rinse Aid Indicator	Yes
Exterior
Door and Handle Design	Pocket
Door Latch	Pull
Door Type	StayPut
Exterior Finish	Smudge-Proof® Stainless Steel
Dimensions and Volume
Minimum Height	33 3/4"
Maximum Height	35 3/4"
Width	23 3/4"
Depth	24 1/4"
Depth With Door Open	50 1/4"
Electrical Specifications
Amps @ 120 Volts	15 Amps
Voltage Rating	120 V
Installation
Connection Location	Right Bottom
Number of Leveling Legs	3
Water Inlet Location	Left Bottom Front
Certifications and Approvals
ADA Compliant	No
CEE Tier	Tier 1
ENERGY STAR Certified	Yes
UL Listed	Yes
cUL Listed	Yes
Meets ASSE 1006 Requirements	Yes
NSF Certified	Yes
