FRIGIDAIRE FRP90PTT2R
Authorized Reseller

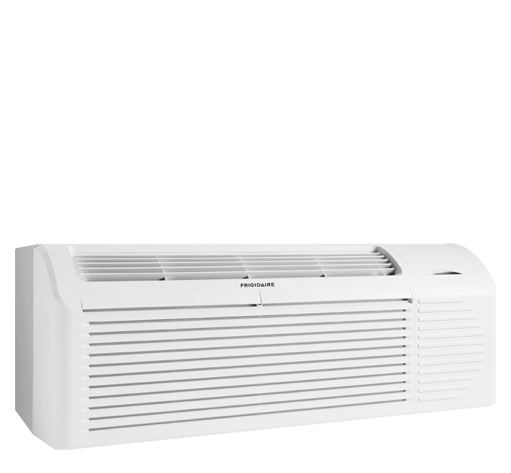

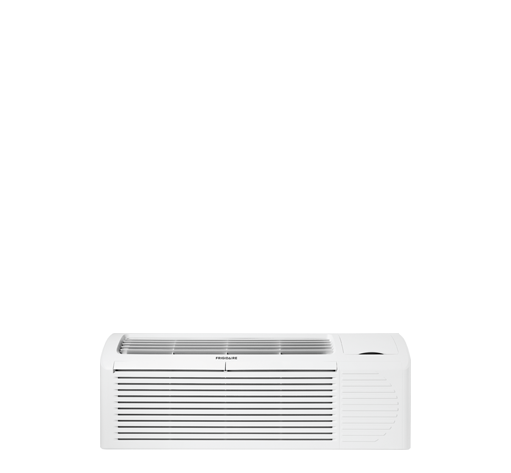

Frigidaire PTAC unit with Heat Pump 9,000 BTU 208/230V without Seacoast Protection

Frigidaire PTAC unit with Heat Pump 9,000 BTU 208/230V without Seacoast Protection

Item Not Available
When Will I Get My Order?
View full details
  • Effortless Maintenance
  • SilentDesign : Sound reduction package.
  • Smart Self-Check: Provides nine diagnostic points for self-check and correction of fault conditions.
  • Eco-Friendly
  • Effortless Operation
  • Effortless Restart
  • Effortless Temperature Control
  • Energy Saver Mode
  • Multi-Speed Fan
  • Effortless Control
  • Effortless Clean Air Filter
  • Effortless Auto Freeze Protection

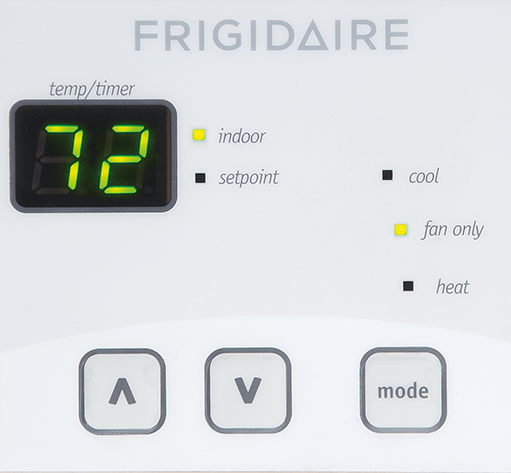

  • Ready-Select® Electronic Controls: Simply select options with the touch of a button.
  • Effortless Random Restart Protection
Frigidaire PTAC unit with Heat Pump 9,000 BTU 208/230V without Seacoast Protection
General Specifications
Refrigerant R410a
Max Wall Thickness 13-13/16"
Warranty 2 Year Full/5 Year Sealed System
Shipping Weight (lbs) 131
Product Weight (lbs) 106
ProductLaunch NA
Stack Height 6
Stuff Quantity 180
Power Type None
Size N/A
Installation Type Built-In
Collection Frigidaire
Controls
Control Location Top Right
Controls Electronic
Dimensions: Cut-Out
Width (Min) 42-3/16"
Height (Min) 16-5/16"
AC
Air Intake Fresh or Recycled Air
Slide-Out Chassis Yes
Fan Auto Yes
Filter Access - Frig Slide-Out
Low Voltage Start-up Yes
Motor RPM (High/Med/Low) 1030/970/890
Quiet Start-Up Yes
Random Restart Protection Yes
Cabinet Louvers No
Auto Restart Yes
Front Desk Control Ready Yes
Airflow Continuous or Cycled
24-Hour On/Off Timer Yes
Smart Self-Check Yes
Fan Speeds - Cool/Fan/Heat 2003-03-03
Certifications & Approvals
Safety Certification UL/CUL/CSA
Carton
Carton Height 18-1/8"
Carton Width 44-7/8"
Carton Depth 25-5/16"
AC Specifications
Air Direction Control Auxiliary 2-Way
Air Volume (CFM) (Max./Med./Min.) 302/284/267
Charge (ozs) 25
Energy Saver Yes
Filter Type PA/Nylon Mesh
Fin Coating Normal
Noise Level dB (High/Med/Low) 51/50/49
Room Freeze Protection Yes
Electrical Specifications
Amps (Electrical Heat) 13.2 / 12.2
Amps (Heat Pump) 3.4 / 3.8
Amps (Cool) 3.7 / 3.9
Circuit Breaker 20A
Cable Included Yes
Horsepower (Cool) 1.07
Voltage Rating 230V / 208V 60Hz
Watts (Cool) 800 / 770
Watts (ElectricalHeat) 3000 / 2452
Watts (Heat Pump) 720 / 700
Power Cord Length 5-1/2'
Plug Type LCDI 6-20P
Exterior Dimensions
Case Width 42"
Performance
Performance Certification AHRI & CEC
BTU (Cool) 9000 / 8800
Cool Area (Sq. Ft.) 440
Dehumidification (Pints/Hour) 2.1
Energy Efficiency Ratio 11.3 / 11.4
BTU (Electrical Heat) 10200 / 8300
BTU (Heat Pump) 8100 / 7900
COP (Heat Pump) 3.3/3.3
Dimensions: Exterior
Height 16"
Width 42"
Depth 13-13/16"
Cabinet Depth 13-13/16"
Cabinet Height 16"
