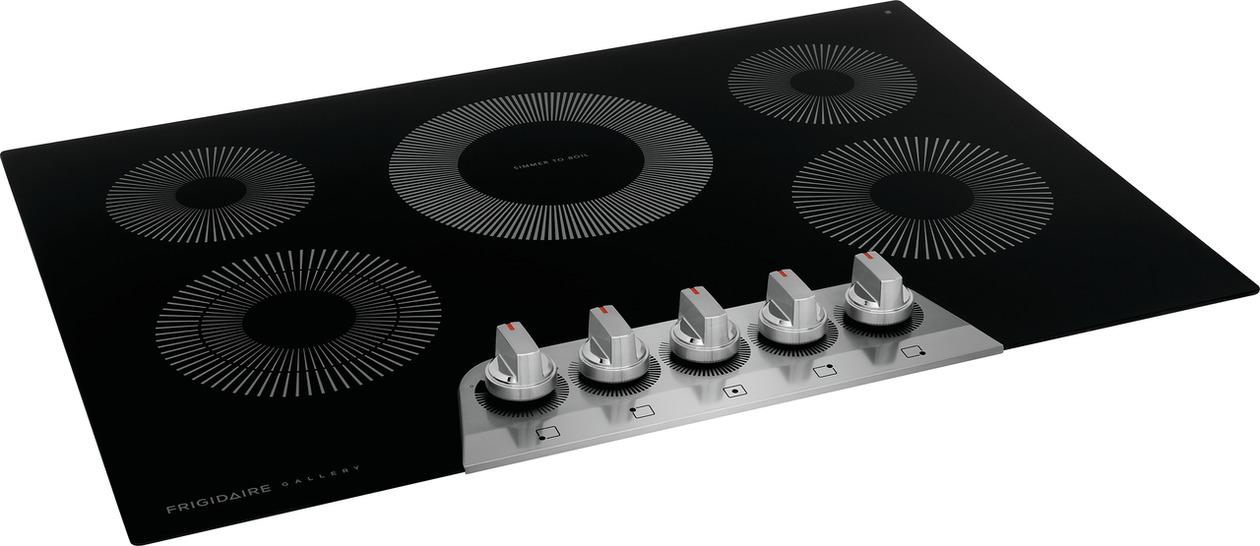

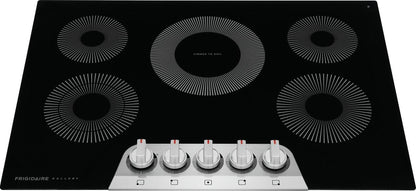

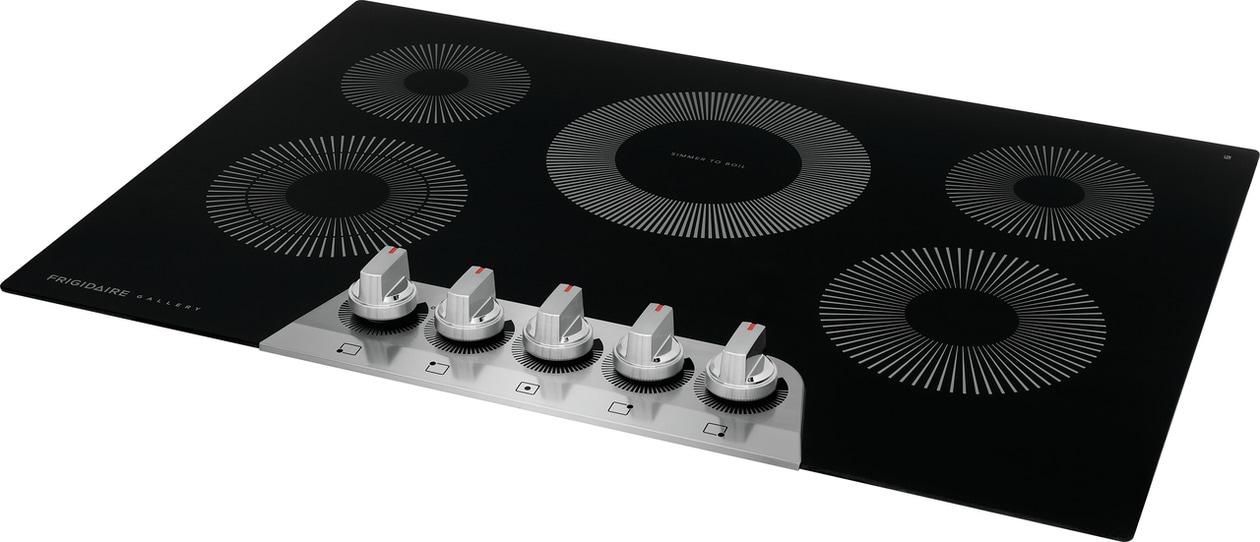

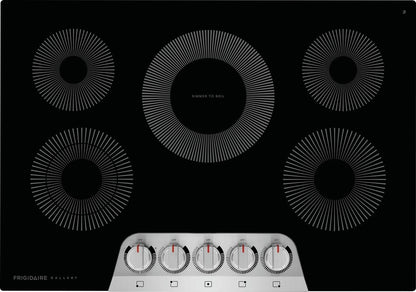

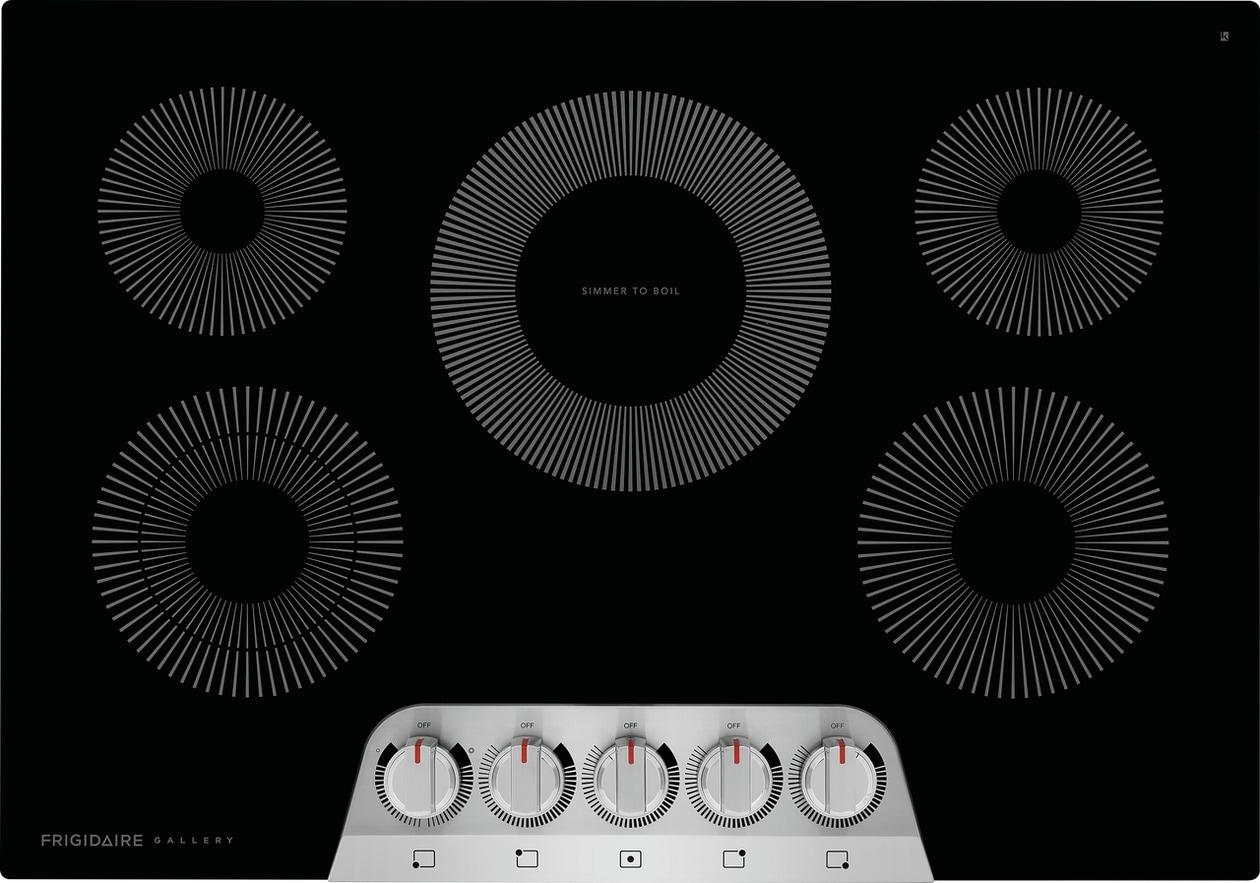

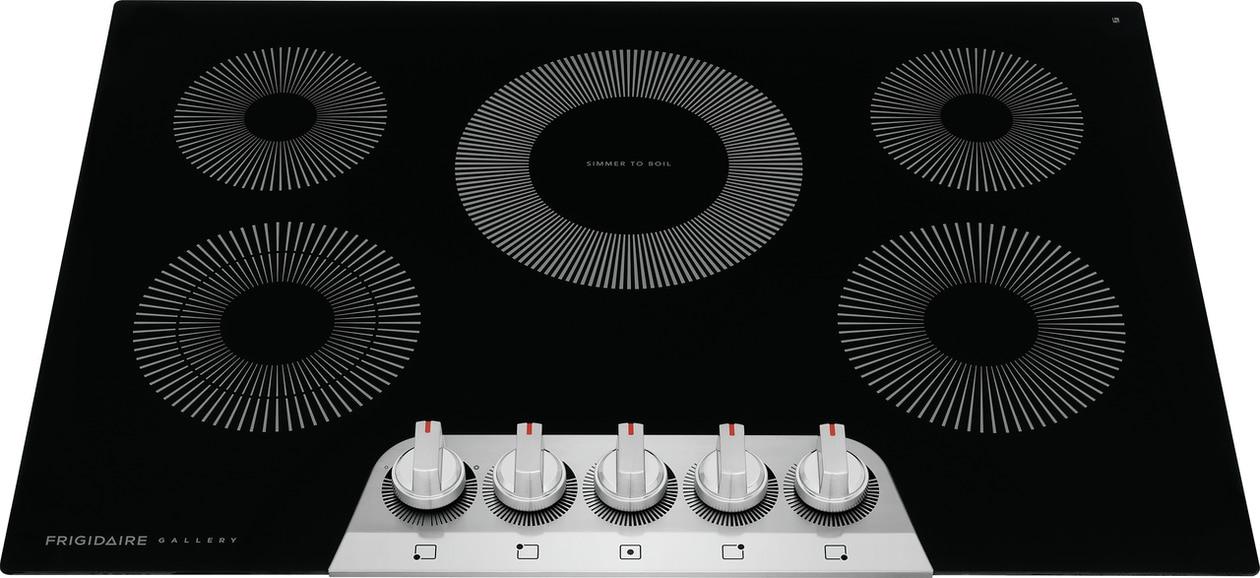

Frigidaire Gallery 30" Electric Cooktop GCCE3070AS
- EvenTemp® Element
- Five Element Cooktop

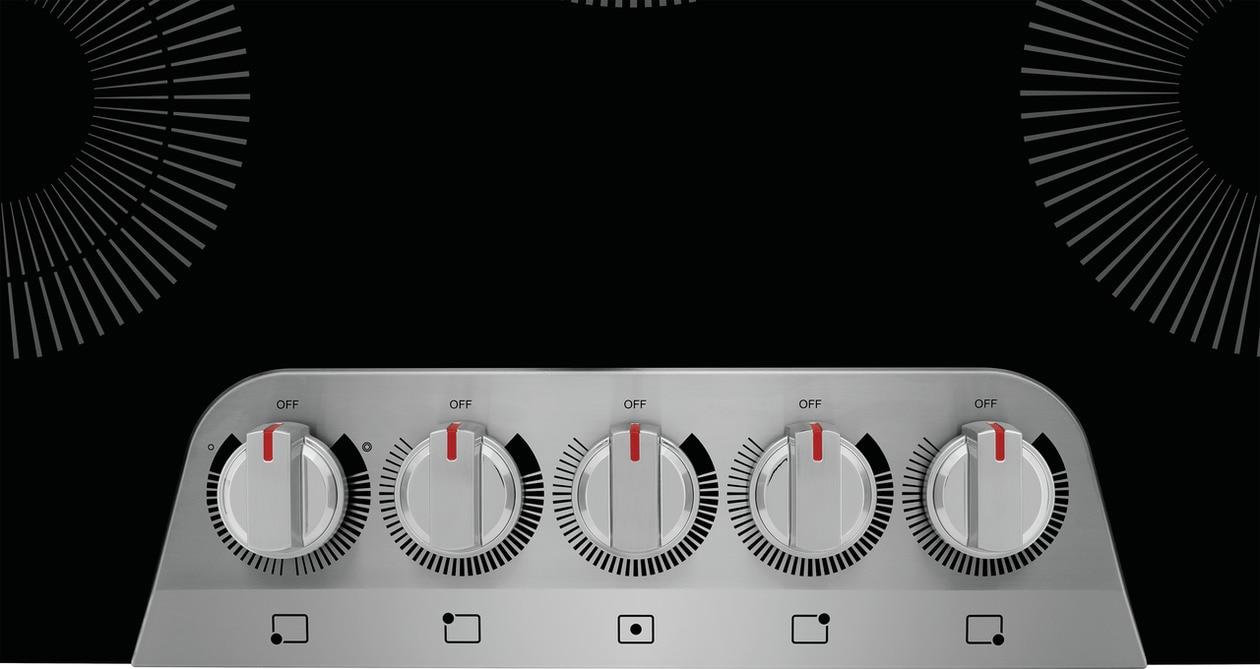

- Backlit LED Knobs
- Frigidaire® Fit Promise
- SpaceWise® Dual Expandable Element
- Cooktop Keep Warm Zone
- Easy to Use Front Controls
- Easy-to-Clean Glass Cooktop
- Installation over Wall Oven Approved
Product Line | Electric Cooktop |
Power Type | Electric 240v |
Size | 30" |
Installation Type | Built-In |
Factory | Rayong |
Color | Stainless Steel |
Cooktop | |
Cooking Surface Type | Smooth |
Hot-Surface Indicator Light | Yes |
Cooktop Performance | |
Right Front Element Burner Size | 7" |
Right Rear Element Burner Size | 6" |
Left Front Element Burner Size (Small) | 5" |
Left Front Element Burner Size (Large) | 7" |
Left Rear Element Burner Size | 6" |
Center Rear Element Burner Size | 9" |
Right Front Element Burner | 1800 Watts |
Right Rear Element Burner | 1200 Watts |
Left Front Element Burner (Small) | 750 Watts |
Left Front Element Burner (Large) | 1800 Watts |
Left Rear Element Burner | 1200 Watts |
Center Rear Element Burner | 3200 Watts |
Controls | |
Sabbath Mode | No |
Display | |
Control Location | Front |
Display Type | Mechanical |
Dimensions and Volume | |
Height | 2 5/8" |
Width | 30 5/8" |
Depth | 21 3/8" |
Cutout Height | 5" |
Minimum Cutout Width | 28 1/2" |
Minimum Cutout Depth | 19 5/8" |
Maximum Cutout Width | 29 7/8" |
Maximum Cutout Depth | 20 1/2" |
Electrical Specifications | |
Amps @ 240 Volts | 38.3 Amps |
Connected Load @ 240V | 9.2 kW |
Minimum Circuit Required | 40 Amps |
Voltage Rating | 240 V |
General Specifications | |
Frigidaire Fit Promise | Yes |
Product Weight | 31 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
AB-1200 | Information available at frigidaire.com/en/ab1200 |
Installation | |
Installed Over a Wall Oven | Yes |
Power Supply Connection Location | Right Center |
Certifications and Approvals | |
ADA Compliant | Yes |
CSA Listed | Yes |
UL Listed | Yes |
