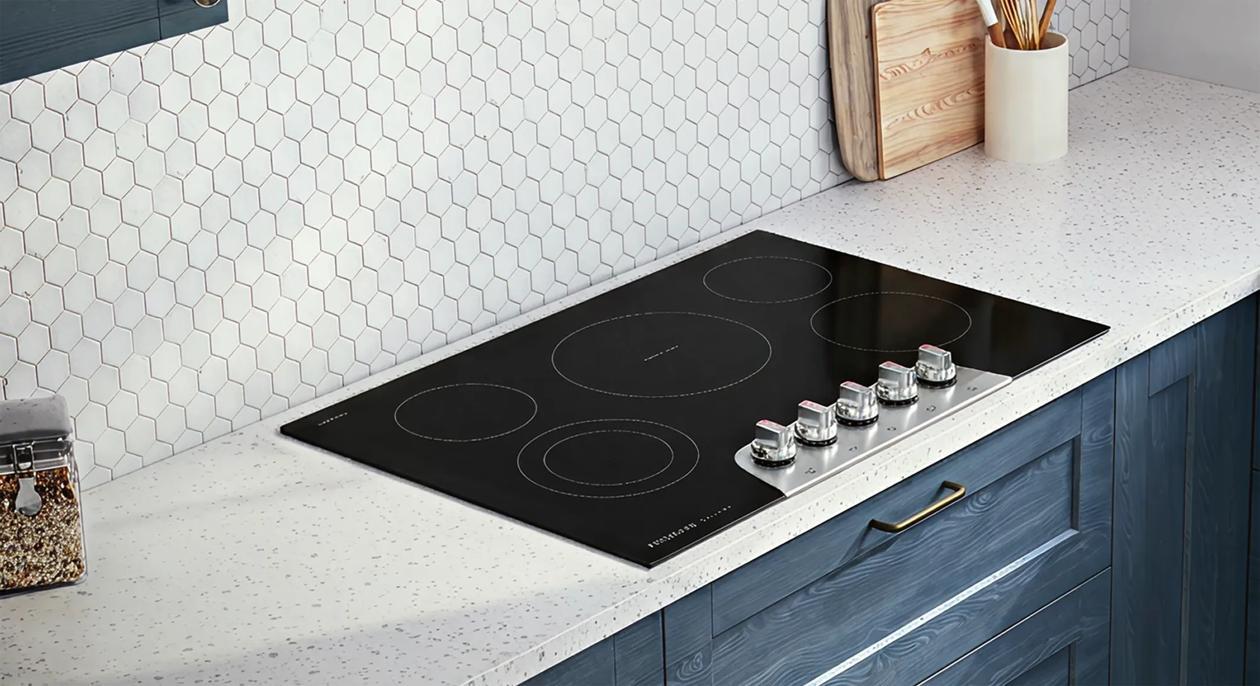

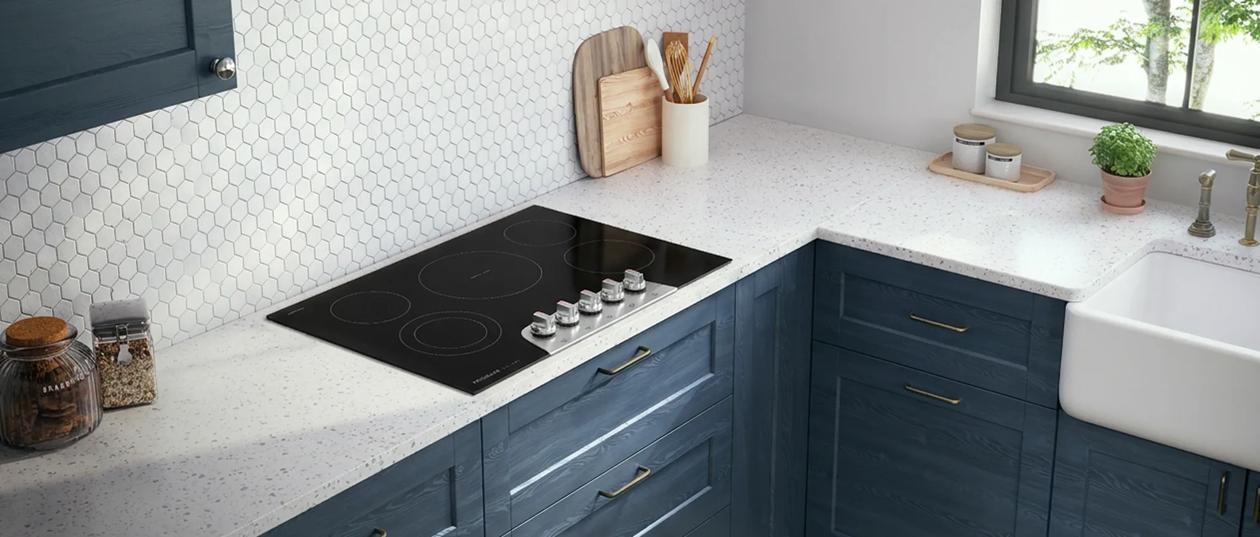

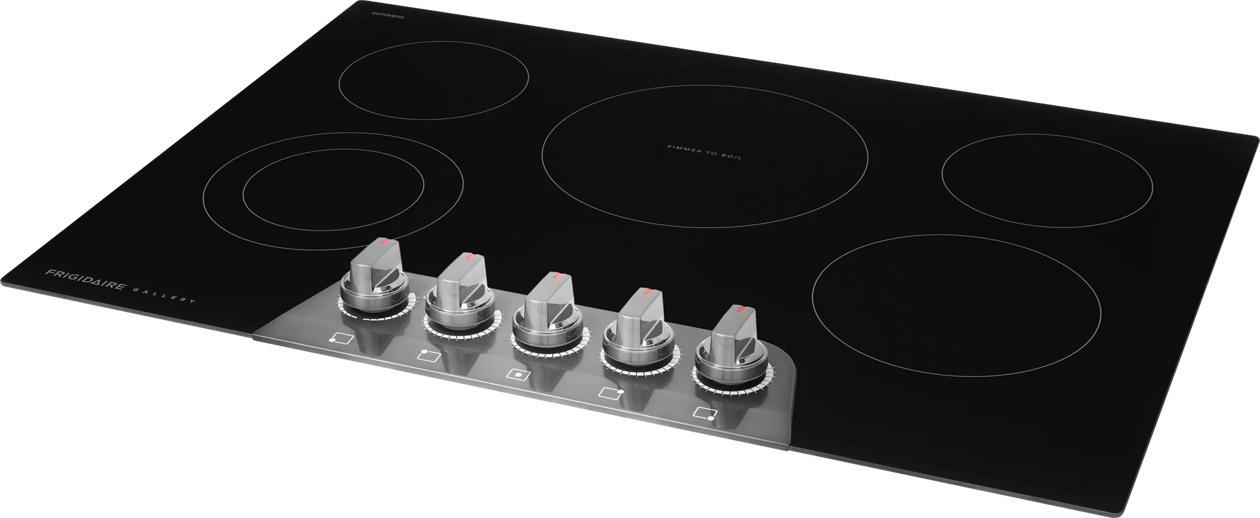

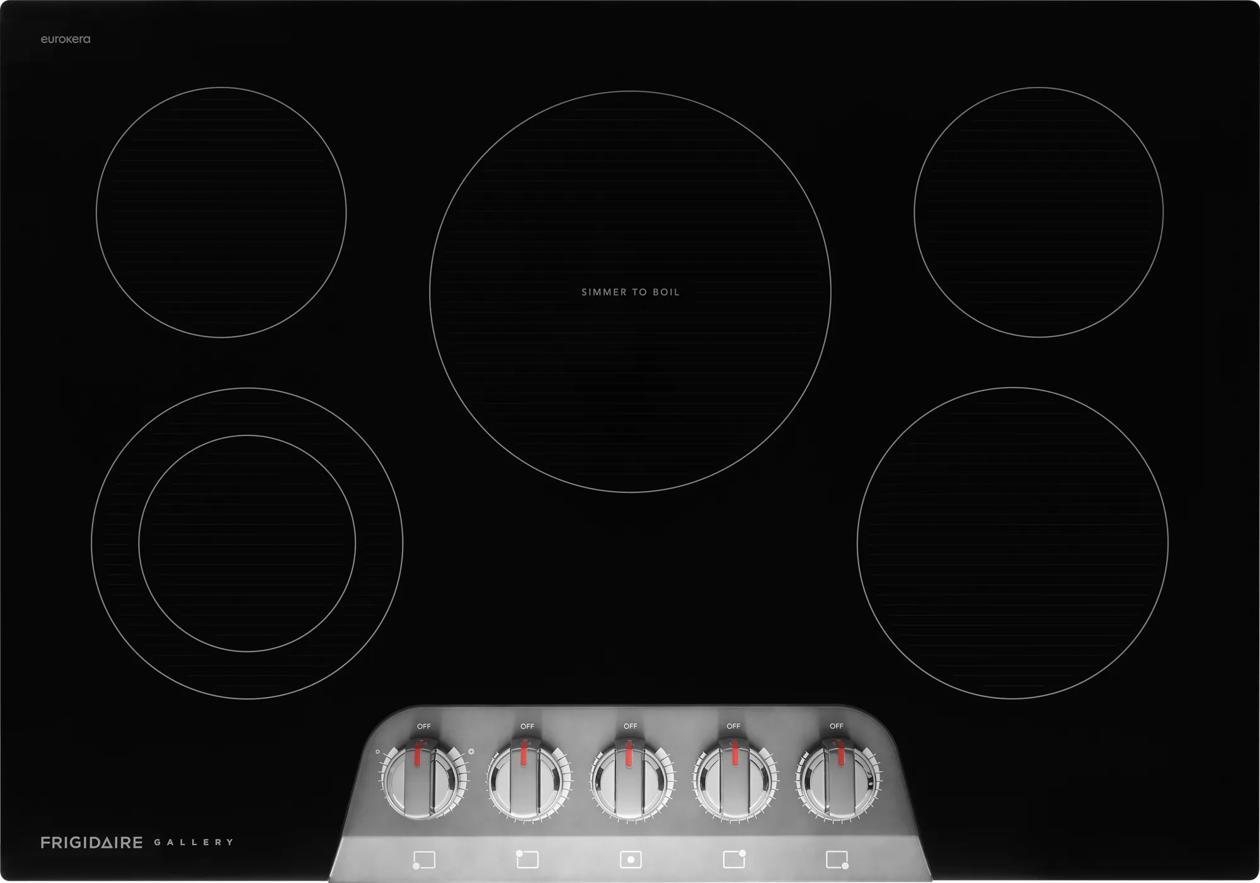

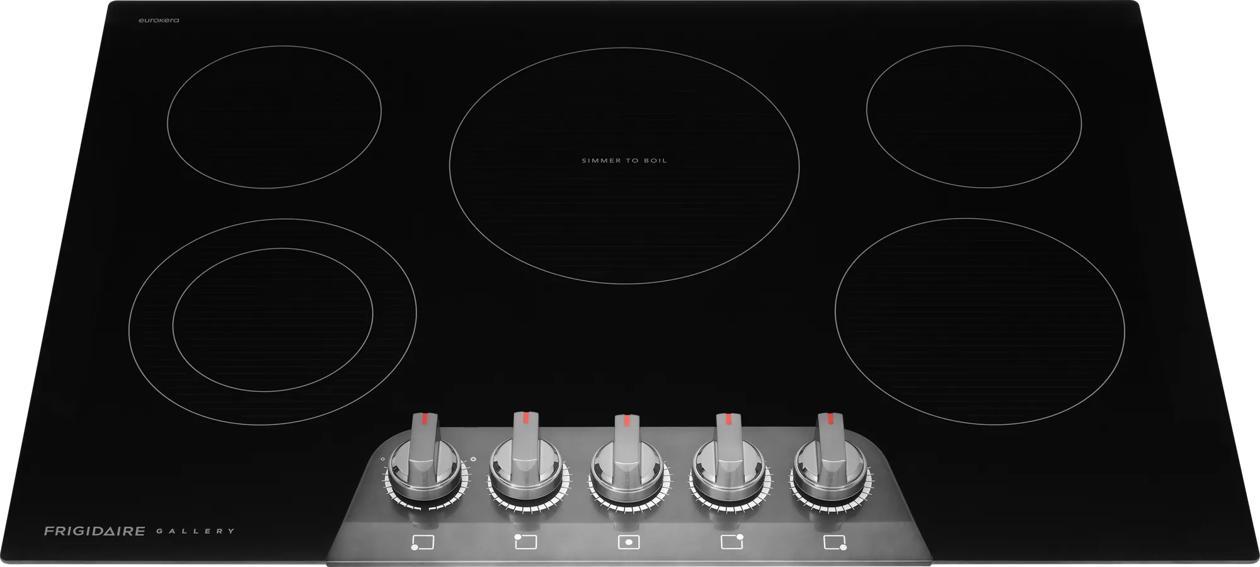

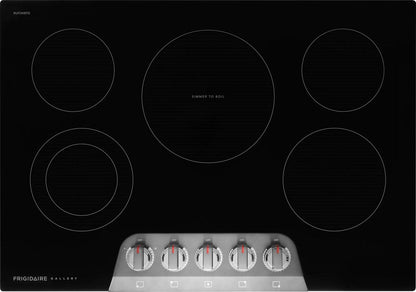

Frigidaire GCCE3070BD 30" Electric Cooktop

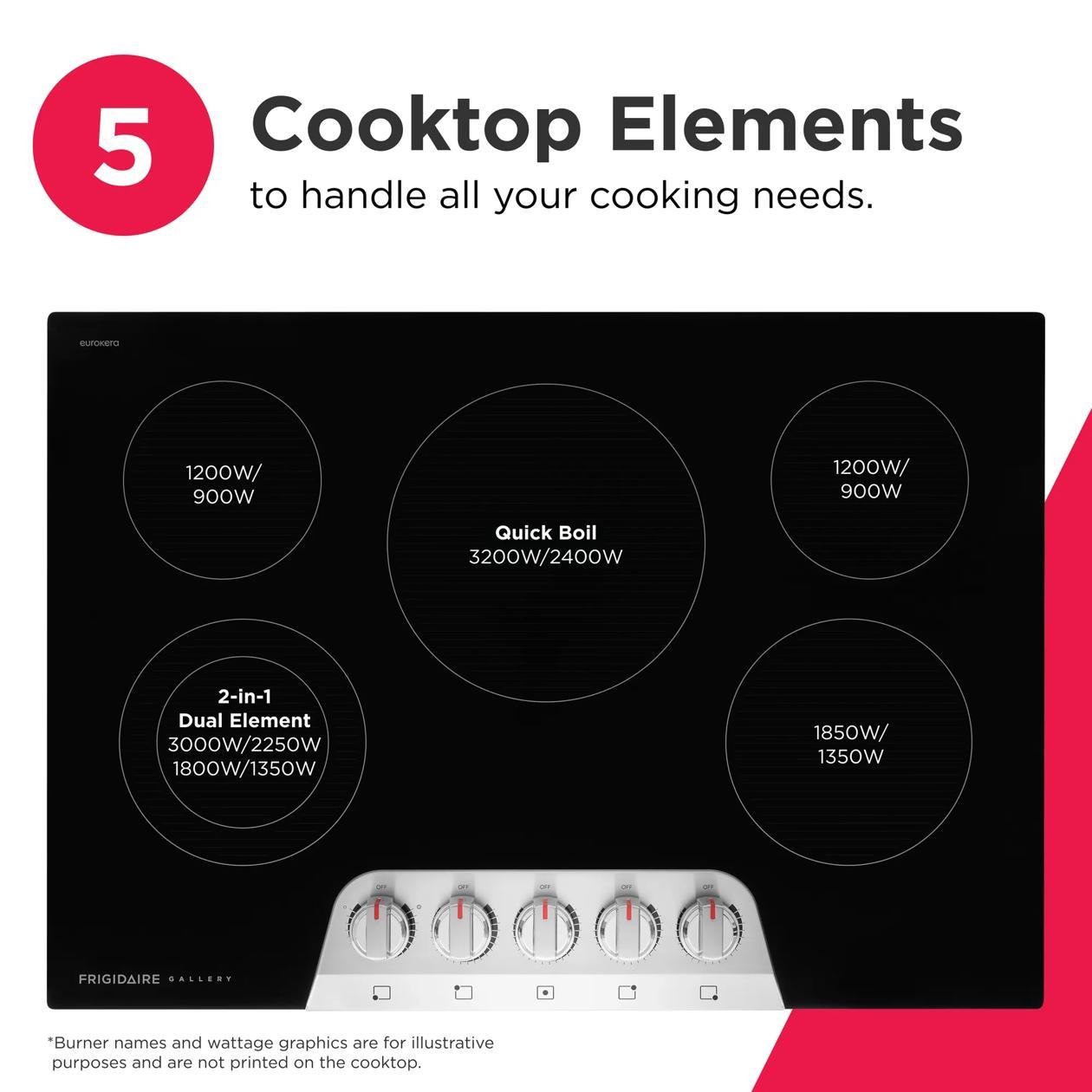

The Frigidaire Gallery 30" Electric Cooktop delivers powerful, precise performance with five flexible elements, including a 3,200-Watt EvenTemp™ element and a versatile 2-in-1 Dual Element. Features sleek backlit LED knobs and a smooth glass surface that makes cooking and cleanup easier. And with the Frigidaire® Fit Promise, you can install with confidence knowing it s guaranteed to fit your existing cutout, or we ll cover the modification cost up to $100.

Product Line	Electric Cooktop
Power Type	Electric 240v
Size	30"
Installation Type	Built-In
Factory	Rayong
Color	Black Stainless Steel
Cooktop

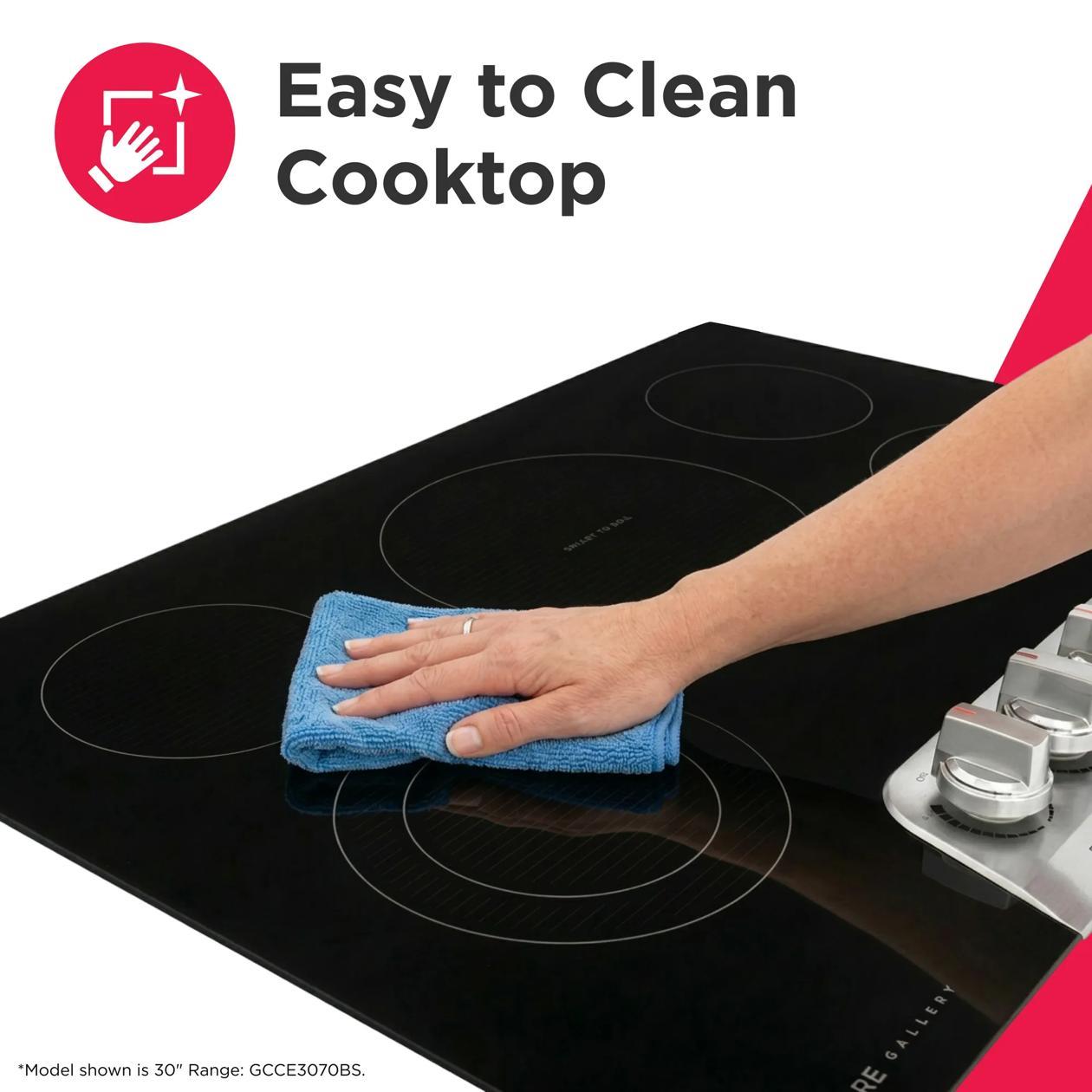

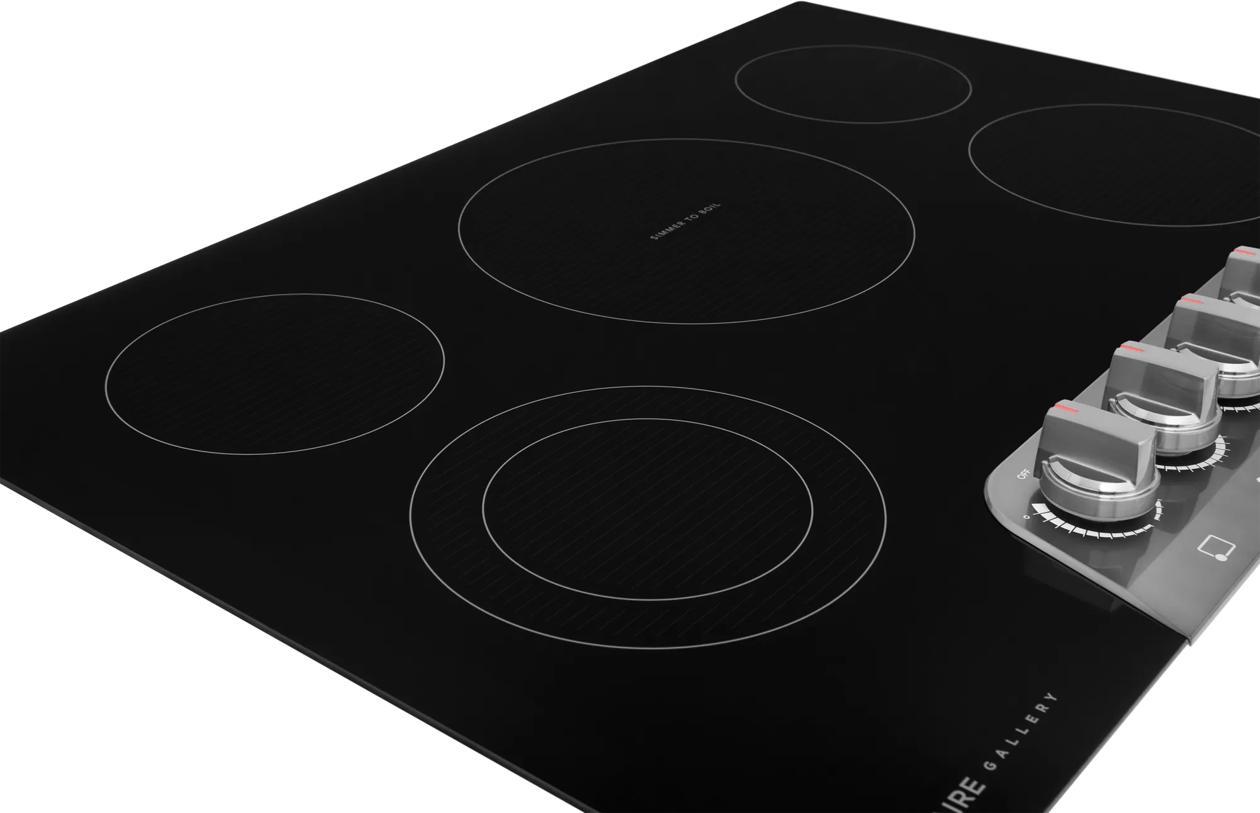

Cooking Surface Type	Smooth
Hot-Surface Indicator Light	Yes
Cooktop Performance
Right Front Element Burner Size	7"
Right Rear Element Burner Size	6"

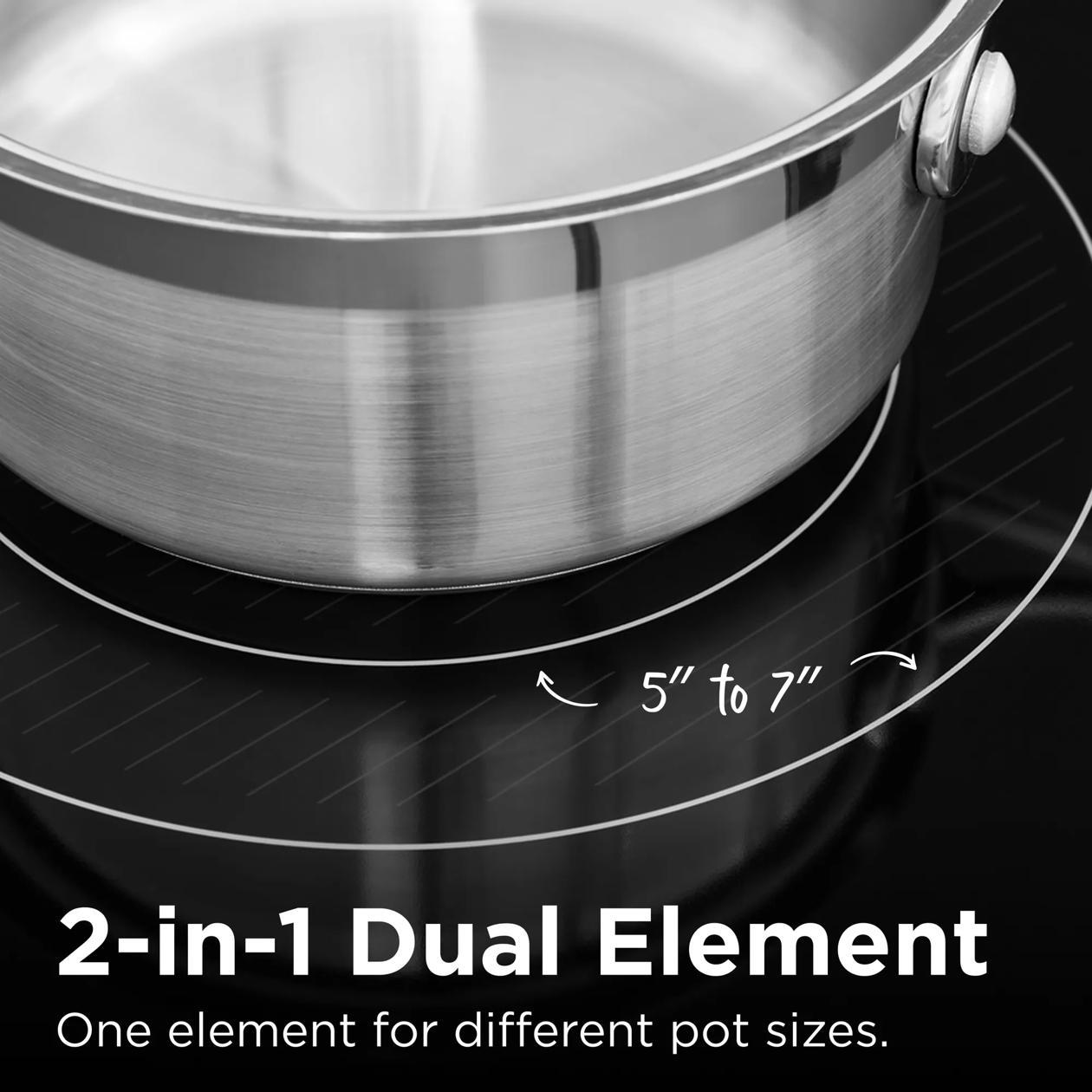

Left Front Element Burner Size (Small)	5"
Left Front Element Burner Size (Large)	7"
Left Rear Element Burner Size	6"
Center Rear Element Burner Size	9"
Right Front Element Burner	1800 Watts
Right Rear Element Burner	1200 Watts
Left Front Element Burner (Small)	750 Watts
Left Front Element Burner (Large)	1800 Watts
Left Rear Element Burner	1200 Watts
Center Rear Element Burner	3200 Watts
Display
Control Location	Front
Exterior

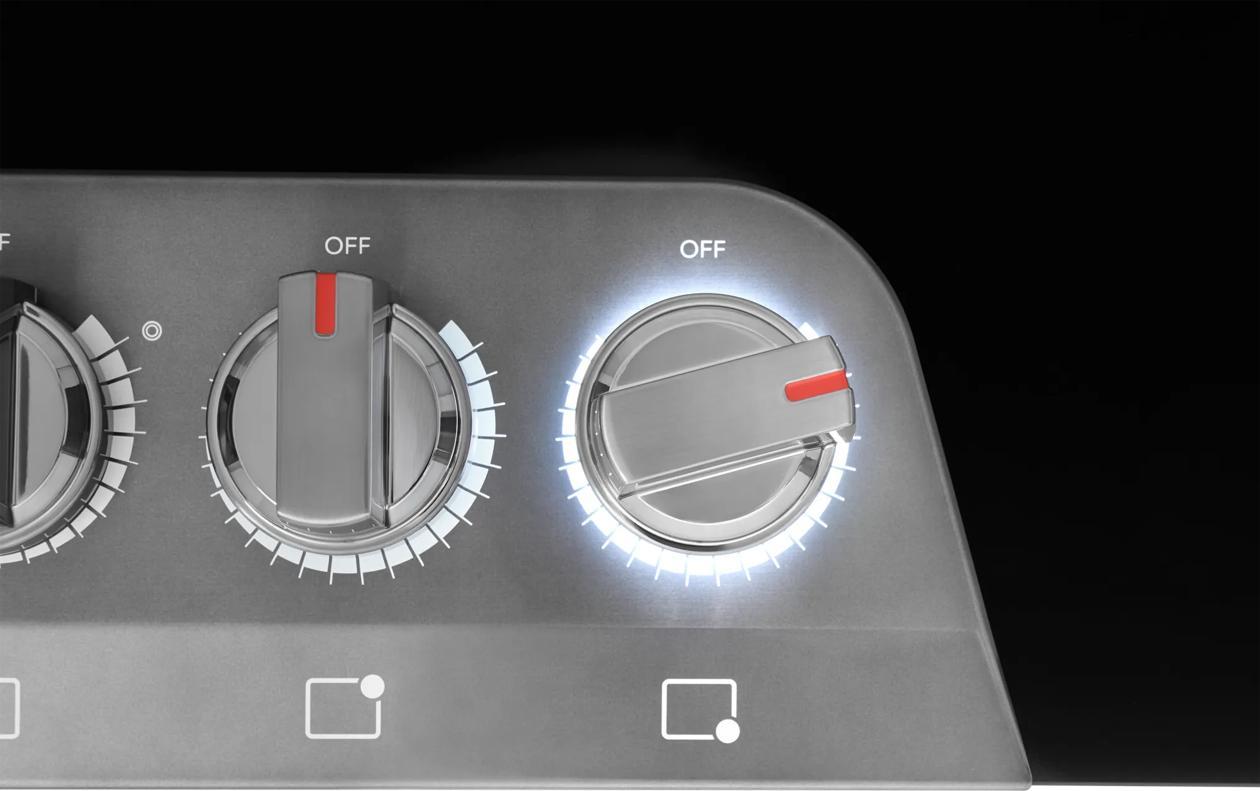

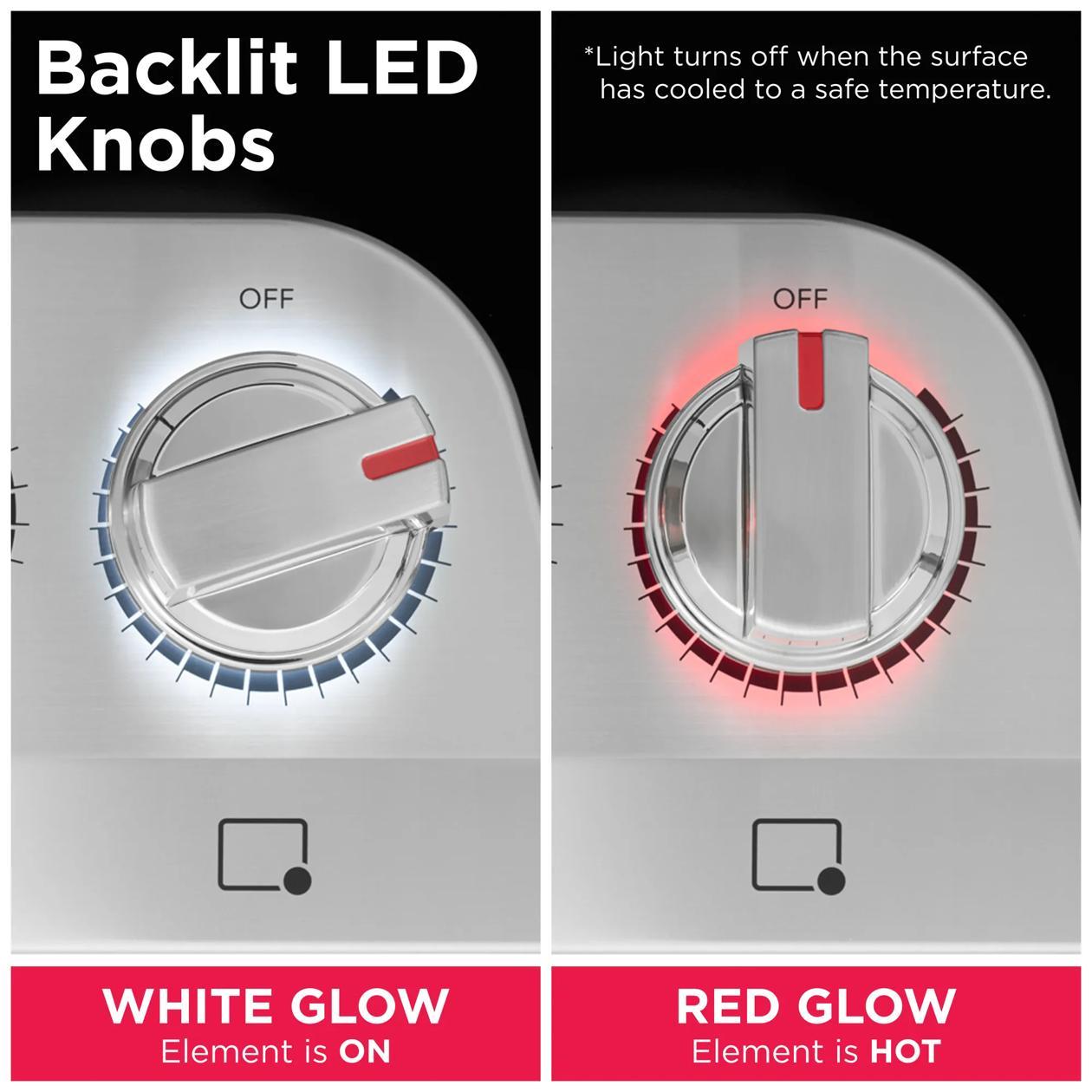

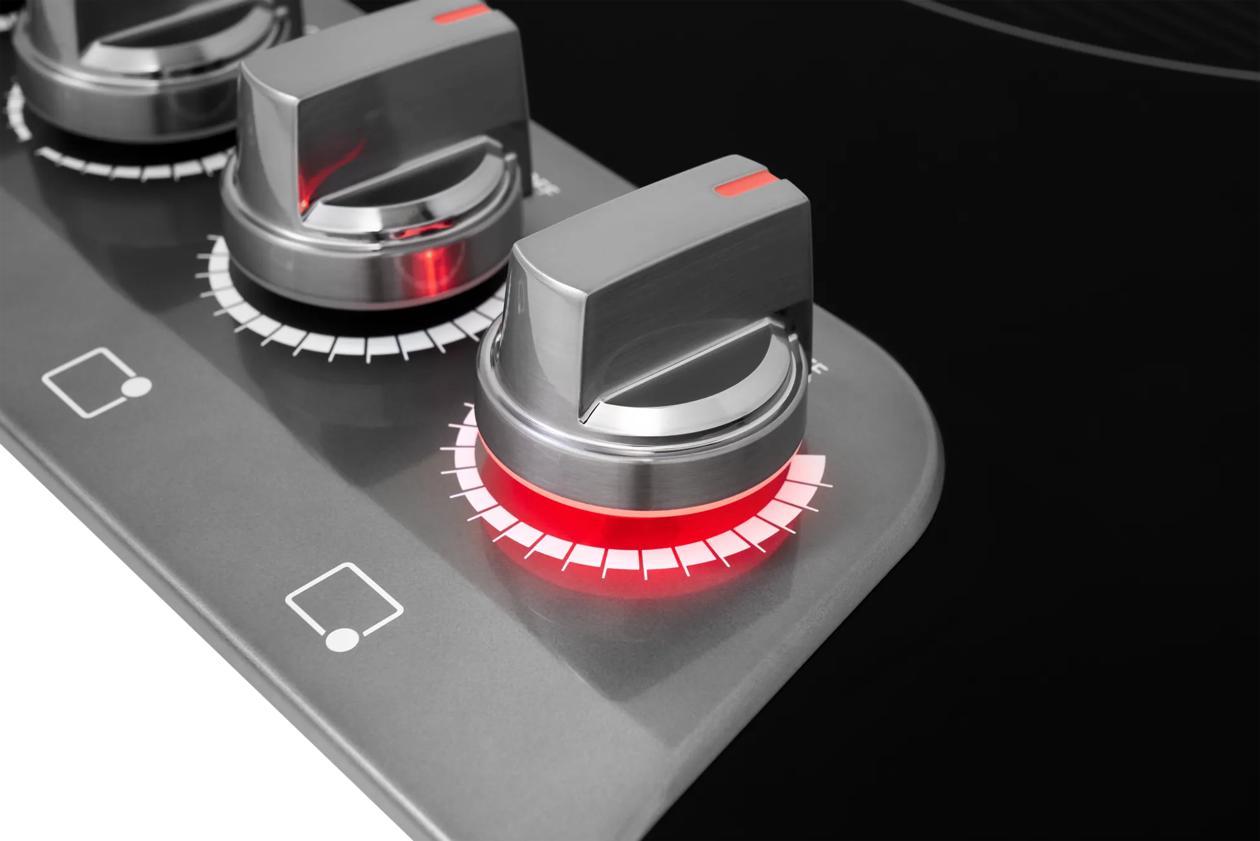

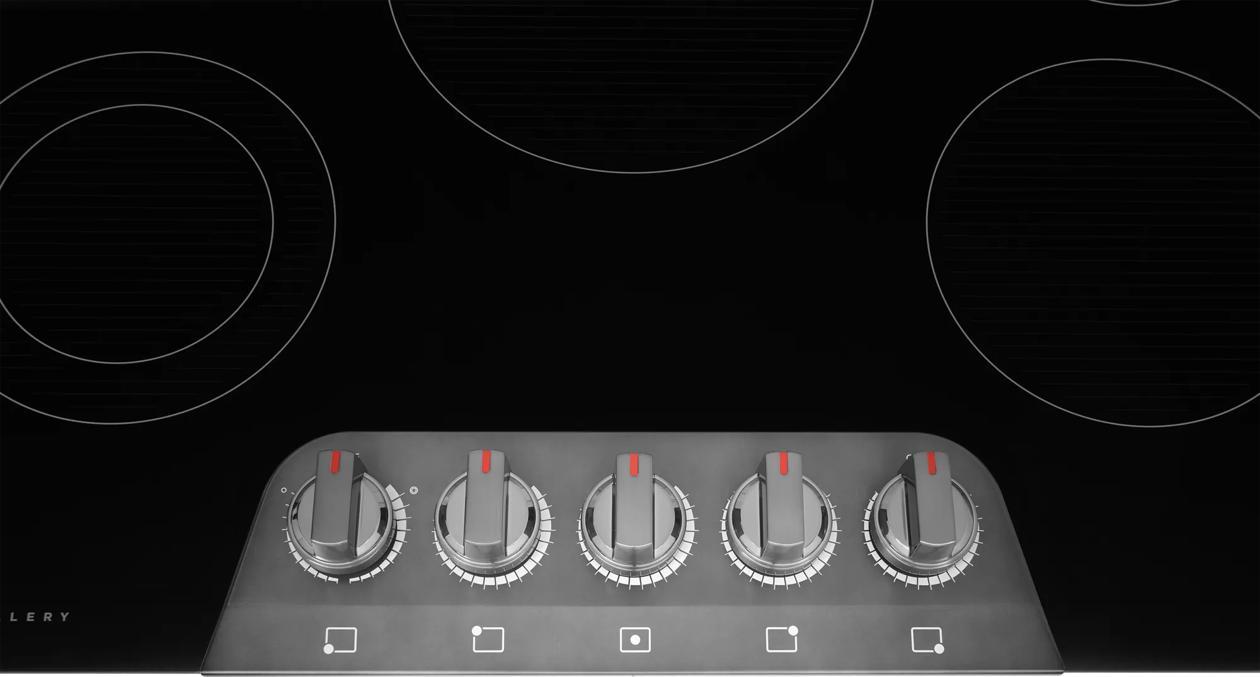

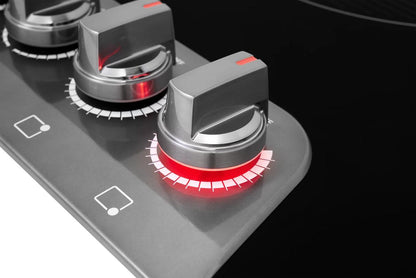

Backlit Knobs	Yes
Dimensions and Volume
Height	2 5/8"
Width	30 5/8"
Depth	21 3/8"
Cutout Height	5"
Minimum Cutout Width	28 1/2"
Minimum Cutout Depth	19 5/8"
Maximum Cutout Width	29 7/8"
Maximum Cutout Depth	20 1/2"
Electrical Specifications
Amps @ 240 Volts	38.3 Amps
Connected Load @ 240V	9.2 kW
Minimum Circuit Required	40 Amps
Voltage Rating	240 V
General Specifications
Frigidaire Fit Promise	Yes
Product Weight	31 lbs
Prop 65 Label	Yes
Warranty - Labor	1 Year
Warranty - Parts	1 Year
AB-1200	Information available at frigidaire.com/en/ab1200
Installation
Installed Over a Wall Oven	Yes
Power Supply Connection Location	Right Center
Certifications and Approvals
ADA Compliant	Yes
CSA Listed	Yes
UL Listed	Yes
