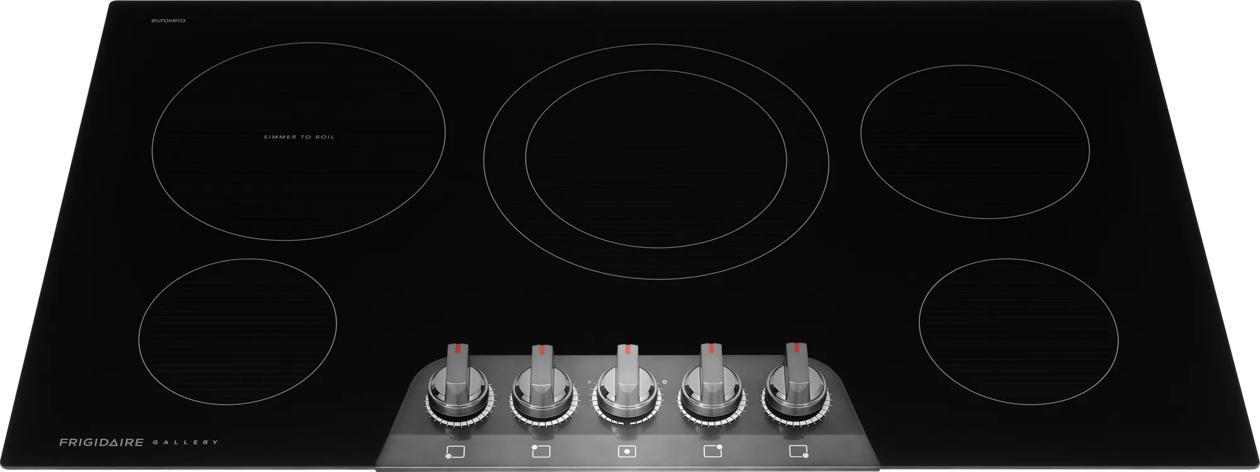

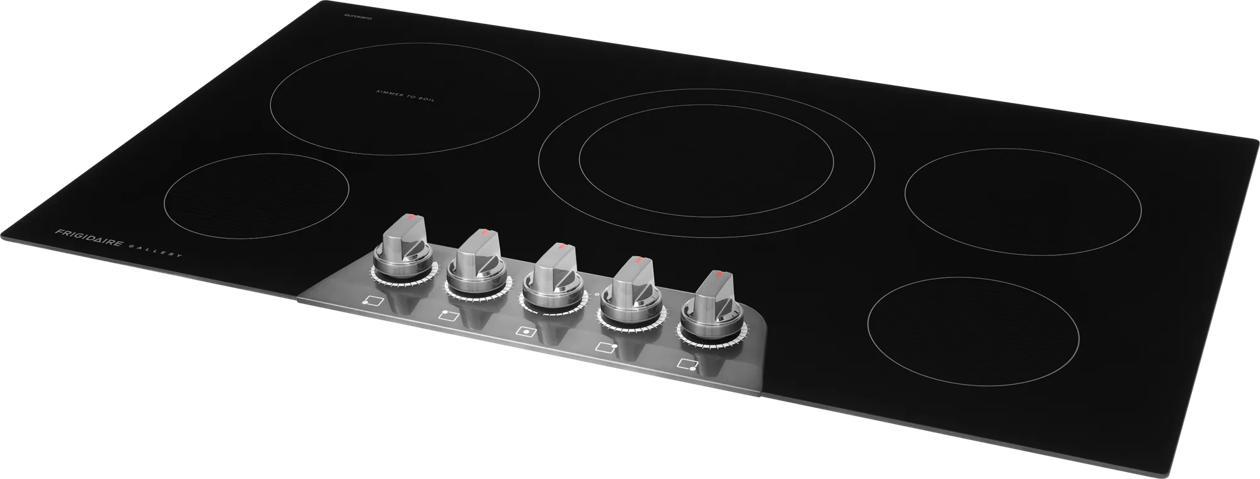

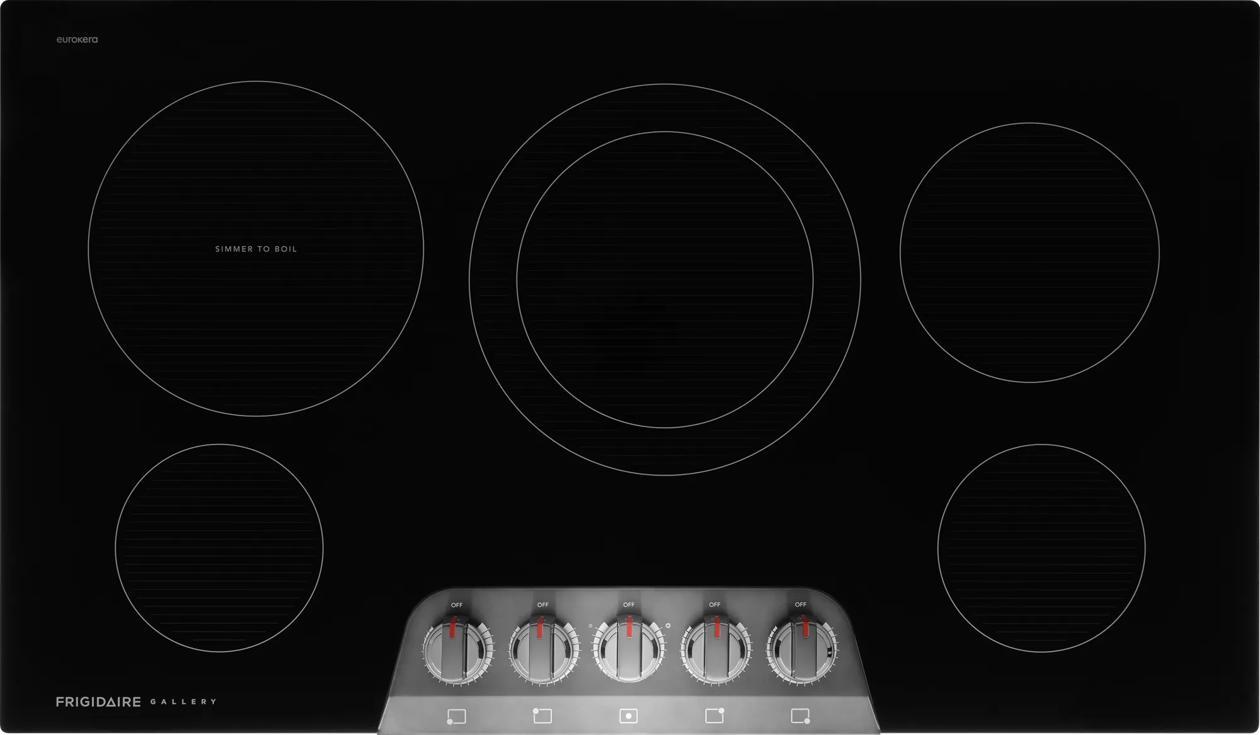

Frigidaire GCCE3670BD 36" Electric Cooktop

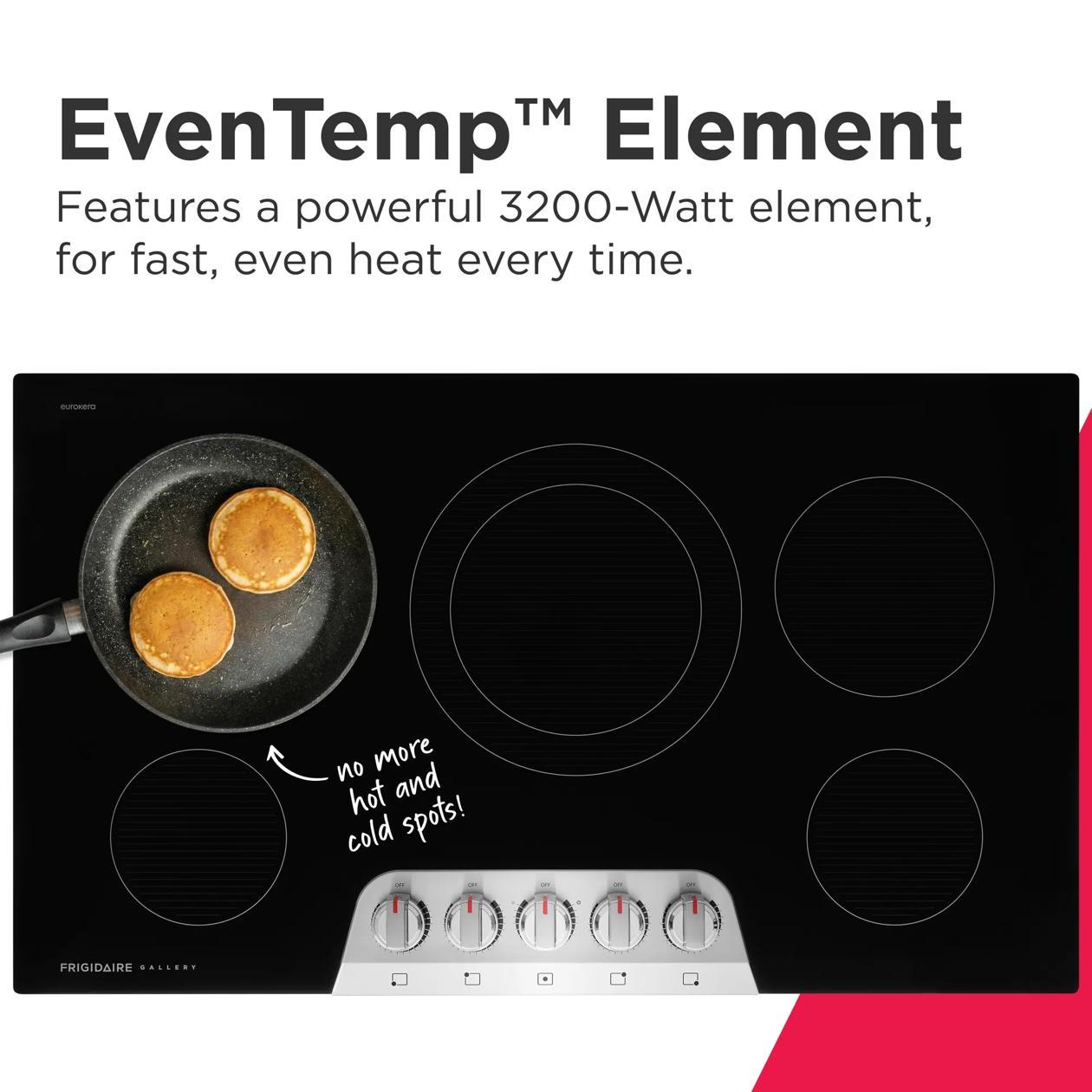

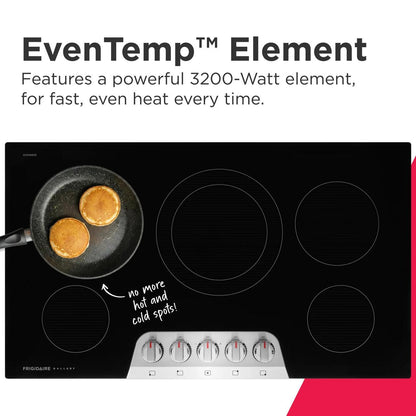

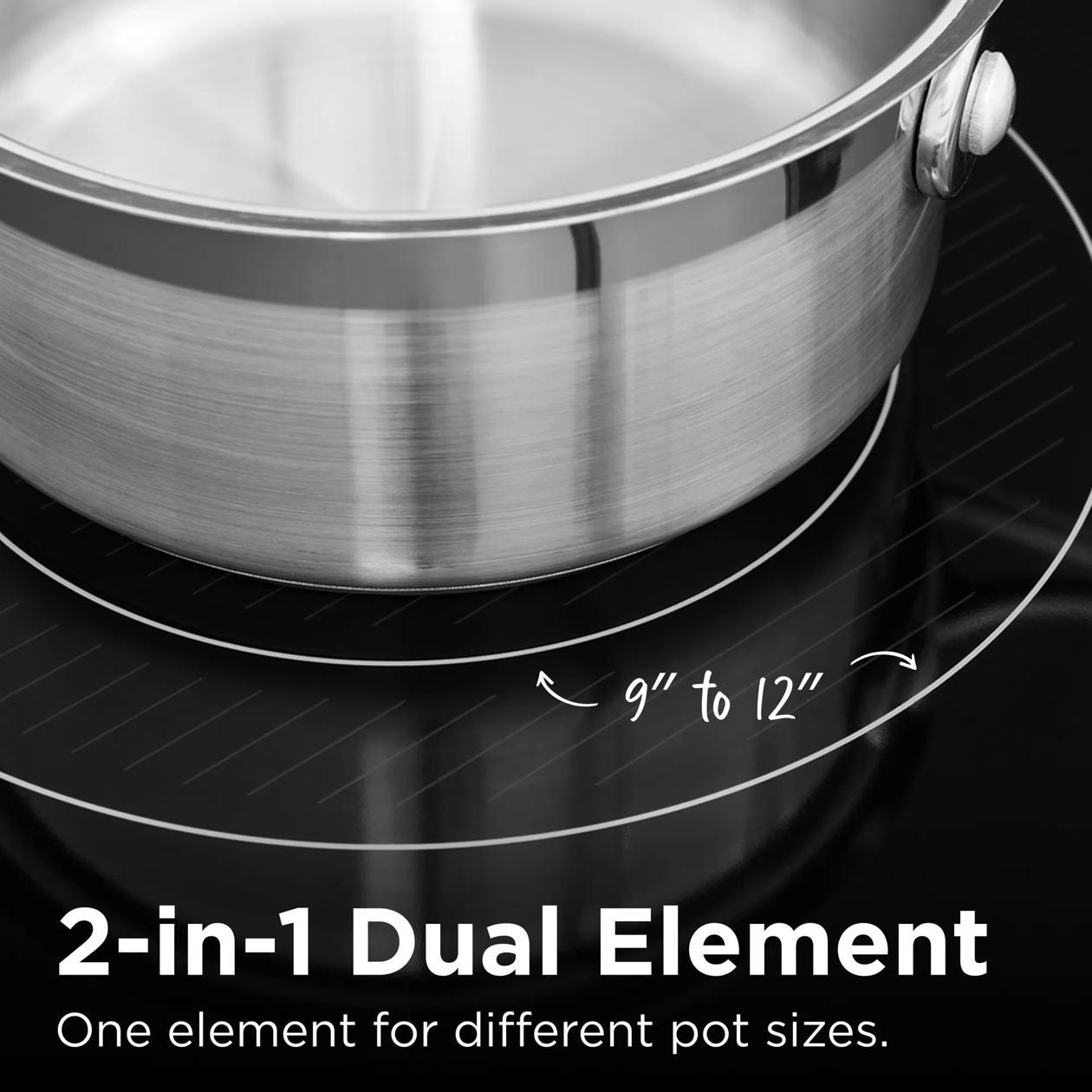

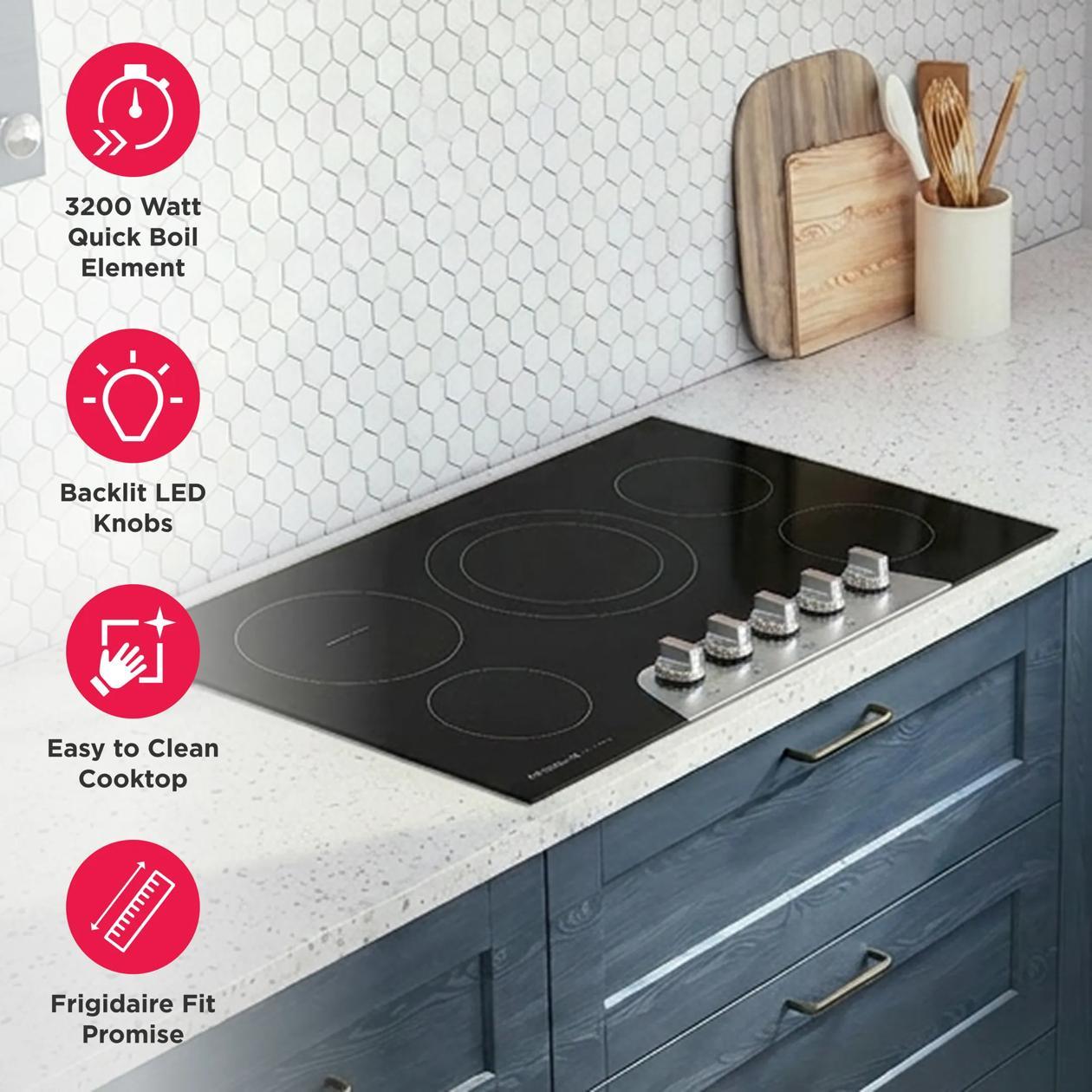

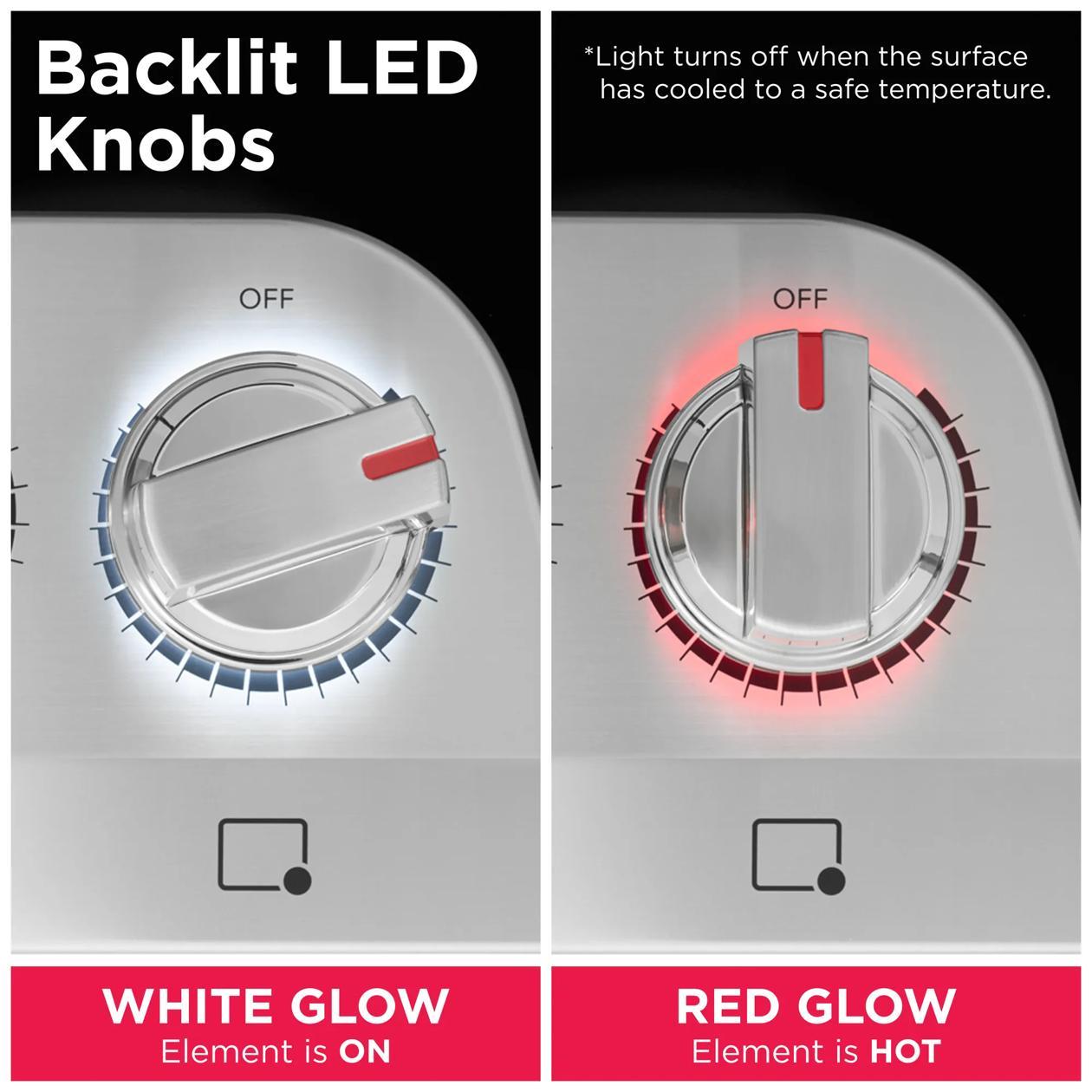

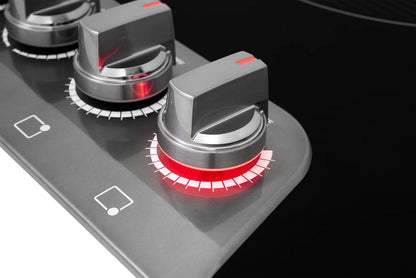

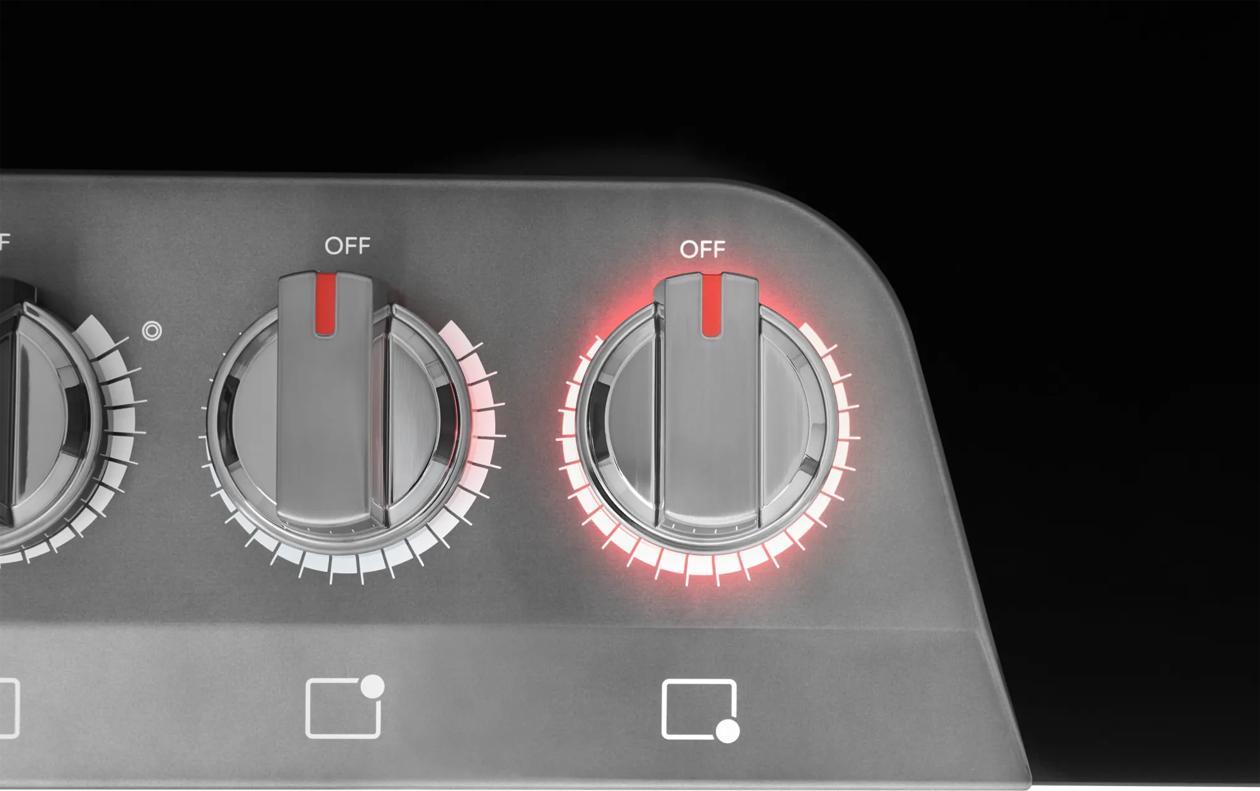

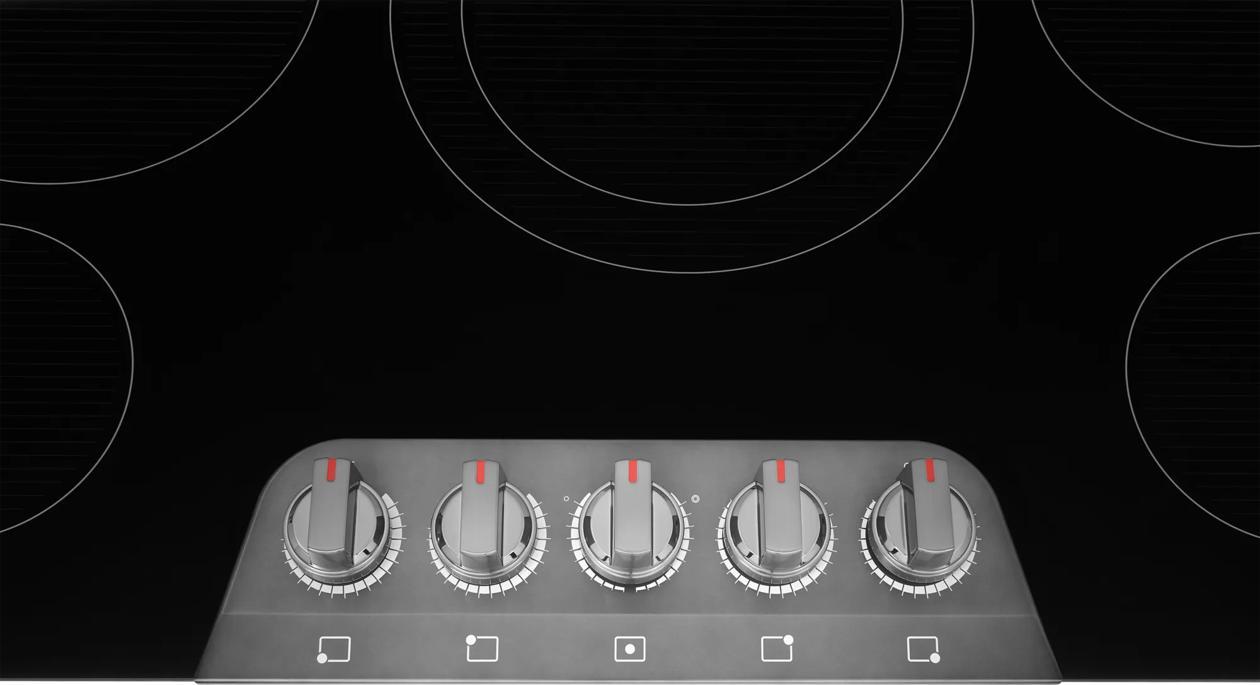

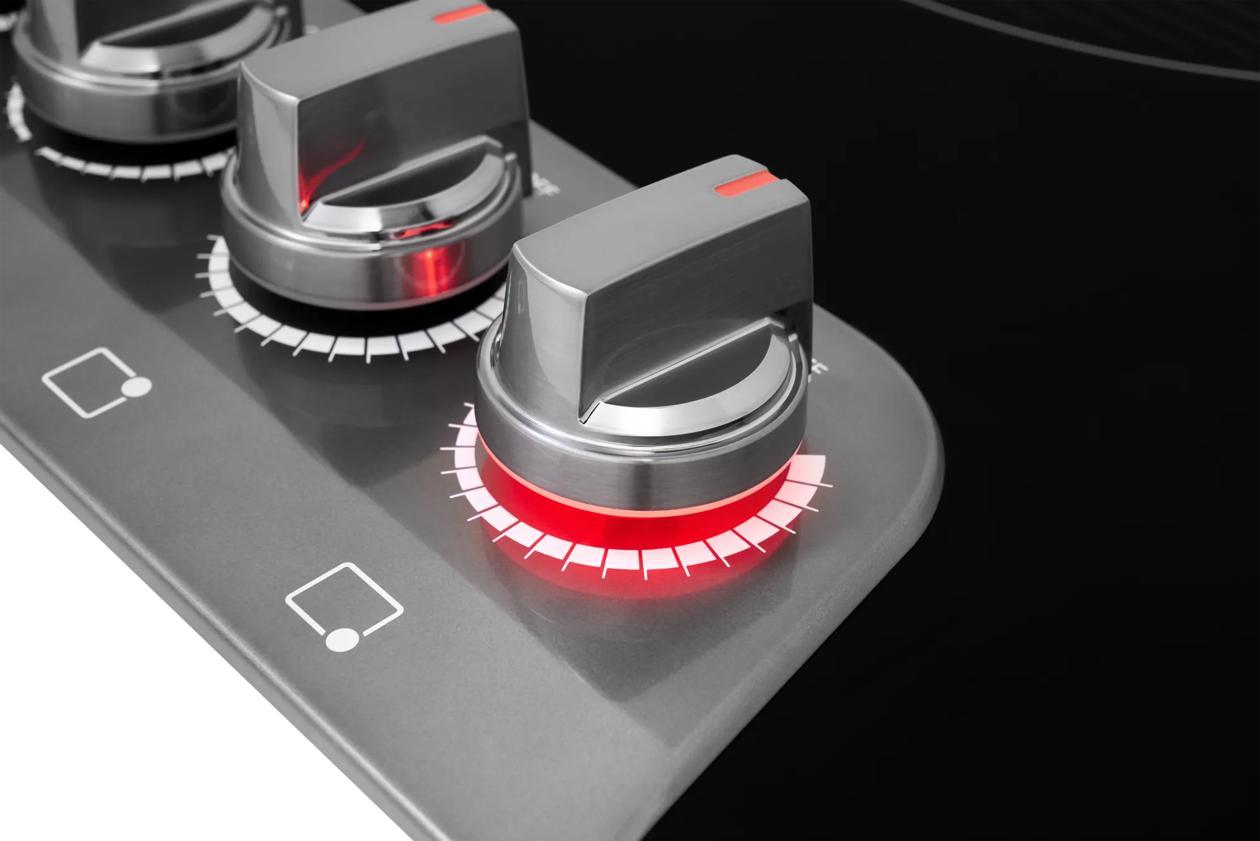

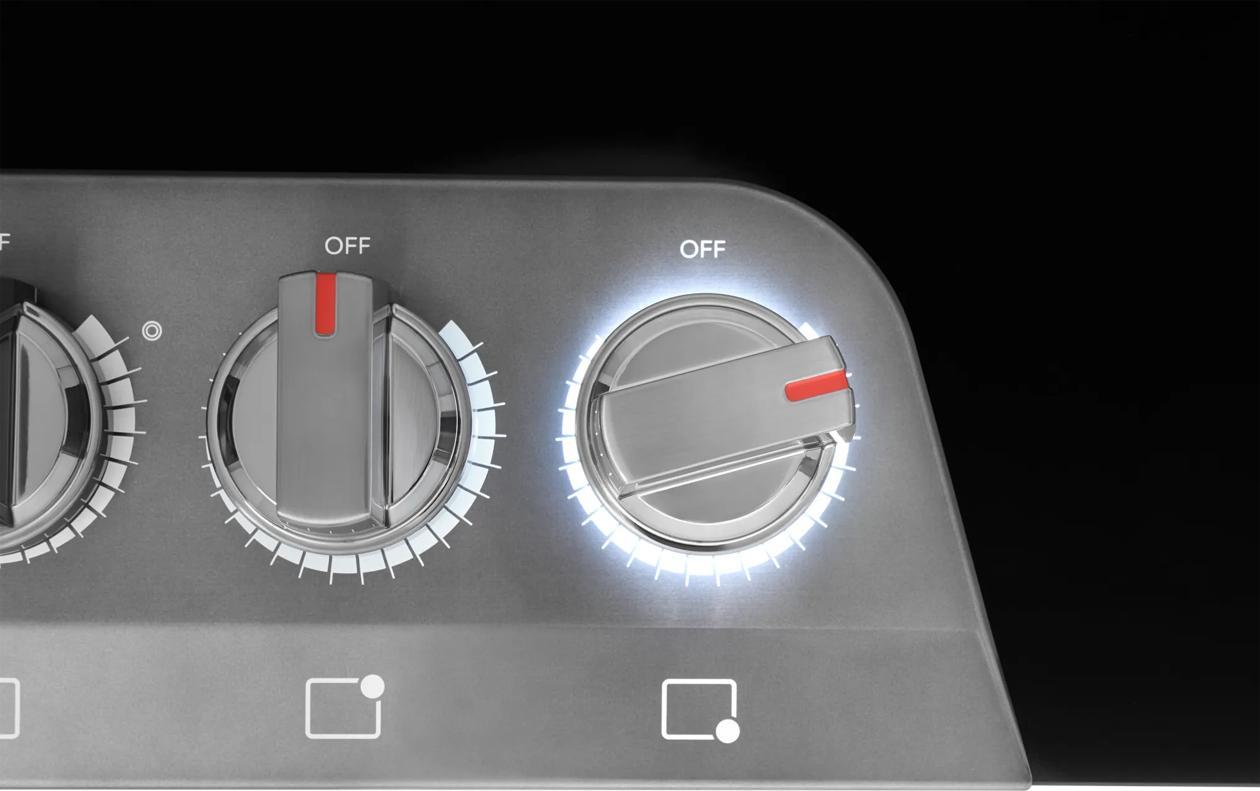

The Frigidaire Gallery 36" Electric Cooktop delivers powerful, precise performance with five flexible elements, including a 3,200-Watt EvenTemp™ element and a versatile 2-in-1 Dual Element. Features sleek backlit LED knobs and a smooth glass surface that makes cooking and cleanup easier. And with the Frigidaire® Fit Promise, you can install with confidence knowing it s guaranteed to fit your existing cutout, or we ll cover the modification cost up to $100.

Product Line	Electric Cooktop
Power Type	Electric 240v
Size	36"
Installation Type	Built-In
Factory	Rayong
Color	Black Stainless Steel
Cooktop
Cooking Surface Type	Smooth
Hot-Surface Indicator Light	Yes

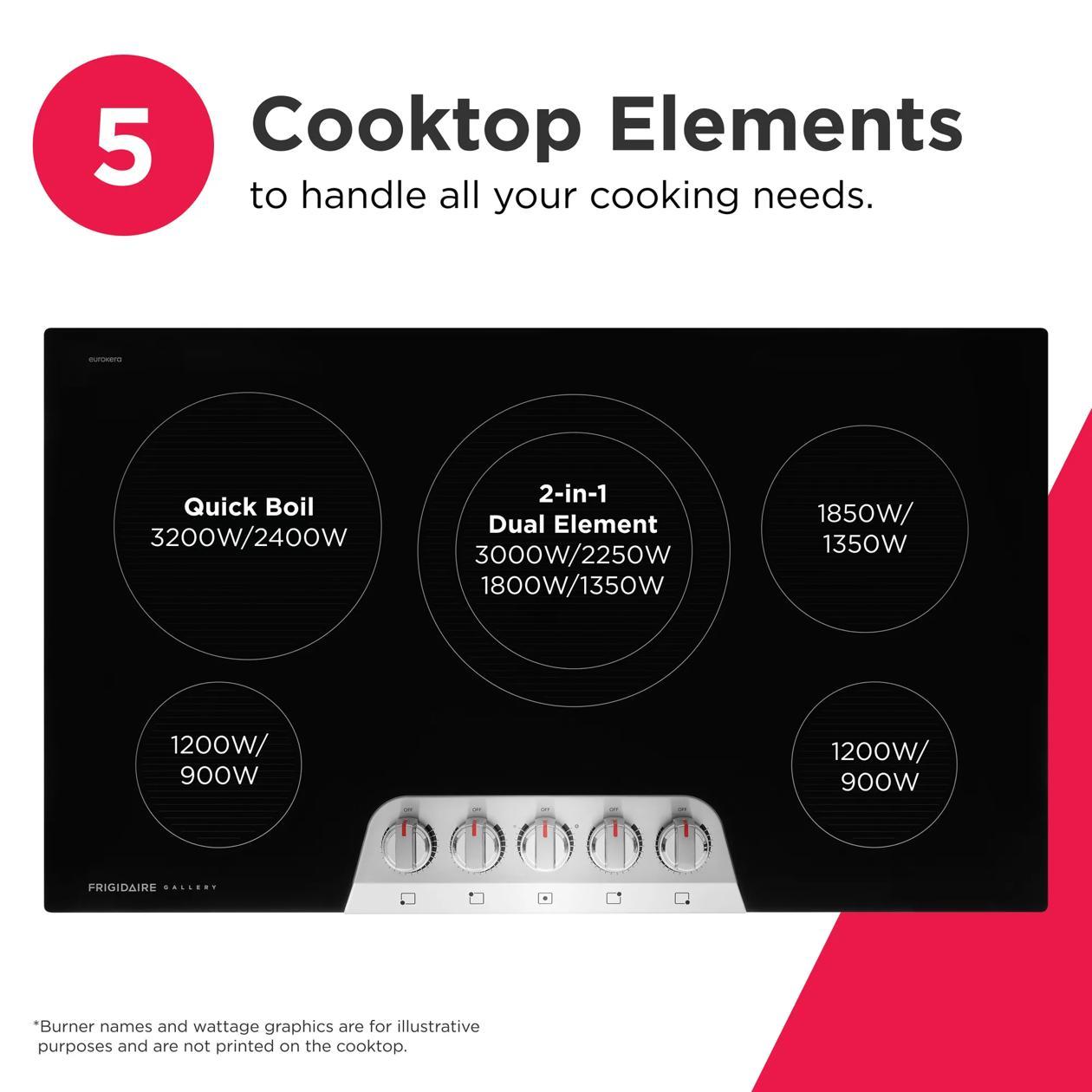

Cooktop Performance
Right Front Element Burner Size	6"
Right Rear Element Burner Size	7"
Left Front Element Burner Size	6"
Left Rear Element Burner Size	9"
Center Rear Element Burner Size (Small)	9"
Center Rear Element Burner Size (Large)	12"
Right Front Element Burner	1200 Watts
Right Rear Element Burner	1800 Watts
Left Front Element Burner	1200 Watts
Left Rear Element Burner	3200 Watts
Center Rear Element Burner (Small)	1800 Watts
Center Rear Element Burner (Large)	3000 Watts
Display
Control Location	Front
Dimensions and Volume
Height	2 5/8"
Width	36 3/4"
Depth	21 3/8"
Cutout Height	5"
Minimum Cutout Width	33 7/8"
Minimum Cutout Depth	19 1/8"
Maximum Cutout Width	36 1/8"
Maximum Cutout Depth	20 1/2"
Electrical Specifications
Amps @ 240 Volts	43.3 Amps
Connected Load @ 240V	10.4 kW
Minimum Circuit Required	50 Amps
Voltage Rating	240 V
General Specifications
Frigidaire Fit Promise	Yes
Product Weight	35 lbs
Prop 65 Label	Yes
Warranty - Labor	1 Year
Warranty - Parts	1 Year
AB-1200	Information available at frigidaire.com/en/ab1200
Installation
Installed Over a Wall Oven	Yes
Power Supply Connection Location	Right Center
Certifications and Approvals
ADA Compliant	Yes
CSA Listed	Yes
UL Listed	Yes
