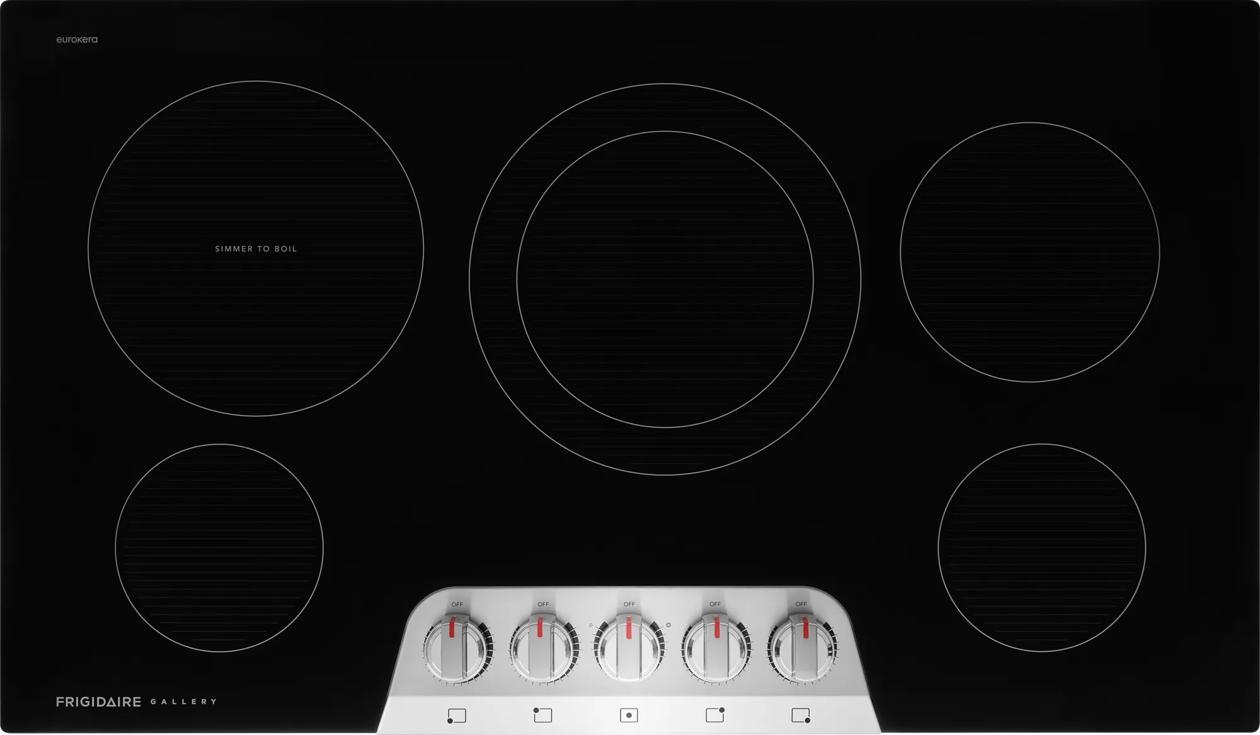

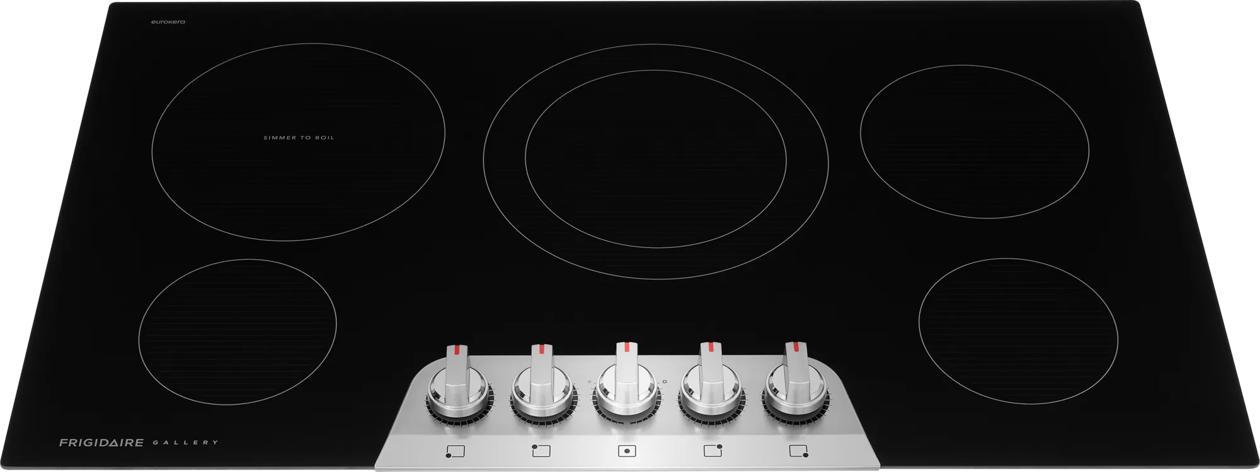

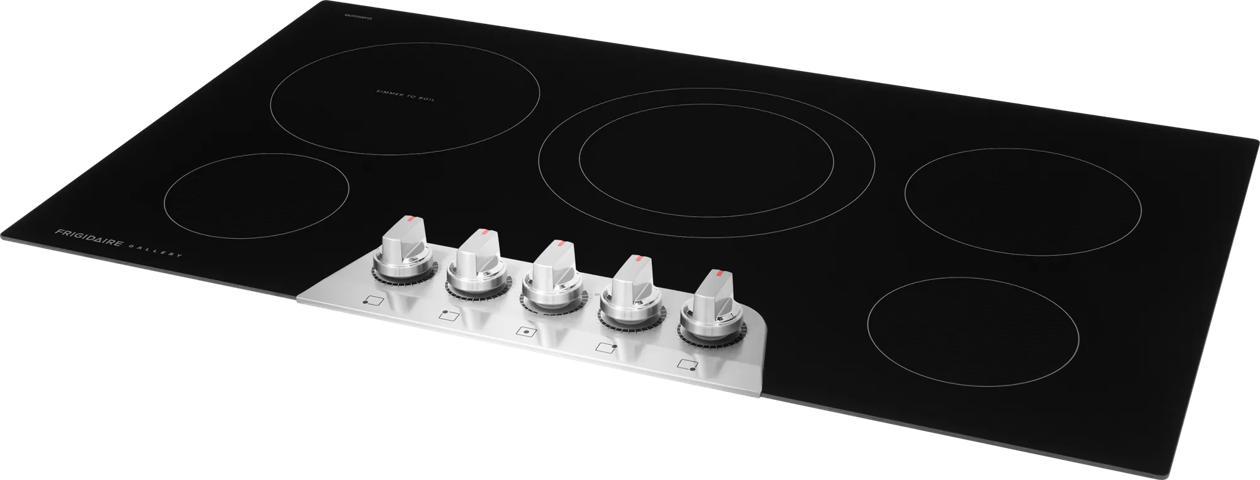

Frigidaire GCCE3670BS 36" Electric Cooktop

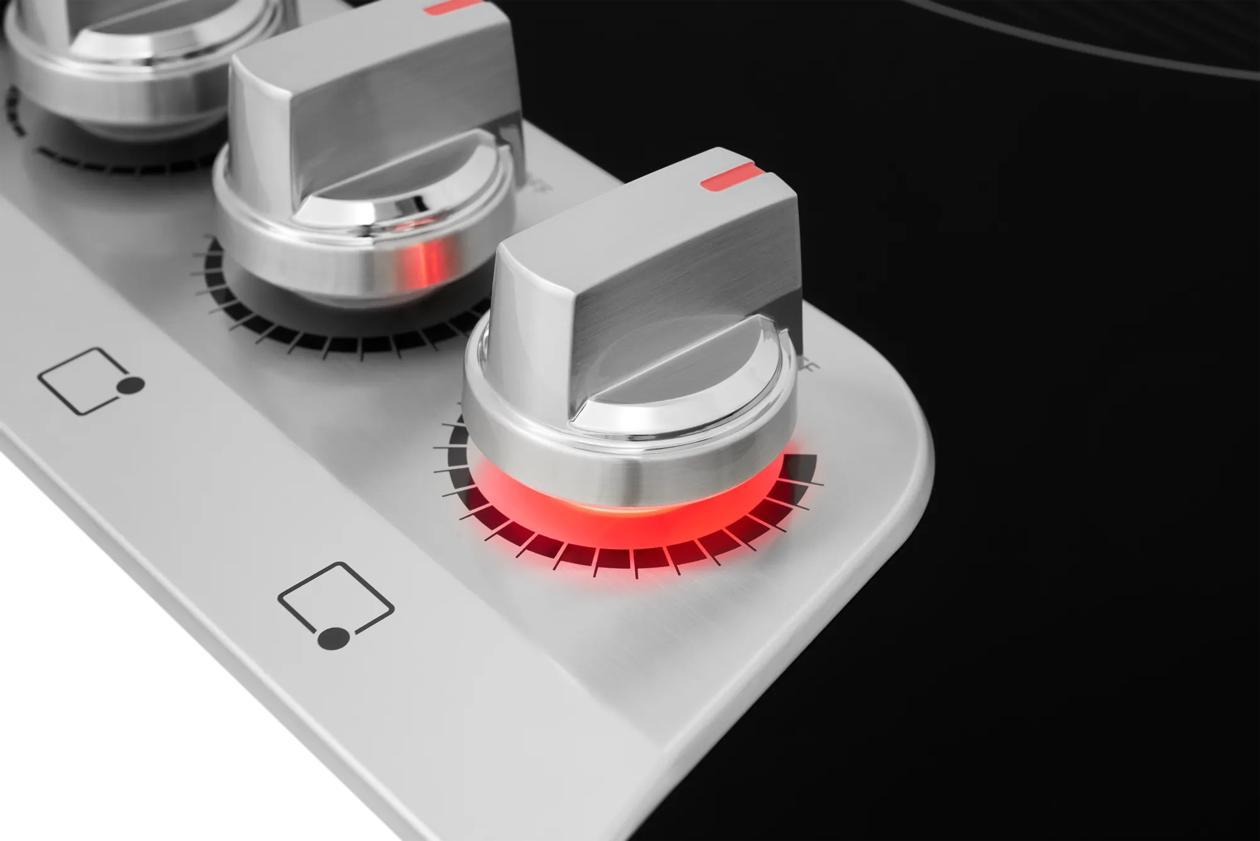

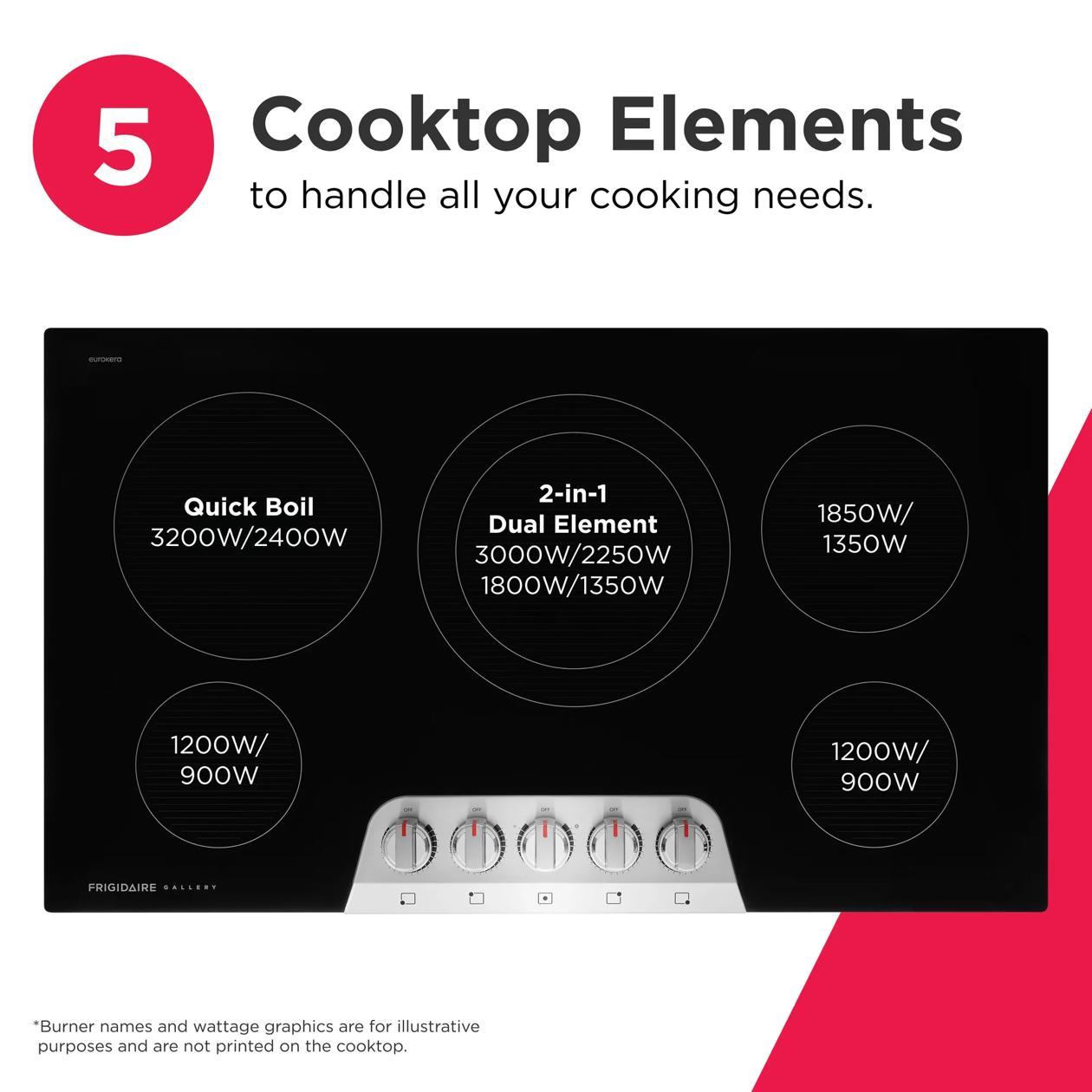

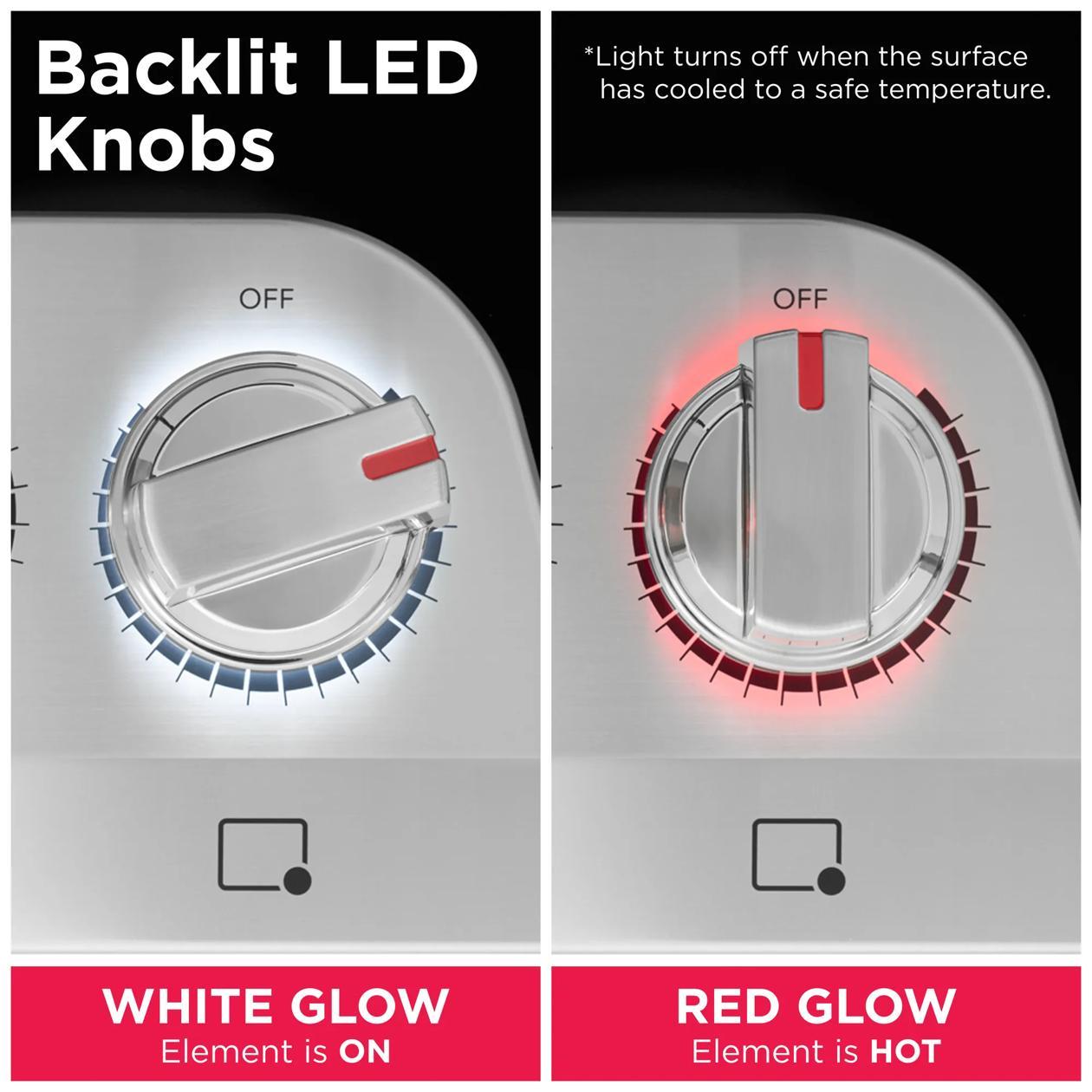

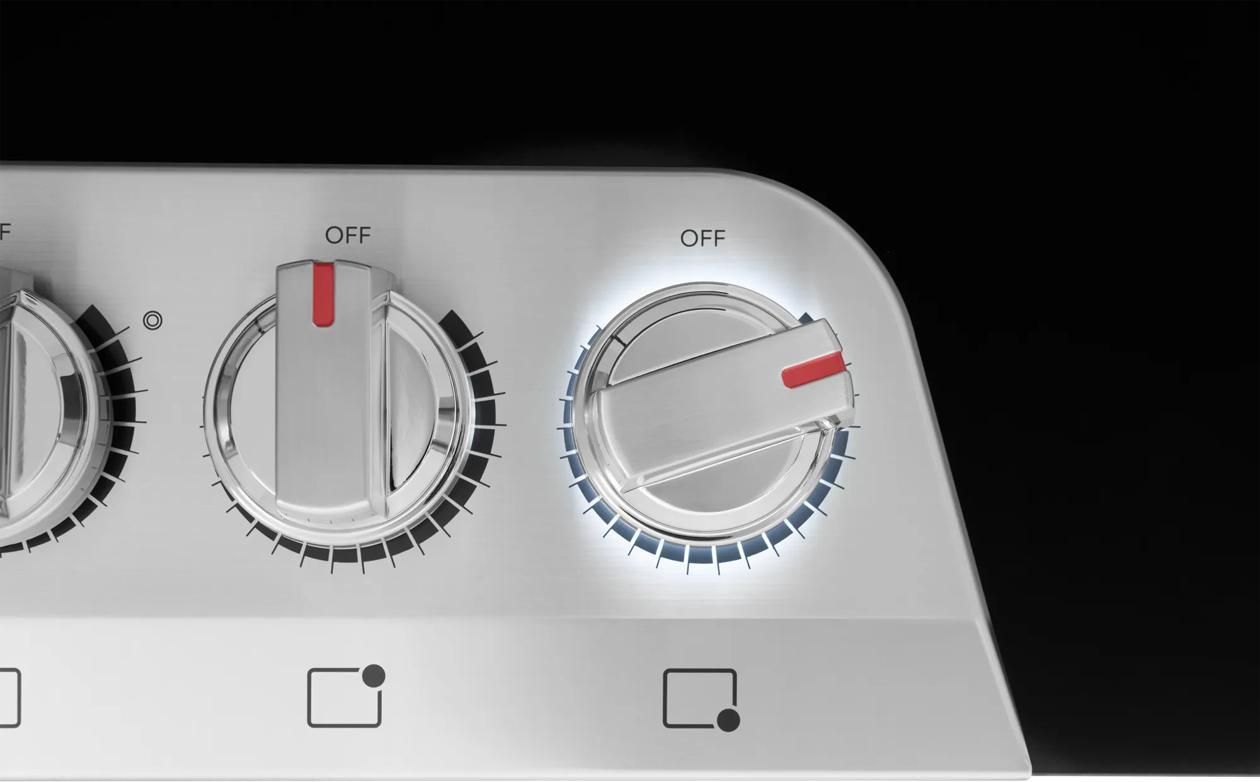

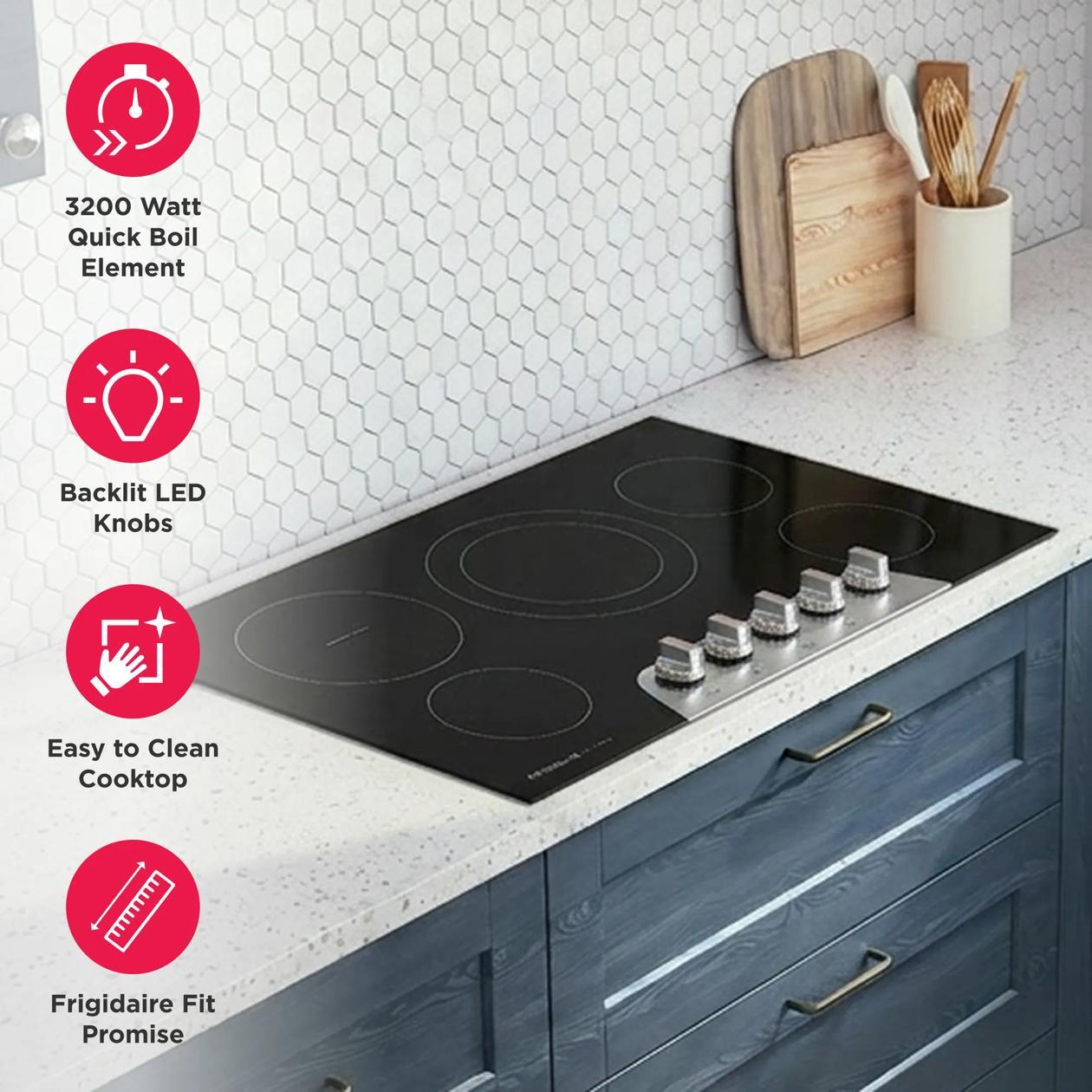

The Frigidaire Gallery 36" Electric Cooktop delivers powerful, precise performance with five flexible elements, including a powerful 3,200-Watt PowerPlus® Element and a versatile 2-in-1 Dual Element. Backlit LED knobs illuminate when the cooktop is in use and remain lit after cooking to indicate the surface is still hot. Plus, installation is backed by the Frigidaire Fit Promise

Product Line	Electric Cooktop
Power Type	Electric 240v
Size	36"

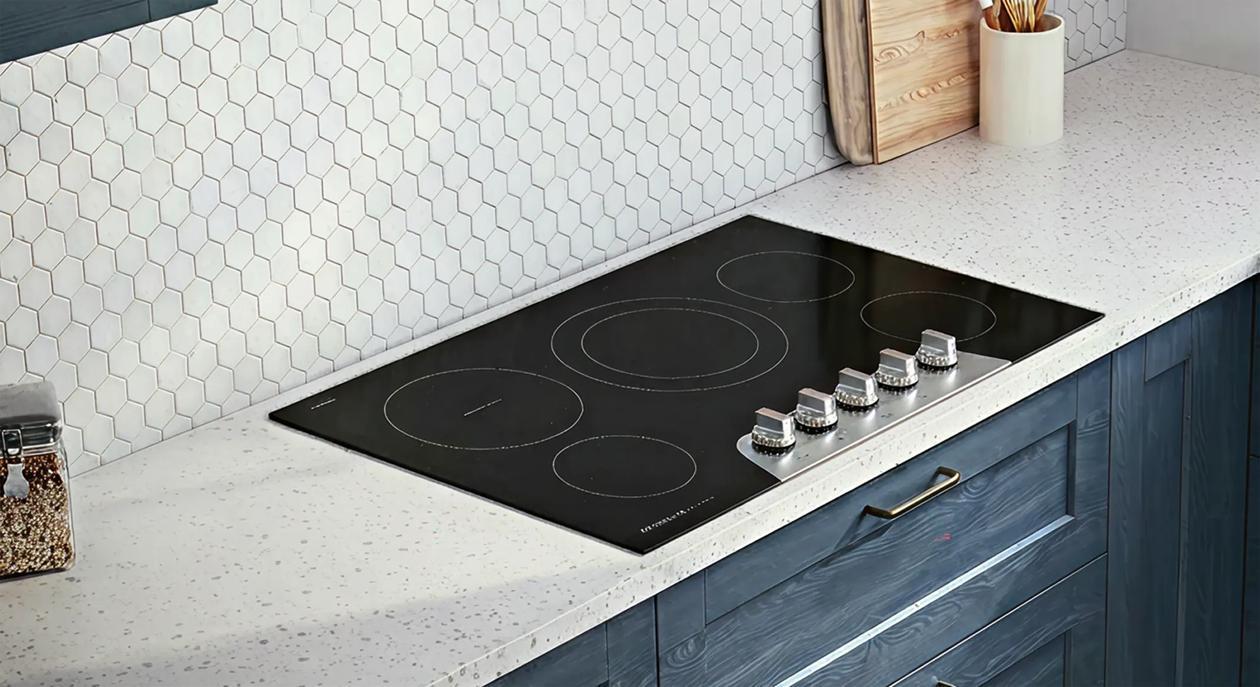

Installation Type	Built-In
Factory	Rayong
Color	Stainless Steel
Cooktop
Cooking Surface Type	Smooth
Hot-Surface Indicator Light	Yes
Cooktop Performance
Right Front Element Burner Size	6"
Right Rear Element Burner Size	7"
Left Front Element Burner Size	6"
Left Rear Element Burner Size	9"

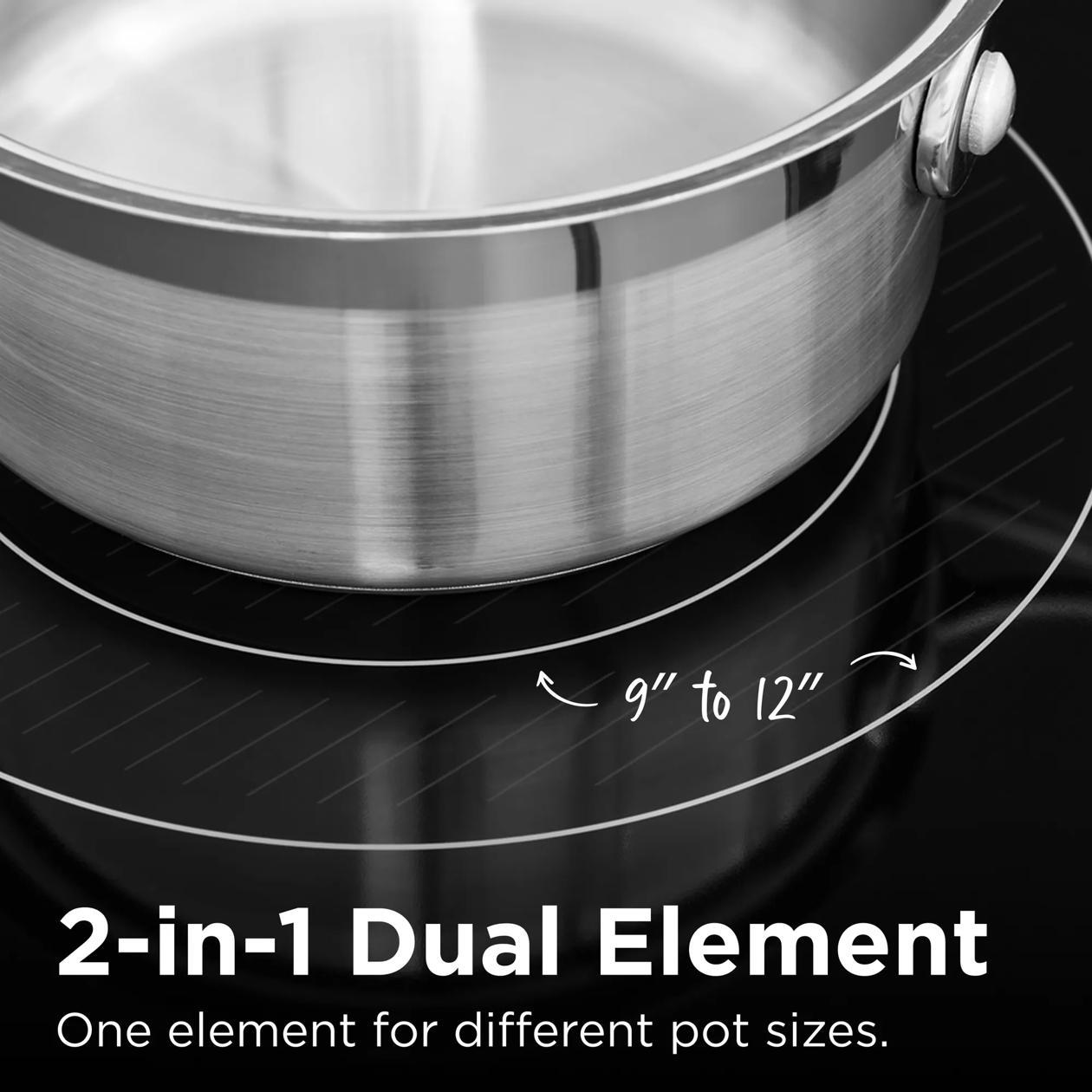

Center Rear Element Burner Size (Small)	9"
Center Rear Element Burner Size (Large)	12"
Right Front Element Burner	1200 Watts
Right Rear Element Burner	1800 Watts
Left Front Element Burner	1200 Watts

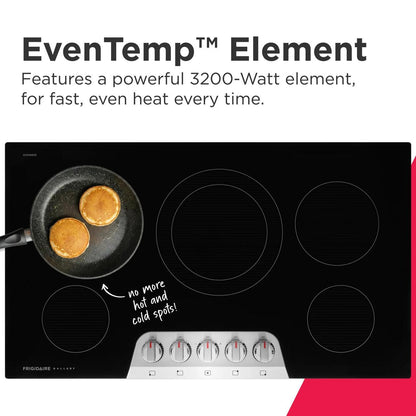

Left Rear Element Burner	3200 Watts
Center Rear Element Burner (Small)	1800 Watts
Center Rear Element Burner (Large)	3000 Watts
Display

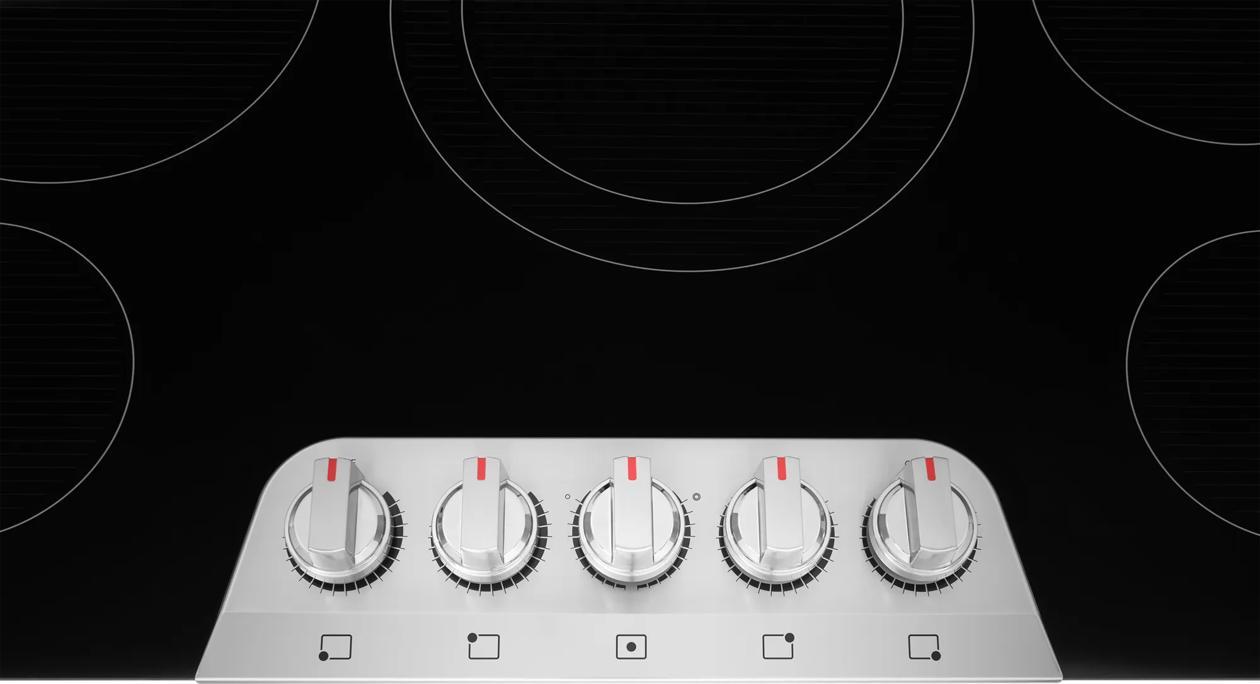

Control Location	Front
Dimensions and Volume
Height	2 5/8"
Width	36 3/4"
Depth	21 3/8"
Cutout Height	5"
Minimum Cutout Width	33 7/8"
Minimum Cutout Depth	19 1/8"
Maximum Cutout Width	36 1/8"
Maximum Cutout Depth	20 1/2"
Electrical Specifications
Amps @ 240 Volts	43.3 Amps
Connected Load @ 240V	10.4 kW
Minimum Circuit Required	50 Amps
Voltage Rating	240 V
General Specifications
Frigidaire Fit Promise	Yes
Product Weight	35 lbs
Prop 65 Label	Yes
Warranty - Labor	1 Year
Warranty - Parts	1 Year
AB-1200	Information available at frigidaire.com/en/ab1200
Installation
Installed Over a Wall Oven	Yes
Power Supply Connection Location	Right Center
Certifications and Approvals
ADA Compliant	Yes
CSA Listed	Yes
UL Listed	Yes
