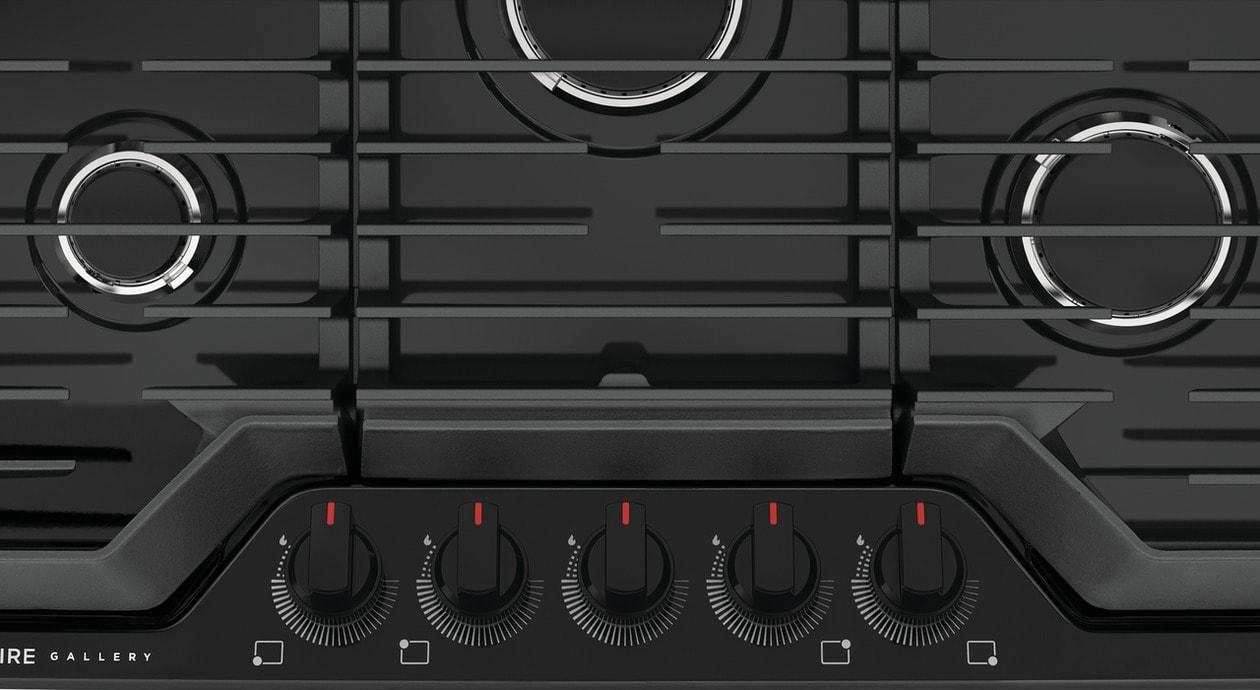

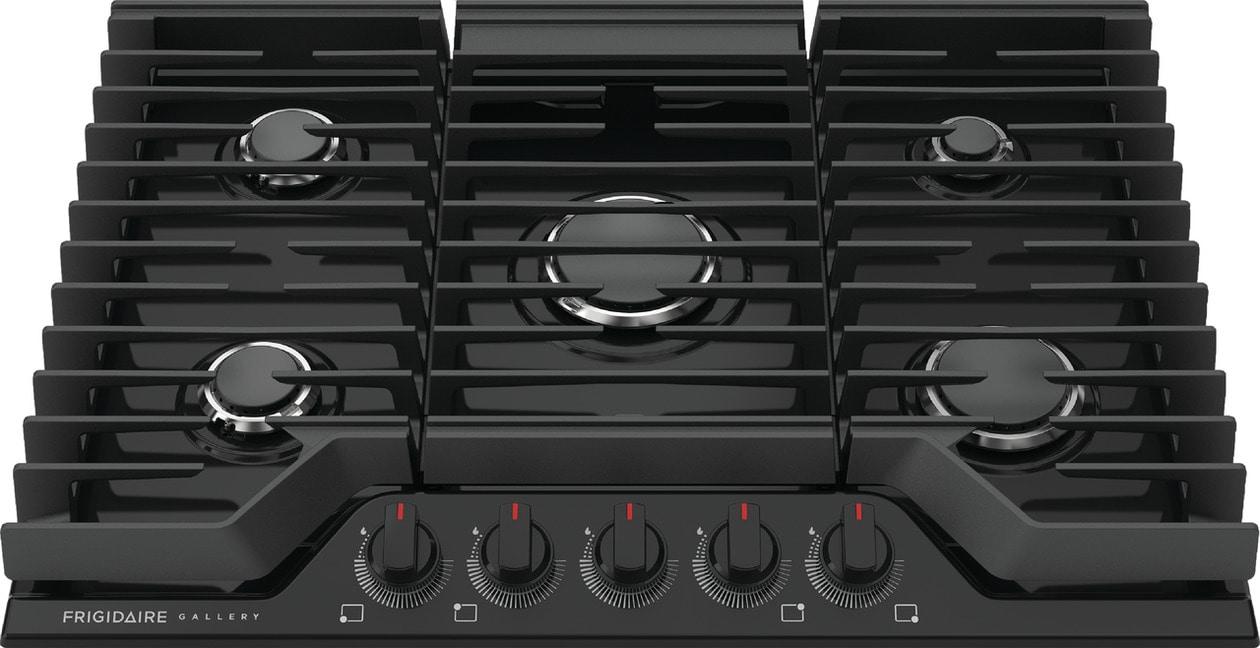

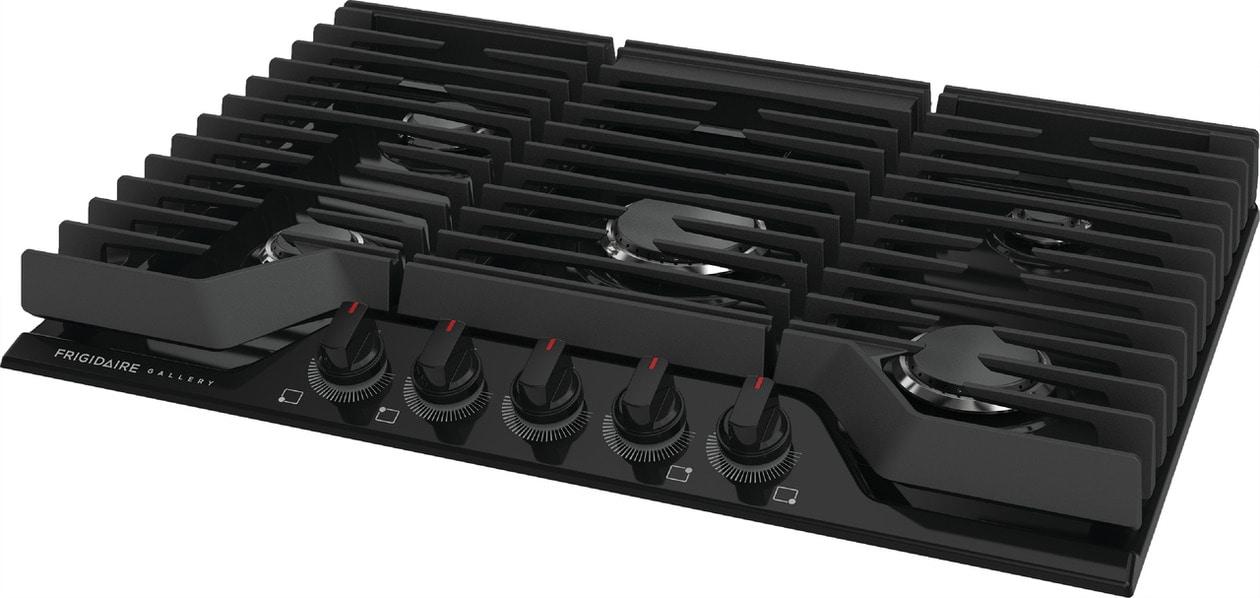

GCCG3048AB Frigidaire Gallery 30" Gas Cooktop GCCG3048AB

The Frigidaire Gallery 30" Gas Cooktop allows you to get meals on the table faster with the Quick Boil 18,000 BTU burner. Enjoy ultimate cooking flexibility with powerful burners designed to meet all your cooking needs, from the 5,000 BTU simmer burner to the Quick Boil Burner. These cooktops feature new design elements like Backlit LED Knobs and Dishwasher Safe Burner Caps to make cooking and cleaning easier.

Product Line	Gas Cooktop
Power Type	LP, NG
Size	30"
Installation Type	Built-In
Factory	Rayong
Color	Black
Cooktop
Cooking Surface Type	Gas
Grate Material	Cast Iron
Grate Quantity	3
Grate Style	Continuous
Cooktop Performance
Right Front Element Burner	12000 BTU
Right Rear Element Burner	5000 BTU
Left Front Element Burner	9500 BTU
Left Rear Element Burner	7500 BTU
Center Front Element Burner	18000 BTU
Display
Control Location	Front
Exterior
Backlit Knobs	Yes
Dimensions and Volume
Height	2 7/16"
Width	30"
Depth	21"
Cutout Height	7 1/2"
Minimum Cutout Width	27 1/4"
Minimum Cutout Depth	19"
Maximum Cutout Width	29 5/16"
Maximum Cutout Depth	20"
Electrical Specifications
Minimum Circuit Required	5 Amps
Voltage Rating	120 V
Installation
Gas Supply Connection Location	Top Right
Installed Over a Wall Oven	Yes
LP Conversion Kit Included	Yes
Power Cord Included	Yes
Power Supply Connection Location	Top Right
General Specifications
Frigidaire Fit Promise	Yes
Product Weight	43 lbs
Prop 65 Label	Yes
Warranty - Labor	1 Year
Warranty - Parts	1 Year
Certifications and Approvals
ADA Compliant	Yes
CSA Listed	Yes
UL Listed	Yes
