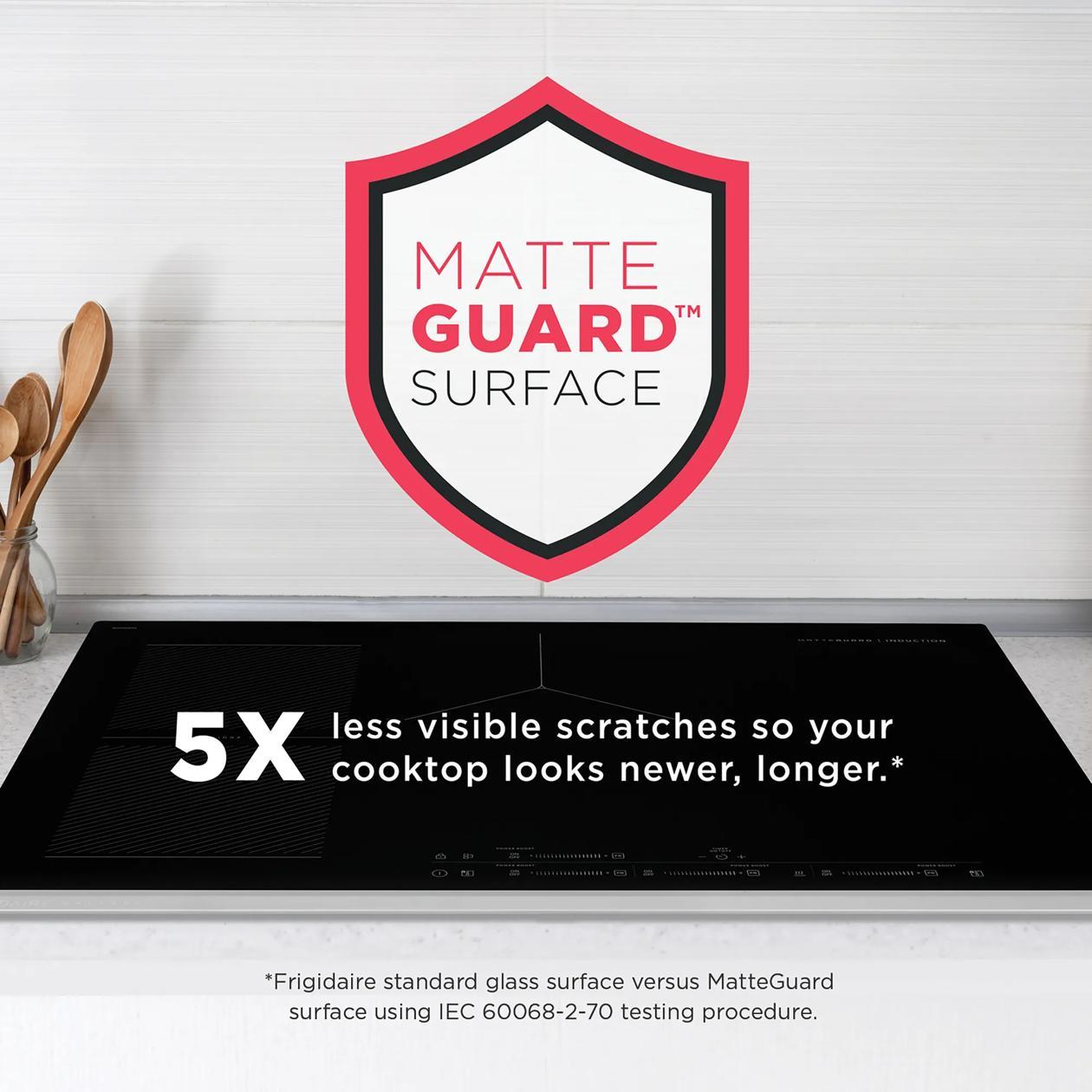

- MatteGuard™ Surface
- Easy-to-Clean Cooktop

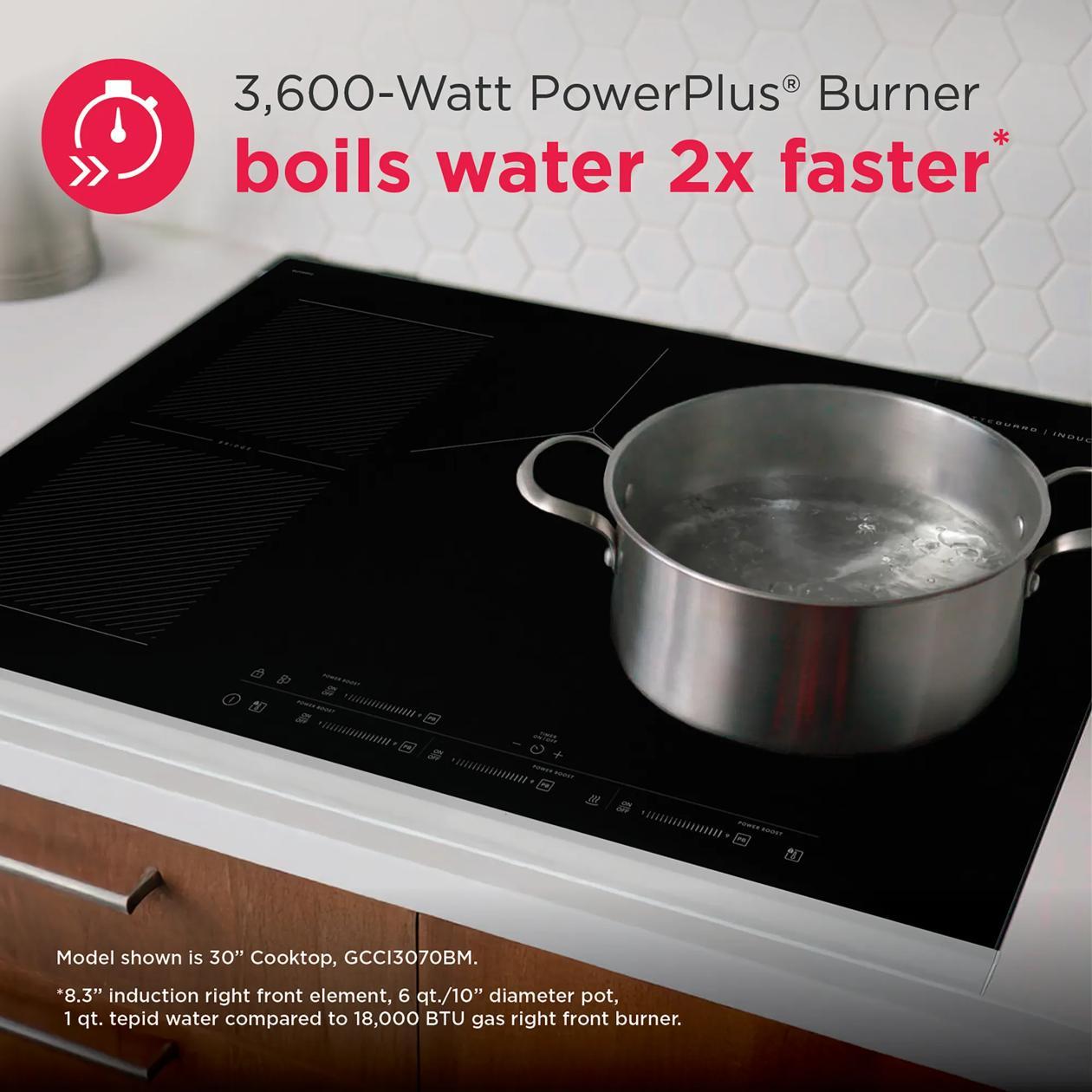

- 3,600-Watt PowerPlus® Burner

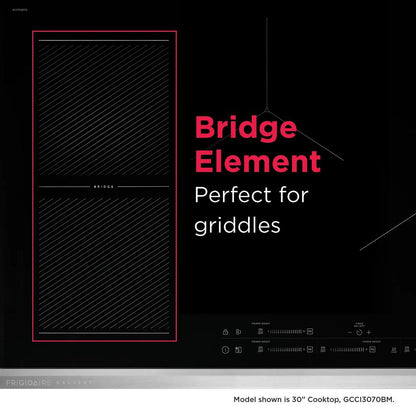

- 2-in-1 Bridge Element

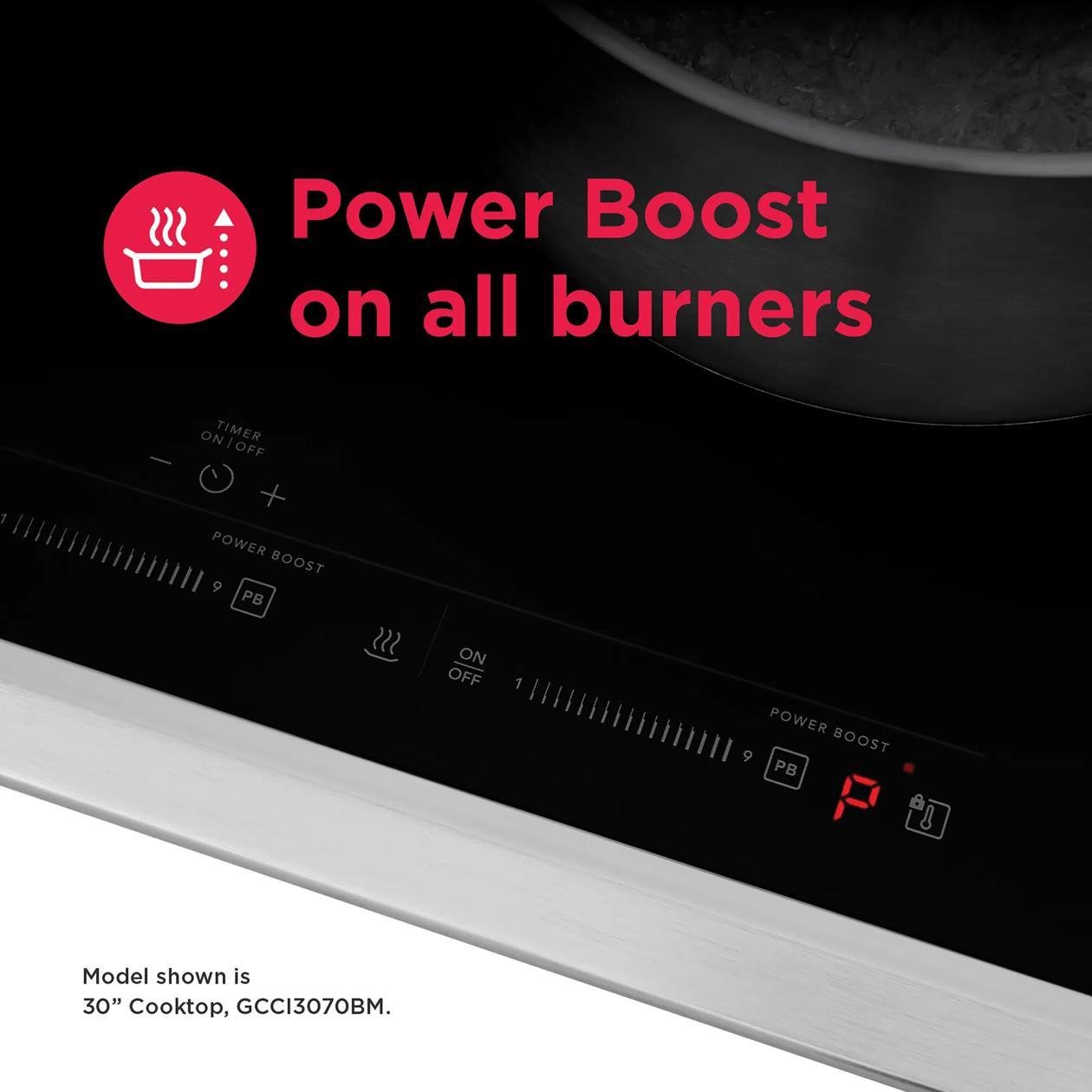

- Power Boost

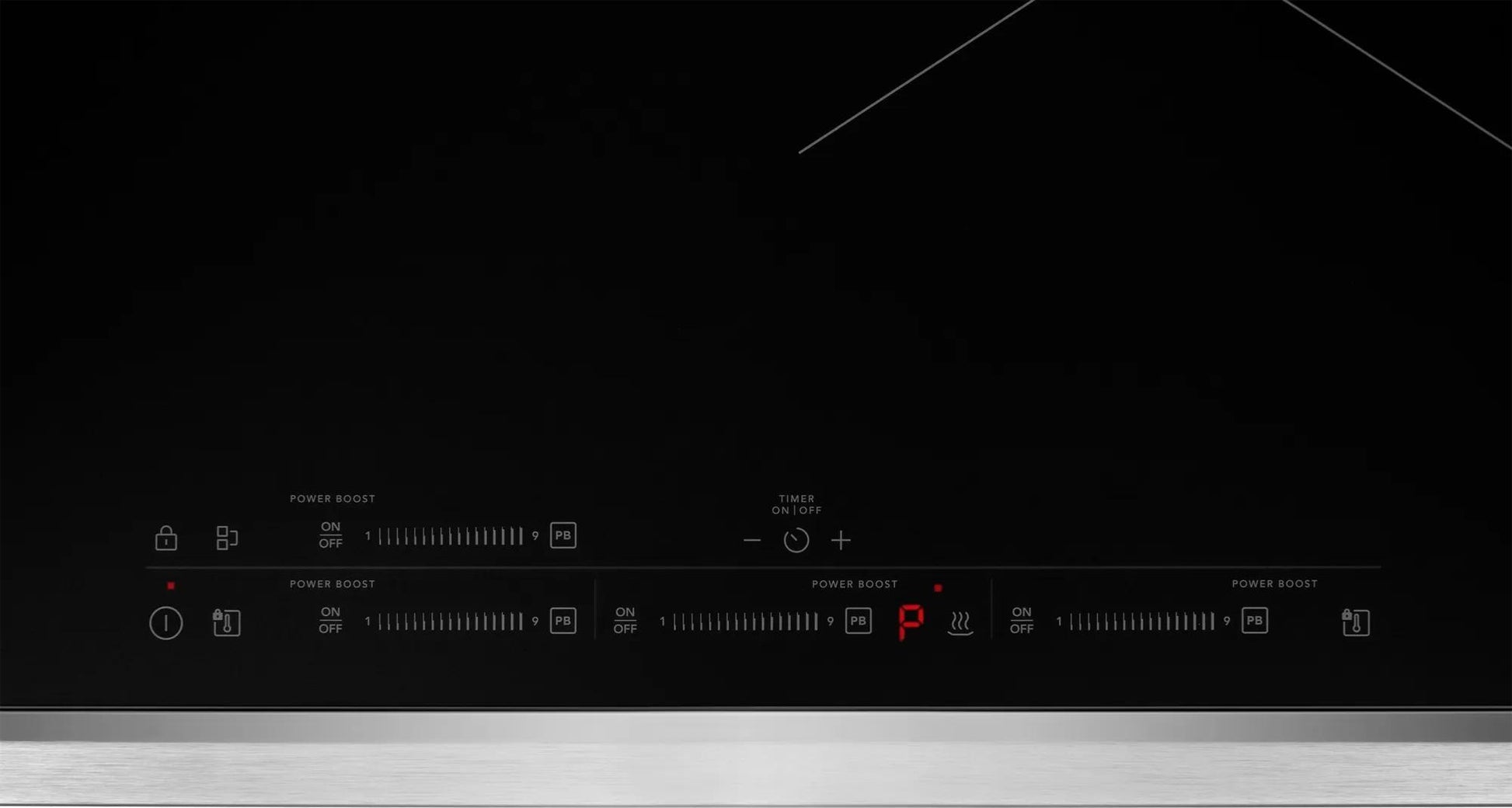

- Integrated Touch-Controls
- Incredibly Responsive
- Safer cooktop surface
- Frigidaire® Fit Promise
- More Energy Efficient
- Compatible with most cookware
- Installation over Wall Oven Approved

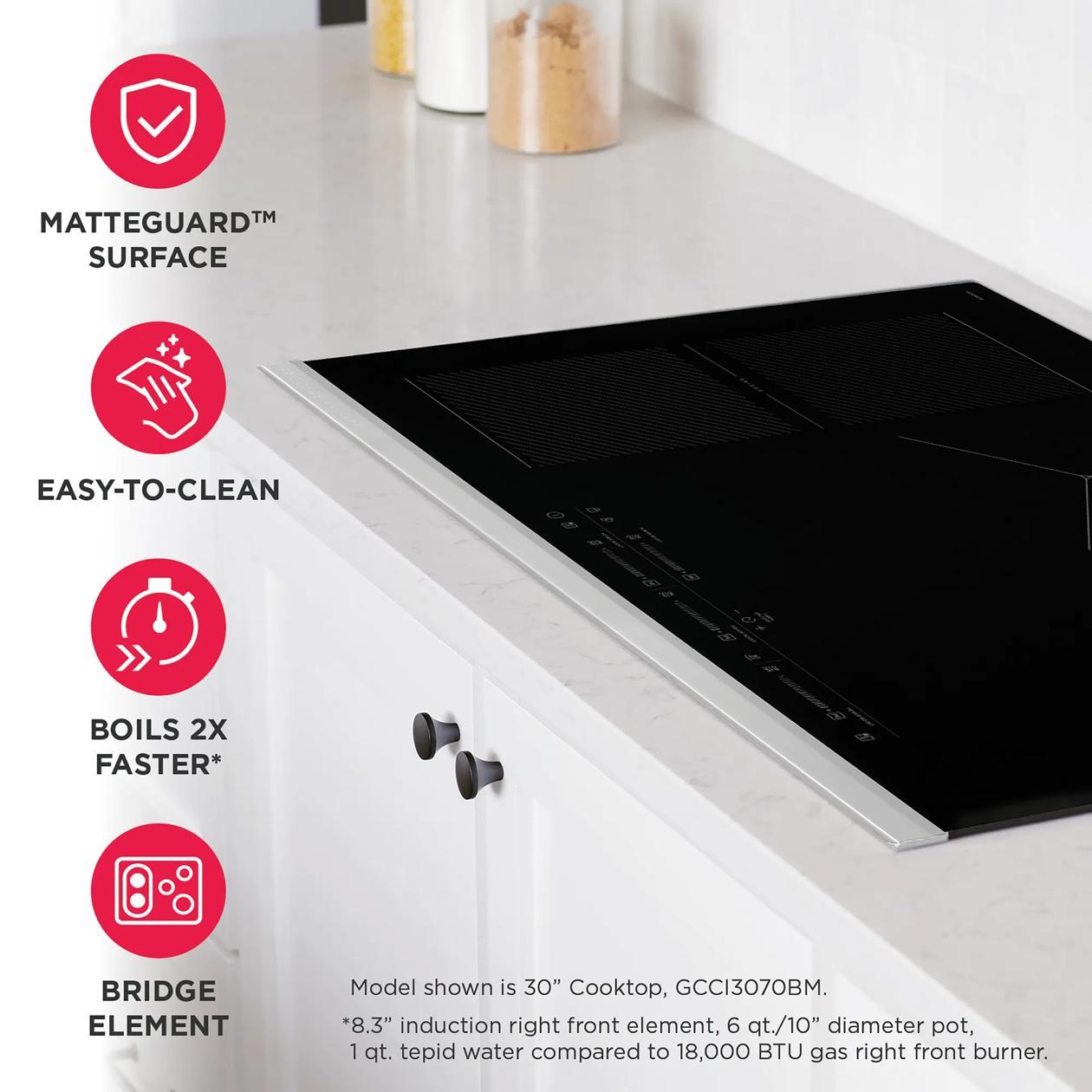

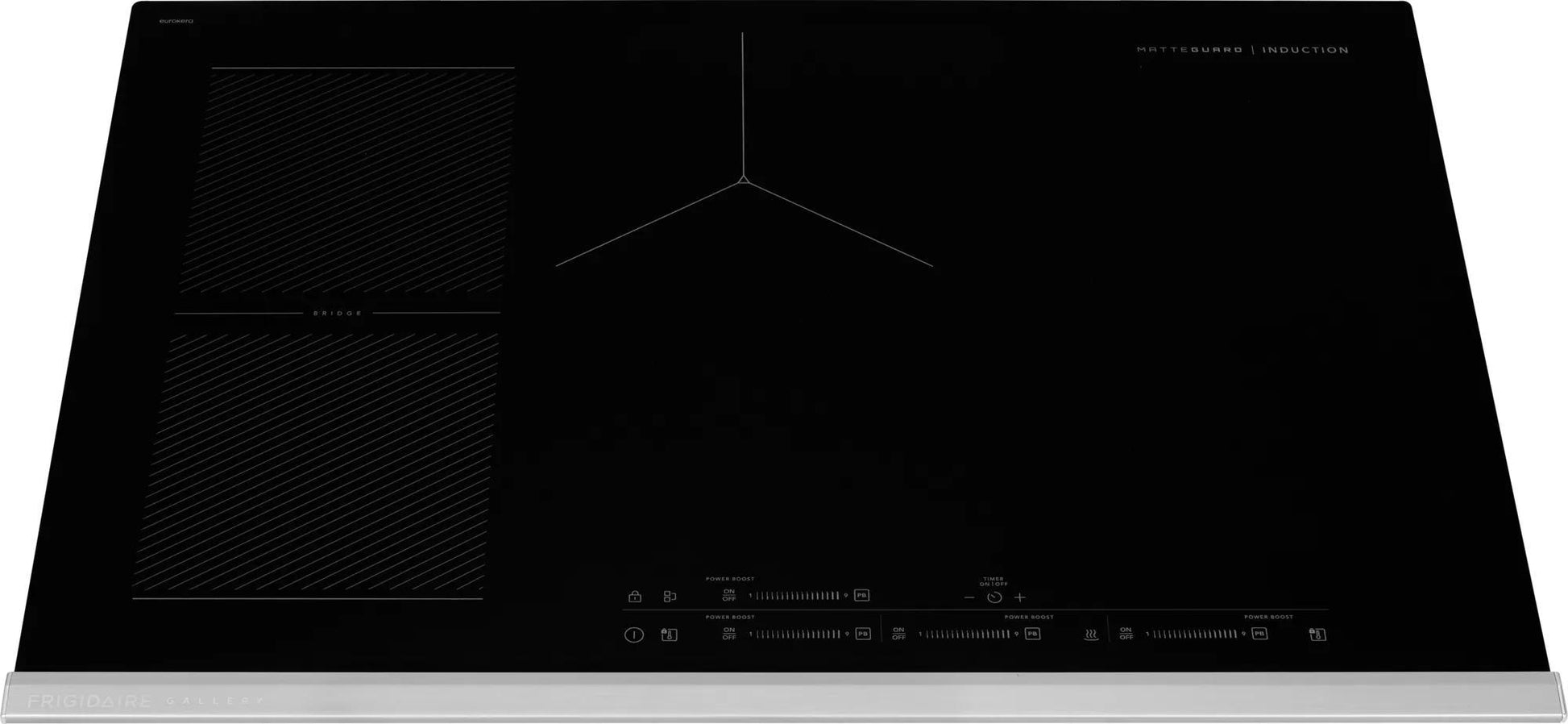

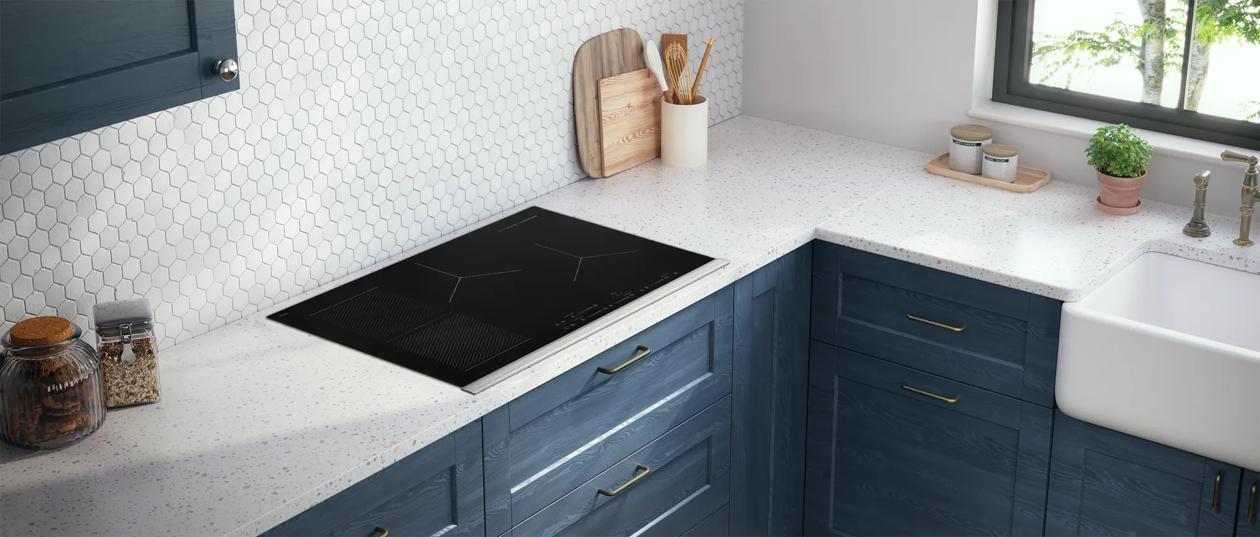

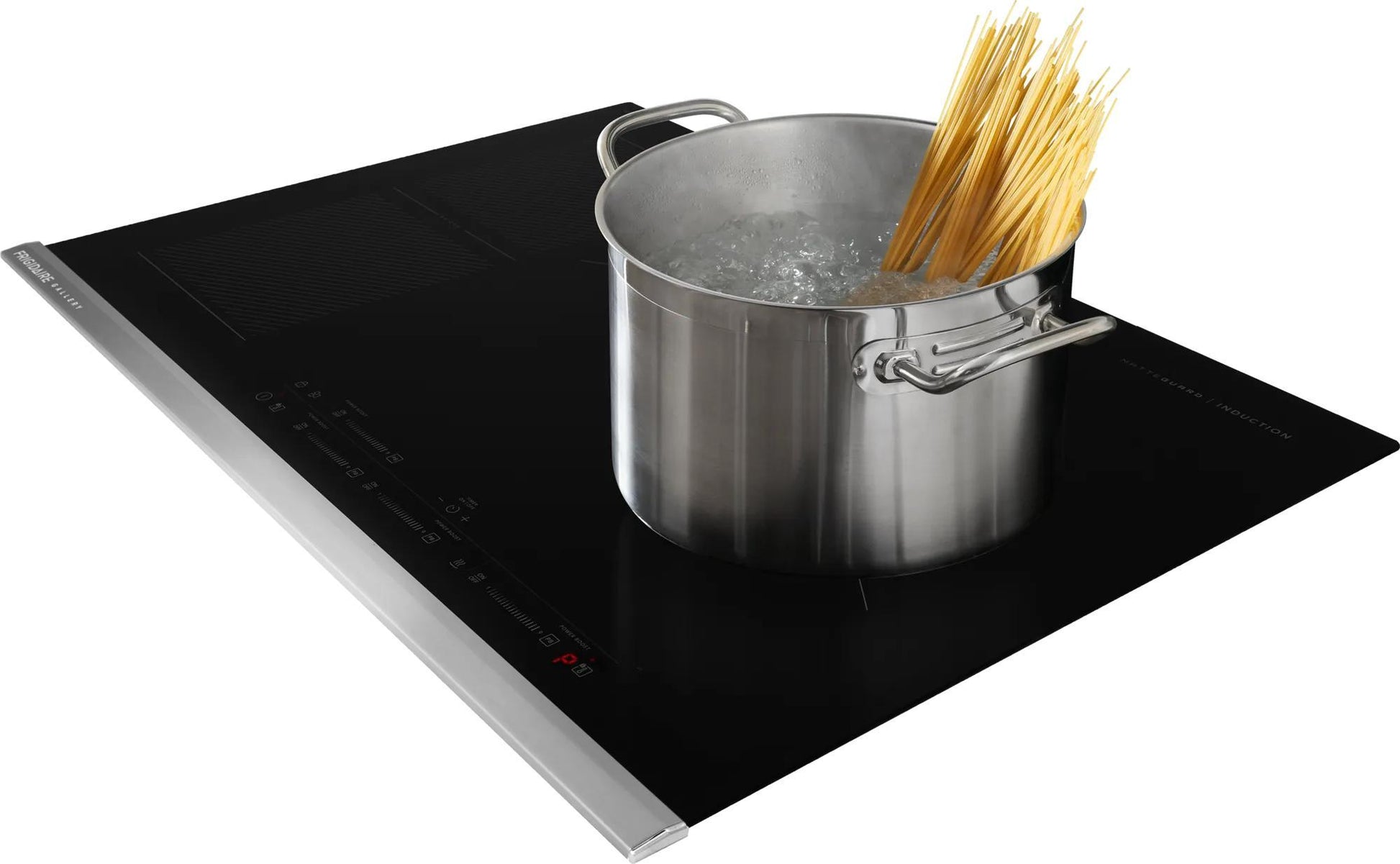

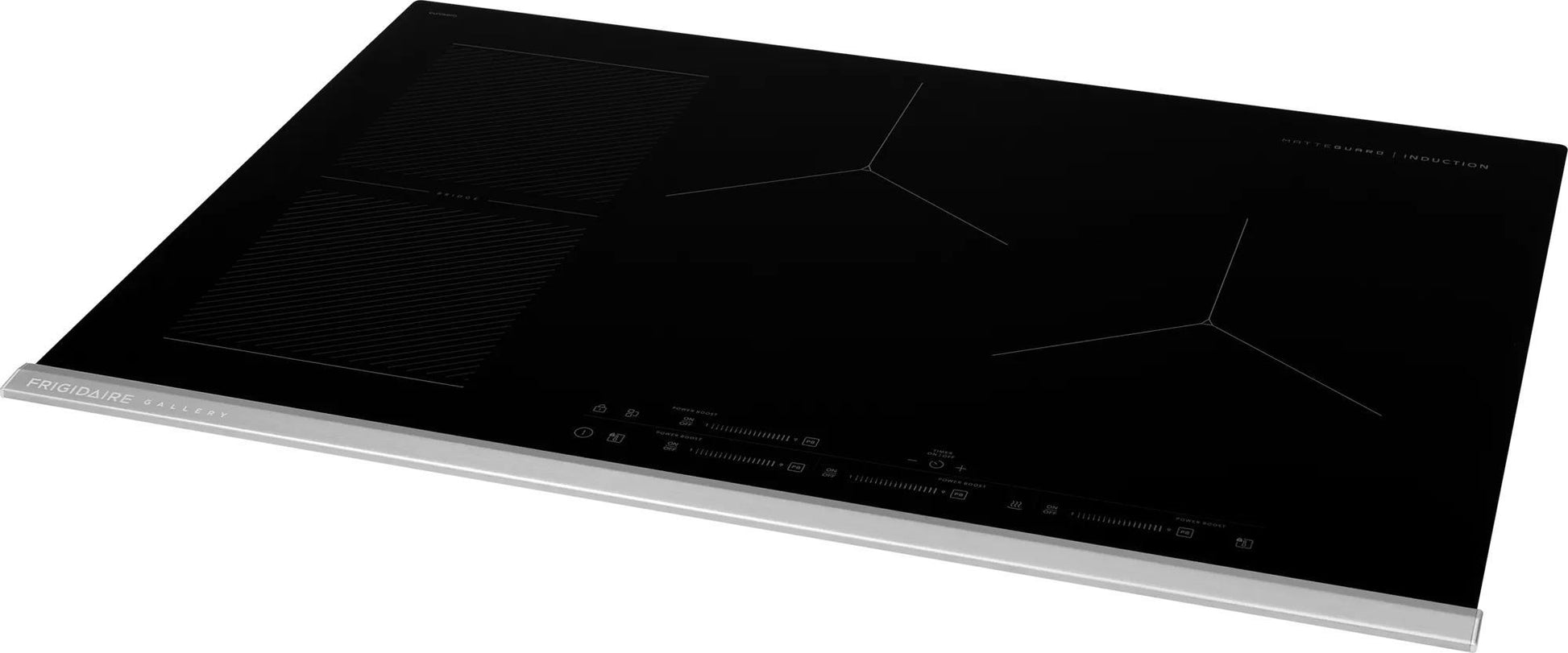

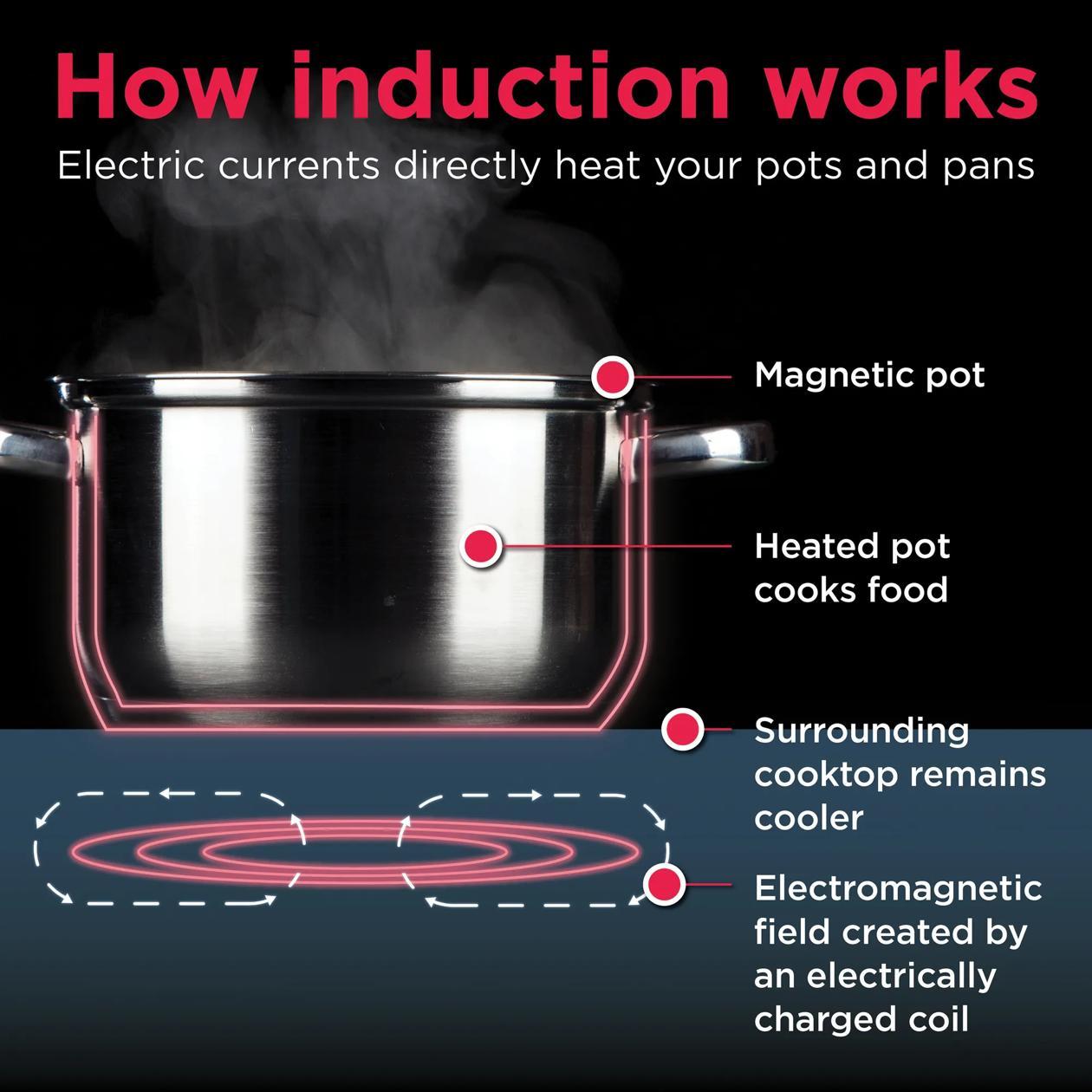

The Frigidaire Gallery 30" Induction Cooktop, features our premium MatteGuard™ Surface that reduces visible scratching by 5X, helping your cooktop maintain a beautiful, like-new finish over time. Experience the speed of induction with a powerful 3,600-Watt PowerPlus® Burner that boils water 50% faster than gas cooktops. The easy-to-use integrated touch-control panel offers a sleek and seamless design and makes cooking and cleaning easier. And get peace of mind that this cooktop will fit your existing cutout with our Frigidaire Fit Promise.
| Product Line | Induction Cooktop |
| Power Type | Electric 240v |
| Size | 30" |
| Installation Type | Built-In |
| Factory | Rayong |
| Color | Stainless Steel |
| Cooktop | |
| Auto Pan Detect | Yes |
| Bridge Element Location | Left |
| Cooking Surface Type | Smooth - MatteGuard™ |
| Hot-Surface Indicator Light | Yes |
| Total Number of Burners | 4 |
| Bridge On Indicator Light | Yes |
| Cooktop Performance | |
| Right Front Element Burner Size | 8" |
| Left Front Element Burner Size | 7" |
| Left Rear Element Burner Size | 7" |
| Center Rear Element Burner Size | 8" |
| Right Front Element Burner | 2,300 / 3,600 Watts (Boost) |
| Left Front Element Burner | 1,800 / 2,600 Watts (Boost) |
| Left Rear Element Burner | 1,800 / 2,600 Watts (Boost) |
| Center Element Burner | 2,300 / 3,600 Watts (Boost) |
| Cooking Controls | |
| Kitchen Timer | Yes |
| On / Off (for each element) | Yes |
| Power | Yes |
| TempLock | Yes |
| Cooking Zone Power Level Slide | Yes |
| Serve Warm | Yes |
| Controls | |
| Control Lock | Yes |
| Display | |
| Control Location | Front |
| Display Interface Color | Red |
| Display Type | Capacitive Touch |
| Dimensions and Volume | |
| Height | 2 7/8" |
| Width | 30 5/8" |
| Depth | 21 3/8" |
| Cutout Height | 3 5/8" |
| Minimum Cutout Width | 28 1/2" |
| Minimum Cutout Depth | 19 5/8" |
| Maximum Cutout Width | 29 7/8" |
| Maximum Cutout Depth | 20 1/2" |
| Electrical Specifications | |
| Connected Load @ 240V | 7.2 kW |
| Minimum Circuit Required | 30 Amps |
| Voltage Rating | 240 V |
| General Specifications | |
| Frigidaire Fit Promise | Yes |
| Product Weight | 39 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| AB-1200 | Information available at frigidaire.com/en/ab1200 |
| Certifications and Approvals | |
| ADA Compliant | Yes |
| cUL Listed | Yes |
| ENERGY STAR Certified | Yes |
| RoHS | Yes |
| UL Listed | Yes |
