- Total Convection
- No Preheat
- Air Fry
- Five Burner Cooktop
- Slow Cook
- Air Sous Vide
- 30-Minute Steam Clean
- Quick Boil
- Steam Bake
- Steam Roast
- Large Oven Capacity

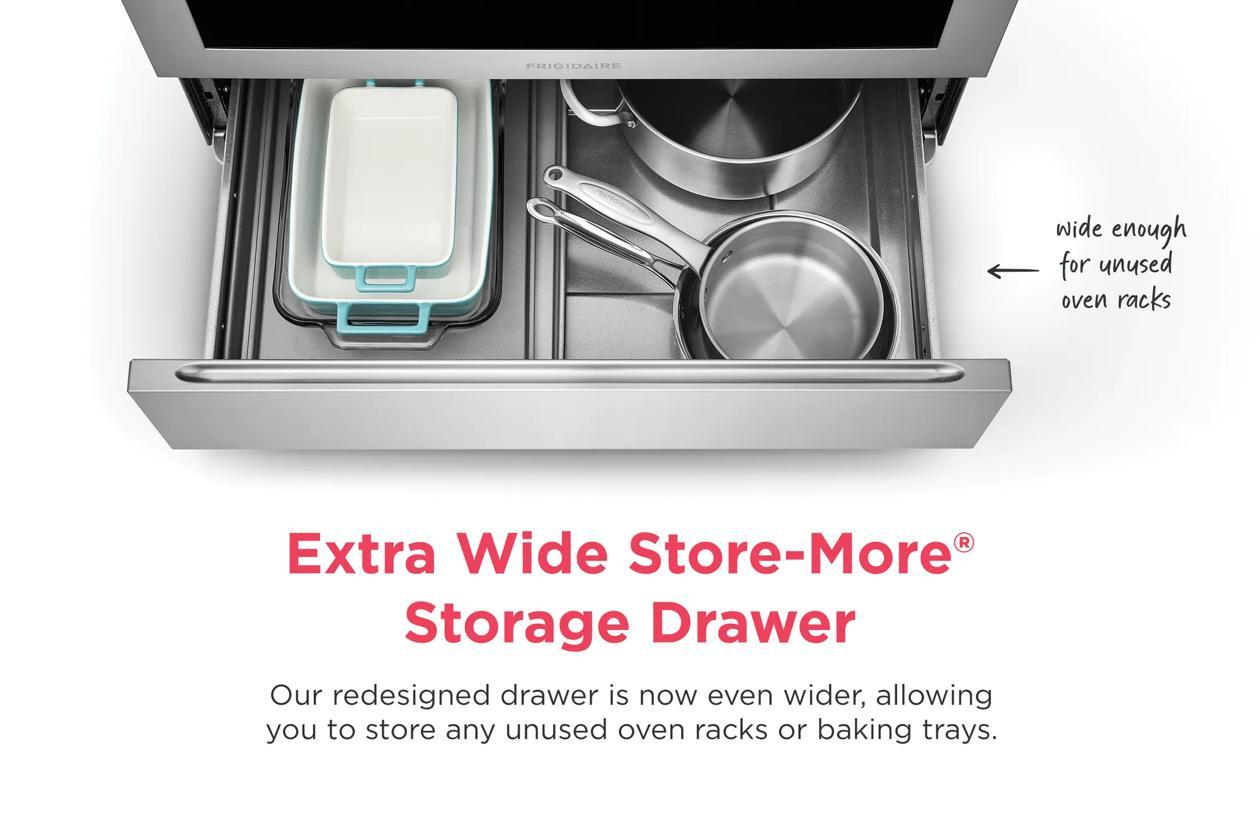

- Extra Wide Store-More™ Storage Drawer
- Smudge-Proof® Stainless Steel
- Continuous Edge-to-Edge Grates
- Dishwasher Safe Burner Caps

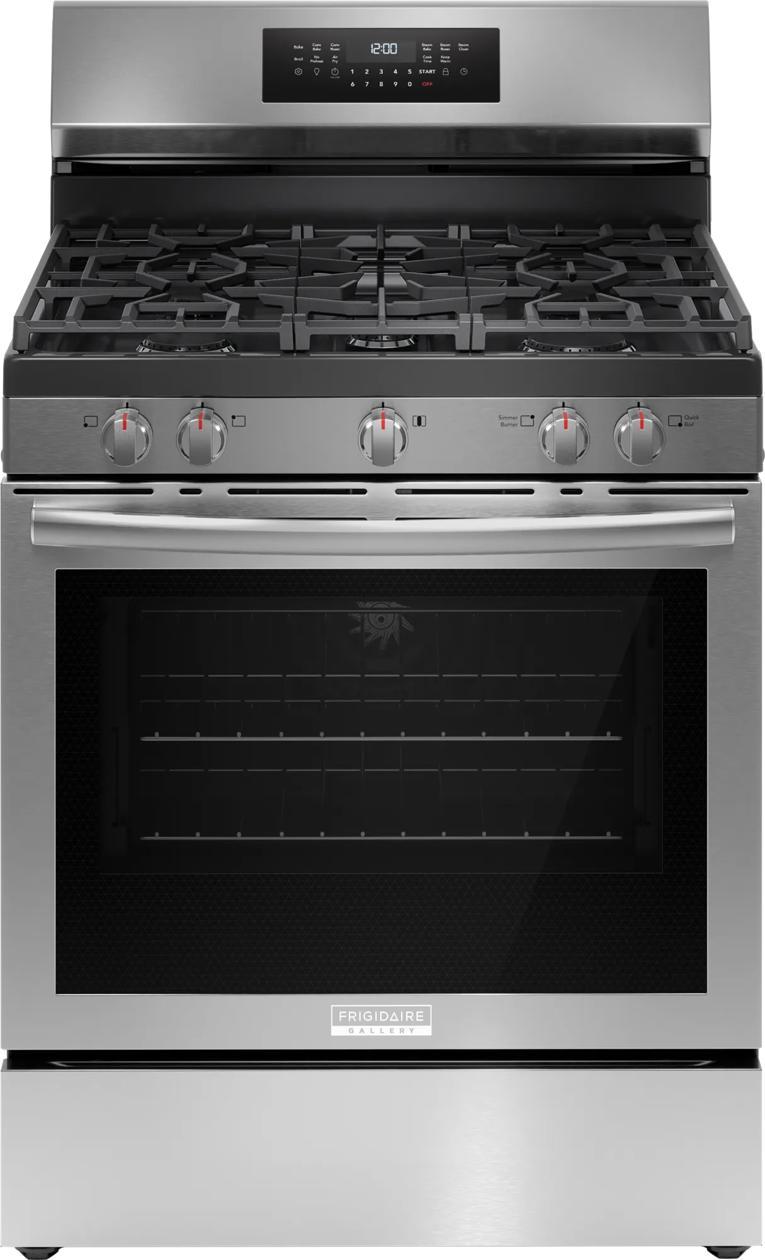

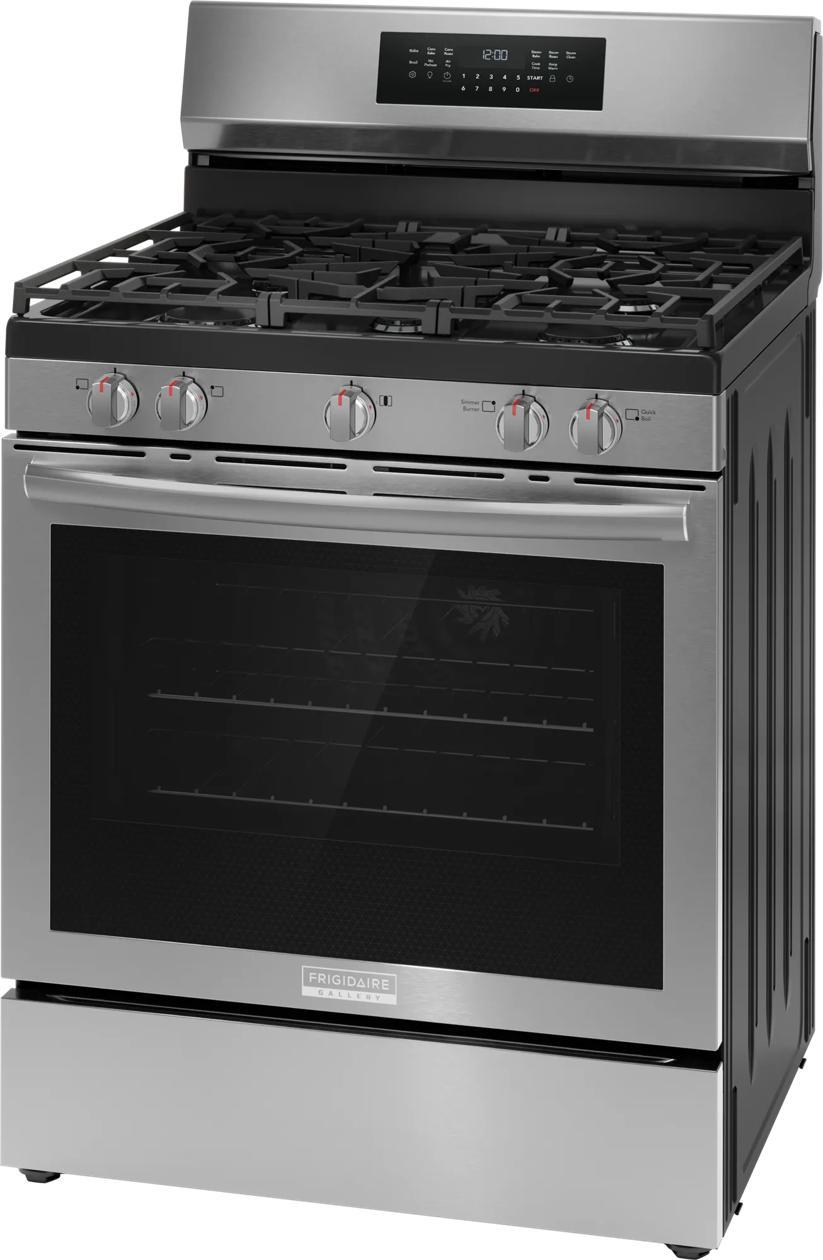

The Frigidaire Gallery 30" Rear Control Gas Range features our Total Convection system, powering cooking modes like Air Fry, No Preheat, Slow Cook, Steam Bake, Convection Bake, Air Sous Vide and more! The flexible five burner cooktop includes a 18k BTU Quick Boil burner. Plus, daily cleaning of your oven is easier with our convenient 30-minute steam clean cycle. Also includes our fingerprint resistant, Smudge-Proof® Stainless Steel finish.
| Product Line | Gas Range |
| Power Type | NG |
| Size | 30" |
| Installation Type | Free-Standing |
| Factory | Springfield |
| Color | Stainless Steel |
| Cooktop | |
| Cooking Surface Type | Gas |
| Grate Material | Cast Iron |
| Grate Quantity | 3 |
| Grate Style | Individual |
| Sealed Burners | Yes |
| Total Number of Burners | 5 |

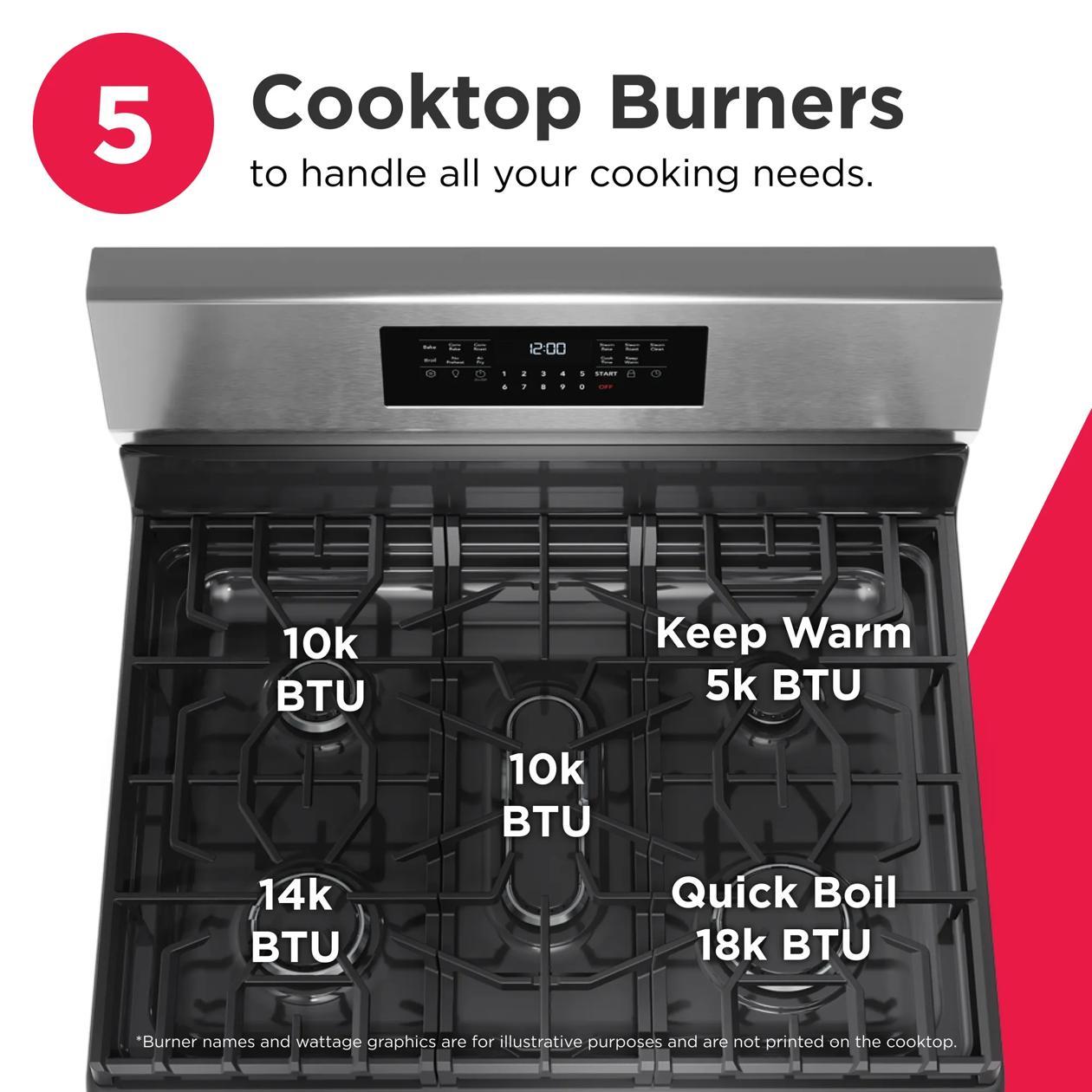

| Cooktop Performance | |
| Right Front Element Burner | 18000 BTU |
| Right Rear Element Burner | 5000 BTU |
| Left Front Element Burner | 14000 BTU |
| Left Rear Element Burner | 10000 BTU |
| Center Rear Element Burner | 10000 BTU |

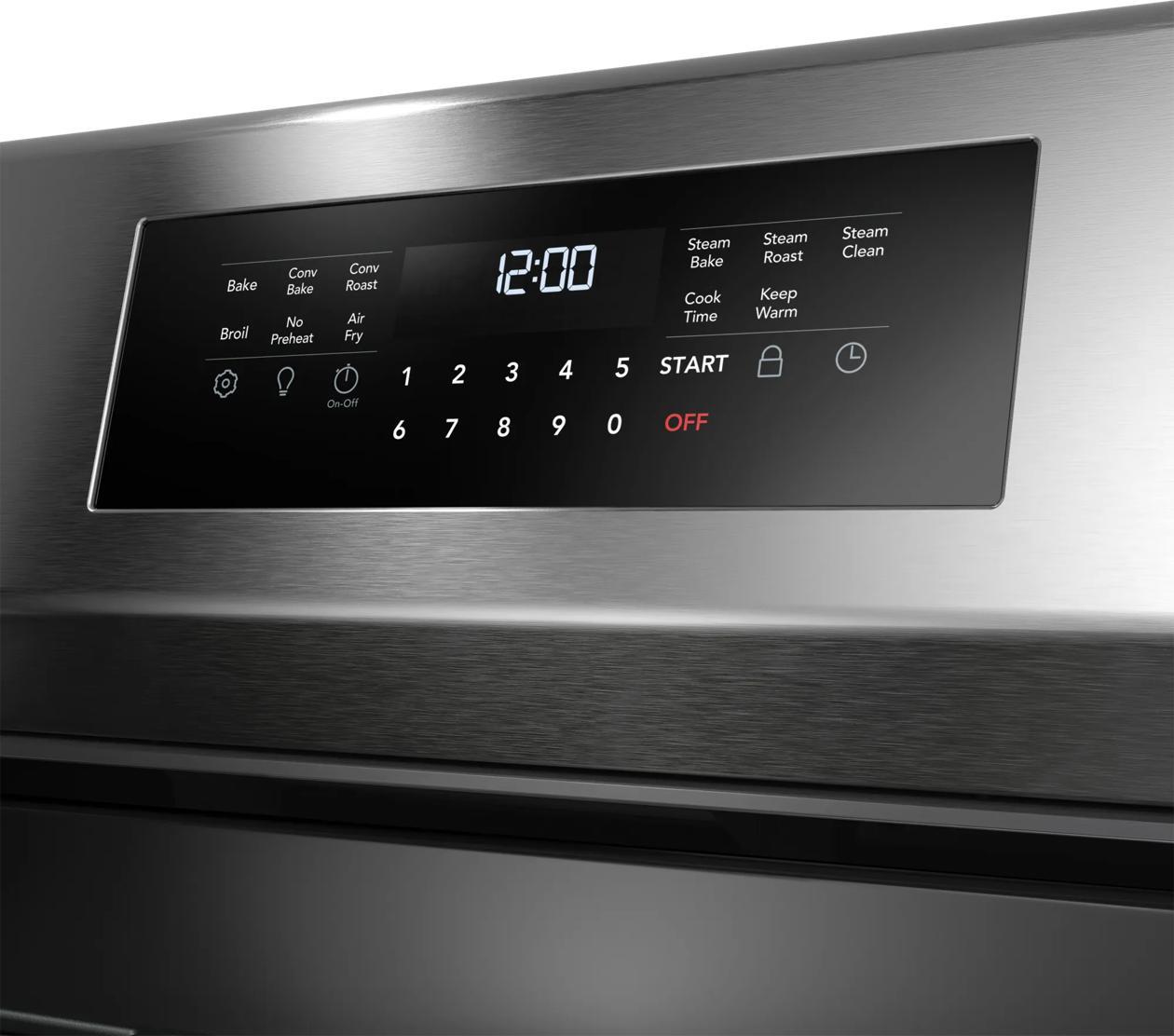

| Cooking Controls | |
| Air Fry | Yes |
| Air Sous Vide | Yes |
| Bake | Yes |
| Bake Time | Yes |
| Broil | Yes |
| Clock | Yes |
| Convection Bake | Yes |
| Convection Roast | Yes |
| Cook Time | Yes |
| Delay Clean | Yes |
| Delay Start | Yes |
| Door Lock | Yes |
| Keep Warm | Yes |
| Kitchen Timer | Yes |
| Light | Yes |
| Lockout | Yes |
| No Preheat | Yes |
| Numerical Keypad | Yes |
| Off | Yes |
| Oven Light | Yes |
| Set Clock | Yes |
| Slow Cook | Yes |
| Start | Yes |
| Steam Bake | Yes |
| Steam Clean | Yes |
| Steam Roast | Yes |
| Temperature Display | Yes |
| Timer On / Off | Yes |
| User Preferences | Yes |
| Cooking Controls Function | |
| Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
| Delayed Bake | Yes |
| Program Fahrenheit or Celsius | Yes |
| Silent Control Panel | Yes |

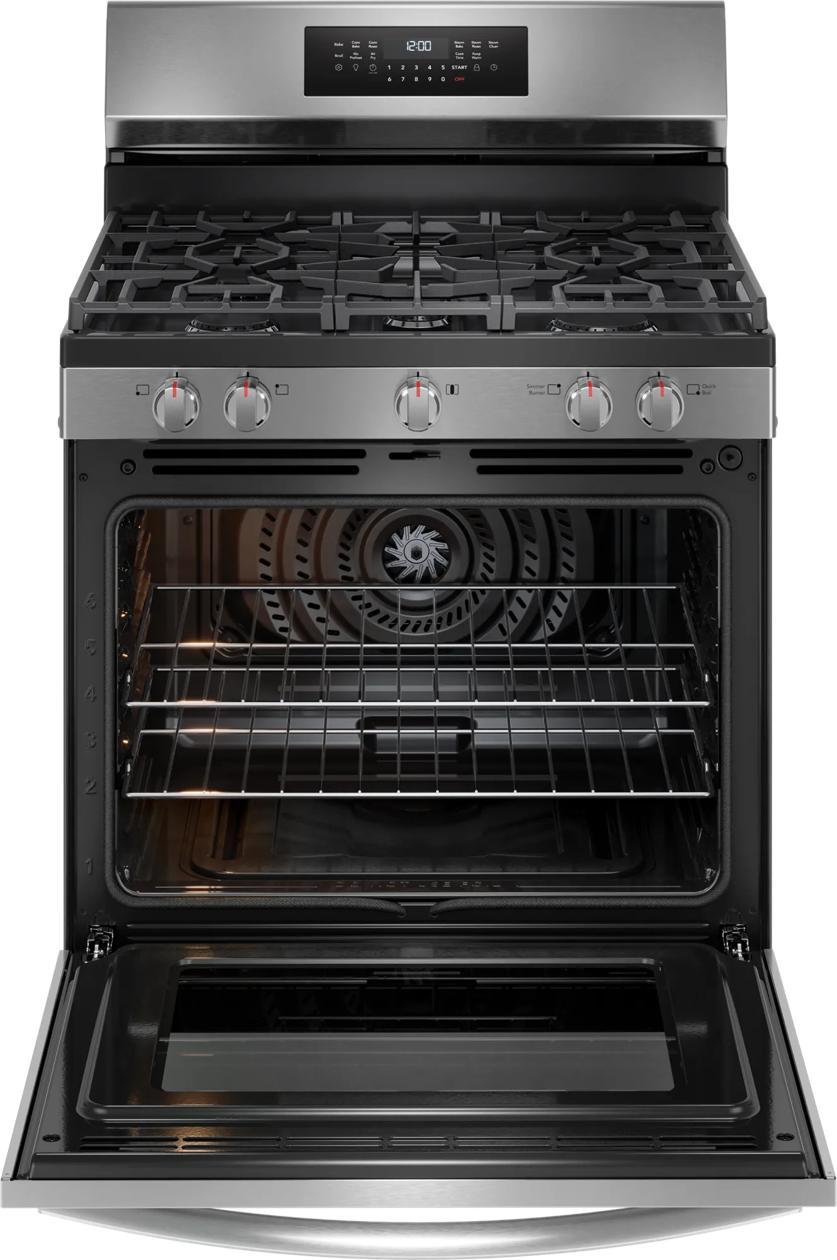

| Oven | |
| Bake Element | 18000 BTU |
| Broil Element | 1400 Watts |
| Broil Element Pass | 6 |
| Broil System | Yes |
| Cleaning System | Yes |
| Convection | Yes |
| Convection Element | 1000 Watts |
| Convection Type | Total |
| Number of Convection Fans | 1 |
| Number of Rack Positions | 6 |
| Oven Interior Color | Midnight Black |
| Oven Light Quantity | 1 |
| Oven Light Type | Halogen |
| Oven Light Watts | 40 Watts |
| Rack Position Type | Embossed |
| Rack Type 1 | Flat |
| Rack Type 1 Quantity | 2 |
| Drawer | |
| Drawer Handle Style | Integrated |
| Drawer Type | Storage |
| Controls | |
| Control Lock | Yes |
| Sabbath Mode | Yes |
| Display | |
| Control Location | Rear |
| Display Interface Color | White |
| Display Type | Capacitive Touch |

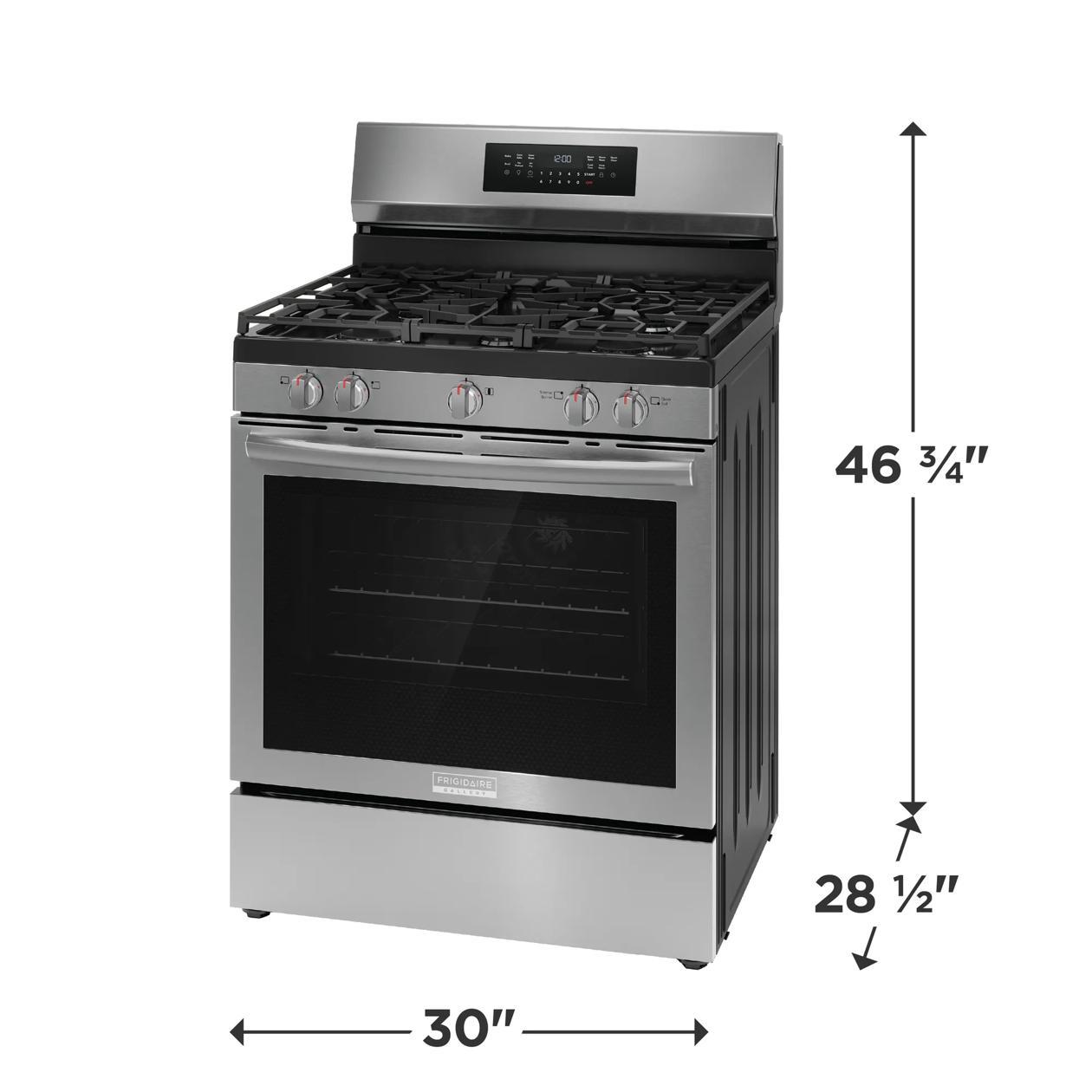

| Dimensions and Volume | |
| Minimum Height | 46 3/4" |
| Maximum Height | 47 3/4" |
| Width | 30" |
| Depth | 26" |
| Depth With Door 90° Open | 47 5/16" |
| Depth With Handle | 28 1/2" |
| Oven Interior Height | 17 5/8" |
| Oven Interior Width | 25 3/16" |
| Oven Interior Depth | 19 7/8" |
| Oven Capacity | 5.1 Cu. Ft. |
| Electrical Specifications | |
| Minimum Circuit Required | 12 Amps |
| Voltage Rating | 120 V |
| Installation | |
| Adjustable Leveling Legs | Yes |
| Power Cord Included | Yes |
| General Specifications | |
| Product Weight | 190 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| AB-1200 | Information available at frigidaire.com/en/ab1200 |
| Safety Certifications and Approvals | |
| CSA Listed | Yes |
