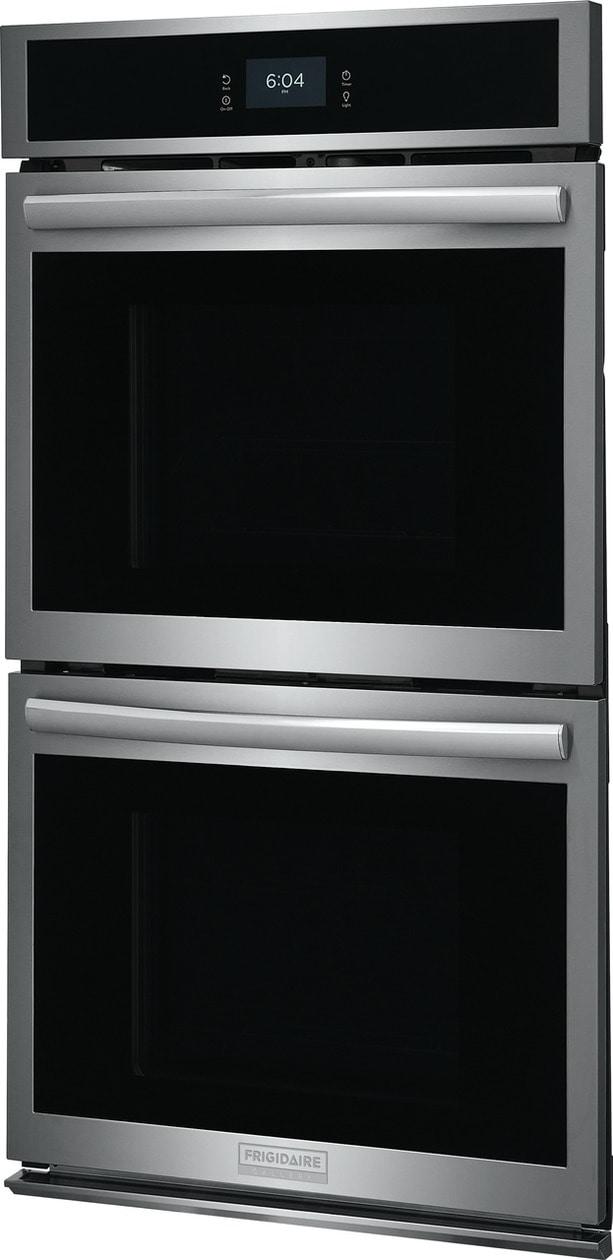

GCWD2767AF Frigidaire Gallery 27" Double Electric Wall Oven with Total Convection GCWD2767AF

The Frigidaire Gallery 27" Double Wall Oven with Total Convection, features our most powerful and advanced convection system, which enables cooking modes like No Preheat, Air Fry, Slow Cook, Steam Bake, Steam Roast, Air Sous Vide, Convection Roast, Convection Bake, Bread Proof and more! Also includes a convenient temperature probe, a premium touch screen digital control panel and our fingerprint resistant, Smudge-Proof® Stainless Steel finish.

Product Line	Double Wall Oven
Power Type	Electric 240v
Size	27"
Installation Type	Built-In
Factory	Springfield
Color	Stainless Steel
Cooking Controls
Air Fry	Yes
Air Sous Vide	Yes
Bake	Yes
Broil	Yes
Clock	Yes
Convection Bake	Yes
Convection Roast	Yes
Cook Time	Yes
Fast Preheat	Yes
My Favorite	Yes
No Preheat	Yes
Oven Light	Yes
Preheat	Yes
Probe	Yes
Self Clean	Yes
Set Clock	Yes
Start	Yes
Steam Bake	Yes
Steam Clean	Yes
Steam Roast	Yes
Timer On / Off	Yes
User Preferences	Yes
Warm and Hold	Yes
Cooking Controls Function
Change between Continuous Bake Setting or 12-Hour Energy Saving Feature	Yes
Program Fahrenheit or Celsius	Yes
Silent Control Panel	Yes
Oven
Bake Element	2500 Watts
Bake Element Pass	8
Bake Element Type	Hidden
Broil Element	4000 Watts
Broil Element Pass	6
Broil System	Yes
Cleaning System	Yes
Convection	Yes
Convection Element	2500 Watts
Convection Type	Total
Number of Convection Fans	1
Number of Rack Positions	5
Oven Interior Color	Midnight Black
Oven Light Quantity	2
Oven Light Type	Halogen
Oven Light Watts	40 Watts
Rack Position Type	Embossed
Rack Type 1	Handle
Rack Type 1 Quantity	5
Rack Type 2	Glide
Rack Type 2 Quantity	1
Controls
Control Lock	Yes
Sabbath Mode	Yes
Display
Display Interface Color	White
Display Light Color	White
Display Type	Capacitive Touch
Exterior
Exterior Finish	Smudge-Proof® Stainless Steel
Handle Color	Stainless Steel
Dimensions and Volume
Height	50 7/8"
Width	27"
Depth	24 3/4"
Depth With Door 90° Open	45 3/4"
Depth With Handle	27 7/16"
Lower Oven Interior Height	17"
Lower Oven Interior Width	20 1/2"
Lower Oven Interior Depth	18 3/4"
Upper Oven Interior Height	17"
Upper Oven Interior Width	20 1/2"
Upper Oven Interior Depth	18 3/4"
Minimum Cutout Height	48 7/8"
Minimum Cutout Width	24 7/8"
Maximum Cutout Height	50 1/4"
Maximum Cutout Width	25 1/4"
Oven Lower Capacity	3.8 Cu. Ft.
Oven Upper Capacity	3.8 Cu. Ft.
Total Capacity	7.6 Cu. Ft.
Electrical Specifications
Amps @ 240 Volts	40 Amps
Connected Load @ 240V	9 kW
Minimum Circuit Required	40 Amps
Voltage Rating	240 V
General Specifications
Frigidaire Fit Promise	Yes
Product Weight	215 lbs
Prop 65 Label	Yes
Warranty - Labor	1 Year
Warranty - Parts	1 Year
AB-1200	Information available at frigidaire.com/en/ab1200
Installation
Power Supply Connection Location	Top Right
Safety Certifications and Approvals
CSA Listed	Yes
RoHS	Yes
Star-K Certification	Yes
UL Listed	Yes
Accessories
Included Steam Tray	Yes
