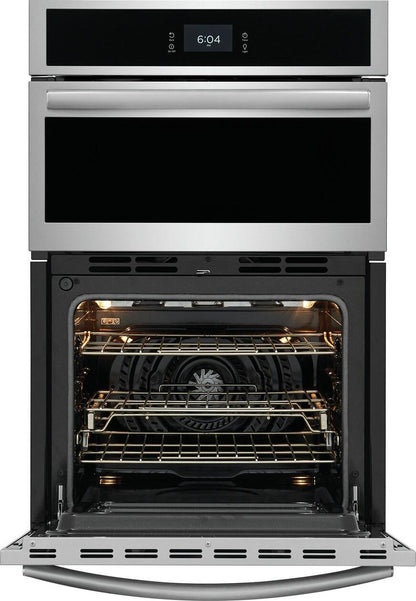

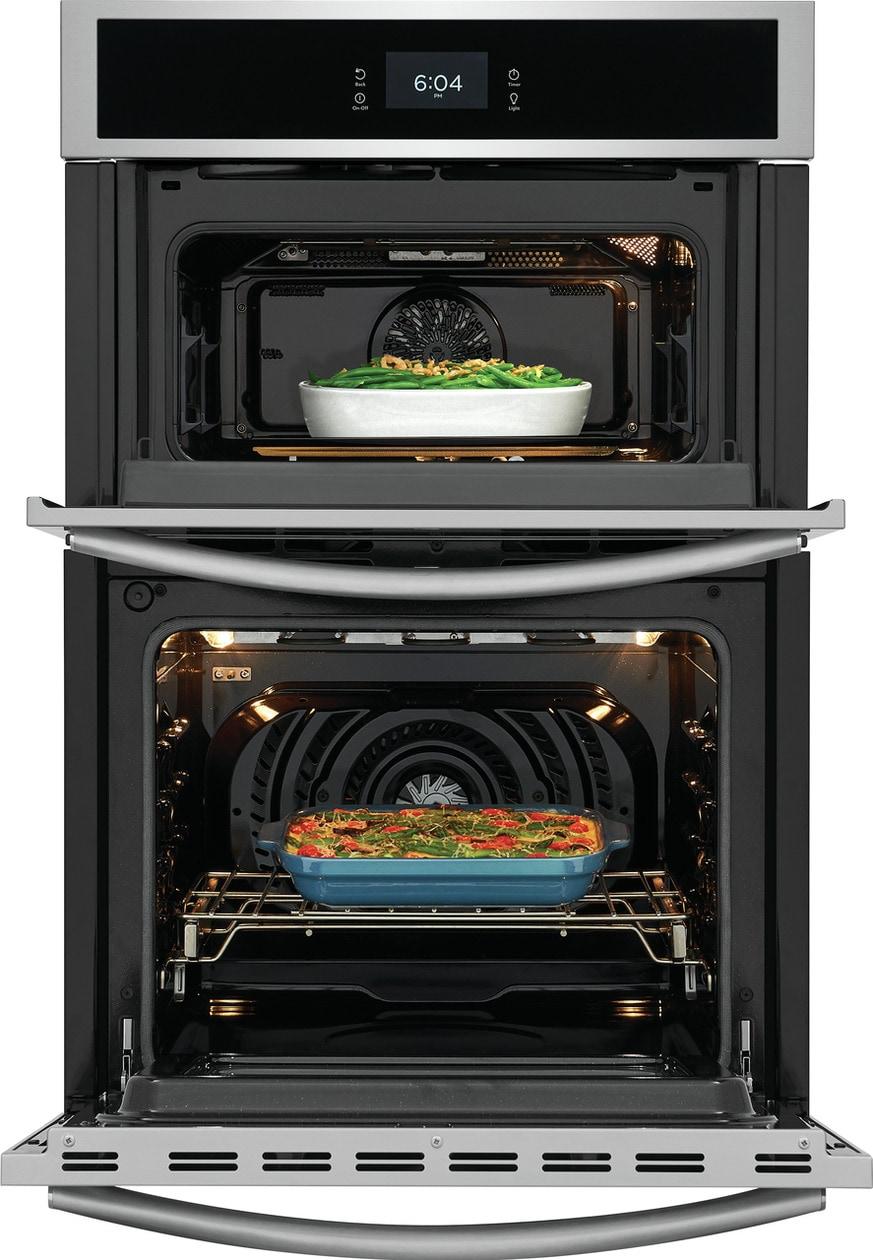

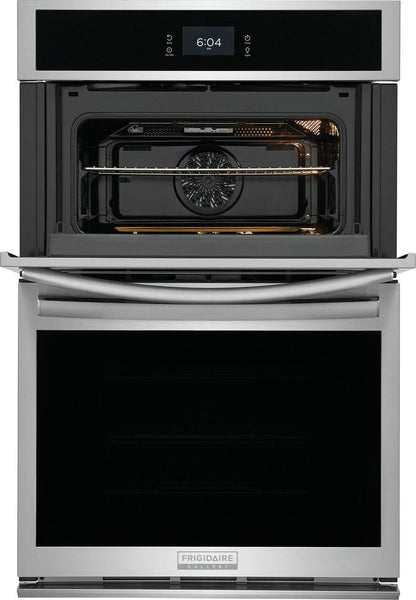

GCWM2767AF Frigidaire Gallery 27" Electric Wall Oven and Microwave Combination GCWM2767AF

The Frigidaire Gallery 27" Microwave Combination Oven with Total Convection, features our most powerful and advanced convection system that enables cooking modes like No Preheat, Air Fry, Slow Cook, Steam Bake, Steam Roast, Air Sous Vide, Convection Roast, Convection Bake, Bread Proof and more! Plus enjoy the convenience of convection cooking right in your microwave.

Product Line	Microwave Combination Wall Oven
Power Type	Electric 240v
Size	27"
Installation Type	Built-In
Factory	Springfield
Color	Stainless Steel
Cooking Controls
Air Fry	Yes
Air Sous Vide	Yes
Bake	Yes
Bake Time	Yes
Bread Proof	Yes
Broil	Yes
Cancel	Yes
Clear Off	Yes
Clock	Yes
Convection Bake	Yes
Convection Roast	Yes
Cook Time	Yes
Defrost	Yes
Dehydrate	Yes
Delay Clean	Yes
Delay Start	Yes
Door Lock	Yes
Fast Preheat	No
Keep Warm	Yes
Kitchen Timer	Yes
Light	Yes
My Favorite	Yes
No Preheat	Yes
Off	Yes
Oven Light	Yes
Perfect Turkey	Yes
Preheat	Yes
Probe	Yes
Self Clean	Yes
Set Clock	Yes
Slow Cook	Yes
Start	Yes
Start Time	Yes
Steam Bake	Yes
Steam Clean	Yes
Steam Roast	Yes
Stop	Yes
Temperature Display	Yes
Timed Bake	Yes
Timer On / Off	Yes
User Preferences	Yes
Cooking Controls Function
Change between Continuous Bake Setting or 12-Hour Energy Saving Feature	Yes
Program Fahrenheit or Celsius	Yes
Silent Control Panel	Yes
Oven
Bake Element	2500 Watts
Bake Element Pass	8
Bake Element Type	Hidden
Broil Element	4000 Watts
Broil Element Pass	6
Cleaning System	Yes
Convection	Yes
Convection Element	2500 Watts
Convection Type	Total
Number of Convection Fans	1
Number of Rack Positions	5
Oven Interior Color	Midnight Black
Oven Light Quantity	2
Oven Light Type	Halogen
Oven Light Watts	40 Watts
Rack Position Type	Embossed
Rack Type 1	Handle
Rack Type 1 Quantity	2
Rack Type 2	Glide
Rack Type 2 Quantity	1
Microwave Cooking
Microwave Cooking Power	1000 Watts
Bacon	Yes
Beverage	Yes
Defrost	Yes
Melt / Soften	Yes
Popcorn	Yes
Potato	Yes
Reheat	Yes
Rice	Yes
Top Grill Mode	Yes
Veggies	Yes
Convection Cooking
Convection Cooking - Bake	Yes
Convection Element	1650 Watts
Controls
Control Lock	Yes
Sabbath Mode	Yes
Microwave Control Features
+ 30 Seconds	Yes - One Touch

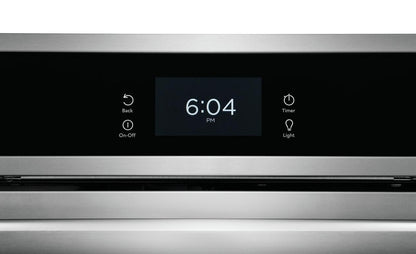

Display
Display Interface Color	White
Display Light Color	White

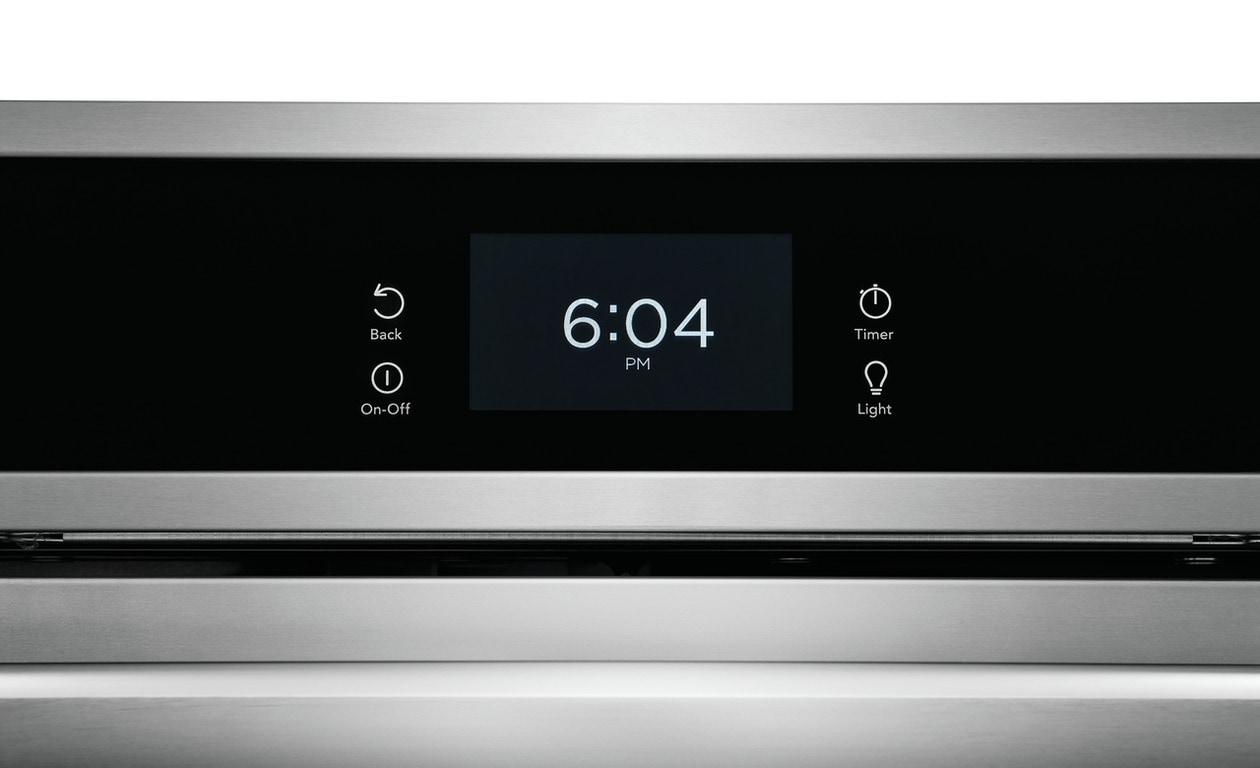

Display Type	Capacitive Touch
Exterior
Door Swing	Drop-Down Door
Exterior Finish	Smudge-Proof® Stainless Steel
Internal Specifications
Interior Color	Midnight Black
Interior Light Quantity	1
Interior Light Type	Halogen
Interior Light Wattage	40 Watts
Rack	Yes
Ramp Up Lighting	No
Turntable Diameter	14"
Turntable Material	Glass
Dimensions and Volume
Height	42 5/16"
Width	27"
Depth	24 5/8"
Depth With Door 90° Open	45 3/4"
Depth With Handle	27 7/16"
Cutout Depth	24"
Oven Interior Height	17"
Oven Interior Width	20 1/2"
Oven Interior Depth	18 3/4"
Microwave Interior Height	17"
Microwave Interior Width	20 1/2"
Microwave Interior Depth	18 3/4"
Minimum Cutout Height	39 7/8"
Minimum Cutout Width	24 7/8"
Maximum Cutout Height	41 1/2"
Maximum Cutout Width	25 1/2"
Microwave Capacity	1.7 Cu. Ft.
Oven Capacity	3.8 Cu. Ft.
Electrical Specifications
Amps @ 240 Volts	40 Amps
Connected Load @ 240V	7.4 kW
Minimum Circuit Required	40 Amps
General Specifications
Frigidaire Fit Promise	Yes
Product Weight	220 lbs
Prop 65 Label	Yes
Warranty - Labor	1 Year
Warranty - Parts	1 Year
AB-1200	Information available at frigidaire.com/en/ab1200
Installation
Power Supply Connection Location	Top Left
Safety Certifications and Approvals
CSA Listed	Yes
Star-K Certification	Yes
UL Listed	Yes
Accessories
Included Steam Tray	Yes
Optional Air Fry Tray Part Number	AFT27FRIG
Optional Trim Kit Part Number	WO27TRM3SS (Stainless) , WO27TRM3DS (Black Stainless)
