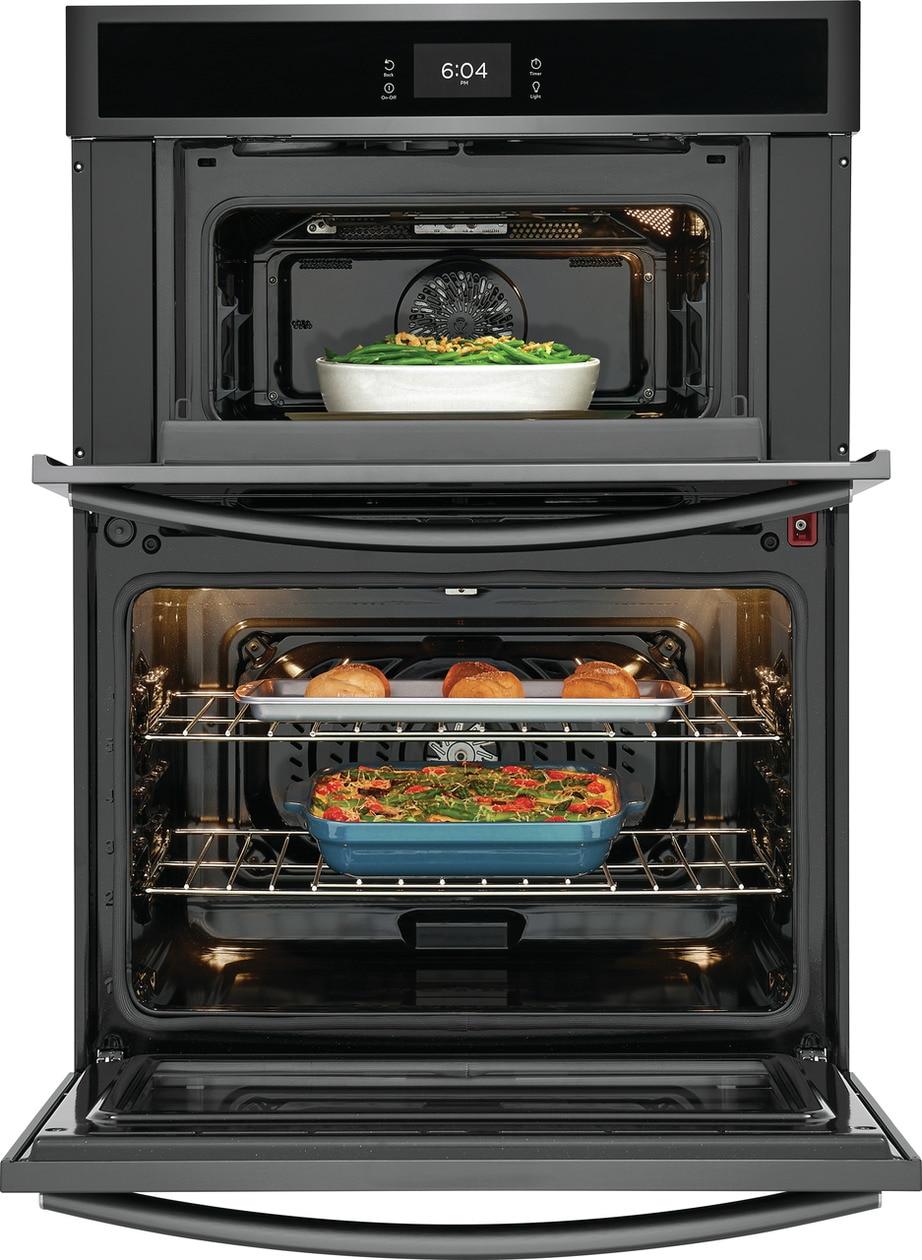

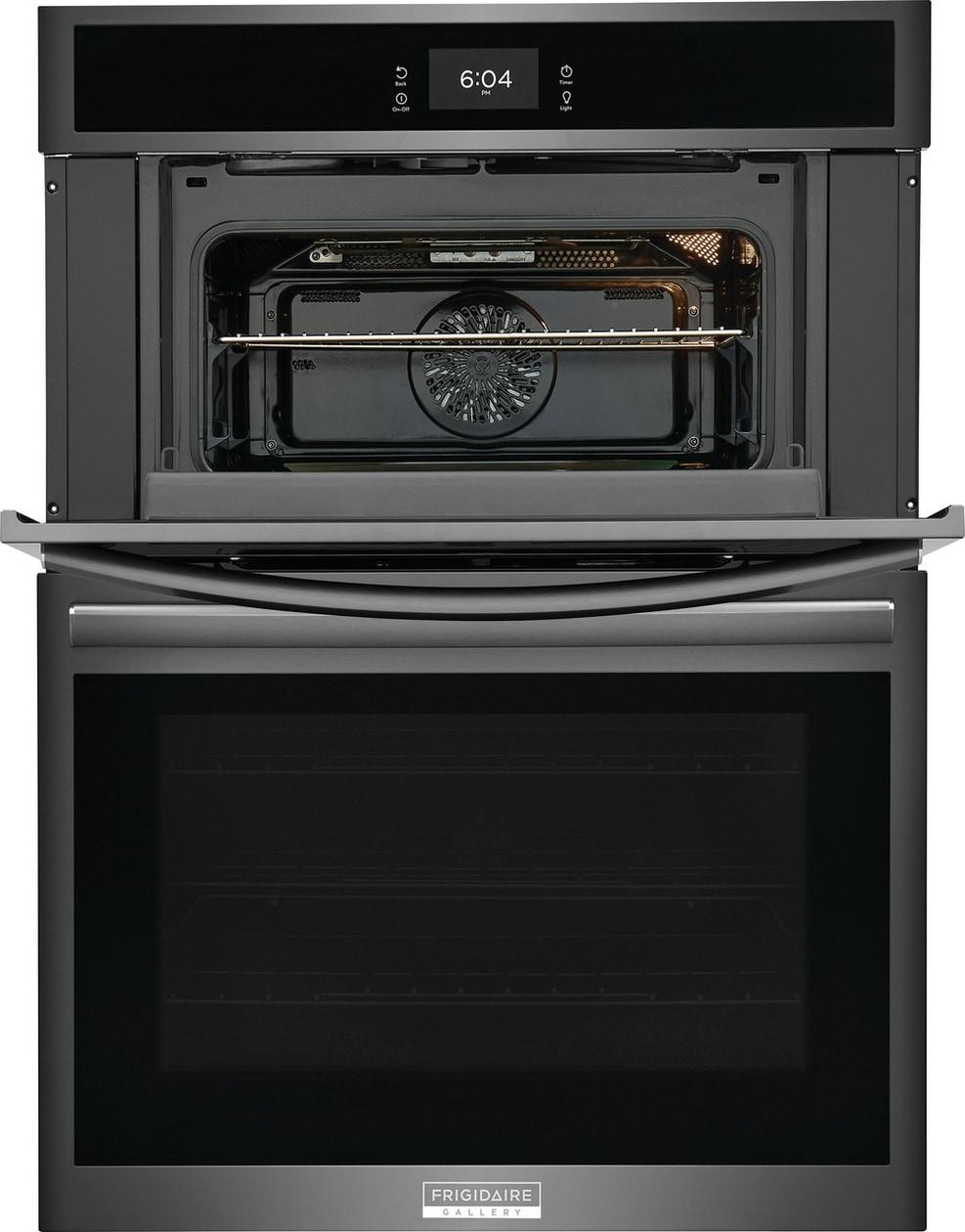

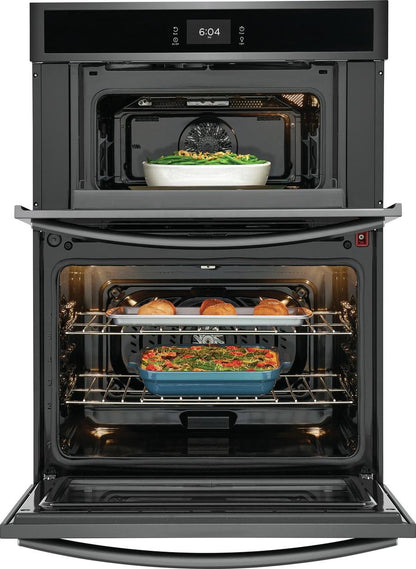

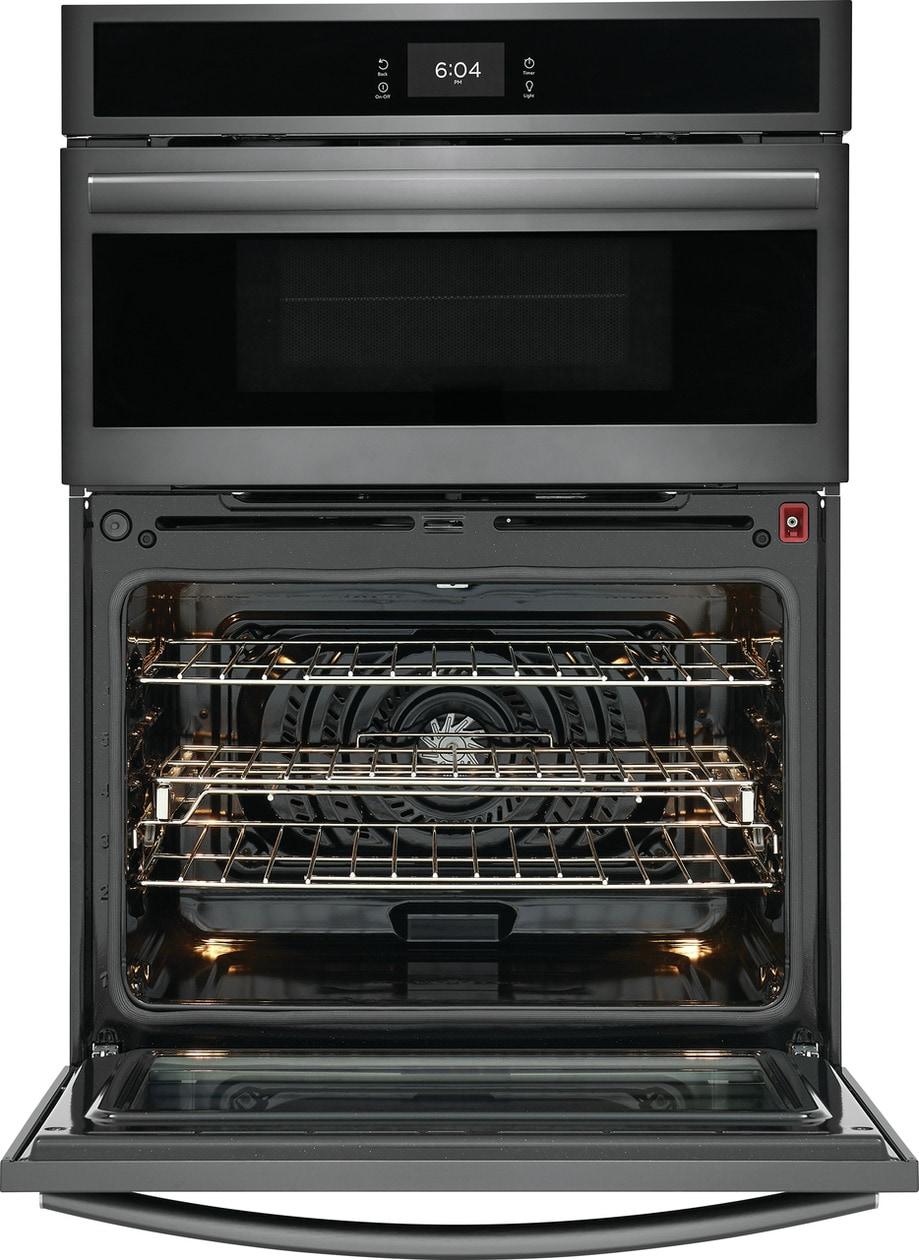

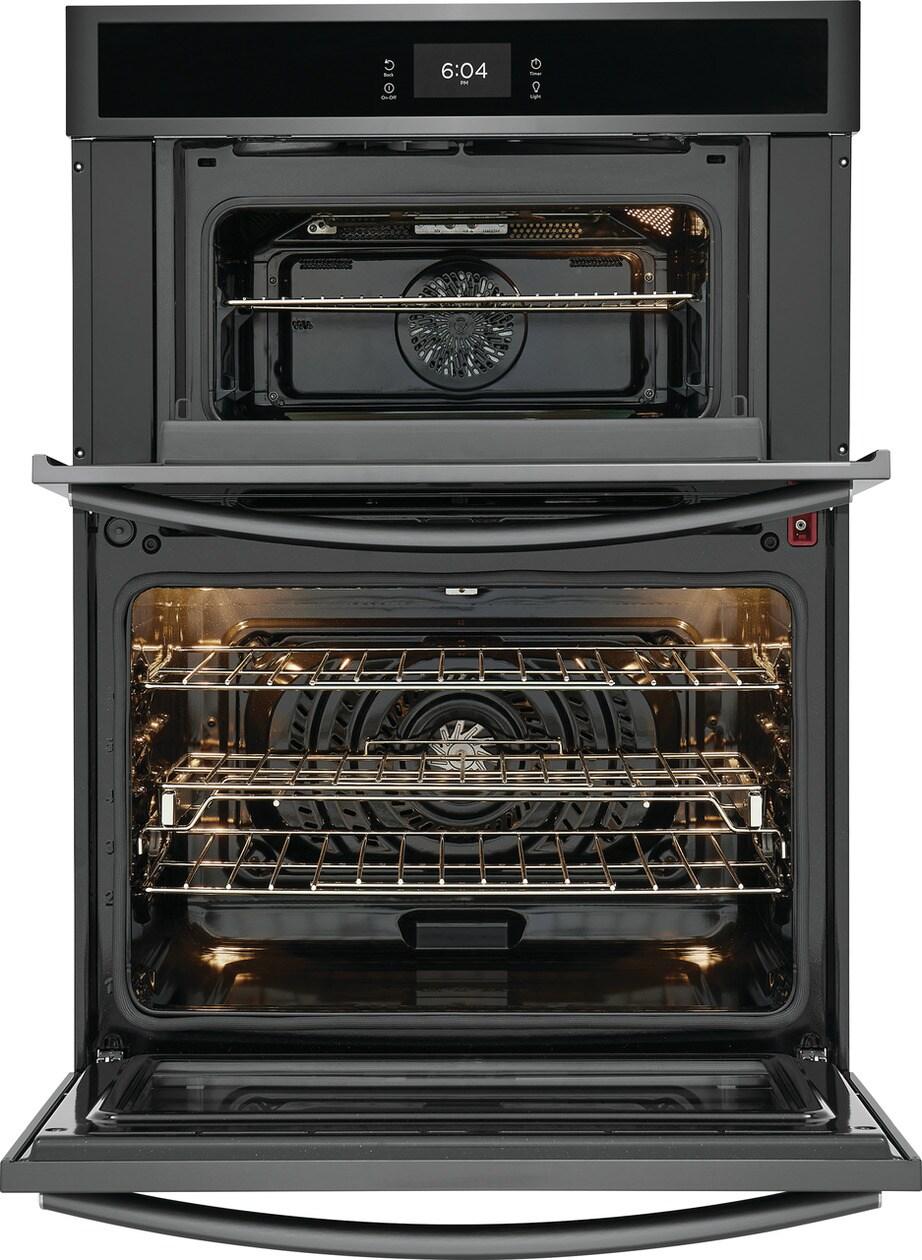

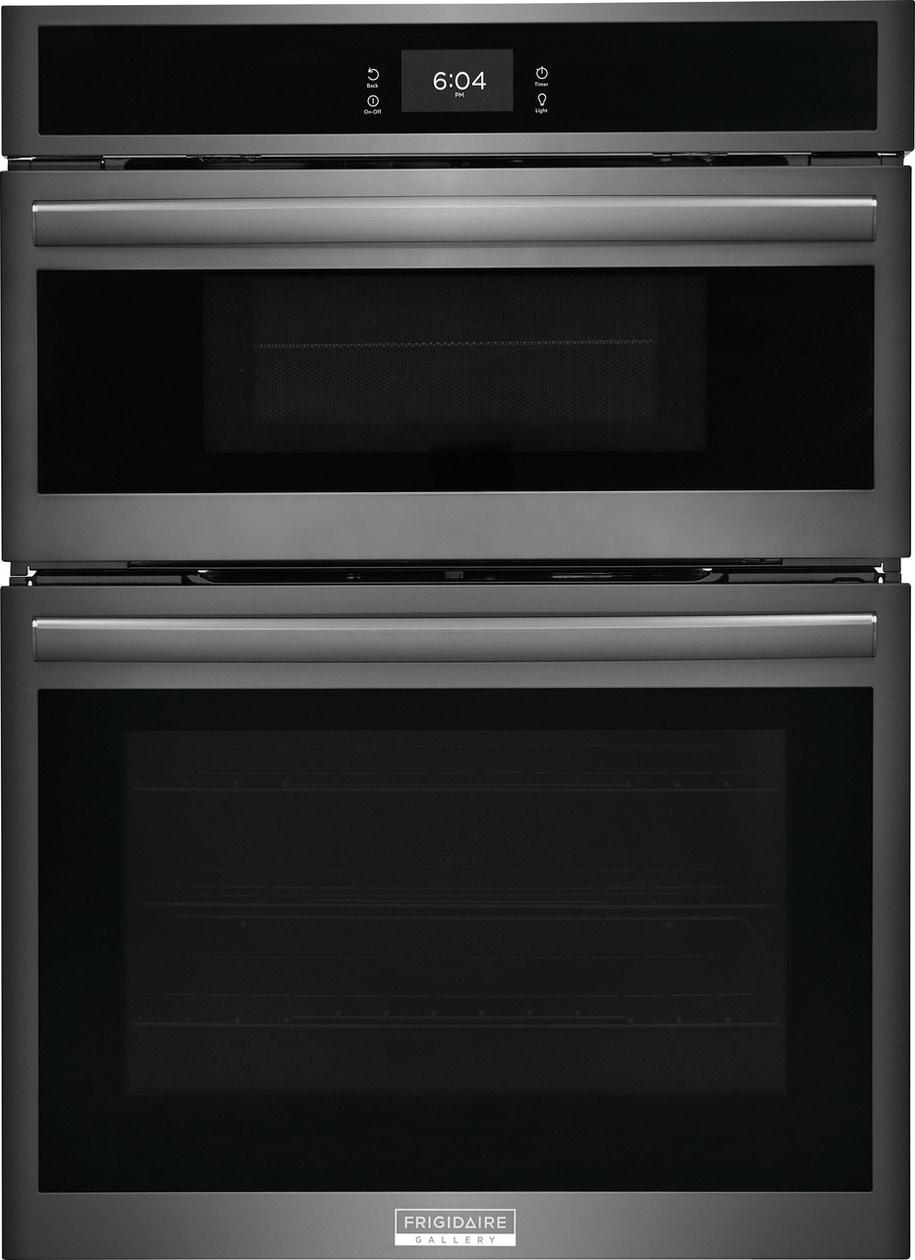

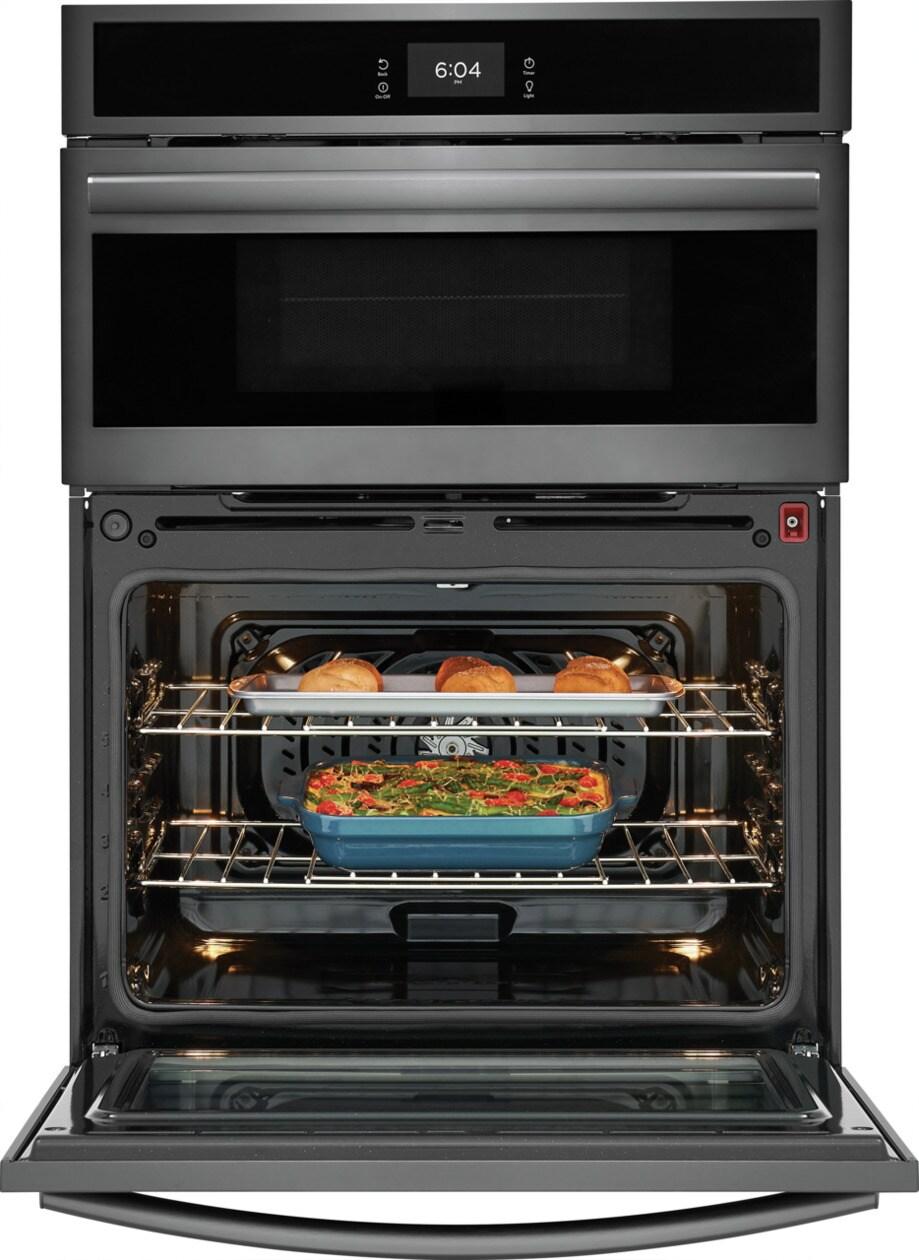

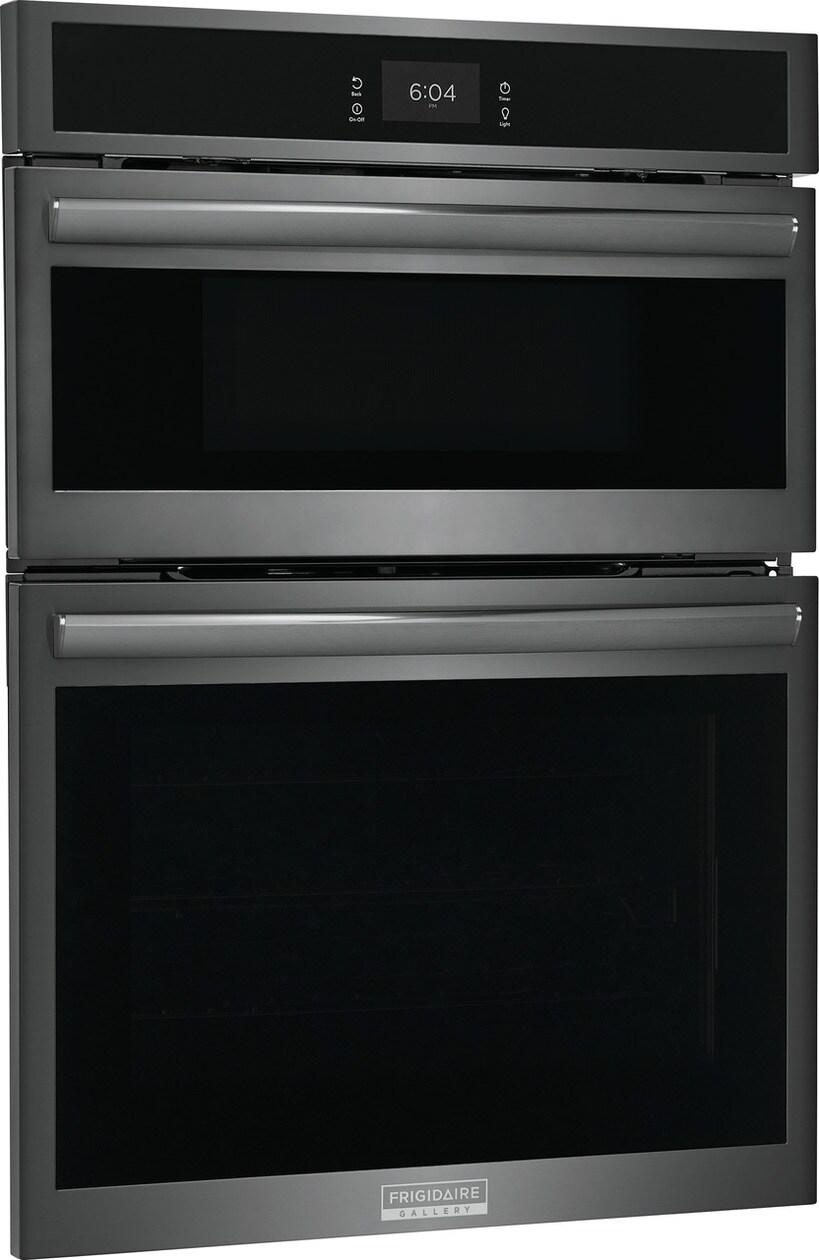

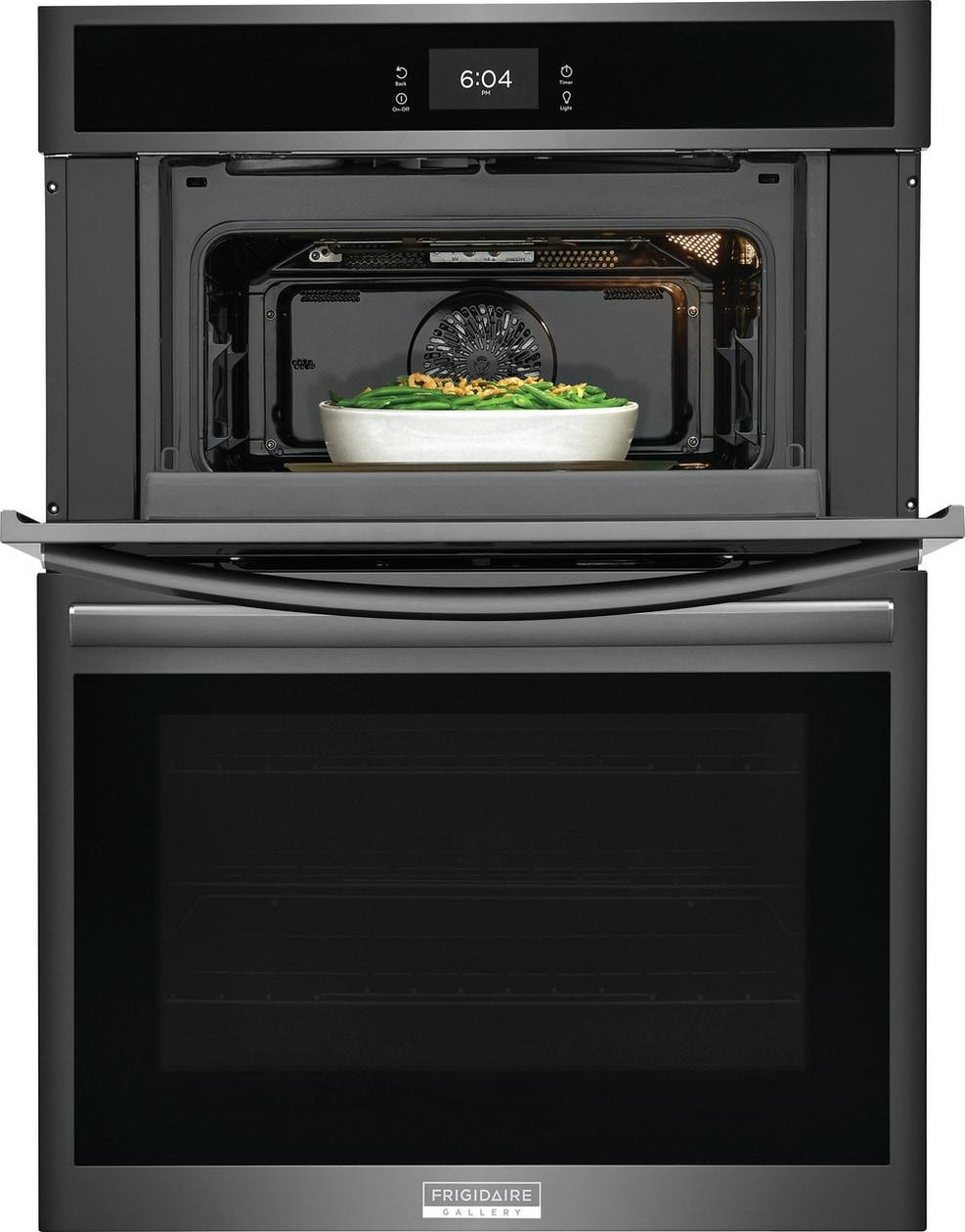

GCWM3067AD Frigidaire Gallery 30" Electric Wall Oven and Microwave Combination GCWM3067AD

The Frigidaire Gallery 30" Microwave Combination Oven features our most powerful and advanced convection system ever, Total Convection. Our Total Convection system enables you to get cooking faster with No Preheat, and enjoy of a variety of cooking modes like Air Fry, Steam Bake, Steam Roast, Bread Proof, Dehydrate, Convection Roast, Convection Bake and more - all in an extra large 5.3 Cu.F.t capacity oven. Plus the microwave features Convection cooking, which delivers the great tasting results of a convection oven, but combined with the speed of a microwave.

Product Line	Microwave Combination Wall Oven
Power Type	Electric 240v
Size	30"
Installation Type	Built-In
Factory	Springfield
Color	Black Stainless Steel
Cooking Controls
Air Fry	Yes
Air Sous Vide	Yes
Bake	Yes
Bake Time	Yes
Bread Proof	Yes
Broil	Yes
Cancel	Yes
Child Lock	Yes
Clear Off	Yes
Clock	Yes
Convection Bake	Yes
Convection Roast	Yes
Cook Time	Yes
Dehydrate	Yes
Delay Clean	Yes
Delay Start	Yes
Fast Preheat	Yes
Keep Warm	Yes
Kitchen Timer	Yes
Light	Yes
My Favorite	Yes
No Preheat	Yes
Off	Yes
Oven Light	Yes
Perfect Turkey	Yes
Preheat	Yes
Probe	Yes
Self Clean	Yes
Set Clock	Yes
Slow Cook	Yes
Start	Yes
Start Time	Yes
Steam Bake	Yes
Steam Clean	Yes
Steam Roast	Yes
Stop	Yes
Temperature Display	Yes
Timed Bake	Yes
Timer On / Off	Yes
User Preferences	Yes
Cooking Controls Function
Change between Continuous Bake Setting or 12-Hour Energy Saving Feature	Yes
Delayed Bake	Yes
Program Fahrenheit or Celsius	Yes
Silent Control Panel	Yes
Timed Cooking	Yes
Oven
Bake Element	2600 Watts
Bake Element Pass	4
Bake Element Type	Hidden
Broil Element	4000 Watts
Broil Element Pass	6
Broil System	Yes
Cleaning System	Yes
Convection	Yes
Convection Element	3800 Watts
Convection Type	Total
Number of Convection Fans	1
Number of Rack Positions	6
Oven Interior Color	Midnight Black
Oven Light Quantity	2
Oven Light Type	Halogen
Oven Light Watts	40 Watts
Rack Position Type	Embossed
Rack Type 1	Flat
Rack Type 1 Quantity	2
Rack Type 2	Glide
Rack Type 2 Quantity	1
Microwave Cooking
Microwave Cooking Power	1000 Watts
Bacon	Yes
Beverage	Yes
Defrost	Yes
Melt / Soften	Yes
Popcorn	Yes
Reheat	Yes
Rice	Yes
Top Grill Mode	Yes
Veggies	Yes
Convection Cooking
Convection Cooking - Bake	Yes
Convection Element	1650 Watts
Controls
Control Lock	Yes
Sabbath Mode	Yes
Microwave Control Features
+ 30 Seconds	Yes - One Touch

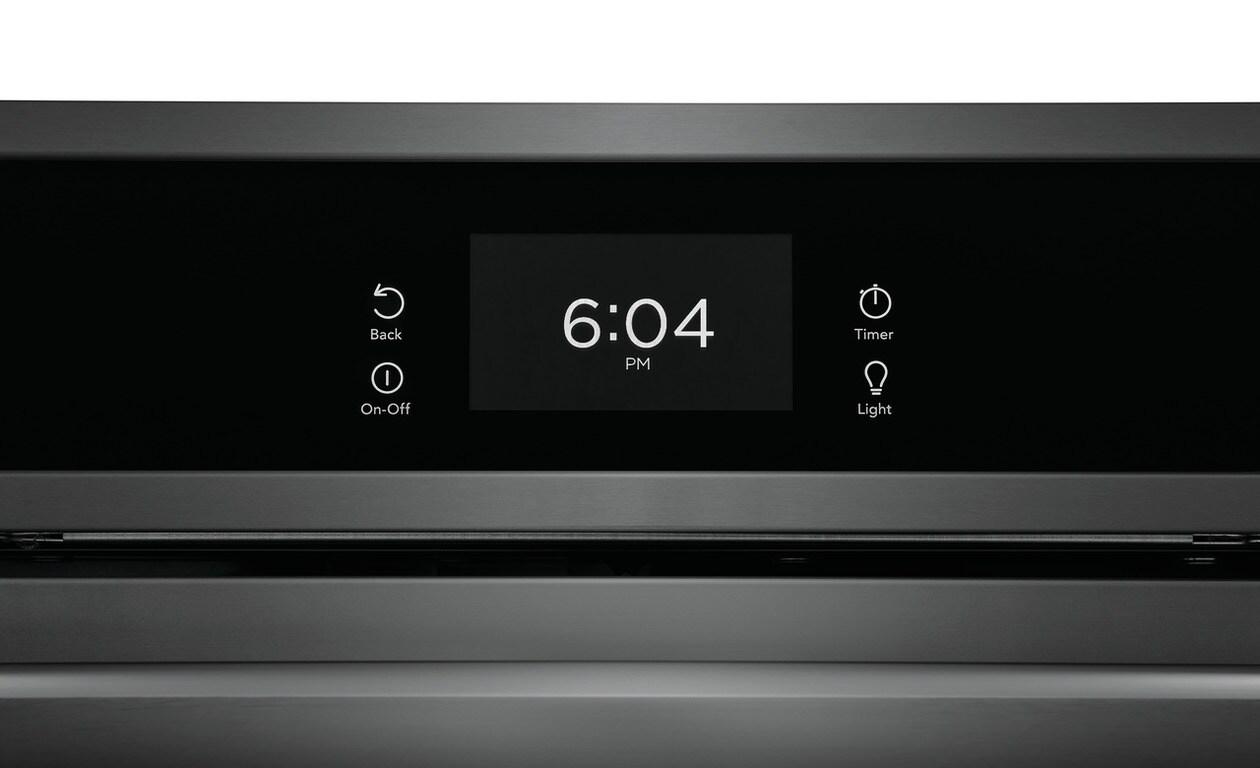

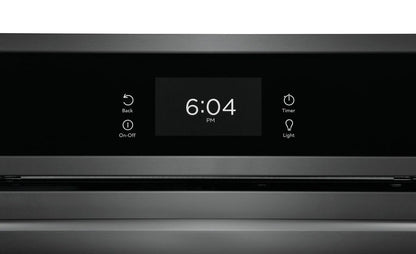

Display
Display Interface Color	White
Display Light Color	White
Display Type	Capacitive Touch
Exterior
Door Swing	Drop-Down Door
Exterior Finish	Smudge-Proof® Black Stainless Steel
Internal Specifications
Rack	Yes
Turntable Diameter	14"
Turntable Material	Glass
Dimensions and Volume
Height	41 9/16"
Width	30"
Depth	25 3/16"
Depth With Door 90° Open	48 3/16"
Depth With Handle	27 3/5"
Cutout Depth	23 5/8"
Oven Interior Height	18 1/8"
Oven Interior Width	25 3/16"
Oven Interior Depth	19 7/8"
Microwave Interior Height	9 5/16"
Microwave Interior Width	18 7/8"
Microwave Interior Depth	16 1/8"
Minimum Cutout Height	41 1/4"
Minimum Cutout Width	28 1/2"
Maximum Cutout Height	42"
Maximum Cutout Width	28 3/4"
Microwave Capacity	1.7 Cu. Ft.
Oven Capacity	5.3 Cu. Ft.
Electrical Specifications
Amps @ 240 Volts	40 Amps
Connected Load @ 240V	7.6 kW
Minimum Circuit Required	40 Amps
Voltage Rating	240 V
General Specifications
Frigidaire Fit Promise	Yes
Product Weight	275 lbs
Prop 65 Label	Yes
Warranty - Labor	1 Year
Warranty - Parts	1 Year
AB-1200	Information available at frigidaire.com/en/ab1200
Installation
Power Supply Connection Location	Top Left
Safety Certifications and Approvals
CSA Listed	Yes
RoHS	Yes
Star-K Certification	Yes
UL Listed	Yes
Accessories
Optional Air Fry Tray Part Number	FRIGPEREAFT
Optional Trim Kit Part Number	WOMC3TRIMSS, WOMC3TRIMDSS
