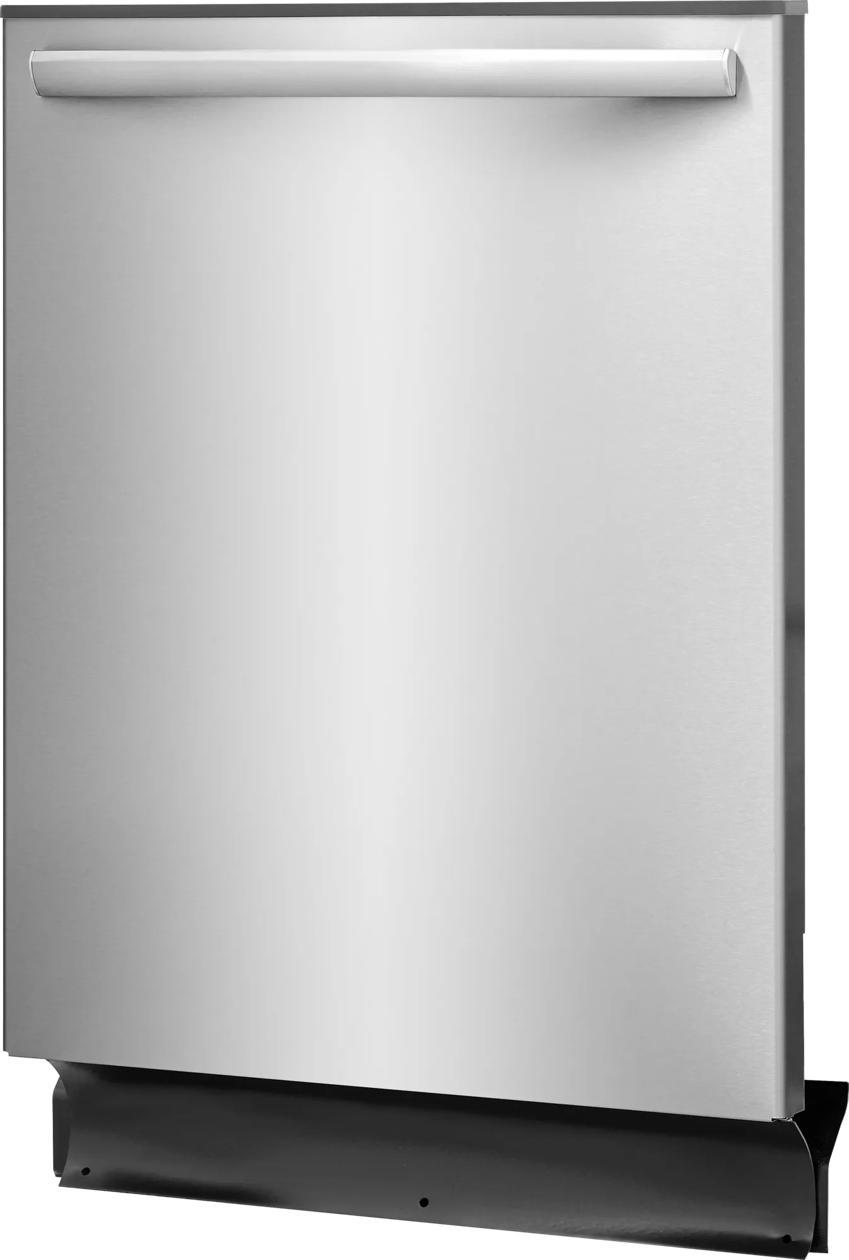

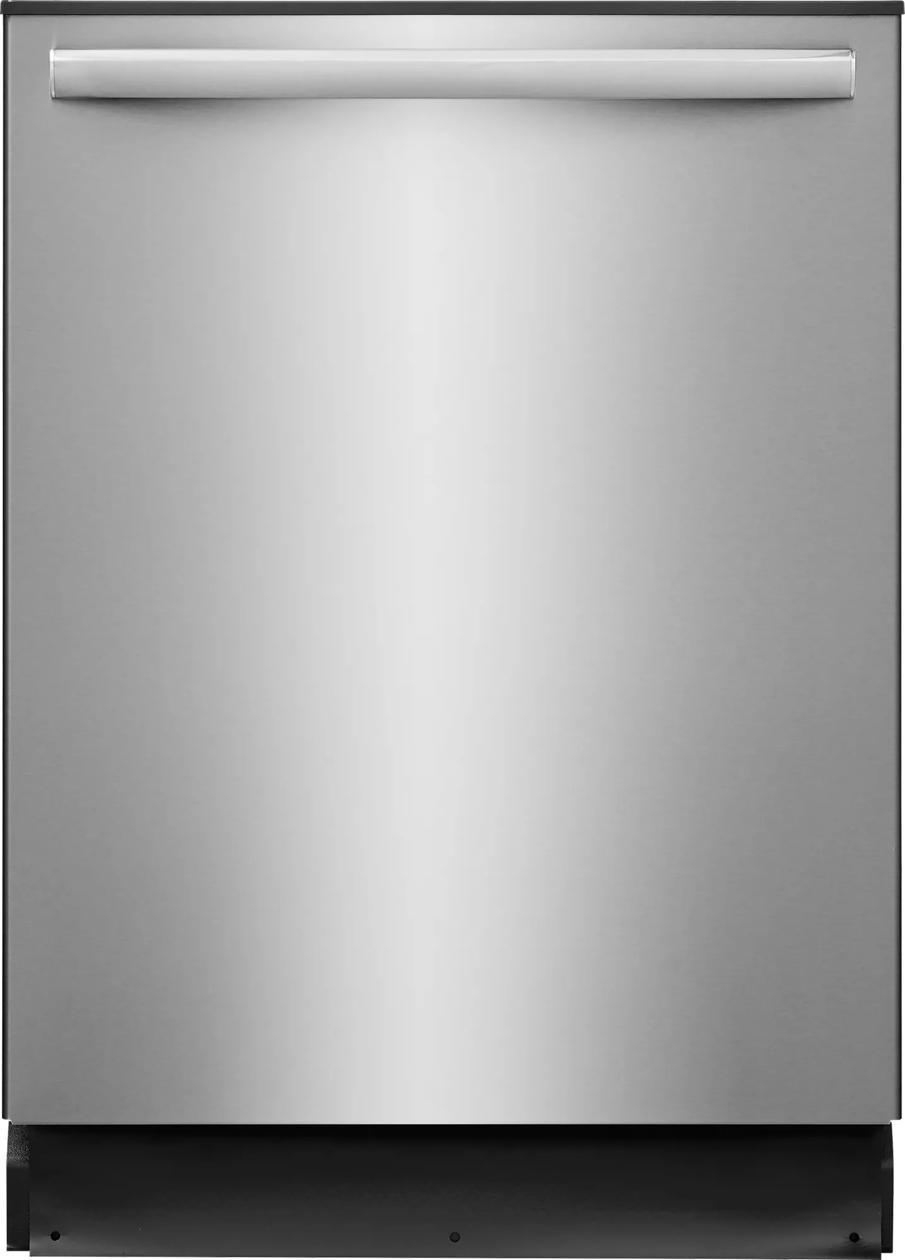

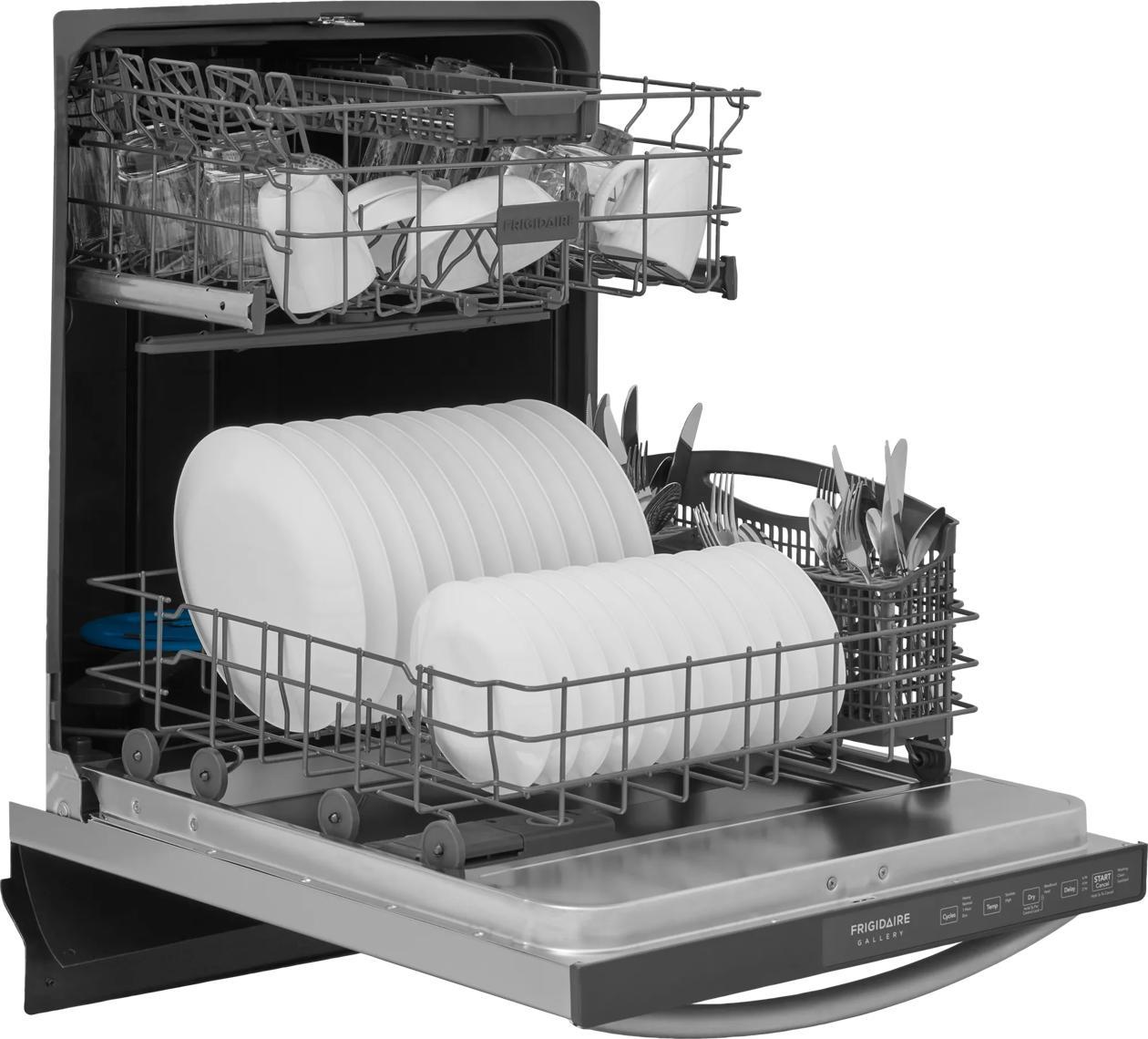

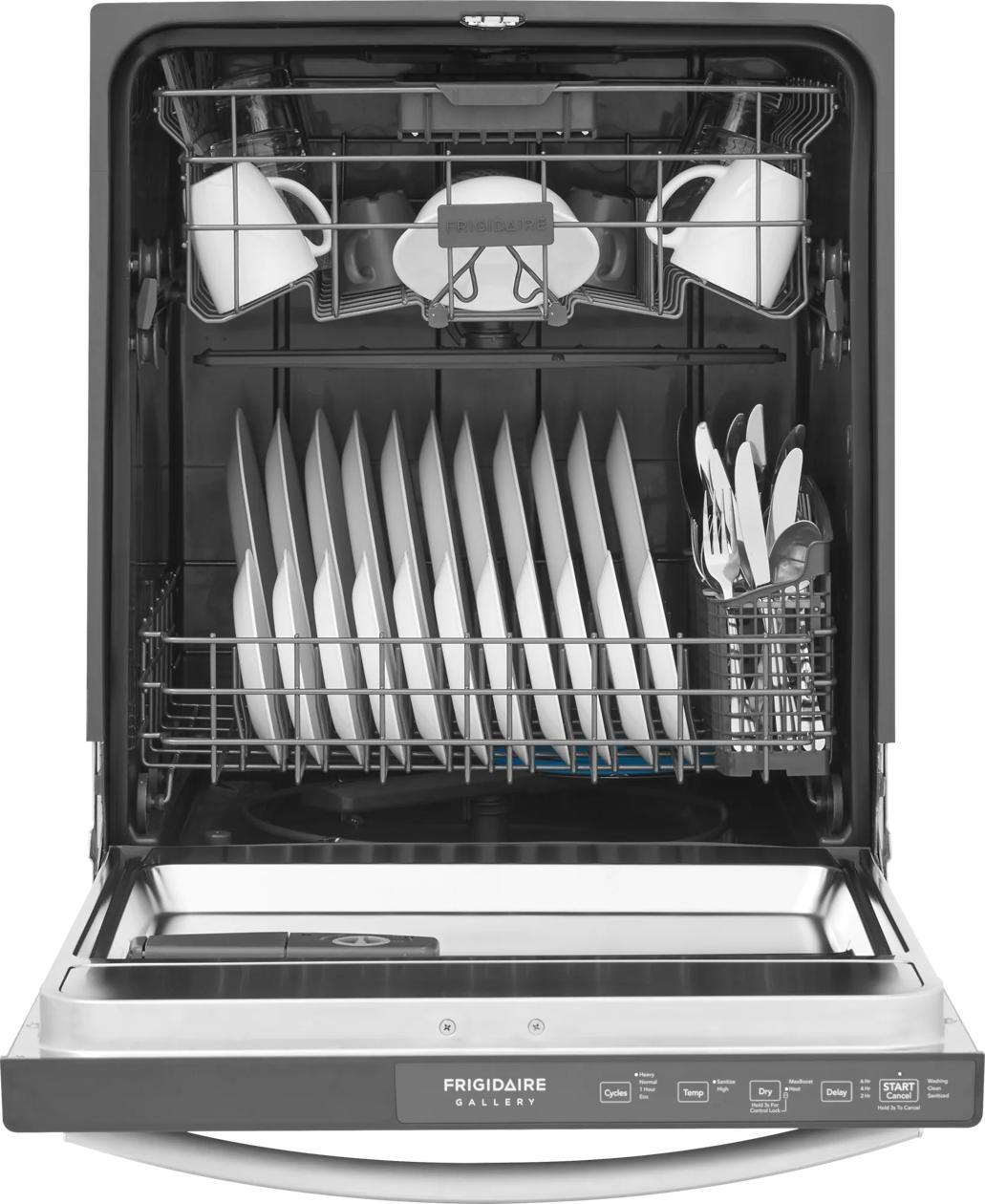

Frigidaire GDHH4527AF 24" Dishwasher

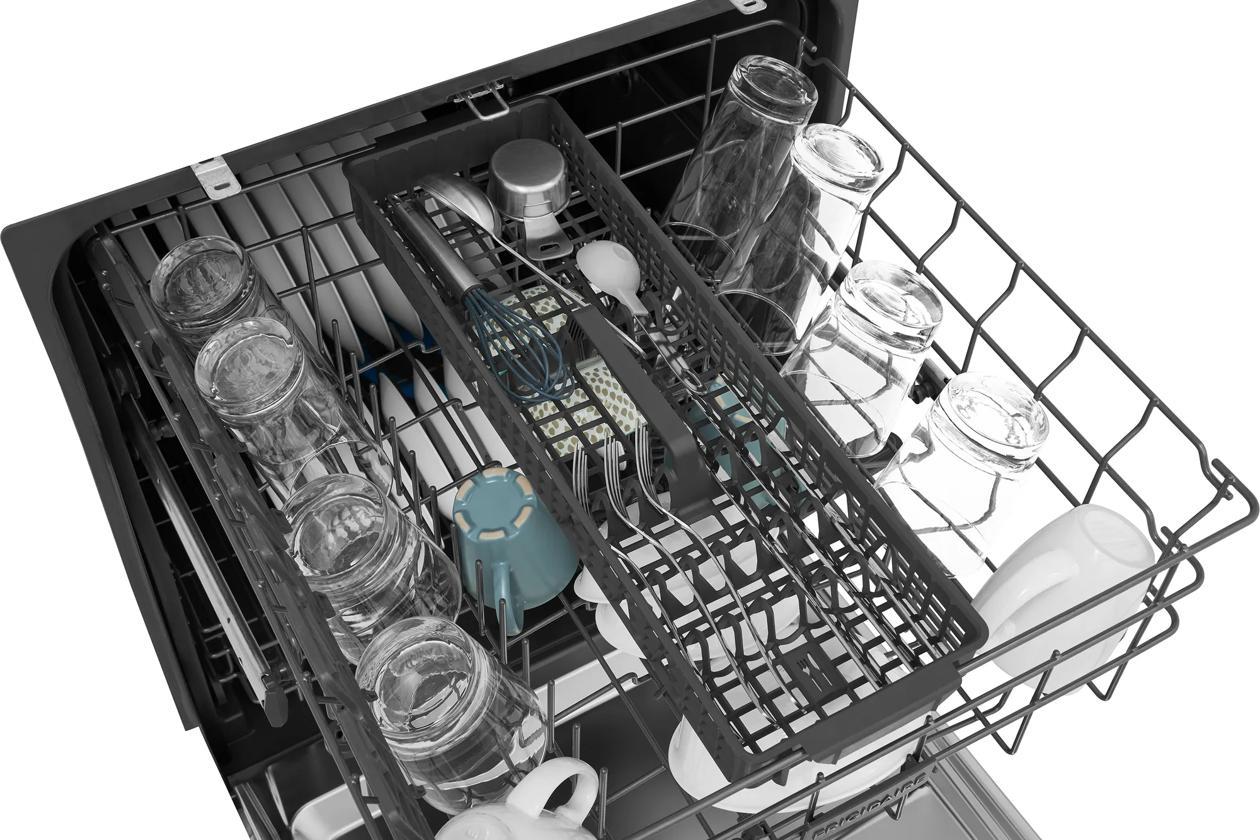

The Frigidaire Gallery 24" Built-In Dishwasher offers a more complete clean with sensor technology that adjusts cleaning performance based on soil levels and the OrbitClean® Wash System with multi-directional spray patterns. Forget the hand towel with the MaxBoost™ Dry system that delivers fast, effective drying every time. The FlexSlide upper tray adds space and versatility, easily accommodating silverware, cooking utensils, and other hard-to-fit items. Plus, with a 1-Hour Wash cycle, you'll enjoy clean, ready-to-use dishes in less time, perfect for busy nights or effortless entertaining.

Product Line	Dishwasher
Power Type	Electric 120v
Installation Type	Built-In
Factory	Kinston
Color	Stainless Steel
Dishwasher
Detergent Dispenser	Yes
Filter Material	Plastic
Filter Trap	Removable
Filtered Water	100 %
Hard Food Disposer or Filtration	Yes
Interior Light	No
Motor Speeds	Single-Speed
Place Setting Capacity	14
Rinse Aid Dispenser	Yes
Smart Soil Sensor	Yes
Lower Spray Arm	Orbit
Middle Spray Arm	Bi-Beam
Upper Spray Arm	Blade
Status Indicator Floor Beam	Yes
Tub Color	Midnight Ink
Tub Design	Tall Tub
Tub Material	Plastic
Wash Levels	5
Wash System	Direct Feed
Dishwasher Cycles
Energy Saver	Yes
Heavy	Yes
Normal	Yes
Number of Cycles	4
Quick	Yes
Dishwasher Options
Dry - Heat	Yes
Dry - MaxBoost	Yes
Drying System	MaxBoost
High Temperature	Yes
Start/Cancel	Yes
Washing Temperature - High	Yes
Washing Temperature - Sanitize	Yes

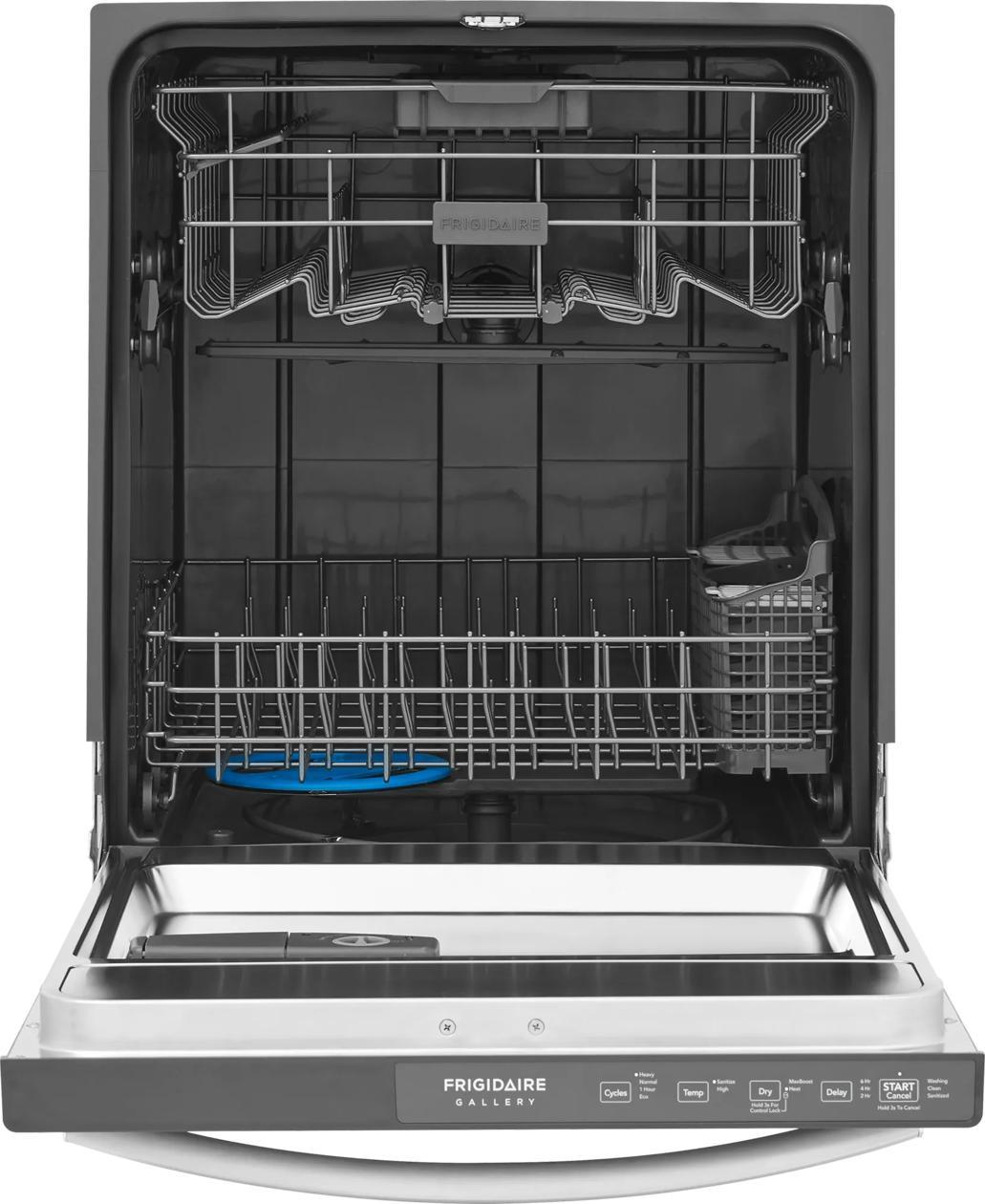

Lower Rack
Maximum Height Clearance	13"
Minimum Height Clearance	11"
Number of Silverware Basket	1
Number of Silverware Basket Lids	2
Rack Coating	PVC
Rack Type	Standard
Upper Rack
Fold-Down	Yes
Minimum Height Clearance	8"
Rack Coating	PVC
Rack Handles	No
Rack Spacer	Yes
Rack Type	Standard
Silverware Tray	Yes
General Specifications
Sound Level	51 dBA
Annual Energy	240 kWh
Product Weight	86 lbs
Prop 65 Label	Yes
Warranty - Labor	1 Year
Warranty - Parts	1 Year

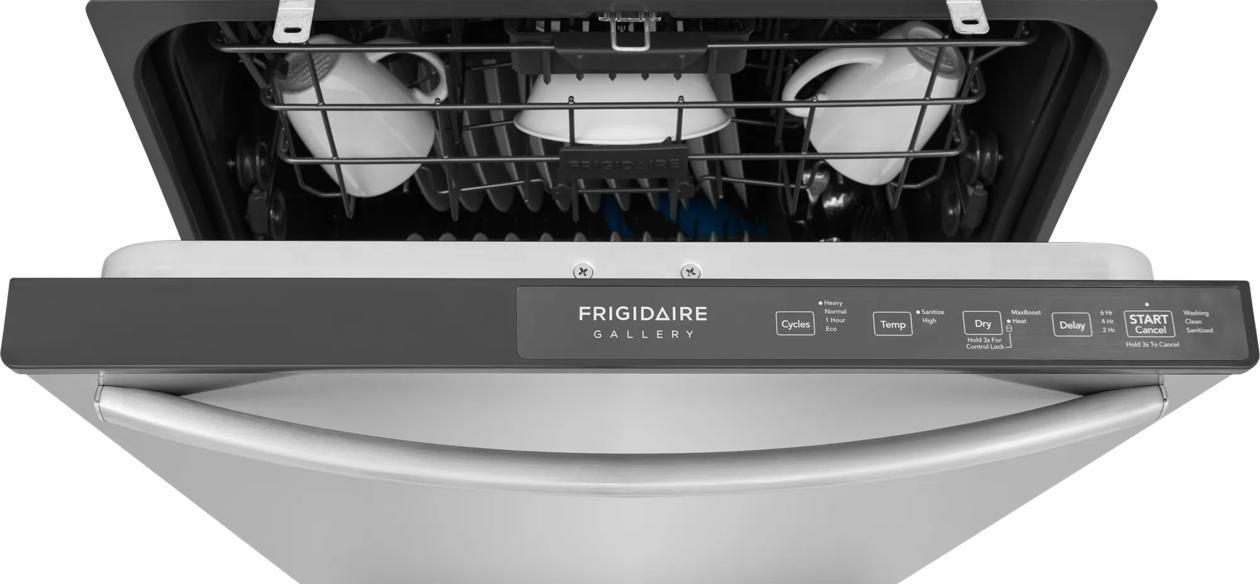

Controls
Control Location	Top
Control Lock	Yes
Delay Start Hours	2-4-6 Hours
Rinse Aid Indicator	Yes
Exterior
Door and Handle Design	Handle
Door Latch	Pull
Door Type	StayPut
Exterior Finish	Smudge-Proof® Stainless Steel

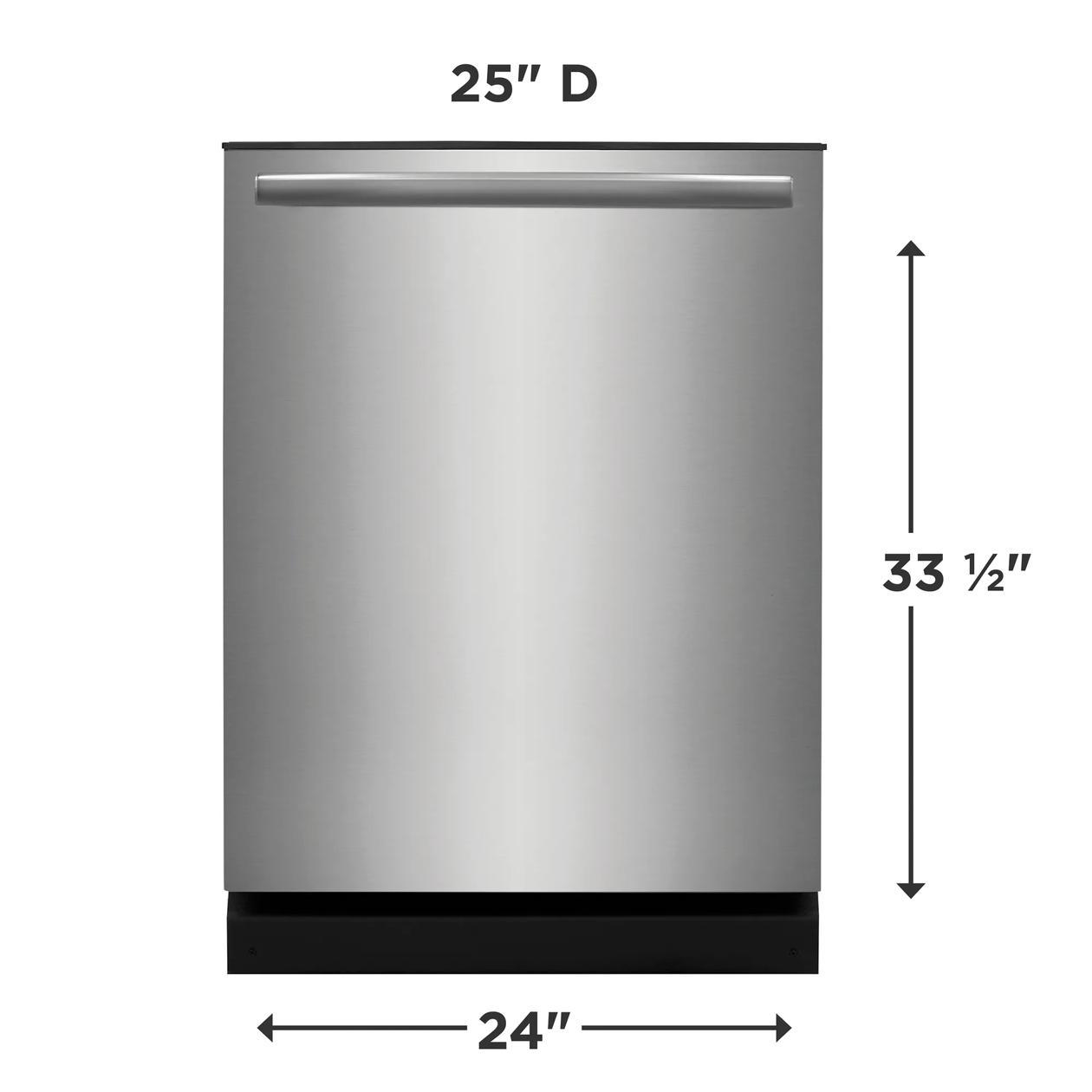

Dimensions and Volume
Minimum Height	33 1/2"
Maximum Height	35"
Width	24"
Depth	25"
Depth With Door Open	49 1/4"
Depth With Handle	26 3/4"
Electrical Specifications
Amps @ 120 Volts	10 Amps
Connected Load @ 120V	1.2 kW
Voltage Rating	120 V
Installation
Connection Location	Right Bottom
Number of Leveling Legs	4
Water Inlet Location	Left Bottom Front
Performance Certifications and Approvals
CEE Tier	Tier 1
cUL Listed	Yes
ENERGY STAR Certified	Yes
ETL Listed	Yes
Meets ASSE 1006 Requirements	Yes
NSF Certified	Yes
UL Listed	Yes
