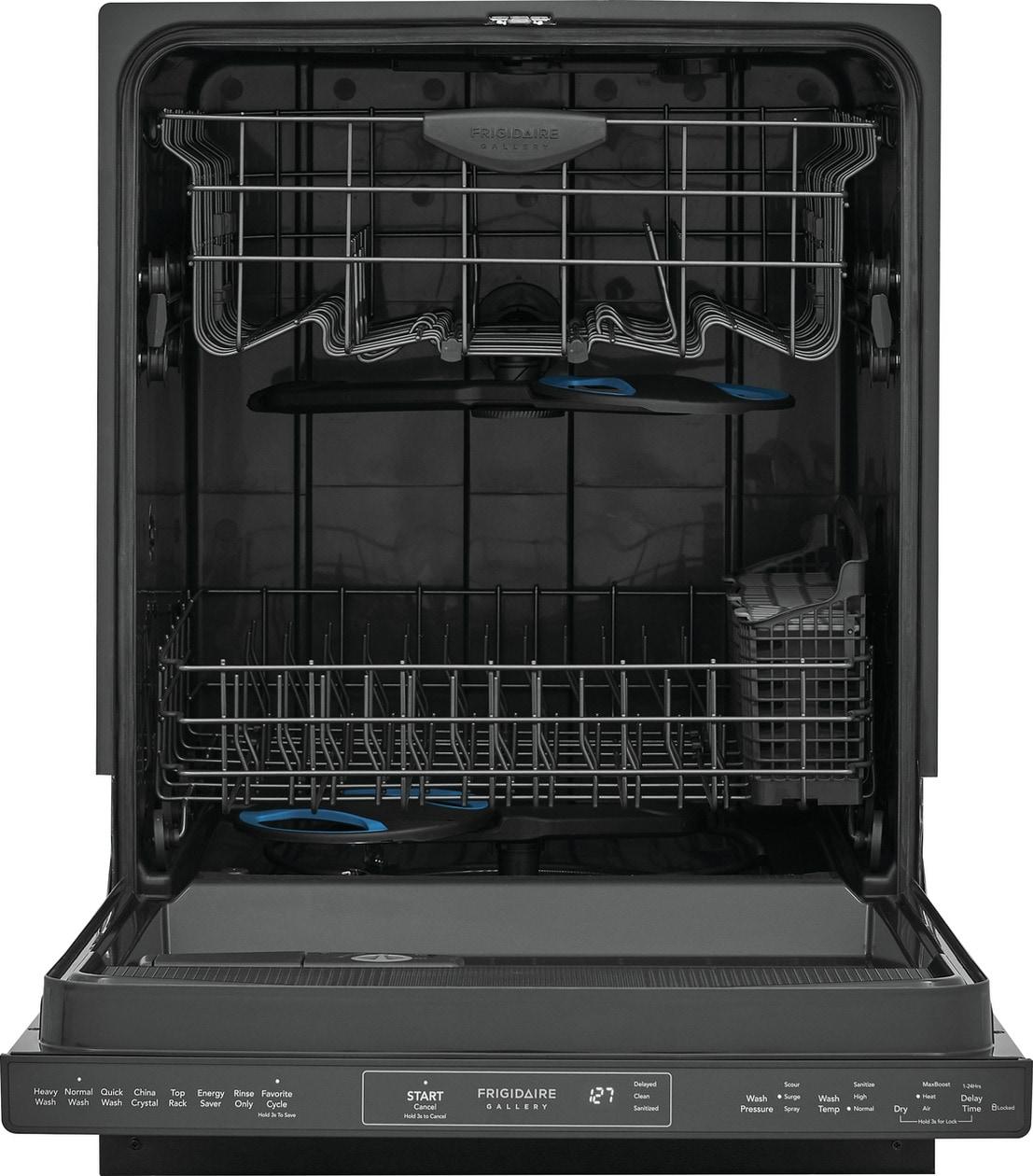

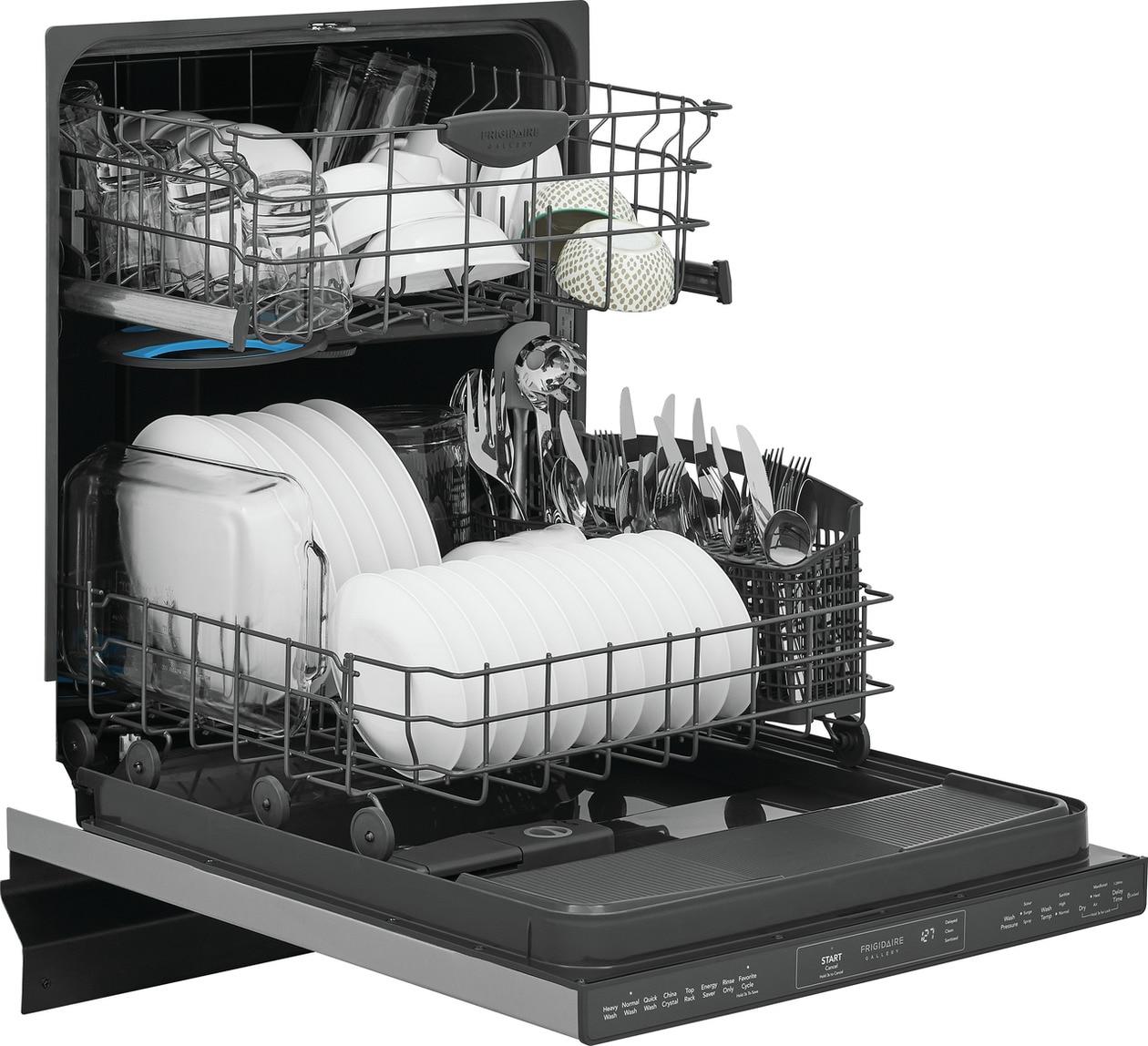

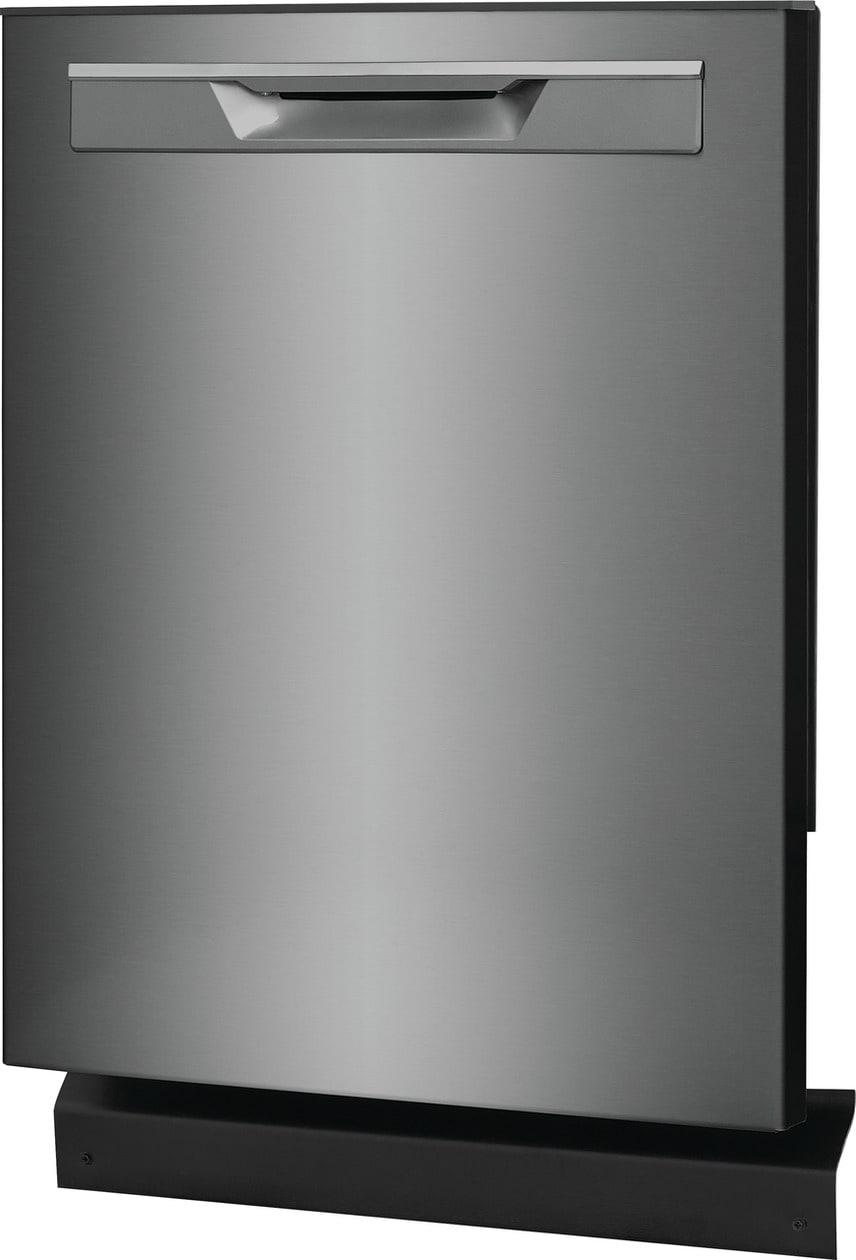

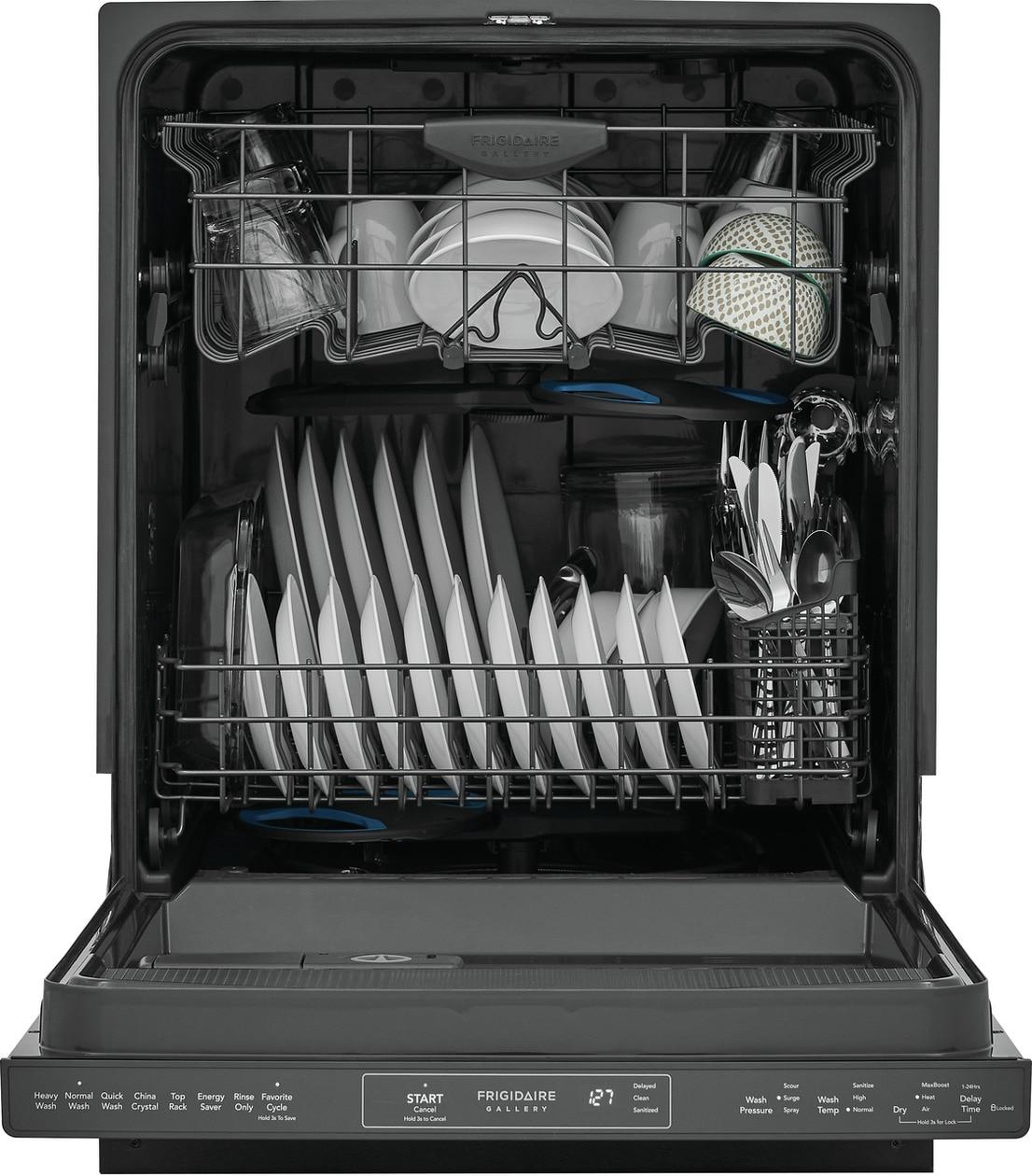

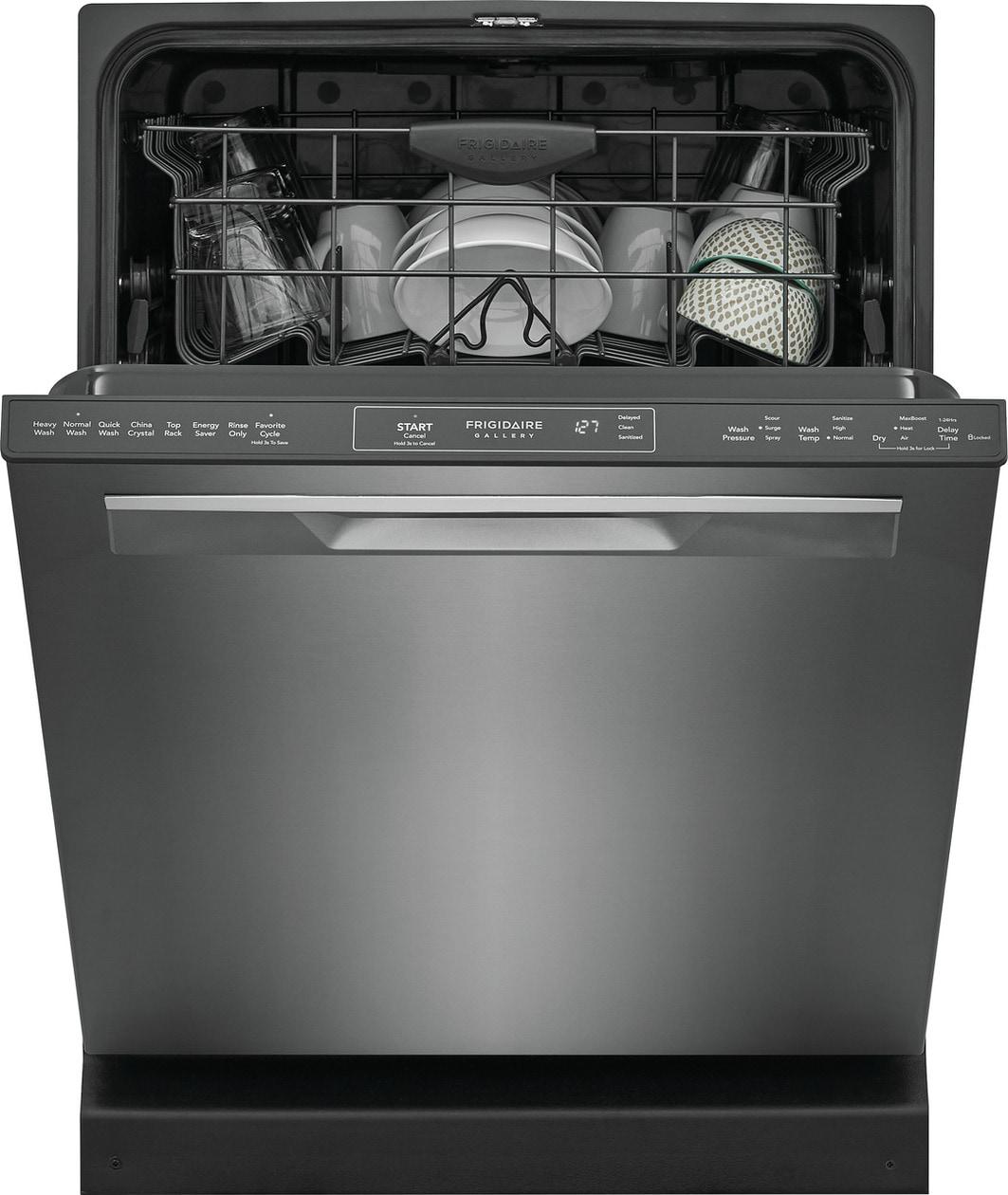

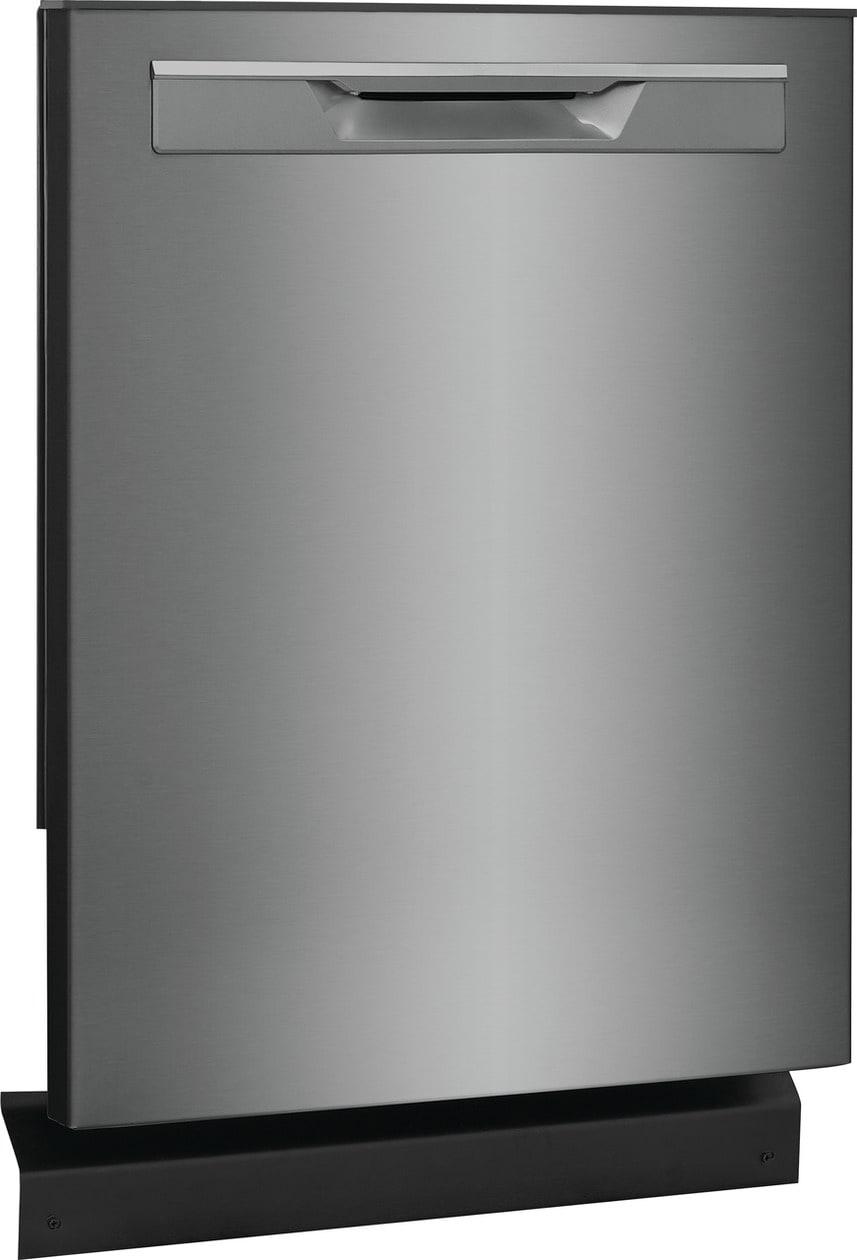

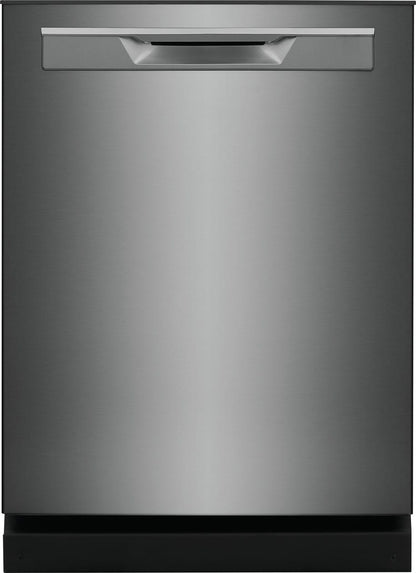

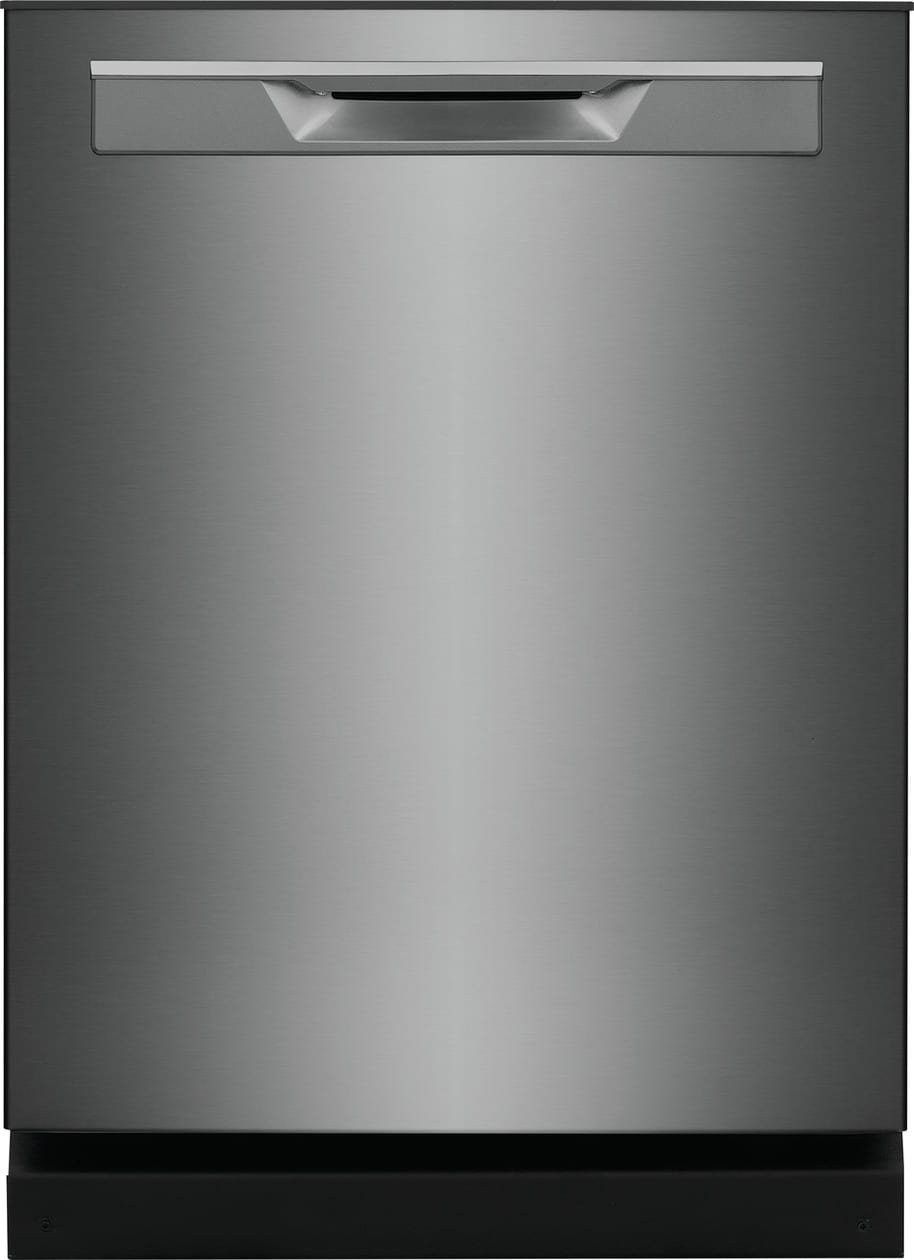

GDPP4517AD Frigidaire Gallery 24" Built-In Dishwasher GDPP4517AD

The Frigidaire Gallery 24" Built-In Dishwasher features the Dual OrbitClean® Wash System that easily removes even tough, dried and baked on food due to its multi-directional spray pattern and sensor technology that adjusts cleaning performance based on the soil level of the dishes. Forget the hand towel with the MaxBoost™ Dry system. This quiet dishwasher (49 dBA) also offers a sanitize option, adjustable racks to fit more dish sizes, and LED floor indicator light, a 34 minute quick wash, and is Energy Star® certified.

Product Line	Dishwasher
Power Type	Electric 120v
Size	24"
Installation Type	Built-In
Factory	Kinston
Color	Black Stainless Steel
Dishwasher
Detergent Dispenser	Yes
Filter Material	Stainless Steel
Filter Trap	Removable
Filtered Water	100 %
Hard Food Disposer or Filtration	Yes
Interior Light	No
Motor Speeds	Multi-Speed
Place Setting Capacity	14
Rinse Aid Dispenser	Yes
Smart Soil Sensor	Yes
Lower Spray Arm	Dual Orbit
Middle Spray Arm	Dual Orbit
Upper Spray Arm	Spray Arm
Status Indicator Floor Beam	Yes
Tub Color	Midnight Ink
Tub Design	Tall Tub
Tub Material	Plastic
Wash Levels	5
Wash System	Direct Feed
Water Pressure	120 psi
Dishwasher Cycles
China Crystal	Yes
Energy Saver	Yes
Favorite	Yes
Heavy	Yes
Normal	Yes
Number of Cycles	8
Quick	Yes
Rinse Only	Yes
Upper Rack	Yes
Dishwasher Options
Air Dry	Yes
Drying System	MaxBoost
Heated Dry	Yes
High Temperature	Yes
Start/Cancel	Yes
Lower Rack
Fold-Down	Yes
Maximum Height Clearance	13"
Minimum Height Clearance	11"
Number of Silverware Basket	1
Number of Silverware Basket Lids	3
Rack Type	Deluxe
Upper Rack
Cup Shelf	Yes
Fold-Down	Yes
Minimum Height Clearance	8"
Rack Handles	Yes
Rack Type	Adjustable
Stemware Holder	Yes
General Specifications
Sound Level	49 dBA
Annual Energy	240 kWh
Product Weight	56 lbs
Prop 65 Label	Yes
Warranty - Labor	1 Year
Warranty - Parts	1 Year

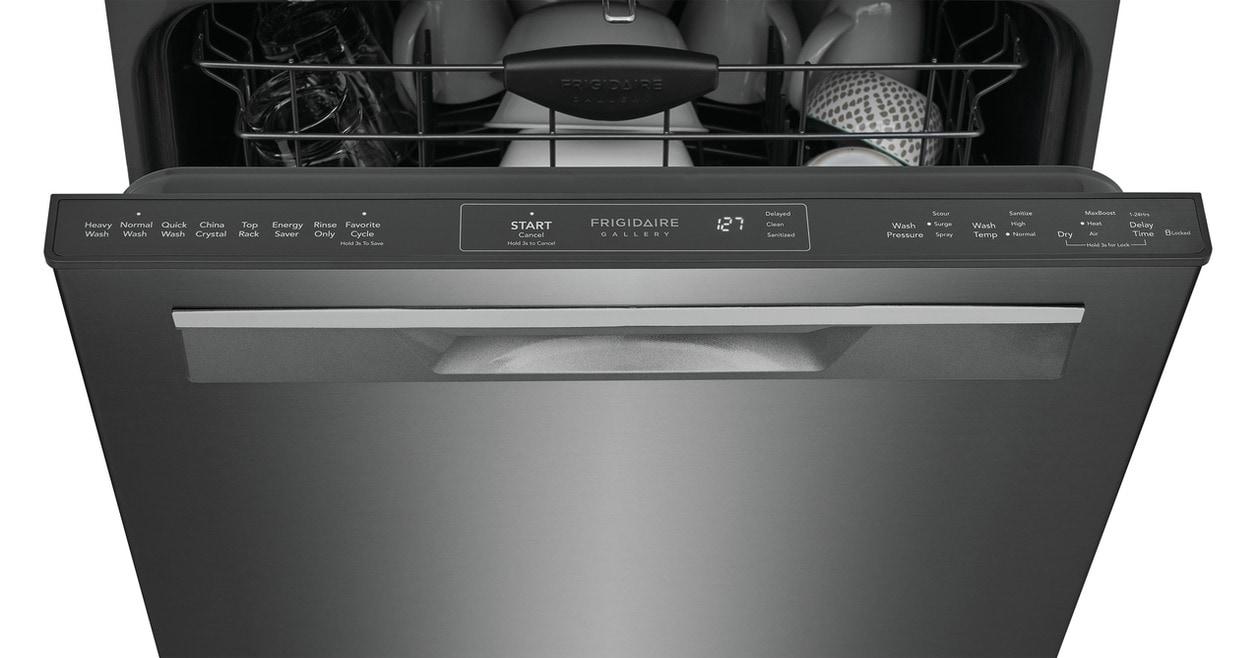

Controls
Control Color	Black
Control Location	Top
Delay Start Hours	1-24 Hours
Digital Display	Yes
Control Lock	Yes
Rinse Aid Indicator	Yes
Exterior
Door and Handle Design	Wide Pocket
Door Latch	Pull
Door Type	StayPut
Exterior Finish	Smudge-Proof® Black Stainless Steel
Dimensions and Volume
Minimum Height	33 1/2"
Maximum Height	35"
Width	24"
Depth	25"
Depth With Door Open	49 1/4"
Electrical Specifications
Amps @ 120 Volts	10 Amps
Connected Load @ 120V	1.2 kW
Voltage Rating	120 V
Installation
Connection Location	Right Bottom
Number of Leveling Legs	4
Water Inlet Location	Left Bottom Front
Performance Certifications and Approvals
CEE Tier	Tier 1
cUL Listed	Yes
ENERGY STAR Certified	Yes
Meets ASSE 1006 Requirements	Yes
NSF Certified	Yes
UL Listed	Yes
