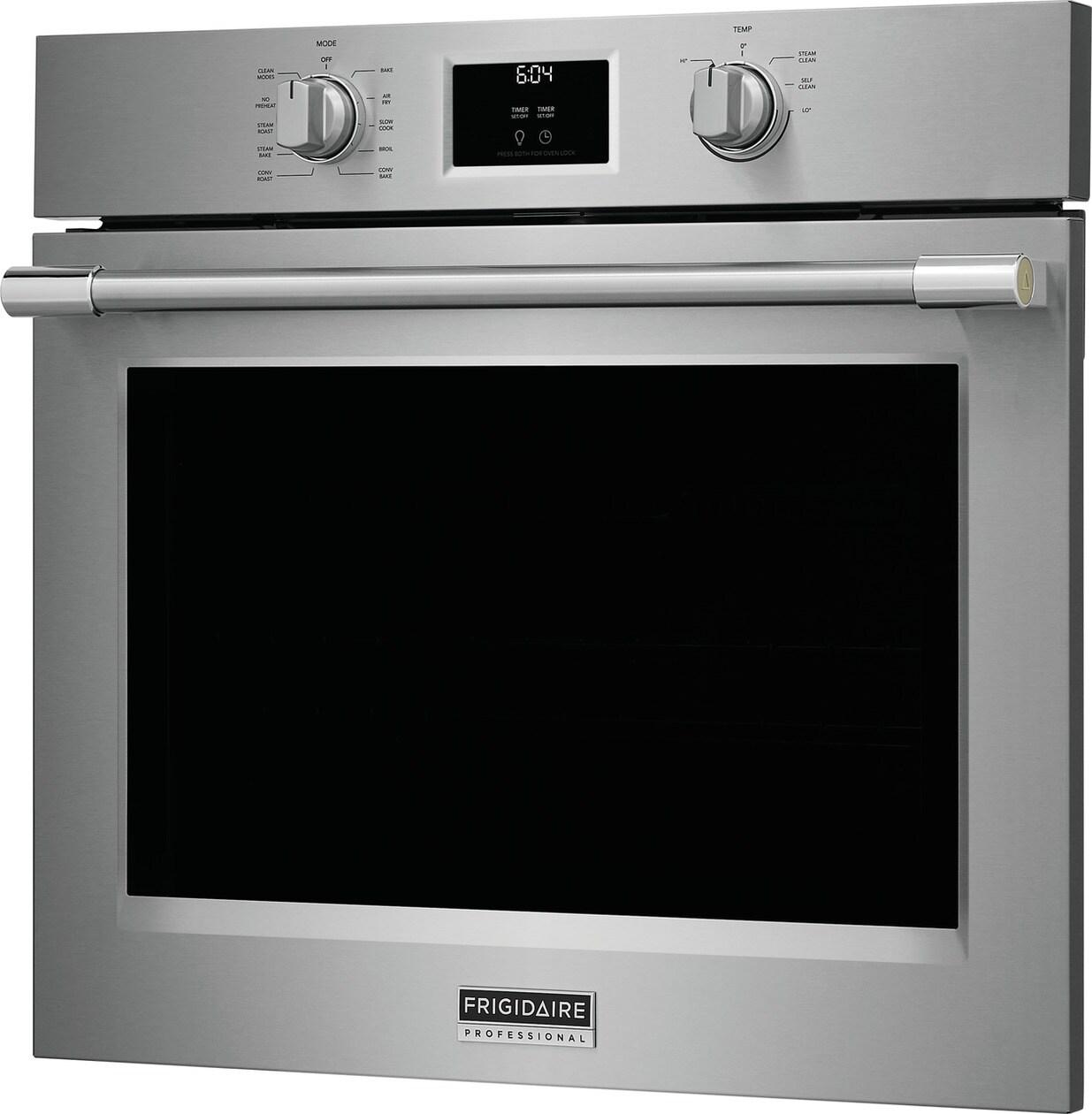

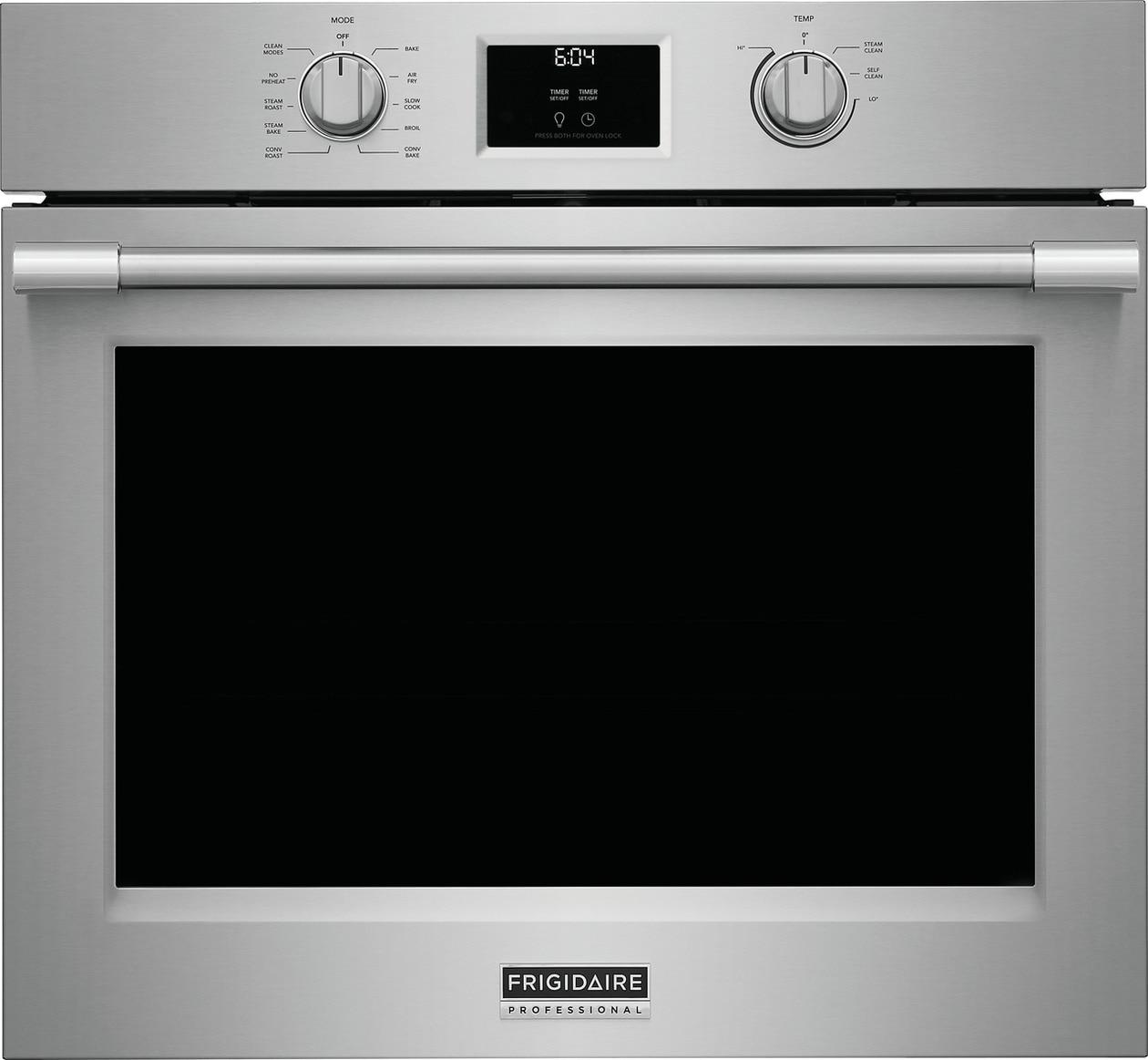

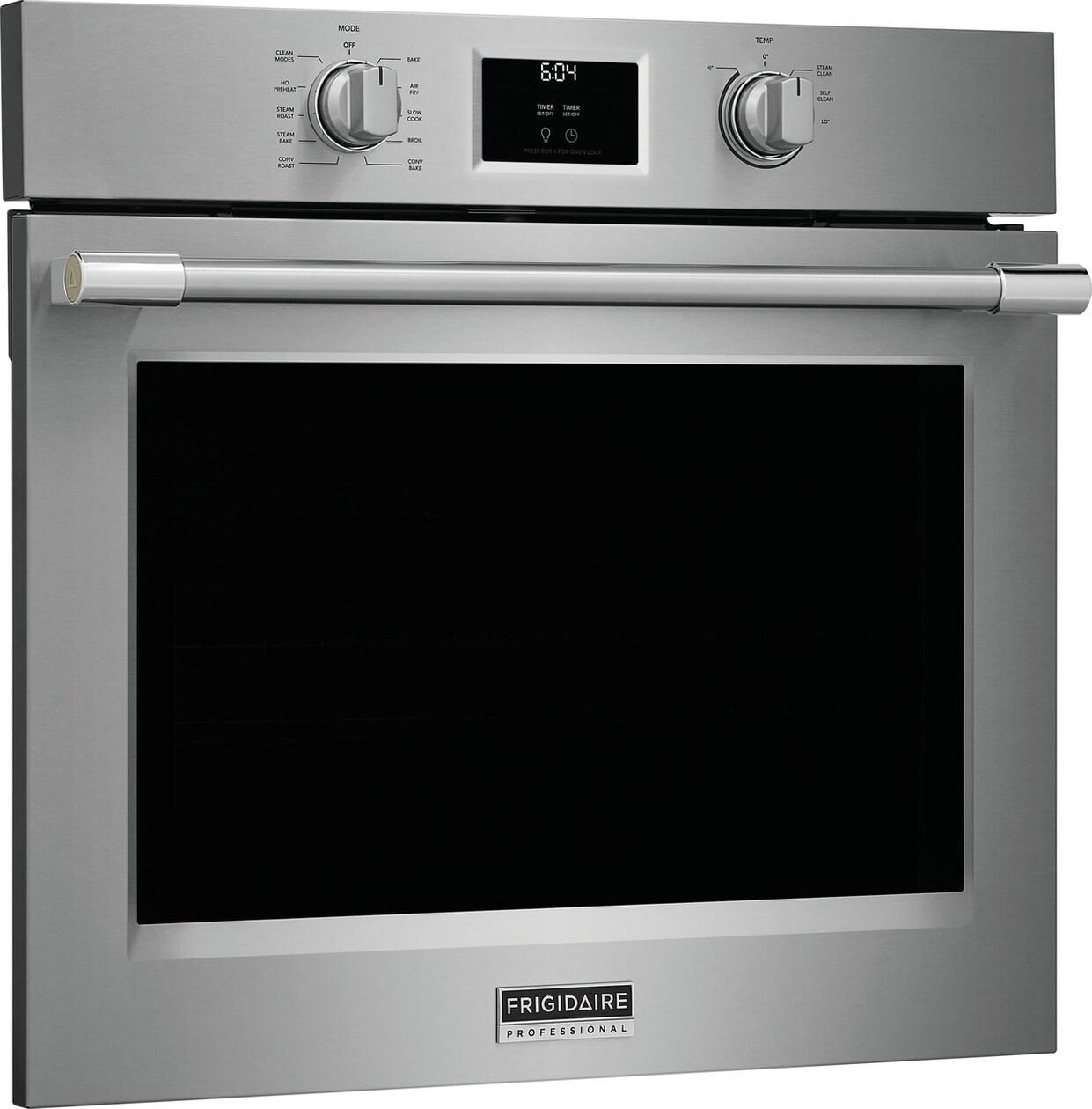

Frigidaire Professional 30" Single Wall Oven with Total Convection PCWS3080AF

The Frigidaire Professional 30" Single Wall Oven with Total Convection, features our new Total Convection system, which enables cooking modes like No Preheat, Air Fry, Slow Cook, Steam Bake, Steam Roast, Convection Bake and more! Also includes a convenient temperature probe and the ReadyCookTM Air Fry Tray. Plus, enjoy our fingerprint resistant, Smudge-Proof®Stainless Steel finish.

Product Line	Single Wall Oven
Power Type	Electric 240v
Size	30"
Installation Type	Built-In
Factory	Springfield
Color	Stainless Steel
Installation
Power Supply Connection Location	Top Left
Electrical Specifications
Amps @ 240 Volts	20 Amps
Connected Load @ 240V	4.5 kW
Minimum Circuit Required	20 Amps
Voltage Rating	240 V
Certifications and Approvals
ADA Compliant	Yes
Star-K Certification	Yes
Cooking Controls
Air Fry	Yes
Bake	Yes
Broil	Yes
Cancel	Yes
Child Lock	Yes
Clear Off	Yes
Clock	Yes
Convection Bake	Yes
Convection Roast	Yes
Delay Clean	Yes
Delay Start	Yes
Fast Preheat	Yes
Kitchen Timer	Yes
Light	Yes
Off	Yes
Oven Light	Yes
Probe	Yes
Self Clean	Yes
Set Clock	Yes
Slow Cook	Yes
Start	Yes
Steam Bake	Yes
Steam Clean	Yes
Steam Roast	Yes
Stop	Yes
Temperature Display	Yes
Timer On / Off	Yes
User Preferences	Yes
Oven
Bake Element	2,500 Watts
Bake Element Pass	8
Bake Element Type	Hidden
Broil Element	4,000 Watts
Broil Element Pass	6
Broil System	Yes
Cleaning System	Yes
Convection	Yes
Convection Element	3,800 Watts
Convection Type	Total
Number of Convection Fans	1
Number of Rack Positions	6
Oven Interior Color	Midnight Black
Oven Light Quantity	2
Oven Light Type	Halogen
Oven Light Watts	40 Watts
Rack Position Type	Embossed
Rack Type 1	Handle
Rack Type 1 Quantity	1
Rack Type 2	Glide
Rack Type 2 Quantity	1
Rack Type 3	Air Fry Tray
Rack Type 3 Quantity	1
Dimensions and Volume
Height	28"
Width	29 7/8"
Depth	25 3/16"
Depth With Door 90° Open	48 3/16"
Depth With Handle	27 3/5"
Oven Interior Height	18 1/8"
Oven Interior Width	25 1/5"
Oven Interior Depth	19 7/8"
Minimum Cutout Height	26 3/4"
Minimum Cutout Width	28 1/2"
Maximum Cutout Height	28"
Maximum Cutout Width	29"
Oven Capacity	5.3 Cu. Ft.
Safety Certifications and Approvals
CSA Listed	Yes
UL Listed	Yes
RoHS	Yes
Controls
Control Lock	Yes
Sabbath Mode	Yes
General Specifications
Frigidaire Fit Promise	Yes
Product Weight	163 lbs
Prop 65 Label	Yes
Warranty - Labor	1 Year
Warranty - Parts	1 Year
Exterior
Exterior Finish	Smudge-Proof® Stainless Steel
Cooking Controls Function
Change between Continuous Bake Setting or 12-Hour Energy Saving Feature	Yes
Delayed Bake	Yes
Program Fahrenheit or Celsius	Yes
Silent Control Panel	Yes
Display
Control Location	Top
Display Interface Color	White
Display Light Color	White
Display Type	Capacitive Touch
