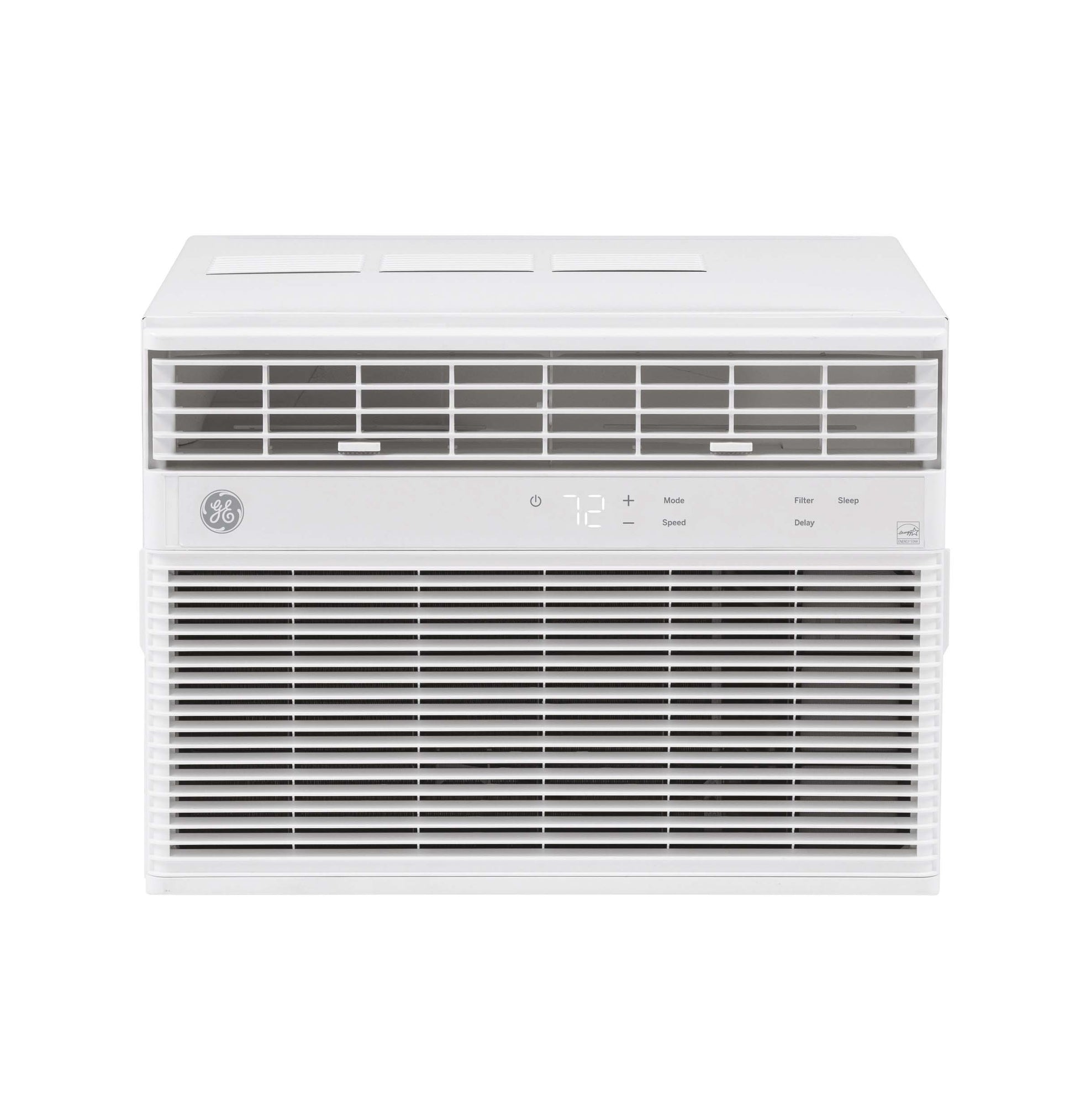

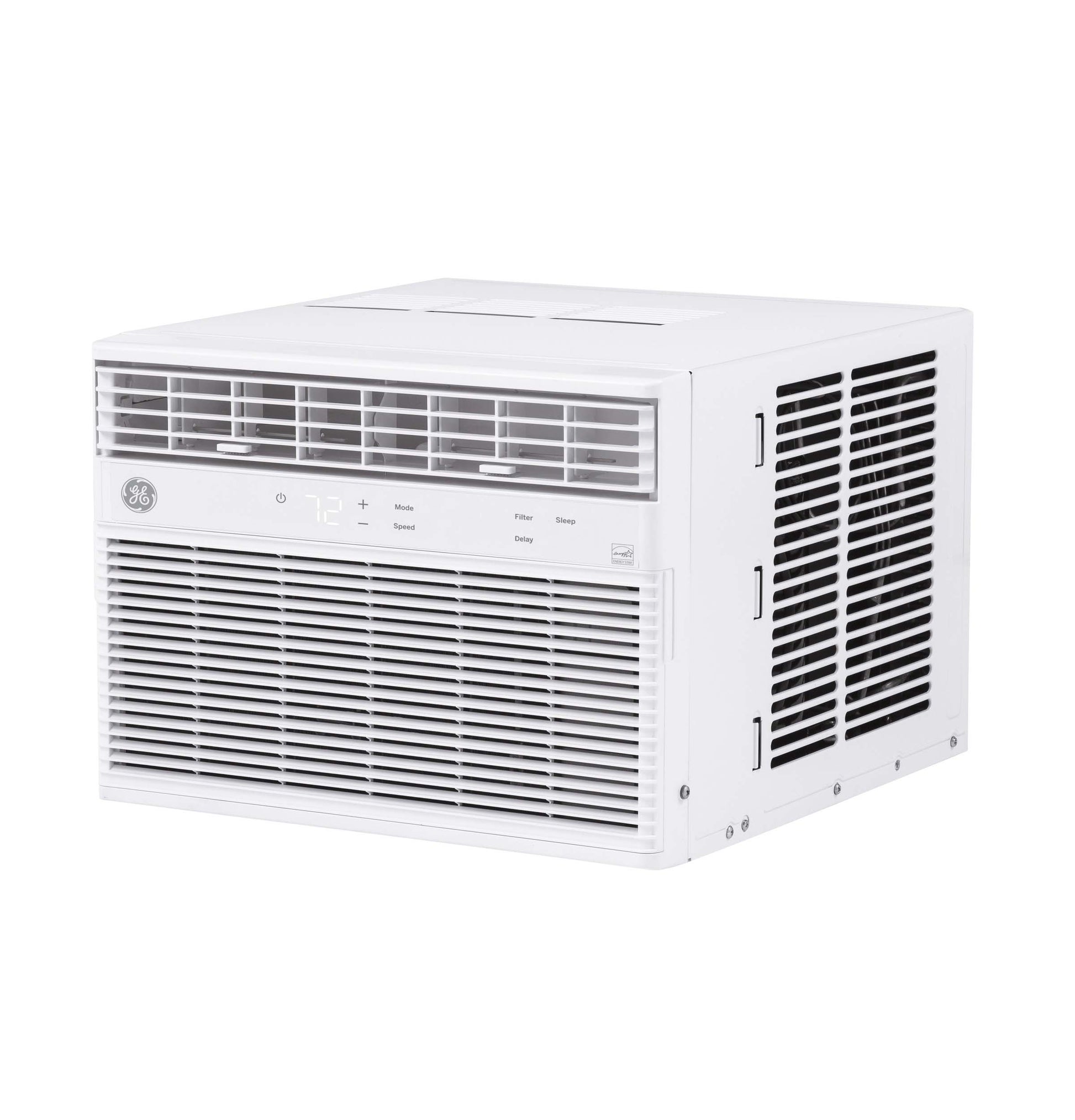

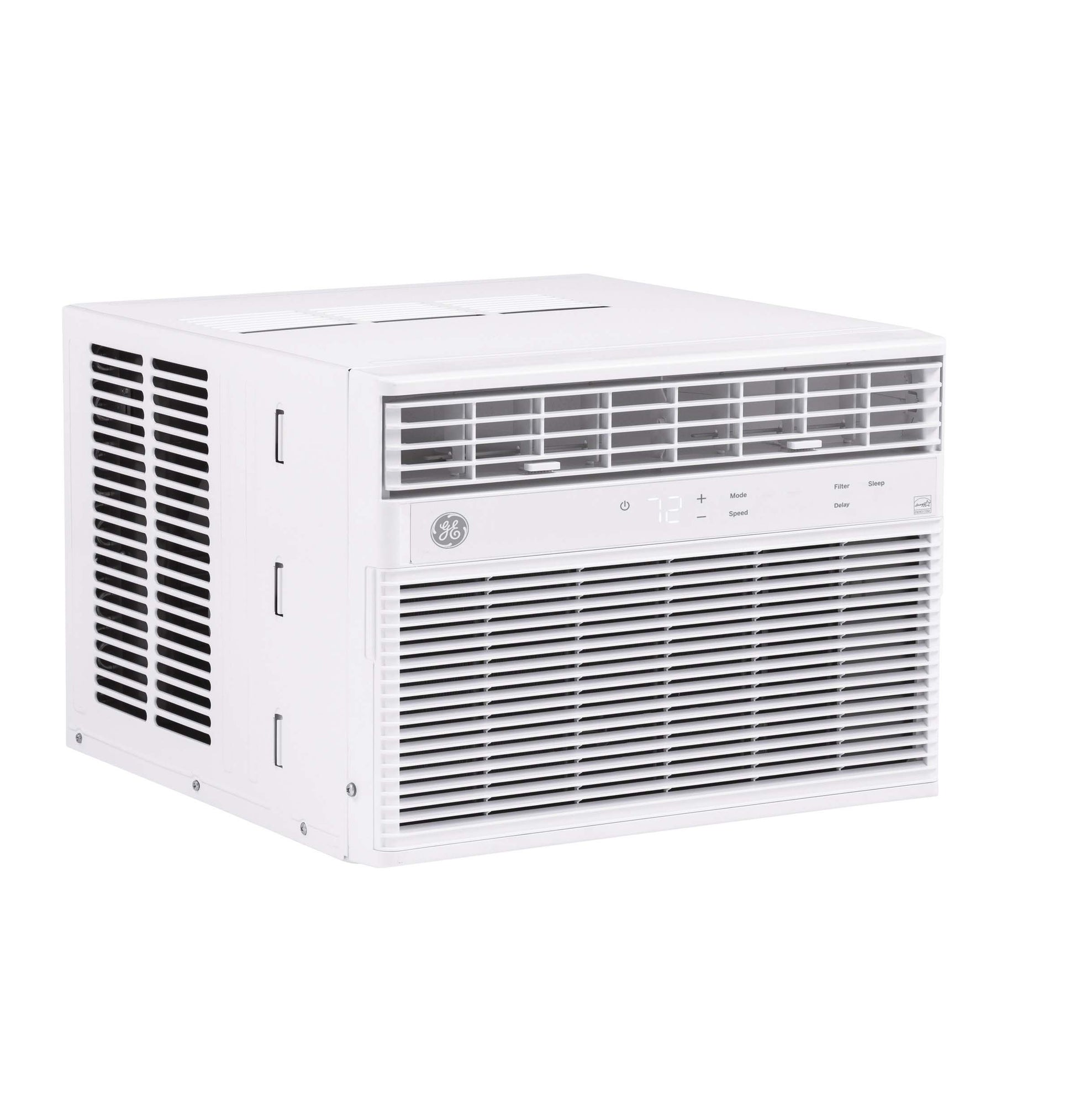

AHE12DZ GE® 12,000 BTU Heat/Cool Electronic Window Air Conditioner for Large Rooms up to 550 sq. ft. AHE12DZ

Cools & Heats Large Rooms
12,000 BTU cooling / 10,700 BTU heating capacity offers maximum comfort in rooms up to 550 square feet

Maximum Comfort Cool
Three cooling and heating settings and fan speeds provide total flexibility with optimal home comfort and air conditioner efficiency

Eco Mode
The air conditioner Eco Mode automatically turns off the fan and compressor when the room is cool enough, reducing your utility costs

Filter Reminder
Get a filter change reminder when the filter needs cleaning, so you can keep the unit performing at its best

Electronic Controls
Program and adjust air conditioner settings with ease using simple digital controls

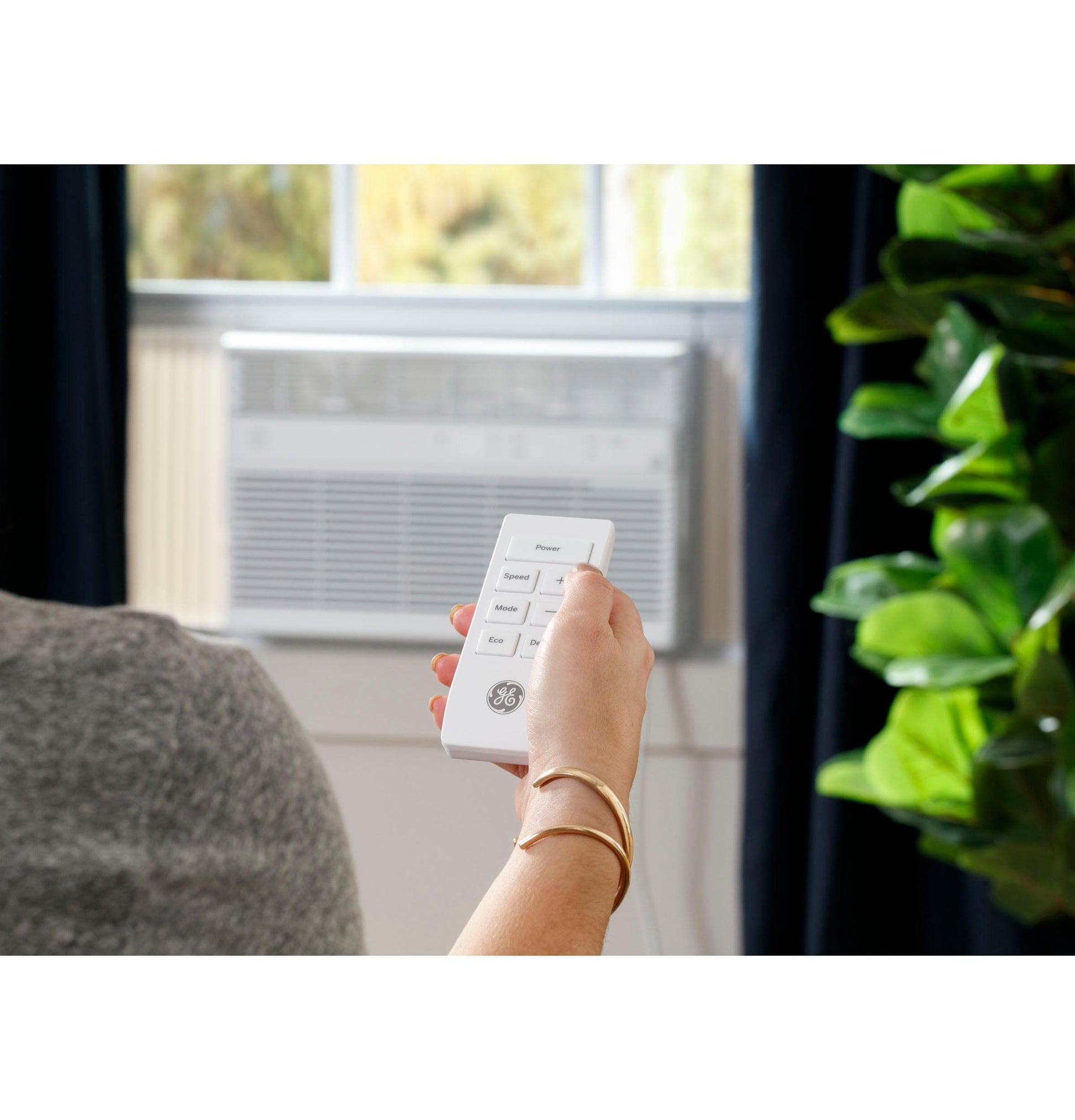

Remote Control
The unit comes with an included air conditioner remote, so you can adjust the unit from anywhere in the room

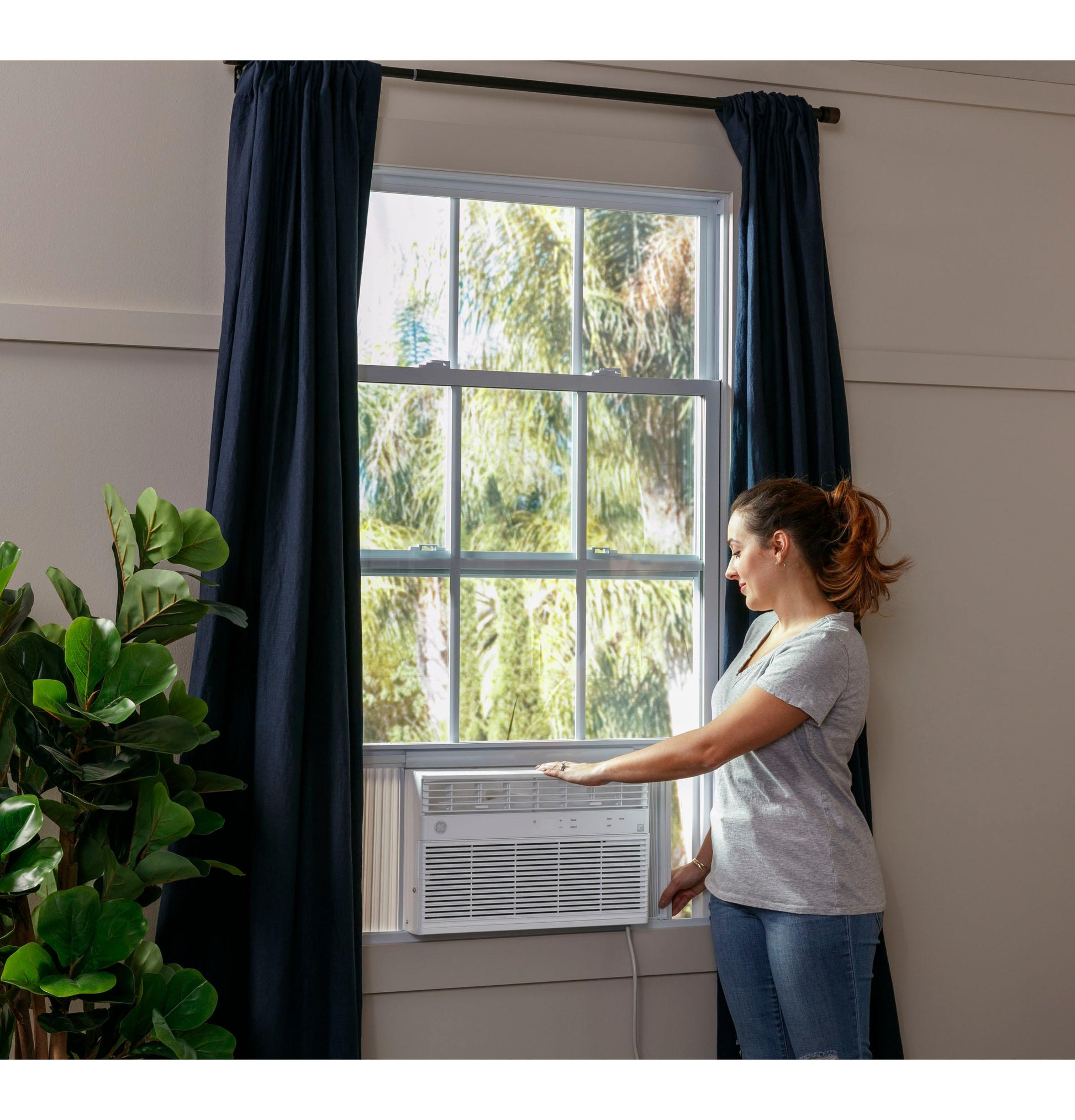

Easy Installation

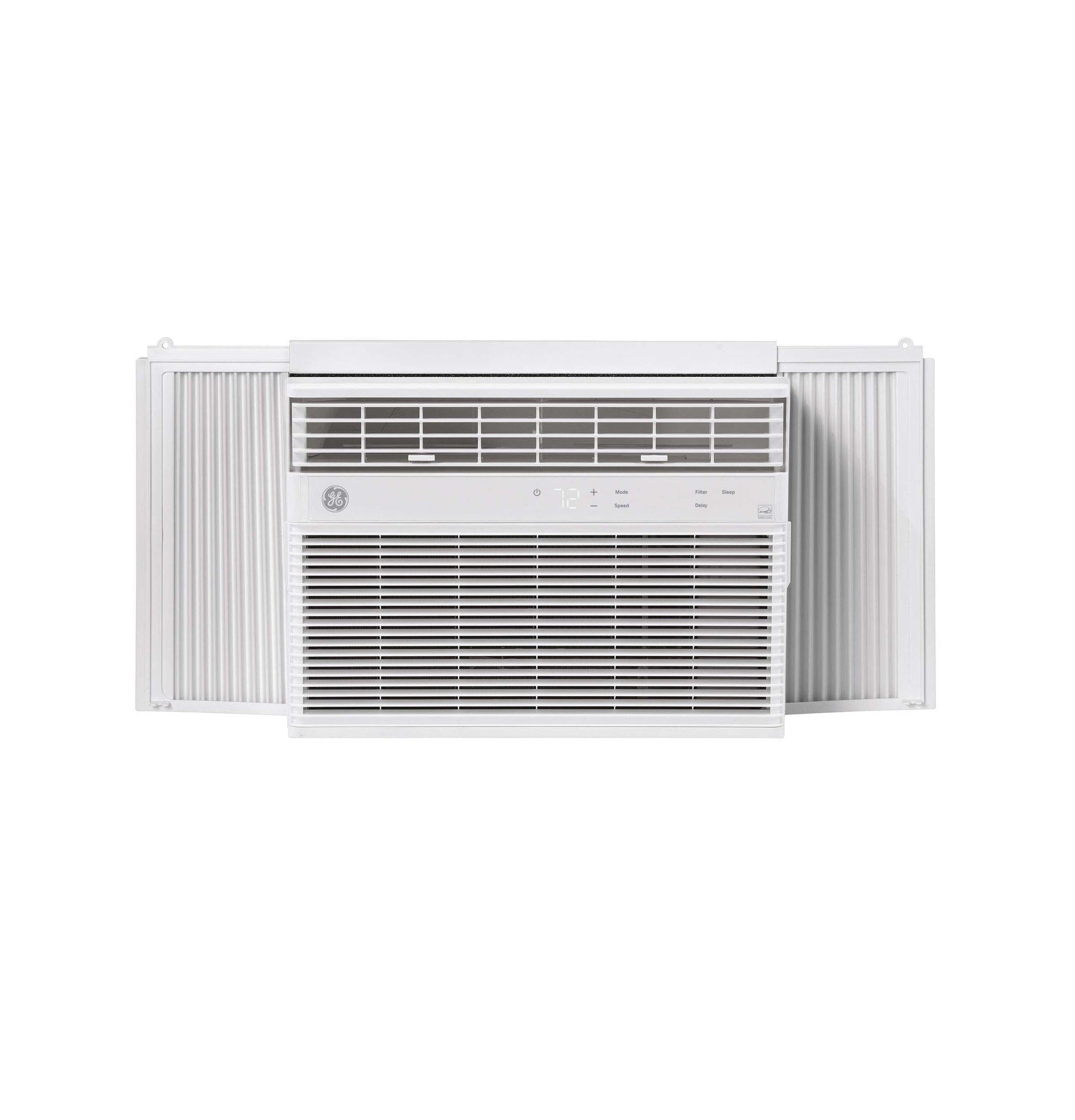

This AC has a slide-out chassis and installs easily in a double hung window with included EZ Mount installation kit

Louver Style
The 4-way adjustable louvers distribute air evenly throughout the room

Auto-dimming
The LED display automatically dims after one minute of inactivity so you aren't disturbed by the light as you sleep

Voltage Type
This unit requires a 230/208 Volt outlet type

CAPACITY
Heating - Electric - BTUH - AHAM - 1R	10700/8700
Cooling BTUH (MAX)	12000 Btu
Dehumidification (pts./hr.)	2.0
FILTER
App Filter - Programmable	No
App Filter - Remote Control	Yes
App Filter - Installation	EZ Mount
App Filter - Voltage	230V
App Filter - Cooling BTUh	11000 - 12999
App Filter - Product Type	RAC Window
App Filter - Heat	Yes
APPEARANCE
Color Appearance	Light Cool Gray
Installation	EZ Mount
POWER / RATINGS
Sound Level (Low/High)	59/62 dbA
Cooling - Watts	1070/1050
Cooling - Rated Cooling Amps AHAM	4.6/4.9
Heating - Electric - Heater Watts	3500
CEER	10.9/10.9
Heating - Electric - Heater Amps	16.0/14.6
Voltage (MAX)	230 V
Voltage (MIN)	208 V
WARRANTY
Warranty Notes	See written warranty for full details
Parts Warranty	Limited 1-year entire appliance
Labor Warranty	Limited 1-year entire appliance
ECONOMICAL / QUIET
Energy Saver	Yes
WEIGHTS & DIMENSIONS
Min./Max. Window Opening Width (in.)	27/35-1/4
Depth to Louvers	5.75 in
Overall Height	16 in
Minimum Window Opening Height (in.)	16 13/32 16-7/8
Overall Depth	24.5 in
Net Weight	93 lb
Overall Width	22.5625 in
Approximate Shipping Weight	106 lb
Grille Depth	2.1875 in
FEATURES
Plug Capacity	230V/20A
Louver Style	4-Way
Power Cord Length	48" Minimum
Product Type	Window
Chassis Type	Slide-Out
Airflow Direction	4-Way Top
Delay Timer	24-Hour On/Off Timer
Filter Type	One Touch Lift-Out
Remote Control	Yes
Mounting Type	EZ Mount
Airflow (cfm) Roomside (hi/low)	255/215
Area to Cool	451-550
Rotary Compressor	Yes
LCDI / AFCI power cord	Yes
Digital Time Temp Display	Yes
Unit Features	Selectable Thermostat on Remote
Room Air Conditioner Features	Electronic Control Energy Saver Heat Mode On/Off Timer Remote Control
Fan Speed Selections	3 Cooling 3 Fan Only 3 Heating
Refrigerant Type	R410A
Vent/Air Exchange Exhaust	Top Air Discharge
Plug Type	Perpendicular / Right Angle / NEMA 6-20P / LCDI
Heating - Electric - Input Watts	3550/2870
Thermostat Type	Electronic
Unit Type	Heat / Cool Unit
