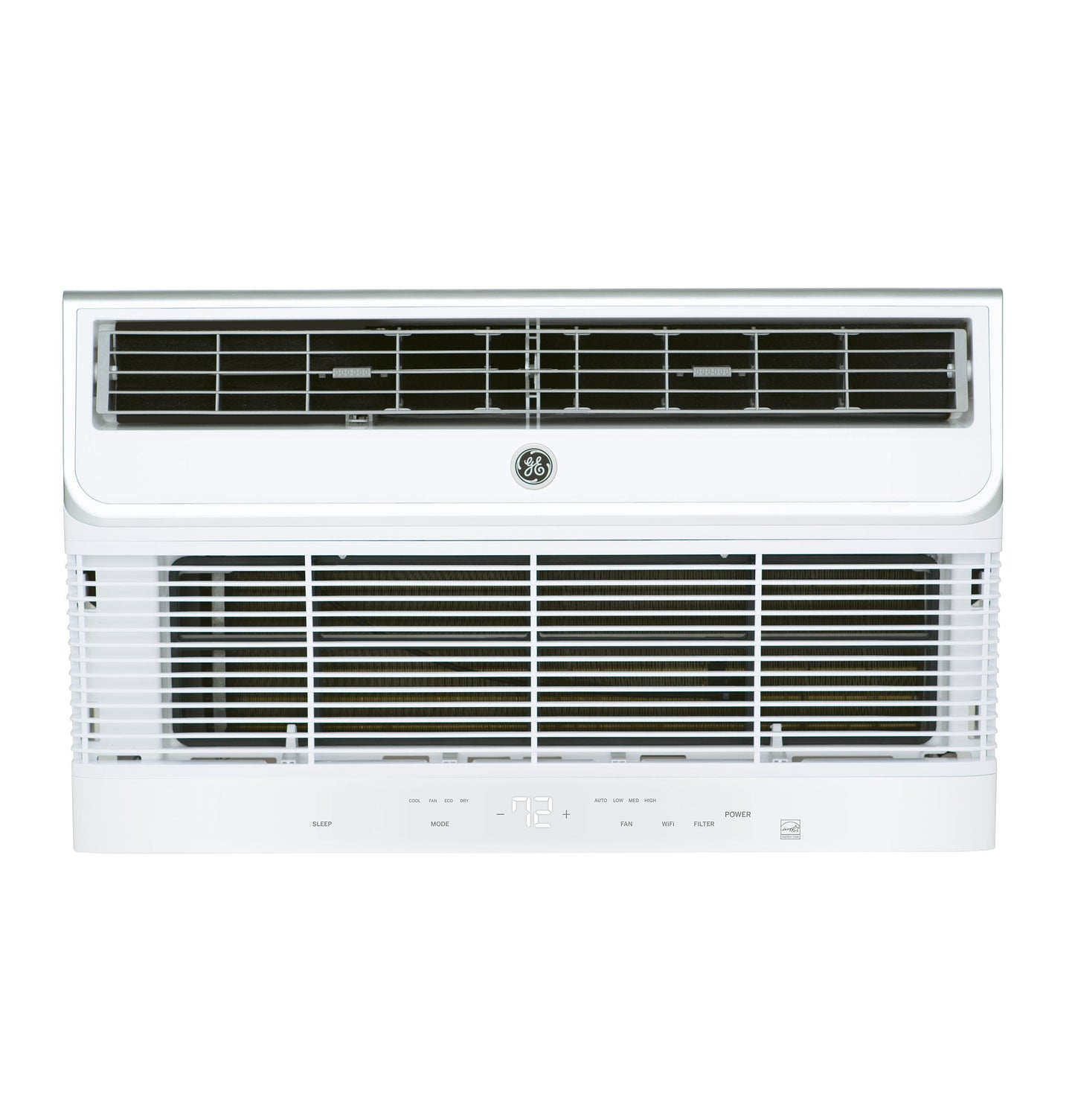

GE® ENERGY STAR® 230/208V Cool Only 12,000 BTU High Mount Built In Room Air Conditioner AJCM12DWH

Built-in WiFi powered by SmartHQ™

True Built In Design
The ultimate fit & finish for more usable space and the best in built-in installation. Sleeve and chassis are perfectly integrated, creating a seamless fit without leaks or gaps

Premium Finish
Bright, clean color & a decorative metallic silver accent encasing the air discharge louver, provide an overall sleek appearance

Electronic Cap Touch Controls
Controls offer a high-end and smooth to-the-touch panel

Large LCD Auto-Dimming Display
Intuitive & large white LCD display can be easily seen from anywhere in the room. Convenient Auto-Dimming feature provides ambient lighting during the night

Slim Room Front
A slim room front provides more usable space in the room. It's the sleekest design in the industry

ECO Mode
Innovative mode where the fan cycles off during cooling intervals, creating energy savings while keeping the room comfortable

Dry Mode
Designed for humid environments, it helps provide a dryer & more comfortable atmosphere with room-air dehumidification

Auto Mode
Automatically select heating or cooling mode and fan speed to maintain the current temperature setpoint. It monitors the room temperature for optimal comfort

6-Way Directional Airflow
Direct where the air flows with up to 6 directional vents-cooling and/or heating the areas of the room that need it the most

Washable Filter
Easy to remove and rinse clean, the filter helps remove dust and other particles from transmitting in the air-providing a cleaner environment

Remote Control Included
Slim, intuitive and easy to use, the remote control enables adjusting temperatures and settings conveniently from anywhere in the room

Quiet Performance
Designed & engineered by GE Appliances for ultra-quiet comfort

Commercial Grade
Designed for durability with high-grade components and tested for long performance

ENERGY STAR® Certified Options
Qualified air conditioners can help save energy consumption and utility costs while cooling your room

CAPACITY
Cooling BTUH (MAX)	12000 Btu
Cooling EER (BTUH / Watt)	10.5
Dehumidification (pts./hr.)	3.4/3.4
Cooling BTUH (MIN)	11700 Btu
FILTER
App Filter - Programmable	No
App Filter - Product Type	RAC Built-In
App Filter - Installation	Wall Mount
App Filter - Heat	No
App Filter - Voltage	230 V
App Filter - Remote Control	Yes
App Filter - Cooling BTUh	11000 - 12999
APPEARANCE
Installation	High Mount Wall Mounted
Color Appearance	Soft Gray
WARRANTY
Warranty Notes	See written warranty for full details
Labor Warranty	Limited 2-year entire appliance Limited 5-year sealed refrigerating system
Parts Warranty	Limited 2-year entire appliance Limited 5-year sealed refrigerating system
POWER / RATINGS
Volts/Hertz	230V-208V/60Hz
Voltage/Hertz/Phase	230-208/60/1
Voltage (MIN)	208 V
CEER	10.5
Voltage (MAX)	230 V
ACCESSORIES
Wall Case	RAB46/47/48/26 Required At Additional Cost
WEIGHTS & DIMENSIONS
Overall Width	26 in
Approximate Shipping Weight	90 lb
Overall Height (Excludes Sleeve)	14.875 in
Overall Height	15.625 in
Overall Depth (Excludes Sleeve)	19.90625 in
Overall Depth	21.8125 in
Overall Width (Excludes Sleeve)	24.8125 in
Net Weight	90 lb
FEATURES
Louver Style	6-Way
Control Type	Electronic
Fan Speed Selections	3 Cooling 3 Fan Only
Optional Grill	RAG13/RAG13A/RAG14E
Product Type	Built-In
Refrigerant Type	R410A
Air Discharge	Over / Under
Filter Type	Rigid Frame Washable
Style	Thru-Wall
Chassis Type	Slide-In
Plug Type	Tandem/Right Angle/LCDI
WiFi Connect	Built-In
Remote Control	Yes
Thermostat Type	Electronic Digital
Temperature Range	60->85 F
Cord Length	68"
Airflow (cfm) Roomside (hi/low)	270/250/230, 260/240/220
Rotary Compressor	Yes
Outdoor Vent / Exhaust	Yes
Unit Type	Cool Only
Room Air Conditioner Features	Batteries Included Energy Saver Filter Reminder Function Remote Control Smart Fan Switch
