GE APPLIANCES AJEQ10DCF
Authorized Reseller

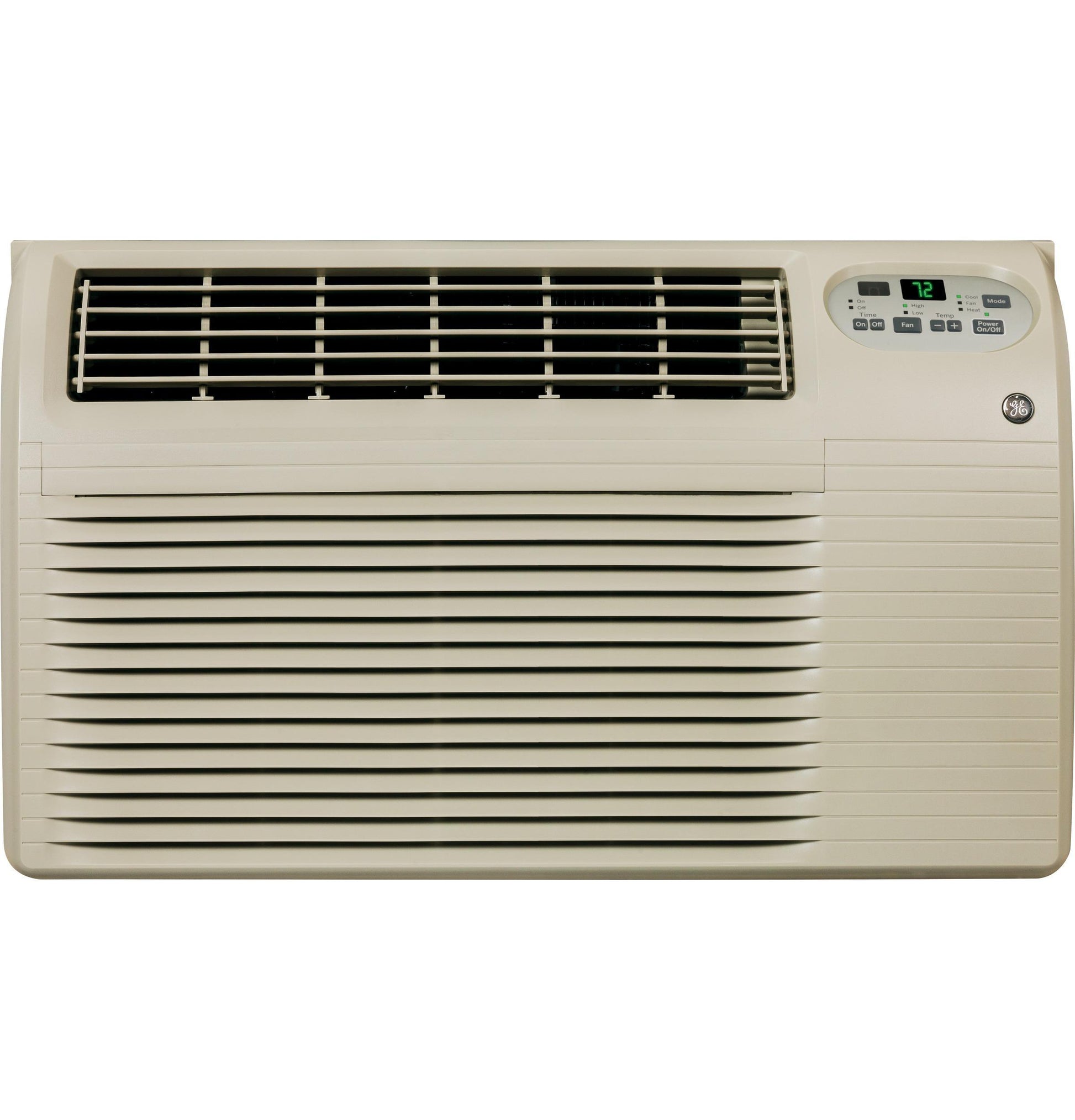

AJEQ10DCF GE® 230/208 Volt Built-In Heat/Cool Room Air Conditioner
AJEQ10DCF GE® 230/208 Volt Built-In Heat/Cool Room Air Conditioner
Item Not Available
Couldn't load pickup availability
When Will I Get My Order?
- 10,100 / 9,900 cooling BTU
- 11,200 / 9,200 resistance heat BTU
- 9.6/9.6 CEER
- R-410A refrigerant

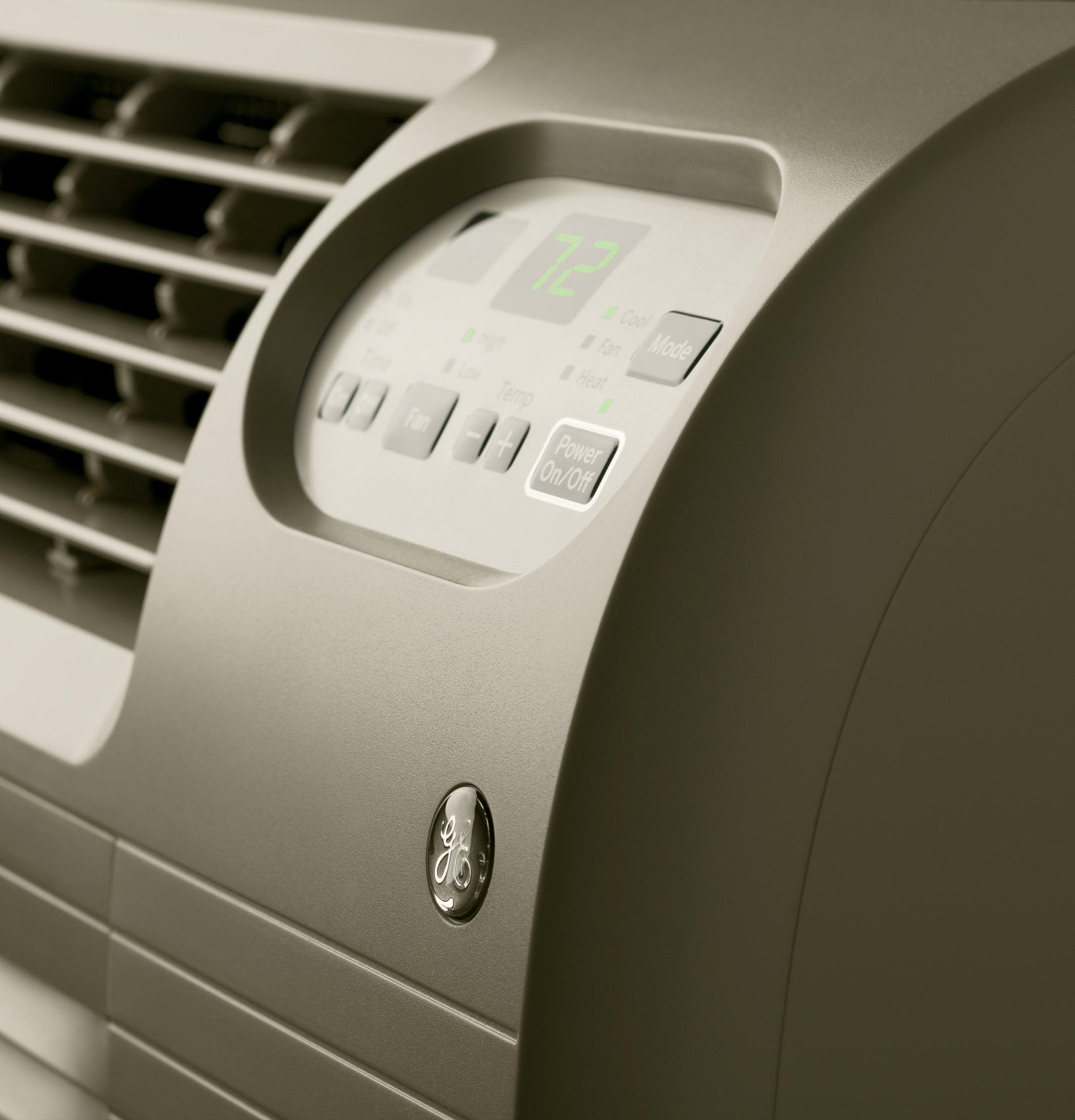

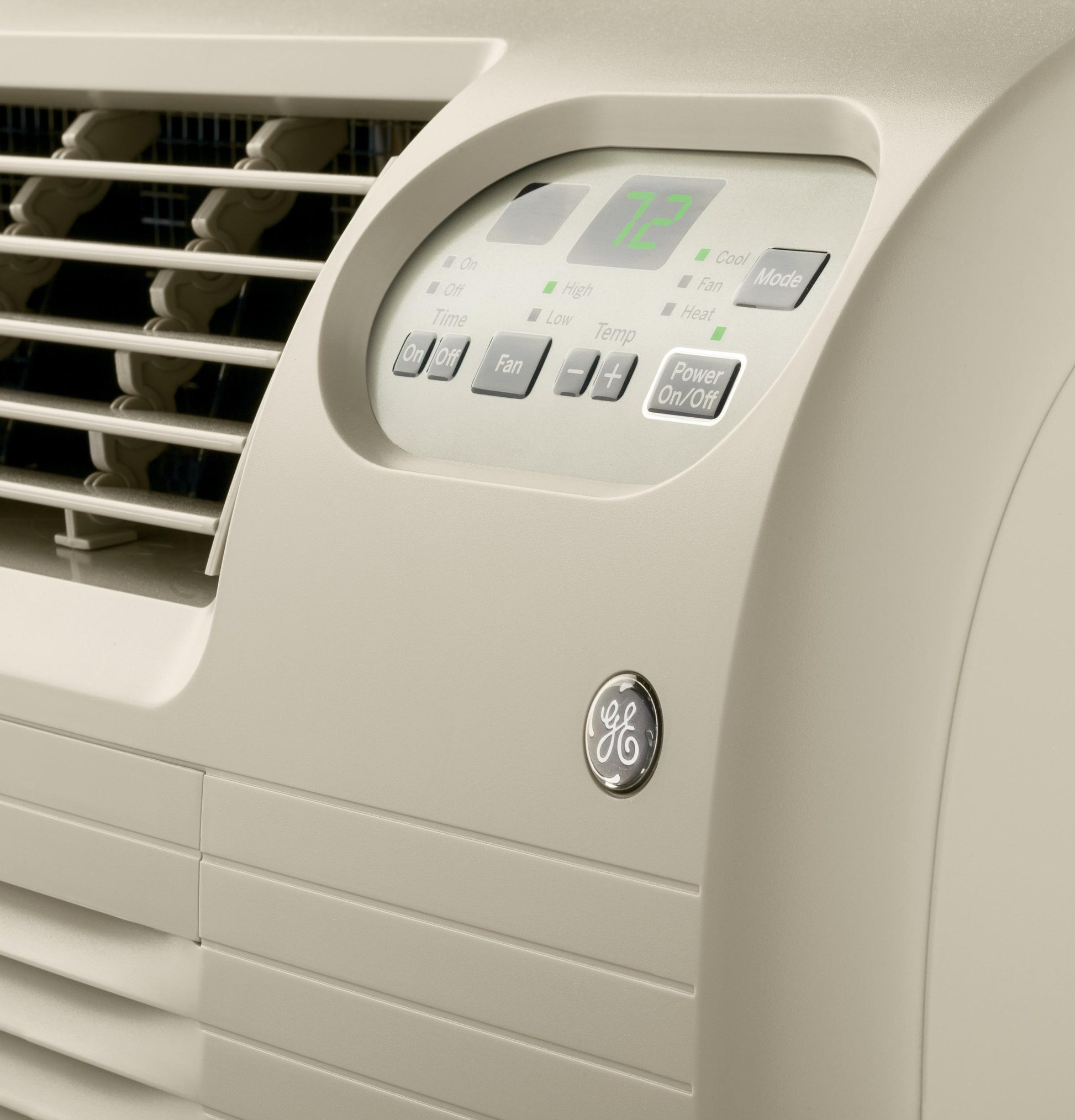

- Electronic controls with remote
- Electronic digital thermostat control
- 4-way air direction
- Upfront, washable air filter
- 2 cooling / 2 heating / 2 fan only speeds
- 3470 / 2850 Watts heat
- Power interruption restart
10,100 / 9,900 cooling BTU
11,200 / 9,200 resistance heat BTU
9.6/9.6 CEER
R-410A refrigerant
Electronic controls with remote
Electronic digital thermostat control
4-way air direction
Upfront, washable air filter
2 cooling / 2 heating / 2 fan only speeds
3470 / 2850 Watts heat
Power interruption restart
Restarts the unit at the setting prior to the loss of power
| CAPACITY | |
| Dehumidification (pts./hr.) | 2.7/2.7 |
| Cooling BTUH (MIN) | 9900.0 |
| Heating - Electric - BTUH - AHAM - 1R | 11200/9200 |
| Cooling BTUH (MAX) | 10100.0 |
| FILTER | |
| App Filter - Programmable | No |
| App Filter - Remote Control | Yes |
| App Filter - Voltage | 230V |
| App Filter - Cooling BTUh | 9000 - 10999 |
| App Filter - Product Type | RAC Built-In |
| App Filter - Installation | Wall Mount |
| App Filter - Heat | Yes |
| APPEARANCE | |
| Installation | Wall Mounted |
| Color Appearance | Soft Gray |
| POWER / RATINGS | |
| Heating - Electric - Input Watts | 3470/2850 |
| Cooling - Rated Cooling Amps AHAM | 4.6/5.1 |
| CEER | 9.6/9.6 |
| Cooling - Watts | 1030/1010 |
| Voltage (MIN) | 208.0 |
| Hertz | 60 |
| Voltage (MAX) | 230.0 |
| Heating - Electric - Heater Amps | 15.1/14.0 |
| Voltage/Hertz/Phase | 230-208/60/1 |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| ACCESSORIES | |
| Wall Case | RAB46A/RAB48B Required At Additional Cost |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 79.0 |
| Overall Depth | 21.8125 |
| Overall Height (Excludes Sleeve) | 14.875 |
| Overall Width | 26.0 |
| Overall Height | 15.625 |
| Overall Width (Excludes Sleeve) | 24.8125 |
| Approximate Shipping Weight | 92.0 |
| Overall Depth (Excludes Sleeve) | 19.90625 |
| FEATURES | |
| Style | Thru-Wall |
| Cord Length | 68" |
| Refrigerant Type | R-410A |
| Airflow (cfm) Roomside (hi/low) | 285/245, 275/235 |
| Rotary Compressor | Yes |
| Chassis Type | Slide-Out |
| Unit Type | Heat / Cool Unit |
| Fan Speed Selections | 2 Cooling/Heating 2 Fan Only |
| Control Type | Electronic |
| Plug Type | Perpendicular/Right Angle LCDI |
| Thermostat Type | Electronic Digital |
| Filter Type | EZ Slide-Out Rigid Frame Washable |
| Outdoor Vent / Exhaust | Yes |
| Product Type | Built-In |
| Louver Style | 4-Way Air Direction |
| Temperature Range | 60->85 F |
| Air Discharge | Over / Under |
| Room Air Conditioner Features | 24 Hr. Timer Batteries Included Fan Cycle Continuous Improved Corrosion Package Power Interruption Restart Remote Control |
