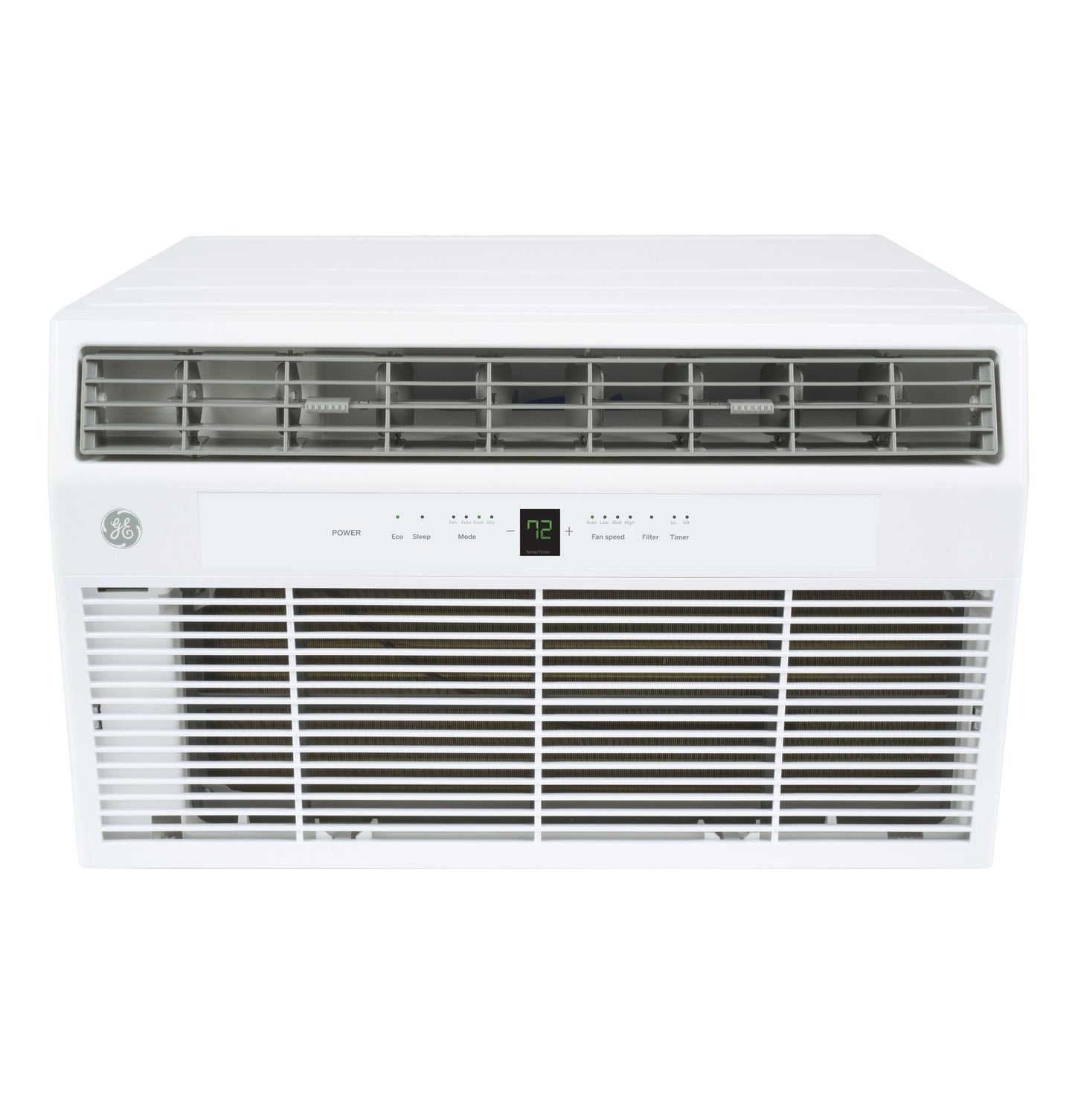

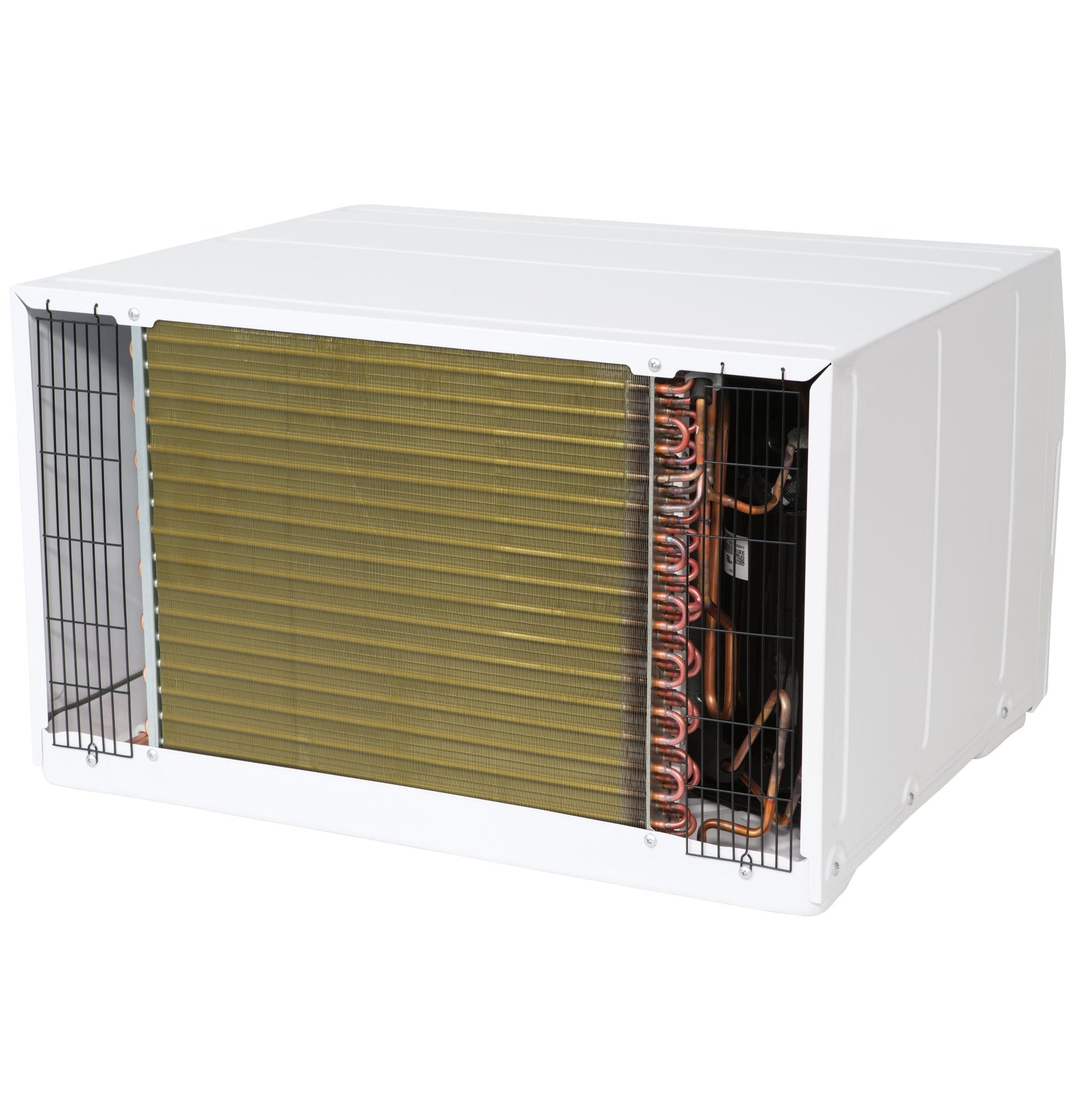

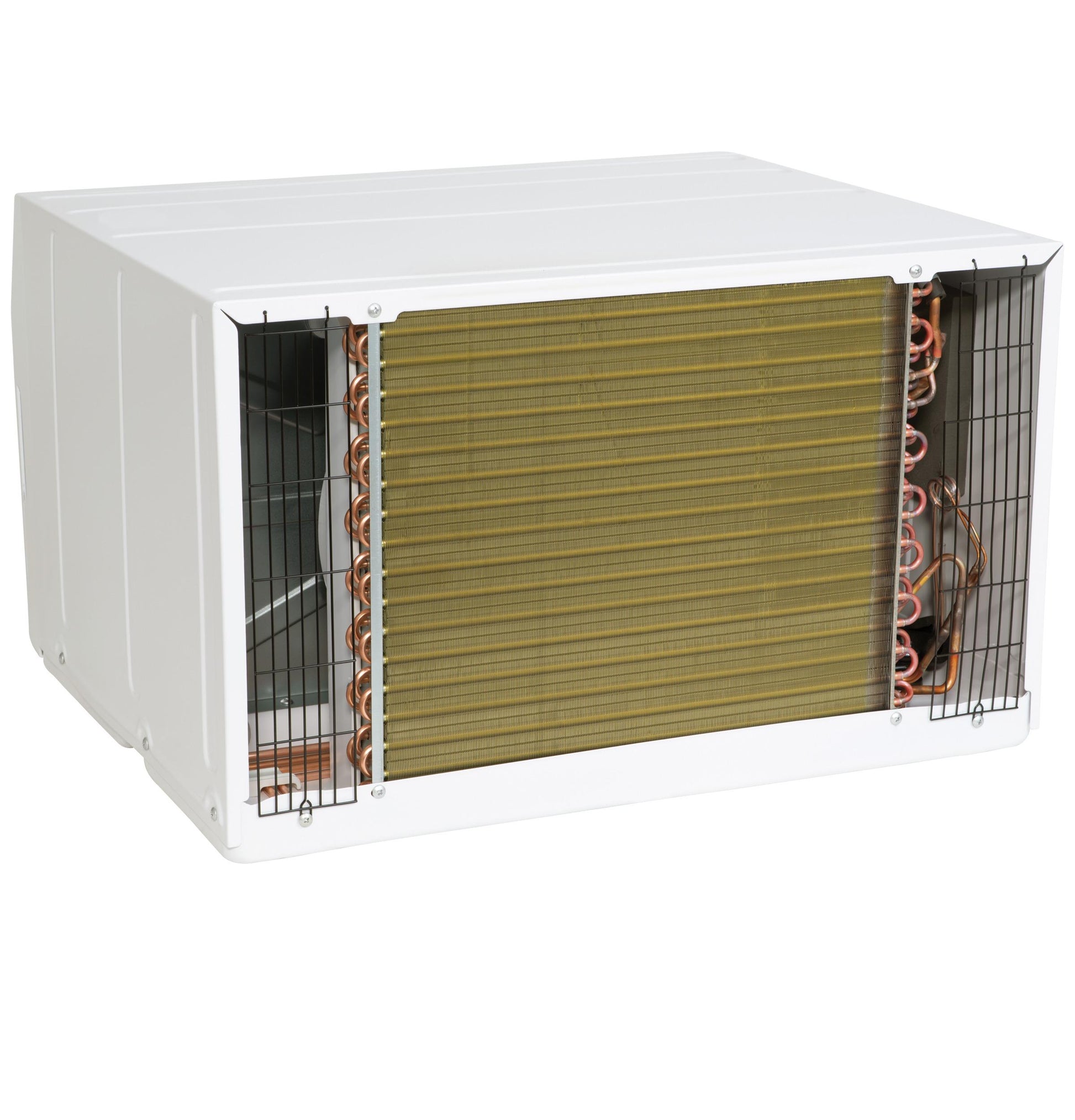

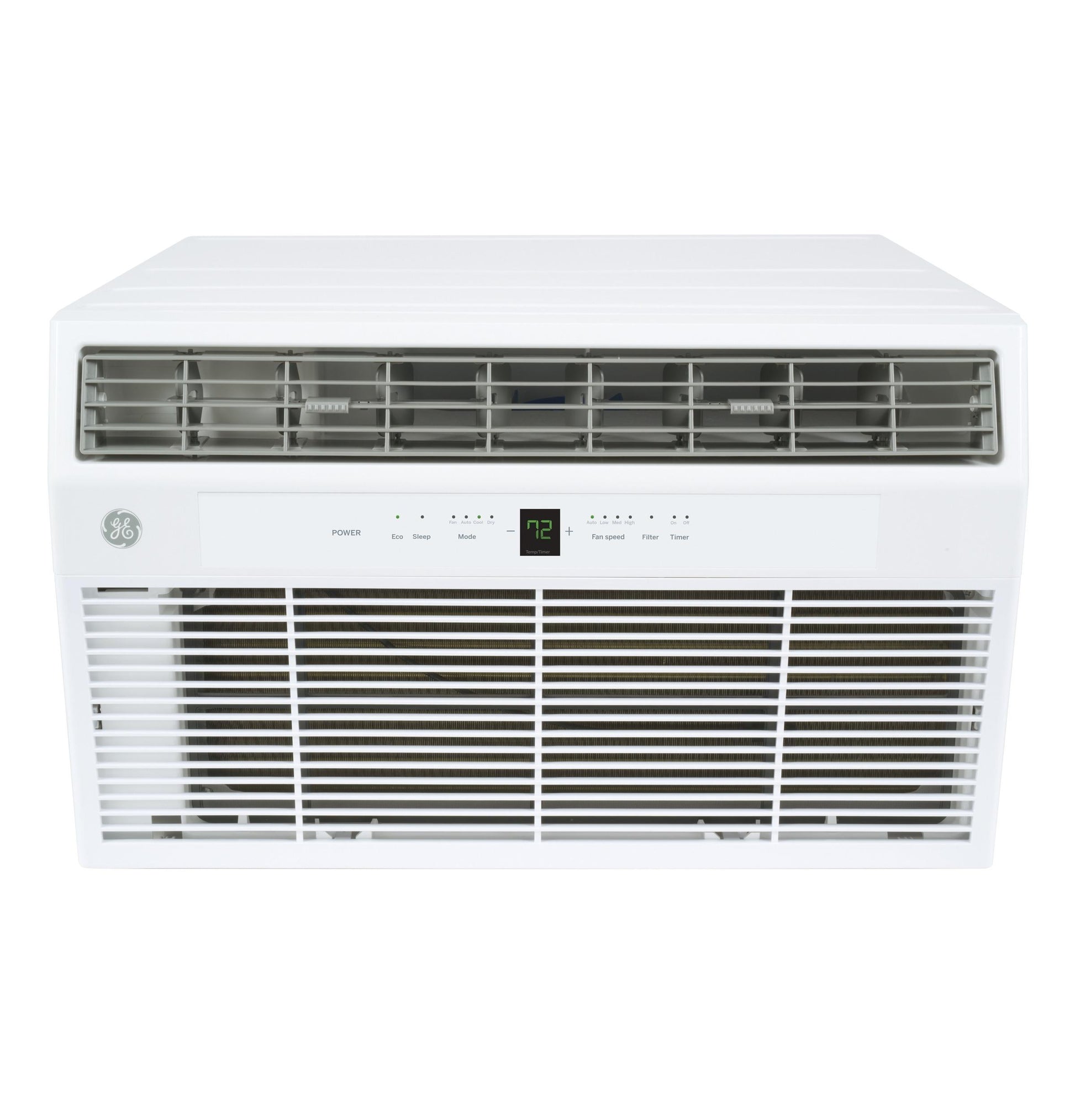

AKCQ12DCJ GE® Built In Air Conditioner AKCQ12DCJ

True Universal Fit

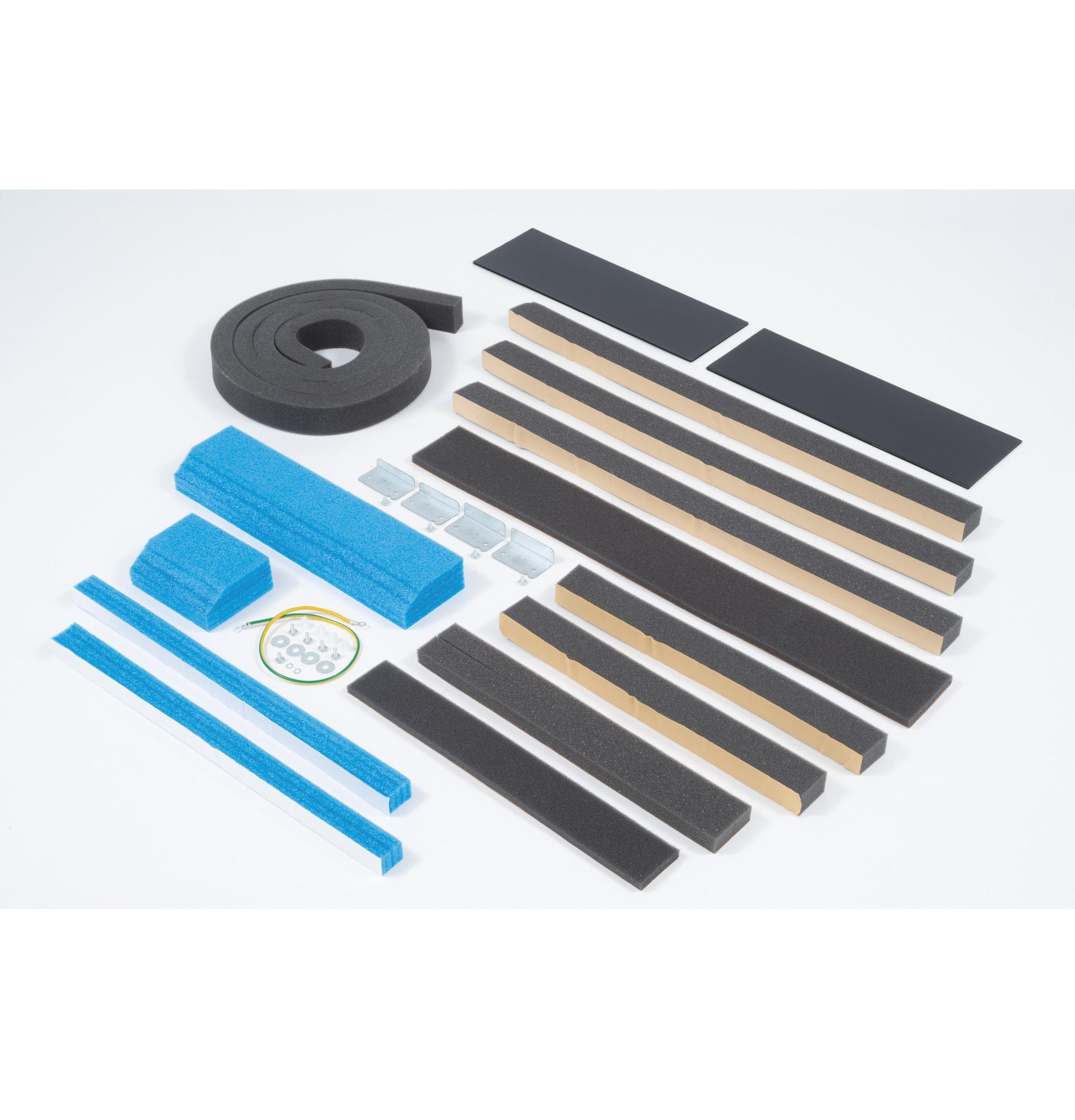

Simple slide-in installation is built in for a precise fit into a variety of different wall sleeves. Quickly fit and retrofit with confidence. Trim kit and installation kit included

Sleek Appearance
Streamlined design and bright white color will complement every room-cooling or heating your home in style

Large LCD Display
Intuitive & easy-to-read LCD display controls room air comfort at a single touch

ECO Mode
Innovative mode where the fan cycles off during cooling intervals, creating energy savings while keeping the room comfortable

Dry Mode
Designed for humid environments, it helps provide a dryer & more comfortable atmosphere with room-air dehumidification

6-Way Directional Airflow
Direct where the air flows with up to 6 directional vents-cooling and/or heating the areas of the room that need it the most

Washable Filter
Easy to remove and rinse clean, the filter helps remove dust and other particles from transmitting in the air-providing a cleaner environment

Auto Mode
Automatically select heating or cooling mode and fan speed to maintain the current temperature setpoint. It monitors the room temperature for optimal comfort

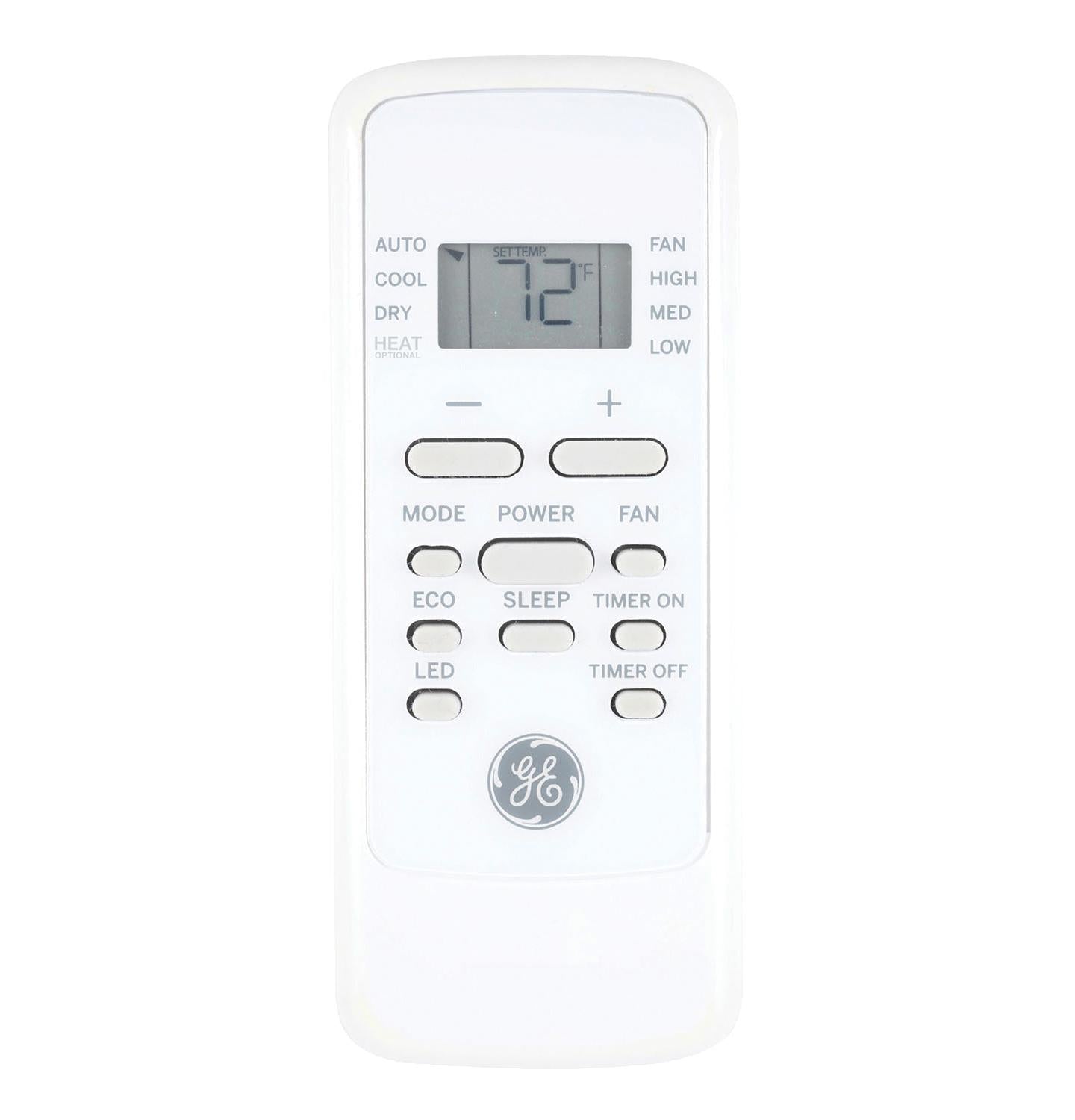

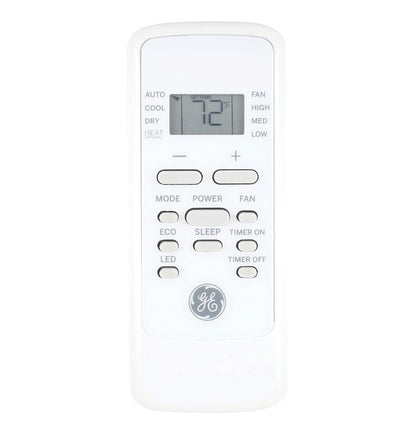

Remote Control Included
Slim, intuitive and easy to use, the remote control enables adjusting temperatures and settings conveniently from anywhere in the room

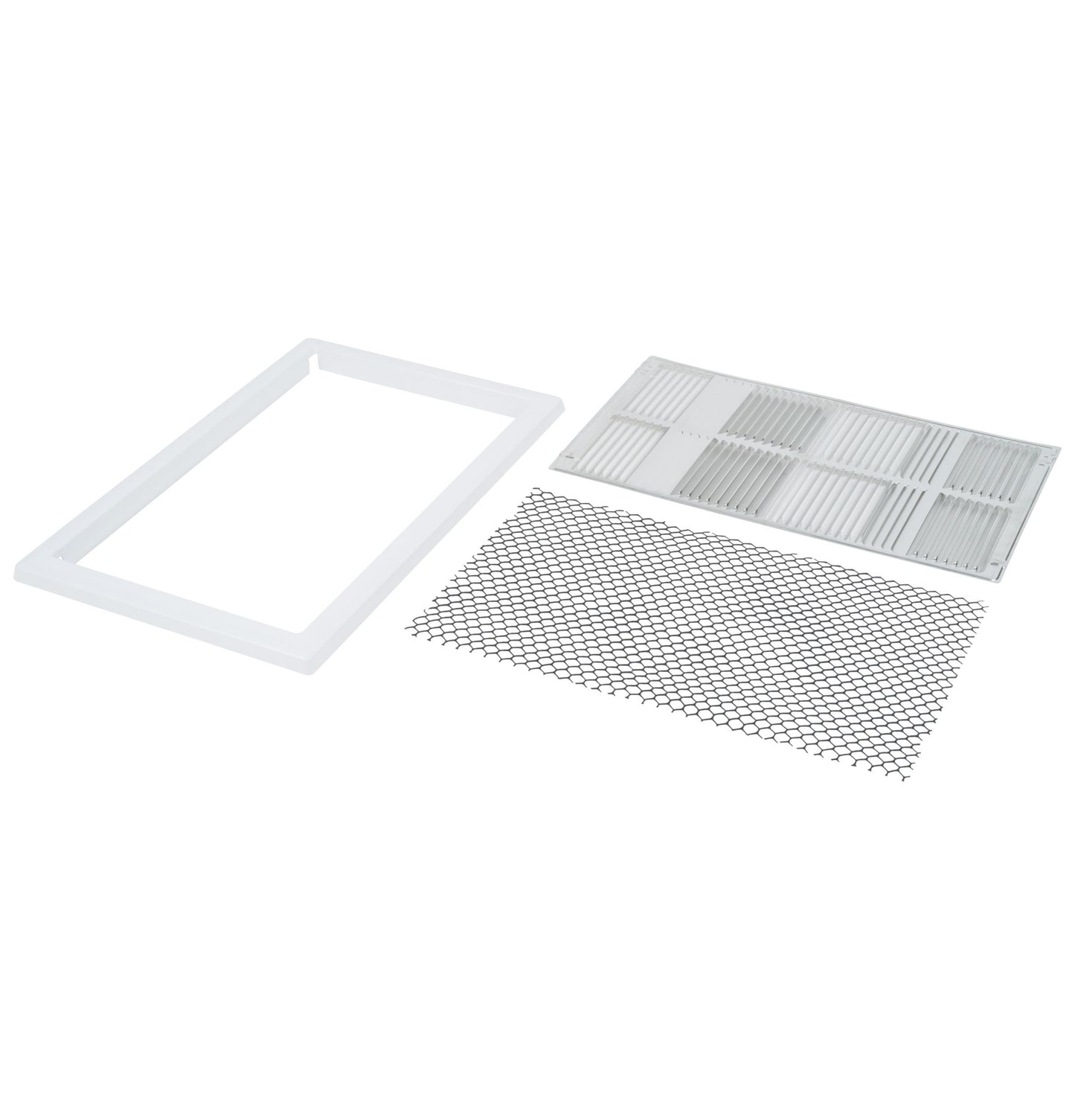

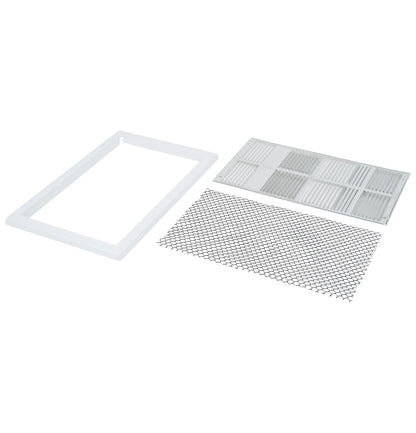

Universal Trim Kit
Designed for a custom appearance and easy installation, the trim kit provides a seamless appearance to the built-in wall sleeve

Sleep Mode
Efficient setting to adjust temperature during sleep times for up to 7 hours, creating more energy savings

2 Year Warranty
GE Appliances cares about its products, offering replacement of any part of the air conditioner which fails due to defect in materials or workmanship up to 2 years from the date of purchase

CAPACITY
Cooling BTUH (MAX)	12000 Btu
Cooling EER (BTUH / Watt)	10.5
Dehumidification (pts./hr.)	3.6
Cooling BTUH (MIN)	11700 Btu
FILTER
App Filter - Voltage	230 V
APPEARANCE
Color Appearance	White
POWER / RATINGS
Volts/Hertz	230V-208V/60Hz
Cooling - Rated Cooling Amps AHAM	5.2/5.6
Cooling - Watts	1142/1114
Voltage/Hertz/Phase	230-208/60/1
Voltage (MIN)	208 V
CEER	10.5
Voltage (MAX)	230 V
WARRANTY
Labor Warranty	Limited 2-year entire appliance
Parts Warranty	Limited 2-year entire appliance Limited 2-year refrigeration system
ACCESSORIES
Wall Case	RAB46/47/48/24 Required At Additional Cost
WEIGHTS & DIMENSIONS
Overall Width	24.0625 in
Approximate Shipping Weight	87 lb
Depth to Louvers	20.625 in
Overall Height	14.5625 in
Overall Depth	19 in
Net Weight	87 lb
FEATURES
Louver Style	6-Way
Fan Speed Selections	3 Cooling 3 Fan Only
Optional Grill	RAG13/RAG13A/RAG14E
Product Type	Built-In
Refrigerant Type	R32
Filter Type	Easy Access Permanent Mesh Rigid Tilt-Out Washable
Chassis Type	Fixed
Vent/Air Exchange Exhaust	Top
Plug Type	B / 6-15P
Remote Control	Yes
Thermostat Type	Thermistor
LCDI / AFCI power cord	Yes
Cord Length	48"
Air Flow Volume CFM High/Medium/Low	277/258/235
Rotary Compressor	Yes
Digital Time Temp Display	Yes
Room Air Conditioner Features	Auto Fan Batteries Included Dehumidify Function Energy Saver Filter Indicator Infrared Remote Control On/Off Timer Sleep Mode
