GE Zoneline® Cooling and Electric Heat Unit, 230/208 Volt AZ45E09DAB
![GE Zoneline® Cooling and Electric Heat Unit, 230/208 Volt](http://dshomeappliances.com/cdn/shop/products/FRLPFBMEUFQE.jpg?v=1678842663&width=960)
![GE Zoneline® Cooling and Electric Heat Unit, 230/208 Volt](http://dshomeappliances.com/cdn/shop/products/FRTNXGDTOYUX.jpg?v=1678842598&width=960)
![GE Zoneline® Cooling and Electric Heat Unit, 230/208 Volt](http://dshomeappliances.com/cdn/shop/products/FRJROQHUCHPJ.jpg?v=1678842600&width=960)
![GE Zoneline® Cooling and Electric Heat Unit, 230/208 Volt](http://dshomeappliances.com/cdn/shop/products/FRIXBFDODVKG.jpg?v=1678842602&width=960)
![GE Zoneline® Cooling and Electric Heat Unit, 230/208 Volt](http://dshomeappliances.com/cdn/shop/products/FRPGVQXENLSN.jpg?v=1678842604&width=960)
![GE Zoneline® Cooling and Electric Heat Unit, 230/208 Volt](http://dshomeappliances.com/cdn/shop/products/FRDECADJBWGM.jpg?v=1678842606&width=960)
![GE Zoneline® Cooling and Electric Heat Unit, 230/208 Volt](http://dshomeappliances.com/cdn/shop/products/FRIENSACNHTJ.jpg?v=1678842608&width=960)
![GE Zoneline® Cooling and Electric Heat Unit, 230/208 Volt](http://dshomeappliances.com/cdn/shop/products/FRIVLETAJHFN.jpg?v=1678842610&width=960)
![GE Zoneline® Cooling and Electric Heat Unit, 230/208 Volt](http://dshomeappliances.com/cdn/shop/products/FRHKJQYEKGRD.jpg?v=1678842612&width=960)
![GE Zoneline® Cooling and Electric Heat Unit, 230/208 Volt](http://dshomeappliances.com/cdn/shop/products/FRORBJOAXQYL.jpg?v=1678842614&width=960)
![GE Zoneline® Cooling and Electric Heat Unit, 230/208 Volt](http://dshomeappliances.com/cdn/shop/products/FRACPBEVFLSR.jpg?v=1678842616&width=960)
![GE Zoneline® Cooling and Electric Heat Unit, 230/208 Volt](http://dshomeappliances.com/cdn/shop/products/FRKMOBTHRYUR.jpg?v=1678842618&width=960)
![GE Zoneline® Cooling and Electric Heat Unit, 230/208 Volt](http://dshomeappliances.com/cdn/shop/products/FRYMDGEXVWPQ.jpg?v=1678842620&width=960)
![GE Zoneline® Cooling and Electric Heat Unit, 230/208 Volt](http://dshomeappliances.com/cdn/shop/products/FRHLWQRHOYLC.jpg?v=1678842622&width=960)
![GE Zoneline® Cooling and Electric Heat Unit, 230/208 Volt](http://dshomeappliances.com/cdn/shop/products/FRQQSVMUSPPK.jpg?v=1678842624&width=960)
![GE Zoneline® Cooling and Electric Heat Unit, 230/208 Volt](http://dshomeappliances.com/cdn/shop/products/FRIQBXMHVGDT.jpg?v=1678842626&width=960)
![GE Zoneline® Cooling and Electric Heat Unit, 230/208 Volt](http://dshomeappliances.com/cdn/shop/products/FROCNHMVSBNV.jpg?v=1678842628&width=960)
![GE Zoneline® Cooling and Electric Heat Unit, 230/208 Volt](http://dshomeappliances.com/cdn/shop/products/FRJHYPMEGLJQ.jpg?v=1678842630&width=960)
![GE Zoneline® Cooling and Electric Heat Unit, 230/208 Volt](http://dshomeappliances.com/cdn/shop/products/FRWCONNWCIGC.jpg?v=1678842633&width=960)
![GE Zoneline® Cooling and Electric Heat Unit, 230/208 Volt](http://dshomeappliances.com/cdn/shop/products/FRGFCXWRXNML.jpg?v=1678842635&width=960)
![GE Zoneline® Cooling and Electric Heat Unit, 230/208 Volt](http://dshomeappliances.com/cdn/shop/products/FRHCWTNUUMAF.jpg?v=1678842637&width=957)
![GE Zoneline® Cooling and Electric Heat Unit, 230/208 Volt](http://dshomeappliances.com/cdn/shop/products/FRNBJTRNEIIH.jpg?v=1678842639&width=960)
![GE Zoneline® Cooling and Electric Heat Unit, 230/208 Volt](http://dshomeappliances.com/cdn/shop/products/FRUWCAQPNGYT.jpg?v=1678842641&width=960)
![GE Zoneline® Cooling and Electric Heat Unit, 230/208 Volt](http://dshomeappliances.com/cdn/shop/products/FRRROAXPIWUP.jpg?v=1678842643&width=960)
![GE Zoneline® Cooling and Electric Heat Unit, 230/208 Volt](http://dshomeappliances.com/cdn/shop/products/FRJYXSYDYDTV.jpg?v=1678842645&width=960)
![GE Zoneline® Cooling and Electric Heat Unit, 230/208 Volt](http://dshomeappliances.com/cdn/shop/products/FRABGOPYCMNO.jpg?v=1678842646&width=960)
![GE Zoneline® Cooling and Electric Heat Unit, 230/208 Volt](http://dshomeappliances.com/cdn/shop/products/FRMKJEVIBRTF.jpg?v=1678842648&width=960)
![GE Zoneline® Cooling and Electric Heat Unit, 230/208 Volt](http://dshomeappliances.com/cdn/shop/products/FRFEYMEKPHWV.jpg?v=1678842650&width=960)
![GE Zoneline® Cooling and Electric Heat Unit, 230/208 Volt](http://dshomeappliances.com/cdn/shop/products/FRBWGRGJVFCR.jpg?v=1678842652&width=960)
![GE Zoneline® Cooling and Electric Heat Unit, 230/208 Volt](http://dshomeappliances.com/cdn/shop/products/FRYUIPFTHRIT.jpg?v=1678842654&width=960)
![GE Zoneline® Cooling and Electric Heat Unit, 230/208 Volt](http://dshomeappliances.com/cdn/shop/products/FREVBXDOOYKV.jpg?v=1678842656&width=960)
![GE Zoneline® Cooling and Electric Heat Unit, 230/208 Volt](http://dshomeappliances.com/cdn/shop/products/FRXVWPHWKNMM.jpg?v=1678842658&width=960)
![GE Zoneline® Cooling and Electric Heat Unit, 230/208 Volt](http://dshomeappliances.com/cdn/shop/products/FRQXNKPAXRLL.jpg?v=1678842660&width=960)
![GE Zoneline® Cooling and Electric Heat Unit, 230/208 Volt](http://dshomeappliances.com/cdn/shop/products/FRCPOILSPEXK.jpg?v=1678842663&width=960)
Chat to see when this product will become available
Product Details
- Cooling capacity
- Simplified structure
- Energy efficiency
- Dehumidification
- Indoor fan CFM (high/low)
- Fresh air vent CFM (fully open high fan)
- Quiet operation
- Heat & Freeze Sentinels
- Electronic temperature limiting
- Electronic touch controls with LED display
- R-410A refrigerant
- SMC base pan
Cooling capacity
9,700/9,600 BTU
Simplified structure
Easy to maintain and service
Energy efficiency
12.1/12.1 EER
Dehumidification
2.7 pints/hour
Indoor fan CFM (high/low)
409/280
Fresh air vent CFM (fully open high fan)
38
Quiet operation

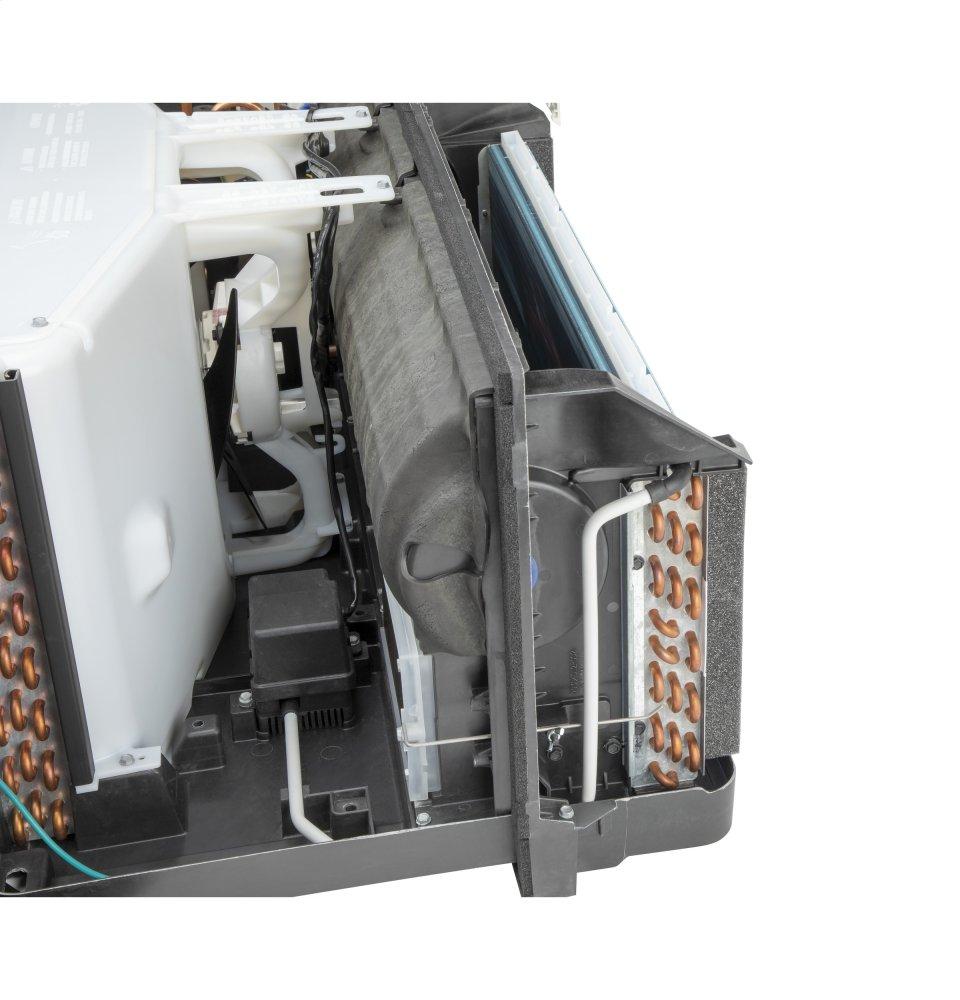

Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort
Heat & Freeze Sentinels
Keeps the room from overheating or freezing
Electronic temperature limiting
Prevents expensive over-cooling or over-heating of the room
Electronic touch controls with LED display
R-410A refrigerant
SMC base pan
CAPACITY | |
Cooling BTUH (MIN) | 9600.0 Btu |
Cooling BTUH (MAX) | 9700.0 Btu |
Cooling EER (BTUH / Watt) | 12.1/12.1 |
CFM Indoor Fan High | 393 |
CFM Indoor Fan Low | 260 |
Dehumidification (pts./hr.) | 2.7 |
Vent CFM (high fan at zero ESP) | 38 |
FEATURES | |
Control Type | Coverless Backlit White LED Touch Controls |
Discharge Grille | 2-position |
Electronic Micro Computer Control | Yes |
Fan Cycle Switch | Yes |
Fan Motor | 2 |
Fan Speed Control | Yes |
Fan Speed Selections | Hi/Low Cooling Hi/Low Fan Only Hi/Low Heating |
Filter Type | Rigid Frame Slide-Out |
Heat - Cool | Yes |
Louver Style | Reversible |
Manual Vent Control | Hidden |
Rotary Compressor | Yes |
Temperature Limiting | Electronic 7-Step |
Vent Control | 3-position |
Venting Features | Concealed Manual Vent Control Outdoor Vent Control - 3 Positions Vent Air Filter |
Zoneline Features | Remote Thermostat Compatibility Universal Heaters Weather Protected Electrical Components Auto Power Recovery Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Heat Sentinel Power Cord (LDCI) included Proportional - Integral ID Airflow Random Twist/Length Segment Tangential Blower |
Heating System | Electric Resistance |
Product Type | Packaged Terminal Air Conditioners (PTAC) |
Temperature Range | 60 - 85 F |
Sensible Heat Ratio | 64% |
Chassis Type | Slide-In |
POWER / RATINGS | |
Cooling - Amperes; F.L. - Cooling | 3.6/3.9 |
Cooling - Amperes; L.R. | 21.0 |
Cooling - Watts | 800/790 |
Power Factor | 98 |
Voltage (MIN) | 208.0 V |
Voltage (MAX) | 230.0 V |
WARRANTY | |
Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
Warranty Notes | See written warranty for full details |
WEIGHTS & DIMENSIONS | |
Net Weight | 110.0 lb |
Overall Depth | 20.8125 in |
Overall Height | 16.0 in |
Overall Width | 42.0 in |
