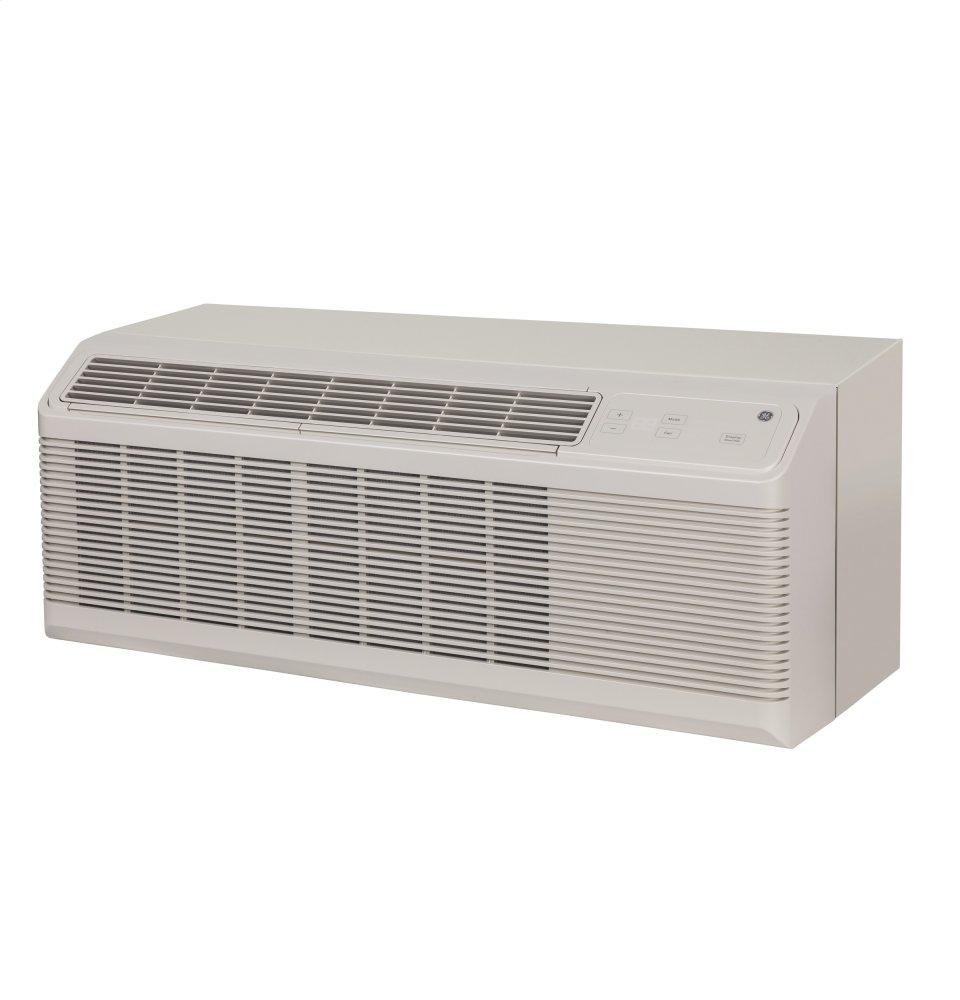

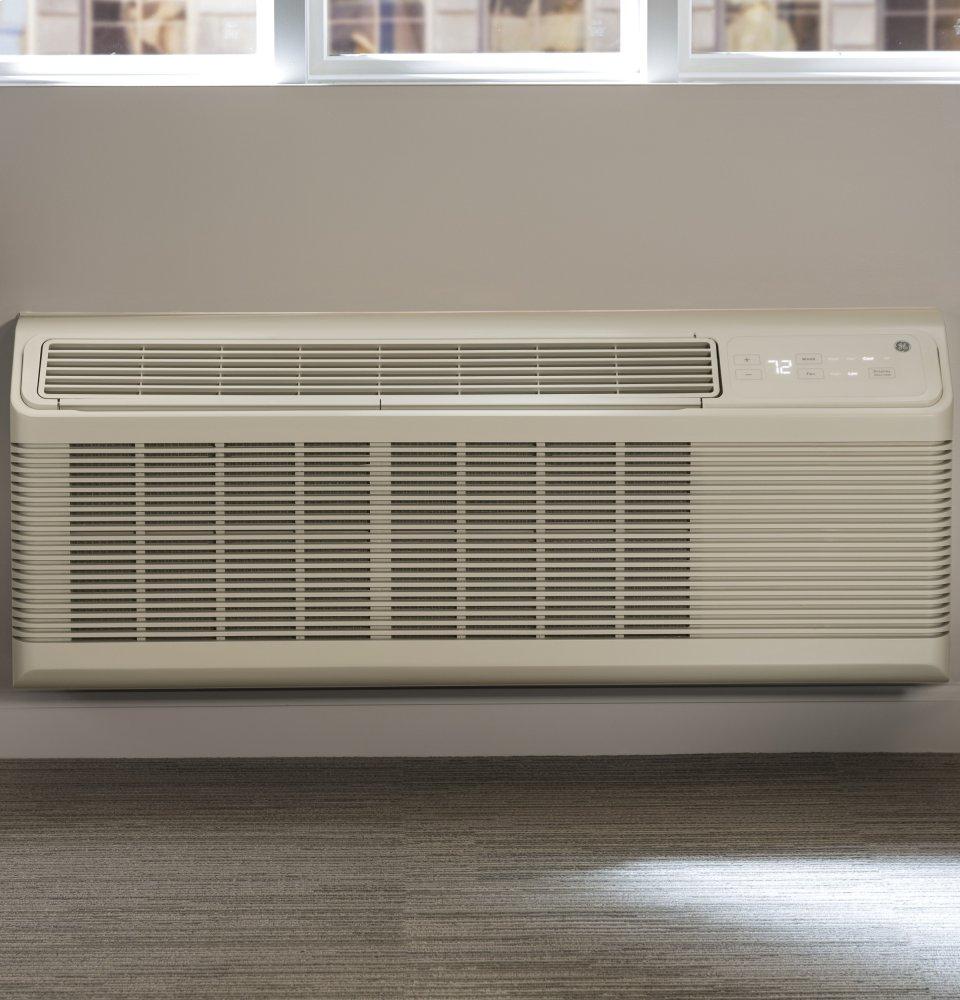

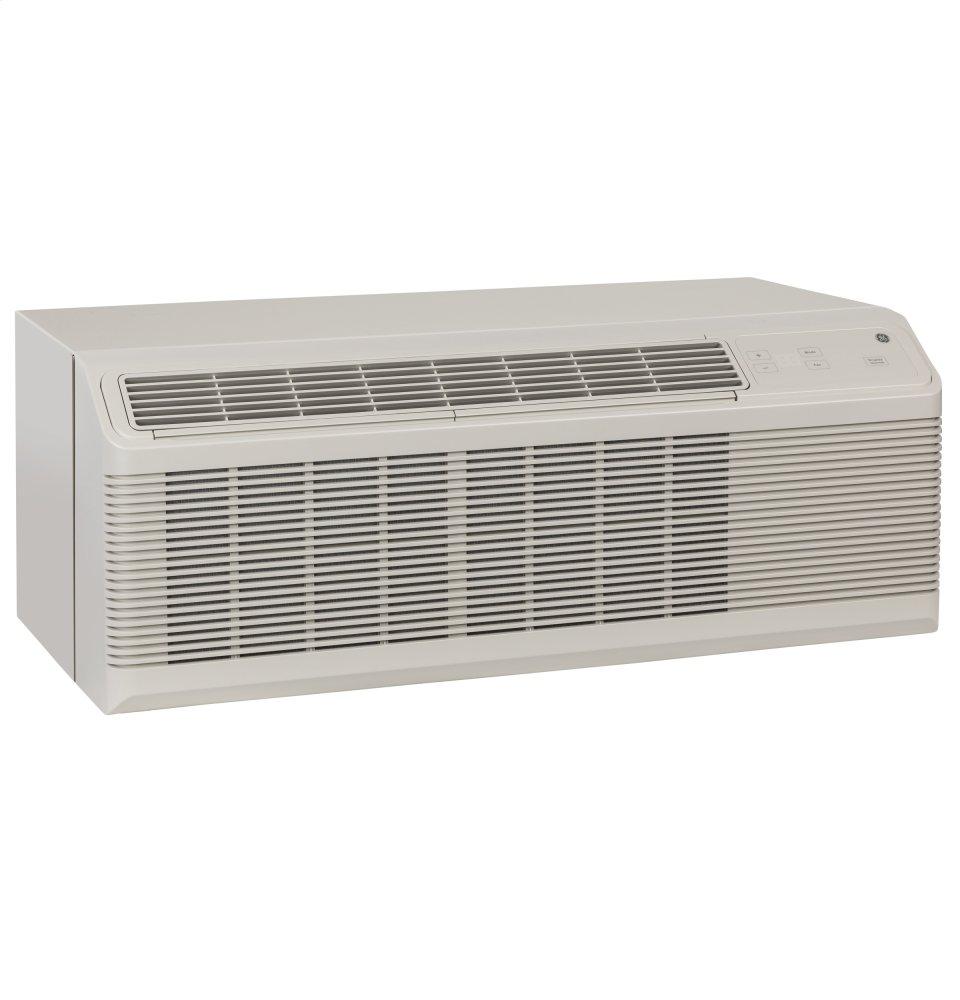

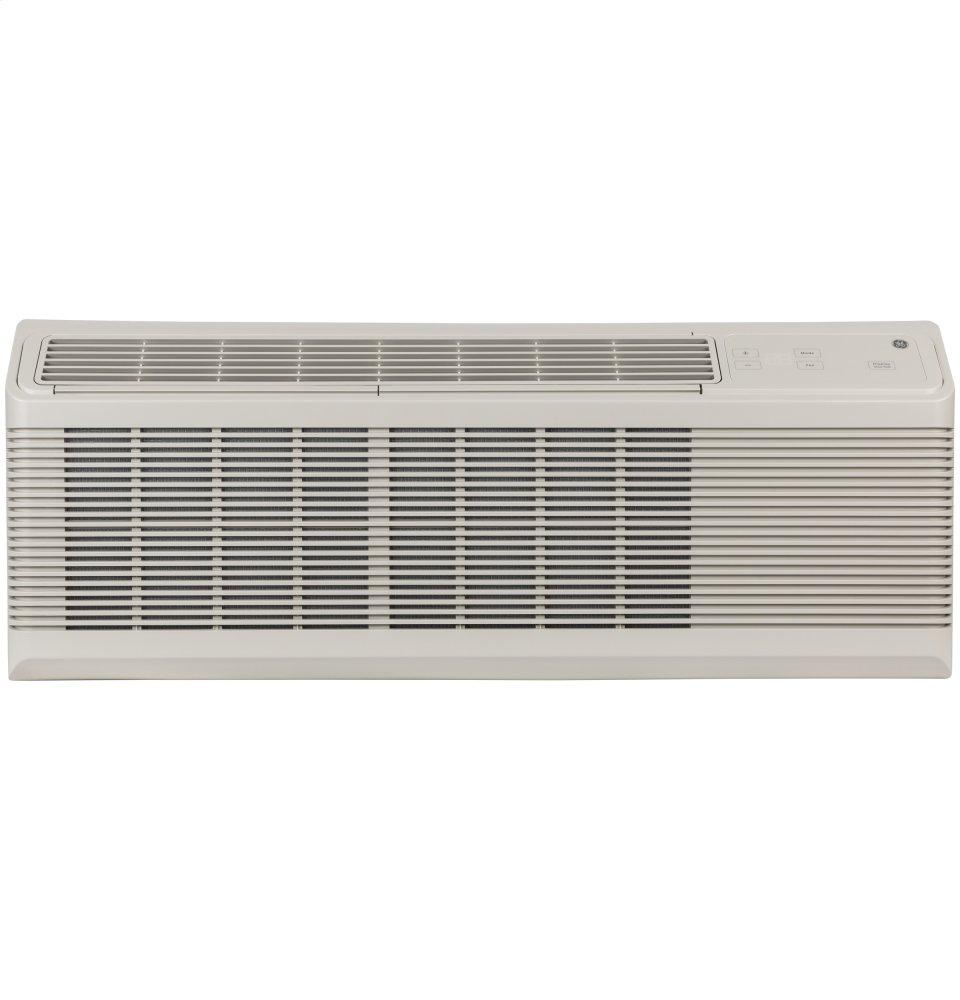

AZ45E09DAC GE Zoneline® Cooling and Electric Heat Unit with Corrosion Protection, 230/208 Volt
AZ45E09DAC GE Zoneline® Cooling and Electric Heat Unit with Corrosion Protection, 230/208 Volt
Item Not Available
Couldn't load pickup availability
When Will I Get My Order?
- SMC base pan
- Simplified structure
- Cooling capacity
- Energy efficiency
- Dehumidification
- Indoor fan CFM (high/low)
- Fresh air vent CFM (fully open high fan)
- Quiet operation
- Corrosion resistant
- Heat & Freeze Sentinels
- Electronic temperature limiting
- Electronic touch controls with LED display
- R-410A refrigerant

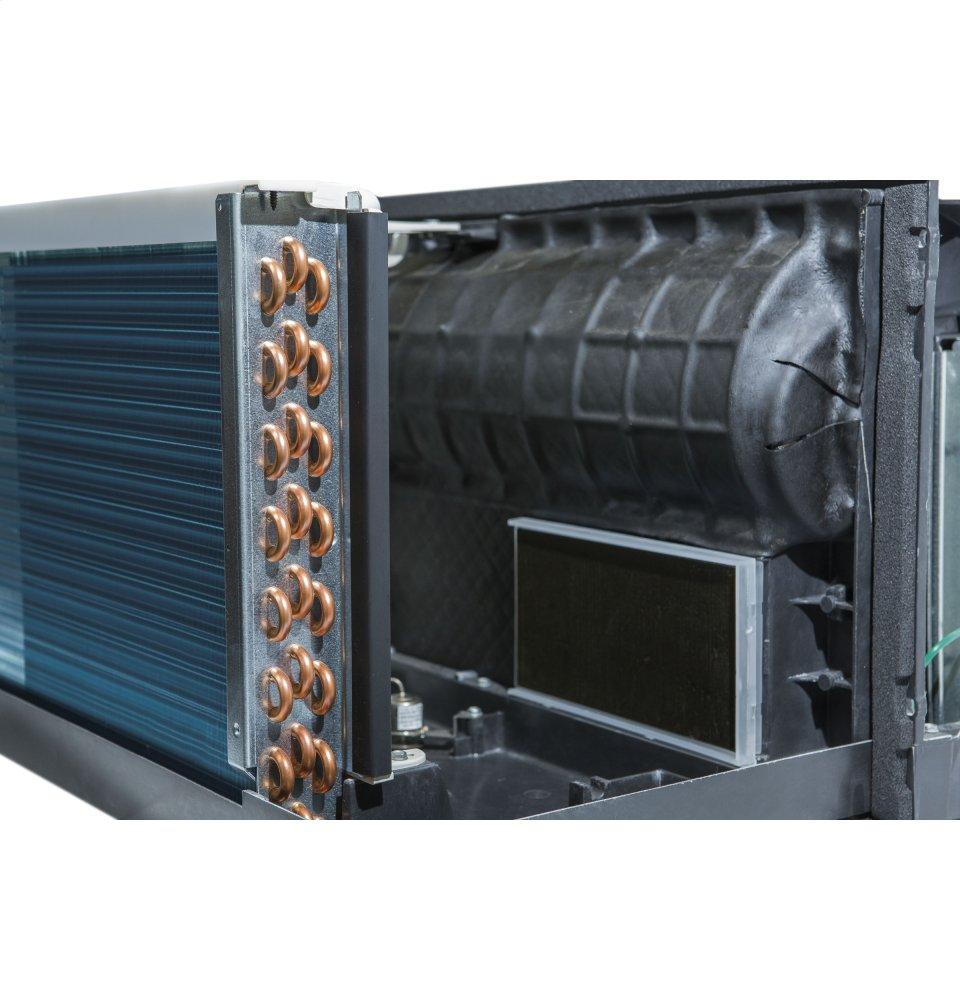

SMC base pan
Simplified structure
Cooling capacity
Energy efficiency
Dehumidification
Indoor fan CFM (high/low)
Fresh air vent CFM (fully open high fan)
Quiet operation
Corrosion resistant
Heat & Freeze Sentinels
Electronic temperature limiting
Electronic touch controls with LED display
R-410A refrigerant

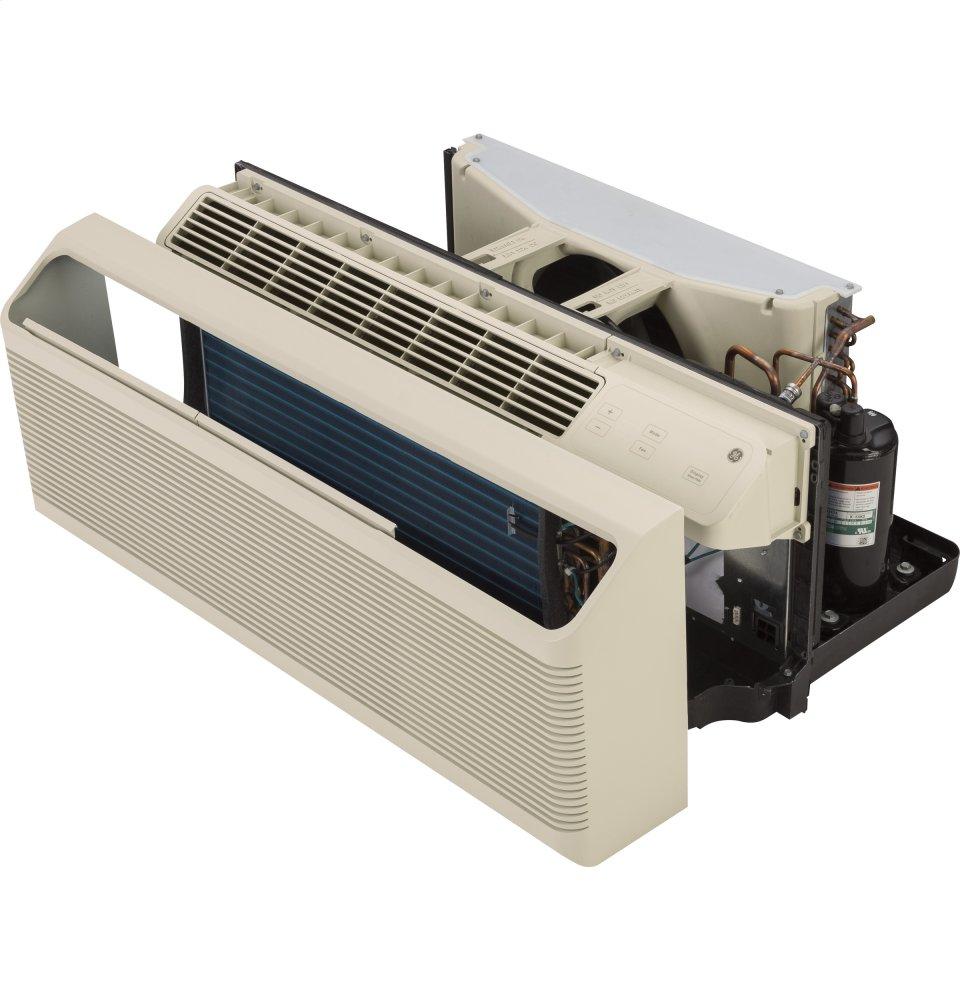

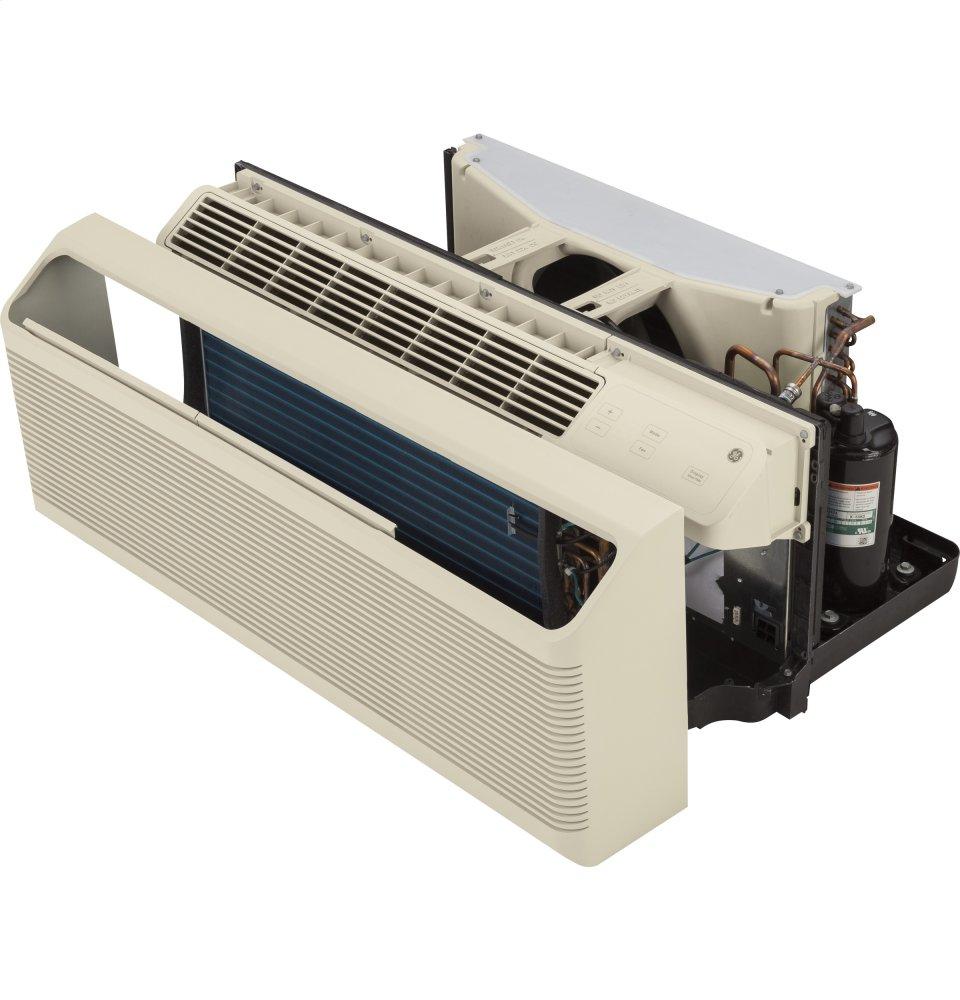

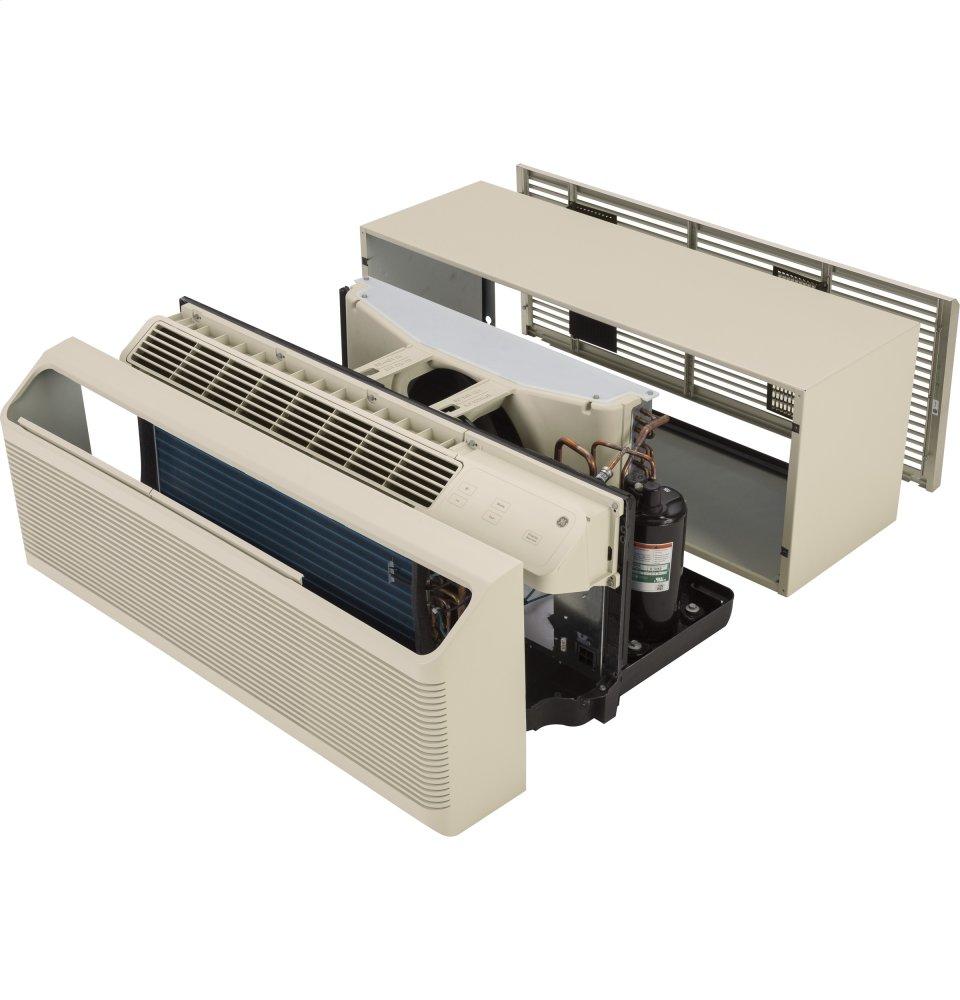

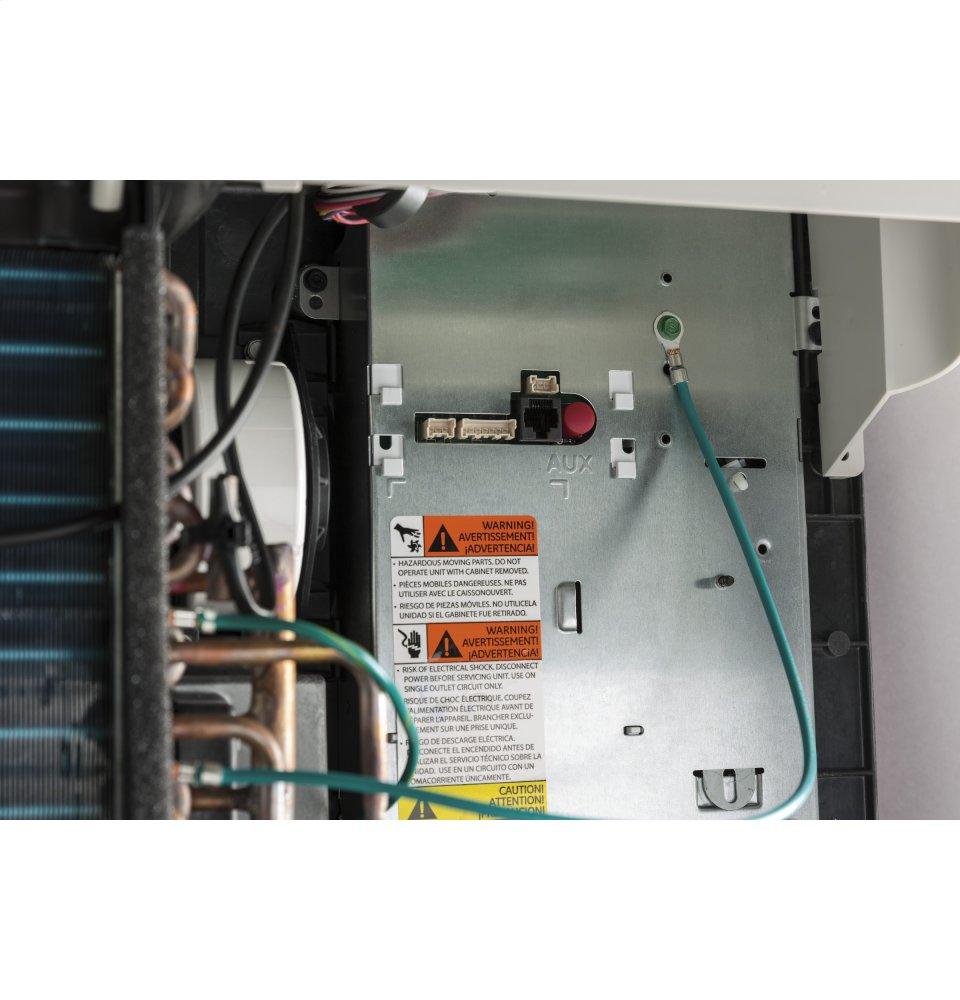

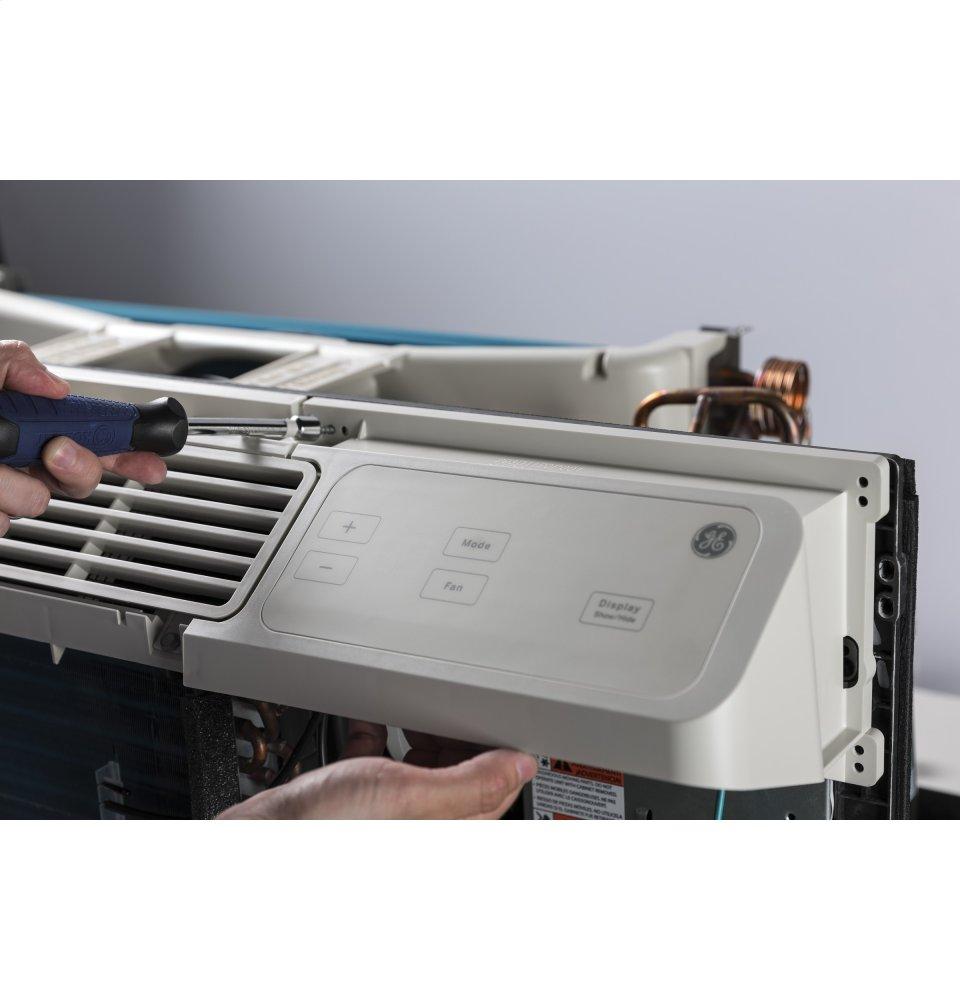

Simplified structure
Easy to maintain and service
Cooling capacity
9,400/9,300 BTU
Energy efficiency
11.8/11.8 EER
Dehumidification
2.7 pints/hour
Indoor fan CFM (high/low)
409/280
Fresh air vent CFM (fully open high fan)
38
Quiet operation

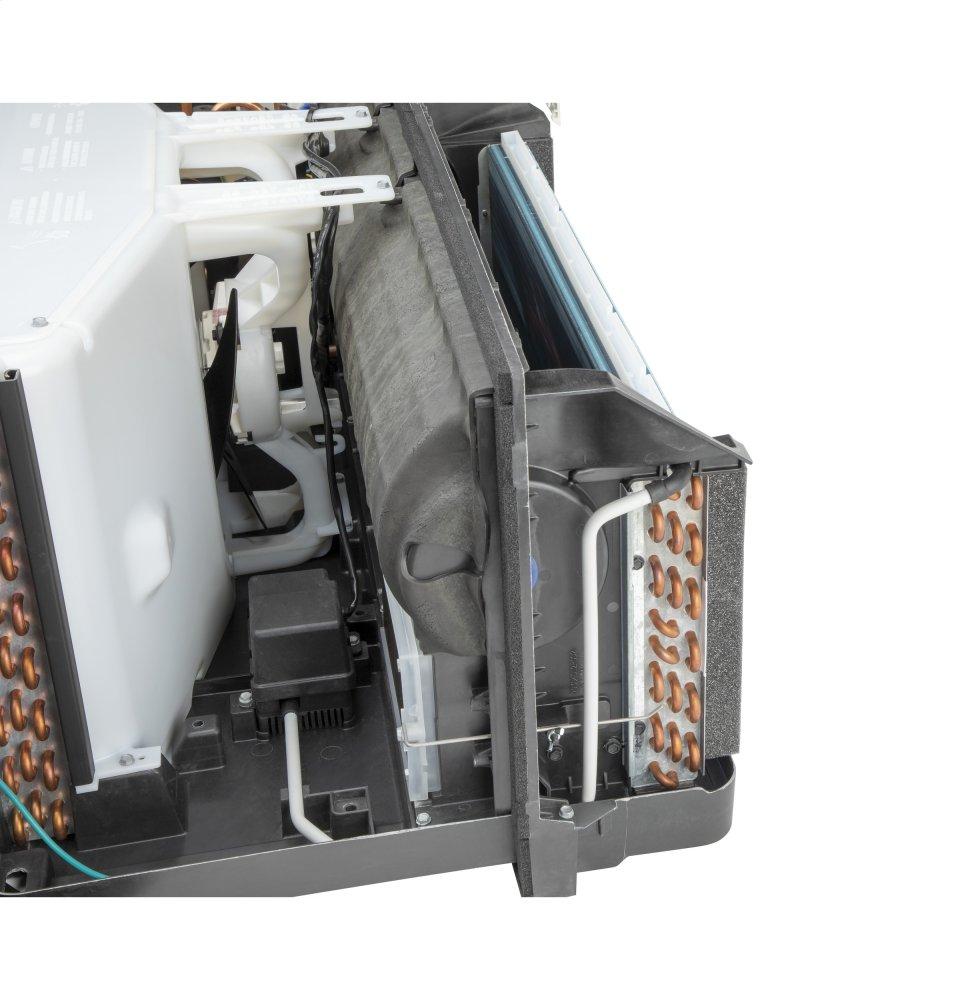

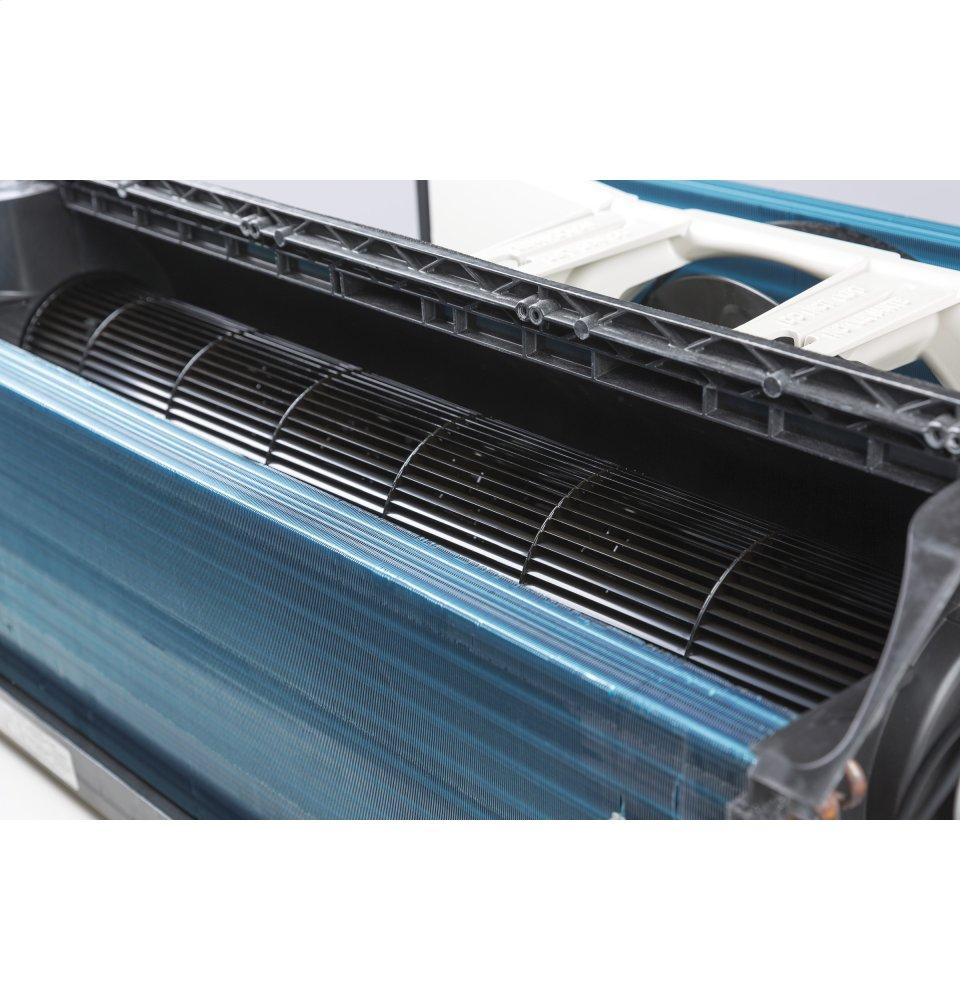

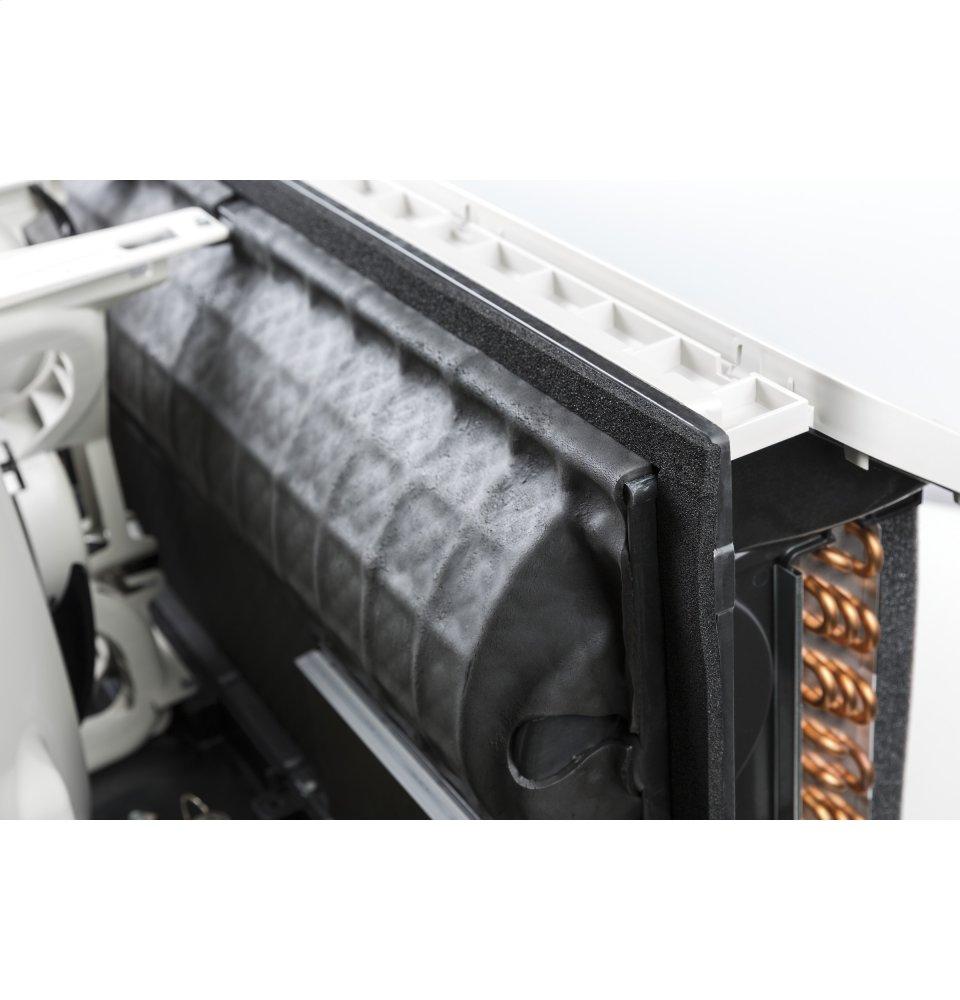

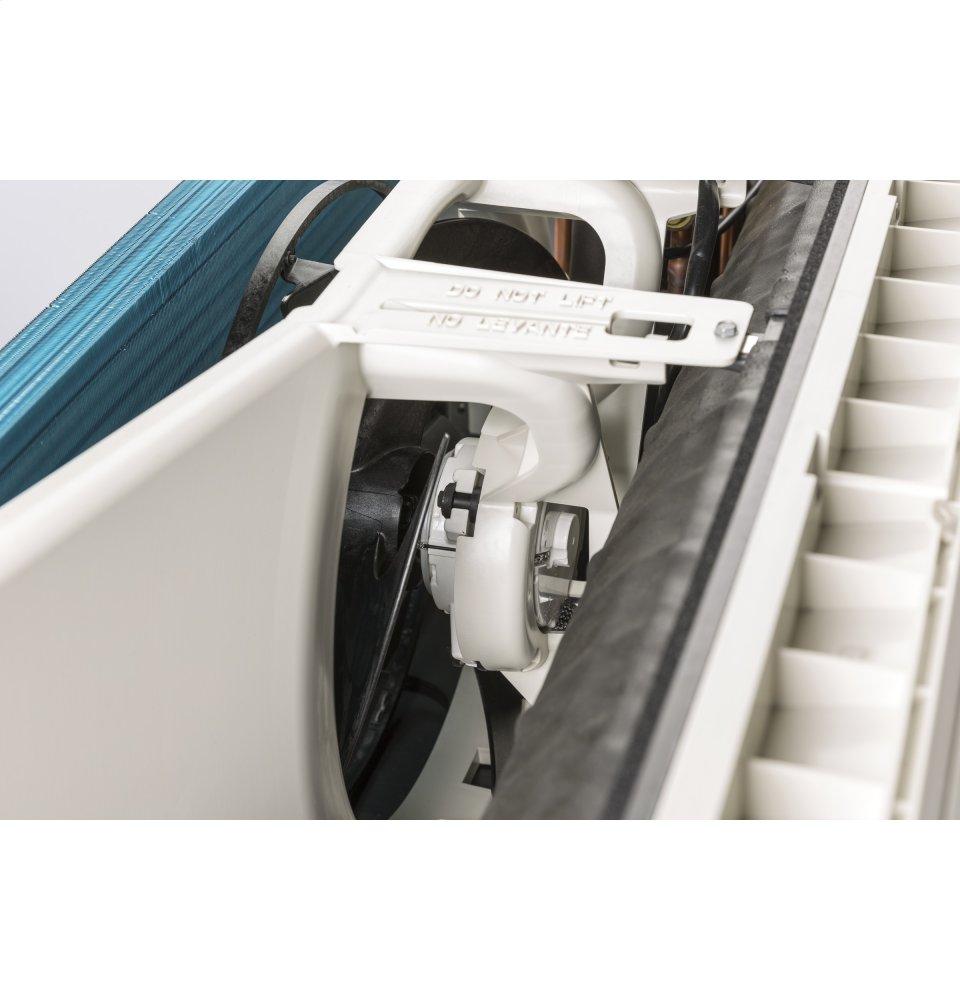

Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort

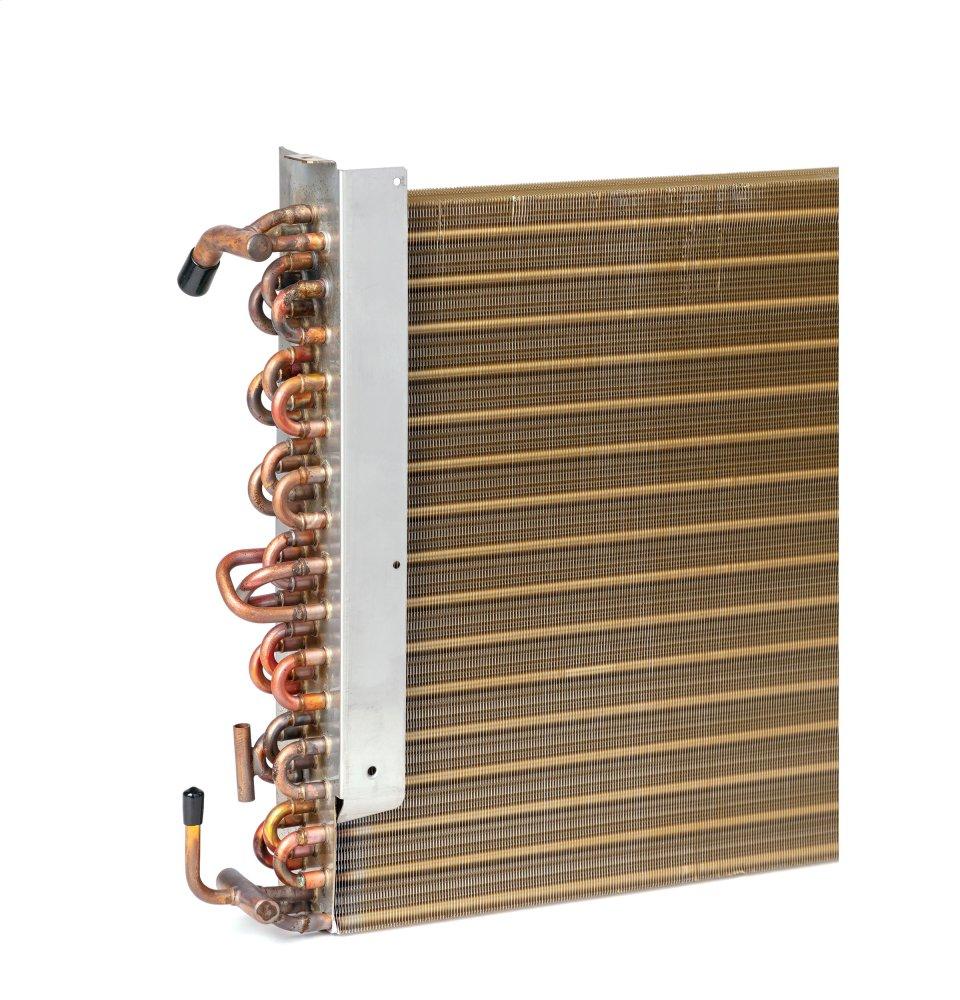

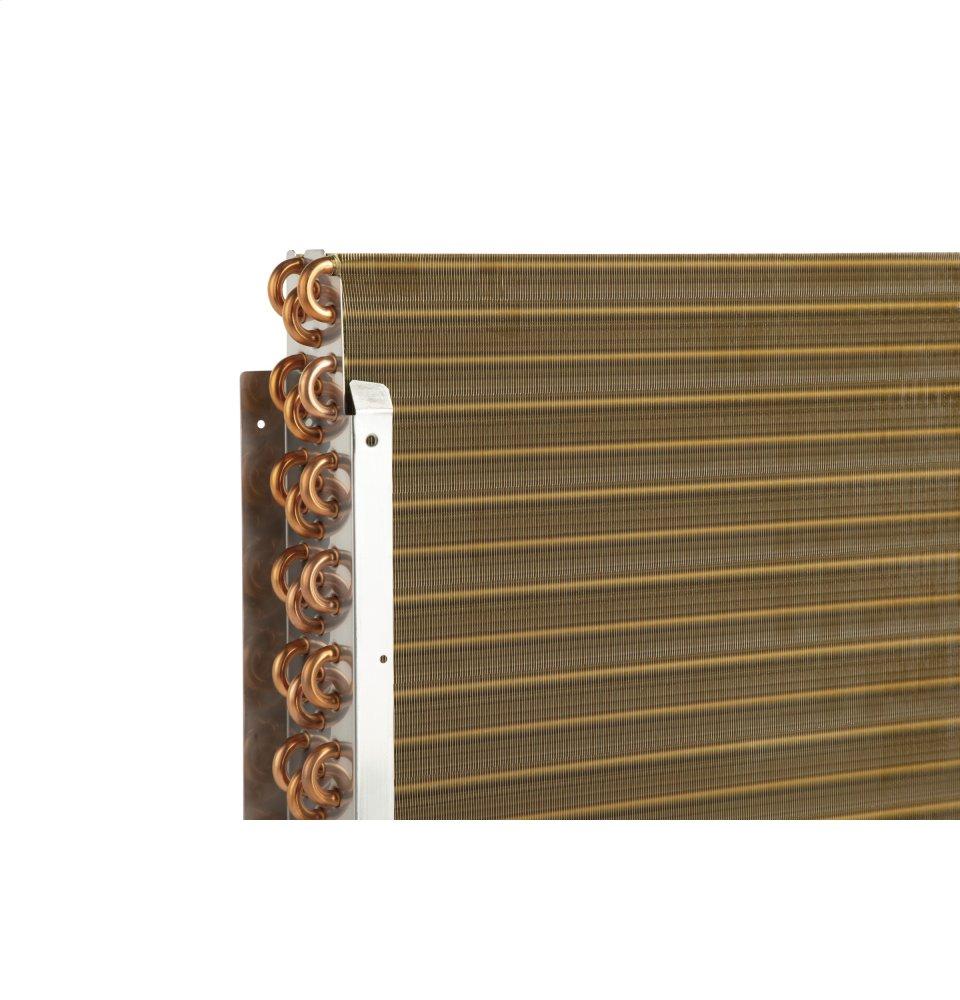

Corrosion resistant
Extends life of the unit in sea coast areas/corrosive environments
Heat & Freeze Sentinels
Keeps the room from overheating or freezing
Electronic temperature limiting
Prevents expensive over-cooling or over-heating of the room

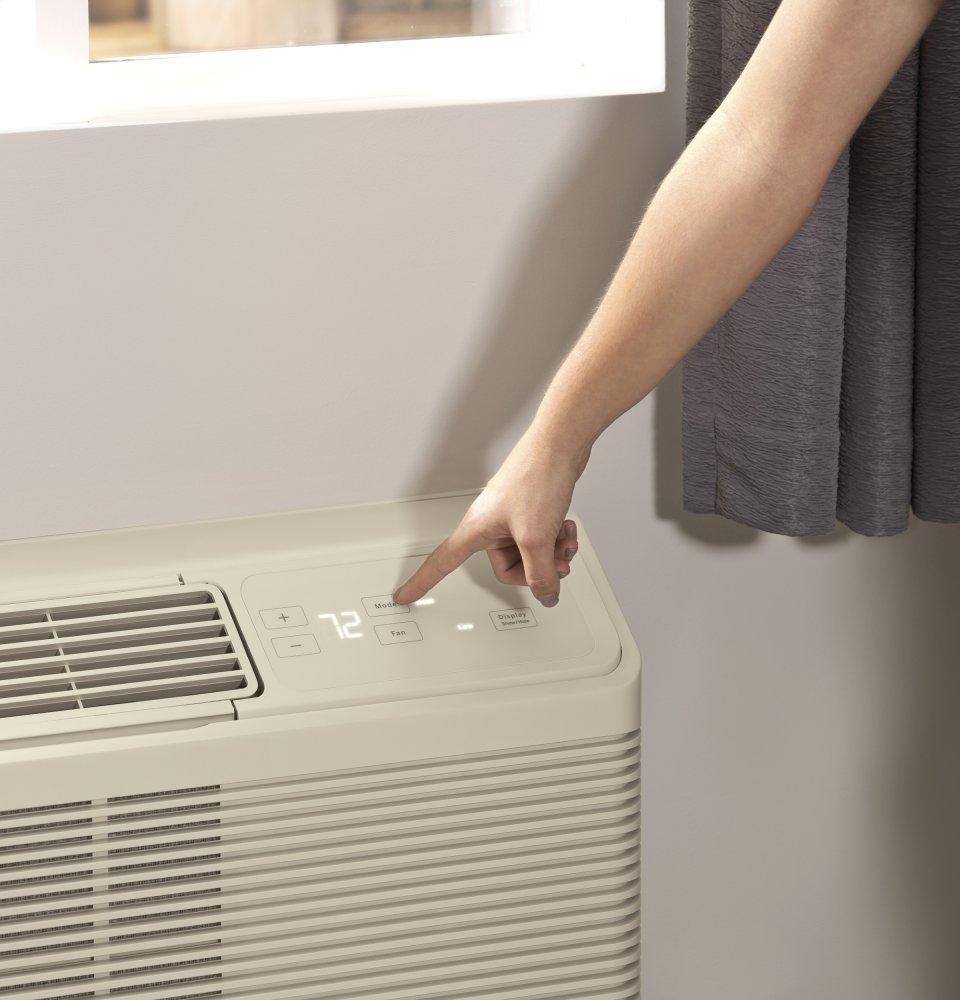

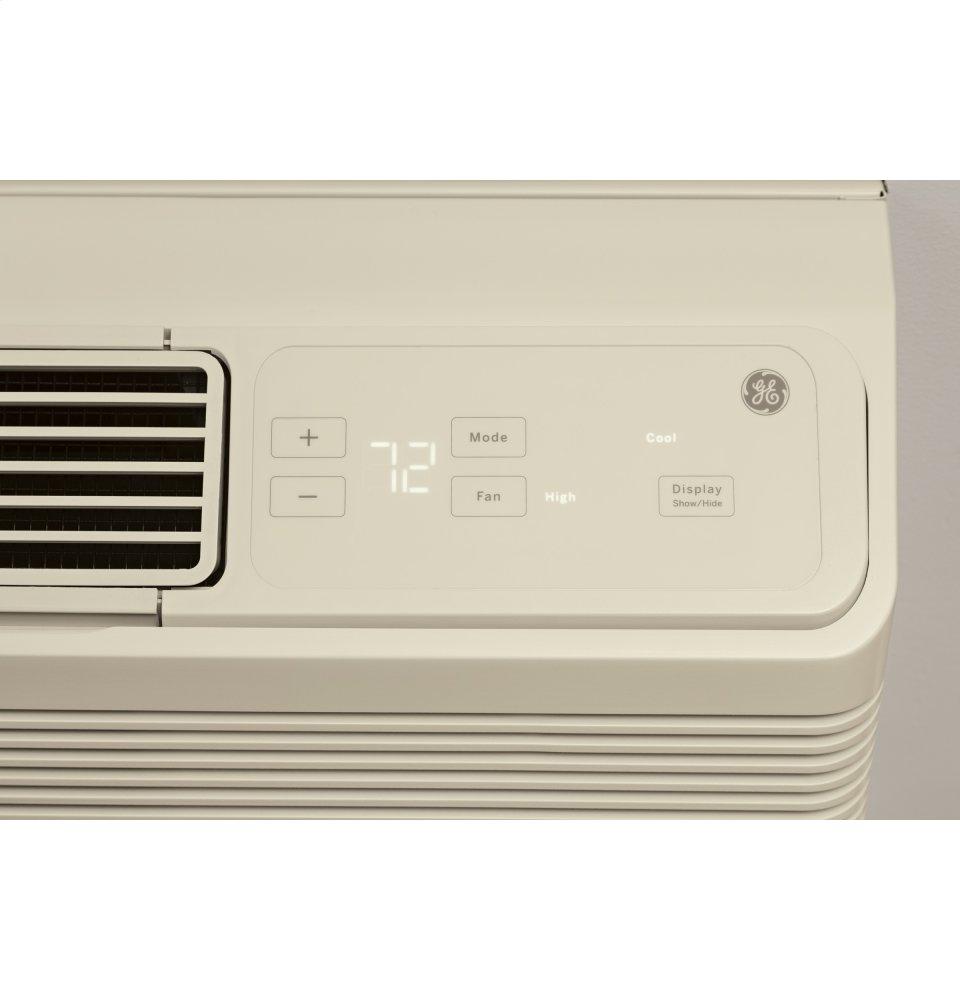

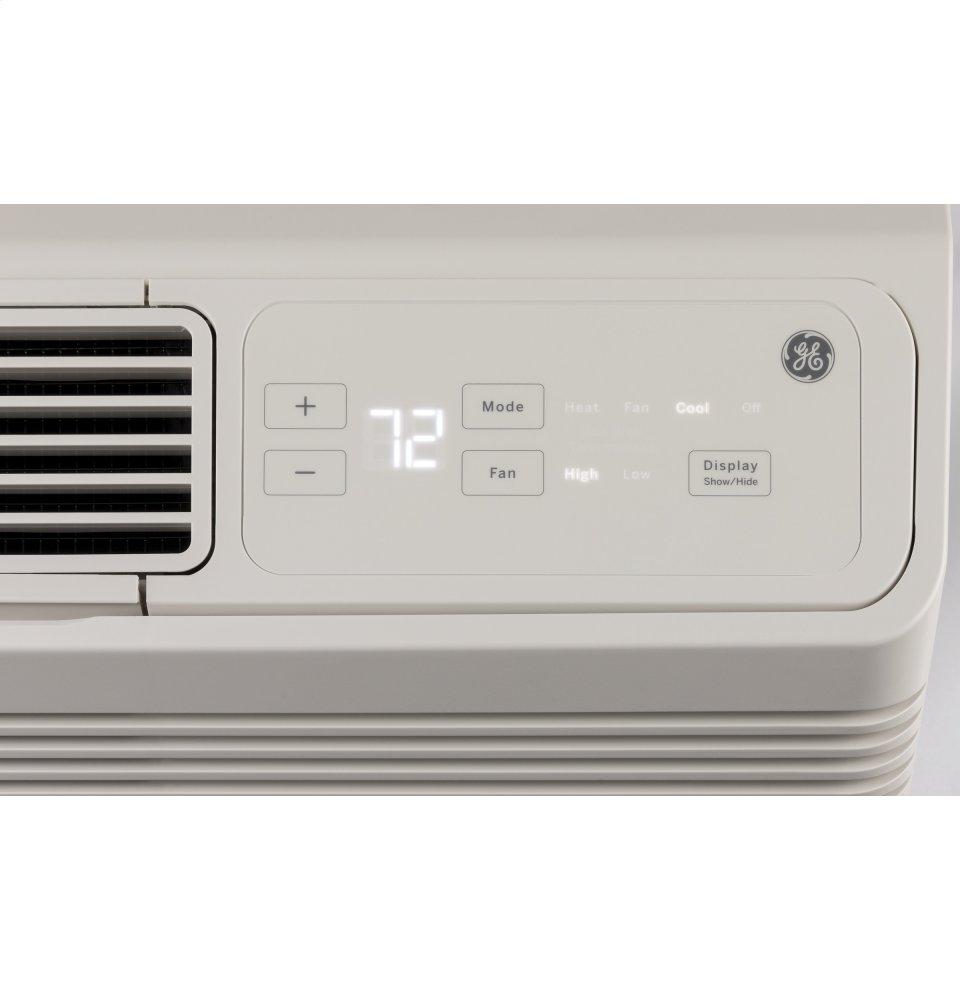

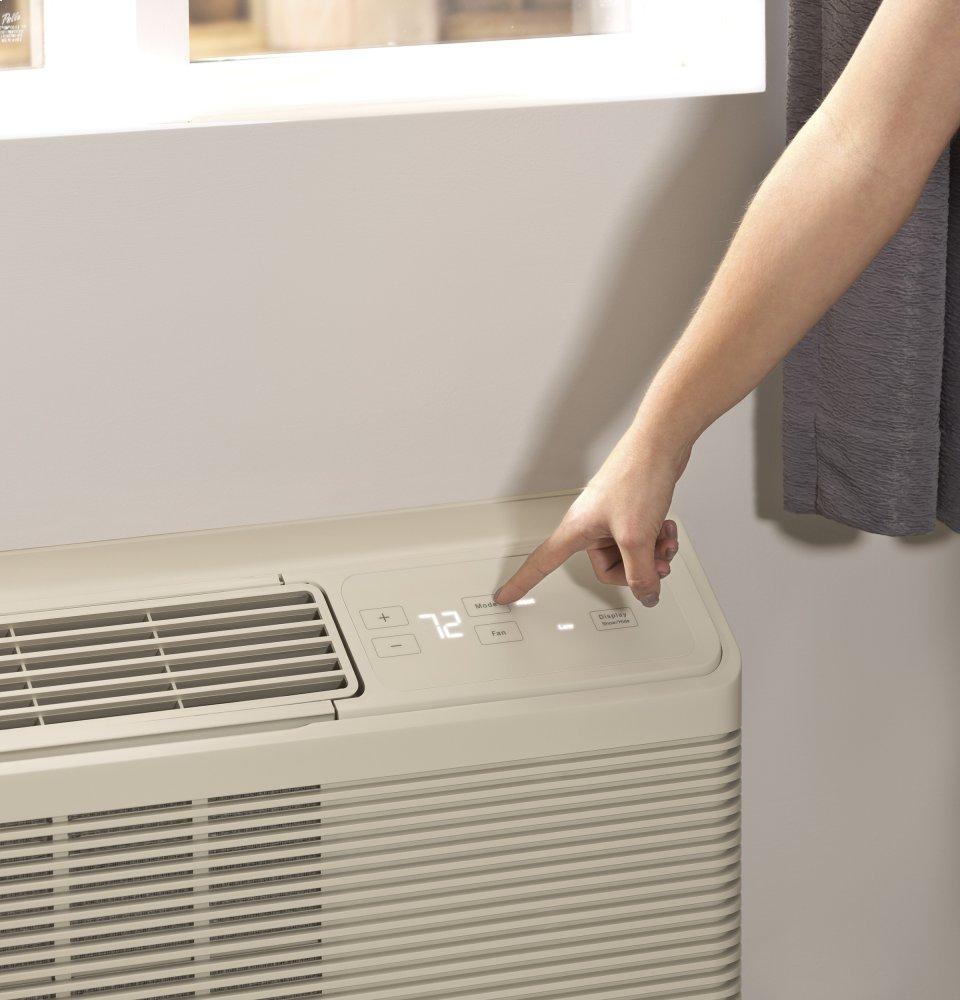

Electronic touch controls with LED display
R-410A refrigerant
| CAPACITY | |
| Cooling BTUH (MIN) | 9300.0 Btu |
| Cooling BTUH (MAX) | 9400.0 Btu |
| Cooling EER (BTUH / Watt) | 11.8/11.8 |
| CFM Indoor Fan High | 343 |
| CFM Indoor Fan Low | 260 |
| Dehumidification (pts./hr.) | 2.7 |
| Vent CFM (high fan at zero ESP) | 38 |
| FEATURES | |
| Control Type | Coverless Backlit White LED Touch Controls |
| Corrosion Treated | Yes |
| Discharge Grille | 2-position |
| Electronic Micro Computer Control | Yes |
| Fan Cycle Switch | Yes |
| Fan Motor | 2 |
| Fan Speed Control | Yes |
| Fan Speed Selections | Hi/Low Cooling Hi/Low Fan Only Hi/Low Heating |

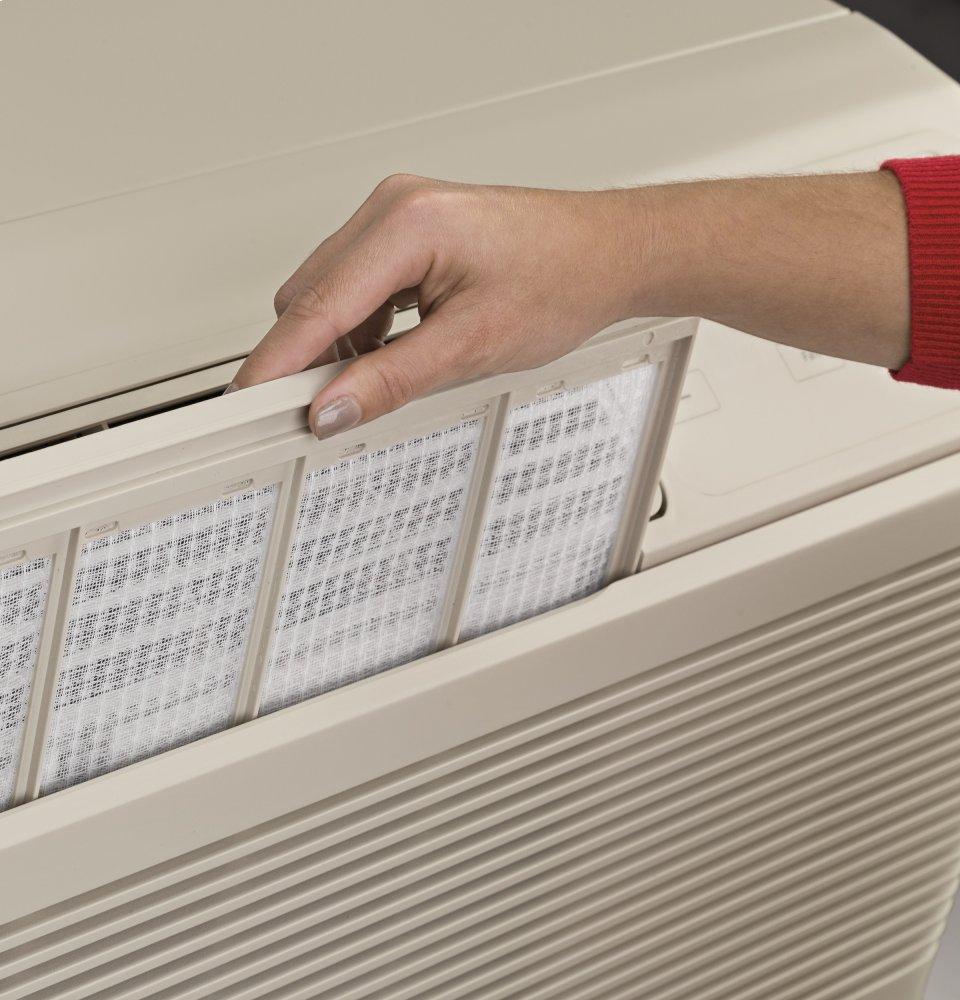

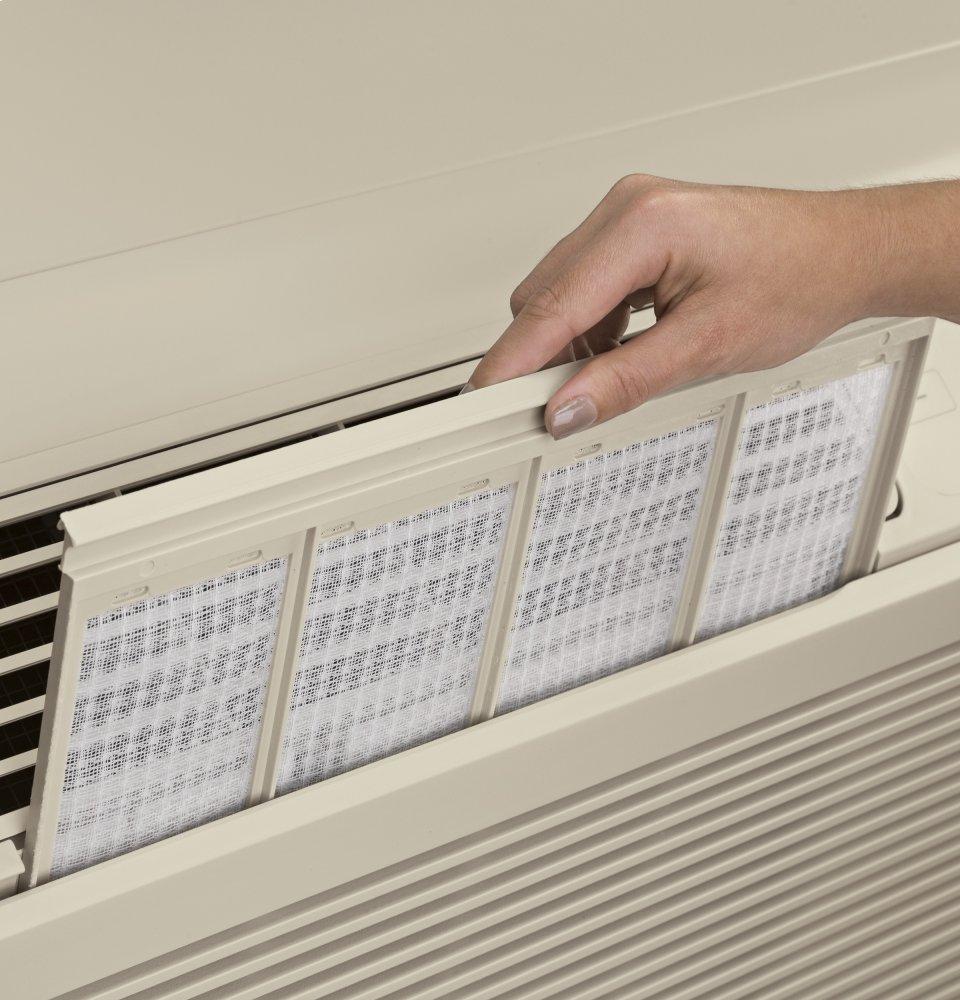

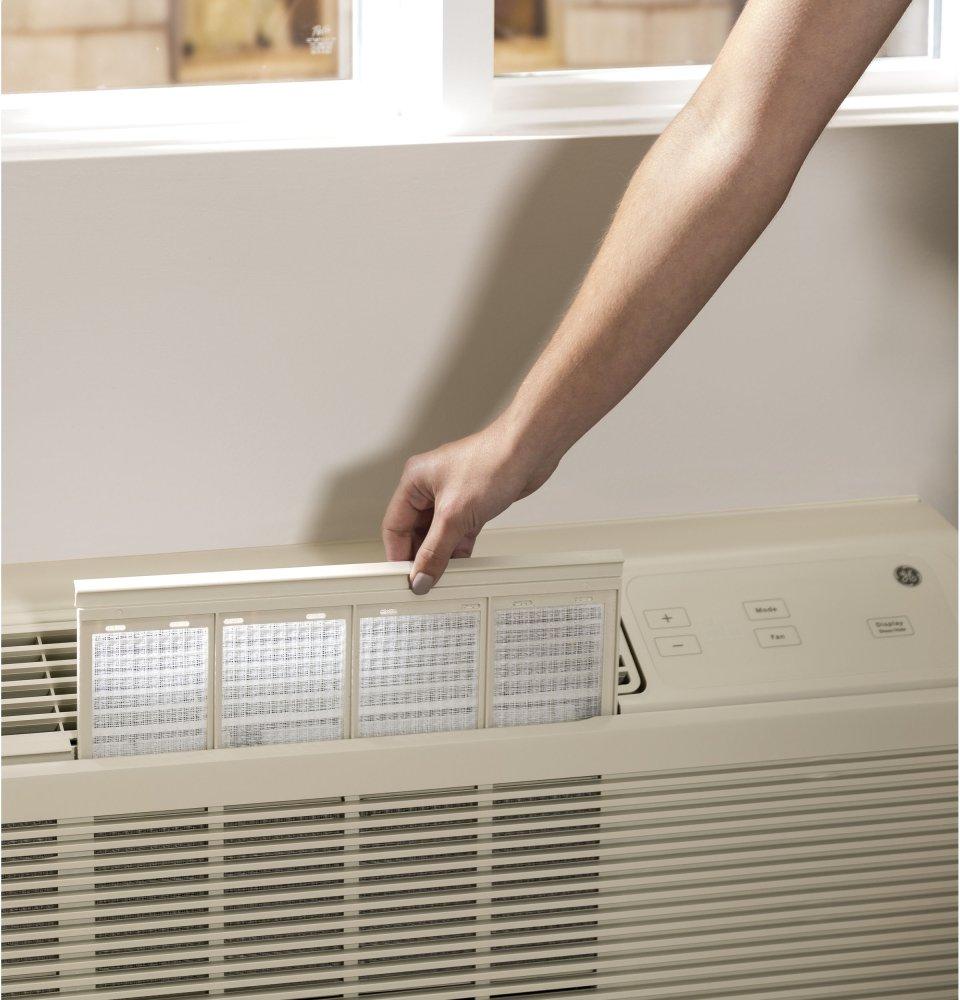

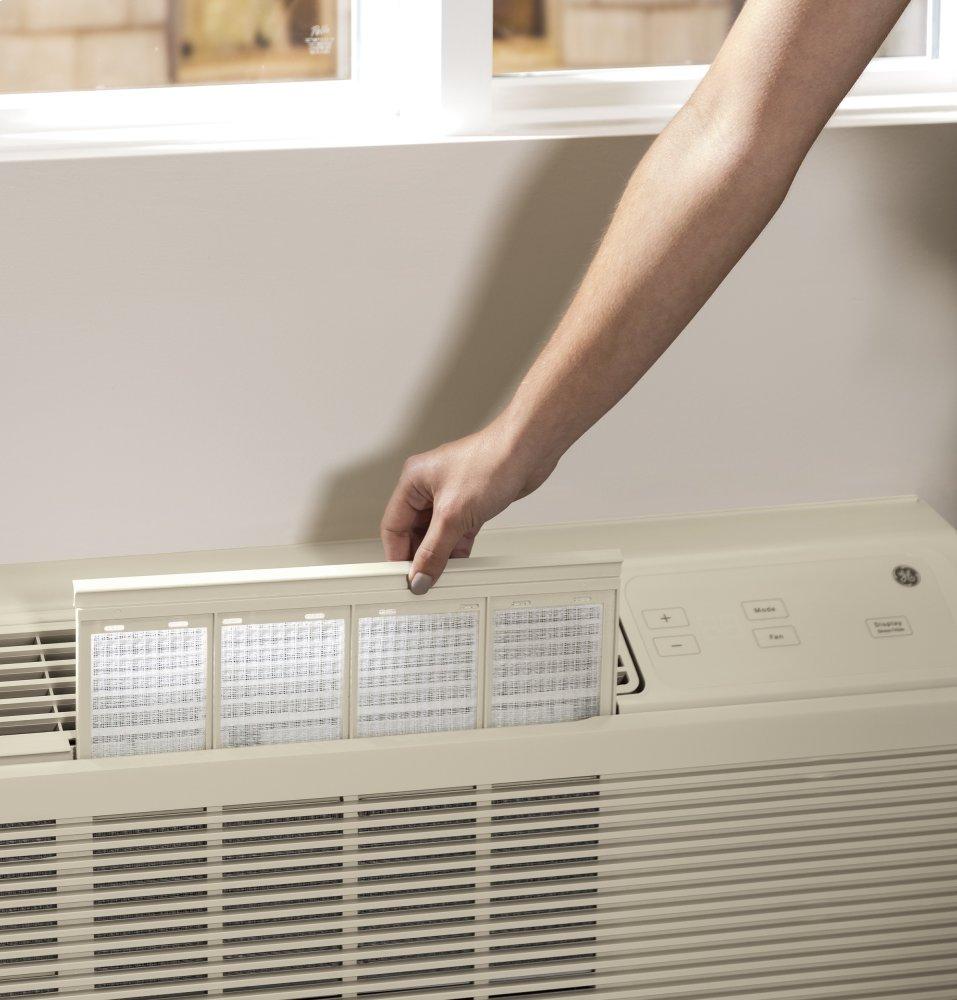

| Filter Type | Rigid Frame Slide-Out |
| Heat - Cool | Yes |
| Louver Style | Reversible |
| Manual Vent Control | Hidden |
| Rotary Compressor | Yes |
| Temperature Limiting | Electronic 7-Step |
| Vent Control | 3-position |
| Venting Features | Concealed Manual Vent Control Outdoor Vent Control - 3 Positions Vent Air Filter |
| Zoneline Features | Remote Thermostat Compatibility Universal Heaters Weather Protected Electrical Components Auto Power Recovery Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Heat Sentinel Power Cord (LDCI) included Proportional - Integral ID Airflow Random Twist/Length Segment Tangential Blower |
| Heating System | Electric Resistance |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Temperature Range | 60 - 85 F |
| Sensible Heat Ratio | 64% |
| Chassis Type | Slide-In |
| POWER / RATINGS | |
| Cooling - Amperes; F.L. - Cooling | 3.5/3.9 |
| Cooling - Amperes; L.R. | 21.0 |
| Cooling - Watts | 795/790 |
| Power Factor | 98 |
| Voltage (MIN) | 208.0 V |
| Voltage (MAX) | 230.0 V |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Warranty Notes | See written warranty for full details |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 110.0 lb |
| Overall Depth | 20.8125 in |
| Overall Height | 16.0 in |
| Overall Width | 42.0 in |
