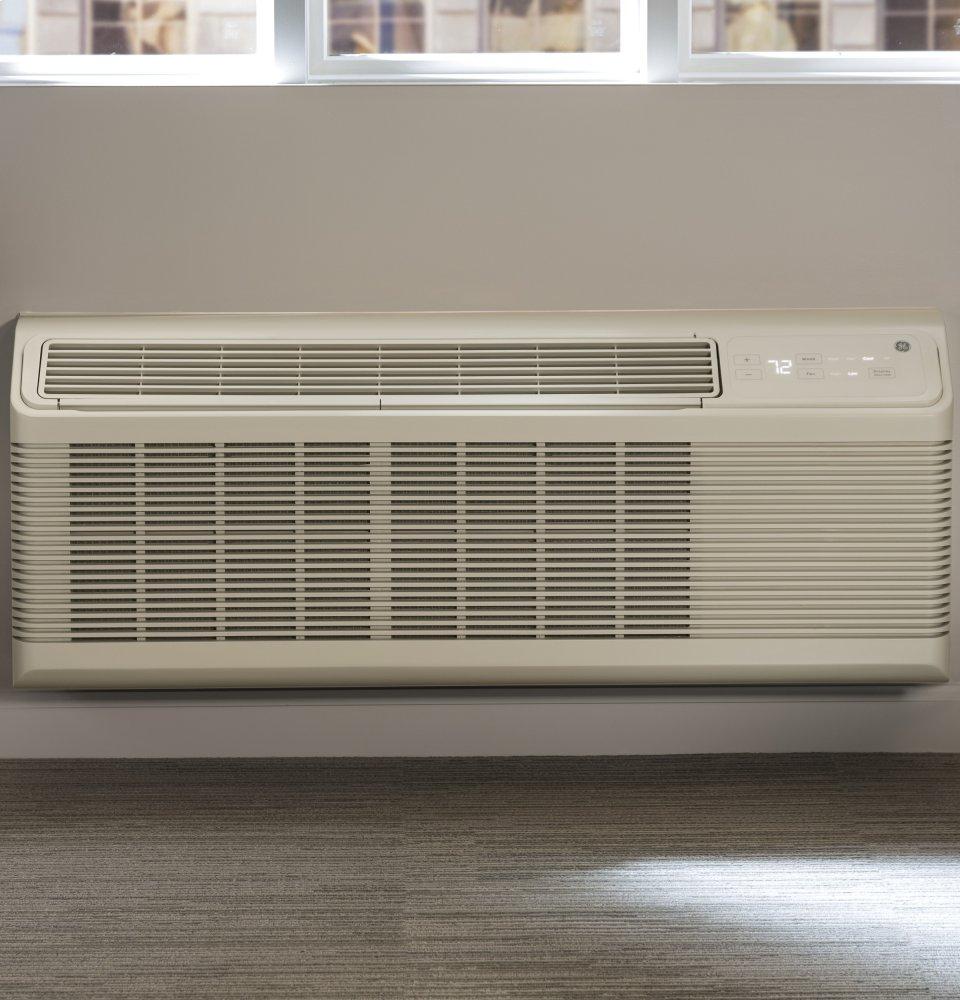

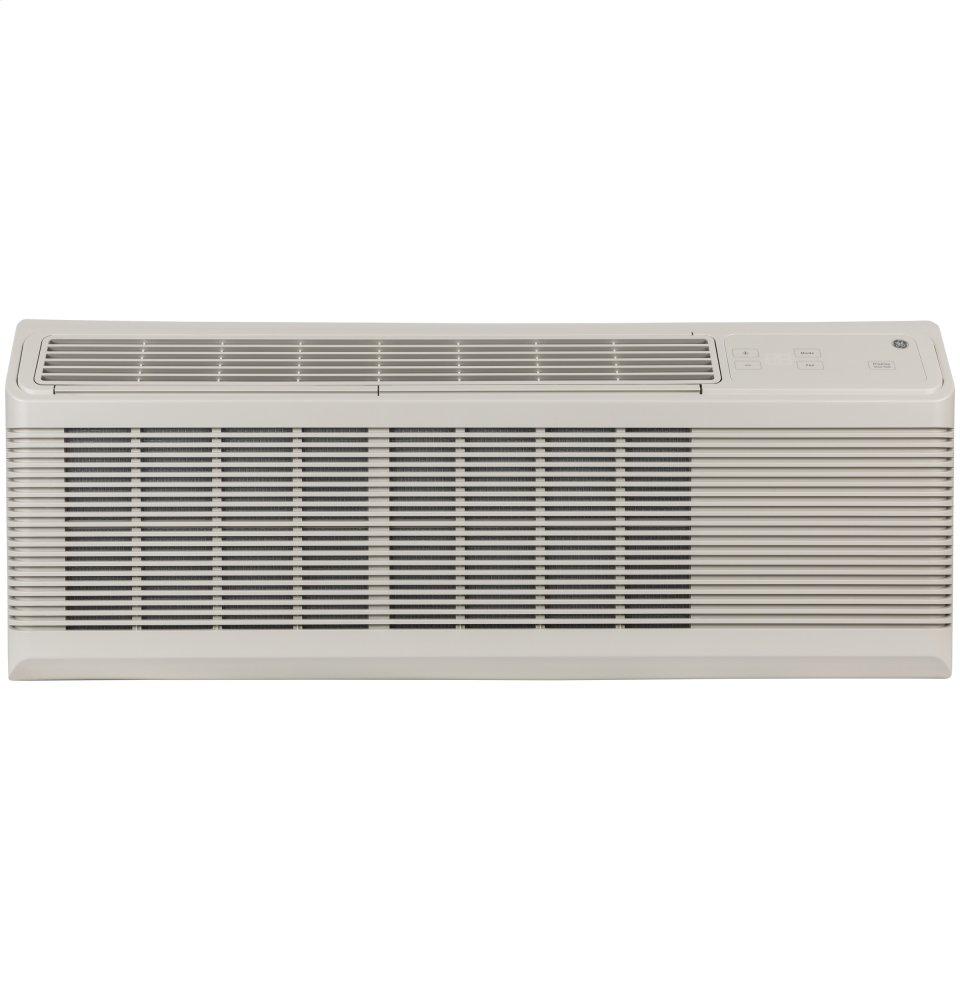

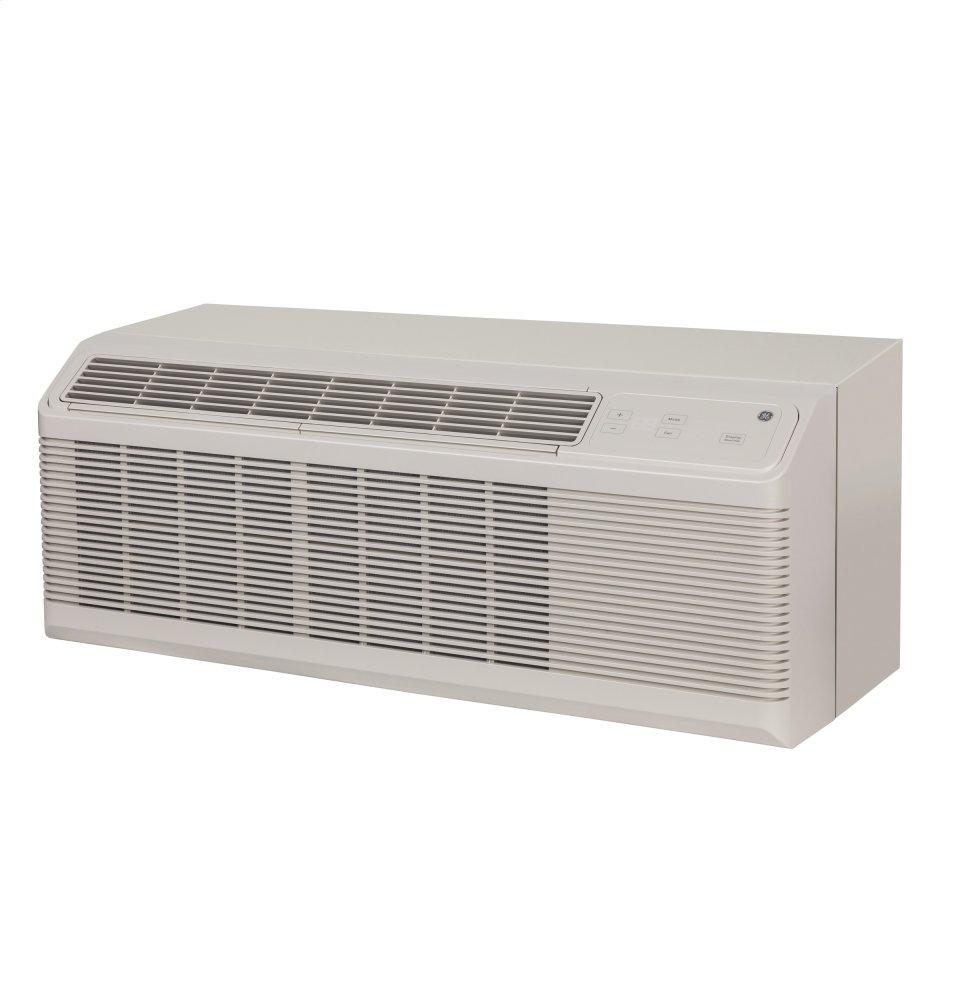

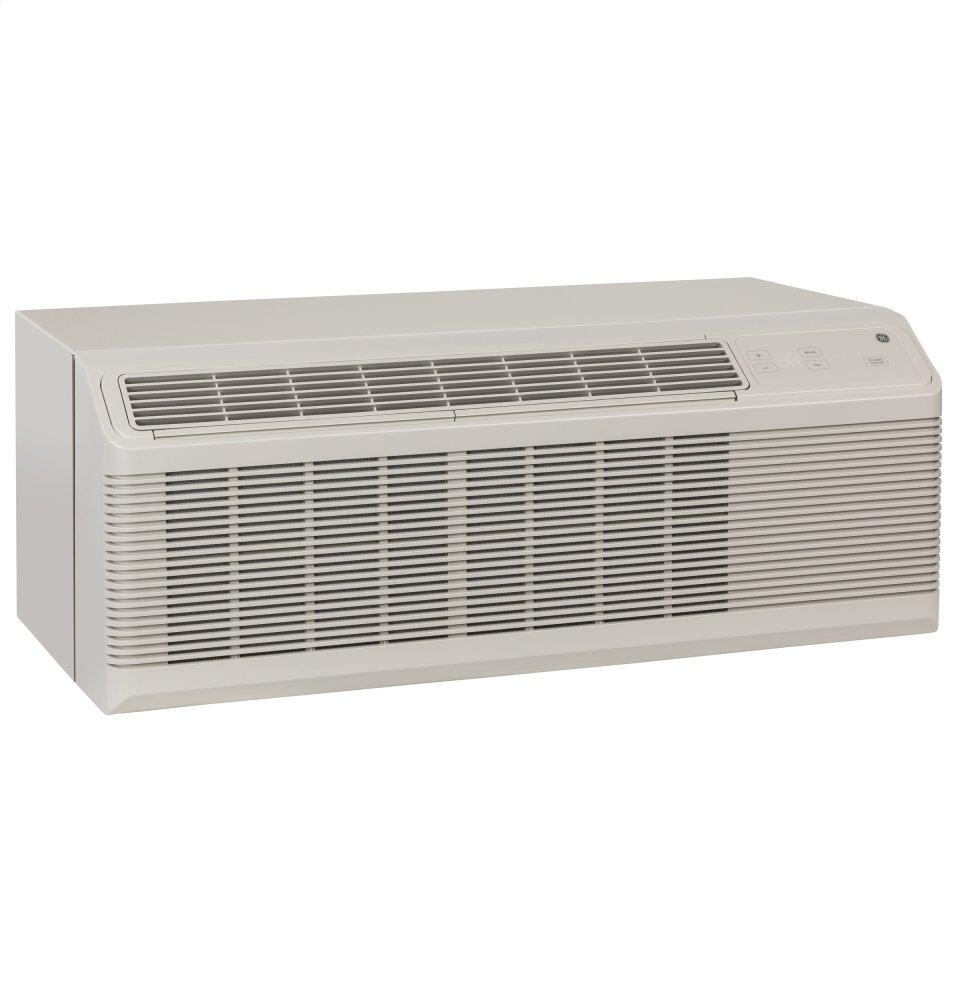

AZ45E09EAC GE Zoneline® Cooling and Electric Heat Unit with Corrosion Protection, 265 Volt AZ45E09EAC
- SMC base pan
- Simplified structure
- Cooling capacity
- Energy efficiency
- Dehumidification
- Indoor fan CFM (high/low)
- Fresh air vent CFM (fully open high fan)
- Quiet operation
- Corrosion resistant
- Heat & Freeze Sentinels
- Electronic temperature limiting
- Electronic touch controls with LED display
- R-410A refrigerant

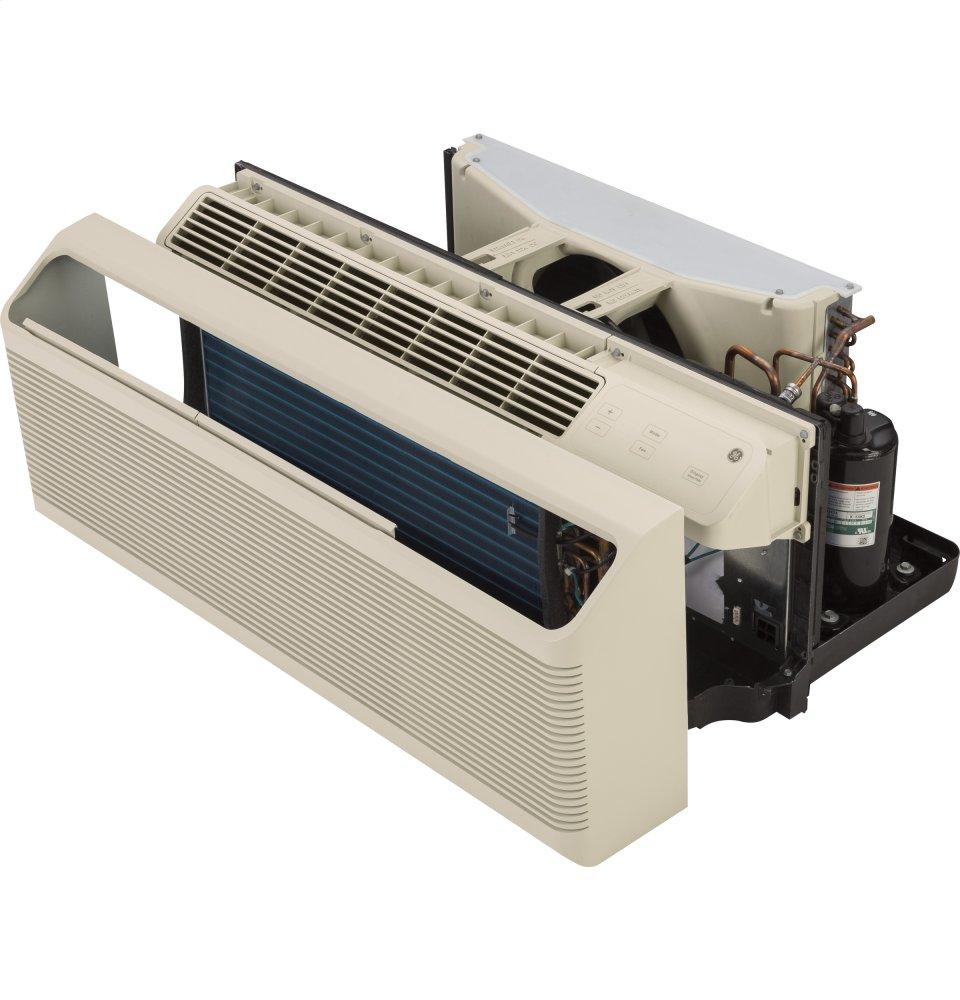

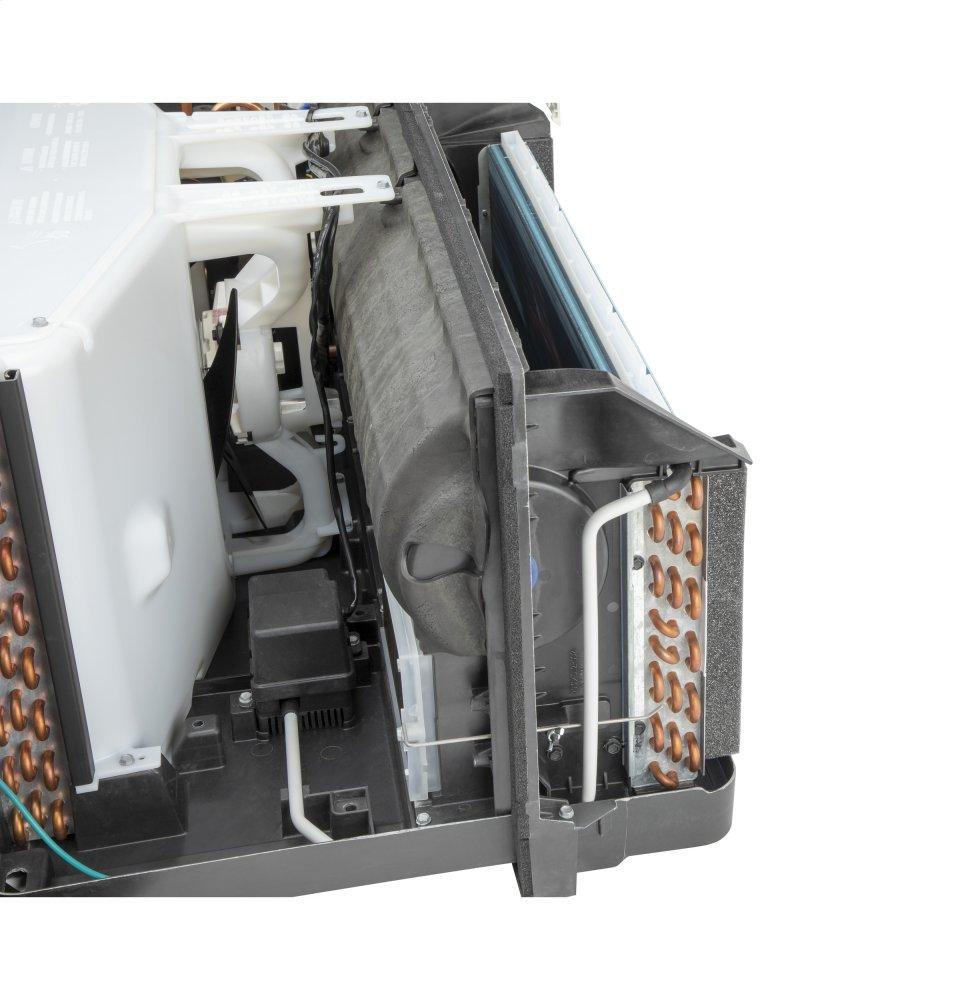

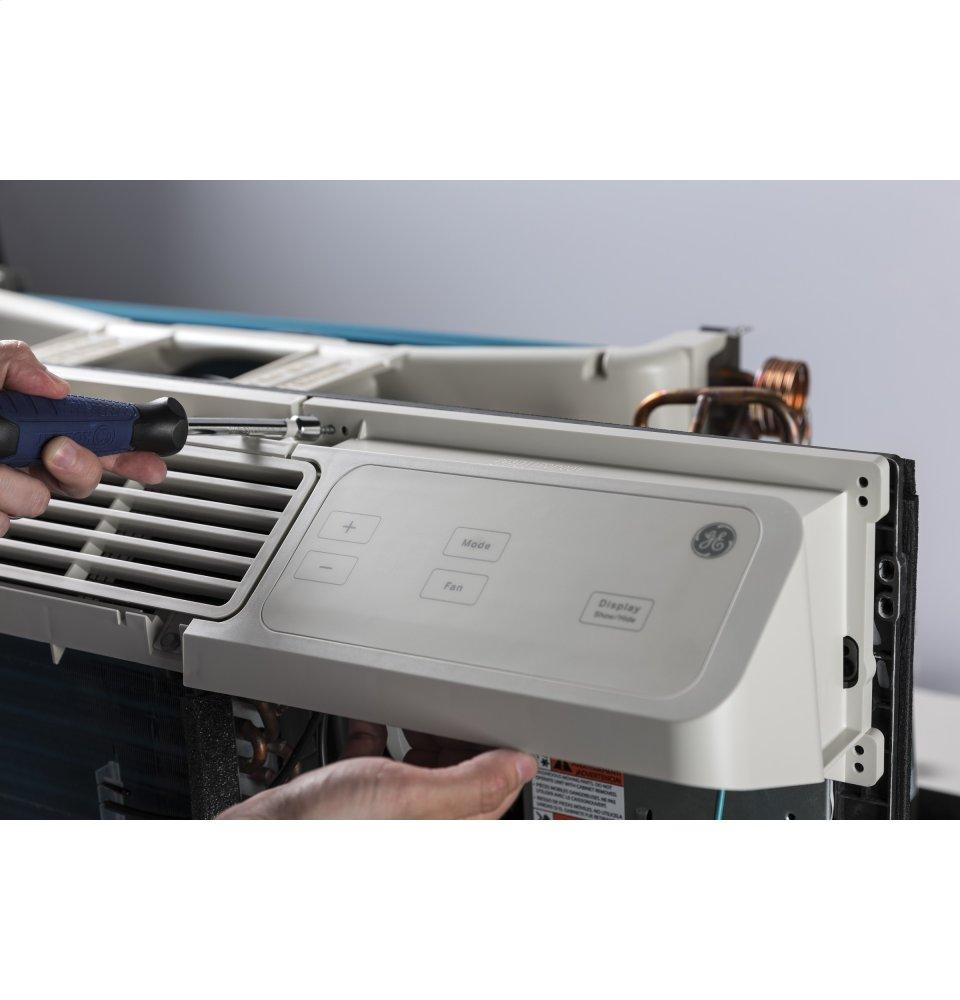

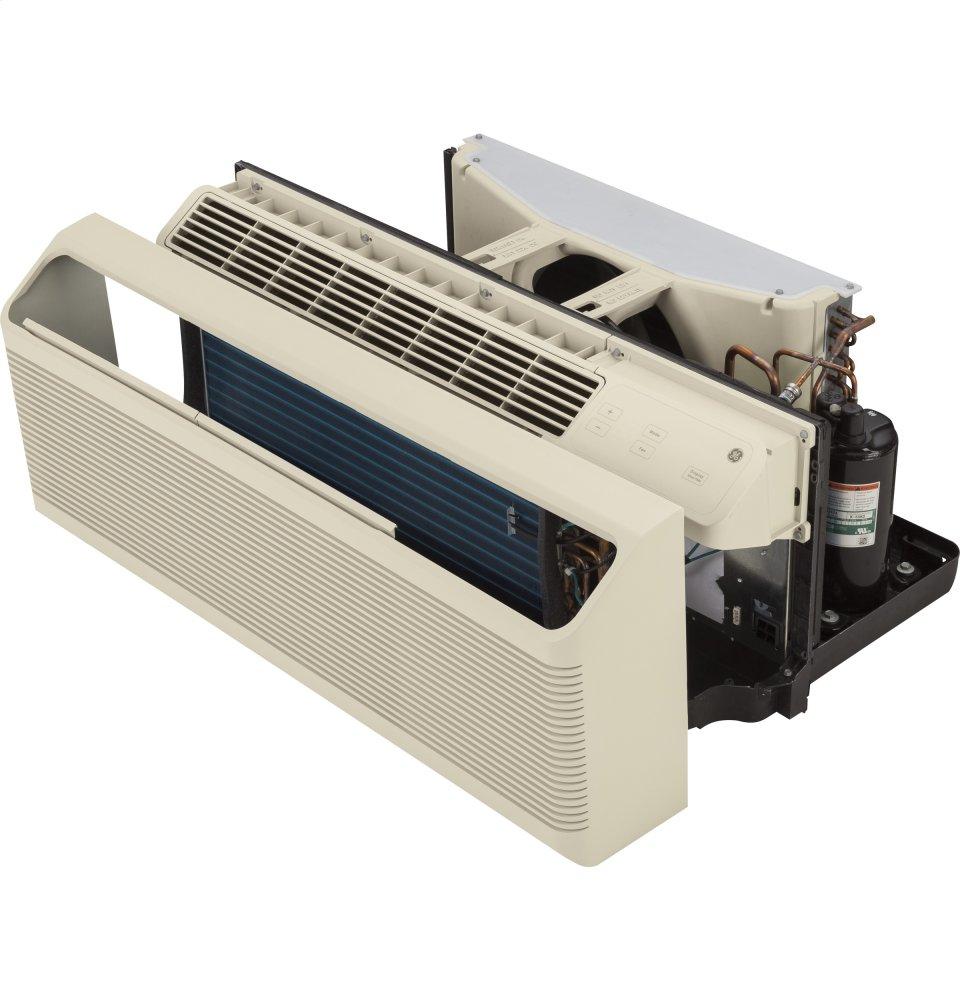

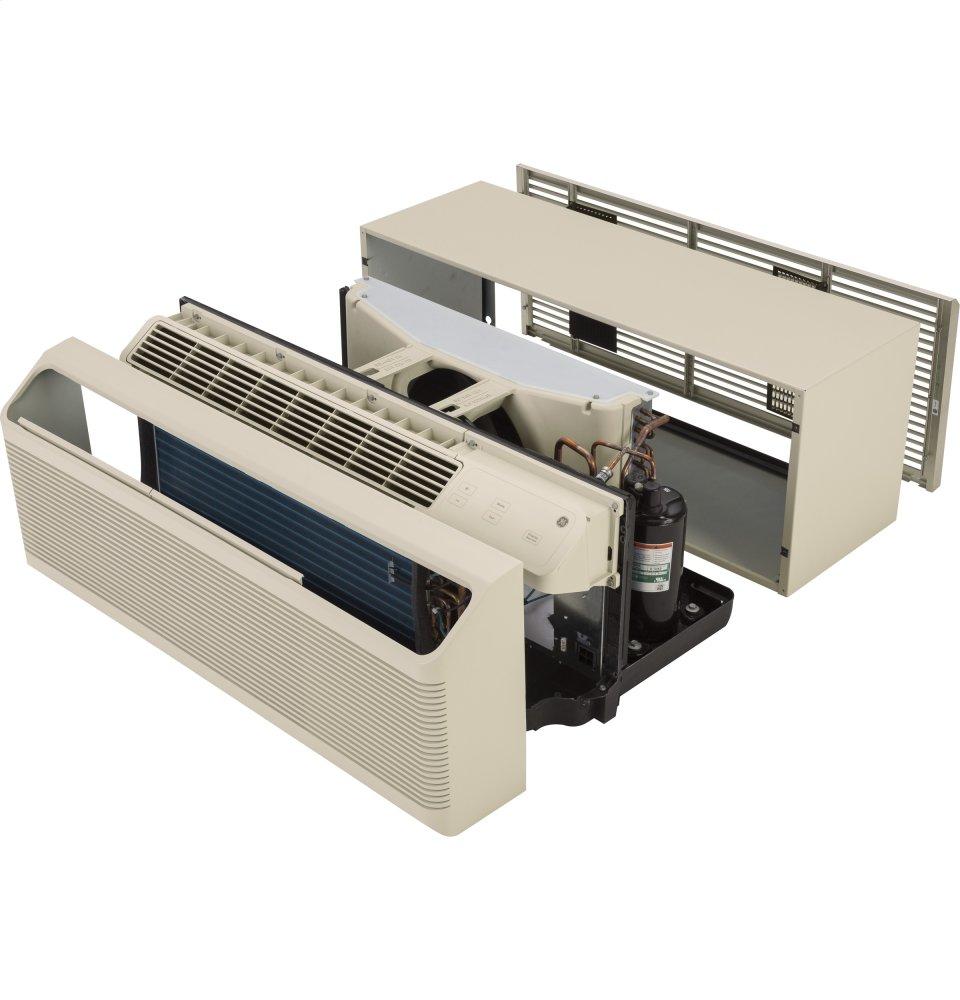

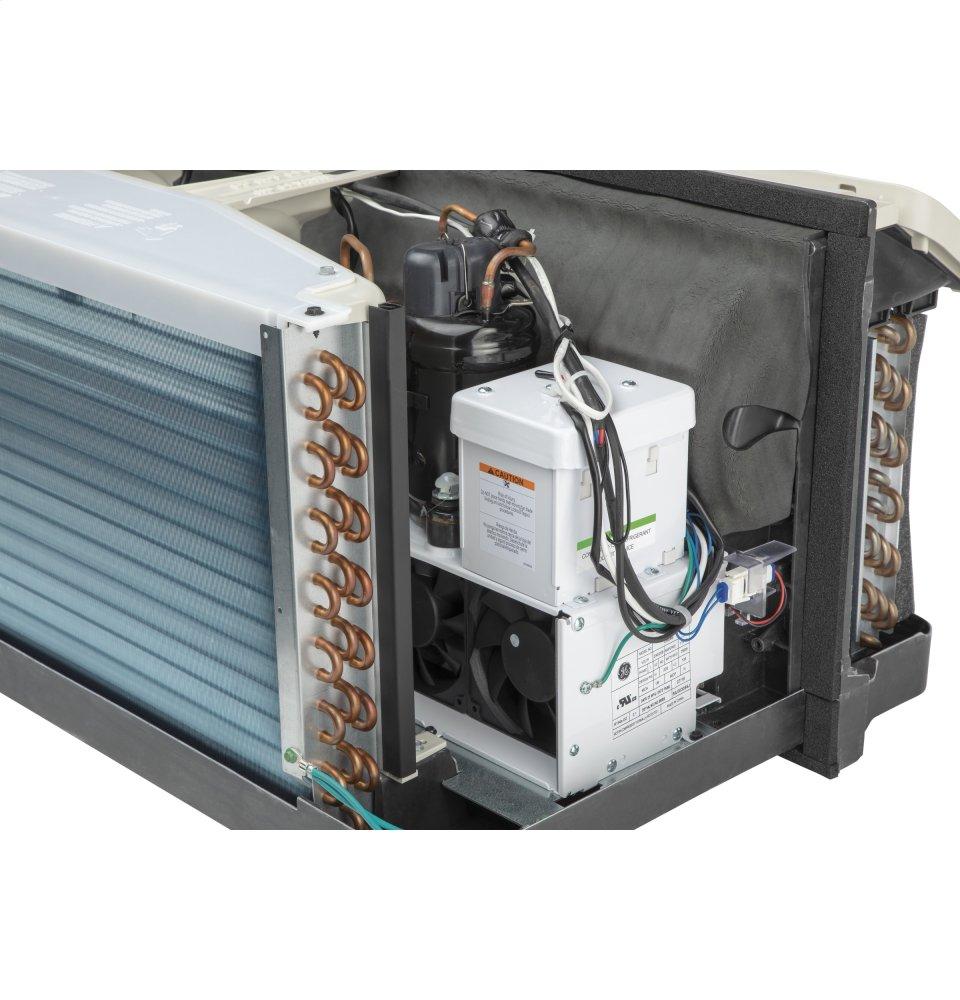

Simplified structure
Easy to maintain and service
Cooling capacity
9,500 BTU
Energy efficiency
11.6 EER
Dehumidification
2.7 pints/hour
Indoor fan CFM (high/low)
409/280
Fresh air vent CFM (fully open high fan)
38
Quiet operation

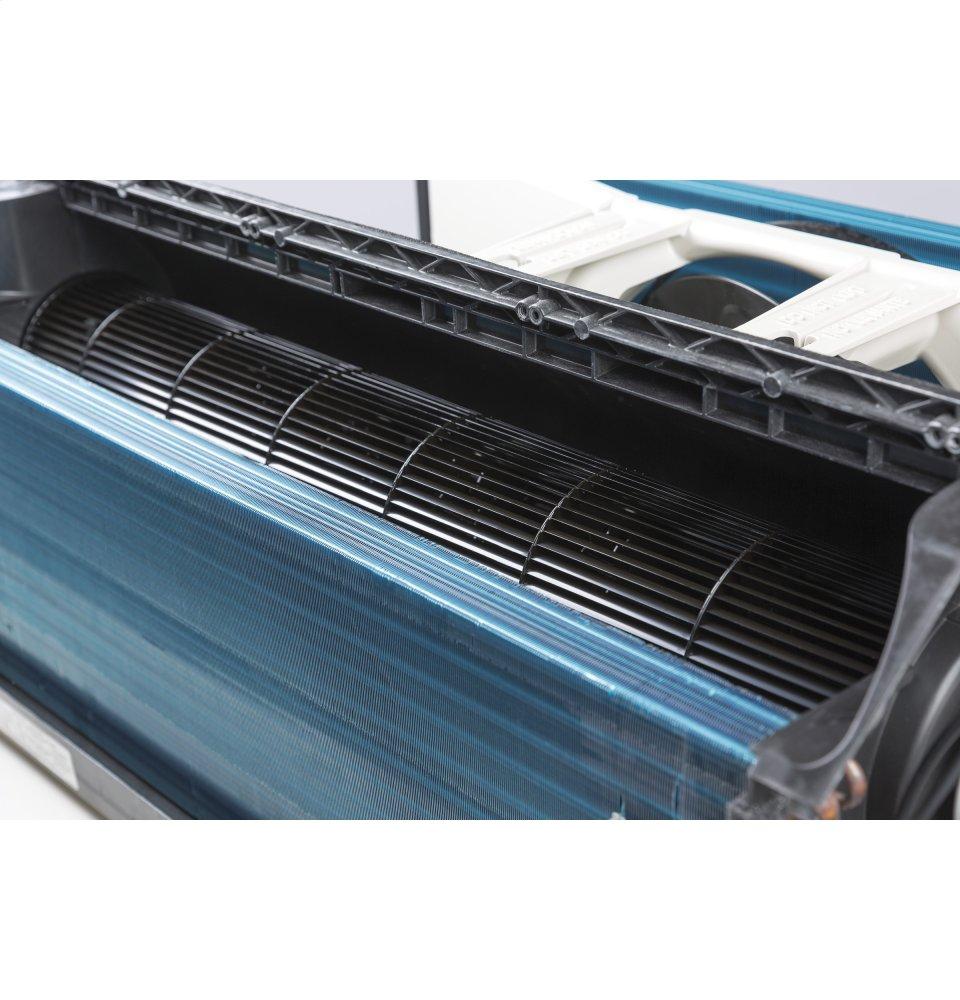

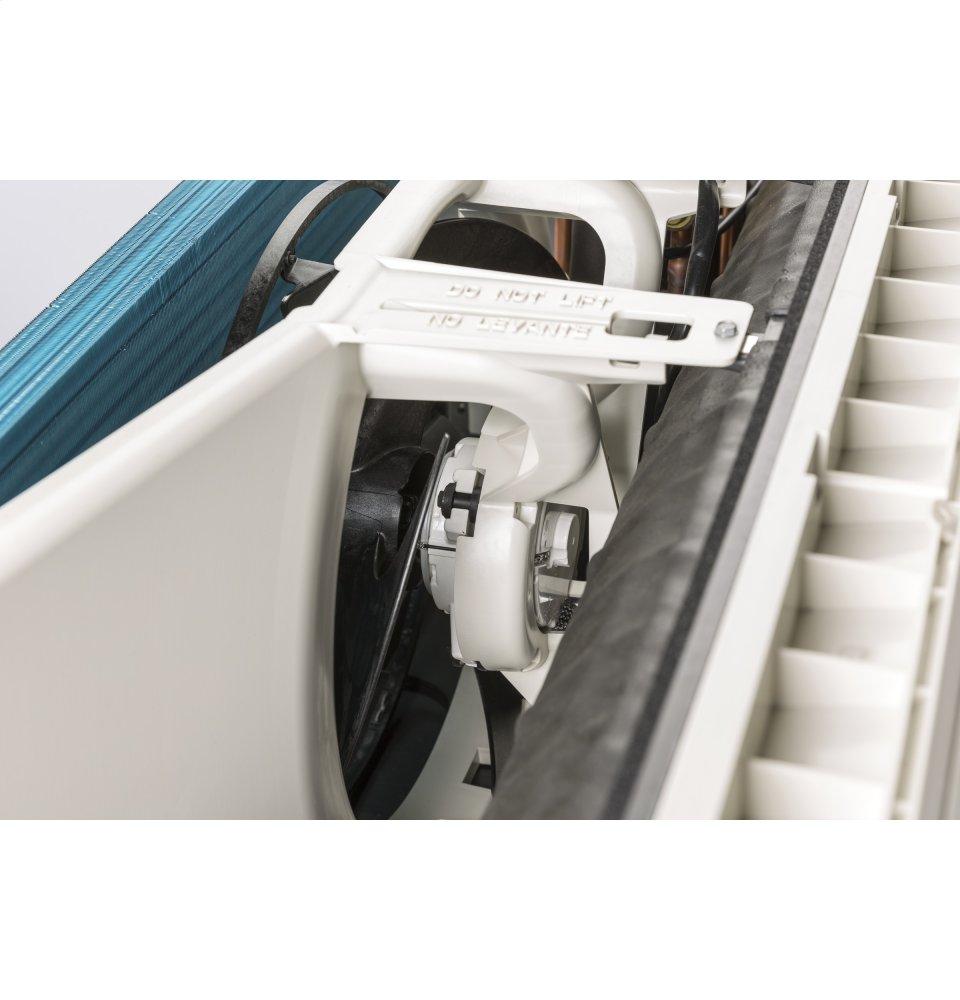

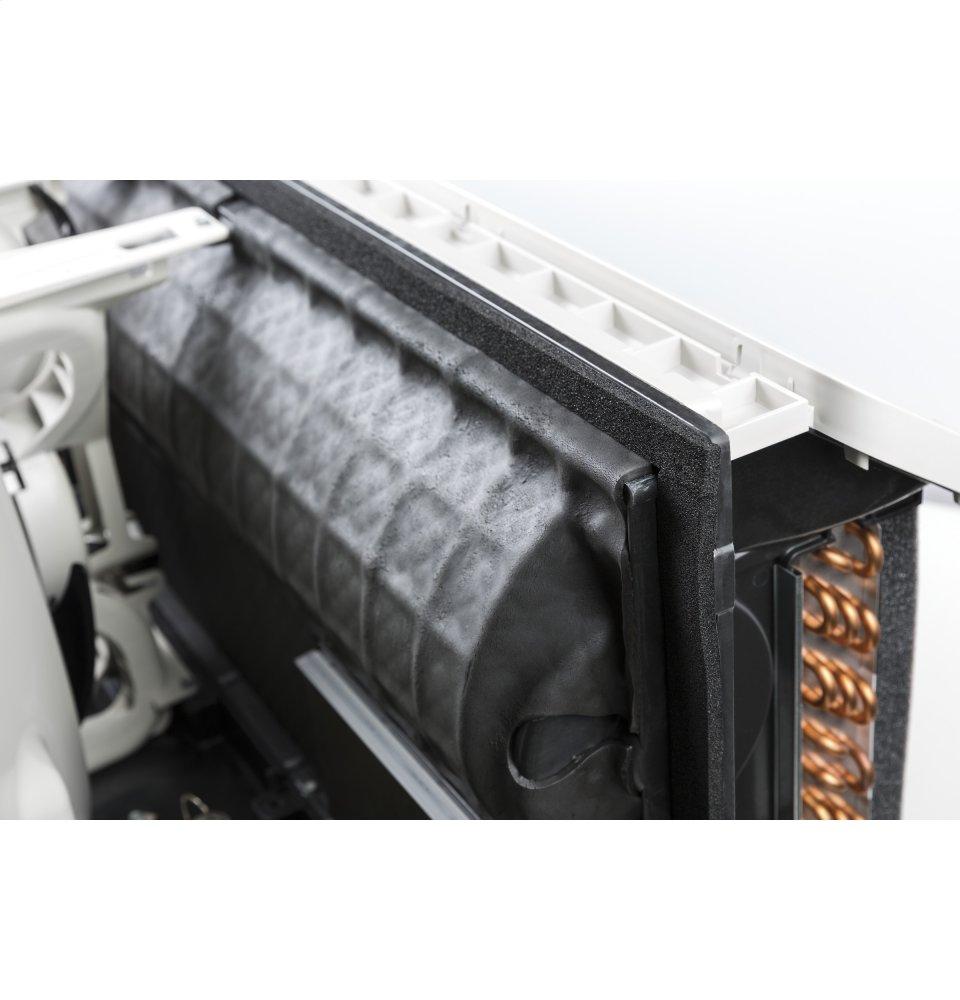

Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort

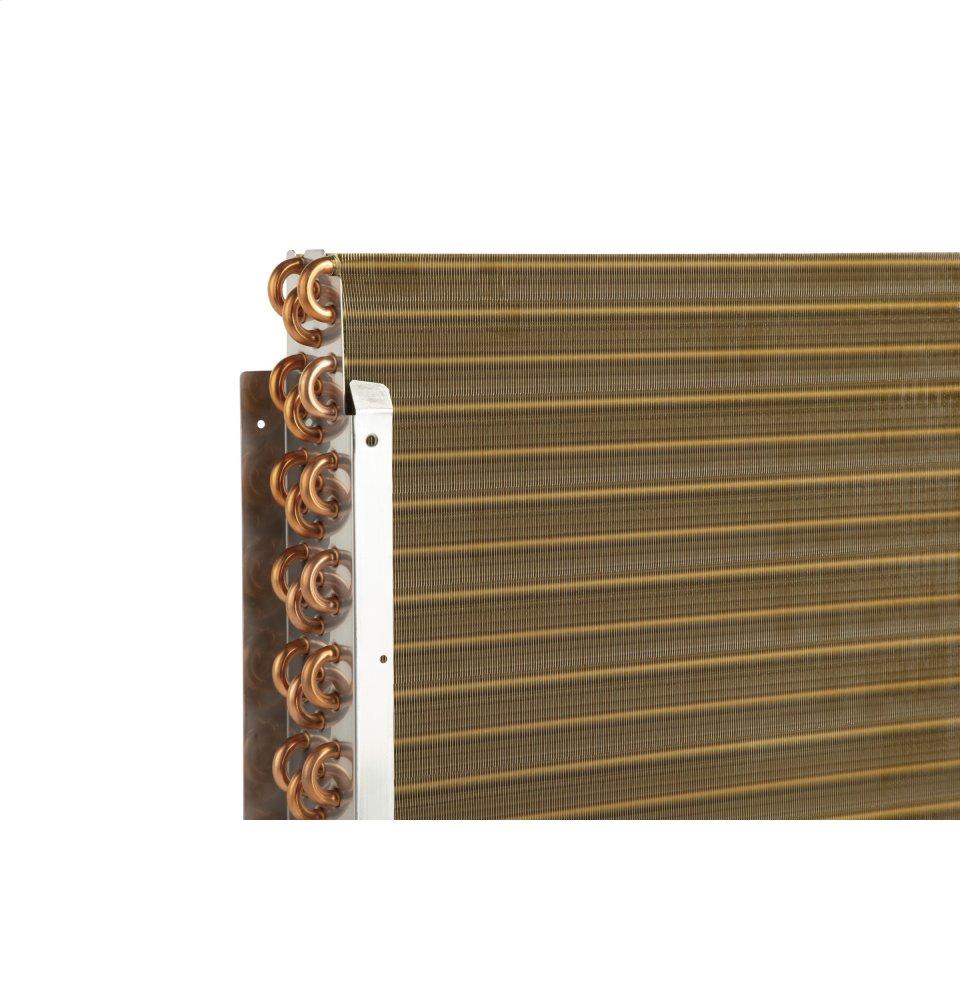

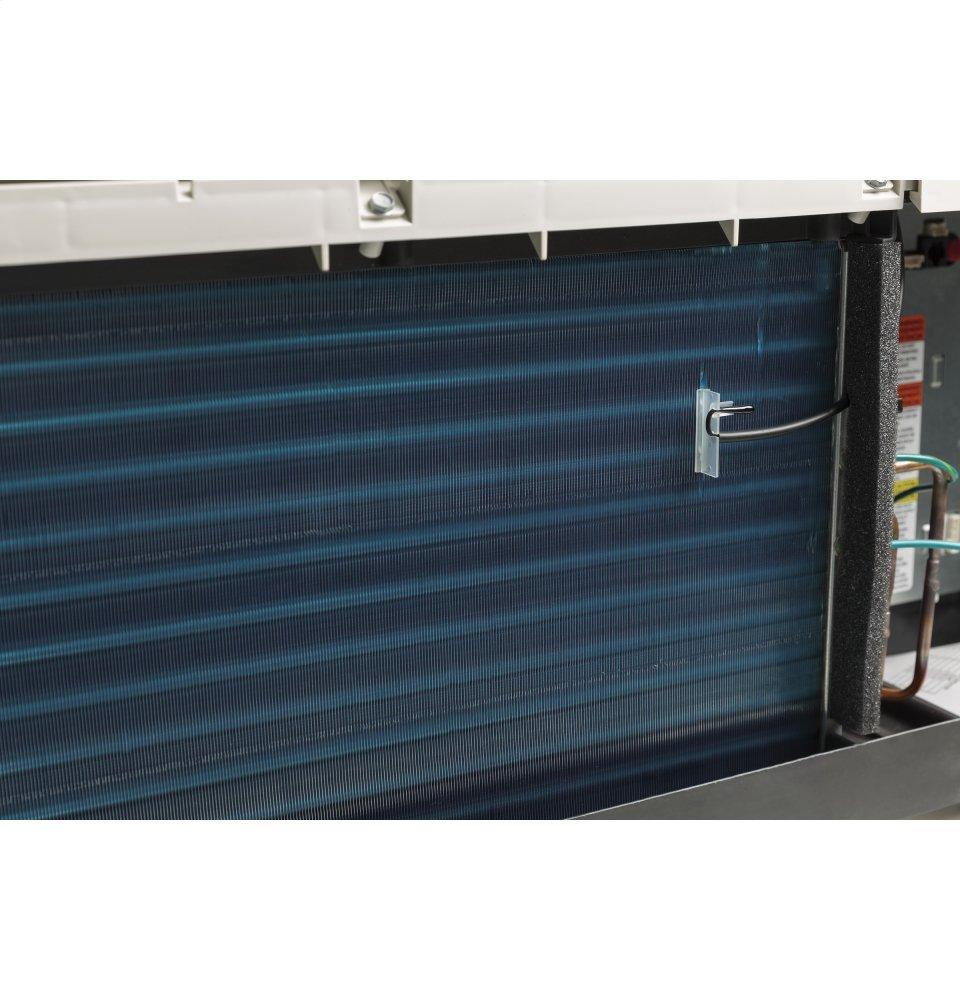

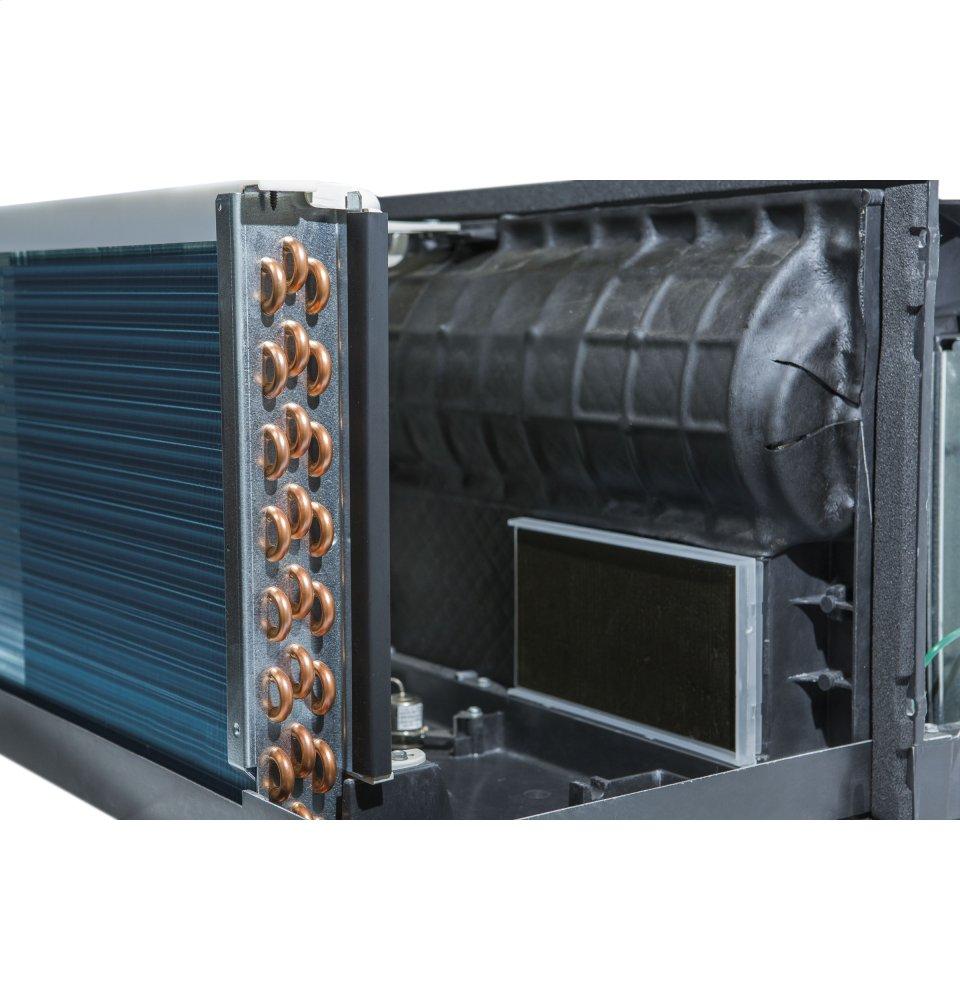

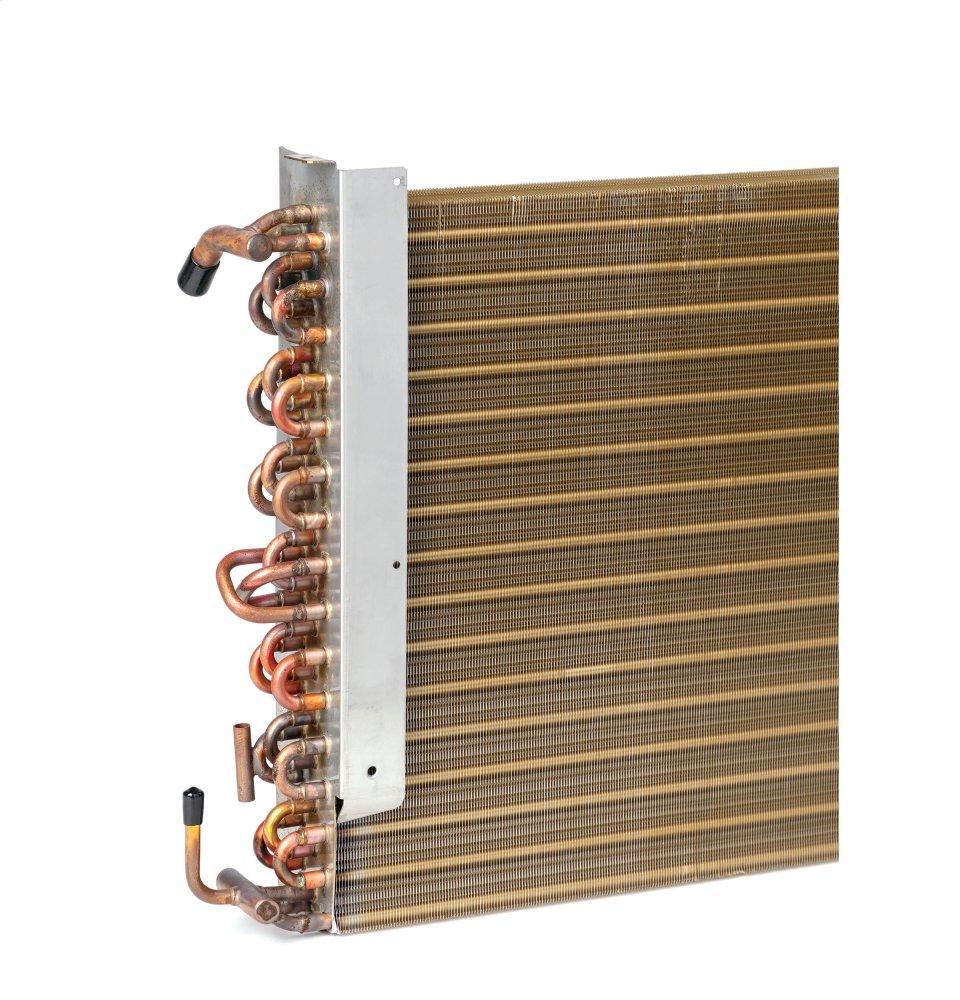

Corrosion resistant
Extends life of the unit in sea coast areas/corrosive environments
Heat & Freeze Sentinels
Keeps the room from overheating or freezing
Electronic temperature limiting
Prevents expensive over-cooling or over-heating of the room

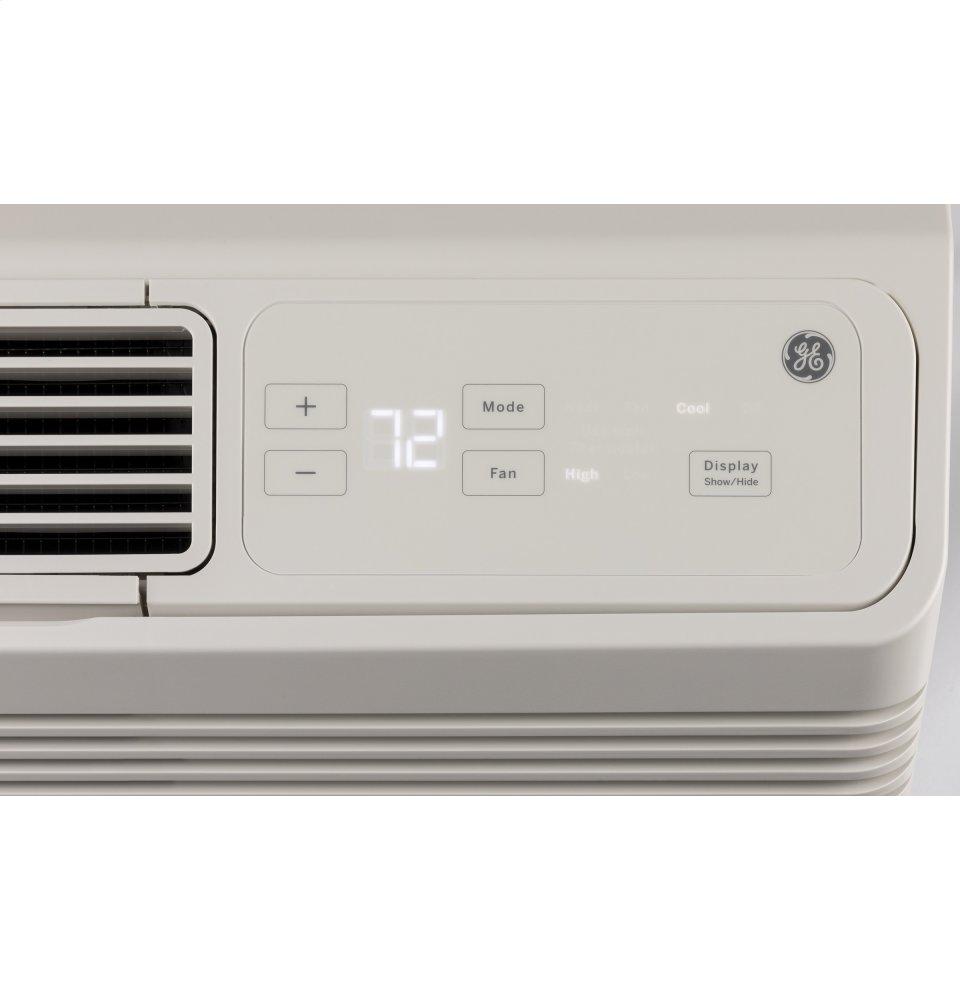

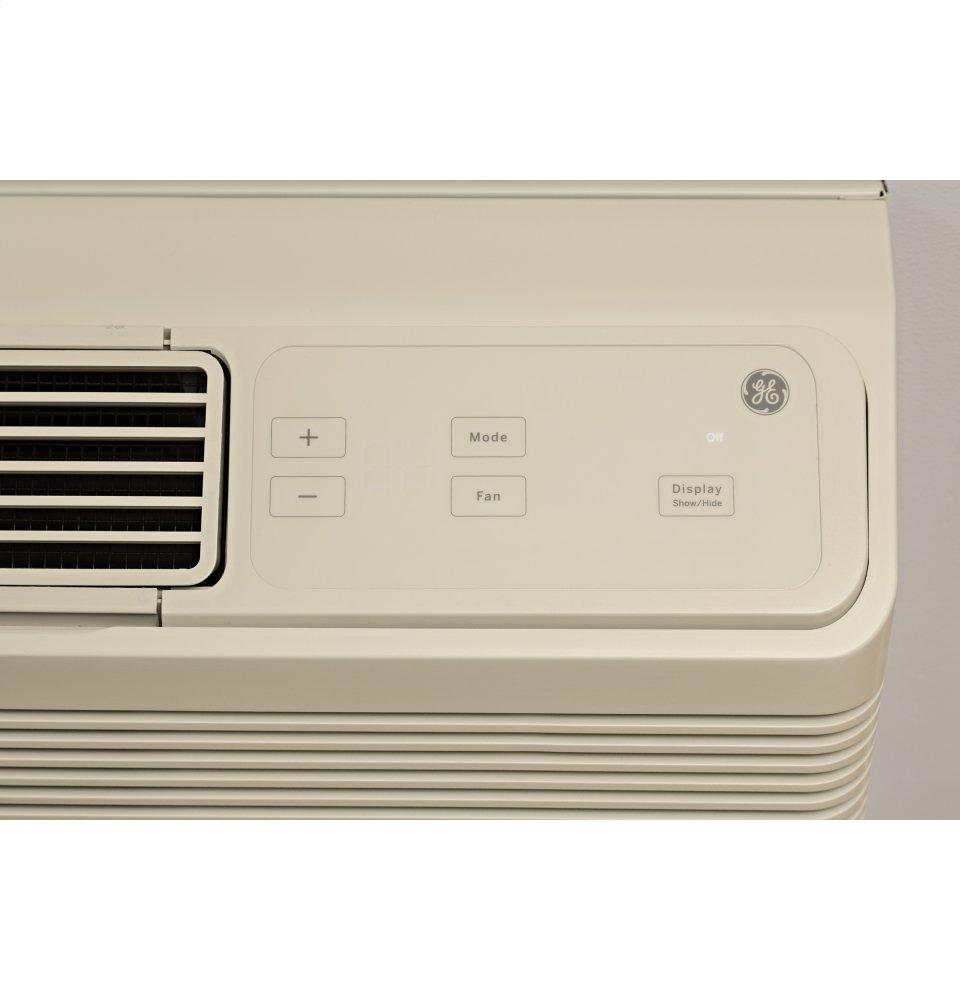

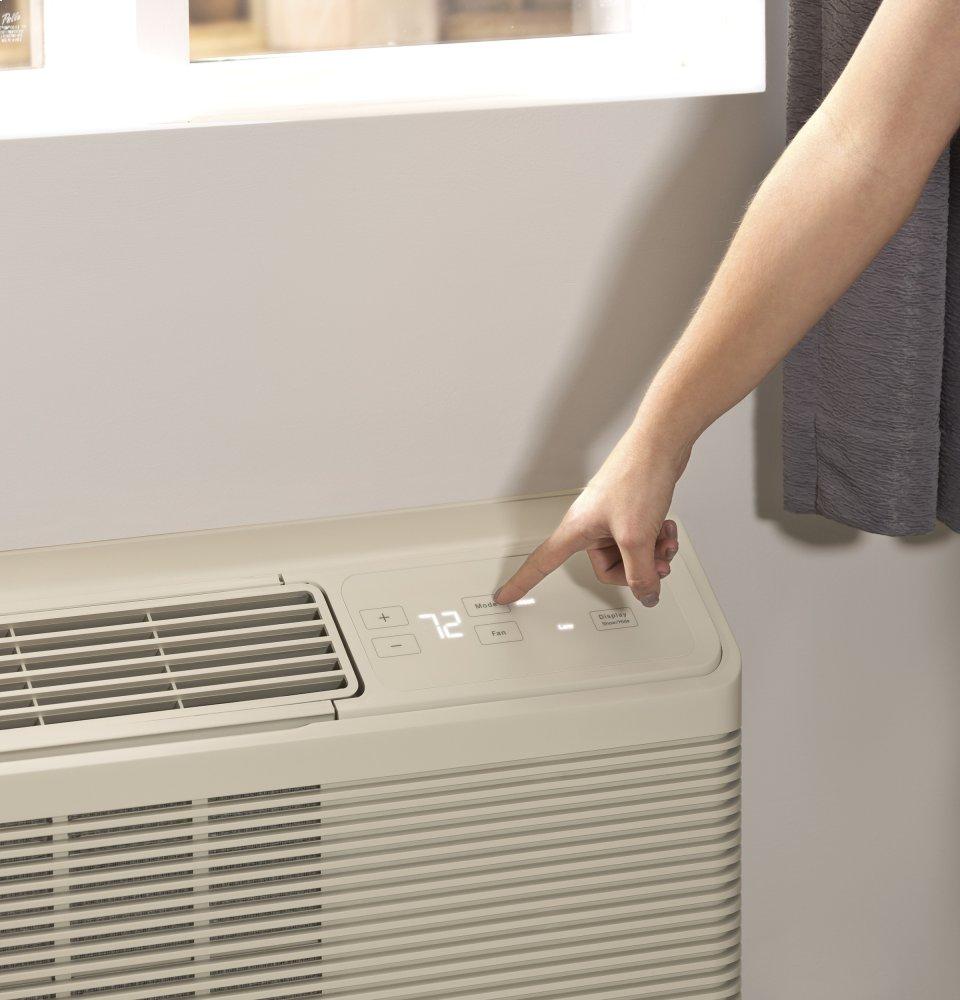

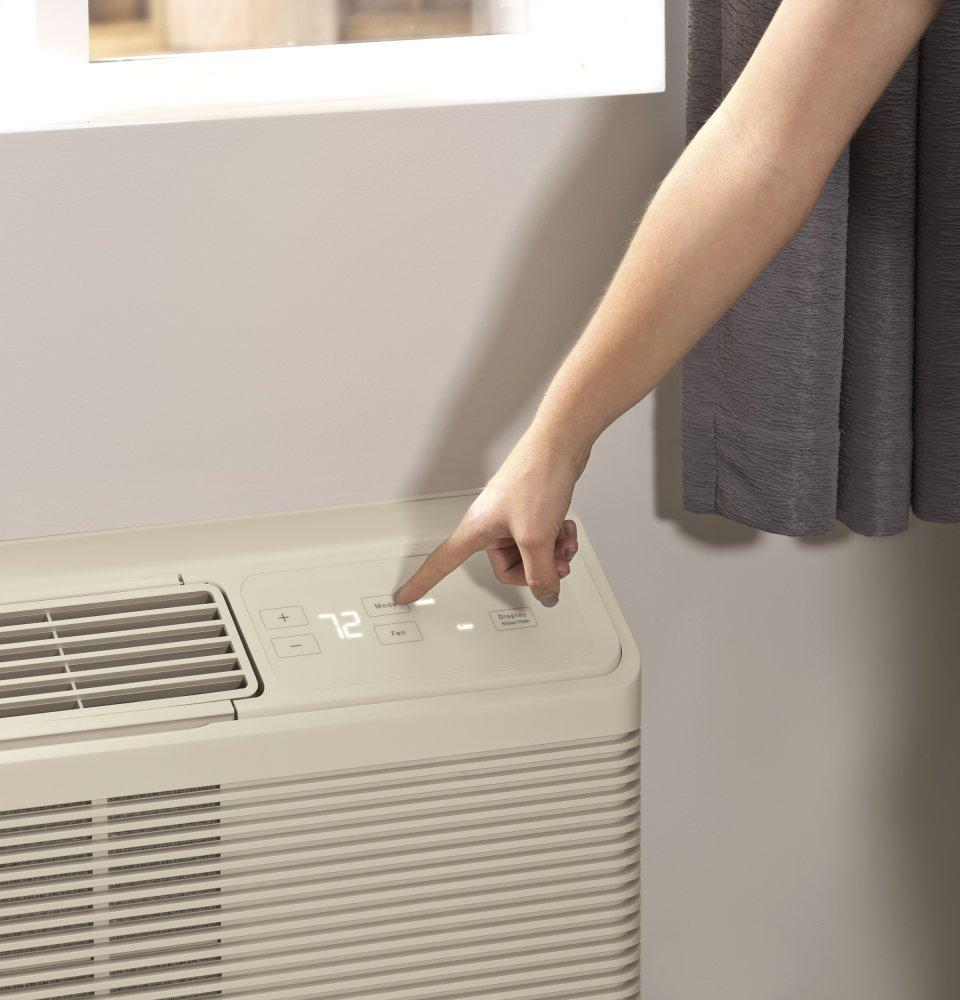

Electronic touch controls with LED display
R-410A refrigerant
CAPACITY | |
Cooling BTUH (MIN) | 9500.0 Btu |
Cooling EER (BTUH / Watt) | 11.6 |
CFM Indoor Fan High | 393 |
CFM Indoor Fan Low | 290 |
Dehumidification (pts./hr.) | 2.7 |
Vent CFM (high fan at zero ESP) | 38 |
FEATURES | |
Corrosion Treated | Yes |
Discharge Grille | 2-position |
Electronic Micro Computer Control | Yes |
Fan Cycle Switch | Yes |
Fan Motor | 2 |
Fan Speed Control | Yes |
Fan Speed Selections | Hi/Low Cooling Hi/Low Fan Only Hi/Low Heating |

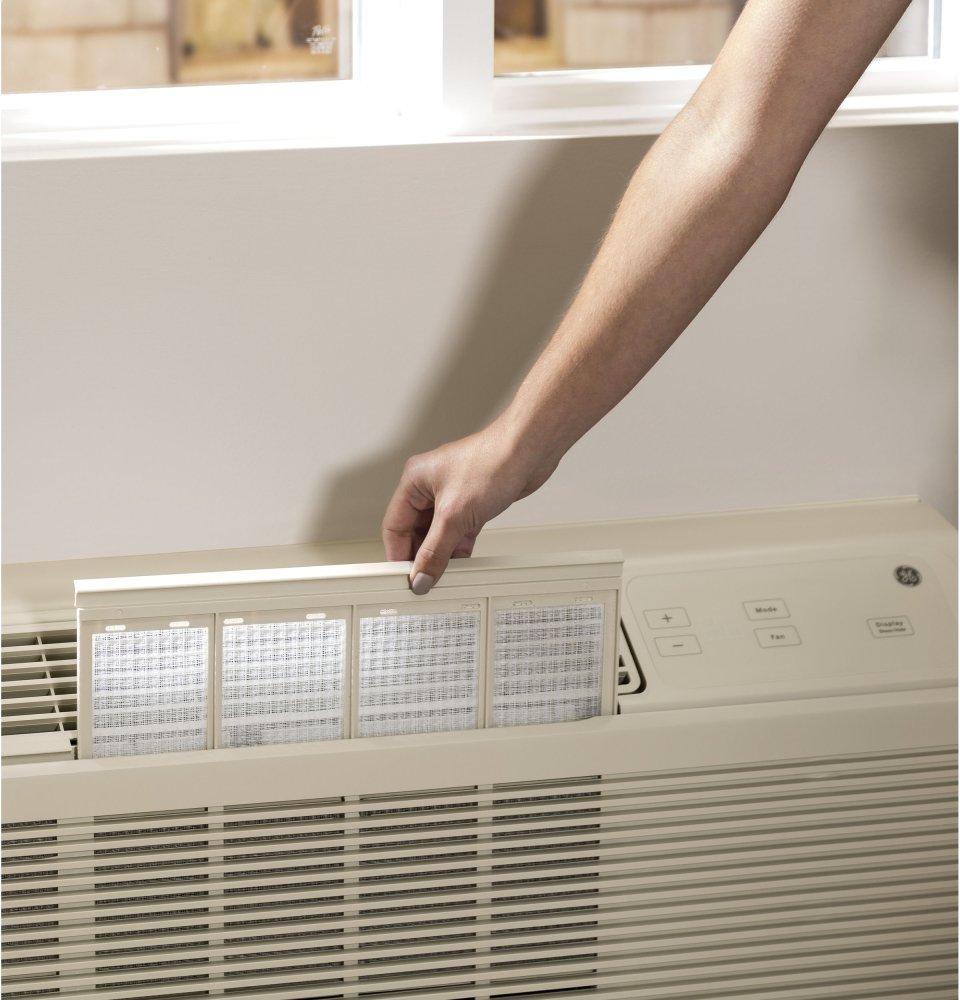

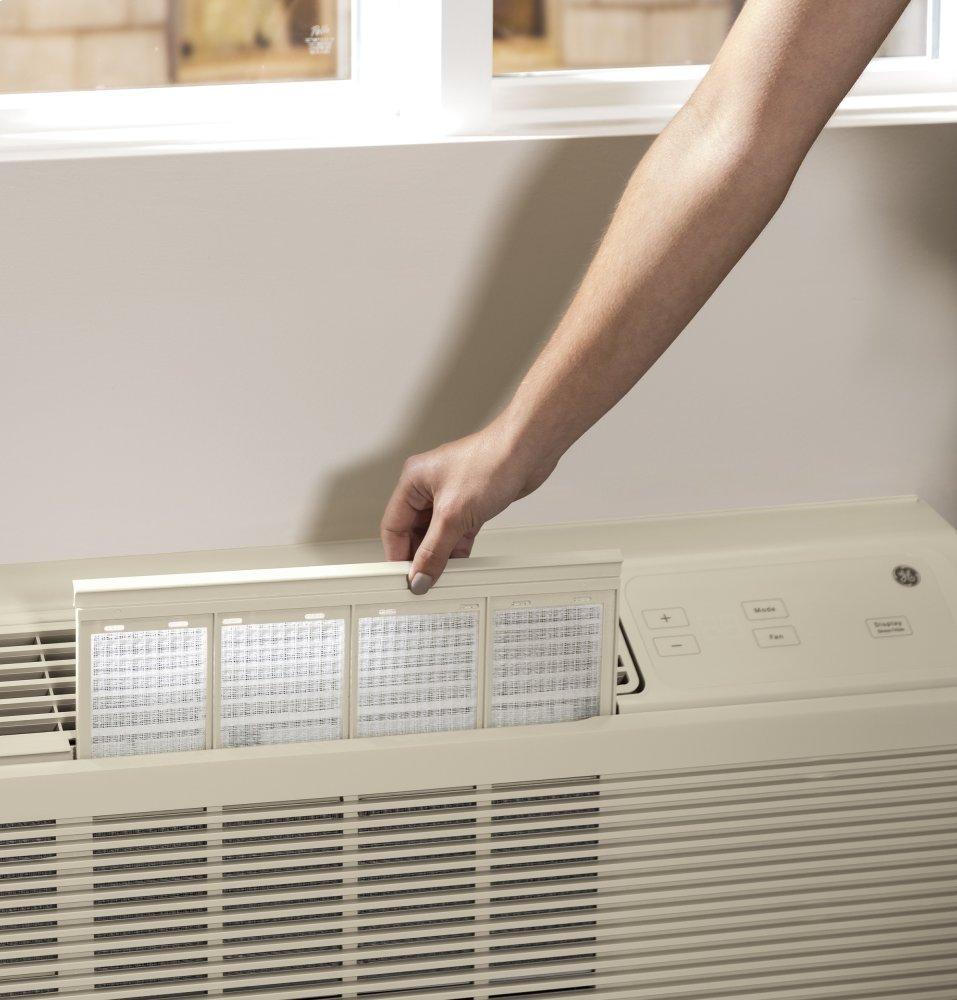

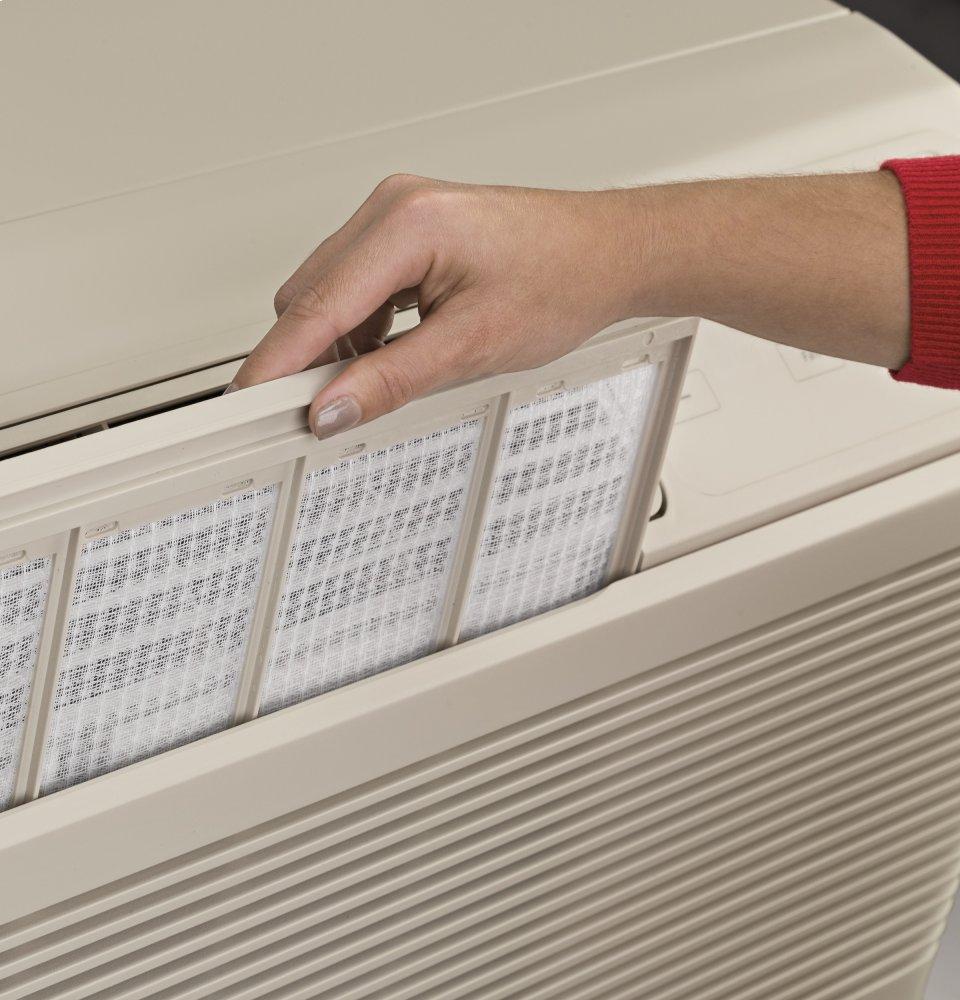

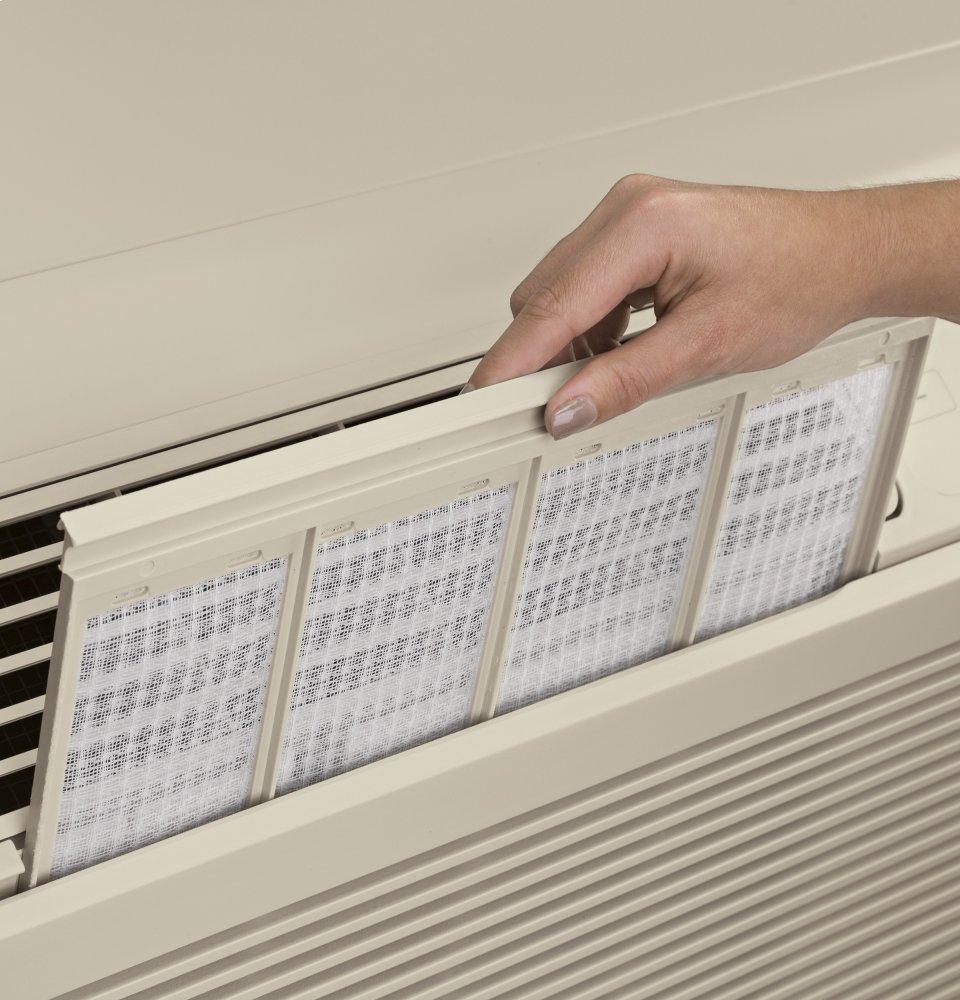

Filter Type | Rigid Frame Slide-Out |
Heat - Cool | Yes |
Louver Style | Reversible |
Manual Vent Control | Hidden |
Rotary Compressor | Yes |
Temperature Limiting | Electronic 7-Step |
Vent Control | 3-position |
Venting Features | Concealed Manual Vent Control Outdoor Vent Control - 3 Positions Vent Air Filter |
Zoneline Features | Remote Thermostat Compatibility Universal Heaters Weather Protected Electrical Components Auto Power Recovery Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Heat Sentinel Power Cord (LDCI) included Proportional - Integral ID Airflow Random Twist/Length Segment Tangential Blower |
Heating System | Electric Resistance |
Product Type | Packaged Terminal Air Conditioners (PTAC) |
Temperature Range | 60 - 85 F |
Sensible Heat Ratio | 67% |
Chassis Type | Slide-In |
Control Type | Coverless Backlit White LED Touch Controls |
POWER / RATINGS | |
Cooling - Amperes; F.L. - Cooling | 3.3 |
Cooling - Amperes; L.R. | 16.5 |
Cooling - Watts | 815 |
Power Factor | 94 |
Voltage (MAX) | 265.0 V |
WARRANTY | |
Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
Warranty Notes | See written warranty for full details |
WEIGHTS & DIMENSIONS | |
Net Weight | 110.0 lb |
Overall Depth | 20.8125 in |
Overall Height | 16.0 in |
Overall Width | 42.0 in |
