Free Shipping
$1,329.00
List Price:
Instant Savings:
  • Electronic touch controls with LED display
  • R-410A refrigerant
  • SMC base pan
  • Simplified structure
  • Cooling capacity
  • Energy efficiency
  • Dehumidification
  • Reverse heat cycle
  • Heat pump efficiency
  • Indoor fan CFM (high/low)
  • Fresh air vent CFM (fully open high fan)
  • Quiet operation
  • Heat & Freeze Sentinels
  • Boost heat option
  • Electronic temperature limiting

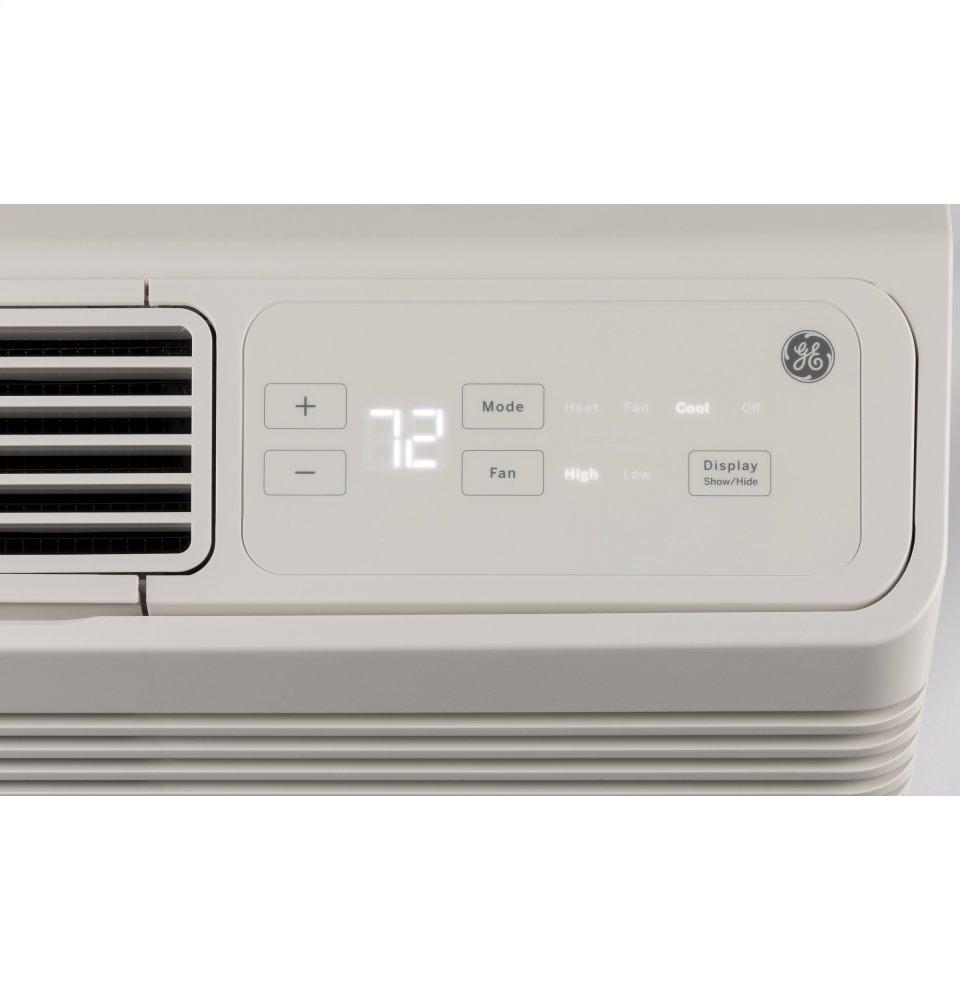

Electronic touch controls with LED display
R-410A refrigerant
SMC base pan
Simplified structure

Easy to maintain and service


Cooling capacity

7,100/6,900 BTU


Energy efficiency

13.0/13.0 EER


Dehumidification

1.7 pints/hour


Reverse heat cycle

6,200/6,100 BTU


Heat pump efficiency

4.0/4.0 COP


Indoor fan CFM (high/low)

409/250


Fresh air vent CFM (fully open high fan)

38


Quiet operation

Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort


Heat & Freeze Sentinels

Keeps the room from overheating or freezing


Boost heat option

Provides supplemental resistance heat in heat pump mode


Electronic temperature limiting

Prevents expensive over-cooling or over-heating of the room

CAPACITY
Cooling BTUH (MIN) 6900.0 Btu
Cooling BTUH (MAX) 7100.0 Btu
Cooling EER (BTUH / Watt) 13.0/13.0
CFM Indoor Fan High 360
CFM Indoor Fan Low 205
Dehumidification (pts./hr.) 1.7
Heating - Reverse Cycle - BTUH 6200/6100
Vent CFM (high fan at zero ESP) 38
FEATURES
Chassis Type Slide-In
Control Type Standard Microcomputer
Tactile touch pad with LED Display
Discharge Grille 2-position
Electronic Micro Computer Control Yes
Fan Cycle Switch Yes
Fan Motor 2
Fan Speed Control Yes
Fan Speed Selections Hi/Low Cooling
Hi/Low Fan Only
Hi/Low Heating
Filter Type Rigid Frame
Slide-Out
Heat - Cool Yes
Louver Style Reversible
Manual Vent Control Hidden
Rotary Compressor Yes
Temperature Limiting Electronic 7-Step
Vent Control 3-position
Venting Features Concealed Manual Vent Control
Outdoor Vent Control - 3 Positions
Vent Air Filter
Zoneline Features Heat Sentinel
Power Cord (LDCI) included
Proportional - Integral ID Airflow
Quick Heat Recovery
Random Twist/Length Segment Tangential Blower
Remote Thermostat Compatibility
Reverse Cycle Defrost
Universal Heaters
Weather Protected Electrical Components
3-Stage Heating Design
Auto Power Recovery
Automatic Emergency Heat
Automatic Indoor Frost Control
Central Desk Control Compatibility
Freeze Sentinel
Heat Pump with Resistance Heat Backup
Heat Pump with Supplemental Resistance Heat
Heating System Heat Pump
Outdoor Vent / Exhaust Yes
Product Type Packaged Terminal Air Conditioners (PTAC)
Temperature Range 60 - 85 F
Sensible Heat Ratio 79%
POWER / RATINGS
Cooling - Amperes; F.L. - Cooling 2.5/2.7
Cooling - Amperes; L.R. 13.5
Cooling - Watts 545/530
Heating - Reverse Cycle - Amps 2.1/2.2
Heating - Reverse Cycle - COP 4.0/4.0
Heating - Reverse Cycle - Watts 450/440
Power Factor 96
Voltage (MIN) 208.0 V
Voltage (MAX) 230.0 V
WARRANTY
Parts Warranty Limited 1-year entire appliance
Limited 5-year sealed refrigerating system
Labor Warranty Limited 1-year entire appliance
Limited 5-year sealed refrigerating system
Warranty Notes See written warranty for full details
WEIGHTS & DIMENSIONS
Net Weight 110.0 lb
Overall Depth 20.8125 in
Overall Height 16.0 in
Overall Width 42.0 in
