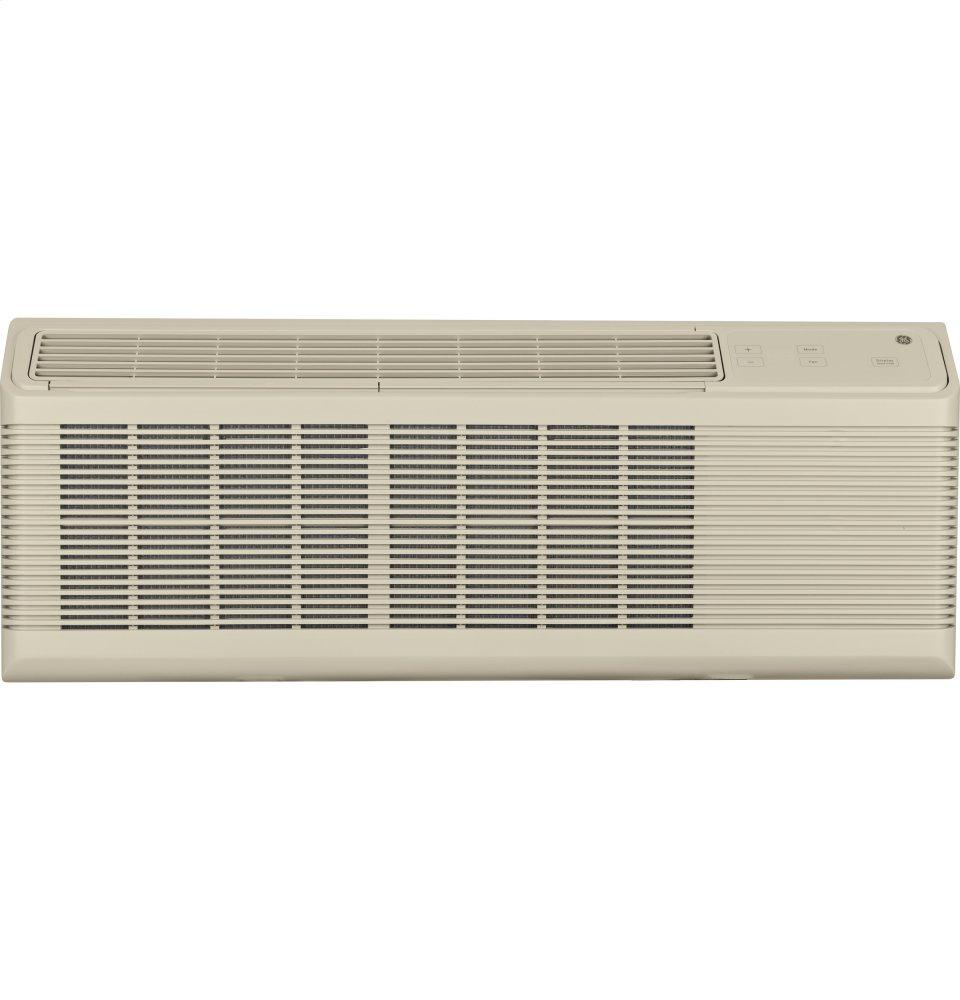

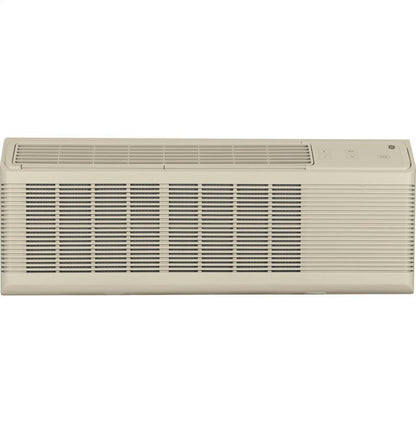

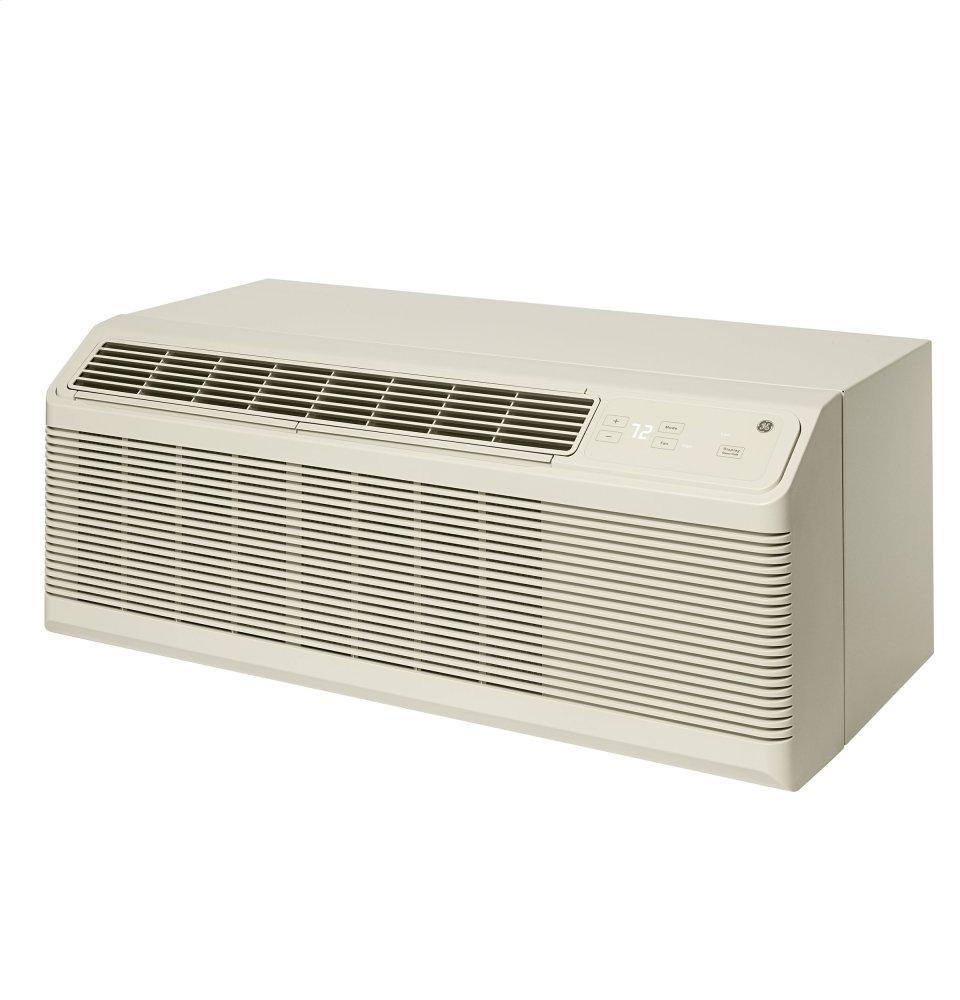

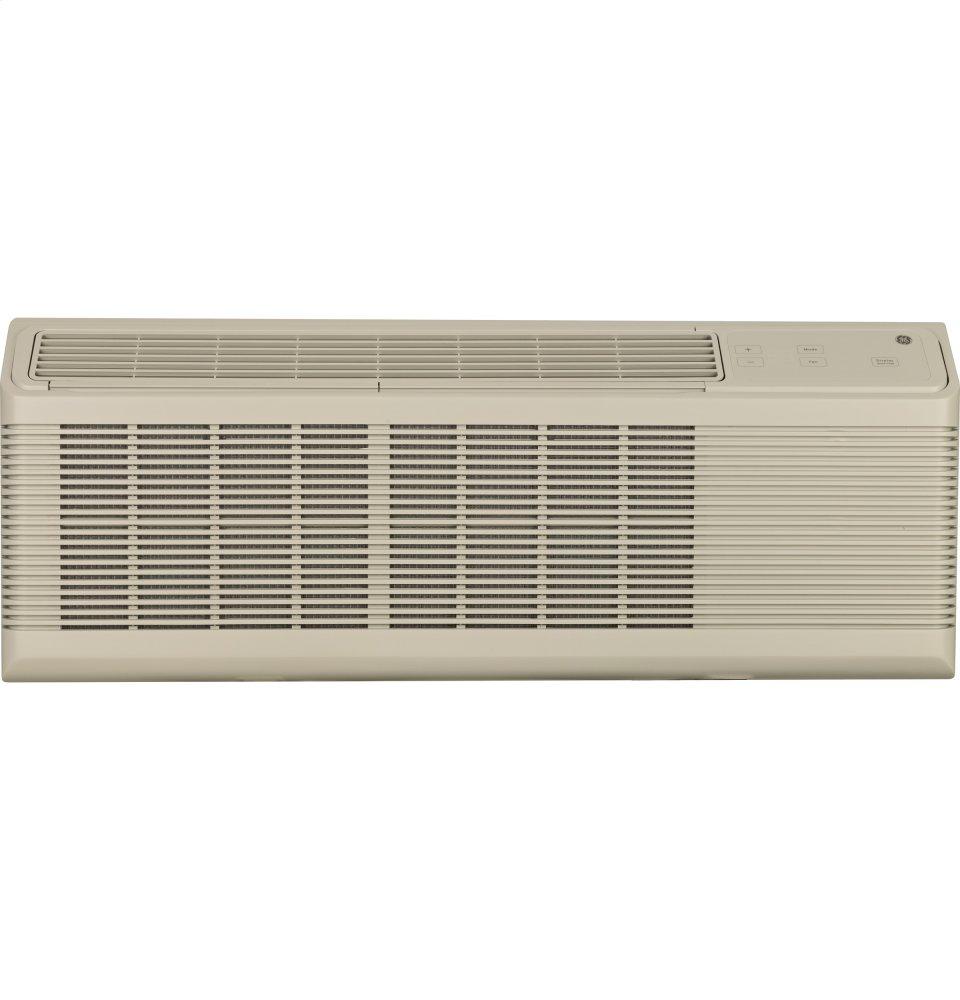

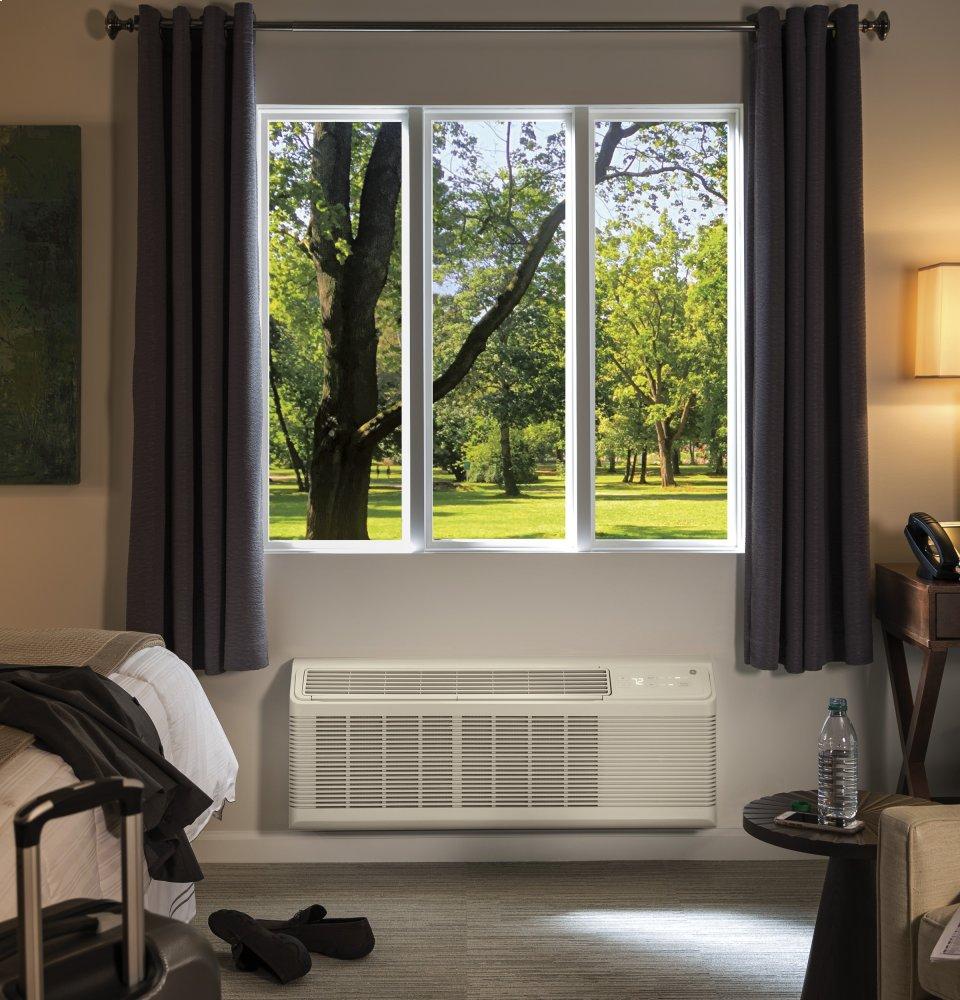

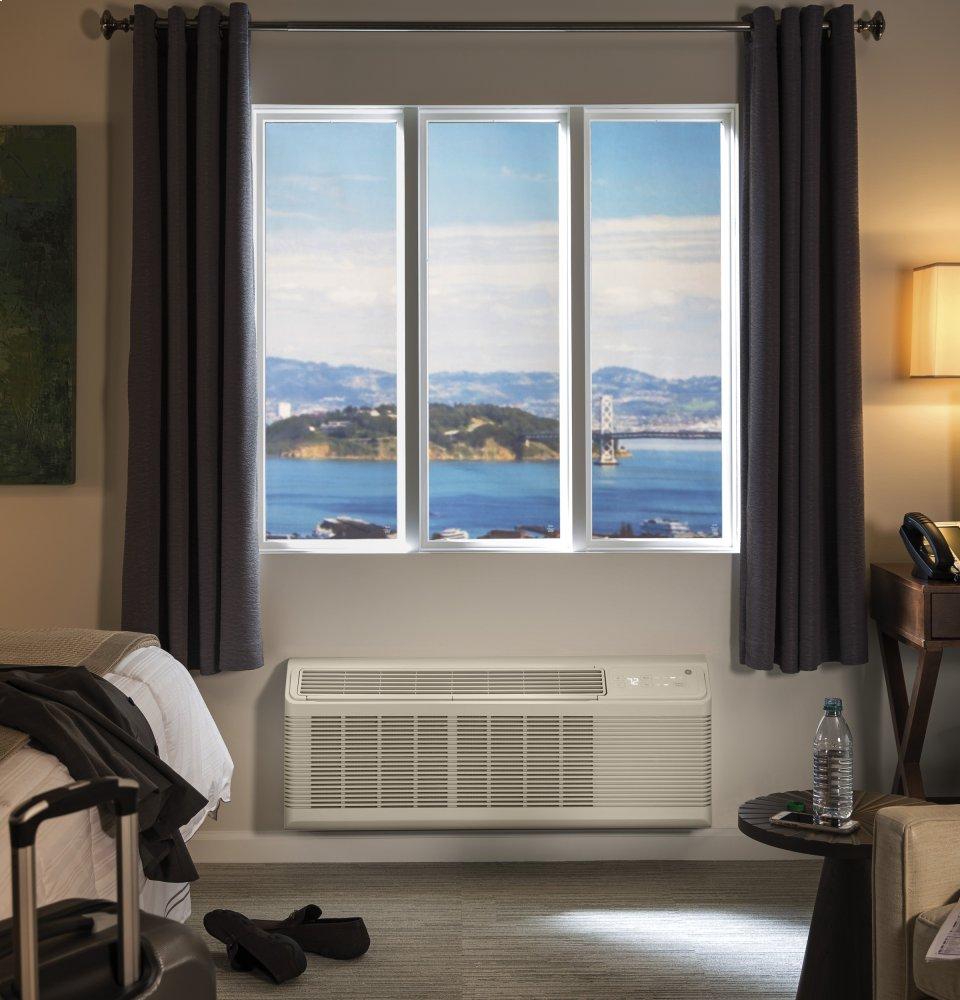

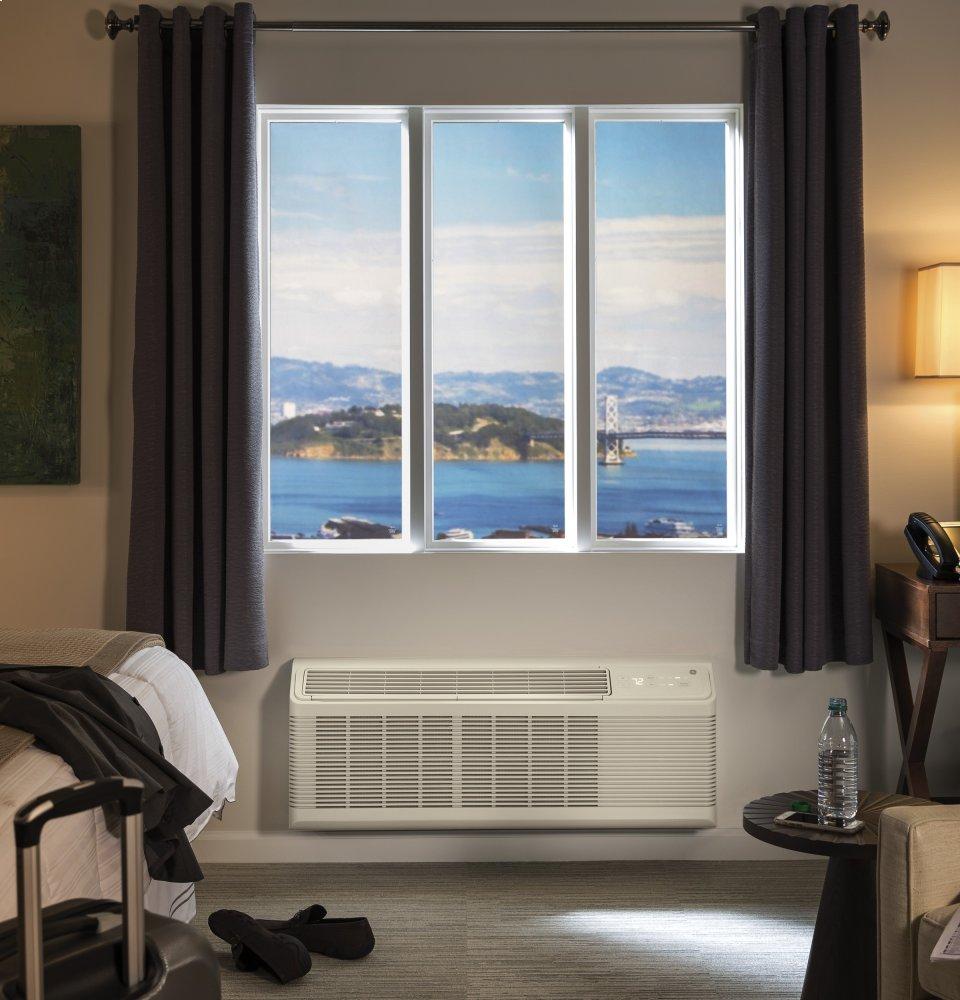

AZ65H07DAD GE Zoneline® Heat Pump Unit with ICR, 230/208 Volt AZ65H07DAD
AZ65H07DAD GE Zoneline® Heat Pump Unit with ICR, 230/208 Volt
Authorized Reseller
In Stock By Manufacturer
Free Shipping
$1,488.00
When Will I Get My Order?
- Electronic temperature limiting
- Electronic touch controls with LED display
- R-410A refrigerant
- SMC base pan
- Simplified structure
- Cooling capacity
- Energy efficiency
- Dehumidification
- Reverse heat cycle
- Heat pump efficiency
- Indoor fan CFM (high/low)
- Fresh air vent CFM (fully open high fan)
- Quiet operation
- Internal condensate removal
- Heat & Freeze Sentinels
- Boost heat option
Electronic temperature limiting

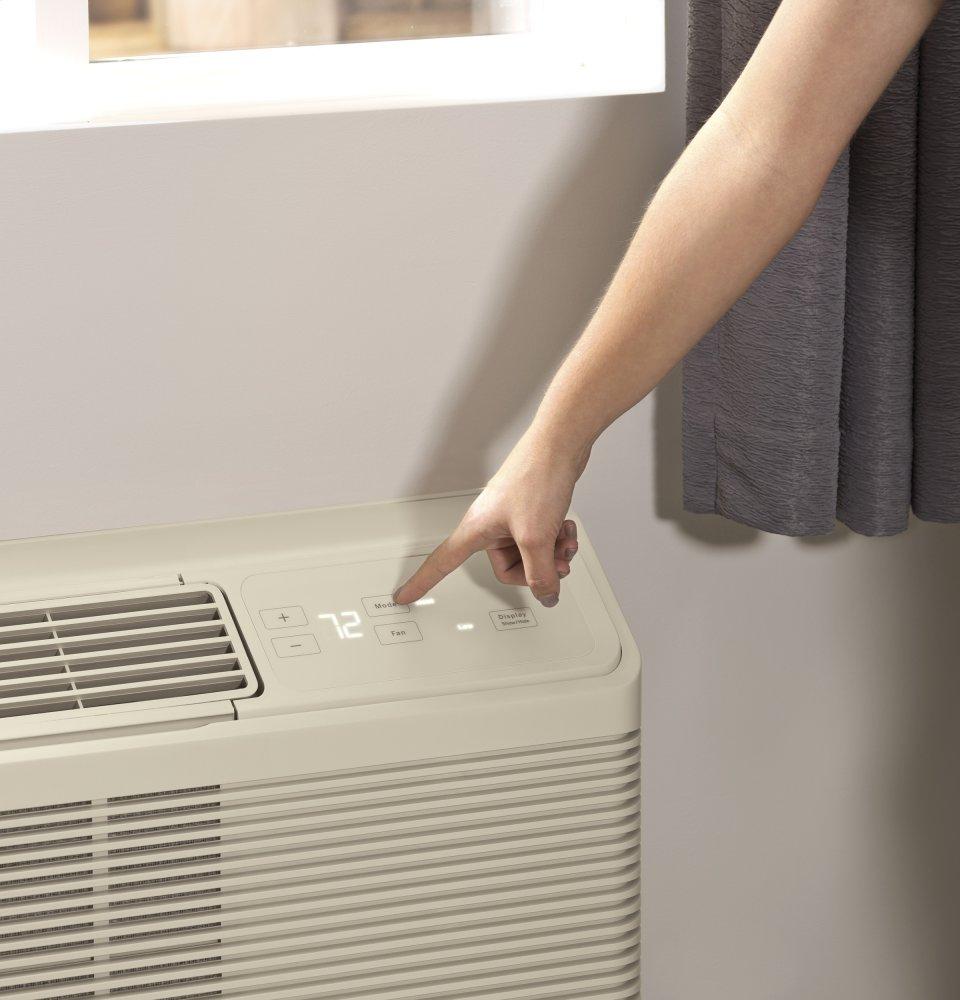

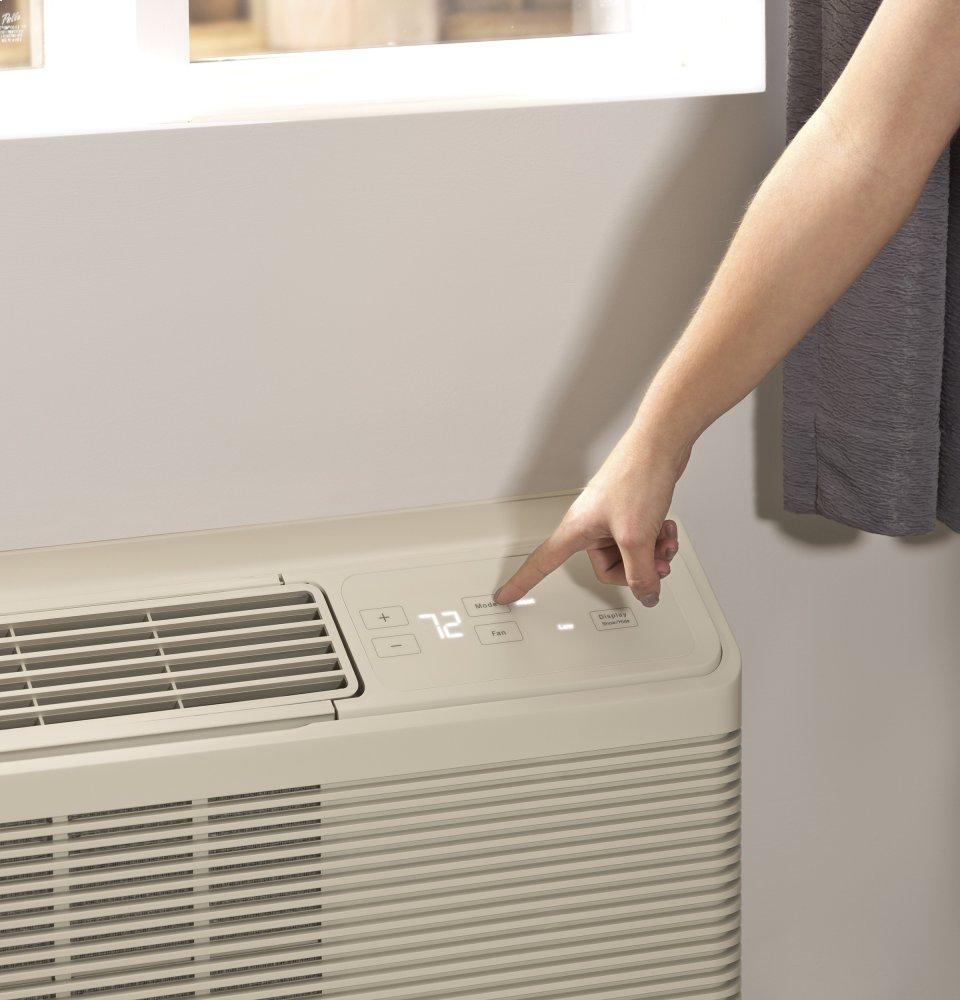

Electronic touch controls with LED display
R-410A refrigerant
SMC base pan
Simplified structure
Cooling capacity
Energy efficiency
Dehumidification
Reverse heat cycle
Heat pump efficiency
Indoor fan CFM (high/low)
Fresh air vent CFM (fully open high fan)
Quiet operation
Internal condensate removal
Heat & Freeze Sentinels
Boost heat option
Prevents expensive over-cooling or over-heating of the room
Electronic touch controls with LED display
R-410A refrigerant
SMC base pan

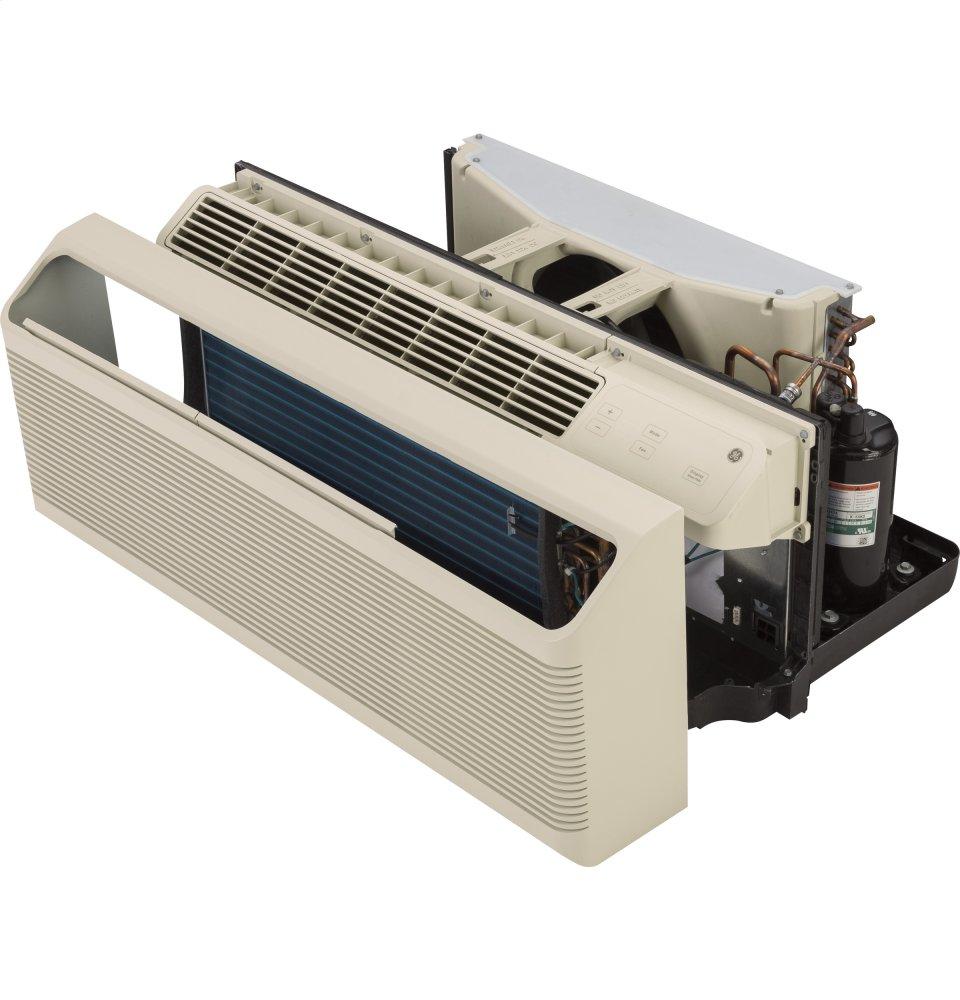

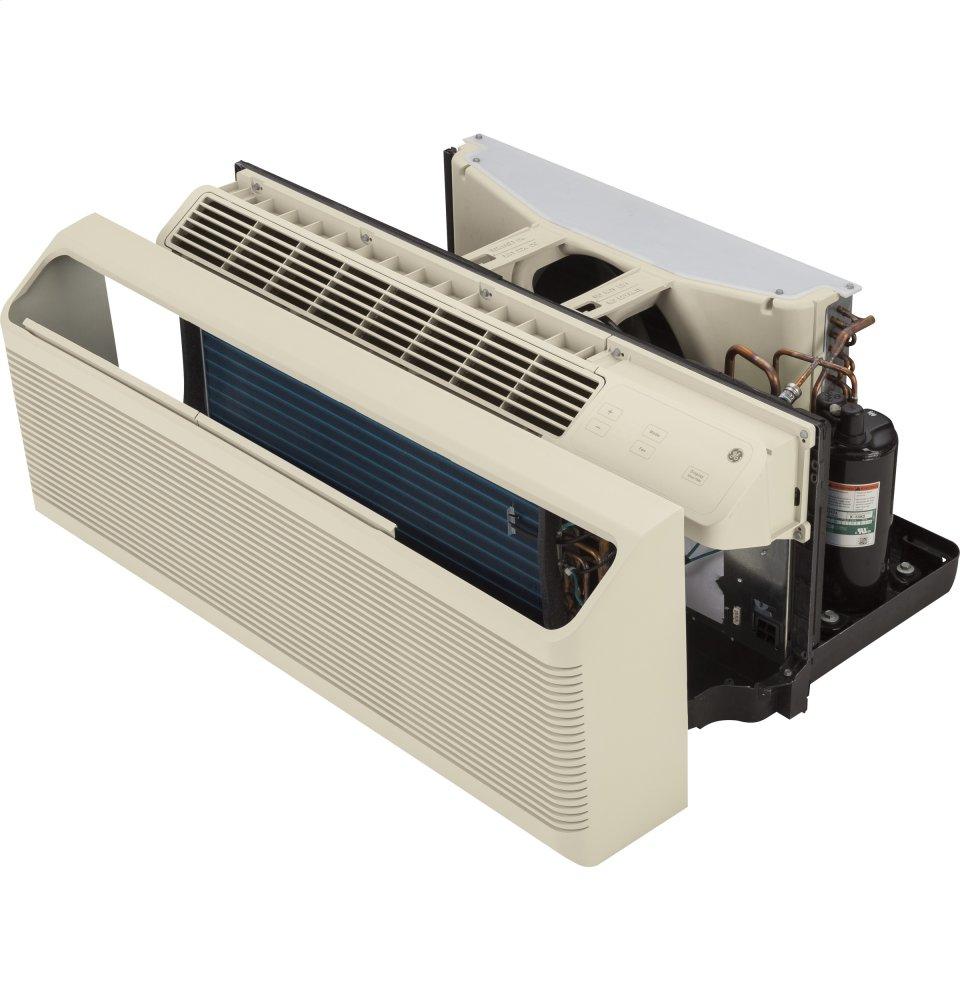

Simplified structure

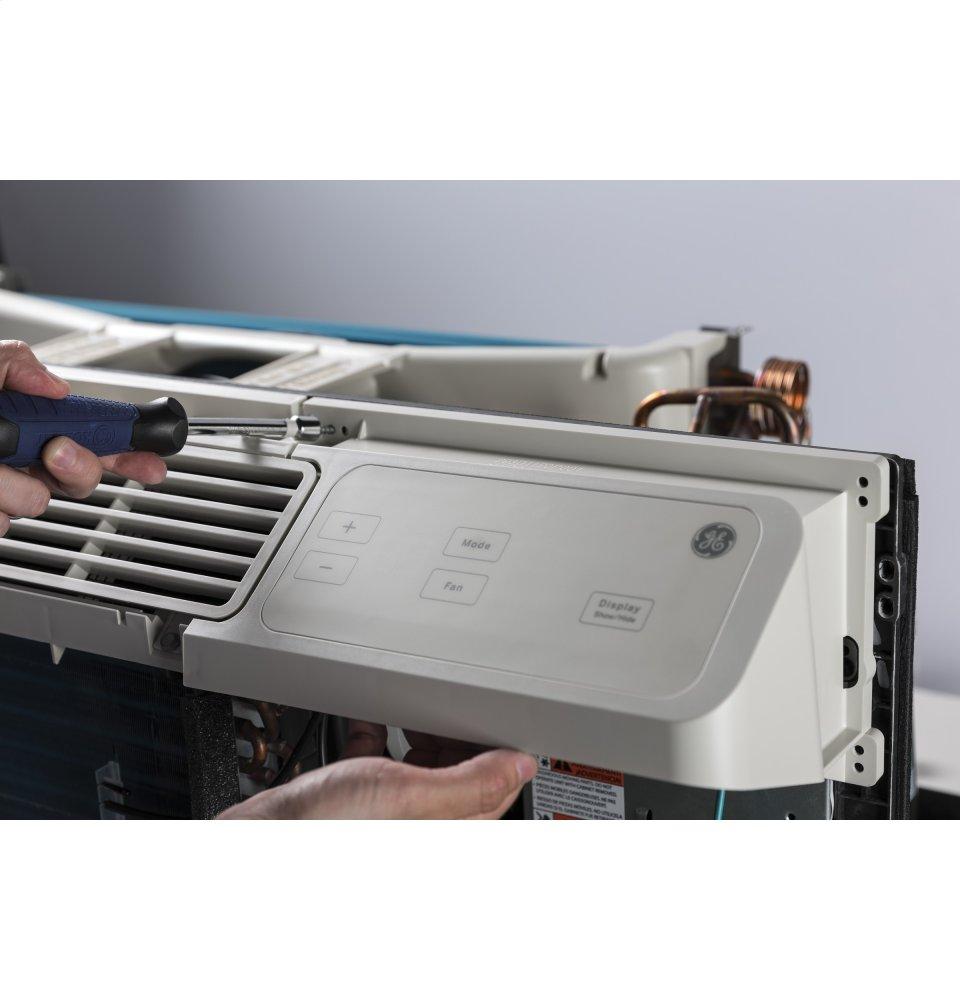

Easy to maintain and service
Cooling capacity
7,000/6,900 BTU
Energy efficiency
13.0/13.0 EER
Dehumidification
1.6 pints/hour
Reverse heat cycle
6,200/6,000 BTU
Heat pump efficiency
4.0/4.0 COP
Indoor fan CFM (high/low)
409/250
Fresh air vent CFM (fully open high fan)
38
Quiet operation

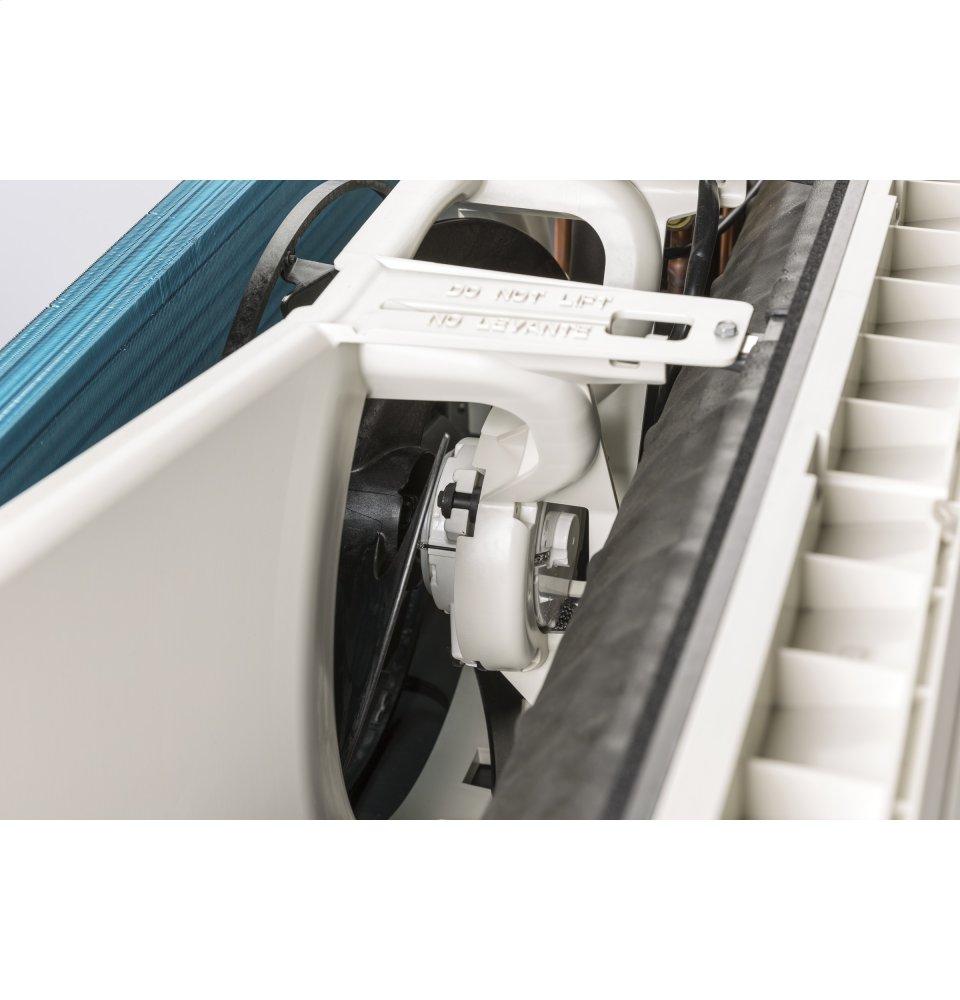

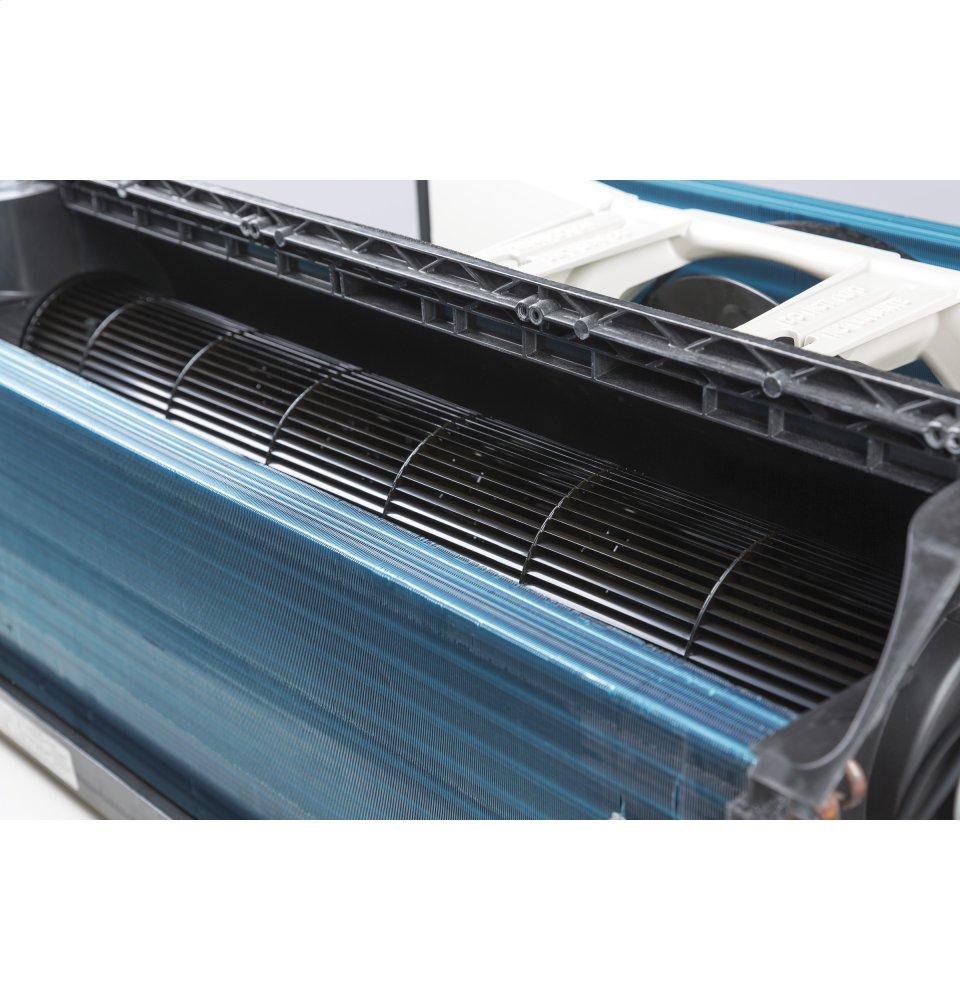

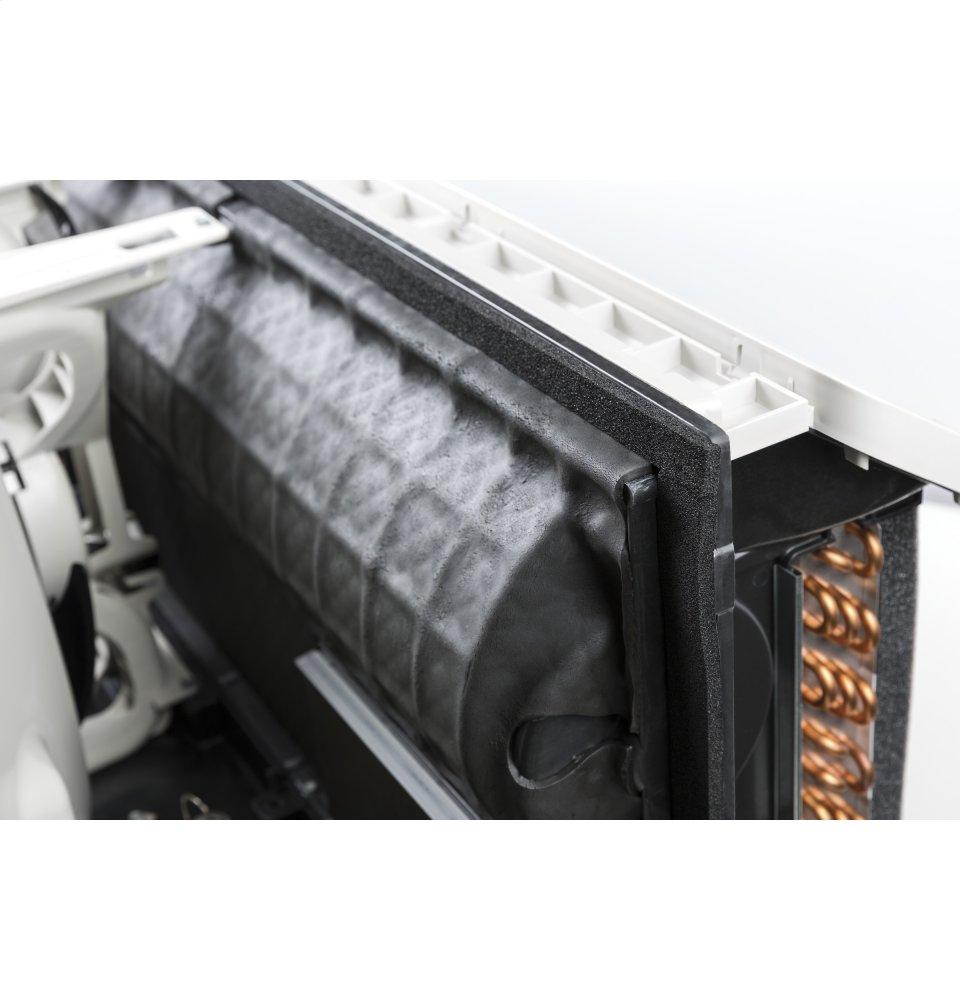

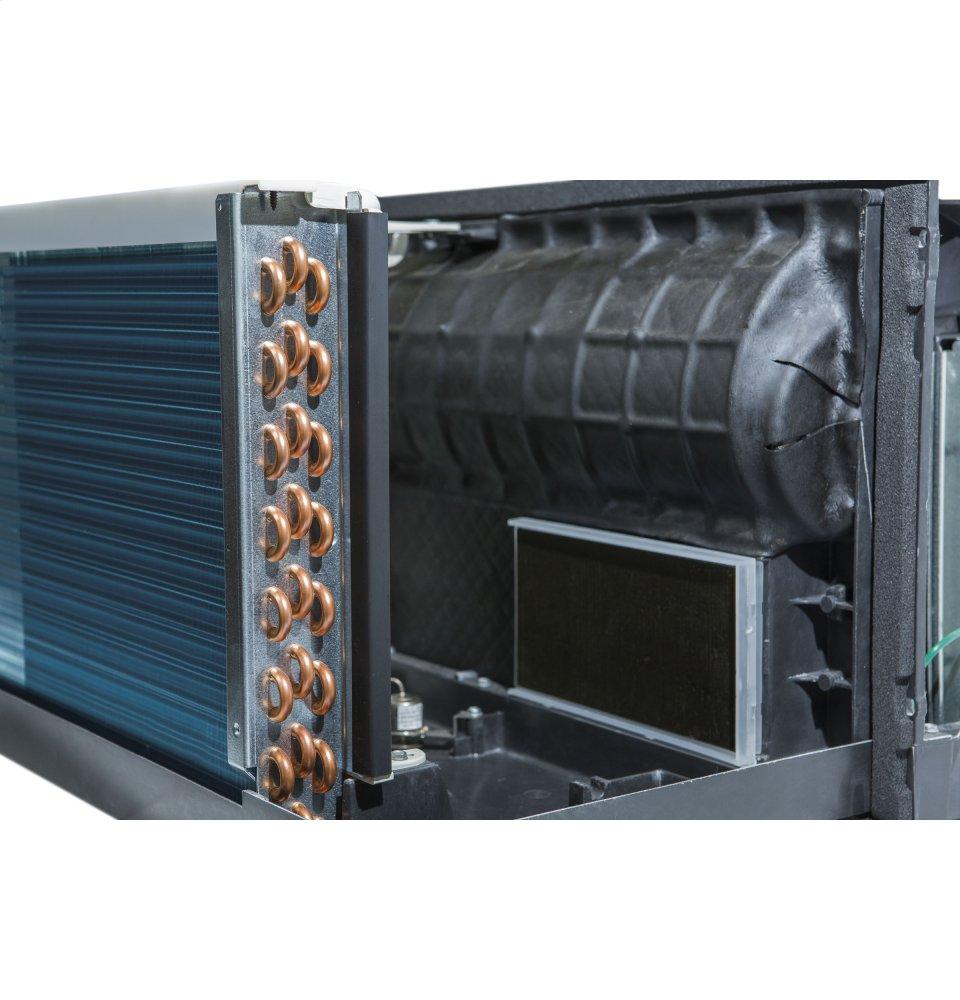

Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort

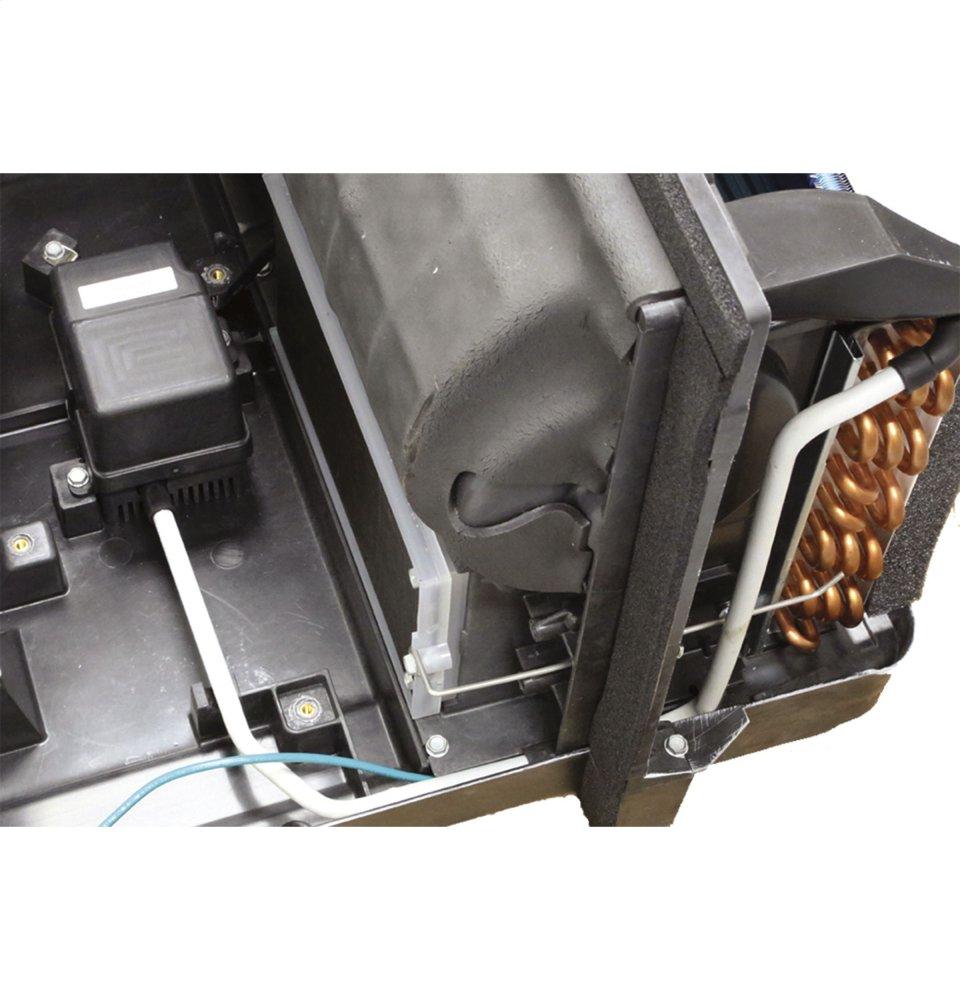

Internal condensate removal
Minimizes condensate draining from the unit during heat pump operation
Heat & Freeze Sentinels
Keeps the room from overheating or freezing
Boost heat option
Provides supplemental resistance heat in heat pump mode
| CAPACITY | |
| Cooling BTUH (MIN) | 6900.0 Btu |
| Cooling BTUH (MAX) | 7000.0 Btu |
| Cooling EER (BTUH / Watt) | 13.0/13.0 |
| CFM Indoor Fan High | 360 |
| CFM Indoor Fan Low | 205 |
| Dehumidification (pts./hr.) | 1.6 |
| Heating - Reverse Cycle - BTUH | 6200/6000 |
| Vent CFM (high fan at zero ESP) | 38 |
| FEATURES | |

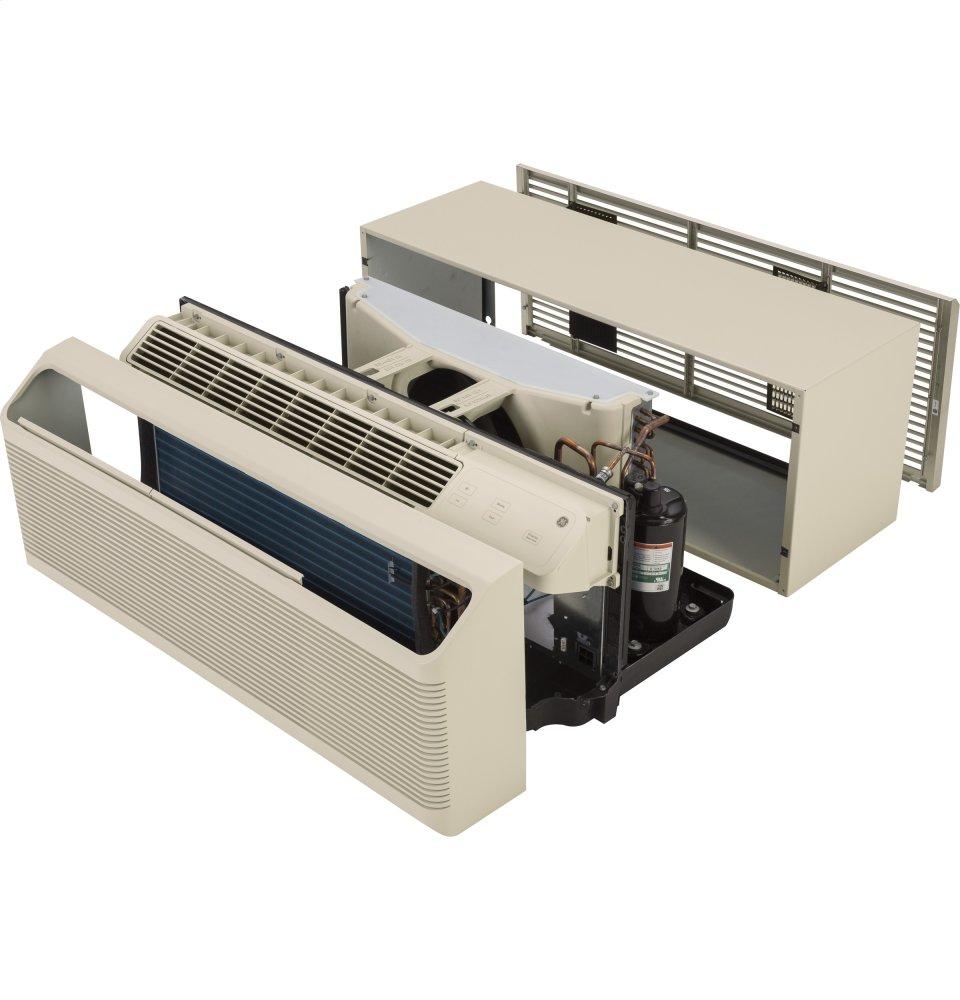

| Chassis Type | Slide-In |

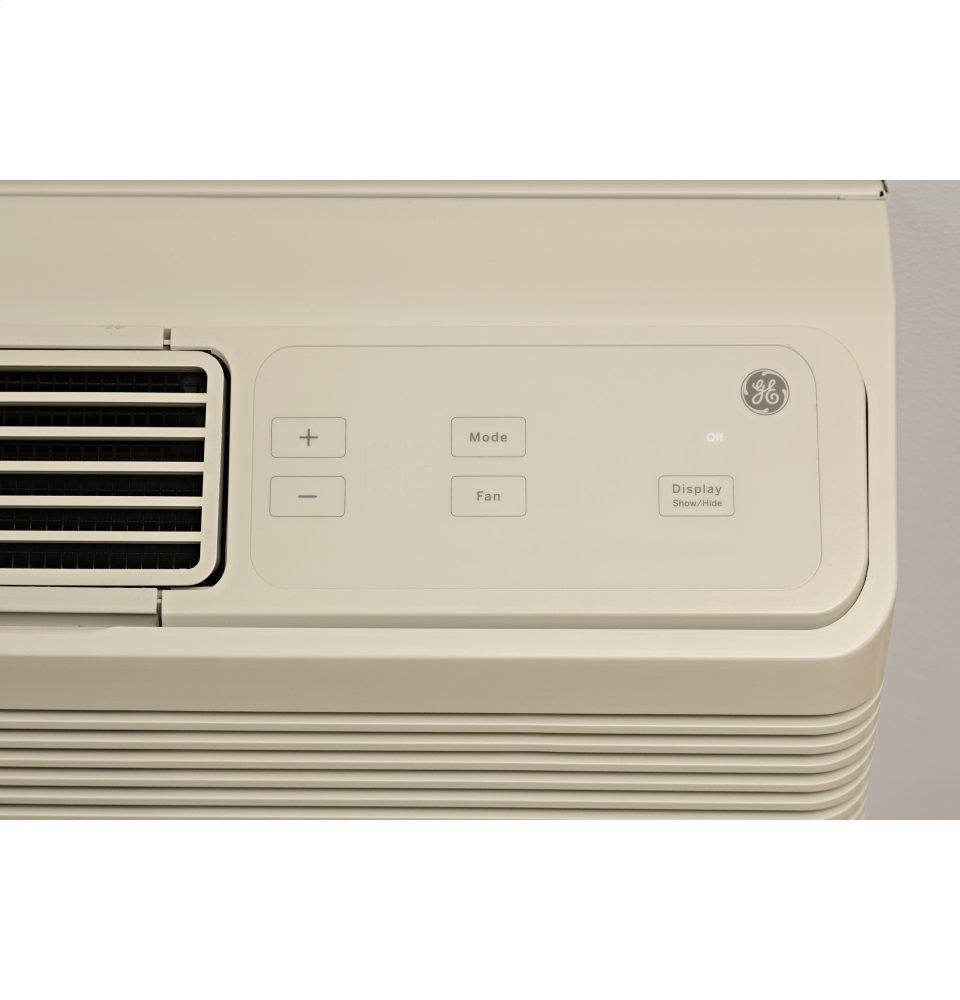

| Control Type | Standard Microcomputer Tactile touch pad with LED Display |
| Discharge Grille | 2-position |
| Electronic Micro Computer Control | Yes |
| Fan Cycle Switch | Yes |
| Fan Motor | 2 |
| Fan Speed Control | Yes |
| Fan Speed Selections | Hi/Low Cooling Hi/Low Fan Only Hi/Low Heating |

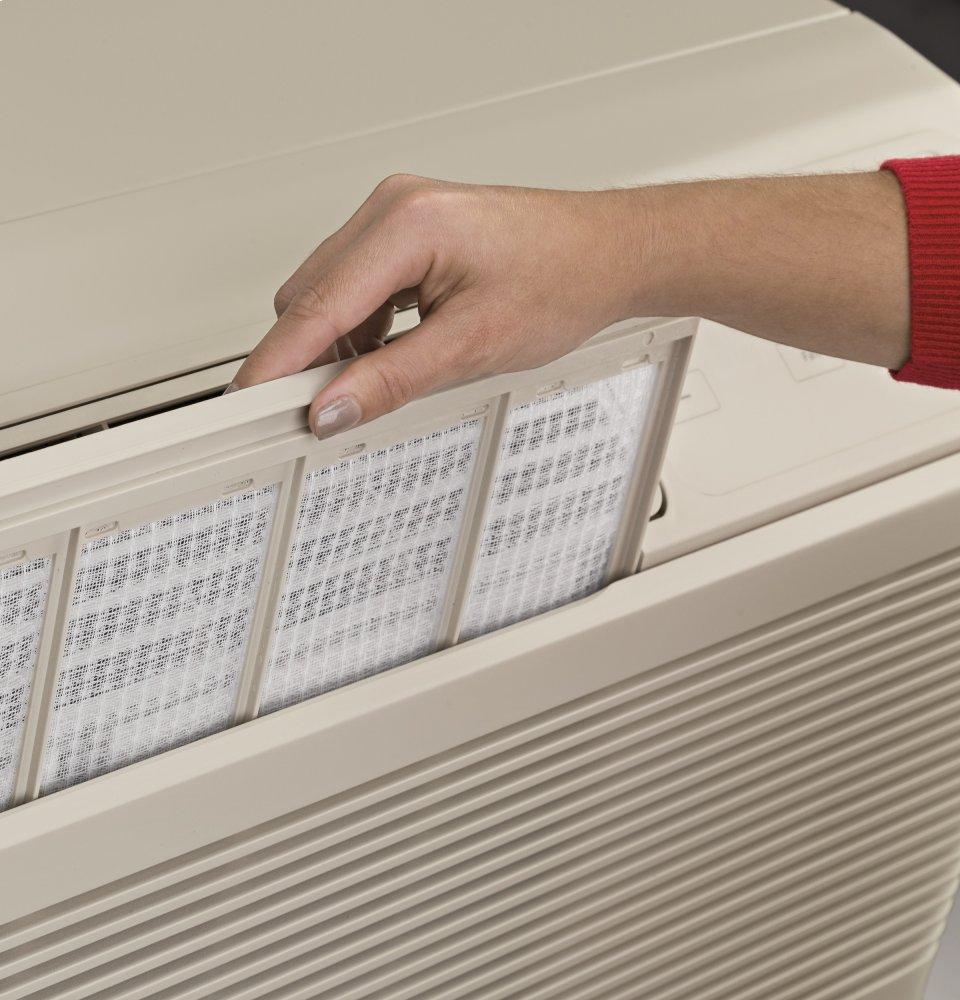

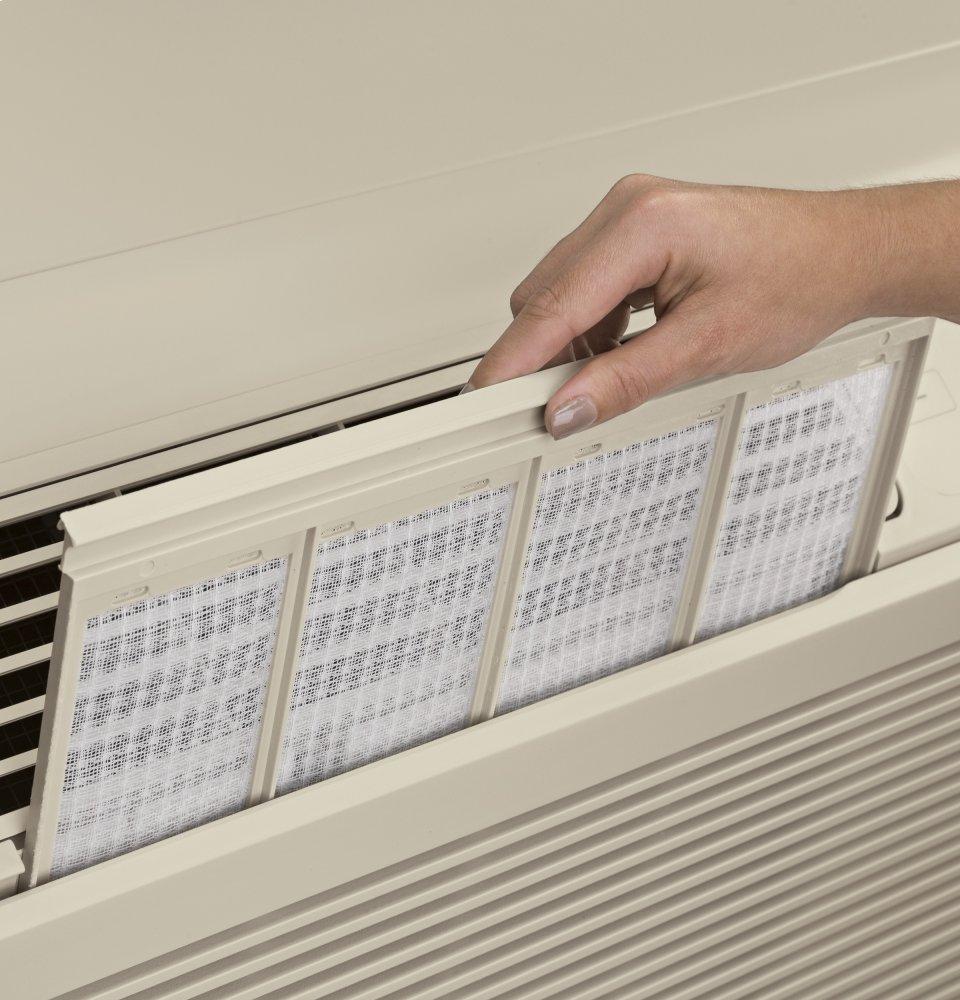

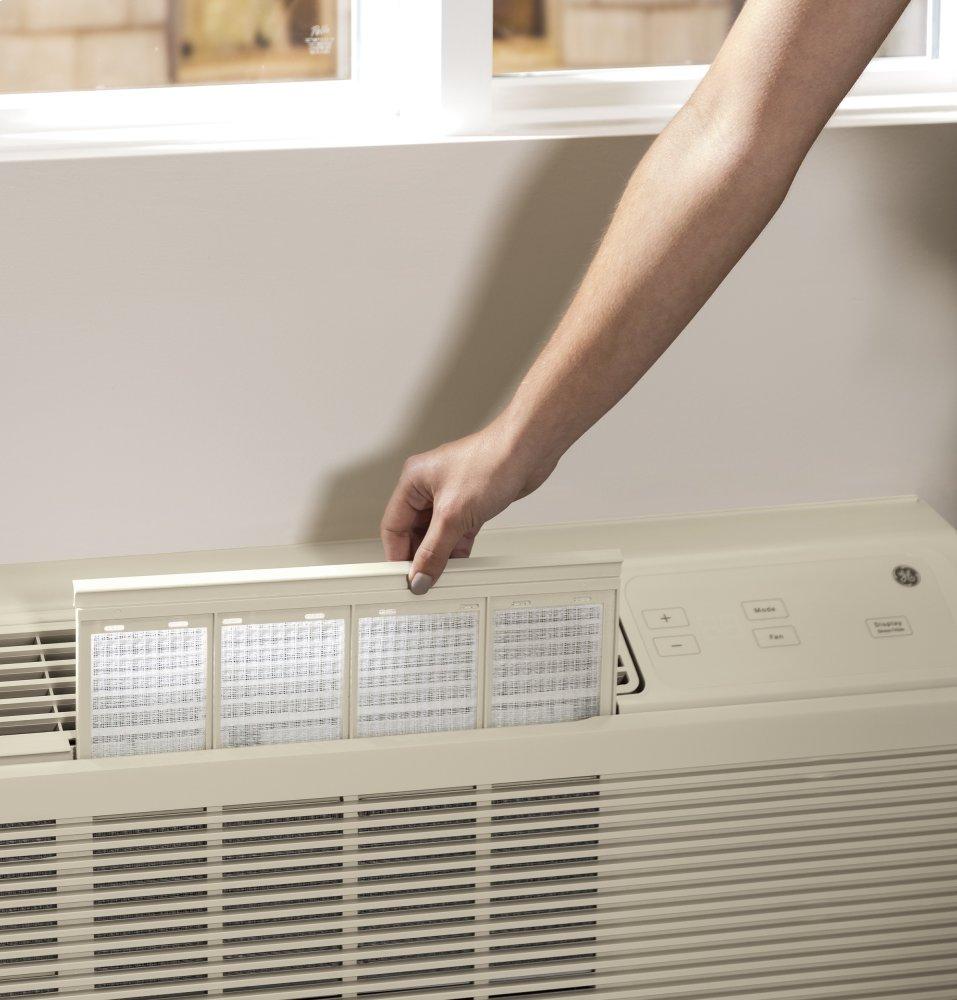

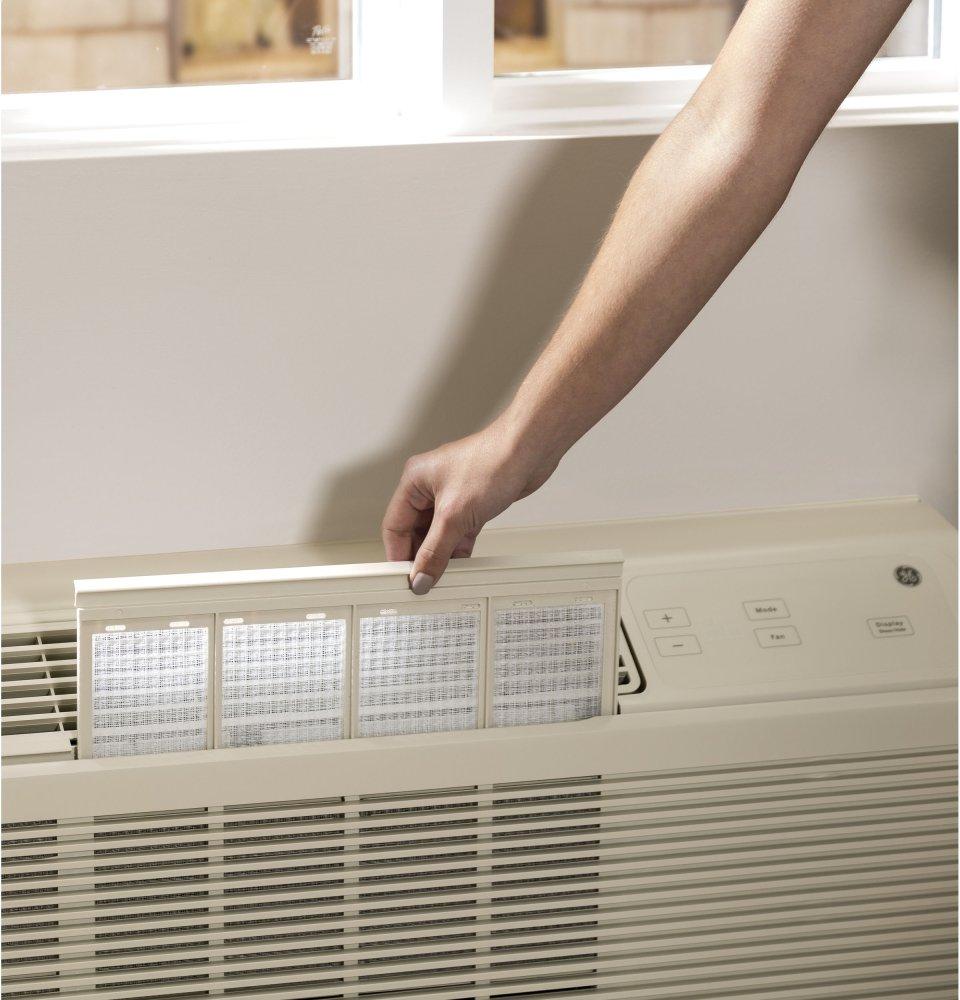

| Filter Type | Rigid Frame Slide-Out |
| Heat - Cool | Yes |
| Internal Condensate Removal (ICR) | Yes |
| Louver Style | Reversible |
| Manual Vent Control | Hidden |
| Rotary Compressor | Yes |
| Temperature Limiting | Electronic 7-Step |
| Vent Control | 3-position |
| Venting Features | Concealed Manual Vent Control Outdoor Vent Control - 3 Positions Vent Air Filter |
| Zoneline Features | Heat Sentinel Power Cord (LDCI) included Proportional - Integral ID Airflow Quick Heat Recovery Random Twist/Length Segment Tangential Blower Remote Thermostat Compatibility Reverse Cycle Defrost Universal Heaters Weather Protected Electrical Components 3-Stage Heating Design Auto Power Recovery Automatic Emergency Heat Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Heat Pump with Resistance Heat Backup Heat Pump with Supplemental Resistance Heat |
| Heating System | Heat Pump |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Temperature Range | 60 - 85 F |
| Sensible Heat Ratio | 73% |
| POWER / RATINGS | |
| Cooling - Amperes; F.L. - Cooling | 2.5/2.7 |
| Cooling - Amperes; L.R. | 13.5 |
| Cooling - Watts | 535/530 |
| Heating - Reverse Cycle - Amps | 2.1/2.2 |
| Heating - Reverse Cycle - COP | 4.0/4.0 |
| Heating - Reverse Cycle - Watts | 450/435 |
| Power Factor | 96 |
| Voltage (MIN) | 208.0 V |
| Voltage (MAX) | 230.0 V |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Warranty Notes | See written warranty for full details |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 110.0 lb |
| Overall Depth | 20.8125 in |
| Overall Height | 16.0 in |
| Overall Width | 42.0 in |
