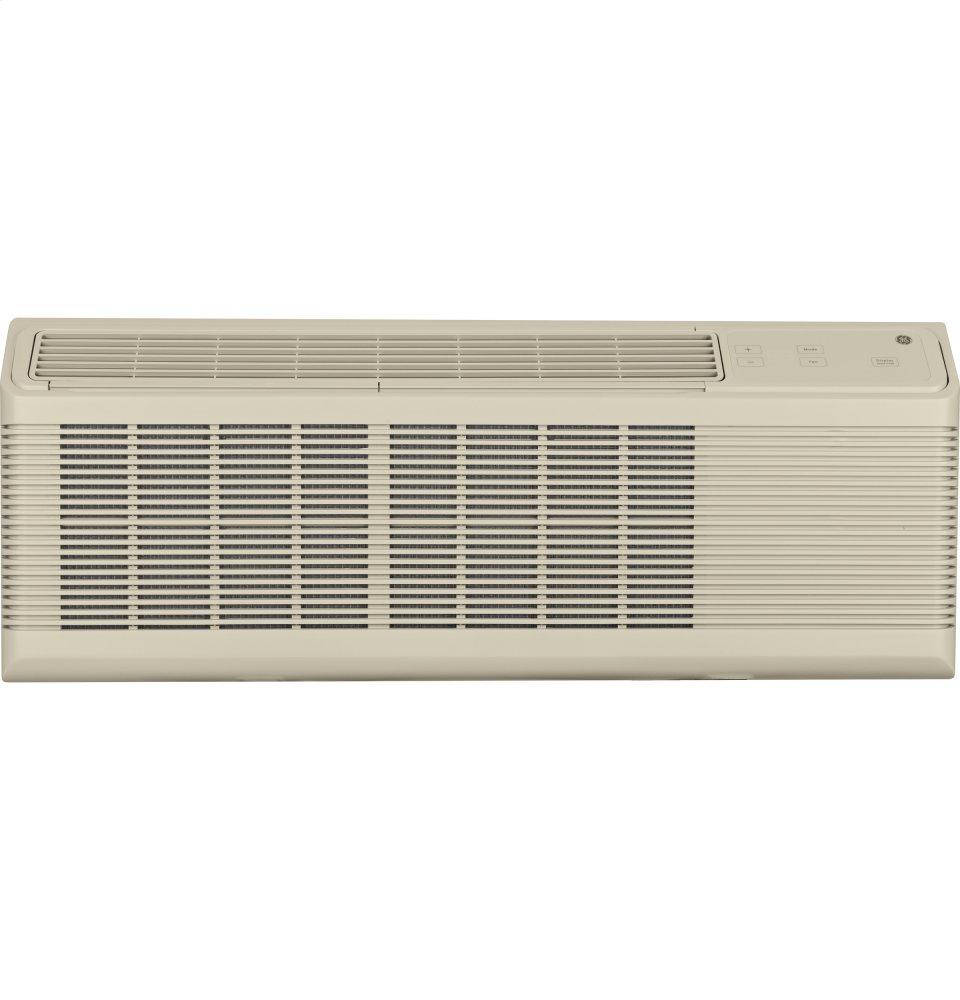

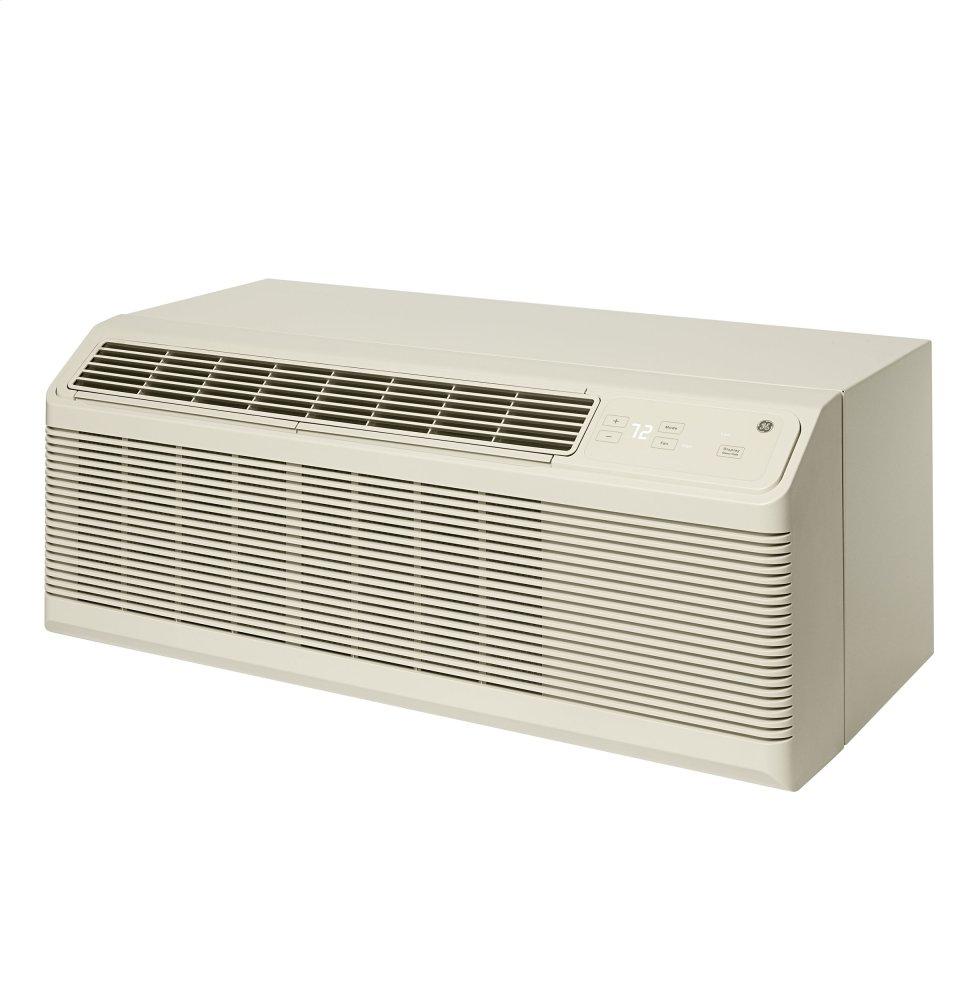

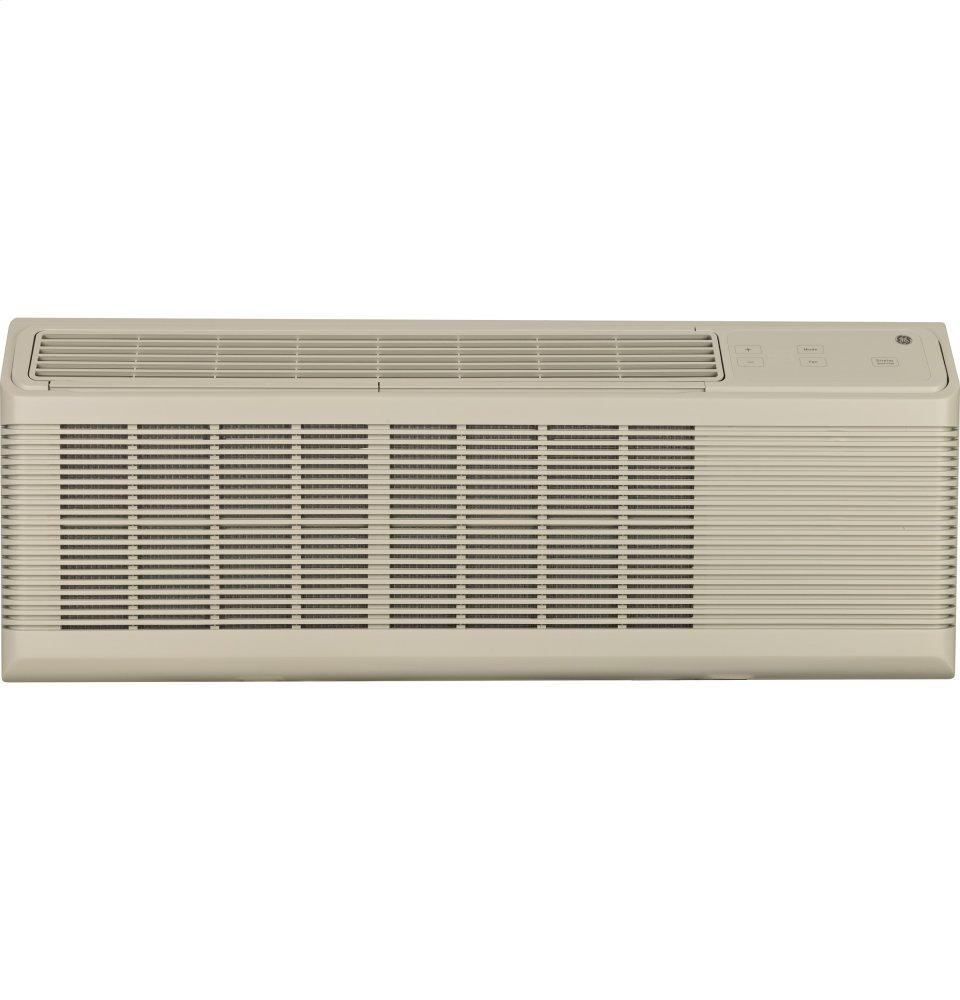

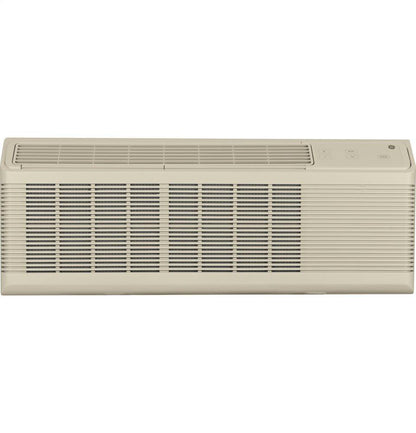

AZ65H12EAC GE Zoneline® Heat Pump Unit with Corrosion Protection, 265 Volt AZ65H12EAC
- Electronic temperature limiting
- Electronic touch controls with LED display
- R-410A refrigerant
- SMC base pan
- Simplified structure
- Cooling capacity
- Energy efficiency
- Dehumidification
- Reverse heat cycle
- Heat pump efficiency
- Indoor fan CFM (high/low)
- Fresh air vent CFM (fully open high fan)
- Quiet operation
- Corrosion resistant
- Heat & Freeze Sentinels
- Boost heat option
Prevents expensive over-cooling or over-heating of the room

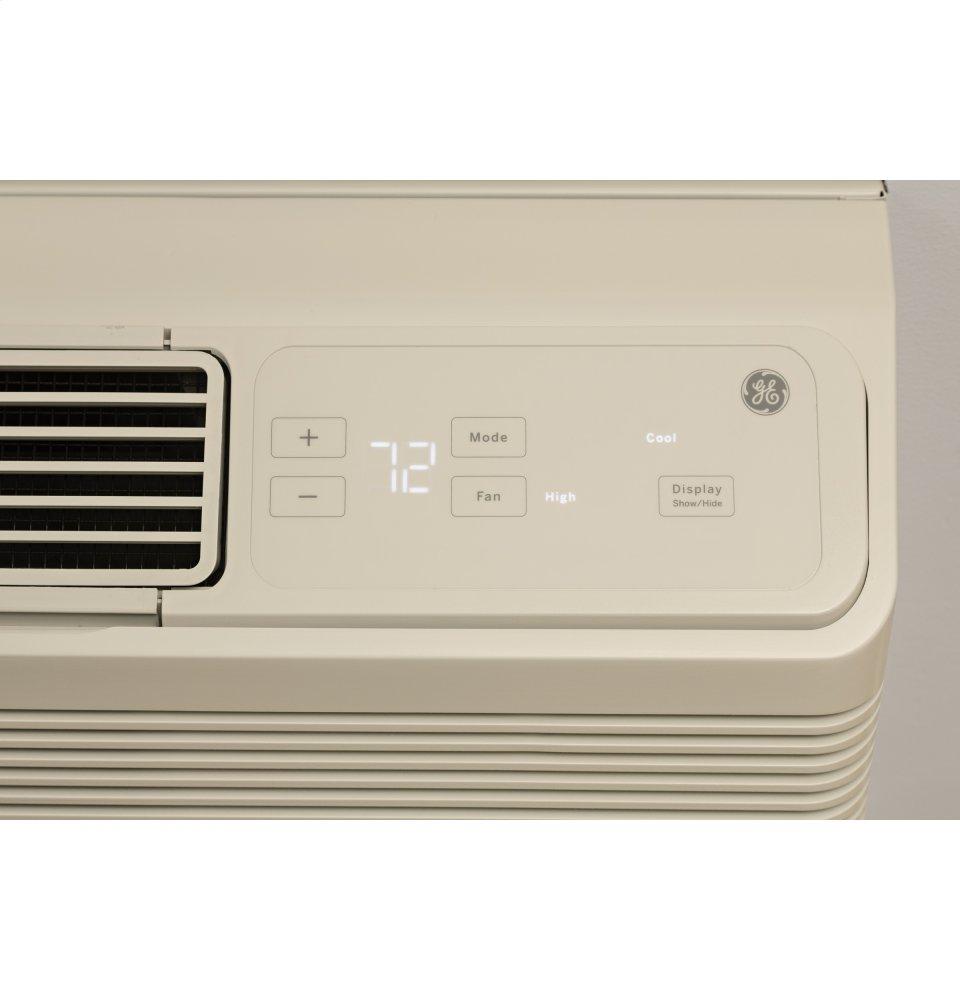

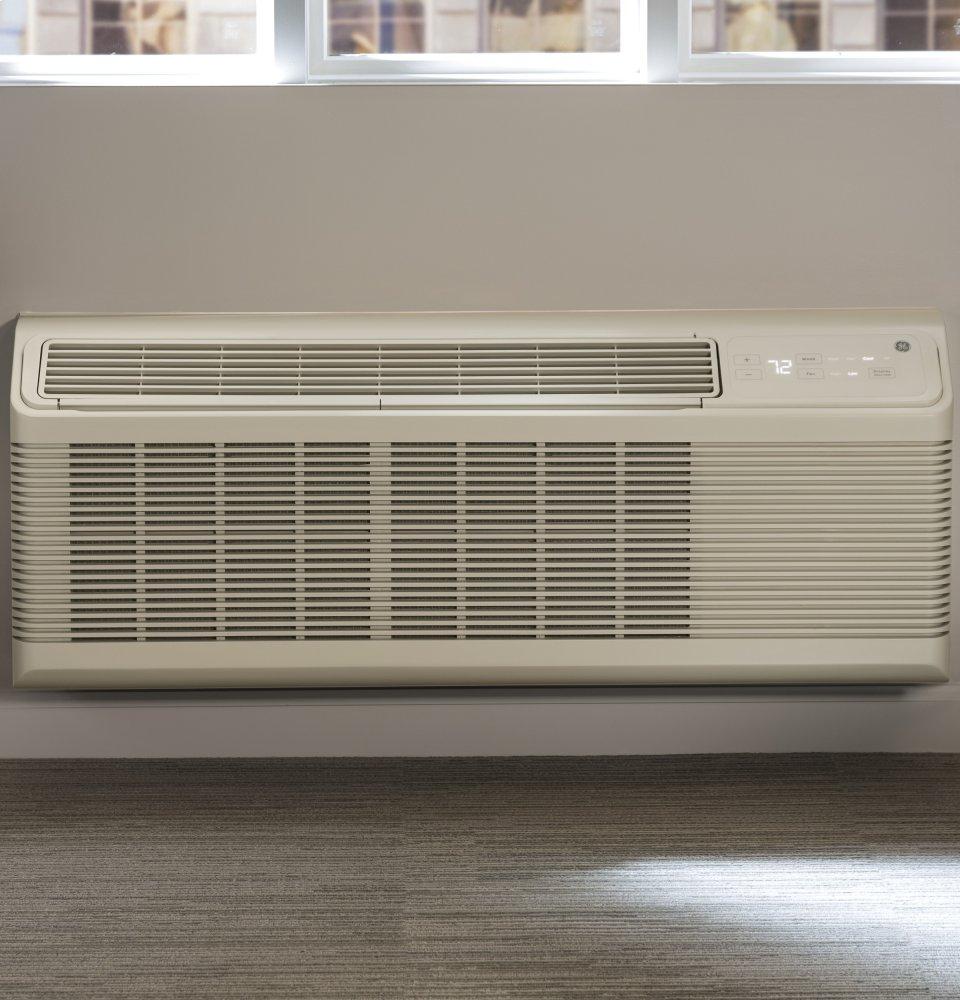

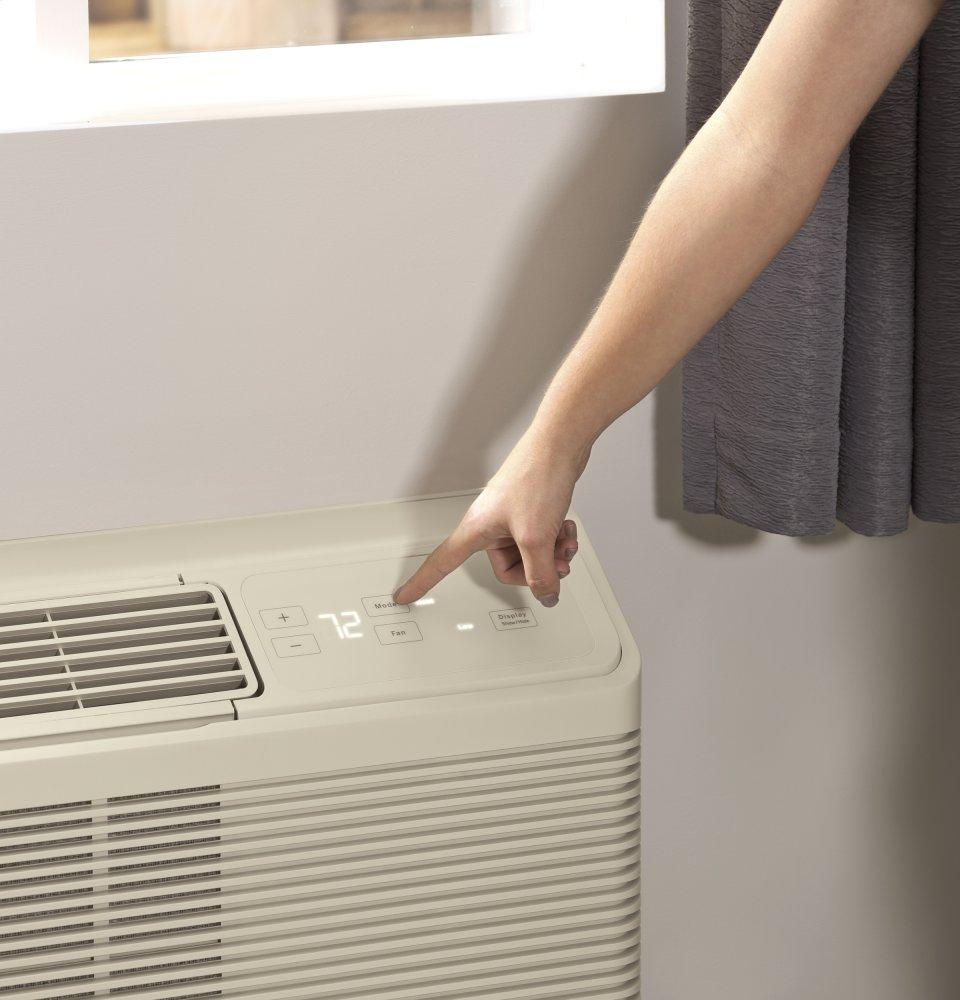

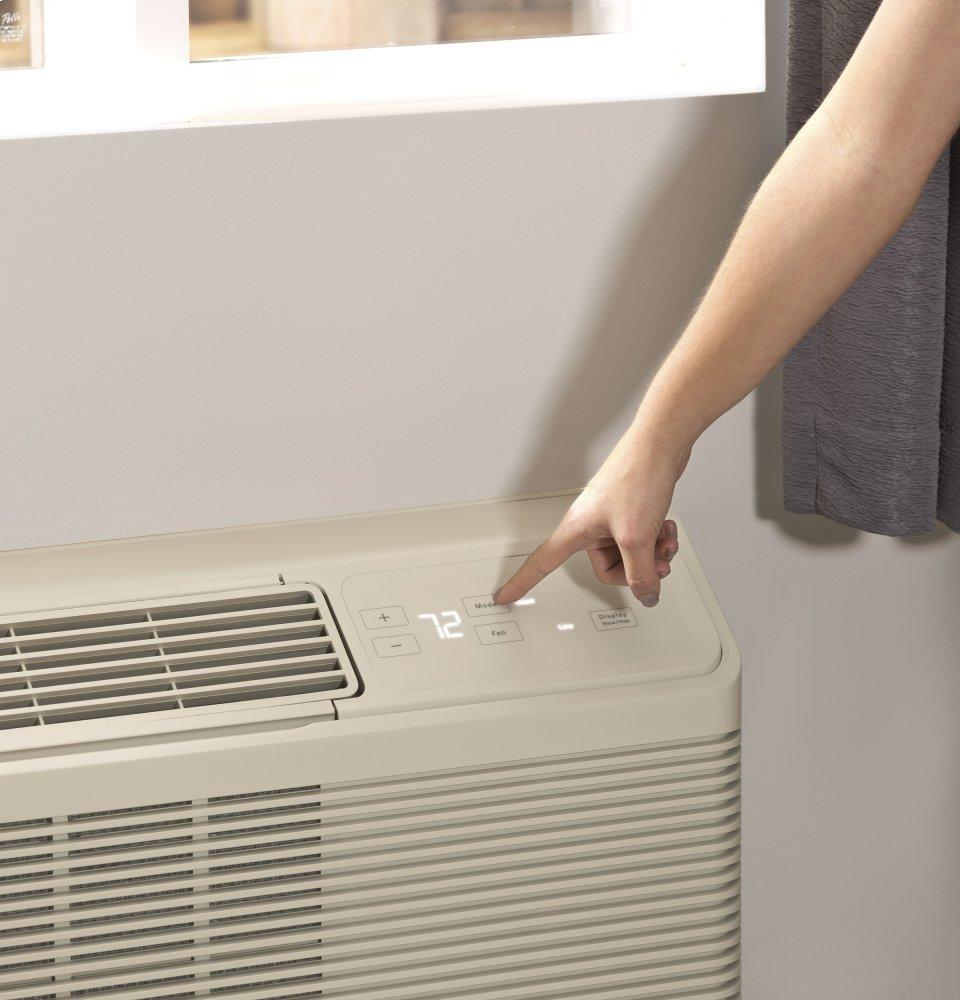

Electronic touch controls with LED display
R-410A refrigerant
SMC base pan

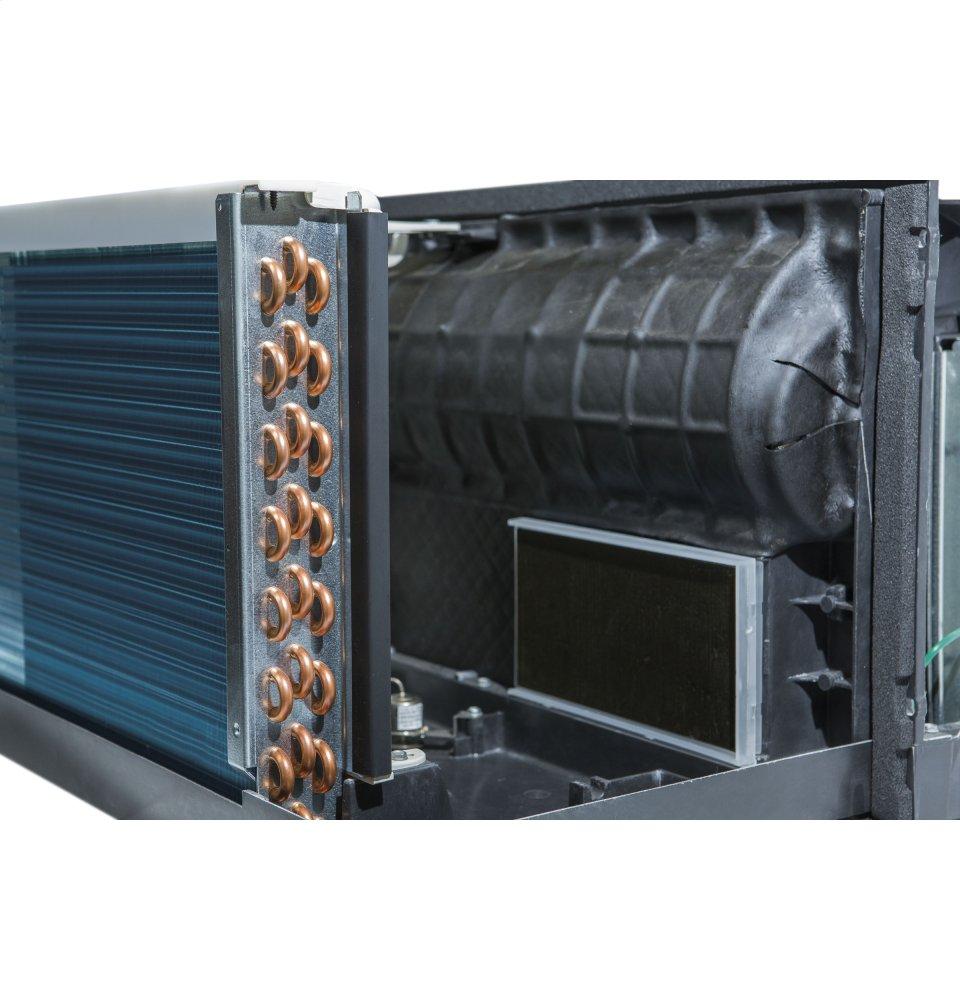

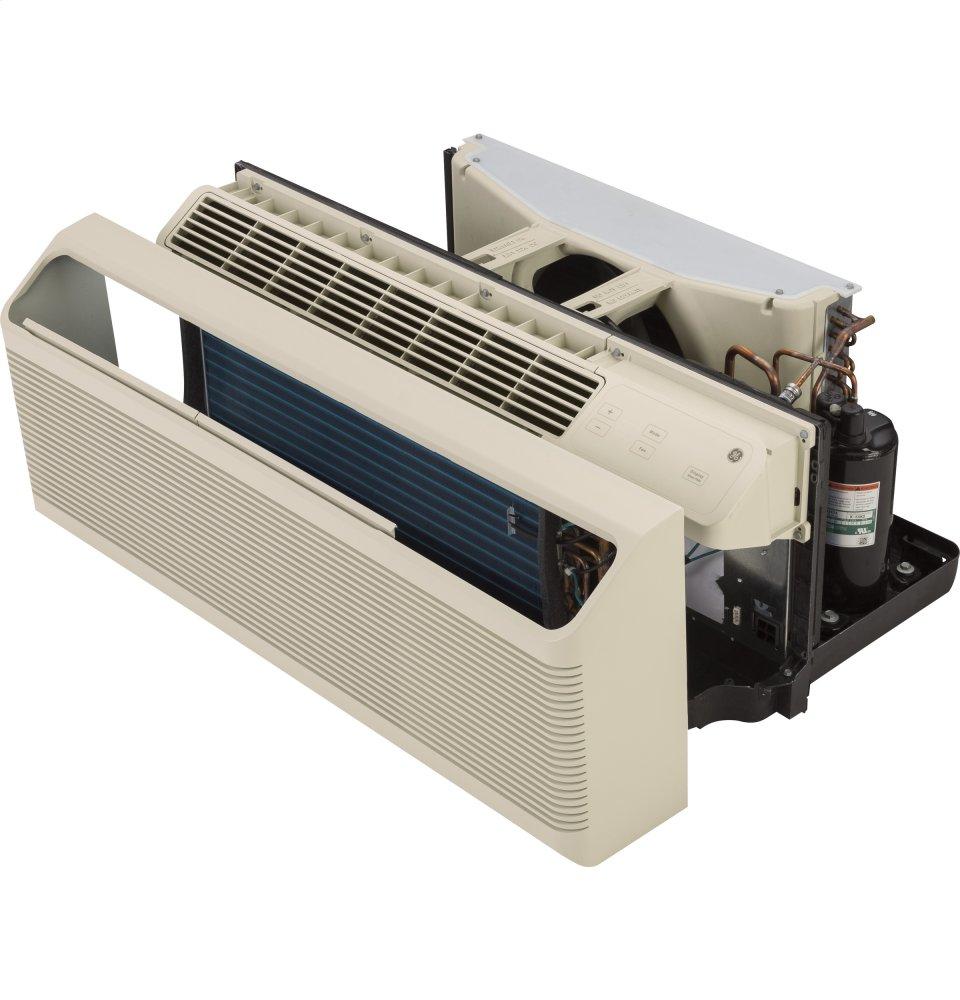

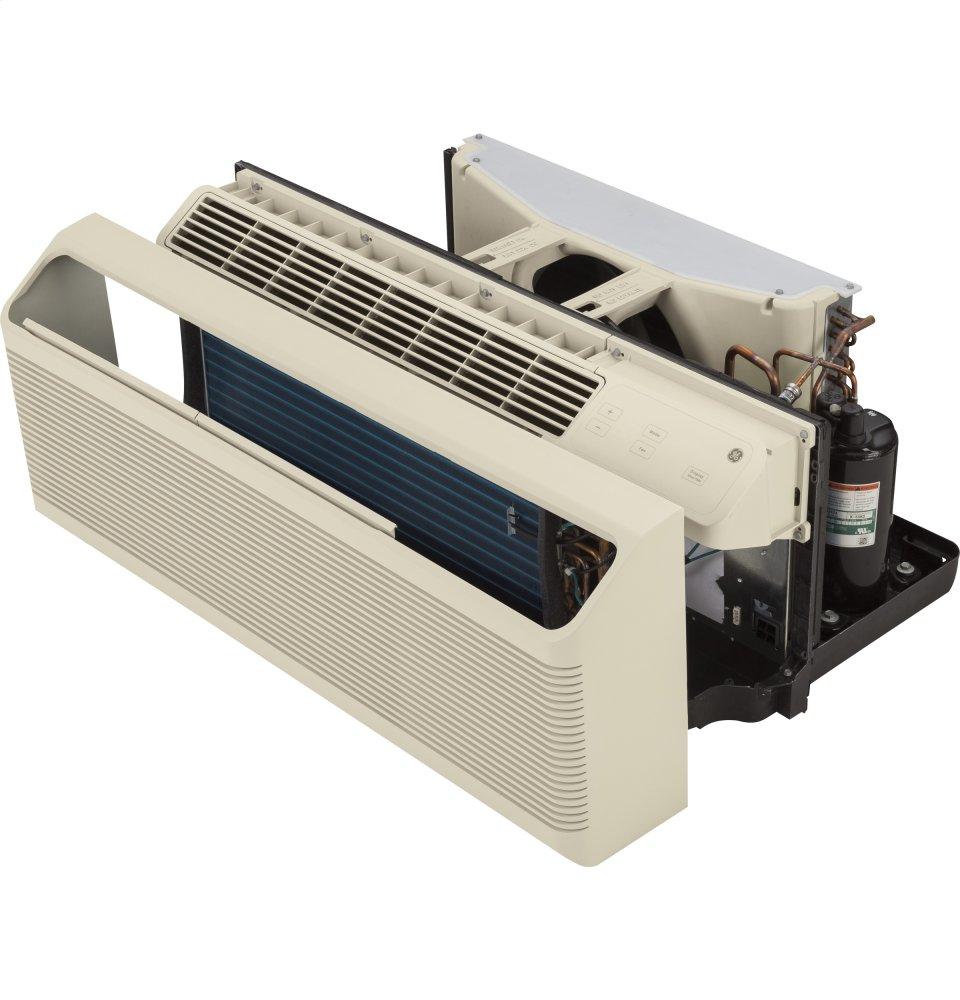

Simplified structure

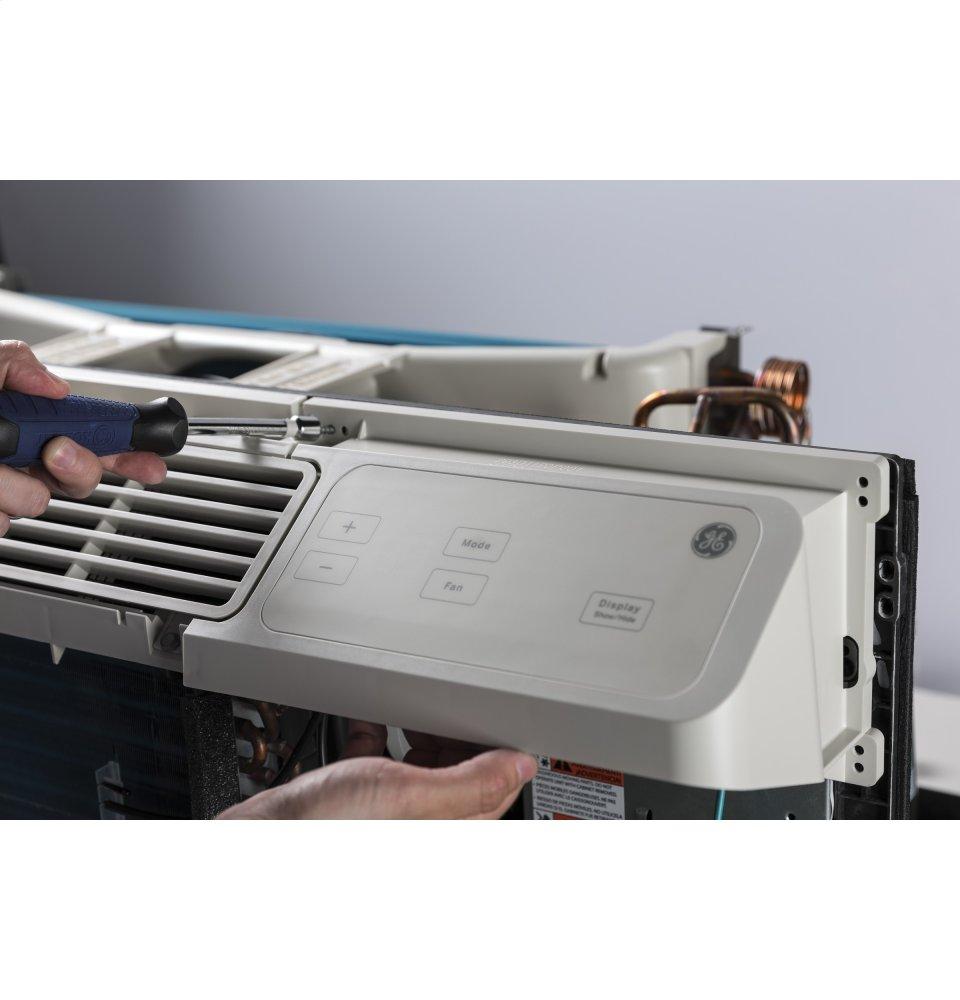

Easy to maintain and service
Cooling capacity
11,900 BTU
Energy efficiency
11.6 EER
Dehumidification
3.7 pints/hour
Reverse heat cycle
10,500 BTU
Heat pump efficiency
3.6 COP
Indoor fan CFM (high/low)
449/300
Fresh air vent CFM (fully open high fan)
45
Quiet operation

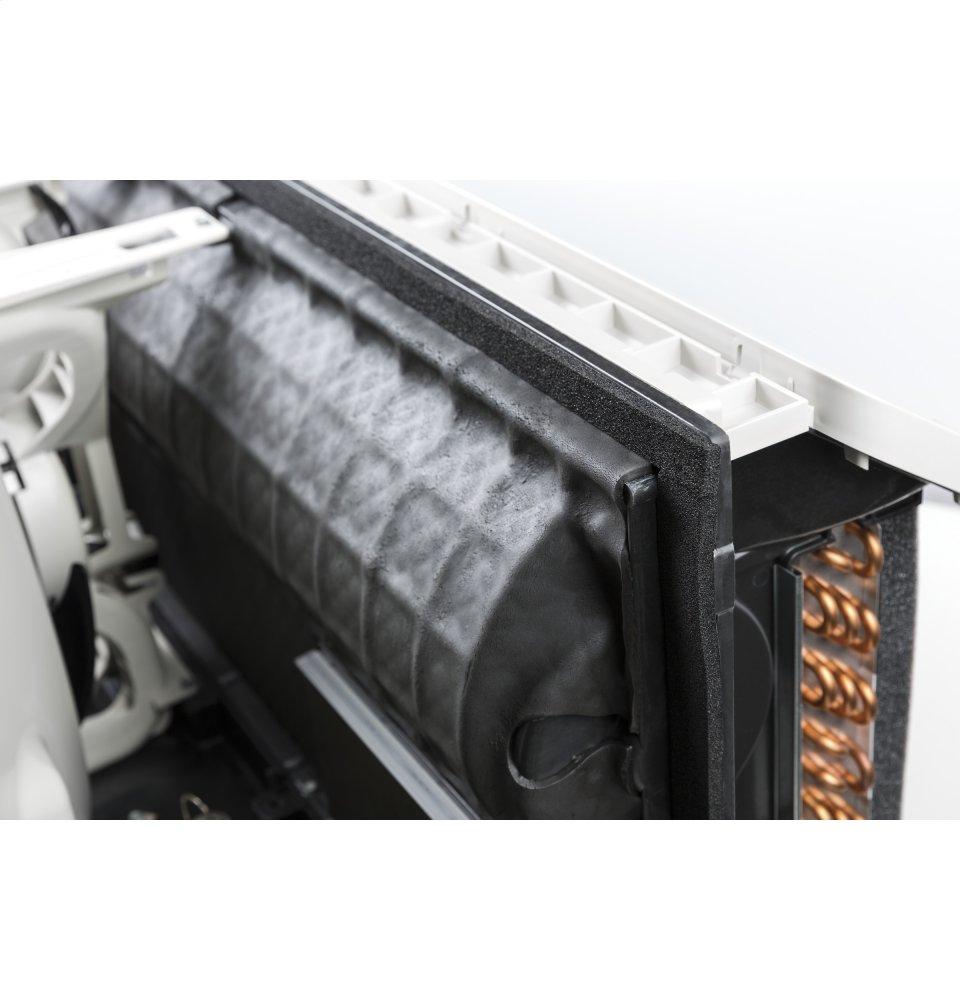

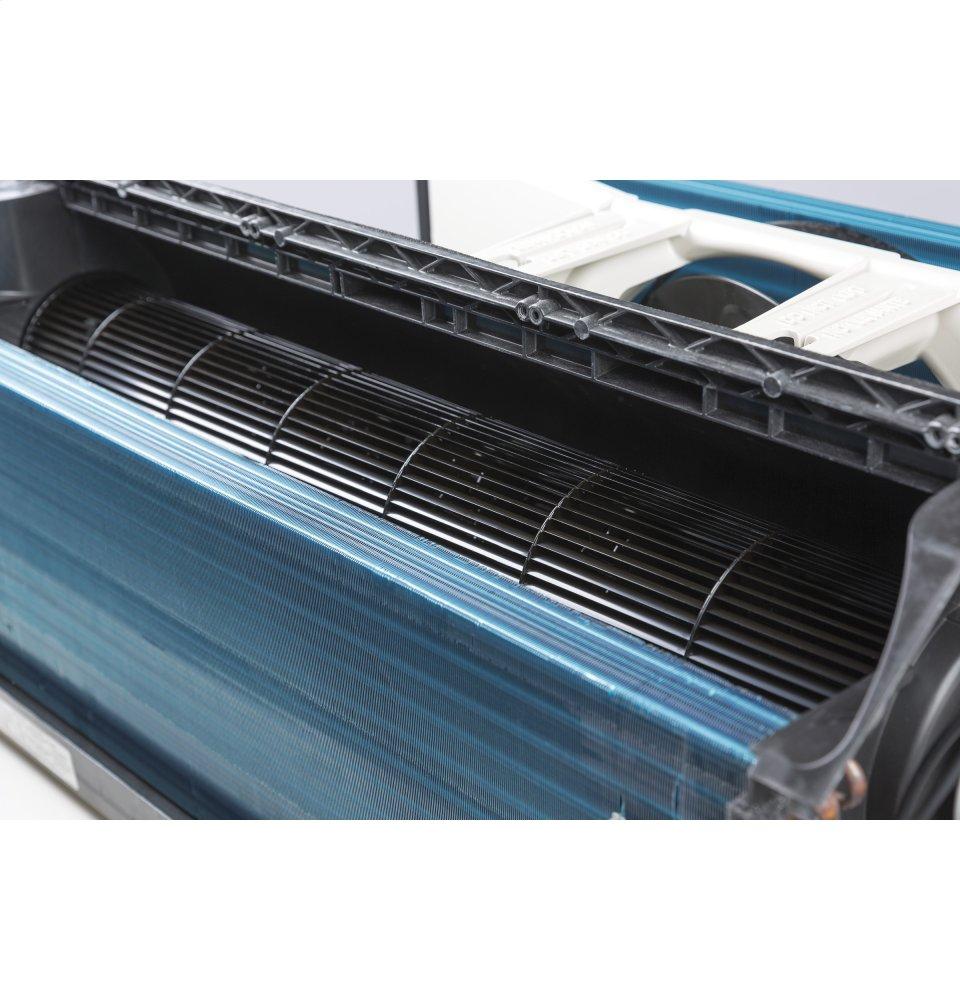

Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort

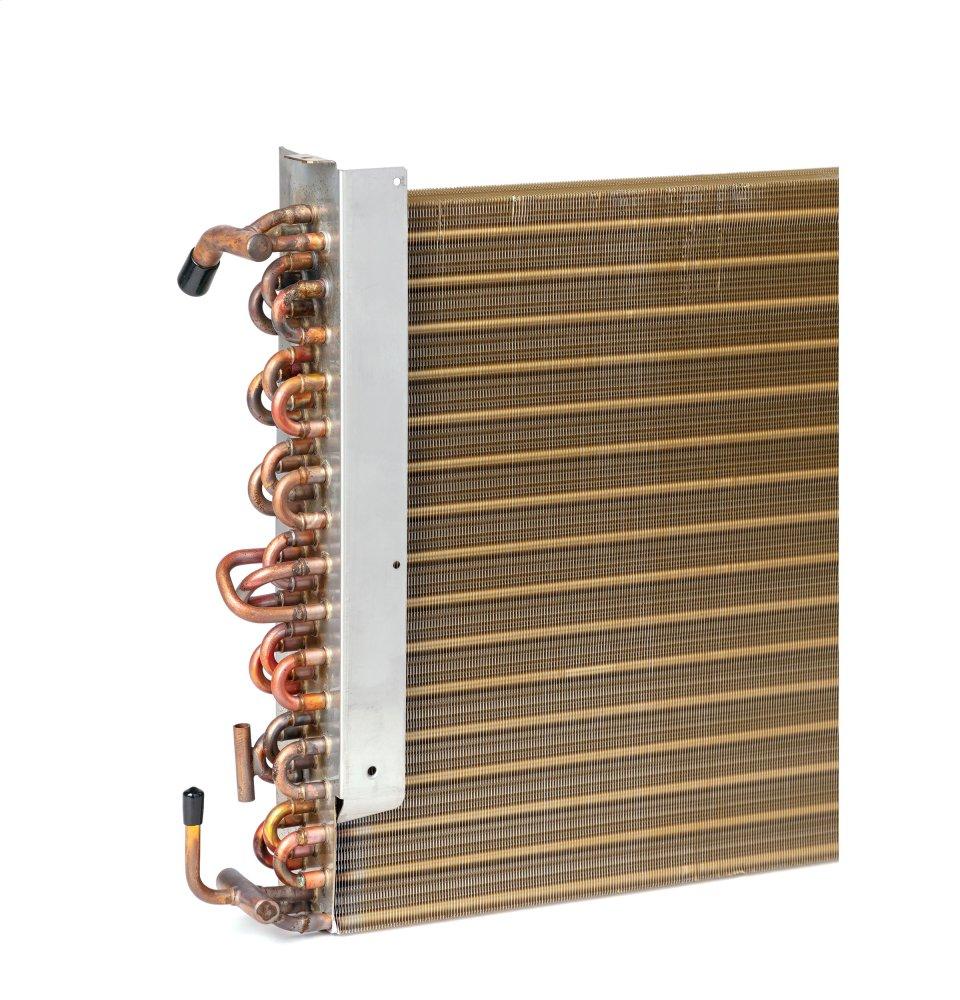

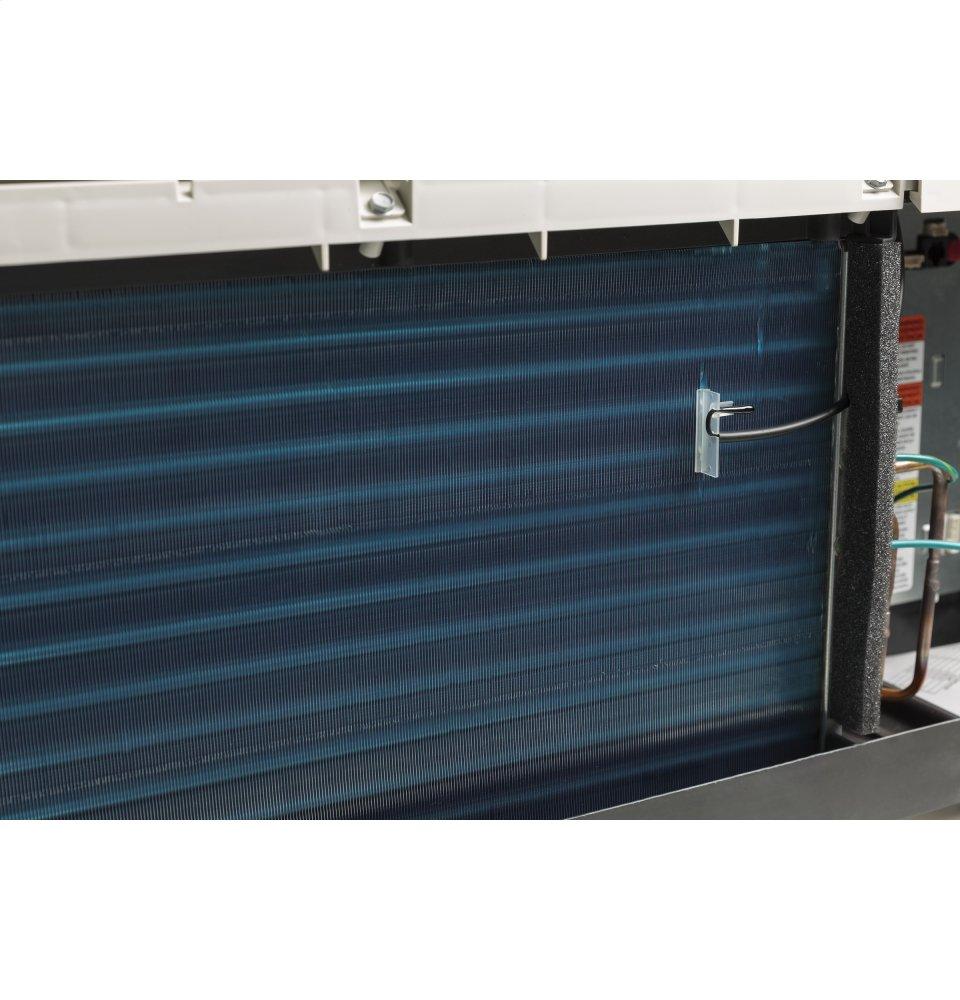

Corrosion resistant
Extends life of the unit in sea coast areas/corrosive environments
Heat & Freeze Sentinels
Keeps the room from overheating or freezing
Boost heat option
Provides supplemental resistance heat in heat pump mode
CAPACITY | |
Cooling BTUH (MIN) | 11900.0 Btu |
Cooling EER (BTUH / Watt) | 11.6 |
CFM Indoor Fan High | 410 |
CFM Indoor Fan Low | 300 |
Dehumidification (pts./hr.) | 3.7 |
Heating - Reverse Cycle - BTUH | 10300 |
Vent CFM (high fan at zero ESP) | 45 |
FEATURES | |
Control Type | Standard Microcomputer Tactile touch pad with LED Display |
Corrosion Treated | Yes |
Discharge Grille | 2-position |
Electronic Micro Computer Control | Yes |
Fan Cycle Switch | Yes |
Fan Motor | 2 |
Fan Speed Control | Yes |
Fan Speed Selections | Hi/Low Cooling Hi/Low Fan Only Hi/Low Heating |

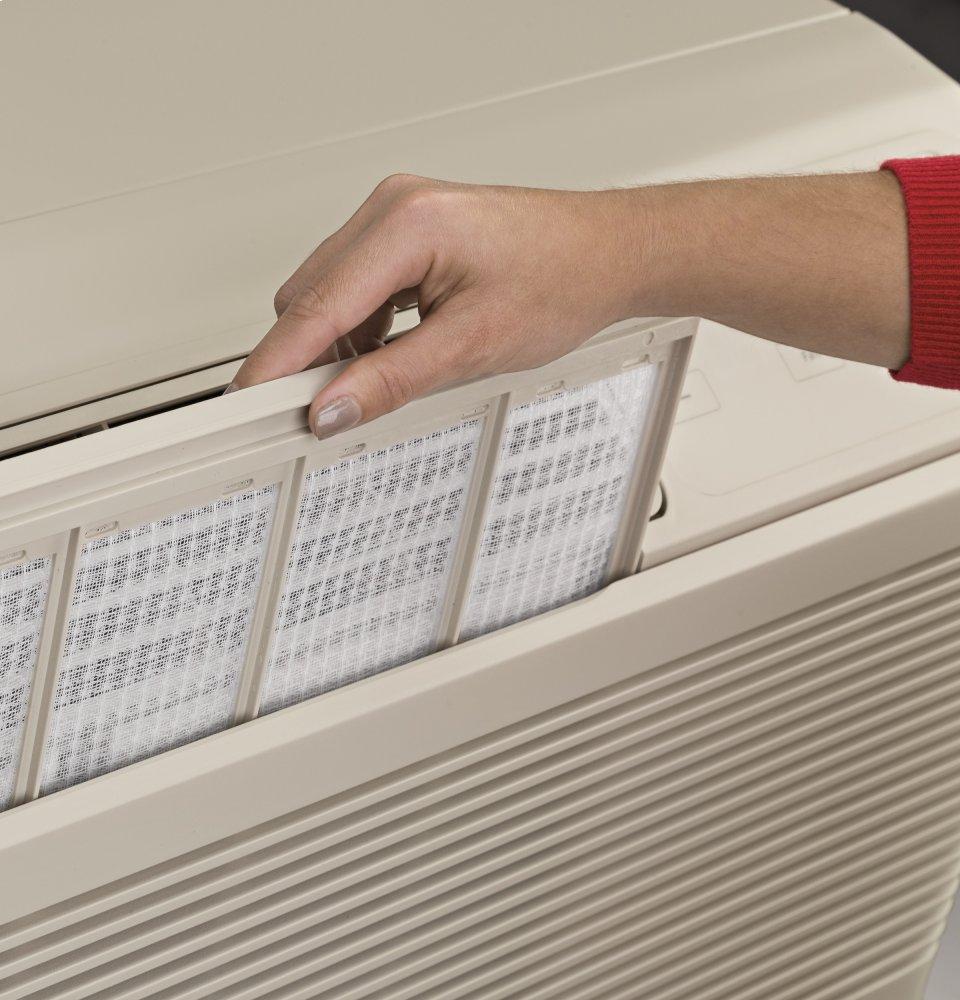

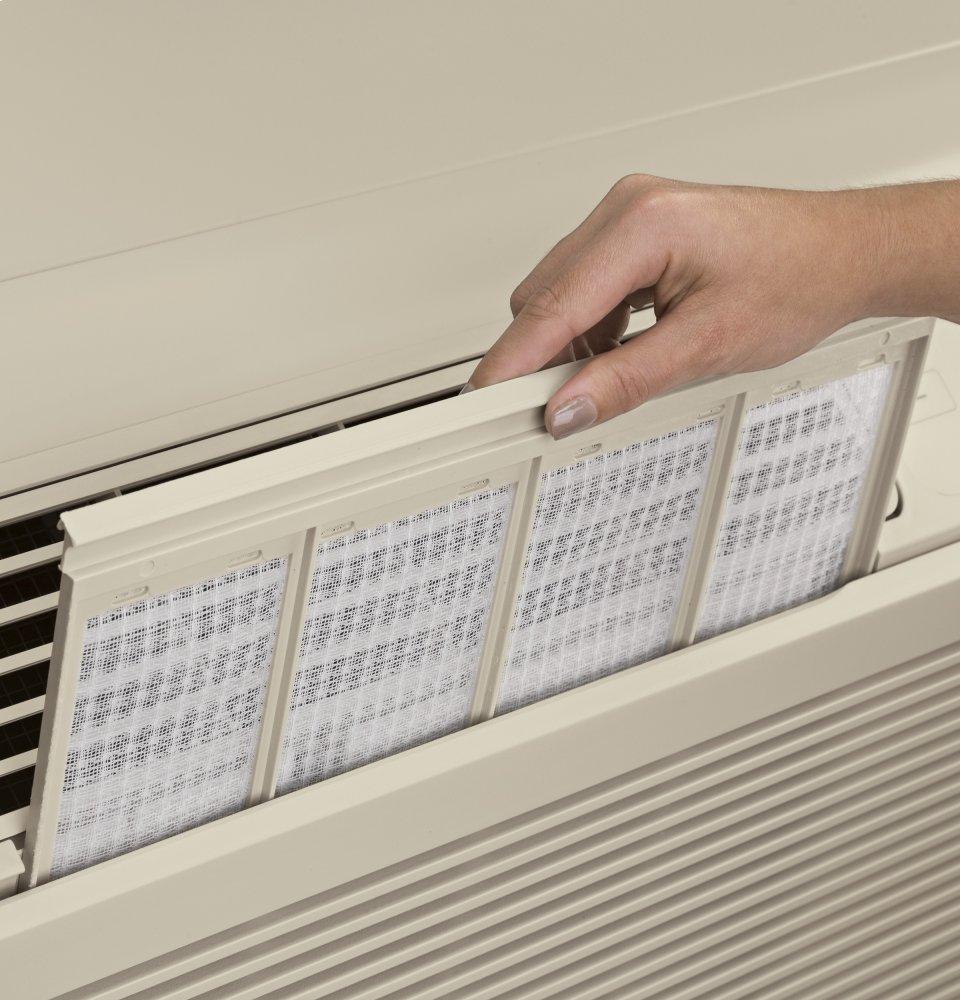

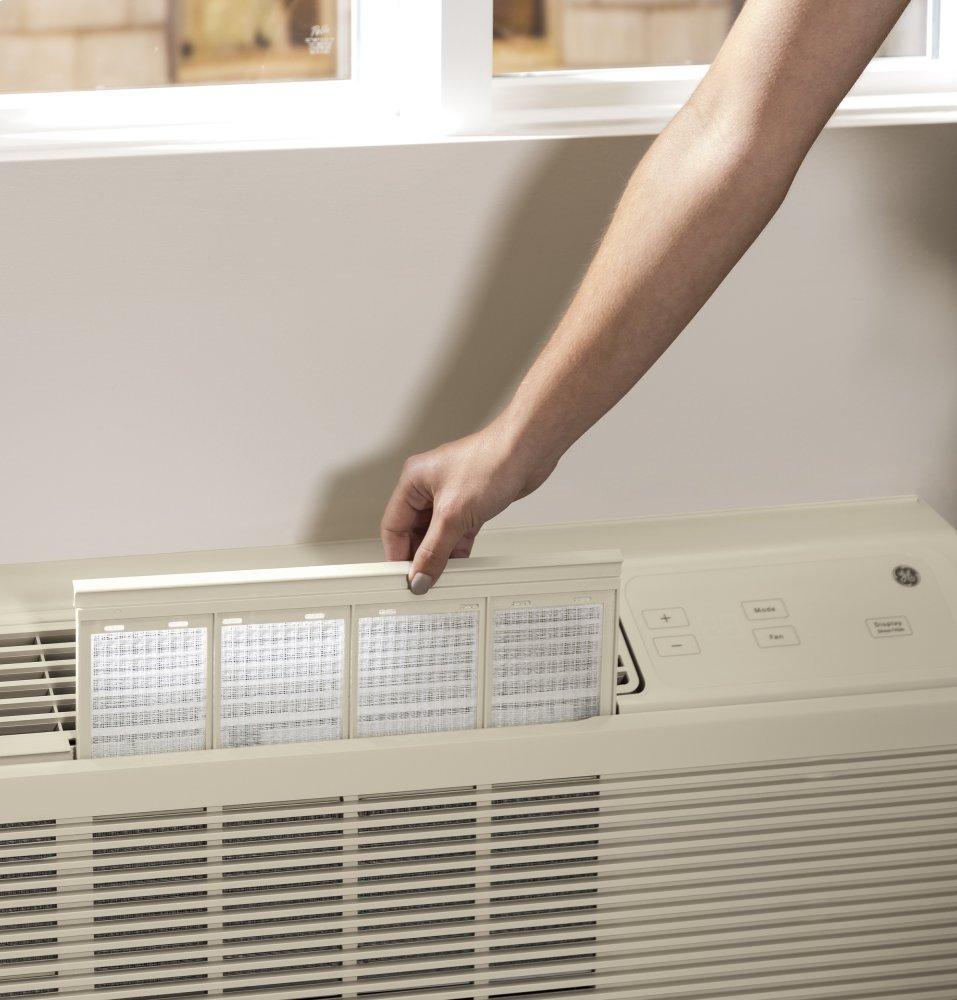

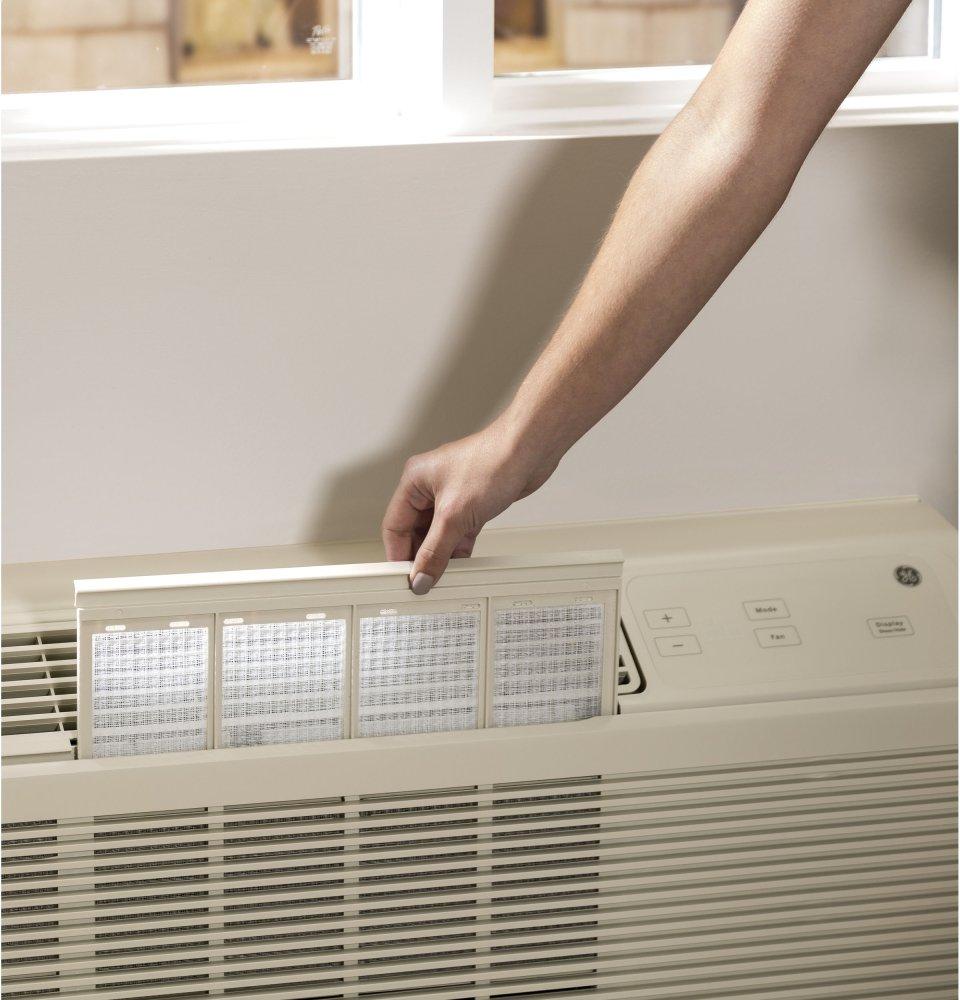

Filter Type | Rigid Frame Slide-Out |
Heat - Cool | Yes |
Louver Style | Reversible |
Manual Vent Control | Hidden |
Rotary Compressor | Yes |
Temperature Limiting | Electronic 7-Step |
Vent Control | 3-position |
Venting Features | Concealed Manual Vent Control Outdoor Vent Control - 3 Positions Vent Air Filter |

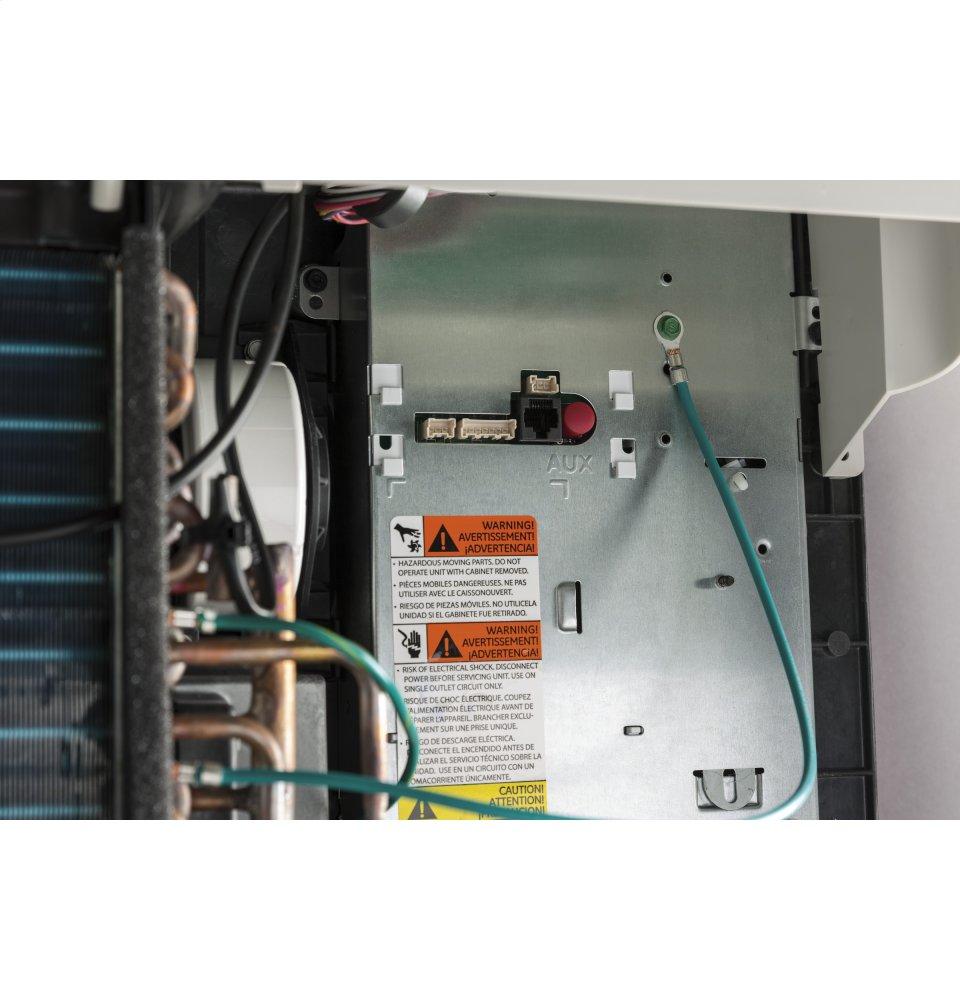

Zoneline Features | Heat Sentinel Power Cord (LDCI) included Proportional - Integral ID Airflow Quick Heat Recovery Random Twist/Length Segment Tangential Blower Remote Thermostat Compatibility Reverse Cycle Defrost Universal Heaters Weather Protected Electrical Components 3-Stage Heating Design Auto Power Recovery Automatic Emergency Heat Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Heat Pump with Resistance Heat Backup Heat Pump with Supplemental Resistance Heat |
Heating System | Heat Pump |
Product Type | Packaged Terminal Air Conditioners (PTAC) |
Temperature Range | 60 - 85 F |
Sensible Heat Ratio | 62% |

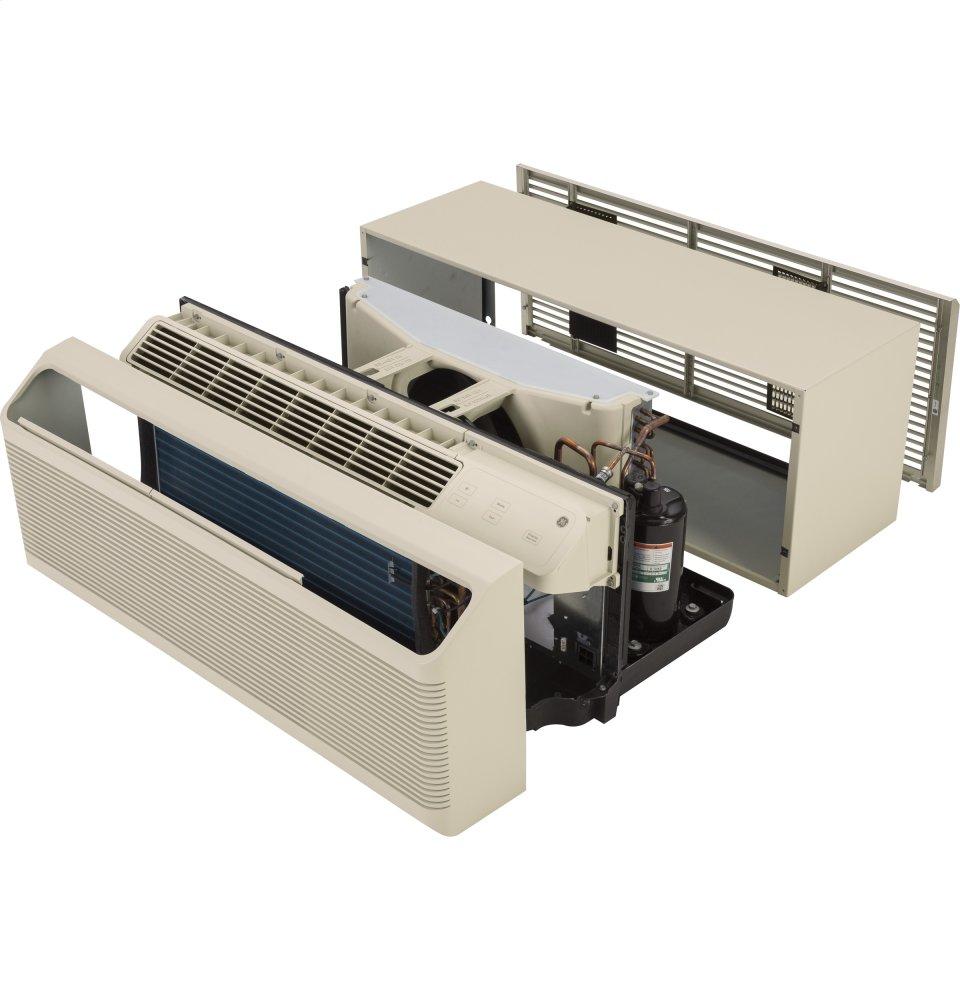

Chassis Type | Slide-In |
POWER / RATINGS | |
Cooling - Amperes; F.L. - Cooling | 4.0 |
Cooling - Amperes; L.R. | 23.5 |
Cooling - Watts | 1025 |
Heating - Reverse Cycle - Amps | 3.5 |
Heating - Reverse Cycle - COP | 3.6 |
Heating - Reverse Cycle - Watts | 860 |
Power Factor | 97 |
Voltage (MAX) | 265.0 V |
WARRANTY | |
Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
Warranty Notes | See written warranty for full details |
WEIGHTS & DIMENSIONS | |
Net Weight | 110.0 lb |
Overall Depth | 20.8125 in |
Overall Height | 16.0 in |
Overall Width | 42.0 in |
